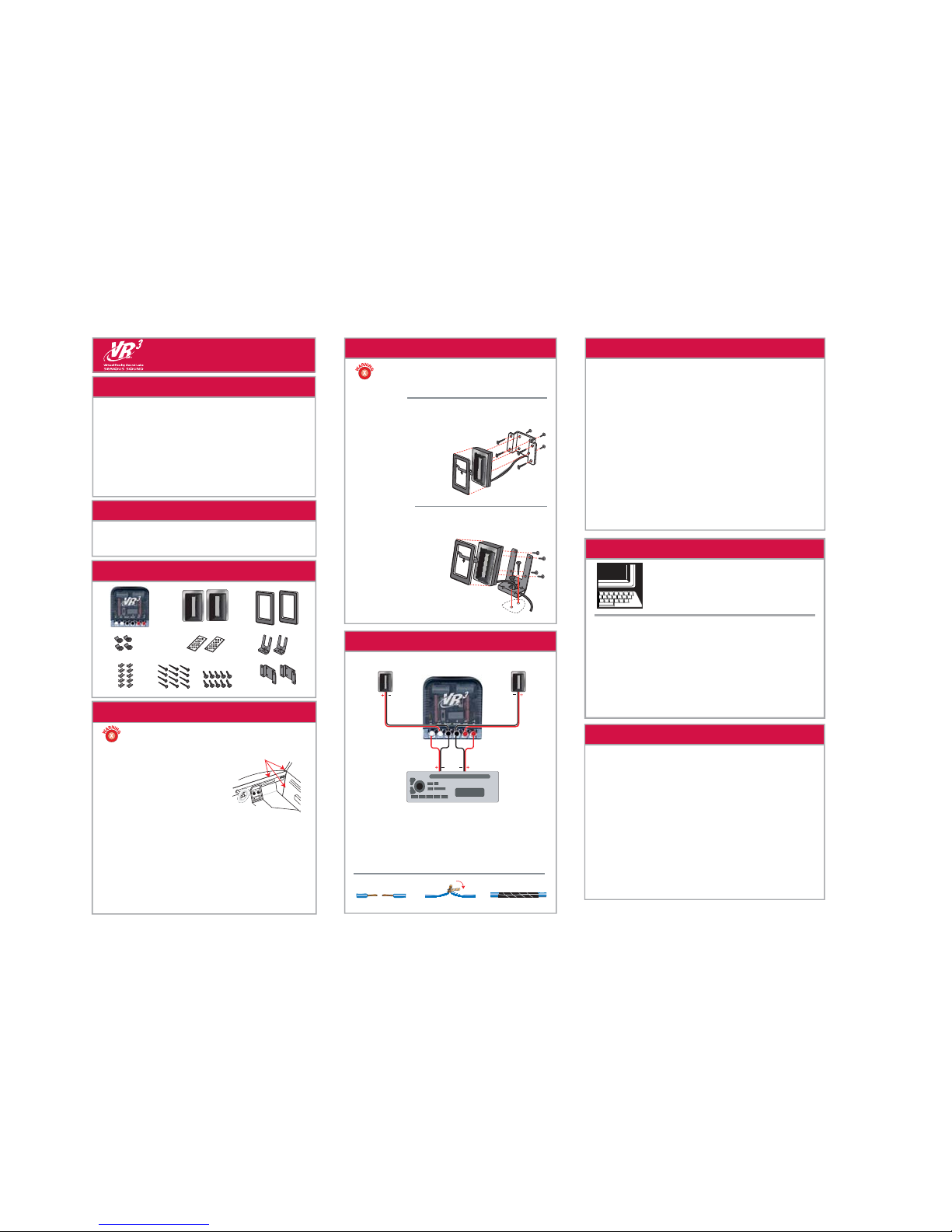

Roadmaster Ribbon Tweeters VRT18 User manual
Read First!
1 Pair VRT18 Ribbon Tweeters
Dear Customer,
CONGRATULATIONS. The VRT18 Ribbon Tweeters, when used as described, will give you
years of dependable service in your car, truck, RV or mini-van. We have taken numerous
measures in quality control to ensure that your product arrives in top condition, and will
perform to your satisfaction. In the rare event that your VRT18 Ribbon Tweeters contain a
damaged or missing item; does not perform as specified; requires warranty service or you
have a installation problem, DO NOT RETURN THIS PRODUCT TO THE STORE. Please
call our TOLL FREE number US (800) 445-1797 and ask to speak with a member of our
and a member of our technical service team will respond by E-Mail to your questions. Our
in-house technical service team will expedite delivery of your part, or advise you on
installation, or help troubleshoot a problem with you. If your product needs warranty service,
our technical service team representative will help you obtain the fastest remedy possible
under the warranty.
Specifications
Parts
• 150 Watts Maximum Power per Pair
• 80 Watts RMS per Pair
• Sensitivity: 90 db 1W/1M
• Crossover Frequency:
3,500 Hz – 12 db / Octave
The VRT18 Ribbon tweeters can be surface or
angle mounted. Possible locations for
mounting the VRT18 Ribbon tweeters are the
dashboard, roof pillars, interior panels, door
panels and ceiling panels.
• Impedance: 4 Ohms per Tweeter
• Frequency Response:
3,000 Hz ~ 40,000 Hz ± 3 db
• Ribbon Material: Kapton 8mm X 45 mm
Location
Wiring
What makes “Ribbon” tweeters better than” Dome” tweeters?
Ribbon tweeters use a very low mass metallic ribbon to reproduce faster, more sparkling
highs. Dome tweeters use the same type of voice coil as regular speakers.
Don’t “Ribbon” tweeters have lower impedance than 4 Ohms?
Because “Ribbons” do not use a voice coil they do have lower impedance than dome
tweeters. This is corrected by a built-in impedance matching transformer that gives them a
constant 4 Ohm impedance.
The frequency response claims 3,000 Hz to 40,000 Hz. Is that real?
Yes. The human ear cannot hear sounds above 20,000 Hz, but it can perceive harmonics
well above that. Ribbon tweeters are known for exhibiting extremely wide frequency
response.
Why is the Crossover network needed? Can’t I just connect the ribbon tweeters
directly to my speaker wires?
The Crossover network protects the Ribbon tweeters from being damaged by low
frequencies. This permits the Ribbons to play at higher volume settings.
One of my VRT18 Ribbon tweeters is not producing any sound. What should I do?
Call Technical Service (1-800-445-1797) for assistance.
Recommended Method For Splicing Wires
#1
Strip 1/2" of insulation from the ends of the wires.
#2 #3
Twist together and bend as shown. Wrap with electrical tape.
Mounting
Flat Surface Mount
1. Attach the flat surface mount
brackets to the Ribbon tweeters using
the supplied screws.
2.
Attach the brackets to the selected
location using the supplied screws.
3.
Route the wires to the Crossover
network and connect them by pushing
down on the Quick release terminals
and inserting the wires into the holes.
Release the terminal to secure the
wire.
Angled Surface Mount
1. Attach the angled surface mount
brackets to the Ribbon tweeters
using the supplied screws
2.
Attach the brackets to the
selected location using the supplied
screws.
3.
Route the wires to the Crossover
network and connect them by
pushing down on the Quick release
terminals and inserting the wires
into the holes. Release the terminal
to secure the wire.
If you are installing the VRT18 Ribbon speakers to upgrade/replace your
existing speakers, mark the polarity of the speaker wires, disconnect the
speaker wires and remove the existing speakers from your vehicle.
Temporarily place the VRT18 Ribbon speakers in the location you selected in
your vehicle and connect the existing speaker wires. Temporary placement of
the speakers in the vehicle helps in estimating length of wiring needed, as
well as, how the speakers will sound in various locations of the vehicle.
We understand that automotive audio equipment installations can be
troublesome at times, even to the most experienced of installation
technicians. If you are not confident working with electrical wiring, removing
and reinstalling interior panels, carpeting, dashboards or other components
of your vehicle, please call our TOLL FREE help line (800)445-1797 and our
in-house technical service team will answer your installation questions.
Possible Mounting Locations
COLOR OF WIRES ARE FOR ILLUSTRATION ONLY.
Connect the “Front Channel’ speaker wires to the Crossover network inputs.
The Crossover network has crossover circuits for both Left & Right channels.
Observe proper polarity for each pair of speaker wires.
Connect the VRT18 Ribbon Tweeter wires to the Crossover network outputs,
observing proper polarity for each tweeter.
Wires may be spliced using the method shown in the drawing below, or use
the supplied “Scotchlok” connectors.
Frequently Asked Questions
NOTES
Limited Warranty
Give Us a Call, We'll Help You Install
GIVE US A CALL, WE'LL HELP YOU INSTALL.
1-800-445-1797
PLEASE DO NOT RETURN PRODUCT TO STORE.
Visit us on the WEB
www.vr-3.com
For Information and Technical Assistance,
Call Toll-Free in U.S.A. and Canada.
VIRTUAL REALITY SOUND LABS®products are designed and manufactured to provide a high level of trouble-free performance. VIRTUAL
REALITY SOUND LABS®warrants, to the original purchaser, that its products are free from defects in material and workmanship for 30 days
from the date of original purchase. As part of our commitment to product excellence, VIRTUAL REALITY SOUND LABS®and/or its affiliates
routinely improve the designs, materials or production methods of its existing products. Because it is impractical to publicize all changes in
every product, we reserve the right to make such changes without notice.
CONDITIONS OF WARRANTY:
If during the 30 day warranty period your new product is found to be defective, VIRTUAL REALITY SOUND LABS®will repair such defect, or
replace the product, without charge for parts or labor subject to the following conditions:
1.
All repairs must be performed by VIRTUAL REALITY SOUND LABS
®
and/or its affiliates in Eatontown, New Jersey.
2. T
he equipment must not have been altered or been damaged through negligence, accident, or improper operation.
3.
The replacement of parts are exempted from this warranty when replacement is necessary due to normal wear and tear.
4. All warranty claims must be accompanied by a copy of the sales receipt or bill of sale.
5. Repair or replacement parts supplied by VIRTUAL REALITY SOUND LABS®under this warranty are protected only for the unexpired portion
of the original warranty.
6. In the case of car stereos, this warranty does not extend to the elimination of car static or motor noise; correction of antenna problems;
costs incurred for the removal or reinstallation of the product; damage to tapes, speakers, accessories or car electrical systems.
7. VIRTUAL REALITY SOUND LABS®will not be responsible for any charge incurred for installation.
OWNER’S RESPONSIBILITIES:
VIRTUAL REALITY SOUND LABS
®
will make every effort to provide warranty service within a reasonable period of time.
SHOULD YOU HAVE ANY QUESTIONS ABOUT SERVICE RECEIVED, OR IF YOU WOULD LIKE ASSISTANCE IN OBTAINING SERVICE,
PLEASE CALL TOLL FREE 1-800-445-1797, 8:30am - 4:30pm EST.
In order to provide you with the proper warranty service, we request that you adhere to the following procedure:
1. Include a copy of your sales receipt or bill of sale with your unit when it is returned for warranty service.
2. If it is necessary to return your product for service, please return it securely packed, preferably in the original shipping carton, and freight and
insurance prepaid to the following address: VIRTUAL REALITY SOUND LABS, Service Department, 41 James Way, Eatontown, New Jersey
07724.
3. Please include a detailed explanation of the problem you are having.
4. If your product is found by VIRTUAL REALITY SOUND LABS®to have a defect in material or workmanship, within the warranty period, it will
be repaired or replaced at no charge and returned to you prepaid. Where permitted by Iaw VIRTUAL REALITY SOUND LABS®liability shall be
limited to that set forth in this warranty. This warranty shall be the exclusive remedy of the purchaser.
VIRTUAL REALITY SOUND LABS®makes no other warranty of any kind, expressed or implied; and all implied warranties, are hereby
disclaimed by VIRTUAL REALITY SOUND LABS®and excluded from this warranty, VIRTUAL REALITY SOUND LABS®and/or its affiliates, the
manufacturer, distributor and seller shall not be liable for any injury, loss or damage, incidental or consequential, arising out of the use or
intended use of the product.
