FOREWORD
Thank you very much for purchasing a ROBIN PUMP.
This manual covers operation and maintenance of ROBIN PUMP.
All information in this publication is based on the latest product information available at the
time of approval for printing. Please read this manual carefully before operating.
Please take a moment to familiarize yourself with the proper operation and maintenance
procedures in order to maximize the safe and efficient use of this product.
Keep this owner’s manual at hand, so that you can refer to it at any time.
Due to constant efforts to improve our products, certain procedures and specifications are
subjected to change without notice.
When ordering spare parts, always give us the MODEL, PRODUCTION NUMBER and SERIAL
NUMBER of your pump.
Please fill in the following blanks after checking the production number on your pump.
(Location of label is different depending on the pump specification.)
CONTENTS
Page
1. SAFETY PRECAUTIONS................................................................................... 2
2. COMPONENTS .................................................................................................. 5
3. PRE-OPERATION FOR STARTING .................................................................. 6
4. OPERATING YOUR PUMP ................................................................................ 7
5. MAINTENANCE ................................................................................................. 7
6. PREPARATIONS FOR STORAGE..................................................................... 10
7. OIL SENSOR INSTRUCTIONS ............................................................................ 10
8. SPARK ARRESTER (OPTIONAL)...................................................................... 10
9. EASY TROUBLESHOOTING ............................................................................. 11
10. SPECIFICATIONS .............................................................................................. 12
PROD No. / SER No.
(Label)
SER No. (Stamping)
PROD No.
SER No.
NOTE Please refer to the illustrations on the back page of the front
cover or back cover for Fig. 11
11
1 to ii
ii
iindicated in the sentence.
PKX(US)PU2117.p7 05.8.3, 7:11 PMPage 1 AdobePageMaker7.0J/PPC

2
ENGLISH
FRANÇAISE
ESPAÑOL
: EXHAUST PRECAUTIONS
■Never inhale exhaust gasses.
They contain carbon monoxide, a colorless, odorless and extremely dangerous gas
which can cause unconsciousness or death.
■Never operate the pump indoors or in a poorly ventilated area, such as tunnel, cave,
etc.
■Exercise extreme care when operating the pump near people or animals.
■Keep the exhaust pipe free of foreign objects.
: REFUELING PRECAUTIONS
■Gasoline is extremely flammable and its vapors can explode if ignited.
■Do not refuel indoors or in a poorly ventilated area.
■Be sure to stop the pump prior to refueling.
■Do not remove fuel tank cap nor fill fuel tank while engine is hot or running.
Allow engine to cool at least 2 minutes before refueling.
■Do not overfill the fuel tank.
■If fuel is spilt, wipe it away carefully and wait until the fuel has dried before starting the
engine.
■After refueling, make sure that the fuel cap is secured to prevent spillage.
: FIRE PREVENTION
■Do not operate the pump while smoking or near an open flame.
■Do not use around dry brush, twigs, cloth rags, or other flammable materials.
■Keep cooling air intake (recoil starter area) and muffler side of the engine at least
1 meter (3 feet) away from buildings, obstructions and other burnable objects.
■Keep the pump away from flammables and other hazardous materials (trash, rags,
lubricants, explosives).
: OTHER SAFETY PRECAUTIONS
■Be careful of hot parts.
The muffler and other engine parts become very hot while the pump is running or just
after it has stopped. Operate the pump in a safe area and keep children away from
the running pump.
■Do not use diaphram pump for the mixture of water and oil.
1. SAFETY PRECAUTIONS
WARNING
Please make sure you review each precaution carefully.
Pay special attention to statement preceded by the following words.
WARNING
WARNING
WARNING
WARNING
CAUTION
“WARNING” indicates a strong possibility of severe personal injury or loss of life if
instructions are not followed.
“CAUTION” indicates a possibility of personal injury or equipment damage if instructions
are not followed.
1m
1m
PKX(US)PU2117.p7 05.8.3, 7:11 PMPage 2 AdobePageMaker7.0J/PPC

3
ENGLISH
FRANÇAISE
ESPAÑOL
■Do not touch the spark plug and ignition cable when starting and operating the engine.
■Operate the pump on a stable, level surface.
If the engine is tilted, fuel spillage may result.
■Do not transport the pump with fuel in tank or with fuel strainer cock open.
■Keep the unit dry (do not operate it in rainy conditions).
: PRE-OPERATION CHECKS
■Carefully check fuel hoses and joints for looseness and fuel leakage. Leaked fuel
creates a potentially dangerous situation.
■Check bolts and nuts for looseness. A loose bolt or nut may cause serious engine
trouble.
■Check the engine oil and refill if necessary.
■Check the fuel level and refill if necessary. Take care not to overfill the tank.
■Keep cylinder fins and recoil starter free of dirt, grass and other debris.
■Wear snug fitting working clothes when operating the engine.
Loose aprons, towels, belt, etc., may be caught in the engine or drive train, causing a
dangerous situation.
NOTE
Operating the pump at a steep incline may cause seizure due to improper lubrication
even with a maximum oil level.
CAUTION
PKX(US)PU2117.p7 05.8.3, 7:11 PMPage 3 AdobePageMaker7.0J/PPC

4
ENGLISH
FRANÇAISE
ESPAÑOL
Read the owner's manual.
Stay clear of the hot surface.
Exhaust gas is poisonous.
Do not operate in an unventilated area.
Stop the engine before refueling.
Fire, open flame and smoking prohibited.
On (Run) Plus ; Positive polarity
Off (Stop) Battery
Engine oil Engine start
(Electric start)
Add oil
SYMBOLS
PKX(US)PU2117.p7 05.8.3, 7:11 PMPage 4 AdobePageMaker7.0J/PPC

5
ENGLISH
FRANÇAISE
ESPAÑOL
qPlug (drain)
wSuction
eDelivery
rFrame
tPlug (priming)
yMuffler
uSpark plug
iOil filler (with oil guage)
oFuel tank
!0 Casing cover
!1 Drain plug (at two places)
!2 Stop Switch
!3 Recoil starter
!4 Recoil Starter handle
!5 Fuel cock
!6 Chocke lever
!7 Air cleaner
!8 Speed control lever
CENTRIFUGAL PUMP (PKX201,301,401,201H)
SEMI TRASH PUMP (PKX201ST,301ST)
(See Fig. 11
11
1
-
qq
qq
q)
!9 Strainer
@0 Cushion rubber
@1 Hose coupling
@2 Hose band
@3 Tools
@4 Instruction for use
(This publication)
qPlug (drain)
wCasing
eSuction
rFrame
tPlug (priming)
yMuffler
uAir cleaner
iSpark plug
oDrain plug (at two places)
!0 Casing cover
!1 Fuel tank
!2 Delivery
!3 Knob
!4 Oil filler (with oil guage)
!5 Stop switch
!6 Recoil Starter
!7 Recoil Starter handle
!8 Fuel cock
!9 Chocke lever
@0 Speed control lever
TRASH PUMP (PKX201T, 301T)
(See Fig. 11
11
1
-
ww
ww
w)
@1 Strainer
@2 Cushion rubber
@3 Hose coupling
@4 Hose band
@5 Tools
@6 Instruction for use
(This publication)
2. COMPONENTS
(See Fig. 11
11
1)
NOTE Please refer to the illustrations on the back page of the front
cover or back cover for Fig. 11
11
1 to ii
ii
iindicated in the sentence.
PKX(US)PU2117.p7 05.8.3, 7:11 PMPage 5 AdobePageMaker7.0J/PPC

6
ENGLISH
FRANÇAISE
ESPAÑOL
3. PRE-OPERATION FOR STARTING
(See Fig. 22
22
2)
■Stop the engine and open the cap.
■Use automotive unleaded gasoline only.
This engine is certified to operate on automotive unleaded
gasoline.
Fuel Tank Capacity
Refer to “10. SPECIFICATIONS”Page 12 for fuel tank capacity
■Close the fuel cock before filling the fuel tank.
■Do not fill above the top of the fuel filter screen (marked w),
or the fuel may overflow when it heats up later and expands.
■When filling the fuel tank, always use the fuel filter screen.
■Wipe off any spilled fuel before starting the engine.
(See Fig.2
- y)
1. CONNECT SUCTION HOSE
(See Fig. 22
22
2
-
qq
qq
q)
Use a reinforced-wall or wire braided hose to prevent suction
collapse.
Since the pump self-priming time is directly proportional to
hose length, a short hose is recommended.
Always use a strainer with the suction hose. Gravel
or debris sucked into the pump will cause serious
damage to the impeller and the pump casting.
CAUTION
2. CONNECT DELIVERY HOSE
(See Fig. 22
22
2
-
ww
ww
w)
When using a fabric hose, always use a hose band to prevent
the hose from disconnecting under high pressure.
4. CHECK FUEL
(See Fig. 22
22
2
-
tt
tt
t)
3. CHECK ENGINE OIL (See Fig. 22
22
2
-
rr
rr
r)
Before checking or refilling engine oil, be sure the engine is
located on stable, level surface and stopped.
■Do not screw the oil gauge into the oil filler neck to check
oil level. If the oil level is low, refill to the upper level with
the following recommended oil.
■Use 4-stroke automotive detergent oil of API service class
SE or higher grade (SG, SH or SJ is recommended).
■Select the viscosity based on the air temperature at the
time of operation as shown in the table. (See Fig.2
- e)
Explanation of Fig.22
22
2
-
rr
rr
r
qOil Gauge
wUpper Level
eLower Level
5. CHECK PRIMING WATER
(See Fig. 22
22
2
-
uu
uu
u)
It is recommended that the water chamber of pump casing
should be primed with full of water before operating.
Model Oil capacity
PKX201, PKX301, PKX201H,
PKX201ST, PKX301ST,
PKX201T
0.6L
PKX401, PKX301T 1.1L
Never attempt to operate the pump without priming
water or the pump will overheat. Extended dry
operation will destroy the mechanical seal.
If the unit has been operated dry, stop the engine
immediately and allow the pump to cool before
adding priming water.
WARNING
Do not refuel while smoking, near an open flame
or other such potential fire hazards. Otherwise
fire accident may occur.
WARNING
PKX(US)PU2117.p7 05.8.3, 7:11 PMPage 6 AdobePageMaker7.0J/PPC

7
ENGLISH
FRANÇAISE
ESPAÑOL
1. STARTING (See Fig. 33
33
3)
(1) Open the fuel cock. (See Fig.3 - q)
(2) Turn the STOP SWITCH to the position “ I” (ON).
(See Fig.3
- w)
(3) Set the speed control lever 1/3 of the way towards the
high speed position. (See Fig.3-e)
(4) Close the choke lever. (See Fig.3
- r)
■If the engine is cold or the ambient temperature is low,
close the choke lever fully.
■If the engine is warm or the ambient temperature is high,
open the choke lever half-way, or keep it fully open.
(5) Pull the starter handle slowly until resistance is felt. This
is the “compression” point. Return the handle to its
original position and pull swiftly. Do not pull out the rope
all the way. After starting the engine, allow the starter
handle to return to its original position while still holding
the handle. (See Fig.3
- t)
(6) After starting the engine, gradually open choke by turning
the choke lever and finally keep it fully opened. Do not
fully open the choke lever immediately when the engine
is cold or the ambient temperature is low, because the
engine may stop. (See Fig.3
- y)
4. OPERATING YOUR PUMP
2. RUNNING (See Fig. 44
44
4)
(1) After the engine starts, set the speed control lever at the
low speed position (L) and warm it up without load for a
few minutes.
(See Fig.4
- q)
(2) Gradually move the speed control lever toward the high
speed position (H) and set it at the required engine speed.
(See Fig.4
- w)
■Whenever high speed operation is not required, slow the
engine down (idle) by moving the speed control lever to
save fuel and extend engine life.
3. STOPPING (See Fig.55
55
5)
(1) Set the speed control lever at the low speed position and
allow the engine to run at low speed for 1 or 2 minutes
before stopping.
(See Fig.5
- q)
(2) Turn the STOP SWITCH counterclockwise to the position
“◯◯
◯◯
◯” (OFF). (See Fig.5-w)
(3) Close the fuel cock. (See Fig.5
- e)
(4) Pull the starter handle slowly and return the handle to its
original position when resistance is felt. This operation is
necessary to prevent outside moist air from intruding
into the combustion chamber. (See Fig.5
- r)
※※
※※
※STOPPING ENGINE WITH THE FUEL COCK
Close the fuel cock and wait for a while until the engine stops.
Avoid to let the fuel remain in the carburator over long periods,
or the passages of the carburator may become clogged with
impurities, and malfunctions may result.
5. MAINTENANCE
(See Fig. 66
66
6)
MAINTENANCE, REPLACEMENT OR REPAIR OF THE EMISSION
CONTROL DEVICES AND SYSTEMS MAY BE PERFORMED BY
ANY NONROAD ENGINE REPAIR ESTABLISHMENT OR
INDIVIDUAL.
1. DAILY INSPECTION
Before running the engine, check the following service items.
q Loose or broken bolts and nuts
w Clean air cleaner element
e Enough clean engine oil
r Leakage of gasoline and engine oil
t Enough gasoline
y Safe surroundings
u Check the priming water
i Excessive vibration, noise
PKX(US)PU2117.p7 05.8.3, 7:11 PMPage 7 AdobePageMaker7.0J/PPC

8
ENGLISH
FRANÇAISE
ESPAÑOL
2. PERIODIC INSPECTION
Periodic maintenance is vital to the safe and efficient operation
of your pump.
Check the table below for periodic maintenance intervals.
IT IS ALSO NECESSARY FOR THE USER OF THIS PUMP
TO CONDUCT THE MAINTENANCE AND ADJUSTMENTS
ON THE EMISSION-RELATED PARTS LISTED BELOW TO
KEEP THE EMISSION CONTROL SYSTEM EFFECTIVE.
The emission control system consists of the following parts :
(1) Carburetor and internal parts
(2) Cold start enrichment system, if applicable
(3) Intake manifold, if applicable
(4) Air cleaner elements
(5) Spark plug
(6) Magneto or electronic ignition system
(7) Spark advance/ retard system, if applicable
(8) Exhaust manifold, if applicable.
(9) Hoses, belts, connectors, and assembles
The maintenance schedule indicated in the following table is
based on the normal engine operation.
Should the engine be operated in extremely dusty condition
or in heavier loading condition, the maintenance intervals must
be shortened depending on the contamination of oil, clogging
of filter elements, wear of parts, and so on.
Maintenance items
Every
8 hours
(Daily)
Every
50 hours
(Weekly)
Every
200 hours
(Monthly)
Every
500
hours
Every
1000
hours
CLEAN ENGINE AND CHECK
BOLTS AND NUTS ●(Daily)
CHECK AND REFILL ENGINE OIL
CHANGE ENGINE OIL (*Note 1) ●(Initial 20 hours) ●
CLEAN SPARK PLUG ●
CLEAN AIR CLEANER ●
REPLACE AIR CLEANER ELEMENT ●
CLEAN FUEL CUP ●
CLEAN AND ADJUST SPARK PLUG AND ELECTRODES ●
REPLACE SPARK PLUG ●
SPARK ARRESTER (OPTIONAL PART)
REMOVE CARBON FROM
CYLINDER HEAD (*Note 2) ●
CHECK AND ADJUST VALVE
CLEARANCE (*Note 2) ●
CLEAN AND ADJUST CARBURETOR (*Note 2) ●
REPLACE FUEL LINES ●(yearly)
OVERHAUL ENGINE IF NECESSARY (*Note 2) ●
*Note: 1. Initial oil change should be performed after first twenty (20) hours of operation. Thereafter change oil every
hundred (100) hours. Before changing oil, check for a suitable way to dispose of old oil. Do not pour it down
into sewage drains, onto garden soil or into open streams. Your local zoning or environmental regulations will
give you more detailed instructions on proper disposal.
*Note: 2. As to the procedures for these items, please refer to the SERVICE MANUAL or consult your nearest Robin
service dealer.
Periodic Maintenance Schedule table
●(Refill daily up to upper level)
Replace rubber pipes for fuel passage every two
years. If fuel leakage is found, replace the pipe
immediately.
CAUTION
●(Every 100 hours)
●(Every 100 hours)
●(Every 100 hours)
PKX(US)PU2117.p7 05.8.3, 7:11 PMPage 8 AdobePageMaker7.0J/PPC

9
ENGLISH
FRANÇAISE
ESPAÑOL
4. ENGINE OIL CHANGE (See Fig. 77
77
7 -
ww
ww
w,ee
ee
e)
Initial oil change : After 20 hours of operation
Thereafter : Every 100 hours of operation
(1) When changing oil, stop the engine and loosen the drain
plug. Drain the used oil while the engine is warm. Warm
oil drains quickly and completely.
3. INSPECTING THE SPARK PLUG
(See Fig.77
77
7
-
qq
qq
q)
(1) Clean off carbon deposits on the spark plug electrode
using a plug cleaner or wire brush.
(2) Check electrode gap. The gap should be 0.6 mm to 0.7
mm. Adjust the gap, if necessary, by carefully bending
the side electrode.
Recommended Spark Plug : NGK BR-6HS
(CHAMPION RL86C)
(3) Refer to page 6 for the recommended oil.
■Always use the best grade and clean oil. Contaminated
oil, poor quality oil and shortage of oil cause damage to
engine or shorten the engine life.
5. CLEANING FUEL CUP (See Fig. 77
77
7 -
rr
rr
r)
(2) Re-install the drain plug before refilling oil.
To prevent injury, pay attention to the hot oil.
Make sure the fuel cap is tightly secured to avoid
spillage.
CAUTION
Model Oil capacity
PKX201, PKX301, PKX201H,
PKX201ST, PKX301ST,
PKX201T
0.6L
PKX401, PKX301T 1.1L
(1) Inspect fuel cup for water and dirt.
(See Fig.7
- r - q)
(2) To remove water and dirt, close the fuel cock and
remove the fuel cup.
(3) After removing dirt and water, wash the fuel cup with
kerosene or gasoline. Reinstall securely to prevent
leakage.
6. CLEANING AIR CLEANER
(See Fig.77
77
7
-
tt
tt
t,yy
yy
y)
A dirty air cleaner element will cause starting difficulty, power
loss, engine malfunctions, and shorten engine life extremely.
Always keep the air cleaner element clean.
(1) Urethane Foam Element Type
(See Fig.7
- t)
■Remove the element and wash it in kerosene or diesel
fuel. Then saturate it in a mixture of 3 parts kerosene
or diesel fuel and 1 part engine oil. Squeeze the
element to remove the mixture and install it in the air
cleaner.
(2) Urethane Foam Dual Element Type
(See Fig.7
- y)
■Urethane Foam cleaning (See Fig.7
- y - w)
Wash and clean the urethane foam with detergent.
After cleaning, dry it. Clean the urethane foam
element every 50 hours.
■Second element (See Fig.7
- y - q)
Clean by tapping gently to remove dirt and blow off
dust. Never use oil. Clean the paper element every 50
hours of operation, and replace element set every 200
hours.
Clean and replace air cleaner elements more often
when operating in dusty environments.
7. FUEL HOSE REPLACEMENT (See Fig.77
77
7 -
uu
uu
u)
Replace the fuel hose every 1,000 hours or every year.
If fuel leaks from fuel hose, replace the fuel hose immediately.
Take extreme caution when replacing fuel
hose ; gasoline is extremely flammable.
WARNING
8. CHECKING BOLTS, NUTS AND SCREWS
■Retighten loose bolts and nuts.
■Check for fuel and oil leaks.
■Replace damaged parts with new ones.
9. CLEANING PUMP INSIDE
■Turn the knob counterclockwise and open the casing
cover holder.
■Pull the casing toward you, and then remove the casing
and the inner casing.
■Clean the inside of pump casing and casing cover with
clean water.
WARNING Flame Prohibited
WARNING Flame Prohibited
PKX(US)PU2117.p7 05.8.3, 7:11 PMPage 9 AdobePageMaker7.0J/PPC

10
ENGLISH
FRANÇAISE
ESPAÑOL
1. WATER (See Fig.88
88
8 -
qq
qq
q)
Drain all water from the drain plug.
6. PREPARATIONS FOR STORAGE
If you do not use the engine more than 1 month, discharge
fuel to prevent gum in the fuel system and carburetor parts.
■Remove the strainer cup, place the strainer over a
container and open the strainer cock to discharge fuel
from the fuel tank.
■Remove the drain screw of the carburetor float chamber
and discharge fuel.
4. ENGINE OIL (See Fig.88
88
8 -
rr
rr
r)
■Change the engine oil with fresh oil.
■Remove the spark plug, pour about 5 cc of engine oil
into the cylinder, slowly pull the starter handle of the
recoil starter 2 or 3 times, and reinstall the spark plug.
5. CLEAN AND STORE
■Slowly pull the recoil starter handle until resistance is
felt and leave it in that position.
■Clean the pump thoroughly with an oiled cloth, put the
cover on, and store the pump indoors in a well ventilated,
low humidity area.
When retightening drain plug, be sure to clean
the drain plug and the thread of casing.
Otherwise, the thread may be damaged.
CAUTION
2. DISCONNECT THE DELIVERY HOSE
Tilt the pump and drain all water from delivery hole. Severe
damage to pump may result if water freezes in the pumping
chamber.
WARNING Flame Prohibited
3. DISCHARGE FUEL (See Fig.88
88
8 -
ee
ee
e)
1. FUNCTION OF OIL SENSOR
The engine will stop automatically when the oil level falls
below the safety limit. The engine cannot be started unless
the level is raised above the prescribed limit.
(See Fig.2
- r)
2. RESTARTING
(1) Fill the crankcase with oil up to the proper level.
(2) As for restarting and operating the engine, refer to
section “4. OPERATING YOUR PUMP” on page 7.
■Check the wire connector from the engine. It must be
connected securely to the wire from oil sensor.
■When selecting the engine oil, refer to page 6 for the
recommended oil.
7. OIL SENSOR INSTRUCTIONS
(OPTIONAL)
■Prevents the flow of exhaust gas
■Reduces engine output
■Increases fuel consumption
■Makes starting difficult
If the engine has been running, the muffler and the spark
arrester will be very hot. Allow the muffler to cool before
cleaning the spark arrester.

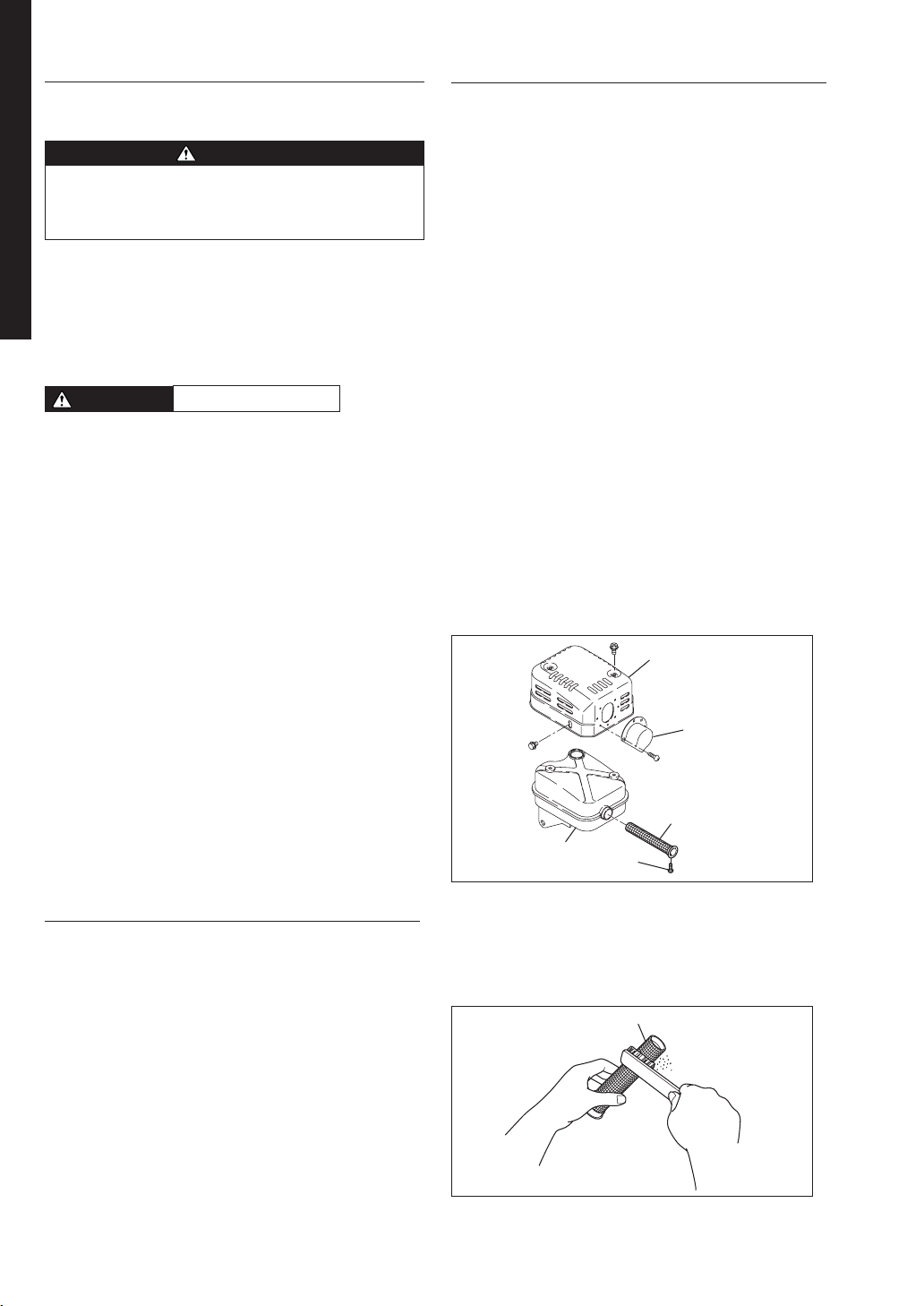

How to remove the spark arrester
1. Remove the flange bolts from the muffler cover and
remove the muffler cover.
2. Remove the special screw from the spark arrester and
remove the spark arrester from the muffler.
Clean the spark arrester screen
Use a brush to remove carbon deposits from the spark
arrester screen. Be careful to avoid damaging the screen.
The spark arrester must be free of breaks and holes.
Replace the spark arrester if it is damaged.
SPARK ARESSTER SCREEN
SPARK
ARRESTER
SCREEN
SCREW
DEFLECTOR
MUFFLER
MUFFLER COVER
Install the spark arrester, and muffler protector in the
reverse order of disassembly.
1. SPARK ARRESTER
In a dry or wooded area, it is recommendable to use the
product with a spark arrester. Some areas require the use
of a spark arrester. Please check your local laws and
regulations before operating your product.
The spark arrester must be cleaned regularly to keep it
functioning as designed. A clogged spark arrester:
8. SPARK ARRESTER (OPTIONAL)
PKX(US)PU2117.p7 05.8.3, 7:11 PMPage 10 AdobePageMaker7.0J/PPC

11
ENGLISH
FRANÇAISE
ESPAÑOL
9. EASY TROUBLESHOOTING
1. PUMP DOES NOT RUN .
■Engine dose not start.
(See 9.-4 “4. WHEN ENGINE DOES NOT START”)
■Sticking of impeller
(Disassemble and clean.)
2. PUMPING VOLUME IS SMALL.
■Sucking air at suction side.
(Check piping at suction side.)
■Drop off engine output
(Consult your nearest dealer.)
■Breakage of mechanical seal.
(Consult your nearest dealer.)
■High suction lift (Lower.)
■Suction hose is too long or thin.
(Use a thick hose in minimum length.)
■Leak of water from water passage.
(Stop leaking.)
■Clogging of foreign substance in impeller.
(Disassemble and clean.)
■Wear of impeller.
■Looseness of suction chamber. (Retighten)
■Strainer is clogged. (Clean.)
■Engine speed is too low.
(Consult your nearest dealer.)
3. PUMP DOES NOT SELFPRIME.
■Suction of air at suction side.
(Check piping at suction side.)
■Insufficient priming water inside pump casing
(Prime fully.)
■Imperfect tightening of drain plug.
(Tighten the plugs completely.)
■Engine speed is too low.
(Consult your nearest dealer.)
■Sucking air from mechanical seal.
(Consult your nearest dealer.)
4. WHEN ENGINE DOES NOT START :
Perform the following checks before you take the pump to
your Robin dealer. If you still have trouble after completing
the checks, take the pump to your nearest Robin dealer.
(1) Is there a strong spark across the electrode ?
■Is the stop switch at position “ I ” (ON)?
■Remove and inspect the spark plug.
If the electrode is fouled, clean or replace it with new
one.
■Remove the spark plug and connect it to the plug cap.
Pull the starter handle while grounding spark plug against
engine body. Try with a new spark plug if the spark is
weak or there is no spark.
The ignition system is faulty if there is no spark with a
new spark plug.
■Wipe out spilled fuel carefully before testing.
Place spark plug as far away from spark plug
hole as possible.
■Do not hold spark plug by hand while pulling
recoil starter.
WARNING
NOTE
The engine with oil sensor will stop automatically when
the oil level falls below the prescribed limit.
Unless the oil level is raised above the prescribed limit,
the engine will stop immediately after starting.
(3) Is the spark plug wet with gasoline?
■Is the fuel cock opened?
■Choke (close choke lever) and pull the starter handle five
or six times. Remove the plug and check if its electrode
is wet. If the electrode is wet, fuel is well supplied to your
engine.
■When the electrode is dry, check where the fuel stops.
(Check the fuel intake of the carburetor.)
■In case the engine does not start with well supplied fuel,
try using fresh fuel.
Pull the starter handle slowly and check if resistance is
felt. If little force is required to pull the starter handle,
check if the spark plug is tightened firmly. If the spark
plug is loose, tighten it.
(2) Is there enough compression?
PKX(US)PU2117.p7 05.8.3, 7:11 PMPage 11 AdobePageMaker7.0J/PPC

12
ENGLISH
FRANÇAISE
ESPAÑOL
10. SPECIFICATIONS
0.12 mm (0.0047 in.)
PKX201
PUMPENGINE
PKX301 PKX401 PKX201ST
Self-priming, Centrifugal pumpType
Suction x Delivery
Diameters mm(in.)
Total Head m(ft)
Maximum Delivery Volume
Liter(U.S.gal) / min
Suction Head m(ft)
Axle Seal Material
(Mechanical Seal)
Model
Type
Lublicant
Oil Capacity Liter (U.S.gal)
Fuel
Fuel Tank Capacity
Liter (U.S.gal)
Spark plug
Starting system
Dimensioms
(L x W x H) mm (in.)
Net Weight kg (lb)
Standard accessories
+0.03
0 +0.0012 0
Valve Clearance
(Intake and Exhaust)
Emissions Durability Period
(California only)
Self-priming, Semi Trash pump
Ceramic - carbon Silicon - carbide
PKX301ST
EX13 EX17 EX27
Robin Air - Cooled, 4 - cycle, OHC, Gasoline Engine
Automotive detergent oil (API / SE or higher grade, SEA / 10W-30 etc.)
EX13 EX17
2.7 (0.71) 3.6 (0.95) 6.1(1.61)
NGK BR-6HS (CHAMPION RL86C)
Recoil starter
2.7 (0.71) 3.6 (0.95)
0.6 (0.16) 1.1 (0.29)
24 (52.91) 30 (66.14) 51 (112.44)
Engine tool kit (1set), Strainer (1pc.), Cussion rubber (1set), Hose band (3pcs.)
Note : Adjust the valve clearance while the engine is cold.
500 hours
25 (55.12) 31 (68.34)
486x357x399
(18.43x14.06x15.71)
505x387x467
(19.88x15.24x18.39)
650x457x645
(25.59x17.99x25.39)
468x357x399
(18.43x14.06x15.71)
505x387x467
(19.88x15.24x18.39)
Automotive unleaded gasoline
0.6 (0.16)
50 x 50 (2 x 2) 80 x 80 (3 x 3) 100 x 100 (4 x 4) 50 x 50 (2 x 2) 80 x 80 (3 x 3)
30 (98) 31 (102) 27 (89) 30 (98) 28 (92)
600 (158) 970 (256) 1350 (356) 580 (153) 930 (246)
8 (26) 8 (26) 8 (26) 8 (26) 8 (26)
MODEL
0.12 mm (0.0047 in.)
PKX201T PKX301T PKX201H
Self-priming, Trash pumpType
Suction x Delivery
Diameters mm(in.)
Total Head m(ft)
Maximum Delivery Volume
Liter(U.S.gal) / min
Suction Head m(ft)
Axle Seal Material
(Mechanical Seal)
Model
Type
Lublicant
Oil Capacity Liter (U.S.gal)
Fuel
Fuel Tank Capacity
Liter (U.S.gal)
Spark plug
Starting system
Dimensioms
(L x W x H) mm (in.)
Net Weight kg (lb)
Standard accessories
+0.03
0 +0.0012 0
Valve Clearance
(Intake and Exhaust)
Emissions Durability Period
(California only)
Self-priming, Centrifugal High Water pump
Ceramic - carbonSilicon - carbide
EX17 EX27
1.1 (0.29)
Robin Air - Cooled, 4 - cycle, OHC, Gasoline Engine
Automotive detergent oil (API / SE or higher grade, SEA / 10W-30 etc.)
EX17
3.6 (0.95) 6.1(1.61)
NGK BR-6HS (CHAMPION RL86C)
Recoil starter
3.6 (0.95)
0.6 (0.16)
48 (105.82) 58 (127.87)
Engine tool kit (1set), Strainer (1pc.), Cussion rubber (1set), Hose band (3pcs.)
Note : Adjust the valve clearance while the engine is cold.
500 hours
32 (70.55)
620x462x481
(24.1x18.19x18.94)
690x485x537
(27.17x19.09x21.14)
520x390x434
(20.47x15.35x17.09)
Automotive unleaded gasoline
0.6 (0.16)
50 x 50 (2 x 2) 80 x 80 (3 x 3) 50 x 50 (2 x 2)
29 (95) 25 (82) 57 (187)
700 (185) 1190 (314) 480 (127)
8 (26) 8 (26) 8 (26)
MODEL
PUMPENGINE
PKX(US)PU2117.p7 05.8.3, 7:11 PMPage 12 AdobePageMaker7.0J/PPC

折り
折り
ISSUE EMD-PU2117
PKX series
201/301/401
201ST/301ST
201H
201T/301T
9ZZ9990035
北米
PRINTED IN JAPAN
May 2005 CE-SK
