ROBINHOOD DWG9P6FSS User manual

Installation and Operating Instructions
Issue: 1
Description: ROBINHOOD 45CM DISHWASHER STAINLESS STEEL
Model Number: DWG9P6FSS
Model pictured: DWG9P6FSS
*Actual unit may differ from image above

Contents
Congratulations!
Thank you for choosing one of our appliances. Before you use the appliance, we strongly recommend that you read
through the whole user manual which provides important safety instructions and description of the product and the
proper use of its functions.
To avoid the ever-present risks involved with using an electrical appliance it is vital that the oven is installed
correctly and that you read the safety instructions carefully to avoid misuse and hazards. It is important that you
retain these instructions and your proof of purchase along with any other important documents about this product
for future reference.
Due to continual product development, Robinhood reserves the right to alter specifications or appearances without
notice.
Important Safety Instructions………………………………………………………………………………………………………………………..3
Appliance Details……………………………………………………………………………………………………………………………………………4
Installation……………………………………………………………………………………………………………………………………………………..5
Operating Instructions………………………………………………………………………………………………………….……………….……….8
Maintenance and cleaning…………………………………………………………………………………………………………………….….….21
Troubleshooting……………………………………………………………………………………………………………………………………………25
Warranty certificate (New Zealand) ………………………………………………………………………………………………………….27
Warranty certificate (Australia) ……………………...……………………………………………………………………………………………28
Disposal Information
•Most of the packing materials are recyclable. Please dispose of these materials through your local recycling
depot or by placing them in appropriate collection containers.
•If you wish to discard this product, please contact your local authorities and ask for the correct method of
disposal.

Important Safety Instructions
When using electrical appliances, in order to reduce the risk of fire, electric shock, and/or injury to
persons, basic safety precautions should always be followed, including
1. This appliance is intended to be used in household and similar applications, such as:
a. staff kitchen areas in shops, offices and other working environments;
b. farm houses;
c. by clients in hotels, motels and other residentialtype environments;
d. bed and breakfast type environments.
2. The appliance is not to be used by persons (including children) with reduced Physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction. Children being supervised not to play with the appliance.
3. The door is not left in the open position since this could present a tripping hazard.
4. When loading items to be washed:
a. Locate sharp items so that they are not likely to damage the door seal.
b. WARNING: Knives and other utensils with sharp points must be loaded in the basket
with their points facing down or placed in a horizontal position.
5. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent
or a similarly qualified person in order to avoid a hazard.
6. After having installed the appliance, the switched outlet must always be in an accessible
position.
7. WARNING: Some dishwasher detergents are strongly alkaline. They can be extremely
dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from
the dishwasher when the door is open. Check that the detergent receptacle is empty after
completion on the wash cycle.
8. Do not place any heavy objects on or stand on the door when it is open. The appliance could
tip forward.
9. Check that the detergent powder is empty after completion of the wash cycle.
10. Use only detergent and rinse additives designed for automatic dishwasher.
11. Do not operate your dishwasher unless all enclosure panels are properly in place.
12. Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
13. The appliance is to be connected to the water mains using new hose sets and that old hose-
sets should not be reused.
14. During installation, the power supply cord must not be excessively or dangerously bent or
flattened.
15. The openings must not be obstructed by a carpet.
16. Maximum: 9 place settings.
17. Maximum: 1 MPa inlet water pressure.
18. Minimum: 0.04 MPa inlet water pressure.
This appliance is for indoor use only, for household use only. To protect against the risk of electrical
shock, do not immerse the unit, cord or plug in water or other liquid.
Please unplug before cleaning and maintenance the appliance .Use a soft cloth moisten with mild
soap, and then use a dry cloth to wipe it again.
3

Appliance details
IMPORTANT:
To get the best performance from your dishwasher, read all operating instructions before using it for
the first time.
Model
DWG9P6FSS
Capacity
9 place settings
Water Pressure
0.04Mpa-1.0Mpa
Supply Voltage
220-240V~ 50 Hz
Rated Power
1850W
Product Size D×W×H (mm)
448x600x845

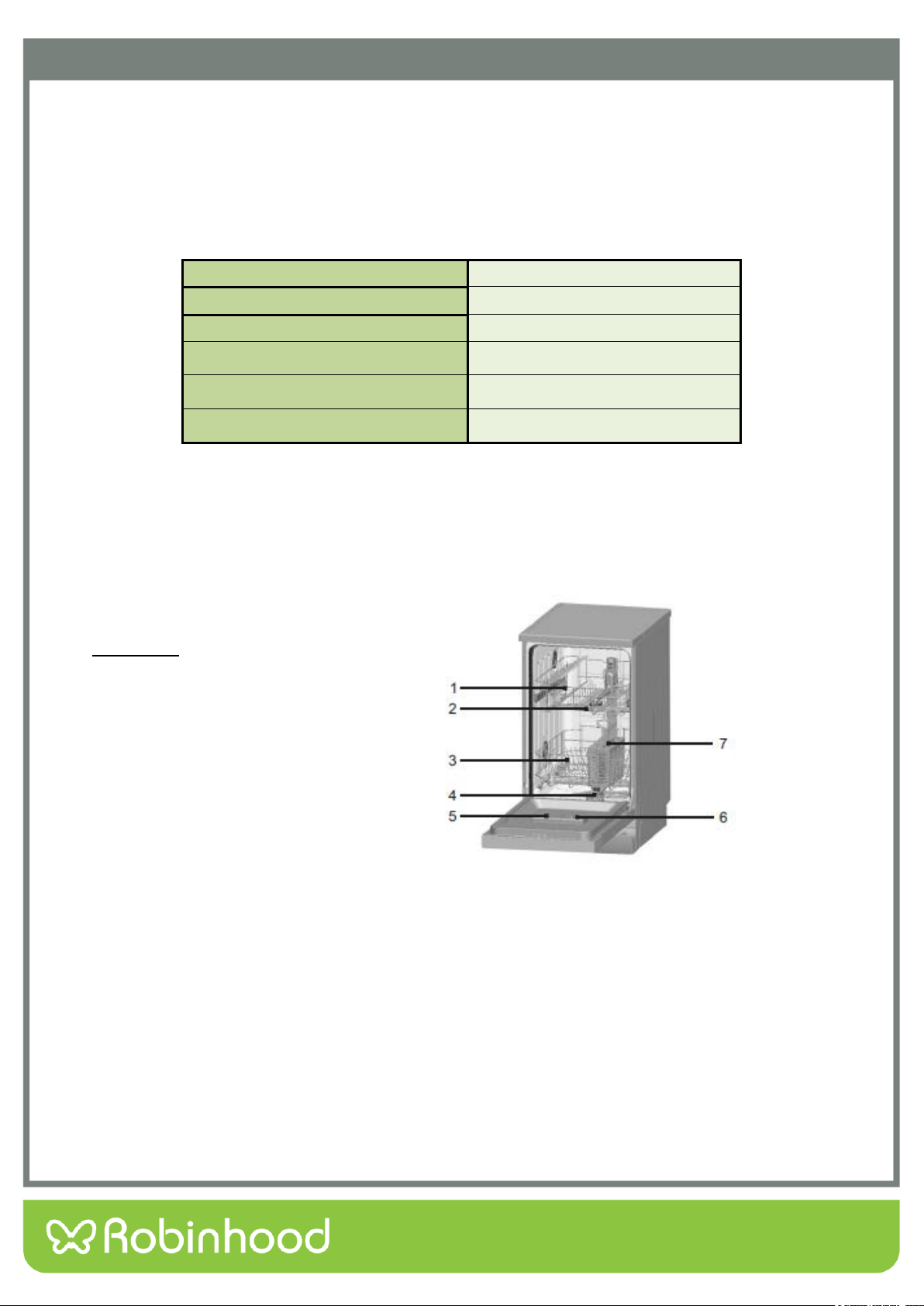

Product Overview
Front View
1. Upper Basket
2. Spray Arms
3. Lower Basket
4. Filters
5. Detergent Dispenser
6. Rinse Aid Dispenser
7. Cutlery Basket
4

Installation Instructions
Warning
•Keep this instruction manual in a safe place for future reference. If the appliance is sold,
given way or moved, please ensure the manual is kept with the machine, so that the new
owner may benefit from the advice contained within it.
•Please read this instruction manual carefully: it contains important information regarding the
safe Installation, use and maintenance of the appliance.
•If the appliance must be moved at any time, keep it in an upright position; if necessary.
it may be tilted onto its back.
Positioning and leveling
•Remove the appliance from all packaging and check that it has not been damaged during
transportation. If it has been damaged, contact the retailer and do not proceed and further
with the installation process.
•Check the dishwasher by placing it so that its sides or back panel are in contact with the
adjacent cabinets or even with the wall. This appliance can also be recessed under a single
workshop.
•Position the dishwasher on a level and sturdy floor. If the floor is uneven, the front feet of the
appliance may be adjusted until it reaches a horizontal position (the angle of inclination must
not exceed 2 degrees). If the appliance is levelled correctly, it will be more stable and much
less likely to move or cause vibrations and noise while it is operation.
Connecting the water and electricity supplies
•Connection to the water and electricity supplies should only be performed by a qualified
technician.
•The dishwasher should not stand on top of the water hoses or the electricity supply cable
•The appliance must be connected to the water supply network using new piping. Do not use
old piping.
Connecting the water inlet hose
•Fit the drainage hose of your machine to the drainage pipe without bending.
•If the length of the hose is not enough, apply to the authorized service for an extension made
from the same material as the original. Remember that the length of the hose should not
exceed 4 meters even when with an extension.
•If the drainage hose is longer the 4 meters. the dishes will not be cleaned properly secure
your hose firmly to the drainage pipe to avoid it coming off during the washing process.
5

Installation Instructions
Connecting the water outlet hose
•Fit the drainage hose of your machine to the drainage pipe without bending.
•If the length of the hose is not sufficient, apply to the authorized service for an extension
made from the same material as the original. Remember that the length of the hose should
not exceed 4meters even when with an extension.
•If the drainage hose is longer the 4 m. the dishes will not be cleaned properly secure your
hose firmly to the drainage pipe to avoid it coming off during the washing process.
Electrical connection
Before inserting the plug into the electrical socket, make sure that:
•The socket is earthed and complies with current regulations.
•The socket can withstand the maximum load of the appliance, which is indicated on the data
plate
•Located on the inside of the door (see description of the appliance).
•The power supply voltage falls within the values indicated on the data plate on the inside of
the door.
•The socket is compatible with the plug of the appliance. If this is not the case, ask an
authorised
tWarning
plug e assistance); do not use extension cables or multiple sockets.
•Once the appliance has been installed, the power supply cable and the electrical socket
should be easily accessible.
•The cable should not be bent or compressed.
•If the power supply cable is damaged, it must be replaced by the manufacturer or its
Technical Assistance Service in order to prevent all potential hazards.
•The company shall not be held responsible for any incidents that occur if these regulations
are not observed.
6

Installation Instructions
Advice regarding the first wash cycle
After the appliance has been installed, immediately before running the first wash cycle, completely
fill the dispenser of Rinse (see Rinse aid).
Positioning the Appliance
Position the appliance in the desired location. The back should rest against the wall behind it, and
the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and
drain hoses that can be positioned to the right or the left to facilitate proper installation.
Levelling the Appliance
Once the appliance is positioned, adjust the feet (screwing them in or out) to adjust the height of the
dishwasher, making it level. In any case, the appliance should not be inclined more than 2.
NOTE: The maximum adjustment height of the feet is 20 mm.
How to Drain Excess Water from Hoses
If the sink is 1000mm higher from the floor, the excess water in hoses cannot be drained directly
into the sink. It will be necessary to drain excess water from hoses into a bowl or a suitable
container that is held outside and lower than the sink.
Water Outlet
Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks.
Ensure that the water inlet hose is not kinked or squashed.
Extension Hose
If you need a drain hose extension, observe to use a similar drain hose.
It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be
reduced.
Syphon Connection
The waste connection must be at a height of between 50cm (minimum) and 100cm (maximum)
from the bottom of the dish. The water drain hose should be fixed by a hose clip.
Things to check before starting the dishwasher
The followings should be checked before starting the dishwasher:
•Whether the dishwasher is level and fixed
•Whether the inlet valve is opened
•Whether there is leakage at the connections of the conducts
•Whether the wires are tightly connected
•Whether the power is switched on
•Whether the inlet and drain hoses are knotted
•All packing materials and printings should be taken out from the dishwasher
7

Operating Instructions

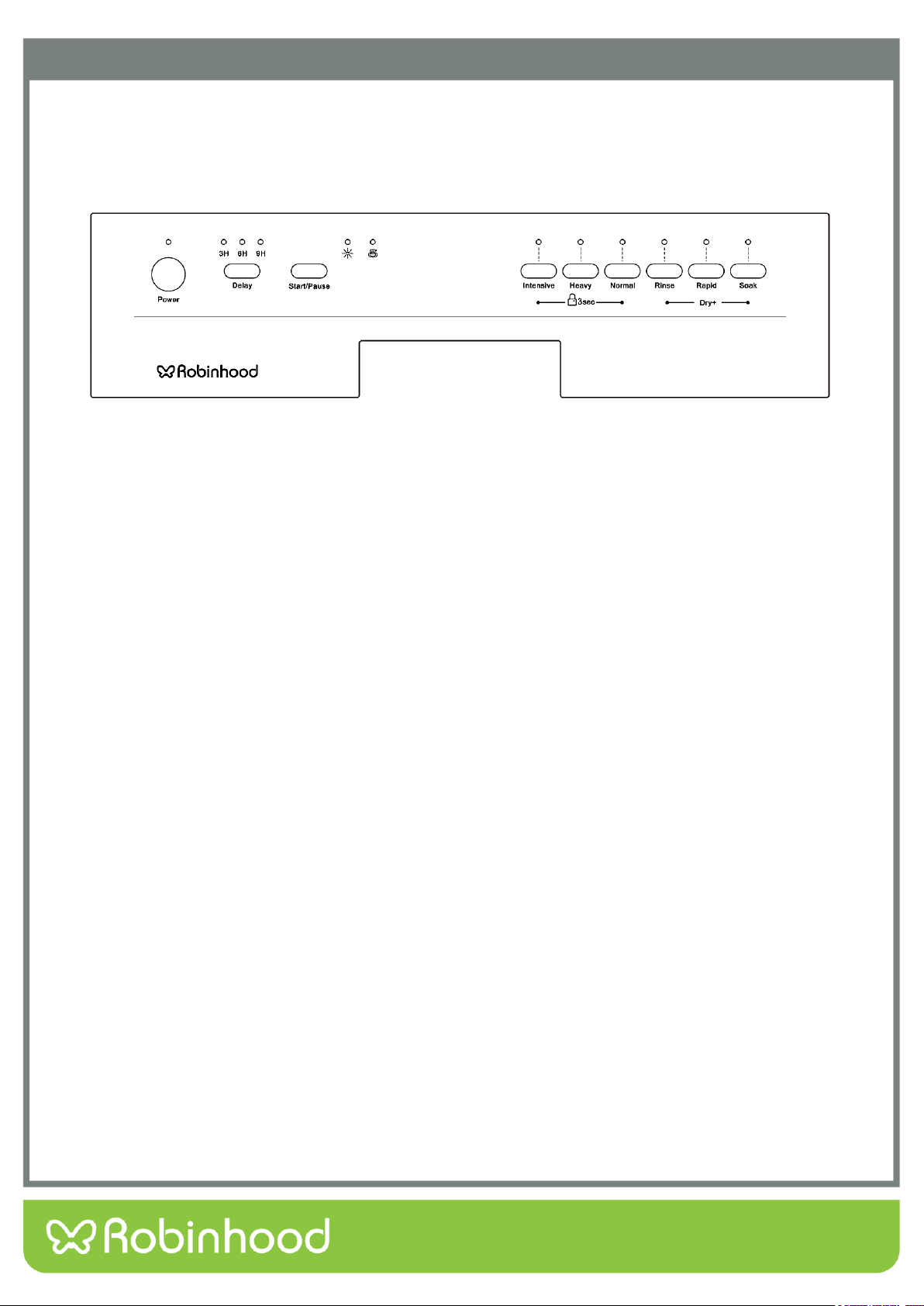

Control Panel
•Power Switch: To control the power supply.
•Delay time: Pressing the DELAY pad once can select 3h delay time, continuous pressing
second time will increase the delay hours to 6h, third time increase to 9h. Continuous
pressing the fourth time can cancel the delay selection.
•Start/Pause Button: Press this button to start or pause the dishwasher.
•Rinse Aid Light: To be lighten up when rinse aid dispenser needs to be refilled.
•Dry+ Indicator Light: An increased temperature will improve the drying process during the
final rinse stage.
•Child lock: Press and hold the Intensive & Normal button at the same time for 3 seconds,
the Intensive & Normal lights will flash 6 times, and "Child Lock" will be activated. To unlock
the dishwasher controls, Press the same button in the same way, the "Child Lock" will be
inactivated.
•Dry+ Function: Press and hold the RINSE & SOAK button at the same time for 3 seconds.
The Dry+ indicator will be available. To cancel the dry+ function, press the same buttons in
the same way.
•Program Button: To select washing program when press the button.
8

Operating Instructions
Use for the first time

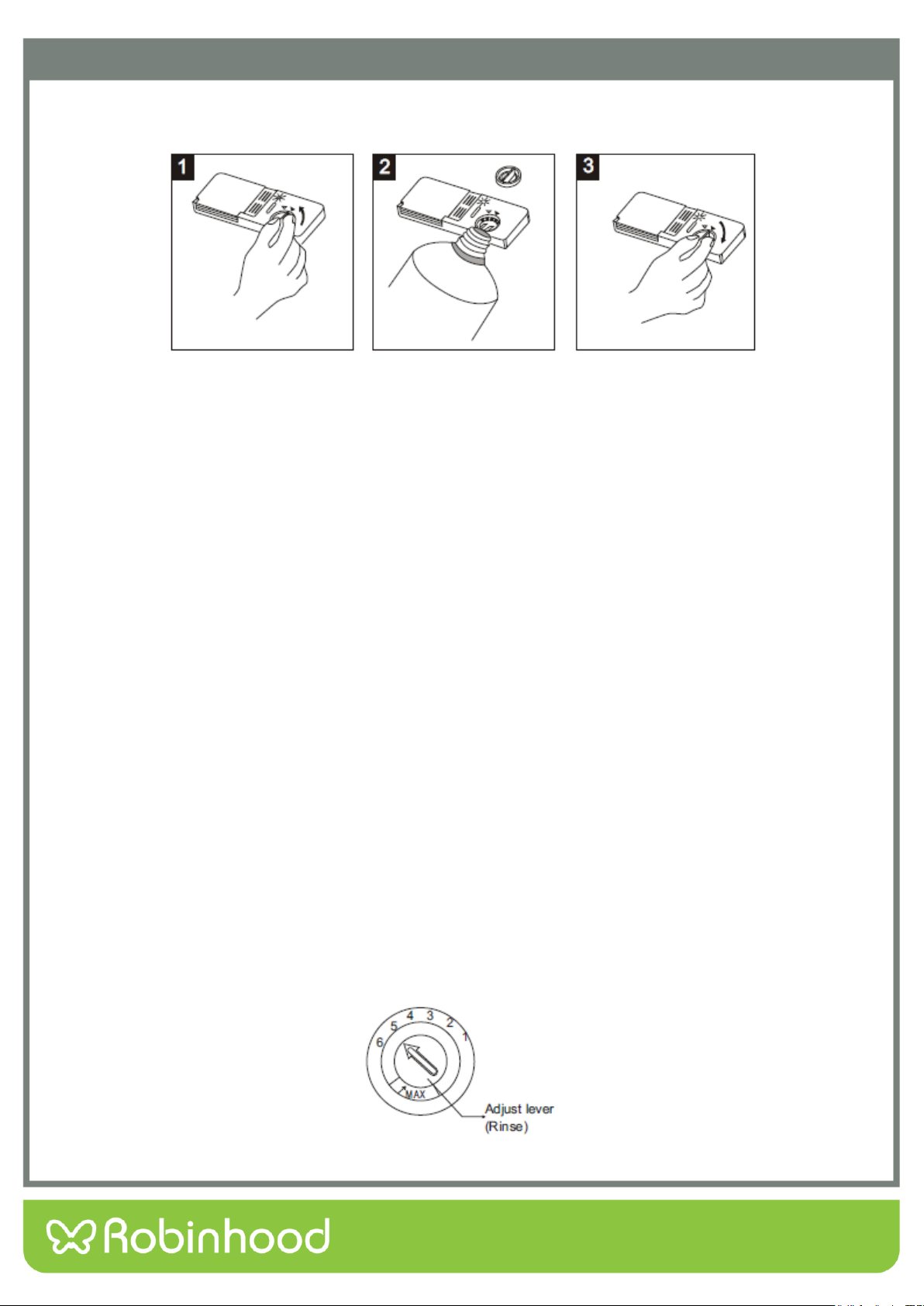

1. Fill the rinse aid dispenser
2. Function of detergent
1. Fill the rinse aid dispenser
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak
free drying.
Attention!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other
substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance.
When to Refill the Rinse Aid Dispenser
You can judge the amount of rinse-aid by the colour of the optical level indicator "D" located next to
the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse aid
diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1 / 4 full.

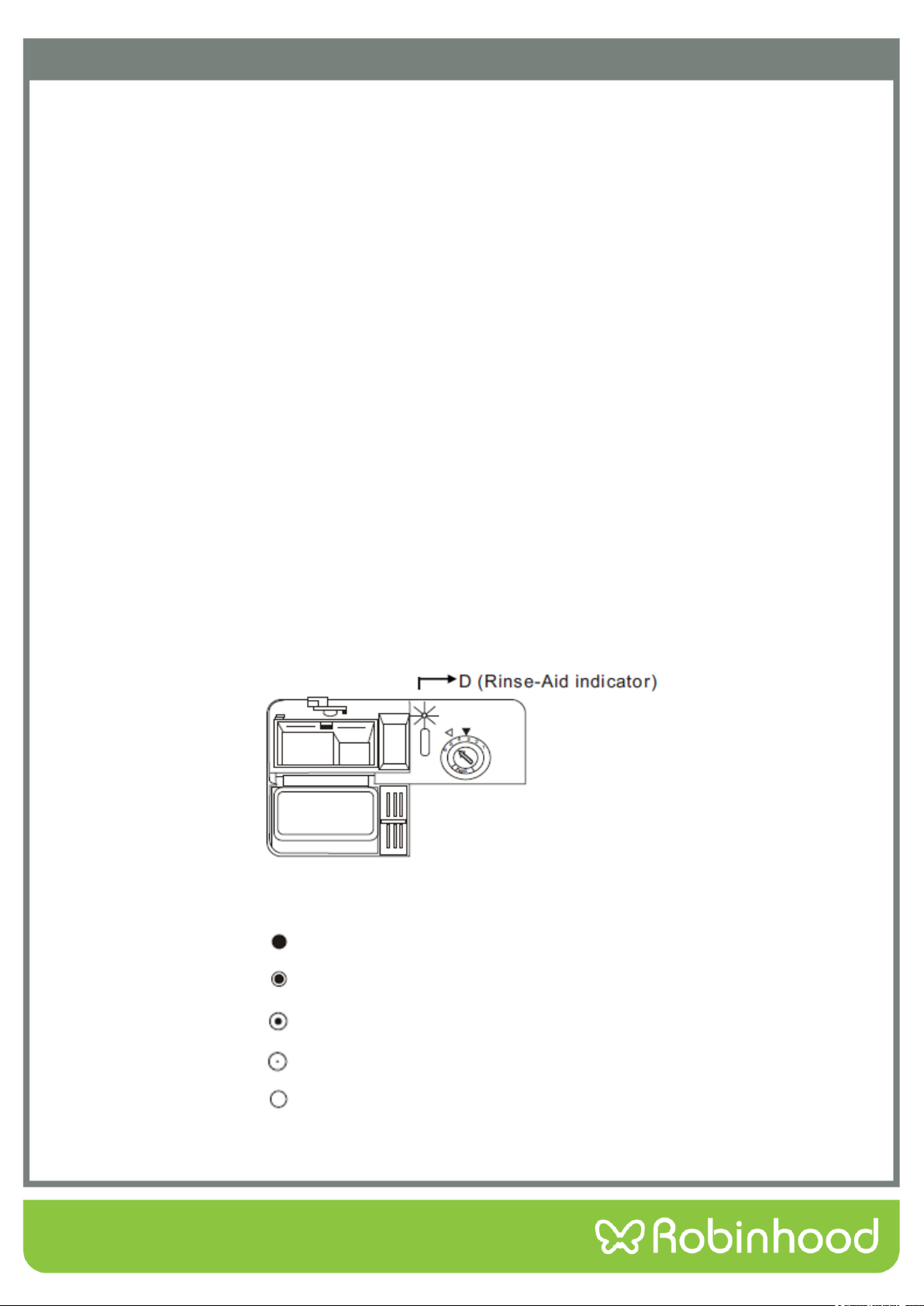

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as
illustrated below.
Full
3 / 4 full
1 / 2 full
1 / 4 full- Should refill to eliminate spotting
Empty
9

Operating Instructions
RINSE AID DISPENSER
•To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
•Pour the rinse aid into the dispenser, be careful not to overfill.
•Replace the cap by inserting it aligned with "open" arrow and turning it to the "closed" (right)
arrow.
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes
that can leave spots and streaks. It also improves drying by allowing water to sheet off the dishes.
Your dishwashers are designed to use liquid rinse aids. The rinse aid dispenser is located inside the
door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator
turns completely black. The volume of the rinse aid container is about 140ml.
Be careful not to overfill the dispenser, because this could cause over suds. Wipe away any spills
with a damp cloth. Don't forget to replace the cap before you close dishwasher door.
Attention!
Clean up any rinse aid split during filling with an absorbent cloth to avoid excess foaming during the
next wash.
Adjusting Rinse Aid Dispenser
The rinse aid dispenser has four or six settings. Always start with the dispenser set on "4" If spots
and poor drying are Problems, increase the amount of rinse aid dispensed by removing the
dispenser lid and rotating the dial to "5”. If the dishes still are not drying properly or are spotted,
adjust the dial to the next higher number until your dishes are spot-free. The dose is factory set in
position 5.
NOTE: Increase the dose if there are drops of water or lime spots on the dishes after washing.
Reduce it if there are sticky whitish streaks on the dishes or a bluish film on glassware or knife
blades.
10

Operating Instructions
2. Function of detergent
Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out
of the dishwasher. Most of commercial quality detergents are suitable for this purpose.
Concentrated Detergent
Based on their chemical composition, dishwasher can be split in two basic types:
•conventional, alkaline detergents with caustic components
•low alkaline concentrated detergents with natural enzymes
The use of "normal" washing programme in conjunction with concentrated detergents reduces
pollution and is good for your dishes; these washing programmes are specially matched to the dirt
dissolving properties of the enzymes of the concentrated detergent. For this reason, “normal"
washing programme in which concentrated detergents are used can achieve the same results that
can otherwise only be achieved using “intensive" programme.
Detergent Tablets
Detergent tablets of different brands dissolve at different speeds. For this reason, some detergent
cannot dissolve and develop their full cleaning power during short programmes. Therefore please
use long programmes when using detergent tablets, to ensure the complete removal of detergent
residuals.
Detergent Dispenser
The dispenser must be refilled before the start of each washing cycle following the instructions
provided in the Wash Cycle Table. Your dishwashers use less detergent and rinse aid than
conventional dishwashers. Generally, only one tablespoon of detergent is needed fora normal wash
load. Also, more heavily soiled items need more detergent. Always add the detergent just before
starting dishwasher, otherwise it could get damp and will not dissolve properly.
Amount of Detergent to Use
1
NOTE:
•If the lid is closed: press release button. The lid springs open.
•Always add the detergent just before starting each wash cycle. Only use branded detergent
aid for dishwasher.
•Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and
dry.
•Don't put powder detergent into the dispenser until you're ready to wash dishes.
11

Operating Instructions
Warning!
Dishwasher detergent is corrosive! Take care to keep it out of reach of children
Fill in the detergent
Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on
the right:
•In place of main wash cycle detergent (Number 1 compartment shown in the below picture),
fill approximately 20g of detergent.
•In place of pre-wash cycle detergent (Number 2 compartment shown in the below picture),
fill approximately 5g of detergent.
•Please observe the manufacturer's dosing and storage recommendations as stated on the
•detergent packaging.
•Close the lid and press until it locks in place.
•If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent
•chamber. This detergent will take effect during the pre-wash phase.
NOTE
•Please be aware that according to the level soiling and the specific hardness of water,
differences are possible.
•Please observe the manufacturer's recommendations on the detergent packaging.
12

Operating Instructions
Loading the Dishwasher Baskets
For best performance of the dishwasher, follow these loading guidelines. Features and appearance
of baskets and Cutlery tray may vary from your model.
Attention before or after Loading the Dishwasher Baskets
1. Scrape off any large amounts of leftover food. It is not necessary to rinse the dishes under
running water. Place objects in the dishwasher in the following way:
•Items such as cups, glasses, pots/pans, etc. are stood upside down.
•Curve items, or those with recesses, should be at a slant so that water can run off.
•They are stacked securely and cannot tip over.
•They do not prevent the spray arms from rotating while washing takes place.
2. Very small items should not be washed in the dishwasher as they could easily fall out of the
Baskets.
3. The upper and lower baskets cannot be pull out at the same time when the dishwasher is loading,
or it may lead to dumping.
Removing the Dishes
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the lower basket first and then the upper basket.

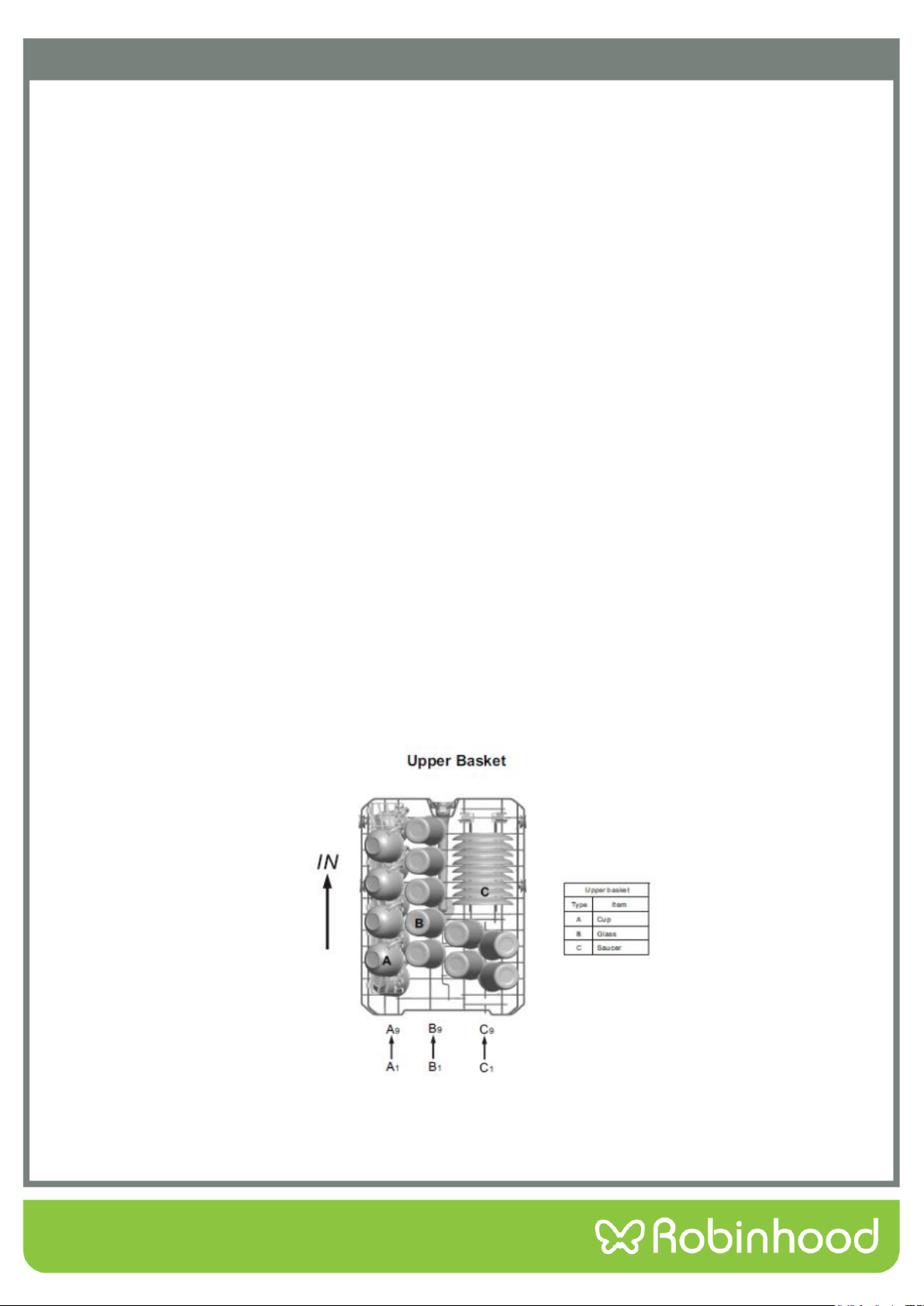

Loading the Upper Basket
The upper basket is designed to hold more Delicate and lighter dishware such as glasses, coffee
and teacup and saucers, as well as plates, small bowls and shallow pans (if they are not too dirty).
Position the dishes and cookware so that they do not get moved by the Spray of water.
13

Operating Instructions
Adjusting the Upper Basket
If required, the height of the upper basket can be adjusted in order to create more space for large
utensils either in the upper basket or lower basket. The upper basket can be adjusted for height by
putting wheels of different height into the rails. Long items, serving cutlery, salad servers or knives
should be placed on the shelf so that they do not obstruct the rotation of the spray arms. The shelf
can be folded back or removed when not be required for use.
Loading the Lower Basket
•We recommend that you place large items which are most difficult to clean into the lower
basket pots, pans, lids, serving dishes and bowls, as shown in the figure below.
•It is preferable to place serving dishes and lids on the side of the baskets in order to avoid
blocking the rotation of the top spray arm.
•Pots, serving bowls, etc. must always be placed top down.
•Deep pots should be slanted to allow water to flow out.
•The bottom basket features fold down tine rows so that larger or more pots and pans can be
loaded.
Lower Basket
Type
Item
G
Soup plate
H
Dinner plate
I
Dessert plate
14

Operating Instructions
Upper and Lower basket Folding racks
Folding racks consisting of two parts that are located on the upper / lower basket of your machine
are designed in order to let you place big items easier as pots, pans, etc. If requested, each part can
be folded separately, or all of them can be folded and larger can be obtained. You can use folding
racks by raising.
Cutlery tray
Arrange the cutlery in the tray as shown. Cutlery should be placed to ensure that water
runs off freely.
15

Operating Instructions
For washing in the dishwasher, the following cutlery/dishes are not suitable:
•Cutlery with wooden, horn china or mother-of-pearl handles
•Plastic items that are not heat resistant
•Older cutlery with glued parts that is not temperature resistant
•Bonded cutlery items or dishes
•Pewter or cooper items
•Lead crystal glass
•Steel items subject to rusting
•Wooden platters
•Items made from synthetic fibre
Warning
Do not let any item extend through bottom are of limited suitability:
•Some types of glasses can become dull after many washes
•Silver and aluminium parts tend to discolour during washing
•Glazed patterns may fade if machine washed frequently
NOTE:
Do not put in items that are dirty of cigarette ash, candle wax, lacquer or paint. If you buy
new dishes please make sure that they are suitable for dishwashers.
Please do not overload your dishwasher. There is only space for 9 standard dishes. Do not
use dish that is not suitable for dishwashers. This is important for good results and for reasonable
energy consumption.
Loading Cutlery and Dishes
Before loading the dishes, you should:
•Remove large left-over
•Soften remnants of burnt food in pans
When Loading the Dishes and Cutlery, Please Note:
•Dishes and cutlery must not impede the rotation of the spray arms.
•Load hollow items such as cups, glasses, pans etc. with the opening downwards so that
water cannot collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other:
•To avoid damage to glasses, they must not touch
•Load large items which are most difficult to clean into the lower basket
•The upper basket is designed to hold more delicate and lighter dishware such as glasses,
coffee and teacups
16

Operating Instructions
Attention!
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the
upper basket
Damage to Glassware and other Dishes
Possible causes:
•Type of glass or manufacturing process. Chemical composition of detergent.
•Water temperature and duration of dishwasher programme.
Suggested remedy:
•Use glassware or porcelain dishes that have been marked dishwasher-proof by the
manufacturer.
•Use a mild detergent that is described as kind of dishes. If necessary, seek further
information from detergent manufacturers.
•Select a programme with a low temperature.
•To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after
the programme has ended.
At the End of the Wash
When the working cycle has finished, the buzzer of dishwasher will ring for 6 times, then stop. Turn
off the appliance using the " Power " button, shut off the water supply and open the door of the
dishwasher. Wait a few minutes before unloading the dishwasher to avoid handling the dishes and
utensils while they are still hot and more susceptible to breakage. They will also dry better.
17

Operating Instructions
Starting a Washing Program
Wash cycle table
AS/NZS 2007.1: This programme is the test cycle. The information for comparability test
in accordance with AS/NZS.2007.1, as follows:
•Capacity: 9 settings
•Position of Upper basket: Low position
•Rinse aid setting:5 (4 for four setting dispenser)
Turning on the Appliance
Starting a wash cycle
Draw out the lower and upper basket, load the dishes and
•Push them back. It is recommended to load the lower basket first, then the upper one (see
the section entitled "Loading the Dishwasher"). Pour in the detergent.
•Insert the plug into the socket. The power supply is 220-240V AC 50 Hz.
Make sure that the water supply is turned on to full pressure. Open the door, press the " Power "
button Press the "program." button to select a desired "Wash cycle". (See the section entitled "Wash
Cycle Table".)
With a little force to ensure the door is properly closed.
Program Cycle Selection Information
Description of
Cycle
Detergent
Pre/main
Running
Time
(min)
Energy
(kWh)
Water
(L)
Intensive
For the heaviest soiled loads, such as
pots, pans, casserole dishes and dishes
that have been sitting with dried food on
them for a while.
Rinse1
Pre-wash(40°C)
Main wash(55°C)
Rinse2
Hot rinse(65°C)
Drying
4/22g
(Or 3 in 1)
137 1.10 15.0
Heavy
For heavy soiled loads,
such as pots, plates, glasses and
lightly soiled pans. standard daily cycle.
Rinse 1
Main wash(60°C)
Rinse 2
Hot rinse(65°C)
Drying
4/22g
(Or 3 in 1)
122 1.00 11.5
Normal
(AS/NZS 2007.1)
For normally soiled loads, such as pots,
plates, glasses and lightly soiled pans.
standard daily cycle.
Main wash(44°C)
Rinse
Hot rinse(46°C)
Drying
4/22g
(Or 3 in 1)
110 0.56 9.4
Rinse
For dishes that need to be rinsed and
dried only
Pre-wash
Hot rinse(70°C)
Drying
4/22g 60 0.69 6.0
Rapid
A shorter wash for lightly soiled loads
that do not need drying.
Main wash(40°C)
Hot rinse(50°C)
15g 43 0.48 6.0
Soak
To rinse dishes that you plan to wash
later that day
Pre-wash / 8 0.01 3.3
18

Operating Instructions
NOTE:
A click could be heard when the door is closed perfectly.
When the washing is over, you can shut off the switch by pressing " Power " button.
Change the Program
•A cycle that is underway can only be modified if it has only been running for a short time.
Otherwise, the detergent may have already been released, and the appliance may have
already drained the wash water. If this is the case, the detergent dispenser must be refilled
(see the section entitled " Fill in the Detergent “).
•Open the door, press current programme button more than three seconds to cancel the
programme, then you can change the programme to the desired cycle setting (see the
section entitled "Starting a wash cycle “). Then, close the door.
NOTE:
If you open the door when washing, the machine pauses and warning alarm rings, the display
appears E1. When you close the door, the machine will keep on working after 10 seconds.
The 6 programme lights show the state of the dishwasher:
•All program lights off --> stand by
•One of the program lights on --> cycle running
•One of the program lights blinking --> pause
If all the lights begin to glimmer, that indicates the machine is out of order, please turn off the main
power and water supply before calling a service.
Forget to Add Dish
A forgotten dish can be added any time before the detergent cup opens.
•Open the door a little to stop the washing.
•After the spray arms stop working, you can open the door completely.
•Add forgotten dishes.
•Close the door, the dishwasher will work after ten seconds.
19

Operating Instructions
Warning!
It is dangerous to open the door when washing, because the hot water may scald you.
Switch Off the Dishwasher: The digital display appears "---” and the buzzer rings 6 times, only in
this case the programme has ended.
•Switch off the dishwasher by pressing the " Power " button.
•Turn off the water tap!
•Open the door carefully. Hot steam may escape when the door is opened!
•Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down
around 15 minutes before removing from the appliance.
•Open the dishwasher's door and wait a few minutes before removing the dishes. In this way
they will be cooler, and the drying will be improved.
Unloading the dishwasher
•It is normal that the dishwasher is wet inside.
•Empty the lower basket first and then the upper one. This will avoid water dripping from the
upper basket onto the dishes in the lower one.
20
