ROBINHOOD RHDDW60X User manual

Installation and Operating Instructions Issue: 1
Description: ROBINHOOD DOUBLE DRAWER DISHWAHSER
Model Number: RHDDW60X
Model pictured: RHDDW60X
Actual unit may differ from image above

Contents
Congratulations!
Thank you for choosing one of our appliances. Before you use the appliance, we strongly recommend that you read
through the whole user manual which provides important safety instructions and description of the product and the
proper use of its functions.
To avoid the ever-present risks involved with using an electrical appliance it is vital that the oven is installed
correctly and that you read the safety instructions carefully to avoid misuse and hazards. It is important that you
retain these instructions and your proof of purchase along with any other important documents about this product
for future reference.
Due to continual product development, Robinhood reserves the right to alter specifications or appearances without
notice.
Important Safety Instructions………………………………………………………………………………………………………………………..3
Appliance Details……………………………………………………………………………………………………………………………………………4
Installation……………………………………………………………………………………………………………………………………………………..5
Operating Instructions………………………………………………………………………………………………………………………………….14
Cleaning and Maintenance…………………………………………………………………………………………………………………… …….30
Troubleshooting……………………………………………………………………………………………………………………………………………34
Product Specification ………………………………………………………………………………………………………………………………..…36
Warranty certificate (New Zealand) ………………………………………………………………………………………………………….37
Warranty certificate (Australia) ……………………..……………………………………………………………………………………………38
Disposal Information
Most of the packing materials are recyclable. Please dispose of these materials through your local recycling
depot or by placing them in appropriate collection containers.
If you wish to discard this product, please contact your local authorities and ask for the correct method of
disposal.

Important Safety Instructions
When using electrical appliances, in order to reduce the risk of fire, electric shock, and/or injury to
persons, basic safety precautions should always be followed, including
1. This appliance is intended to be used in household and similar applications , such as:
a. staff kitchen areas in shops, offices and other working environments;
b. farm houses;
c. by clients in hotels, motels and other residentialtype environments;
d. bed and breakfast type environments.
2. The appliance is not to be used by persons (including children) with reduced Physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction. Children being supervised not to play with the appliance.
3. The door is not left in the open position since this could present a tripping hazard.
4. When loading items to be washed:
a. Locate sharp items so that they are not likely to damage the door seal.
b. WARNING: Knives and other utensils with sharp points must be loaded in the basket
with their points facing down or placed in a horizontal position.
5. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent
or a similarly qualified person in order to avoid a hazard.
6. After having installed the appliance, the switched outlet must always be in an accessible
position.
7. WARNING: Some dishwasher detergents are strongly alkaline. They can be extremely
dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from
the dishwasher when the door is open. Check that the detergent receptacle is empty after
completion on the wash cycle.
8. Do not place any heavy objects on or stand on the door when it is open. The appliance could
tip forward.
9. Check that the detergent powder is empty after completion of the wash cycle.
10. Use only detergent and rinse additives designed for automatic dishwasher.
11. Do not operate your dishwasher unless all enclosure panels are properly in place.
12. Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
13. The appliance is to be connected to the water mains using new hose sets and that old hose-
sets should not be reused.
14. During installation, the power supply cord must not be excessively or dangerously bent or
flattened.
15. Maximum: 7 place settings top drawer.
16. Maximum: 7 place settings bottom drawer.
17. Maximum: 1 MPa inlet water pressure.
18. Minimum: 0.04 MPa inlet water pressure.
This appliance is for indoor use only, for household use only. To protect against the risk of electrical
shock, do not immerse the unit, cord or plug in water or other liquid.
Please unplug before cleaning and maintenance the appliance .Use a soft cloth moisten with mild
soap, and then use a dry cloth to wipe it again.
3

Appliance details
IMPORTANT:
To get the best performance from your dishwasher, read all operating instructions before using it for
the first time.
Product Overview
4

Installation Instructions
Height (H1)
820 mm
Height (H2)
85-135 (Height of kick plate)
Width (W)
595 mm
Depth (D1)
570 mm
Depth (D1)
1080 mm (Drawer open)
5

Installation Instructions
Before Installation

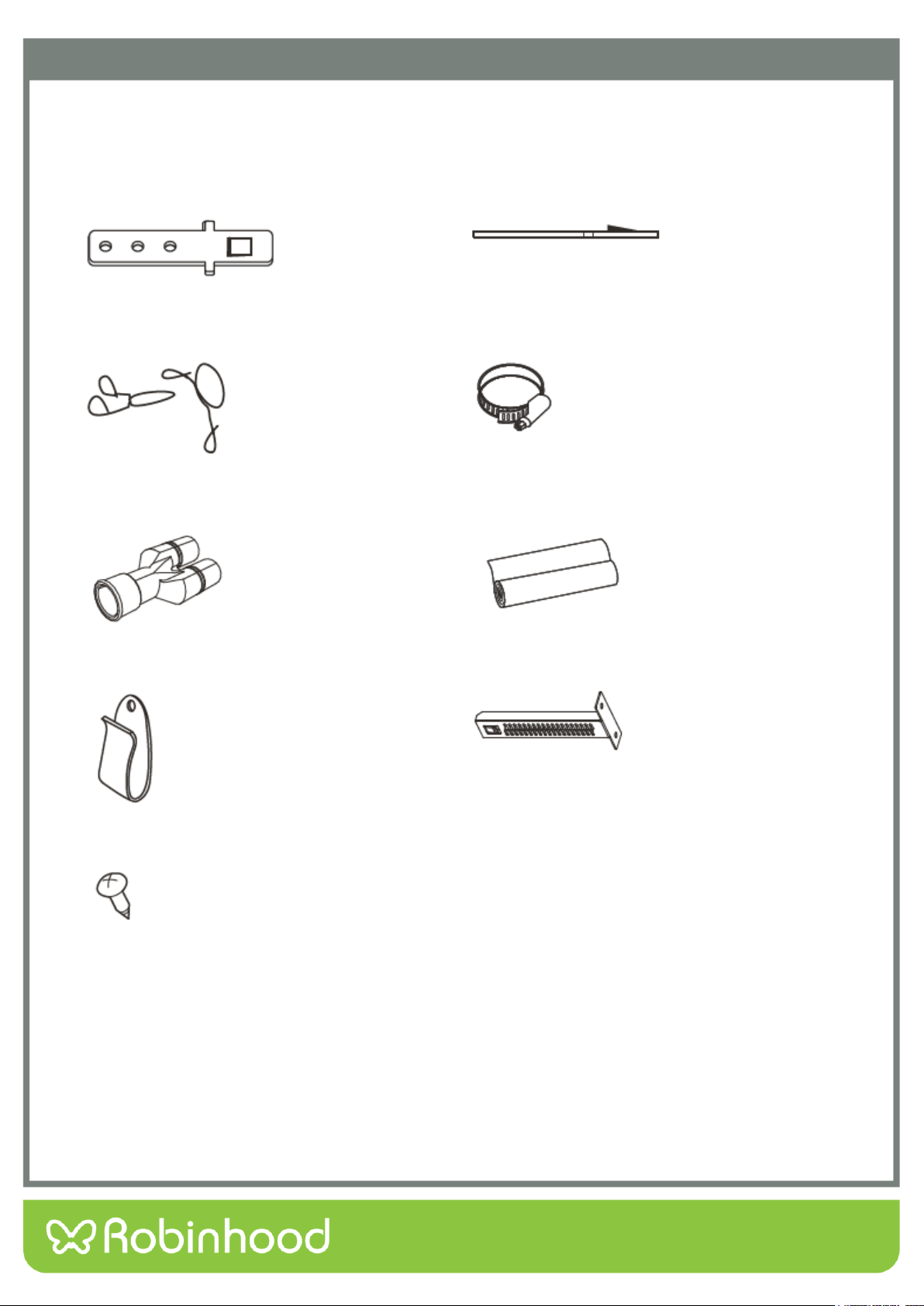

Parts supplied
Mounting brackets (4)
(for drain hose coupling)
Ensure that the inner end of the tab
is protruding by one material thickness
Wire clamps (2)
(for drain hose coupling)
Hose clamp (1)
(for sink waste connection)
Drain hose coupling (1)
Moisture protection tape (1)
Drain hose support (1)
Kick plate brackets (2)
(For installing kick plate)
Screws (8)
6

Installation Instructions

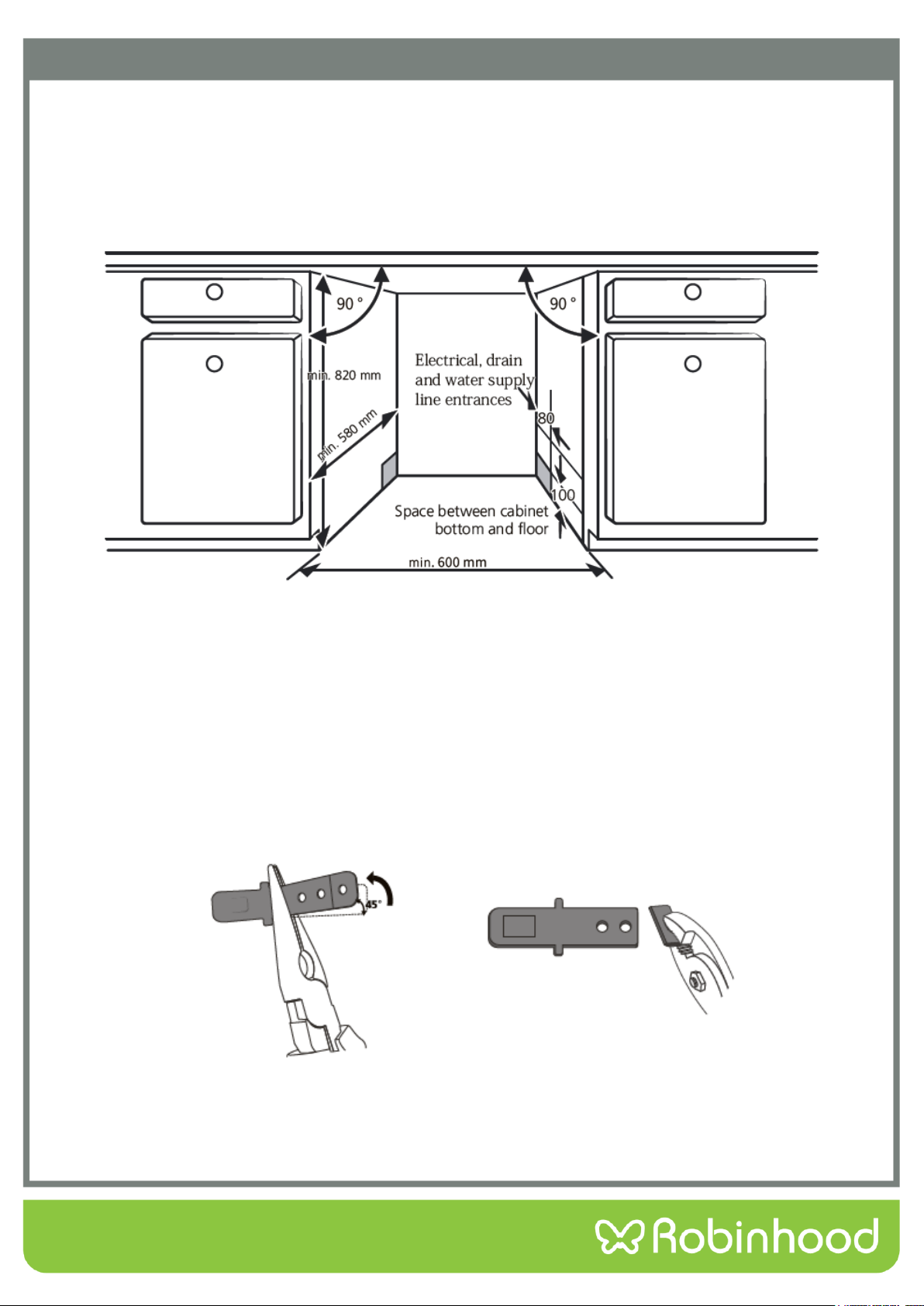

Prepare the cavity
The cavity will need to conform to the dimensions in the diagram. The water supply and power point
for the appliance cannot be in the dishwasher cavity. Ideally they should be in an adjacent cavity,
easily accessed for isolating the product. An opening to allow the hoses and power cord to exit is
required on either side of the cavity with the minimum dimensions shown.
Prepare the dishwasher
Drawer dishwashers are unstable until they are secured to their surrounding cabinetry. Study the
two options for securing offered and choose one that suits your cabinetry. Fit the mounting brackets
supplied to the top or sides of the product, ensuring the locking tab effectively retains the bracket in
place. Adjust the tabs if needed.
With the aid of pliers pre form the bracket to match the surface it will be fitted to. Shorten the tab if
needed.
7

Installation Instructions

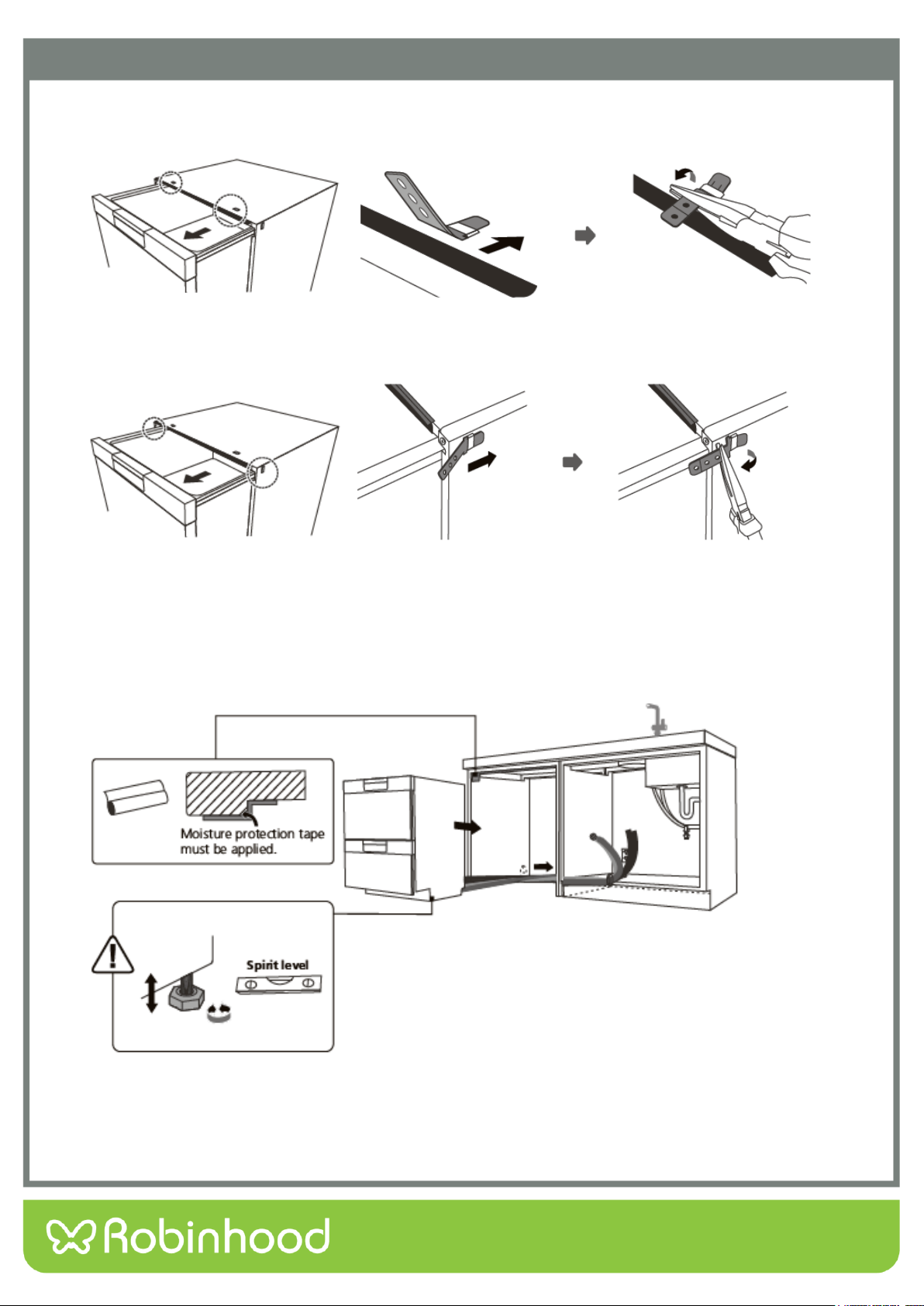

Installation method A: Attach top mounting brackets
Installation method B: Attach side mounting brackets
Fitting the dishwasher
Position the dishwasher in the cavity so the drawer fronts are in line with the adjacent cabinetry.
Draw the hoses and power cord through the opening as you slide the product in. This can be
checked by using a spirit level on an open drawer.
If need be, adjust the feet in each corner to ensure the
product sits evenly on the floor, and is level both left to
right and front to back. This can be checked by using a
spirit level on an open drawer.
8

Installation Instructions

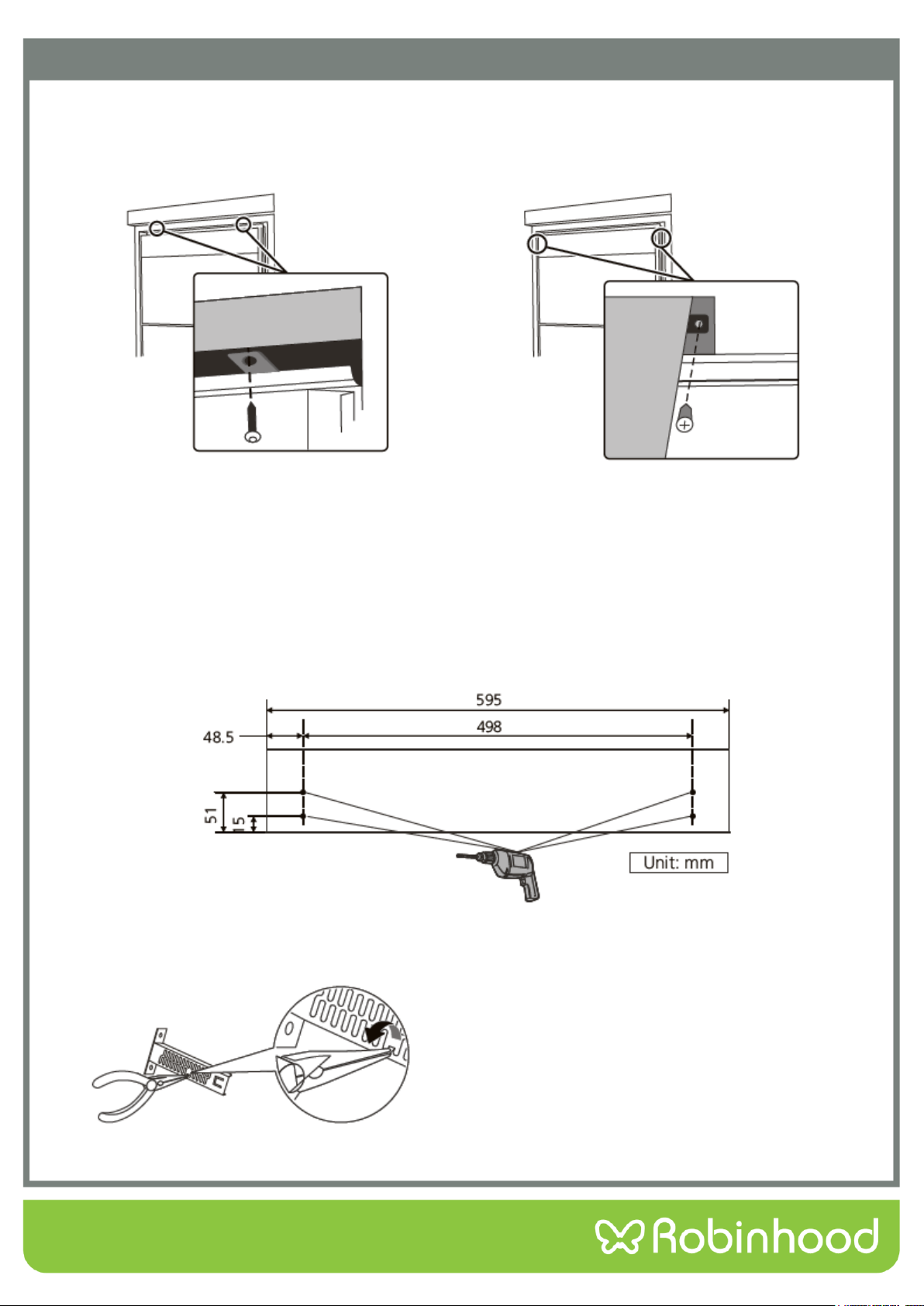

Secure the product in place
With suitable fasteners, fix the mounting brackets to the cabinetry.
Install the kick plate
1. Prepare a kick plate as shown.
(The mounting hole position is measured by the machine at the factory state. If the height of the
feet is adjusted, the position of the mounting hole should be changed according to the actual
situation.)
2. Set the insertion length of the kick plate and bend the bracket teeth with pliers.
9

Installation Instructions

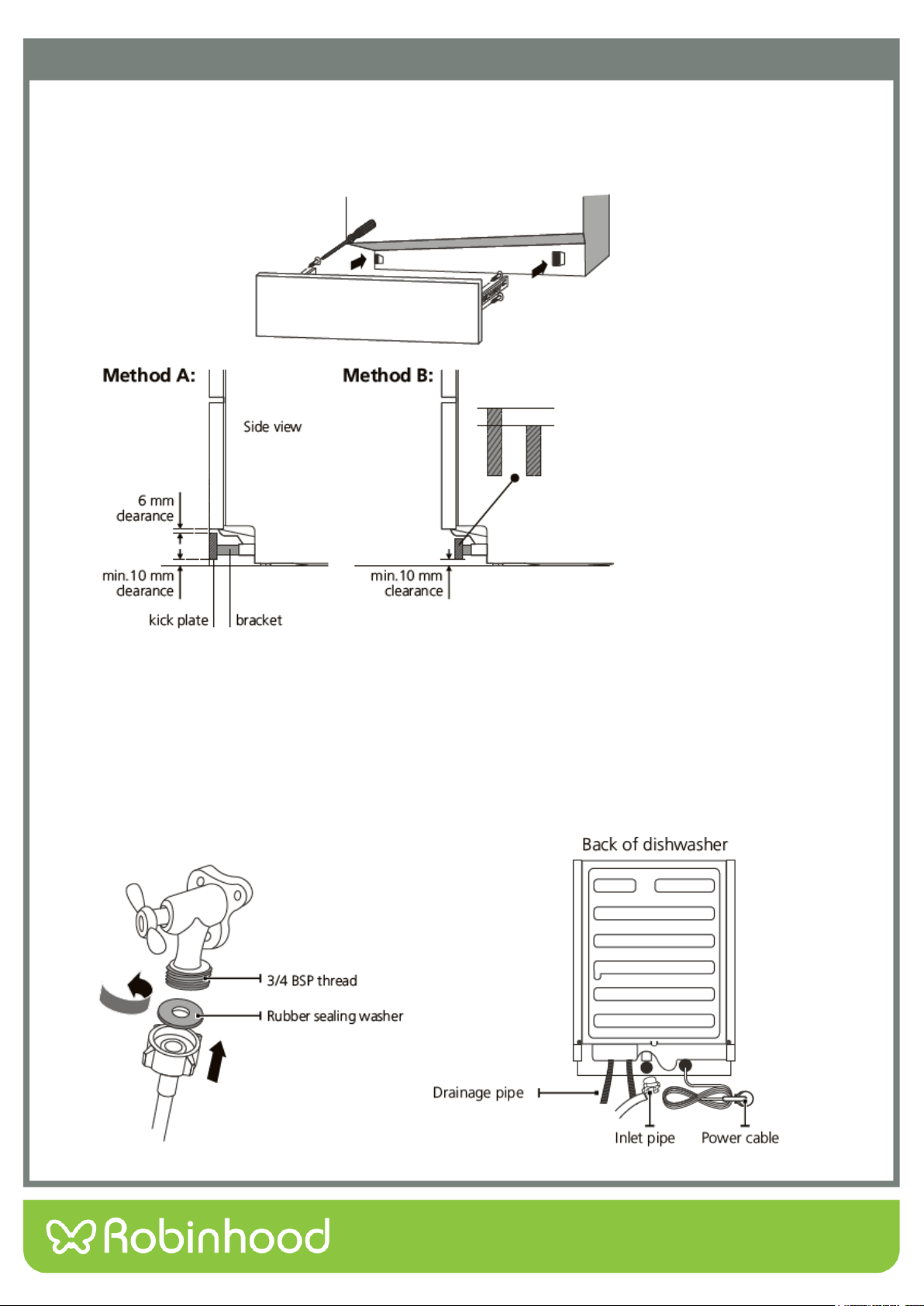

3. Secure the brackets to the kick plate with screws and install the kick plate to the bottom of the
dishwasher.
Cold Water Connection
The Inlet Hose supplied requires a 3/4 inch BSP Male fitting, suitable for a flat sealing washer.
A faucet is important for isolating the supply to the dishwasher.
Ensure that the sealing washer supplied inside the hose connection is firmly in place. Check that the
initial water is clean, particularly if the supply has not been used for some time.
If you need to install the kick
plate inside, please cut the kick
plate to the appropriate height
according to the actual situation,
and ensure that the clearance
between the bottom surface of
the kick plate and the ground is
at least 10 mm.
10

Installation Instructions
Connection of the Drain Hose
There are two recommended options for connecting the drain hose.
Option A: Connecting to the sink waste
This is the recommended method.
Check if your sink waste pipe has provision for this method.
Beware if it has the drain hose spigot that has never been used, it will likely be blanked off inside the
spigot.
This will need careful drilling/cutting out to make it operational. Ensure that the opening you make
has no ragged edges that will likely lead to debris snagging over time and causing a blockage.
First cut off the head of the drain hose. When inserting the hoses into the Y piece, wet the hose
ends for ease of insertion. Insert fully. Use the hose support clip provided, install as per the
illustration. Insure that the hoses have a straight run from the clip to the connection to the waste
pipe.
Cut off the head of the drain hose
11

Installation Instructions
Option B: Connecting to a standpipe
The standpipe must be a minimum diameter of 38 mm (1 1/2 inch) and requires a trap for odor
control.
Use the hose support clip to secure the hoses, ensure they do not enter the standpipe more than
120 mm.
NOTE:
If there is surplus length of the drain hose it can be shortened. The Inlet Hose cannot be shortened.
Whilst the very first wash cycle is operating, observe all pipe and hose connections for leaks. Checking for
any trace of water on the floor in the cavity where the connections are after the first full cycle is a good
practice.
12

Installation Instructions
Electrical Shock Hazard
Disconnect electrical power before installing dishwasher.
Failure to do so could result in death or electrical shock.
The installation of the pipes and electrical equipment should be done by professionals.
For personal safety:
Do not use an extension cord or an adapter plug with this appliance.
Do not, under any circumstances, cut or remove the earthing connection from the power cord.
Electrical requirements
Please look at the rating label to know the rating voltage and connect the dishwasher to the
appropriate power supply.
Electrical connection
Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only
insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the
appliance must be connected is not appropriate for the plug, replace the socket, rather than using
an adaptors or the like as they could cause overheating and burns.
WARNING: Ensure that proper earthing exists before use.
This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the
risk of an electric shock by providing a path of least resistance of electric current. This appliance is
equipped with a cord having an equipment-earthing conductor and an earthing plug.
The plug must be plugged into an appropriate outlet that is installed and earthed in
accordance with all local codes and ordinances.
Improper connection of the equipment-earthing conductor can result in the risk of an electric shock.
Check with a qualified electrician or service representative if you are in doubt whether the appliance
is properly earthed.
Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper
outlet installed by a qualifiedelectrician.
WARNING: After having installed the appliance, the switched outlet must always be in an
accessible position.
13

Operating Instructions

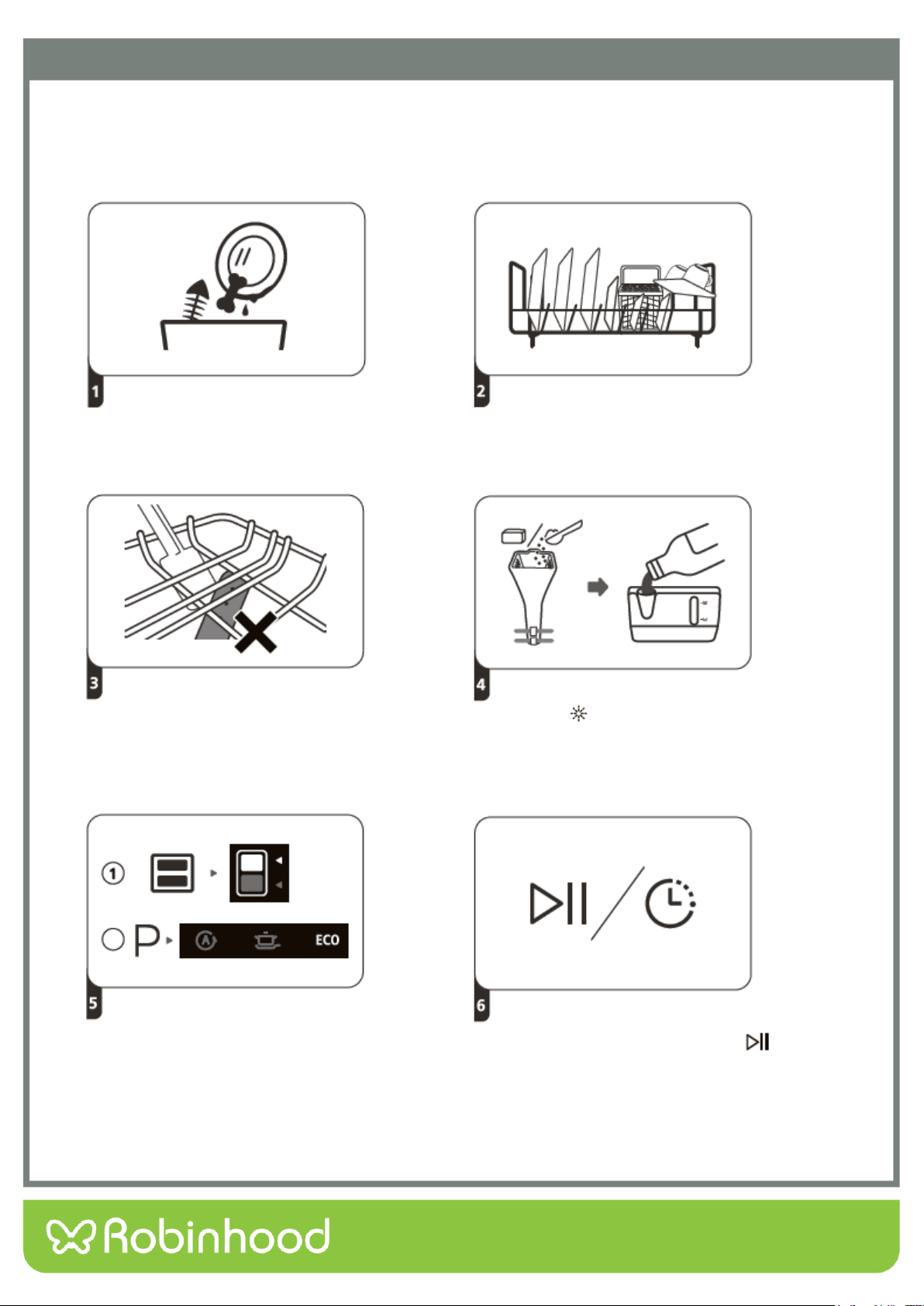

QUICK USER GUIDE
Starting A Wash
Discard scraps
Scrape large food particles off
and remove any foreign
objects.
Load dishes carefully
For better washing result, place the
dishes properly avoiding any contact
or overlapping between them.
Check spray arm
Ensure there are no items blocking
the spray arm from rotating.
Add detergent and check rinse aid
If the “ ” indicator is lit, or the rinse
aid is below the minimum capacity line,
please refill.
Set up the dishwasher function
Power the dishwasher on, then
select drawer, wash program and
function.
Start wash or set Delay start
Close the drawer and press “ “.
14

Operating Instructions
After The Wash
The drying fan may continue to run for a set time after that the washing cycle is over or until the
drawer is open.
For best drying result, we recommend remove unloading the dishes when they have cooled down.
NOTE:
Reviewing the section on TROUBLESHOOTING TIPS will help you solve some common problems by
yourself.
If you cannot solve the problems by yourself, contact customer service or a professional technician.
The manufacturer, following a policy of constant development and updating of the product, may
make modifications without giving prior notice.
If lost or out-of-date, a replacement copy can be found at www.omegaappliances.com.au. or responsible
vendor.
15

Operating Instructions
Control Panel
Operation (Button)
Power
Press this button to turn on your dishwasher, the screen will light up.
Drawer
selector
Press the button to select either upper drawer or lower drawer loaded, the
corresponding indicator will light up.
Program
selector
Press this button to select the appropriate washing program, the selected
program indicator will light up.
Option
selector
Press the button to select an option, corresponding indicator will be lit.
Press and hold the Option button for 3 seconds in standby mode to run the
Dry & Fresh option immediately.
Delay start
Press the button to increase the delay start time. Delay a cycle for up to 24
hours in one-hour increments. After setting the delay time, press the
Start/Pause button to start.
Child lock
This option allows you to lock the buttons on the control panel, so children
cannot accidently start the dishwasher by pressing the buttons on the panel.
Only the Power button and Drawer selector button remain active.
To lock or unlock the buttons on the control panel, press and hold the
Option button+ Delay button for 3 seconds simultaneously.
Start/Pause
To start the selected washing program or pause it when the dishwasher is
operating.
When the dishwasher is running, if you need to open the drawer, please
press the “Start/Pause” button first and wait a few seconds, then open the
door slowly.
16

Operating Instructions
Display
Auto sensing wash, lightly, or heavily soiled crockery, with or without dried-on
food.
For the heaviest soiled crockery, such as pots, pans, casserole dishes and
dishes that have been sitting with dried food on them for some time.
For normally soiled loads, such as pots, plates, glasses and lightly soiled
pans, standard everyday cycle.
Washing
program
For heavily soiled loads, such as pots, plates, glasses and lightly soiled pans.
For lightly soiled plates and pans that need a quick wash.
A shorter wash for lightly soiled loads that do not need drying.
For fragile items such as fine china and glassware.
Screen
Displays the operating drawer, time reminding, delay time, error code and
child lock indication.
17

Operating Instructions
Display
If the delay time is set, the corresponding indicator will be lit.
Option
For better drying result. (It can only be used with Intensive, ECO, Heavy,
Wash&Dry, Delicate)
For removing bad odor and moisture even when dishes a re left longer time in
the baskets.
A) when selected this option will start to run at the end of the washing
cycle, its indicator will blink.
B) Press and hold the Option button for 3s, when dishwasher is on, for let
the option run immediately.
Warning
If the “ ” indicator is lit, it means that no water is reaching the dishwasher.
If the “ ” indicator is lit, it means the dishwasher is low on dishwasher
rinse aid and requires refilling.
Washing progress
Main-wash
Rinse
Drying
End
18

Operating Instructions

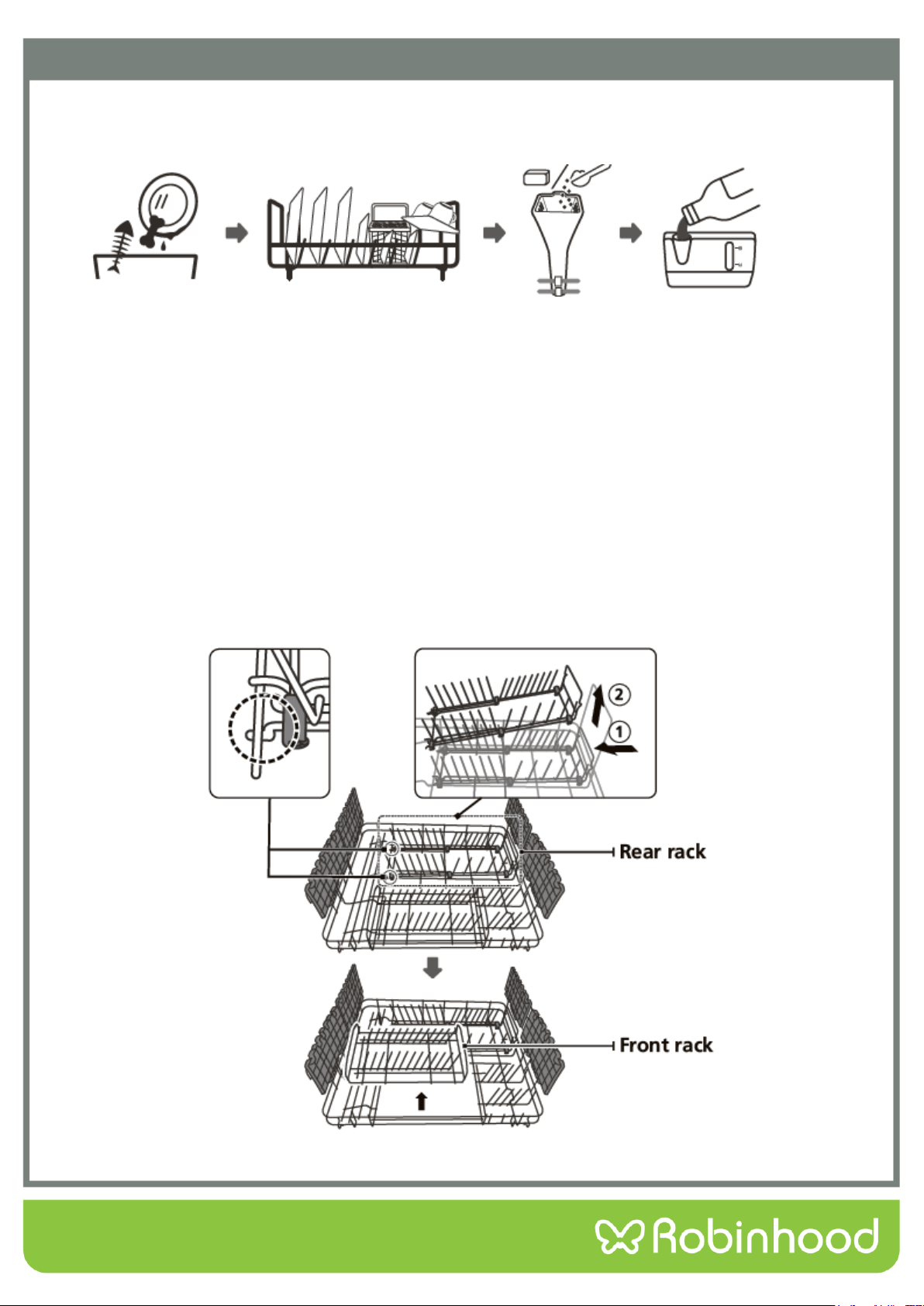

Before using your dishwasher:
1. Remove the larger residue from the wash items
2. Load the basket
3. Load the detergent
4. Fill the rinse aid dispenser
Basket Use Tips
There are many ways to adjust the loading pattern of the basket.
Removing the rear rack
The rear rack can be removed to create a flat surface for such things as pots and pans.
19

Operating Instructions
Folding down the pins
The spacing between the pins can be increased by folding them down. This will help the loading of
large bowls and deep pots and pans. Folding down the pins, the maximum size 290mm plates can
be loaded.
The pins on the front rack can also be folded down to create a flat space.
Do not load the basket with the front rack removed. It is removable only to allow access to the filters
for servicing. If removed, there is a high risk that items could fall in the open space and damage the
rotating spray arm.
If returning the rear rack, be sure to firmly set it into its correct place.
Using the cup racks
Cups, glasses and large utensils fit on the cup racks.
The fronts of the racks are designed to secure wine glasses.
20
