Rocket Espresso Limited Giotto User manual

ROCKET GIOTTO AND ROCKET CELLINI
ESPRESSO COFFEE MACHINES
www.rocket-espresso.com

2
Contents
General data 3
Important safeguards 4
Introduction 5
Instruction for use 6
Description of external components 8
Installation 9
Technical data 10
Start up 11
Supplement for Rocket Espresso model ranges Evoluzione & Professionale 12
Operating instructions 16
Dispensing steam 19
Dispensing hot water 20
How to make great espresso 21
How to texture milk 22
How to clean your Giotto/Cellini 24
How to disassemble/dismantle the machine 26
Routine Maintenance 27
Espresso glossary and recipes 28
Trouble shooting 29
For European Community countries: declaration of CE conformity 31
Subject to change without notice.

3
General data
Manufacturer: Rocket Espresso Limited
Viale Delle Industrie 26
20090 Settala
Milano
Italy
Email: [e-mail]
VAT No. IT05846260965
Model: Rocket Giotto and Rocket Cellini
Distributed by:

4
Important Safeguards
1. Read all Instructions
2. Do not touch hot surfaces. Use handle or knobs.
3. To protect against electric shock do not immerse cord and plugs in water or other liquid.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
6. Do not operate any appliance with a damaged cord, plugs, or after the appliance malfunctions or has been
damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or
adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner or in a heated oven.
11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
12. Always attach plug to appliance first, then plug cord into wall outlet. To disconnect, turn any control to “off”, then
remove plug from wall outlet.
13. Do not use appliance for other than intended use.
14. Save these instructions.

5
Introduction
Please read this technical handbook carefully since it provides important information on the correct installation, use
and maintenance of your coffee machine.
The information contained in this manual is necessary for the safe installation and operation of your coffee machine.
It should be retained in a safe place for future reference. Copies are available from your local dealer.
The information contained in this manual relating to installation and operation is not a substitute for safety
instructions and technical data affixed to the machine and/or its packaging.
The manual provides information that is current at the time of publication. The information is subject to amendment or
alteration without notice.
Your machine should only be operated in accordance with instructions contained in this manual and verbal
instructions and training provided by an authorised Rocket Espresso Ltd. dealer.
Installation and maintenance should only be carried out by technicians and service providers authorised by Rocket
Espresso Ltd.
Rocket Espresso Ltd. accepts no liability for injury and damage to person, persons or property caused by incorrect
installation, misuse, and user negligence, neglect of the machine or any other circumstances beyond its control.

6
Instructions for use
This machine has been designed for the sole purpose of producing coffee, hot water and steam for hot beverages.
All other uses are outside of the scope of this machine and, therefore, dangerous and hazardous.
The machine has been designed from safe, accessible, durable components and materials and manufactured to the
highest standards for use only in home / domestic environment.
The machine should not be exposed to elements such as sunlight, rain, snow, extreme temperatures etc.
The machine must be operated by responsible adult persons who know the use of the equipment and should not be
used by children, minors or untrained persons.
To protect against electric shock do not immerse machine, cord and plugs in water or other liquid and do never let
machine’s internal parts get in touch with liquids.
The user should be fully conversant with safety operating procedures contained in the manual and should follow the
instructions and advice provided with.
To ensure maximum performance efficiency, it is essential that technical service and maintenance is carried out
exclusively by Rocket Espresso Ltd. authorised technicians.
It is the responsibility of the user to notify the manufacturer of any defects or damages which may affect the safety of
the original installation or future safe operation of the machine.
The user must respect the safety regulations at the point of installation. The user must check the surrounding areas
to ensure safe and hygienic use is guaranteed.
The machine component’s manufacturers are responsible for the parts supplied by them. The customer is
responsible for the personal use of the equipment.
It is the responsibility of the user to ensure that the location of the machine is hygienic, and that its continued safe
operation can be guaranteed.
When the machine is not being used for long periods of time, the hydraulic systems should be drained completely
and the machine stored in a temperature above freezing (0°C or 32°F). This will prevent the hydraulic system from
freezing which could damage internal pipes and boiler.
This appliance is intended to be used in household and similar applications such as:
• staff kitchen areas in shops, offices and other working environment
• farm houses
• by clients in hotels, motels and other residential type environments
• bed and breakfast type environments
If the appliance should be connected to the water mains:
• The maximum inlet pressure is 0,4 MPa
• The minimum inlet pressure is 0,1 MPa
• You must use the new hose-sets supplied with the machine. Do not reuse old hose-sets.

7
All spare parts fitted to the machine must be original Rocket Espresso Ltd. components.
Before any cleaning or maintenance the machine should be disconnected from the electric supply.
Never pull the electrical supply cable.
When cleaning the machine never use caustic or abrasive cleaning chemicals.
To avoid electric shocks:
• Do not immerse machine itself, cord and plugs in water or other liquid and do never let machine’s internal parts
get in touch with liquids.
• Ensure that the machine is installed with a proper earth/ground in accordance to local safety practises, codes and
legislation.
• Prevent the power cable from being stretched, or pulled tight.
• Avoid using the machine with wet hands.
• Never operate the machine with bare feet.
Never operate the machine without ensuring the water reservoir contains water.
The machine must be operated with soft, clean drinking water. If the local water supply has a high mineral content
use a water softener. A build up of mineral deposit may restrict the flow of water within the hydraulic systems causing
damage to the machine and risking personal injury.
The machine must be switched off whenever it is left unattended.

8

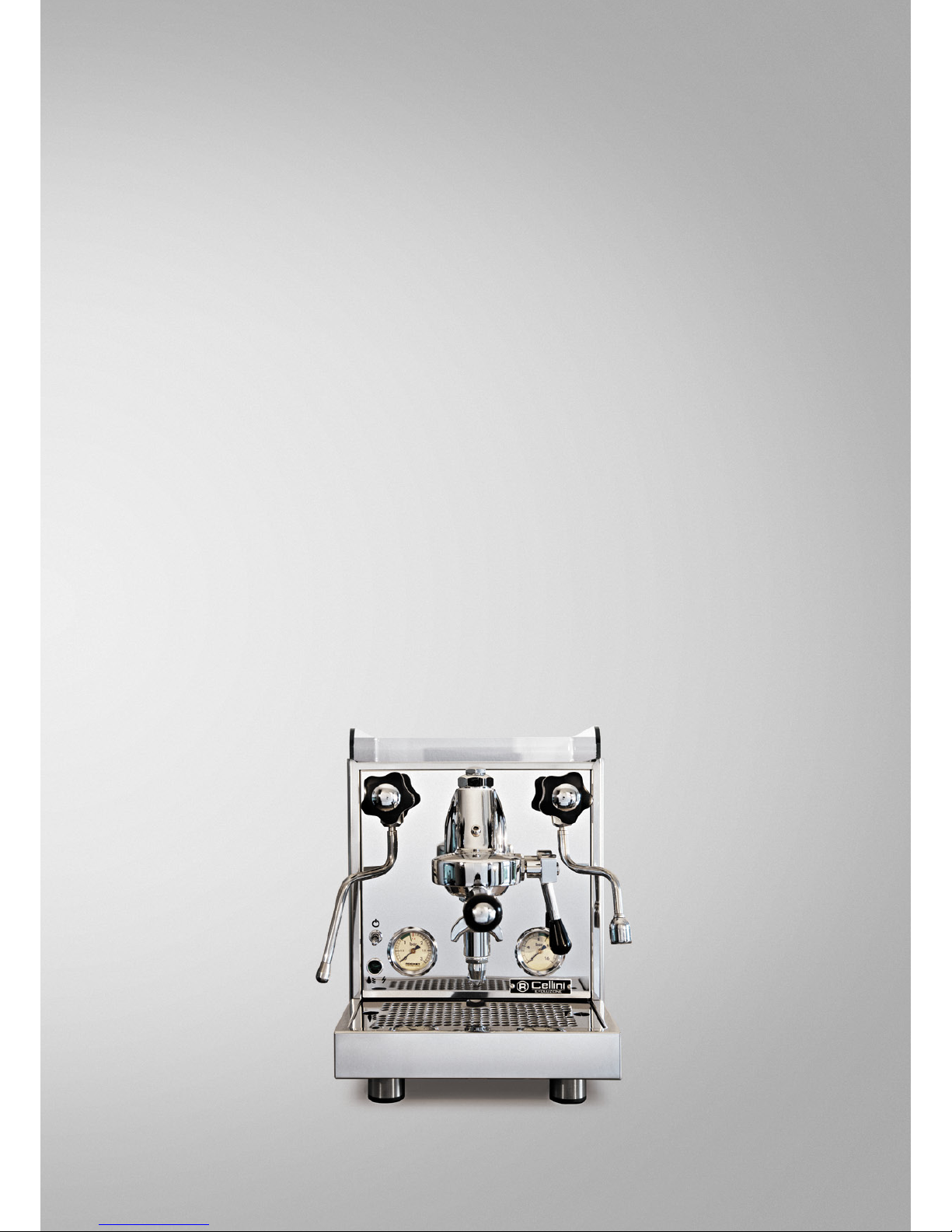

Description of external components
1. Steam valve handle. Turn left to open steam; turn right to shut.
2. Steam wand. Can become hot and cause burns. Caution!
3. Boiler pressure gauge. Boiler pressure should be around 1 Bar.
4. Machine’s on/off switch. Position “0” = off; position “1” = on.
5. Control lamp ”machine on” when illuminated and water level low when light flashing.
6. Brewing head. It’s very hot and can cause burns! Caution!
7. Filter holder. Its metal parts can become hot and cause burns. Caution!
8. Brewing head’s (or group’s) progressive infusion piston. Unloads hot water into drip tray once brewing process is
terminated. Caution: its metal parts can become very hot and cause serious burns. Attention to hot water
flow coming out beneath after brewing process is terminated!
9. Lever for brewing process control. Caution: its metal parts can become very hot and cause burns!
10. Drip tray and grid.
11. Hot water wand. Can become very hot and cause serious burns. Caution!
12. Hot water handle. Turn left to open. Turn right to shut.
13. Cups frame.
14. Cups tray. Never pour any liquid on this tray! It will filter inside the equipment and can cause electrical
shocks & serious injuries. Danger!
15 . Pump pressure gauge.
1 12
2
3
4
5
6
7
8
9
10
11
14 13
15

9
Installation
All machines are designed to ensure maximum possible user safety. It is, however, an important responsibility of the
user to observe the following safety codes to further enhance safe installation and operation.
• Always ensure that hazardous packing items such as plastic bags, Styrofoam, nails, etc. are properly disposed of
to prevent accidental injury to children or other persons.
• If there is evidence of defect or damage to the machine an authorised Rocket Espresso Ltd. dealer or technician
should be notified immediately so that remedial action can be taken.
• This machine is safe only when it has been correctly connected to an efficient earthing/grounding system. This
should conform to local safety standards and legislation in force at the time of installation.
• Installation of any Rocket Espresso Ltd. product should only be undertaken by duly authorised, properly trained
and qualified personnel
• Dangerous or improper electrical connections are extremely hazardous and should never occur.
• Always check the integrity of the components elements of the machine.
• Never fit defective or damaged spare parts. Always request replacement from Rocket Espresso Ltd. .
• Before connecting the machine to electric supply, always check that capacity and power rating at least equals the
power requirement of the machine.
• Protect the user by fitting a circuit breaker to electric supply feeding the machine.
• Never attempt to run the machine with water that is harder than 7°F.
This equipment is to be installed to comply with the applicable Federal, state, or local plumbing codes
having jurisdiction.

10
Technical Data
Brewing groups: 1
Hot steam wands: 1
Hot water wands: 1
Coffee portion control: Manual
Boiler water level control: Automatic
Voltage: Please see machines data plate
Frequency: Please see machines data plate
Wattage: 1350 W
Dimensions: Width: 330 mm (13 inches)
Depth: 425 mm (16.8 inches)
Height: Premium Plus 355 mm (13.97 inches)
Evoluzione / Professionale 390 mm (15.35 inches)
Weight: Premium Plus 23 kg (approx. 50 lbs)
Evoluzione / Professionale 26 kg (approx. 57 lbs)

11
Start up
Parts which can become hot and cause injuries. Caution!
Never touch the following parts. They are or can become hot and could cause burns:
1. Metal parts of steam handle
2. Hot steam wand and spout
6. Coffee brewing group
7. Not insulated metal parts of filter holder
8. Infusion piston
9. Not insulated parts of lever
11. Hot water wand and spout
12. Not insulated metal parts of hot water handle
1 12
2
6
7
8
9
10
11

12
Instruction Supplement for Rocket Espresso model ranges
Evoluzione & Professionale
The Rocket Espresso Evoluzione and Professionale ranges are built with full commercial rotary pumps. This
feature enables the user to connect the machine directly to the mains water supply.
In the case of the Evoluzione range, there is the choice to use the 2.9 Litre water reservoir or alternatively use a
mains water connection. The Evoluzione model range is preset at the factory to use the supplied 2.9 Litre water
reservoir. To set the Evoluzione machine to be mains water fed, please ensure the following instructions are
adhered to:
Using the steel braided water hose supplied, connect the machine to the main water supply. Rocket Espresso
recommends the following procedures when installing the machine to a mains water supply feed;
• Rocket Espresso recommends using a certified plumber to complete the installation and insure that the
installation meets local authority standards and regulations in all cases. Line pressures exceeding 5 bars
should be limited with the use of a pressure regulating valve on the water feed line.
• Rocket Espresso recommends the use of a shut off valve to isolate the water supply to the machine.
• If you are drawing the water from a non pressurised system (ie from a remote water supply tank, not mains
pressurised) it is recommended that a non return valve is fitted to the end of the water supply hose to ensure
that line pressure is maintained at all times.
• Rocket Espresso recommends the use of an inline filter to ensure the water supply to the machine is of the
highest quality. (Example; everpure ocs filter range).

13
We assume the machine is properly installed
Before starting using the machine, please control the following:
(A)
1. Lever (A-9) is completely down.
2. Steam handle (A-1) is closed.
3. Hot water handle (A-12) is closed.
4. On/off switch (A-4) is on position “0” =machine switched off
5. Machine is unplugged.
6. Drip tray (A-10) and its grid are properly positioned into the machine.
1 12
2
3
4
58
9
10

14
Now please proceed as follows:
(A)
(B)
1. Remove the cover from the water reservoir Fig. B-2
2. Remove the water reservoir (Fig. B-2 and clean it carefully with food quality cleaning products. It’s very important
that the water reservoir is always clean! Please repeat this operation every day and whenever necessary.
3. Fill the water tank with fresh drinking water to just over ¾ full.
4. Place the tank inside the machine taking care not to spill water.
1
2
4
1 12
2
3
4
58
9
10

15
5. Put on the cover on top of the water reservoir.
6. Plug in the machine.
7. Turn the on/off switch (A-4) to the on position “1” and open the steam handle (A-1). Boiler water fill starts (you
will hear the pump’s noise).
8. When the boiler is properly filled with water, the pump will stop (=no more noise). Now close the steam
handle (A-1).
9. The heating up of the boiler water starts.
10. Wait till the boiler pressure gauge (A-3) reads approximately 1 bar.
11. Now open the steam handle (A-1) for 5 seconds to let out some steam. This operation is very important as
it removes possible vacuum inside the boiler which will reflect in suction of milk inside the boiler itself once
starting to steam milk. Close the steam handle (A-1) again.
12. Wait until the boiler pressure gauge (A-3) reaches again 1 Bar.
13. Pull the lever (A-9) completely up.
14. Allow a cup of water to come out of the coffee brewing group (A-6).
15. Pull the lever (A-9) completely down (water will stop flowing).
Now the machine is ready for operation.

16
Operating Instructions

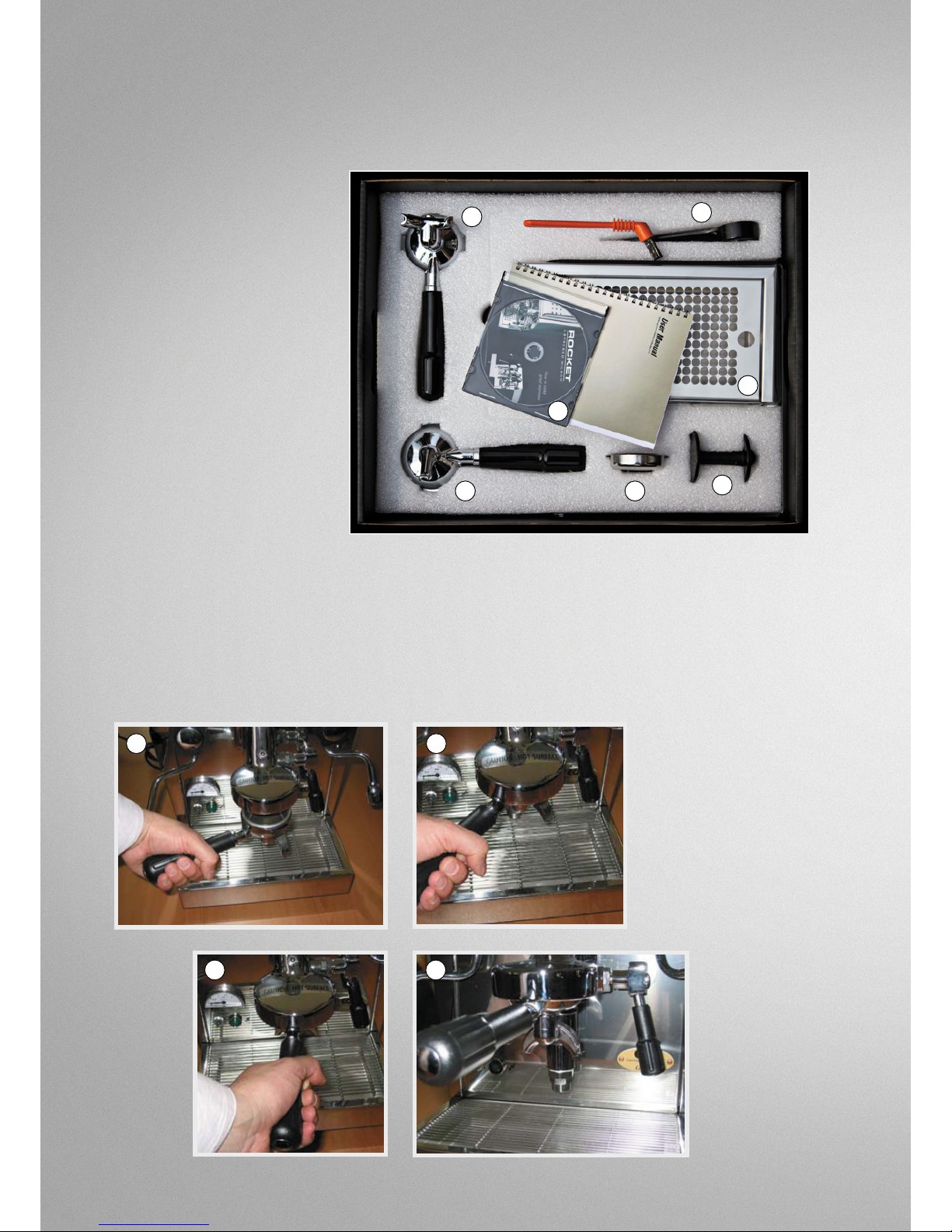

The below shown components are supplied with your machine (the one cup filter holder comes typically on special order)
(A) Tamper
(B) Measuring spoon
(C) Two cups metal filter basket
(D) Two cups filter handle
(E) DVD user guide
(F) One cup filter handle
(G) Drip tray
Suggestion: We strongly suggest that you train how to tighten the filter holder (with the metal filter basket firmly
plugged in) into the brewing head (A-6).
It seems to be an easy operation. Nevertheless we think it may need some practise.
A
B
D
C
E
F
G
1
3 4
2

17
Preparing one or two cups of espresso. For the correct espresso preparation technique see page 30
Preparing a single espresso 25ml
1. Use one cup filter handle (with 1 spout)
2. Position the metal one cup filter basket firmly inside the filter holder
3. Fill the single filter basket with freshly ground coffee and tamp the coffee until the finished height, is level
with the internal reference line in the filter basket.
4. Tamp the ground coffee gently using the tamper supplied with the machine
5. Tighten the filter holder firmly into the brewing head (A-6).
6. Put one cup under the filter holder spout.

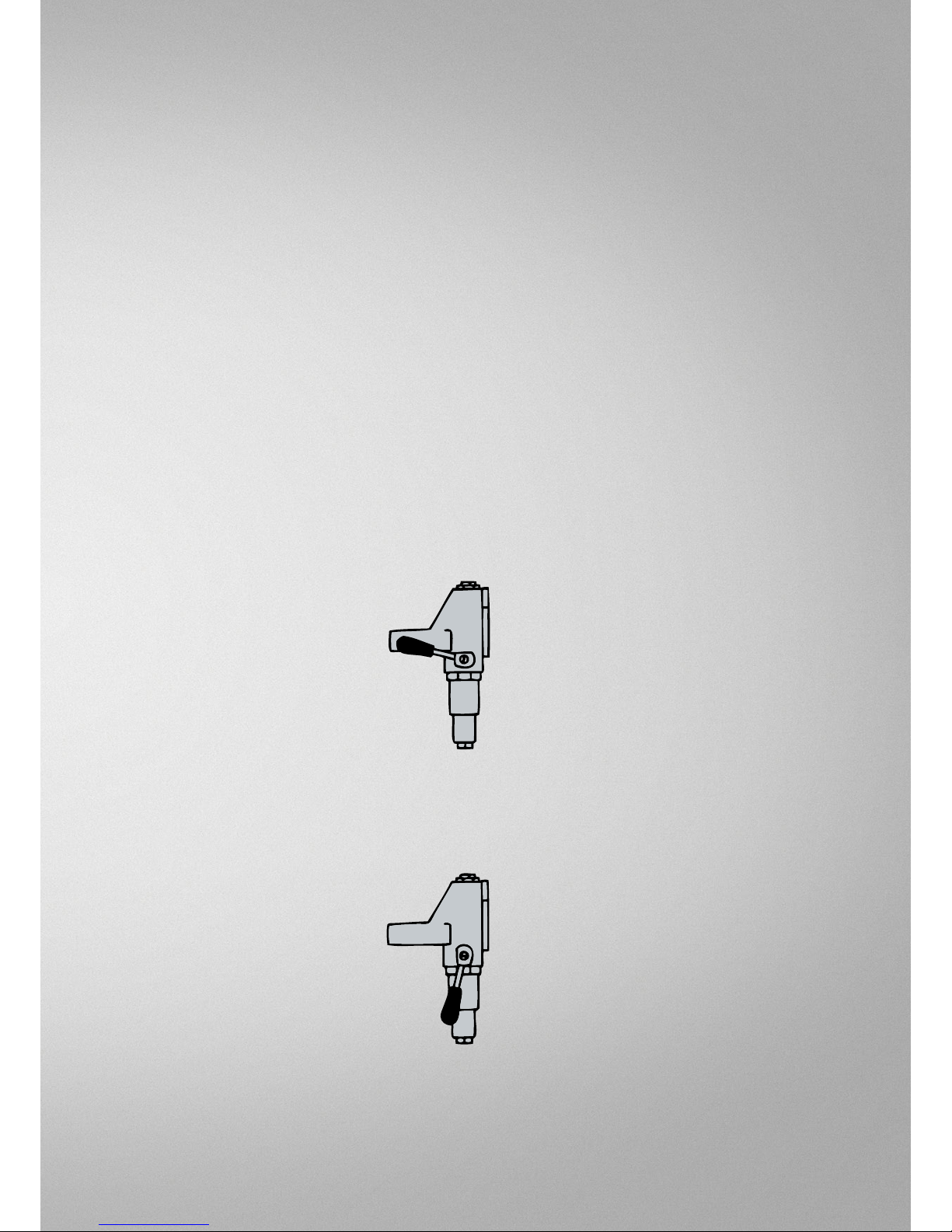

7. Pull the lever (A-9) completely upwards.
8. When the MAXIMUM extraction of 25 to 30 ml of espresso has been dispensed, position the lever (A-9)
completely down to stop the coffee dispensing process.
For safety reasons and to avoid personal injury it’s extremely important that the lever (A-9) is positioned
completely down and not just to the position where the coffee stops to flow out and the pump’s noise can’t be
heard any more. Never leave lever (A-9) in the position as shown here below:
9. Remove the filter holder (A-7) from the machine and empty used coffee grounds.
10. Clean the filter holder.
Hot coffee flows into
the cups from the filter
handle’s coffee spouts.

18
Preparing TWO cups or a double espresso coffee. 50 to 60 mls.

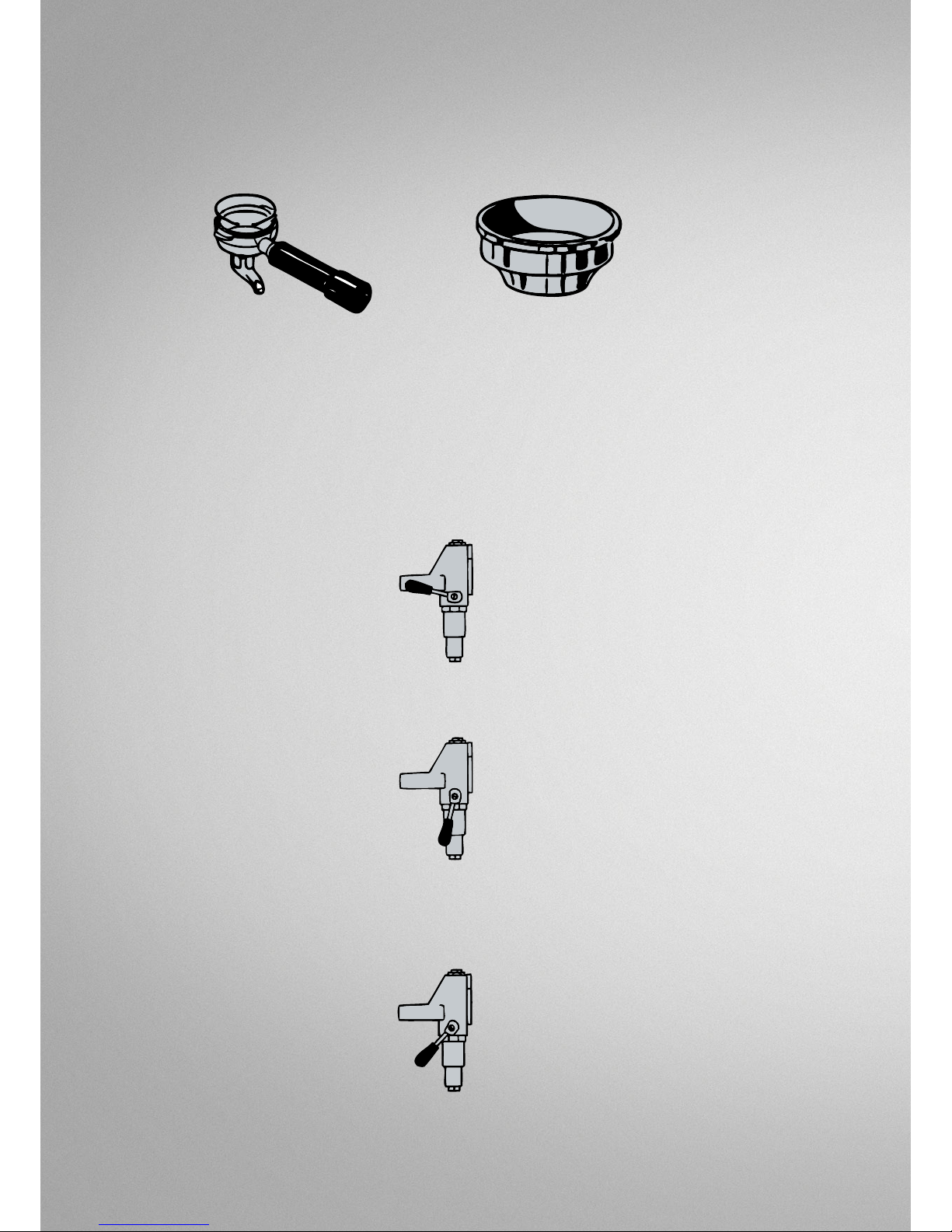

1. Use the two cup filter handle (with 2 spouts)
2. Position the metal two cups filter basket firmly inside the filter holder
3. Fill the single filter basket with freshly ground coffee and tamp the coffee until the finished height, is level
with the internal reference line in the filter basket.
4. Tamp the ground coffee gently using the tamper supplied with the machine
5. Tighten the filter holder firmly into the brewing head (A-6).
6. Put two cups under the filter holder spouts. Or one cup for a double.
7. Pull the lever (A-9) completely upwards.
8. When the maximum extraction of 50 to 60 mls, or 25 to 30 ml per cup has been achieved, position the lever
(A-9) completely down to stop the coffee dispensing process.
For safety reasons and to avoid personal injury it’s extremely important that the lever (A-9) is positioned
completely down and not just to the position where the coffee stops to flow out and the pump’s noise can’t be
heard any more. Never leave lever (A-9) in the position as shown here below:
9. Remove the filter holder (A-7) from the machine and empty used coffee grounds.
10. Clean the filter holder.
NO!
DANGER !
Hot coffee flows into
the cups from the filter
handle’s coffee spouts.

19
Dispensing steam to froth or heat up liquids
1. Fill a suitable ideally stainless steel pitcher (used for food only) with an insulated grip with the liquid to be heated
up or frothed.
2. Position the steam nozzle of the steam wand (A-2) just below the surface of the liquid inside the liquid in the
recipient. To avoid personal injury always ensure that the end nozzle of the steam pipe (A-2) is below the surface
of the liquid to be steamed.
3. Turn on steam valve (A-1) fully.
4. Heat up or froth the liquid inside the pitcher.
Pay attention to hot sprays! They may cause injuries.
5. When you’re done, close the steam valve (A-1).
Clean the steam wand (A-2) and the steam wand’s end nozzle carefully with a non abrasive damp cloth after each
single use without touching it directly with any part of the body to avoid injury or damage due to the hot surface of
steam wand end nozzle. Caution: Hot surface.
Example: Steaming milk. For the correct milk texturing and heating technique see page 28.
1. Use a clean, cold pitcher and fill 1/3 with cold, fresh milk.
If milk has previously been steamed and stored in the refrigerator, we suggest adding some fresh milk in order to
achieve optimum foam. Milk should be stored at a temperature around 4-5°C (app. 40°F).

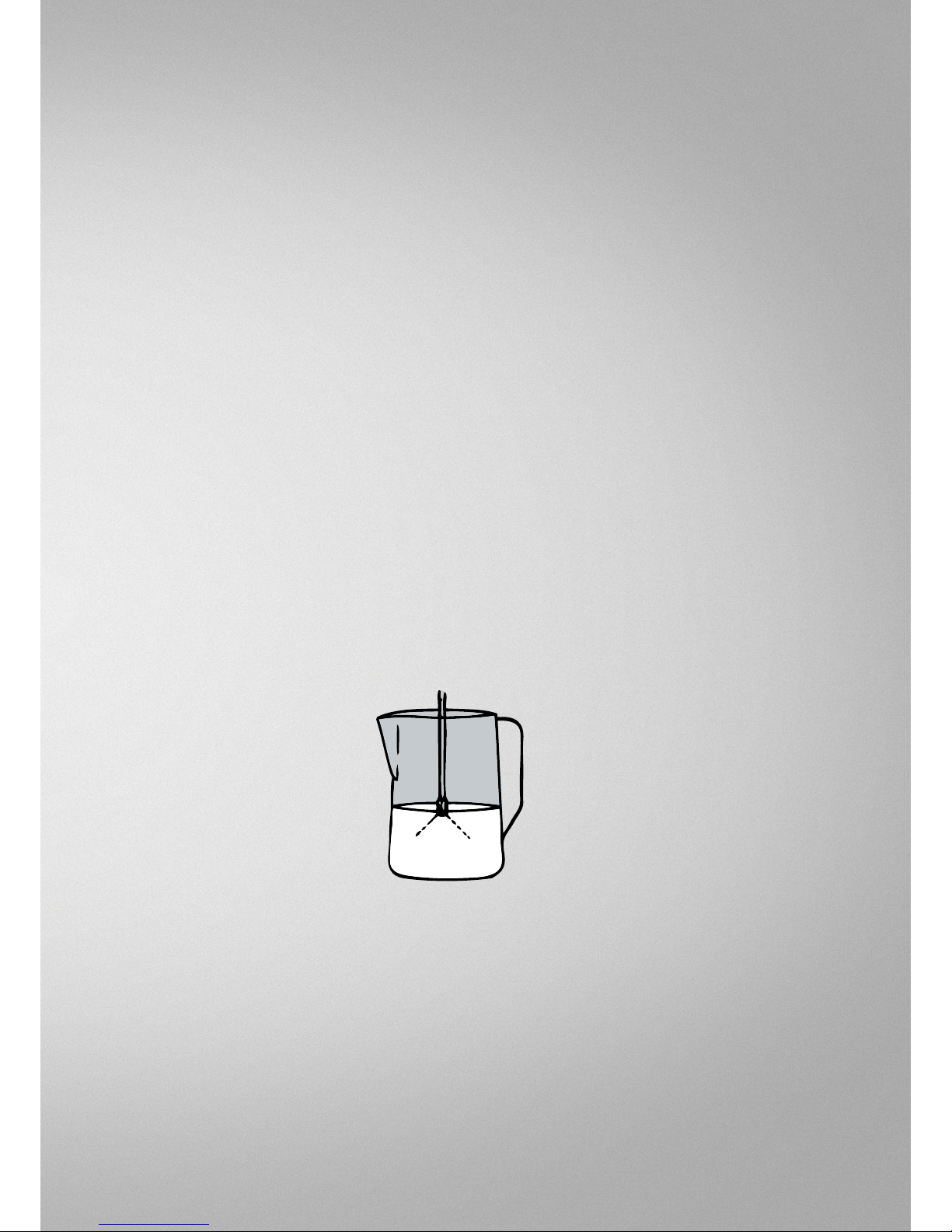

2. Insert steam nozzle (A-2) into the centre milk just below the surface of the milk.
3. Open steam valve (A-1) rapidly.
4. Steam will come out of the nozzle and froth the milk. The milk volume will increase rapidly. Please lift the pitcher
progressively to make sure that the steam nozzle is always right below the surface of the milk.

20
5. When enough foam is achieved, submerge nozzle (going sidewise) and keep it in that position finishing heating
milk until the pitcher is too warm to touch.
Please remember that milk should never be steamed over app. 76°C (168°F). Milk steamed to over this
temperature is scalded.
6. Close steam valve (A-1) rapidly, then remove milk pitcher from steam wand.
7. Wipe the steam wand (A-2) immediately after using with a non abrasive clean damp towel without touching the
steam wand (A-2) directly with any part of the body to avoid injury or damage due to the hot surface of steam
wand end nozzle. Use a towel that is designated for the steam wand only. Do not cross contaminate kitchen
towels by using the same towel for cleaning the steam wand and i.e. kitchen tops.
Do not let the milk bake onto the steam wand.
Clogged wands and steam valves can be expensive to repair or to replace.
8. Burp your steam wand (A-2) immediately after using opening and closing immediately after the steam valve (A-1).
Caution: Hot steam will come out of steam wand (A-2).
Burping the wand will remove the milk residue from the inside of the nozzle.
9. Finish espresso drinks with correct portions of milk and foam.
10. Clean steam pitcher and store for next drink.
Dispensing of hot water
1. Position the end nozzle of the hot water wand (A-11) inside a suitable pitcher used for food only.
2. Open the hot water valve (A-12).
3, Hot water will be dispensed into the pitcher.
4. Close the hot water valve (A-12) when you’re done.
