Introduction
Thank you for purchasing a Rocketfish universal netbook
power adapter. This adapter plugs into any AC or DC power
outlet anywhere in the world, and provides a reliable power
source to run your netbook computer and charge its internal
battery. Rocketfish adapters are made using the highest
quality components and feature all of the necessary voltage
and heat protection circuits to ensure maximum levels of
safety and efficiency.
NOTE: A physical adapter plug may be necessary to plug
into some AC power outlets outside of the United States, but
no voltage converter is needed anywhere in the world.
RF-NBACDC 09-0972_MAN_ENG_V1.fm Page 2 Monday, November 9, 2009 1:35 PM

3
RF-NBACDC
This adapter comes with a variety of numbered tips which
connect to the output cable of the adapter and control the
output voltage. To ensure that the proper voltage is
delivered to your netbook, you must always make sure that
you are using the correct tip for your specific netbook model.
Read the following instructions and refer to the Tip
Compatibility Guide included with this adapter to make sure
you select the correct tip for your netbook.
CAUTION: This AC/DC power adapter is not compatible
with Mac computers.
Safety information
• Do not expose the power adapter to rain, moisture, or
excessive dust. It may cause shock hazards.
• Do not operate the adapter in direct sunlight.
• Operate the adapter in a well ventilated area. Maximum
ambient temperature around the power adapter must
not exceed 105° Fahrenheit (40° Celsius).
• Do not open the power adapter under any
circumstances. The power adapter is not intended to be
repaired in case of failure or component defect. There are
no internal serviceable parts.
• Discontinue use and contact our toll free help line for
assistance [phone] if any of the following should
occur:
• The adapter shuts down when it is plugged into the
netbook (LED turns off).
• The adapter's LED light blinks when the adapter is
plugged into an AC power outlet.
• A cord or plug is damaged or frayed.
RF-NBACDC 09-0972_MAN_ENG_V1.fm Page 3 Monday, November 9, 2009 1:35 PM

4
• Do not use with netbooks that require more than
40 watts of power.
• Make sure to use the correct tip for your netbook listed in
the Tip Compatibility Guide. Do not use a tip that is not
listed for your netbook.
• Keep away from children.
Features
Package contents
• 40 Watt universal netbook power adapter
•4tips
•ACcable
•DCcable
• Tip Compatibility Guide
•UserGuide
Using the AC/DC power adapter
Interchangeable tips Output cable
(shown with
tip attached)
AC input
cable
Power adapter body
DC input
cable
RF-NBACDC 09-0972_MAN_ENG_V1.fm Page 4 Monday, November 9, 2009 1:35 PM

5
RF-NBACDC
Using the power adapter in a wall (AC) outlet
To use the power adapter in an AC outlet:
1Select your netbook manufacturer and model from the
“Tip Compatibility Guide” (separate booklet), or go to
www.rocketfishproducts.com and go to RF-NBACDC to
find the Tip Wizard. This will let you determine the
correct tip number for your netbook.
CAUTION: The use of an incorrect tip may damage your
netbook. Do not use this product if you cannot locate your
netbook model in the Tip Compatibility Guide included with
this AC/DC adapter or by using the Tip Wizard at
www.rocketfishproducts.com. If you still have questions,
contact our toll-free help line for assistance [phone].
This AC/DC power adapter is not compatible with Mac
computers.
2Locate the specified tip from the tip bundle provided.
Each tip is clearly numbered.
RF-NBACDC 09-0972_MAN_ENG_V1.fm Page 5 Monday, November 9, 2009 1:35 PM

6

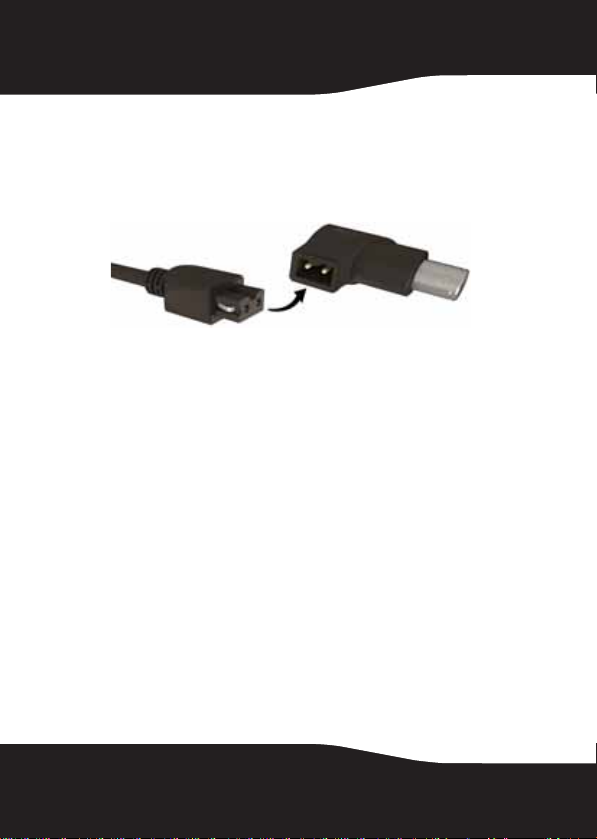

3Connect the selected tip to the end of the output cable,
making sure that the pins on the tip are aligned with the
holes in the cable. The ridge on the inside of the tip
should align with the groove in the output cable
connector. Also make sure that the tip is pushed all the
way into the output cable's connector.
4Connect the AC cord to the socket on the AC adapter.
5Plug the AC cord into an AC power outlet. The LED on the
adapter turns green indicating that the adapter is
powered and ready.
IMPORTANT: If the adapter's LED does not turn on, or if it
blinks, discontinue use and contact our toll free help line for
assistance [phone].
6Plug the tip connected to the output cable into the
matching DC input jack on the side or back of your
netbook. The adapter powers the netbook and charges
its battery.
RF-NBACDC 09-0972_MAN_ENG_V1.fm Page 6 Monday, November 9, 2009 1:35 PM

7
RF-NBACDC
Using the power adapter in a vehicle (DC)
outlet
This combo power adapter auto connector can be used in
any vehicle, such as a car, truck, RV or boat, that has a 12-volt
DC cigarette lighter socket. Your netbook’s battery will
automatically charge regardless of whether the netbook is
turned on or off.
CAUTION: To prevent power interruption and any negative
effects on your netbook, disconnect the power adapter prior
to starting your vehicle’s engine. The power adapter may be
re-connected once the vehicle’s engine has been started.
To use the power adapter with a DC power source:
1Select your netbook manufacturer and model from the
“Tip Compatibility Guide” (separate booklet), or go to
www.rocketfishproducts.com and go to RF-NBACDC to
find the Tip Wizard. This will let you determine the
correct tip number for your netbook.
RF-NBACDC 09-0972_MAN_ENG_V1.fm Page 7 Monday, November 9, 2009 1:35 PM

8
CAUTION: The use of an incorrect tip may damage your
netbook. Do not use this product if you cannot locate your
netbook model in the Tip Compatibility Guide included with
this AC/DC adapter or by using the Tip Wizard at
www.rocketfishproducts.com. If you still have questions,
contact our toll-free help line for assistance [phone].
This AC/DC power adapter is not compatible with Mac
computers.
2Connect the selected tip to the end of the output cable,
making sure that the pins on the tip are aligned with the
holes in the cable. The ridge on the inside of the tip
should align with the groove in the output cable
connector. Also make sure that the tip is pushed all the
way into the cable’s connector.
RF-NBACDC 09-0972_MAN_ENG_V1.fm Page 8 Monday, November 9, 2009 1:35 PM

9
RF-NBACDC
3Plug the power tip into your netbook computer.
4Plug the DC power connector input cable into the power
adapter body.
5Remove the vehicle’s cigarette lighter from its socket.
6Plug the DC power cable into the cigarette lighter socket.
When the adapter has power, the status light turns on.
Your netbook is now powered and the battery is
charging.
Using the power adapter in a commercial
airplane (DC) outlet
You can use the air connector when traveling in an airplane
that provides a compatible in-seat power system. Some
airlines provide a 12-volt DC cigarette socket instead of a
special air connection. On these airlines, use the vehicle
cigarette lighter connection. The AC/DC combo power
adapter will power your netbook, but may not charge your
netbook’s battery when used in an airplane.
To use the power adapter with an airline DC power source:
1Select your netbook manufacturer and model from the
“Tip Compatibility Guide” (separate booklet), or go to
www.rocketfishproducts.com and go to RF-NBACDC to
find the Tip Wizard. This will let you determine the
correct tip number for your netbook.
CAUTION: The use of an incorrect tip may damage your
netbook. Do not use this product if you cannot locate your
netbook model in the Tip Compatibility Guide included with
this AC/DC adapter or by using the Tip Wizard at
www.rocketfishproducts.com. If you still have questions,
contact our toll-free help line for assistance [phone].
This AC/DC power adapter is not compatible with Mac
computers.
RF-NBACDC 09-0972_MAN_ENG_V1.fm Page 9 Monday, November 9, 2009 1:35 PM

10
2Connect the selected tip to the end of the output cable,
making sure that the pins on the tip are aligned with the
holes in the cable. The ridge on the inside of the tip
should align with the groove in the output cable
connector. Also make sure that the tip is pushed all the
way into the cable’s connector.
3Plug the power tip into your netbook computer.
4Plug the DC power connector input cable into the power
adapter body.
5Remove the vehicle cigarette lighter connector to reveal
the air connector, by holding the tab at the base of the
connector and sliding the cigarette lighter connector off.
6Insert the adapter’s air connector into the in-seat power
socket, which is usually found on the arm of your seat or
under the seat. The adapter’s status light will glow when
powered. When the adapter has power, the status light
turns on. Your netbook is now powered.

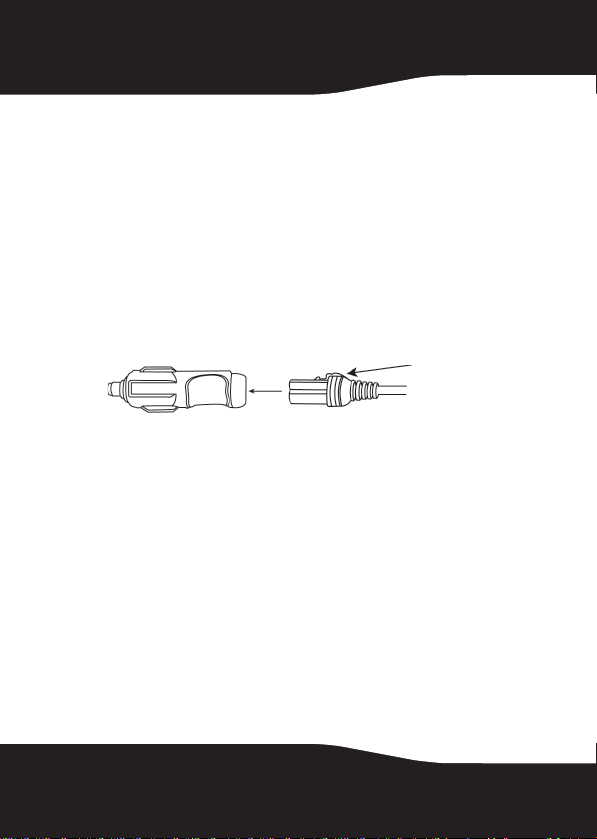

Air connector
Auto connector To remove, hold
this tab and
slide the auto
connector off.
RF-NBACDC 09-0972_MAN_ENG_V1.fm Page 10 Monday, November 9, 2009 1:35 PM

11
RF-NBACDC
FAQ for Rocketfish Adapters
What tip should I use for my netbook?
You can determine the correct tip for your netbook by
referencing the Tip Compatibility Guide included with the
adapter or by visiting the Tip Wizard at
www.RocketfishProducts.com and go to RF-NBACDC to find
the Tip Wizard. Locate your netbook manufacturer and
model and the correct tip will be listed.
If you cannot find your specific netbook model please
contact Rocketfish customer service at [phone] for
additional assistance.
How do I connect the tip to the adapter cable?
Once you have selected the correct tip for your netbook,
connect the tip to the output cable, making sure that the
ridge on the inside of the tip aligns properly with the groove
in the output cable connector. Additionally, the pins on the
inside of the tip should be in line with the holes in the output
cable. The tip should be pushed firmly onto the cable until
the tip and cable meet and there is no gap.
What other netbooks can I use this adapter
for?
The Rocketfish Universal Power Adapter is compatible with
many netbook models. A complete list of compatible
netbooks can be viewed through the Tip Wizard at
www.RocketfishProducts.com and go to RF-NBACDC to find
the Tip Wizard.
RF-NBACDC 09-0972_MAN_ENG_V1.fm Page 11 Monday, November 9, 2009 1:35 PM

12
Why doesn't the tip fit into my netbook?
If the tip does not appear to fit into your netbook you may
have selected the incorrect tip for your netbook. The tip
should fit snugly inside the DC input jack on the side or back
of your netbook. If the tip will not fit into the jack, do not
force the tip. Confirm you have selected the correct tip for
your netbook by referencing the included Tip Compatibility
Guide or visiting the Tip Wizard at
www.RocketfishProducts.com and go to RF-NBACDC to find
the Tip Wizard. If you need additional assistance, contact
Rocketfish customer service at [phone].
Will using an incorrect tip damage my
netbook?
The tips are designed to be used with specific netbooks and
so you should only use the tip that is designated specifically
for your netbook. The correct tip can be identified by using
the online Tip Wizard at www.RocketfishProducts.com and
go to RF-NBACDC to find the Tip Wizard, or by locating your
specific netbook in the included Tip Compatibility Guide.
The use of an incorrect tip may cause performance issues,
including the inability to charge the internal battery or
power the netbook, or the display of an error message on the
netbook screen. It is also possible that the use of an incorrect
tip could damage your netbook. For these reasons, it is
necessary to use the tip designed specifically for your
netbook.
I notice that the adapter is warm when I use it.
Is this a problem?
During standard operation the power adapter body may feel
warm, and this is normal. The adapter should always be
placed in a ventilated area in order to prevent over-heating.
RF-NBACDC 09-0972_MAN_ENG_V1.fm Page 12 Monday, November 9, 2009 1:35 PM

13
RF-NBACDC
How long is the cord from the wall to the
netbook?
The AC input cord is 3.3 feet (1 meter).
If I leave the adapter plugged in when I'm not
using it does it waste energy?
This Rocketfish adapter meets EnergyStar and CEC IV energy
requirements which means it is an energy-efficient product
designed to conserve power. When the adapter is plugged in
and not being used it draws less than 0.5W of power.
Specifications
Input voltage: 100 to 240 volts AC
Output power: 40 watts continuous power
Legal notices
FCC Part 15
This device complies with Part 15 of the FCC Rules. Operation
of this product is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply within
the limits for a class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
RF-NBACDC 09-0972_MAN_ENG_V1.fm Page 13 Monday, November 9, 2009 1:35 PM

14
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced technician for help.
FCC warning
Changes or modifications not expressly approved by the
party responsible for compliance with the FCC Rules could
void the user’s authority to operate this equipment.
Copyright
© 2009 Rocketfish. Rocketfish and the Rocketfish logo are
trademarks of Best Buy Enterprise Services, Inc. Other brands
and product names are trademarks or registered trademarks
of their respective holders. Specifications and features are
subject to change without notice or obligation.
For service and support call [phone].
RF-NBACDC 09-0972_MAN_ENG_V1.fm Page 14 Monday, November 9, 2009 1:35 PM

15
RF-NBACDC
Three-year limited warranty
Rocketfish Products (“Rocketfish”) warrants to you, the original
purchaser of this new RF-NBACDC (“Product”), that the Product
shall be free of defects in the original manufacture of the material or
workmanship for three (3) years from the purchase of the Product
(“Warranty Period”). This Product must be purchased from an
authorized dealer of Rocketfish brand products and packaged with
this warranty statement. This warranty does not cover refurbished
Product. If you notify Rocketfish during the Warranty Period of a
defect covered by this warranty that requires service, terms of this
warranty apply.
How long does the coverage last?
The Warranty Period lasts for three years (1095 days), beginning on
the date you purchased the Product. The purchase date is printed on
the receipt you received with the product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the
material or workmanship of the Product is determined to be
defective by an authorized Rocketfish repair center or store
personnel, Rocketfish will (at its sole option): (1) repair the Product
with new or rebuilt parts; or (2) replace the Product at no charge
with new or rebuilt comparable products or parts. Products and
parts replaced under this warranty become the property of
Rocketfish and are not returned to you. If service of Products and
parts are required after the Warranty Period expires, you must pay all
labor and parts charges. This warranty lasts as long as you own your
Rocketfish Product during the Warranty Period. Warranty coverage
terminates if you sell or otherwise transfer the Product.
How to obtain warranty service?
If you purchased the Product at a retail store location, take your
original receipt and the Product to the store you purchased it from.
Make sure that you place the Product in its original packaging or
packaging that provides the same amount of protection as the
original packaging. If you purchased the Product from an online web
site, mail your original receipt and the Product to the address listed
RF-NBACDC 09-0972_MAN_ENG_V1.fm Page 15 Monday, November 9, 2009 1:35 PM

16
on the web site. Make sure that you put the Product in its original
packaging or packaging that provides the same amount of
protection as the original packaging.
Where is the warranty valid?
This warranty is valid only to the original purchaser of the Product in
the United States, Canada, and Mexico.
What does the warranty not cover?
This warranty does not cover:
• Customer instruction
• Installation
•Setupadjustments
•Cosmeticdamage
• Damage due to acts of God, such as lightning strikes
• Accident
• Misuse
•Abuse
•Negligence
• Commercial use
• Modification of any part of the Product, including the antenna
This warranty also does not cover:
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage supply
• Attempted repair by anyone other than a facility authorized by
Rocketfish to service the Product
• Products sold as is or with all faults
• Consumables, such as fuses or batteries
• Products where the factory applied serial number has been
altered or removed
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS
YOUR EXCLUSIVE REMEDY. ROCKETFISH SHALL NOT BE LIABLE FOR
ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH
OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT,
INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF
YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. ROCKETFISH
PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT
RF-NBACDC 09-0972_MAN_ENG_V1.fm Page 16 Monday, November 9, 2009 1:35 PM

17
RF-NBACDC
TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE
PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED
WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO
THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES,
WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY
PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT
ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS,
SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY
ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR
PROVINCE TO PROVINCE.
Contact Rocketfish:
For customer service please call 1-800-620-2790
www.rocketfishproducts.com
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, Minnesota, U.S.A. 55423-3645
© 2009 Best Buy Enterprise Services, Inc.
All rights reserved. ROCKETFISH is a trademark of Best Buy Enterprise
Services, Inc. Registered in some countries. All other products and
brand names are trademarks of their respective owners.
RF-NBACDC 09-0972_MAN_ENG_V1.fm Page 17 Monday, November 9, 2009 1:35 PM

www.rocketfishproducts.com [phone]
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, MN 55423-3645 USA
© 2009 Best Buy Enterprise Services, Inc.
All rights reserved. ROCKETFISH is a trademark of Best Buy Enterprise Services, Inc.
All other products and brand names are trademarks of their respective owners.
09-0972
ENGLISH
RF-NBACDC 09-0972_MAN_ENG_V1.fm Page 20 Monday, November 9, 2009 1:35 PM
