Welcome to Rockford Fosgate! This manual is designed to provide
information for the owner, salesperson and installer. For those of you
who want quick information on how to install this product, please turn
to the Installation Section of this manual or refer to the icons listed
below. Other information can be located by using the Table of
Contents. We, at Rockford Fosgate, have worked very hard to make
sure all the information in this manual is current. But, as we are con-
stantly finding new ways to improve our product, this information is
subject to change without notice.
GETTING STARTED
I
N
S
T
A
L
L
A
T
I
O
N
+ -
+ -
TROUBLE-S
H
O
O
T
I
N
G
Visit our website for the latest information on all Rockford products.

-2-
SPECIFICATIONS
Specifications subject to change without notice
DYNAMIC POWER RATING PUNCH 100 PUNCH 120 PUNCH 160 PUNCH 250 PUNCH 360 PUNCH 500 PUNCH 800
(IHF-202 Standard) Measured at 14.4 volts
MONO into a 4 ohm load 160Wx1 200Wx1 236Wx1 320Wx1 450Wx1 710Wx1 960Wx1
PER CHANNEL into a 2 ohm load 80Wx2 94Wx2 113Wx2 160Wx2 210Wx2 330Wx2 480Wx2
PER CHANNEL into a 4 ohm load 50Wx2 64Wx2 77Wx2 100Wx2 140Wx2 210Wx2 240Wx2
CONTINUOUS POWER RATING
(MEASURED AT 13.8V)
RMS continuous power PER CHANNEL 25Wx2 30Wx2 40Wx2 62.5Wx2 90Wx2 125Wx2 200Wx2
both channels driven into a 4 ohm load
from 20 to 20,000Hz with less than 0.05%
THD+N (total Harmonic Distortion)
RMS continuous power PER CHANNEL 50Wx2 60Wx2 80Wx2 125Wx2 180Wx2 250Wx2 400Wx2
both channels driven into a 2 ohm load from
20 to 20,000Hz with less than 0.1% THD+N
(total Harmonic Distortion)
RMS continuous power MONO 100Wx1 120Wx1 160Wx1 250Wx1 360Wx1 500Wx1 800Wx1
both channels driven into a 4 ohm load
from 20 to 20,000Hz with less than 0.1%
THD+N (total Harmonic Distortion)
SIGNAL to NOISE RATIO (A-weighted) >100dB >100dB >100dB >100dB >100dB >100dB >100dB
CROSSOVER SLOPE 12DB/octave 12DB/octave 12DB/octave 12DB/octave 12DB/octave 12DB/octave 12DB/octave
CROSSOVER FREQUENCY 80Hz 80Hz 50-Hz-210Hz 50-Hz-210Hz 50-Hz-210Hz 50-Hz-210Hz 50-Hz-210Hz

-3-
SPECIFICATIONS
Specifications subject to change without notice
DIMENSIONS
(end caps installed) PUNCH 100 PUNCH 120 PUNCH 160 PUNCH 250 PUNCH 360 PUNCH 500 PUNCH 800
2.4" 2.4" 2.4" 2.4" 2.4" 2.4" 2.4"
(6.09cm) H ((6.09cm) H (6.09cm) H (6.09cm) H (6.09cm) H (6.09cm) H (6.09cm) H
9.9" 9.9" 9.9" 9.9" 9.9" 9.9" 9.9"
(25.15cm) W (25.15cm) W (25.15cm) W (25.15cm) W (25.15cm) W (25.15cm) W (25.15cm) W
10.4" 10.4" 10.4" 11.4" 12.4" 13.4" 18.4"
(26.42 cm) L (26.42 cm) L (26.42 cm) L (28.96 cm) L (31.5 cm) L (34.04 cm) L (46.74 cm) L
FREQUENCY
RESPONSE (+ 0.5dB) 20 Hz-20kHz 20 Hz-20kHz 20 Hz-20kHz 20 Hz-20kHz 20 Hz-20kHz 20 Hz-20kHz 20 Hz-20kHz
BANDWIDTH (+ 0.3dB) 10Hz-250Hz 10Hz-200Hz 10Hz-200Hz 10Hz-200Hz 10Hz-200Hz 10Hz-200Hz 10Hz-200Hz
DAMPING FACTOR @4Ω
at output connection >200 >200 >200 >200 >200 >200 >200
SLEW RATE 30 voltsµs 30 voltsµs 30 voltsµs 30 voltsµs 30 voltsµs 30 voltsµs 30 voltsµs
IM DISTORTION <0.5% <0.5% <0.5% <0.5% <0.5% <0.5% <0.5%
SOURCE UNIT COMPATIBILITY
(+15dB gain overlap) All All All All All All All
INPUT SENSITIVITY
(0+dB gain overlap) 200mv ~ 4v 200mv ~ 4v 200mv ~ 4v 200mv ~ 4v 200mv ~ 4v 200mv ~ 4v 200mv ~ 4v
PROTECTIONNOMAD- Internal analog computer output protection circuitry limits power in case of overload. Thermal switch shuts down the amplifier in case of overheating
BATTERY FUSE RATING
(external to amplifier) 15A 20A 20A 30A 40A 50A 60A*
FUSE TYPE ATC ATC ATC ATC ATC AGU AGU
EQUALIZATION
(45Hz Punch Bass) N/A Adjustable Variable Variable Variable Variable Variable
INPUT IMPEDANCE 20kΩ20kΩ20kΩ20kΩ20kΩ20kΩ20kΩ
* recommended fuse not supplied

-4-
INTRODUCTION
Rockford engineers designed the Punch 2-channel amplifiers to withstand
the rugged automotive environment while delivering superior sound quali-
ty in a flexible, reliable, and efficient package. TRANS•ANA is a low volt-
age circuit in the preamp stage of all Punch amplifiers that lets the music
sound crystal clear and very real, even when played at high volume levels.
This is matched with TOPAZ, a unique grounding circuit used to eliminate
noise problems associated with car audio systems and their installation.
Flexibility is accomplished with the use of a built-in crossover. The use of a
protection circuit called NOMAD, along with MOSFET and DSM (Discrete
Surface Mount) technologies improve amplifier efficiency. The result of
these components give the Punch amplifier awesome sound quality in a
“Bullet Proof”package. An explanation of these technologies, most of
which are exclusively designed and patented by Rockford, are described in
the Technical Design Features.
PUNCH AMPLIFIER ACCESSORY PACK
The accessory pack shipped with the Punch 2-channel amplifiers includes
the mounting hardware necessary to secure the amp to the vehicle and to
attach the end caps to the amplifier.
Installation & Operation Manual
Punch Verification Certificate
(4) Amplifier mounting screws (#8 x 3/4" Phillips)
(1) ATC Inline Fuseholder (Punch 120, 160, 250, 360)
(1) AGU Inline Fuseholder (Punch 500)
(2) ATC 15 Amp Fuse (Punch 100 & Punch 120)
(1) ATC 20 Amp Fuse (Punch 160)
(1) ATC 30 Amp Fuse (Punch 250)
(1) ATC 40 Amp Fuse (Punch 360)
(1) AGU 50 Amp Fuse (Punch 500)
(1) Remote Punch Bass (except Punch 100 and 120)
(1) Allen wrench 9/64”
(1) Allen wrench 3/32”
Note: Refer to the Specification section of this manual for recommended
Punch 800 fuse size.

-5-
PUNCH 2-CHANNEL AMPLIFIER FEATURE CHART
PUNCH AMPLIFIER MODEL 100 120 160 250 360 500 800
# of Channels 2 2 2 2 2 2 2
Stable into (stereo/bridged) 2Ω/4Ω2Ω/4Ω2Ω/4Ω2Ω/4Ω2Ω/4Ω2Ω/4Ω2Ω/4Ω
CIRCUITRY1
TRANS•ana - circuit topology X X X X X X X
MEHSA - heat dissipating topology X X X X X X X
TOPAZ - patented noise eliminating X X X X X X X
circuitry3
DSM - discrete surface mount X X X X X X X
MOSFETS - power supply & output devices X X X X X X
NOMAD - protection circuit X X X X X X X
FEATURES
Die Cast Heatsink X X X X X X X
Hi - level Inputs - for factory radios X X X X X X X
RCA Inputs - for after market radios X X X X X X X
Pwr/Spk Screw Terminals X X X - - - -
Pwr/Spk Block Terminals - - - X X X X
Adjustable Punch Bass (0.dB/+6dB/+12dB@45Hz) X - - - - -
Variable Punch Bass (0dB~+18dB@45Hz) (Remote) - X X X X X
Adjustable Xover (120Hz HP/80Hz LP) - X - - - - -
Variable Xover (50Hz - 210Hz) - - - HP/FULL/LP4HP/FULL/LP4HP/FULL/LP4HP/FULL/LP4
Crossover Slope (Butterworth) 12dB 12dB 12dB 12dB 12dB 12dB 12dB

-6-
1 Additional information on features, specifications and system designs
can be found at: www.rockfordfosgate.com
2 Trans•nova is patented under "U.S. Patent No. 4,467,288"
3 TOPAZ is patented under "U.S. Patent No. 5,751,823"
4 HP = 12dB/octave High-Pass / LP = 12dB/octave Low-Pass /
FULL = Full Range

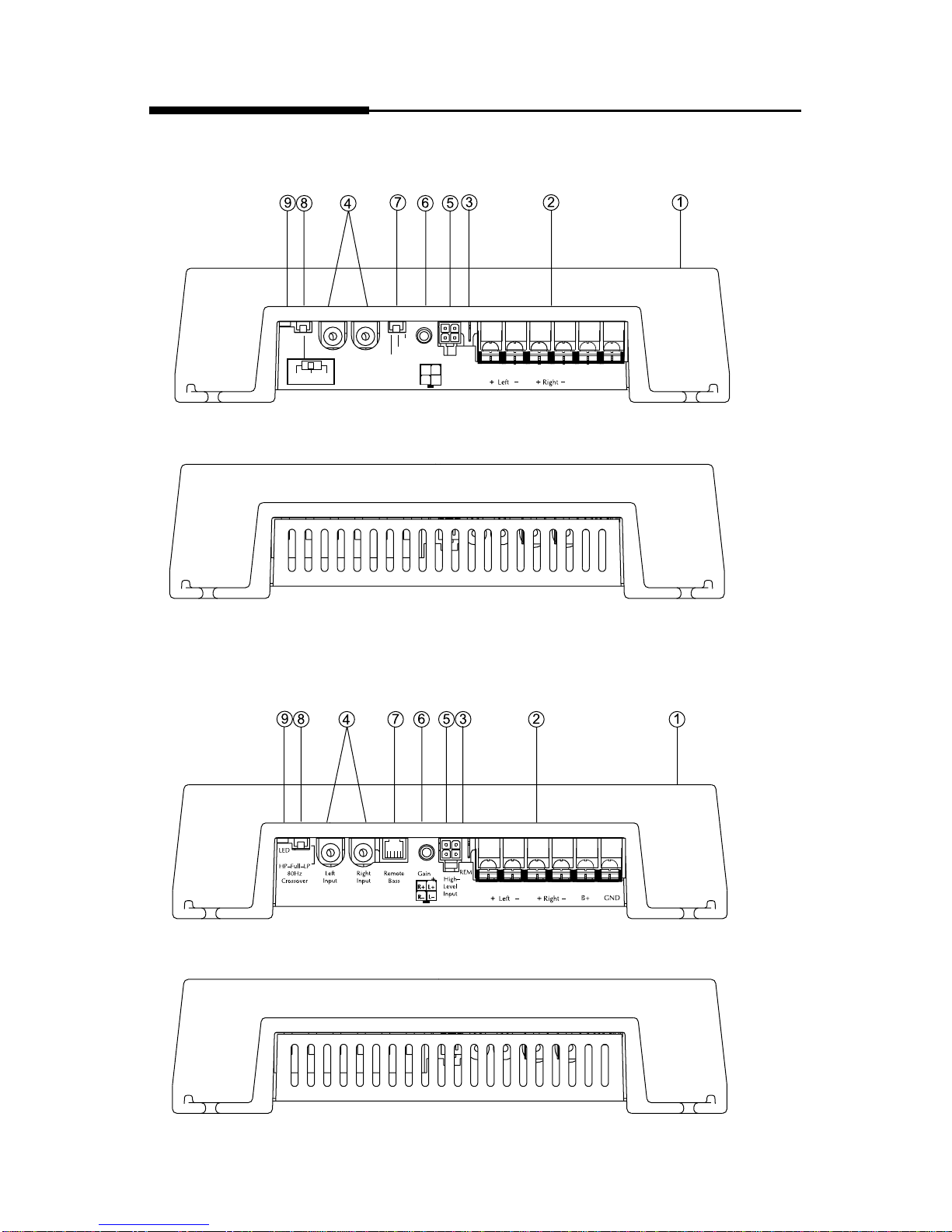

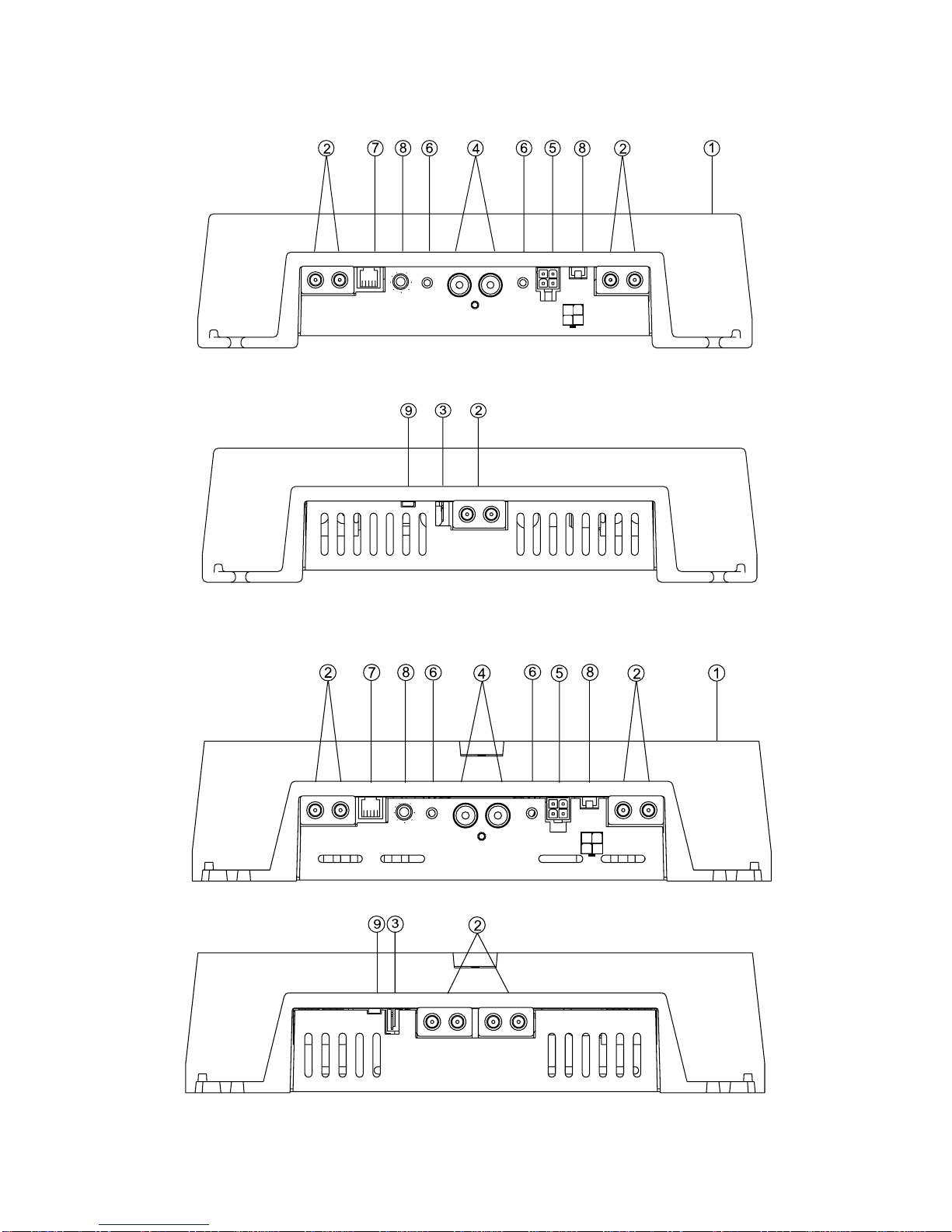

DESIGN FEATURES
RL Gain
Punch 100
2-channel

-7-
DESIGN FEATURES
REM
LED
Left Input Right Input Gain
+12dB
+6dB
0dB
Punch
Bass B+ GN
L+
L–
R+
R–
120HP-Full-80LP
Crossover
Punch 120
2-channel
Punch 160
2-channel

-8-
Speaker
+ L
6
8
5
5
1
21 H
14
19
L
L
R
R
HP–Full–LP
Crossover
High
Level
Input
Right
Gain
Right
Input
Left
Input
Left
Gain
Crossover
Frequency
Remote
Bass Speaker
R —
REM B+ GND
LED
65
80
55
50
11 0
210 Hz
145
190
Speaker
+ —Speaker
+ R –
L+
L–
R+
R–
HP–Full–LP
Crossover
High
Level
Input
Right
Gain
Right
Input
Left
Input
Left
Gain
Crossover
Frequency
Remote
Bass
REM
B+ GND
LED
Punch 800
2-channel
Punch 250
2-channel Punch 360 2-channel Punch 500 2-channel

-9-
1. Cast Aluminum Heatsink –The cast aluminum heatsink of the Punch
amplifier dissipates heat generated by the amplifier's circuitry. The
inherent advantage of casting provides a 30% improvement of cooling
over conventional extrusion heatsink designs.
2. Speaker/Power Terminals –These gold-plated connectors are used for
the connection of speaker and power wire and are immune to corro-
sion that can cause signal degradation. The Punch 120 and Punch
160 utilize a barrier strip that will accept #10 spade lugs or bare
speaker and power wires sized from 10-18 AWG. The Punch 250,
Punch 360, Punch 500, and Punch 800 utilize heavy duty terminal
block connectors that will accept bare wires size from 8-18AWG.
3. REM Terminal –This spade terminal is used to remotely turn-on and
turn-off the amplifier when +12V DC is applied.
4. RCA Input Jacks –The industry standard RCA jack provides an easy
connection for signal level input. They are gold-plated to resist the
signal degradation caused by corrosion.
5. High Level Inputs –The high level inputs use a detachable connector
terminated with 20 AWG leads. These inputs should be used if the
source unit has only speaker line (high level) outputs and not RCA
outputs.
6. Gain Control –The input gain control is preset to match the output
of most source units. They can be adjusted to match output levels
from a variety of source units. For assistance setting the gain correctly,
contact Technical Support at 1-800-669-9899.
7. Punch Bass –The Punch Bass helps correct for acoustical deficiencies
in the listening environment. The Punch Bass allows a narrow band
adjustment at 45Hz to help reproduce full range sound without exces-
sive boost. The Punch 120 utilizes a switch that is adjustable at
0dB/+6dB/+12dB increments. The Punch 160,Punch 250, Punch
360, Punch 500, and Punch 800 utilize a Remote Bass control that is
variable from 0dB to +18dB.
8. Internal Crossover –The internal crossover is used to delegate a spe-
cific range of frequencies to the speaker system for optimum perform-
ance. The crossover can perform three functions: High-Pass (HP),
Low-Pass (LP), or Full Range (FULL). The Punch 120 and Punch 160
utilize a 12dB/octave Butterworth crossover fixed at 120Hz HP and
80Hz LP. The Punch 250, Punch 360, Punch 500, and Punch 800 uti-
lize a 12dB/octave Butterworth crossover variable from 50Hz to
210Hz.
9. LED Power Indicator –The LED illuminates when the unit is turned on.

-10-
INSTALLATION CONSIDERATIONS
The following is a list of tools you will need for installing the Punch amplifier:
•Allen wrenches 9/64" & 3/32" (included) •Voltmeter
•Wire strippers •Battery post wrench
•Electric hand drill w/assorted bits •Wire cutters
•17' (518.16cm) Red Power Wire •Assorted connectors
•12' (365.76cm) Remote Turn-On Wire •Wire crimpers
•1.5' (45.72cm) Black Grounding Wire
This section focuses on some of the vehicle considerations for installing
your new Punch amplifier. Checking your battery and present sound sys-
tem, as well as pre-planning your system layout and best wiring routes will
save installation time. When deciding how to lay out your new system, be
sure that each component will be easily accessible for making adjustments.
Before beginning any installation, be sure to follow these simple rules:
1. Be sure to carefully read and understand the instructions before
attempting to install the amplifier.
2. For safety, disconnect the negative lead from the battery prior to begin-
ning the installation.
3. For easier assembly, we suggest you run all wires prior to mounting your
amplifier in place.
4. Route all of the RCAcables close together and away from any high cur-
rent wires.
5. Use high quality connectors for a reliable installation and to minimize
signal or power loss.
6. Think before you drill! Be careful not to cut or drill into gas tanks, fuel
lines, brake or hydraulic lines, vacuum lines or electrical wiring when
working on any vehicle.
7. Never run wires underneath the vehicle. Running the wires inside the
vehicle provides the best protection.
8. Avoid running wires over or through sharp edges. Use rubber or plastic
grommets to protect any wires routed through metal, especially the firewall.
9. ALWAYS protect the battery and electrical system from damage with
proper fusing. Install a fuseholder and appropriate fuse on the +12V
power wire within 18”(45.7 cm) of the battery terminal.
10. When grounding to the chassis of the vehicle, scrape all paint from the
metal to ensure a good, clean ground connection. Grounding connec-
tions should be as short as possible and always be connected to metal
that is welded to the main body, or chassis, of the vehicle.

-11-
MOUNTING LOCATION
The mounting location and position of your amplifier will have a great
effect on its ability to dissipate the heat generated during normal operation.
The design of our cast aluminum heatsink serves to easily dissipate the heat
generated over a wide range of operating conditions. However, to maxi-
mize the performance of your amplifier, care should be taken to ensure ade-
quate ventilation.
Trunk Mounting
Mounting the amplifier vertically on a surface with the fin grooves running
up and down will provide the best cooling of the amplifier.
Mounting the amplifier on the floor of the trunk will work but provides less
cooling capability than vertical mounting.
Mounting the amplifier upside down to the rear deck of the trunk will not
provide proper cooling and will severely affect the performance of the
amplifier and is strongly not recommended.
Passenger Compartment Mounting
Mounting the amplifier in the passenger compartment will work as long as
you provide a sufficient amount of air for the amplifier to cool itself. If you
are going to mount the amplifier under the seat of the vehicle, you must
have at least 1" (2.54cm) of air gap around the amplifier's heatsink.
Mounting the amplifier with less than 1" (2.54cm) of air gap around the
amplifier's heatsink in the passenger compartment will not provide proper
cooling and will severely affect the performance of the amplifier and is
strongly not recommended.
Engine Compartment Mounting
Rockford Fosgate amplifiers should never be mounted in the engine com-
partment. Not only will this void your warranty but could create an embar-
rassing situation caused by the ridicule from your friends.

-12-
BATTERY AND CHARGING
Amplifiers will put an increased load on the vehicle's battery and charging
system. We recommend checking your alternator and battery condition to
ensure that the electrical system has enough capacity to handle the
increased load of your stereo system. Stock electrical systems which are in
good condition should be able to handle the extra load of any Rockford
amplifier without problems, although battery and alternator life can be
reduced slightly. To maximize the performance of your Rockford Fosgate
amplifier, we suggest the use of a heavy duty battery and an energy storage
capacitor.
WIRING THE SYSTEM
CAUTION: Avoid running power wires near the low level input cables,
antenna, power leads, sensitive equipment or harnesses. The power wires
carry substantial current and could induce noise into the audio system.
•For safety, disconnect the negative lead from the battery prior to begin-
ning the installation.
1. Plan the wire routing. Take care when running signal level RCA cables
to keep them close together but isolated from the amplifier's power
cables and any high power auto accessories, especially electric motors.
This is done to prevent coupling the noise from radiated electrical fields
into the audio signal. When feeding the wires through the firewall or any
metal barrier, protect them with plastic or rubber grommets to prevent
short circuits. Leave the wires long at this point to adjust for a precise fit
at a later time.
2. Prepare the Power cable for attachment to the amplifier by stripping 1/2"
of insulation from the end of the wire. Insert the bared wire into the B+
terminal and tighten the set screw to secure the cable in place.

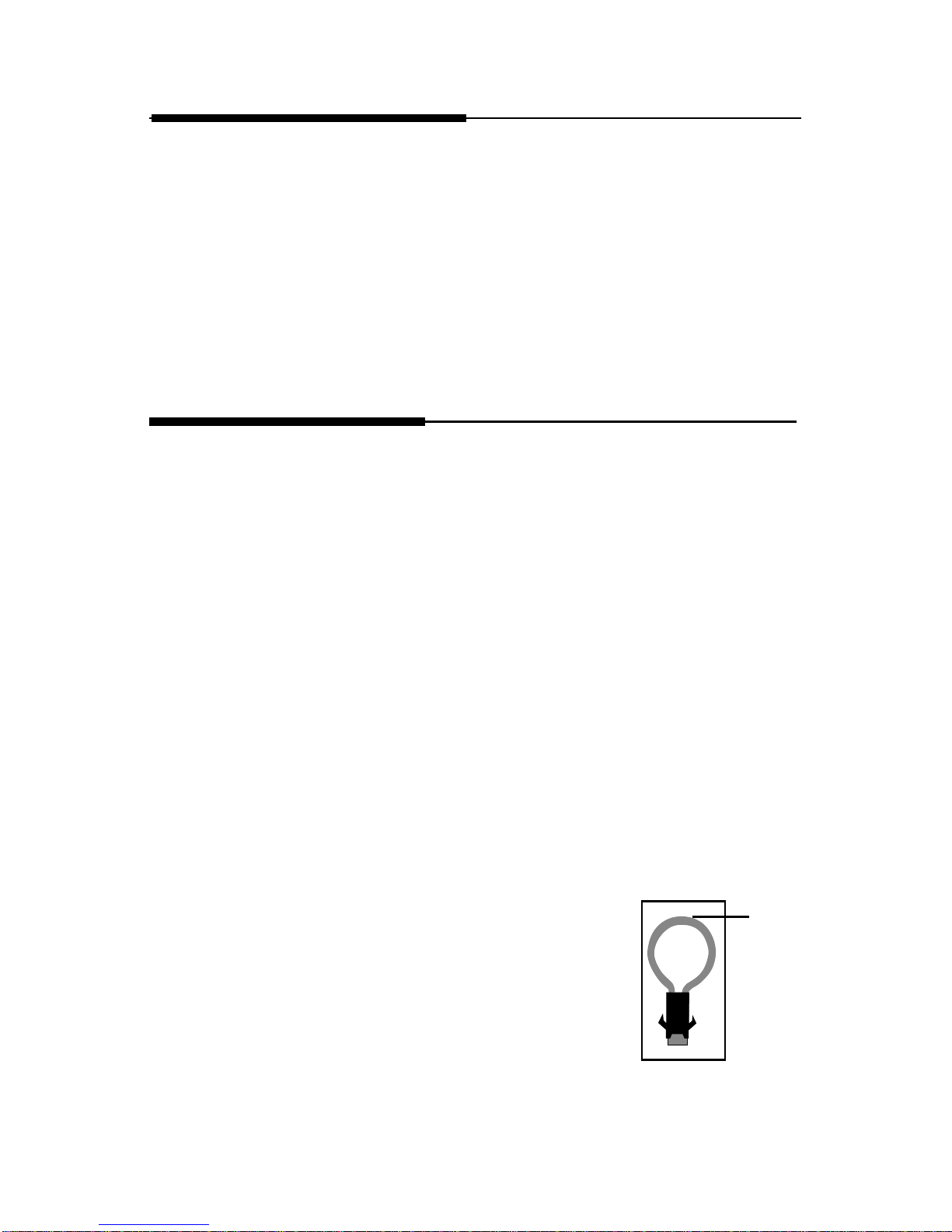

NOTE: The B+ cable MUST be fused 18" or less
from the vehicle's battery. Install the fuseholder
under the hood and prepare the cable ends as stat-
ed above. Connections should be water tight.
Trim the power cable within 18" of the battery and
strip1/2"of insulation from the end of the wire. Cut
the wire loop that is attached to the fuseholder in
half and splice the fuse into the power line using
appropriate inline connectors. Use the section of
cable that was trimmed earlier and connect it to the other end of the
fuseholder.
Cut
here
X

-13-
3. Strip 1/2" from the battery end of the power cable and crimp a large ring
terminal to the cable. Use the ring terminal to connect to the battery pos-
itive terminal. Do not install the fuse at this time.
4. Prepare the Ground cable for attachment to the amplifier by stripping
1/2" of insulation from the end of the wire. Insert the bared wire into the
GND terminal and tighten the set screw to secure the cable in place.
Prepare the chassis ground by scraping any paint from the metal surface
and thoroughly clean the area of all dirt and grease. Strip the other end
of the wire and attach a ring connector. Fasten the cable to the chassis
using a non-anodized screw and a star washer.
5. Prepare the REM turn-on wire for connection to the amplifier by strip-
ping 1/2" of insulation from the wire end. Insert the bared wire into the
REM terminal and tighten the set screw to secure the cable into place.
Connect the other end of the REM wire to a switched 12 volt positive
source. The switched voltage is usually taken from the source unit's
auto antenna or the accessory lead. If the source unit does not have
these outputs available, the recommended solution is to wire a mechan-
ical switch in line with a 12 volt source to activate the amplifier.
6. Securely mount the amplifier to the vehicle or amp rack. Be careful not
to mount the amplifier on cardboard or plastic panels. Doing so may
enable the screws to pull out from the panel due to road vibration or
sudden vehicle stops.
7. Connect the source signal to the amplifier by plugging the RCA
cables/high level inputs into the input jacks at the amplifier.
8. Connect the speakers. Strip the speaker wires 1/2" and insert into the
speaker terminal and tighten the set screw to secure into place. Be sure
to maintain proper speaker polarity. DO NOT chassis ground any of
the speaker leads as unstable operation may result.
9. Perform a final check of the completed system wiring to ensure that all
connections are accurate. Check all power and ground connections for
frayed wires and loose connections which could cause problems.

-14-

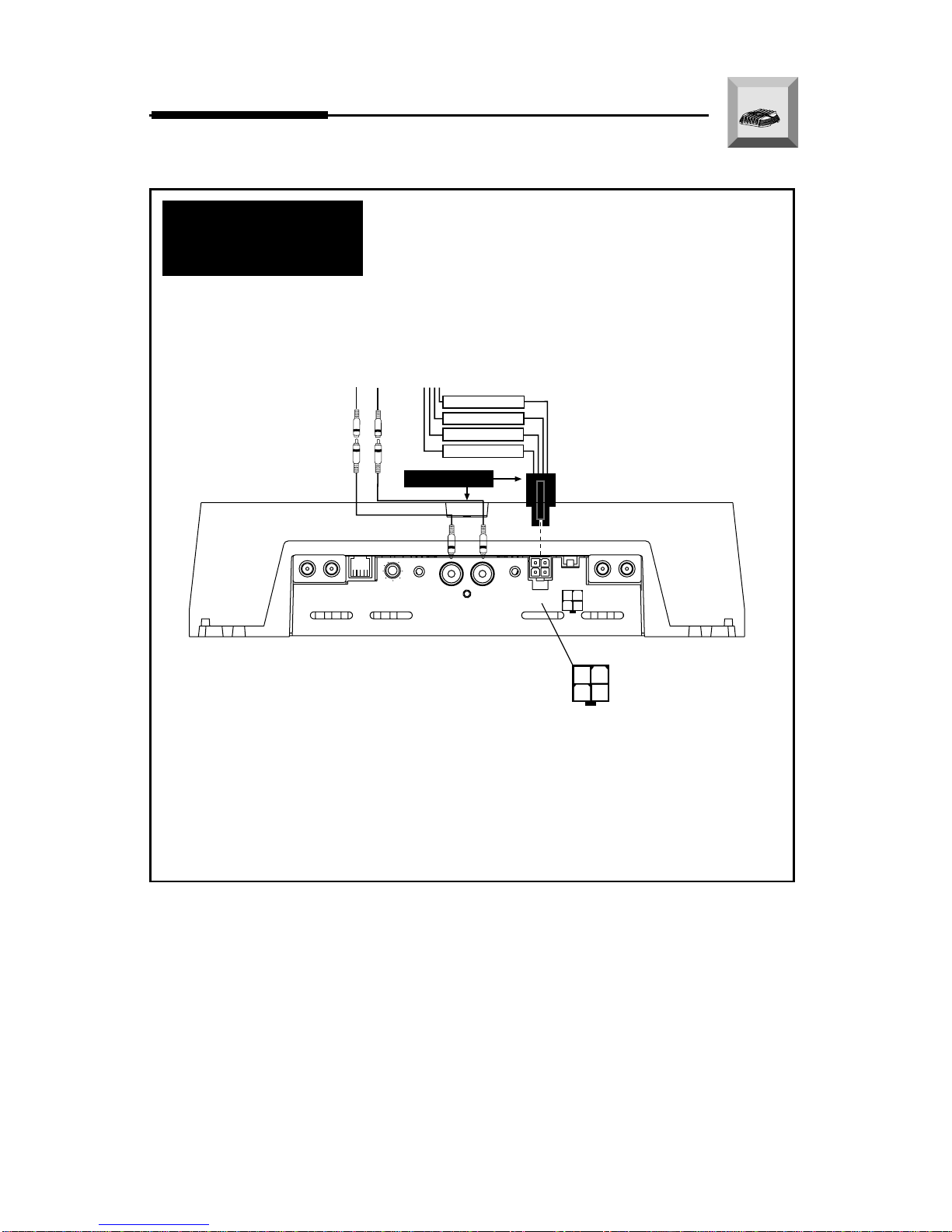

INSTALLATION
•High Level Inputs connect directly to radio's speaker outputs
•RCA Inputs connect to radio's RCA preamp outputs
CAUTION: Use only one input configuration. Using both the High Level
Inputs & RCA Inputs will cause undesirable operation.
use these or these
L+
L–
R+
R–
High Level
Inputs
RCA Inputs [R-]
[R+]
[L-]
[L+]White
White/Black
Gray
Gray/Black
High Level Inputs
65
80
55
50
110
210 Hz
145
190
Speaker
+ L –Speaker
+ R –
L+
L–
R+
R–
HP–Full–LP
Crossover
High
Level
Input
Right
Gain
Right
Input
Left
Input
Left
Gain
Crossover
Frequency
Remote
Bass
Using the RCA Inputs
-or-
High Level Inputs
All Models
I
N
S
T
A
L
L
A
T
I
O
N
+ -
+ -

-15-
*Keep grounds as short as possible
Connect to
chassis ground of
Connect to B+ of battery
with appropriate fuse value
Less than
18"
•RCA inputs are connected to both left and right channels
•Gain for left and right channels are set equally to balance the subwoofer
•Impedance for mono channel should be 4Ωminimum
•Crossover can be set for High-Pass (HP), Low-Pass (LP) or Full Range (FULL)
4Ωmin.
+–
Power Connections
Bridged/Mono Mode
Punch 100 Punch 120 Punch 160
2-channel
Punch 100 Punch 120 Punch 160
2-channel
I
N
S
T
A
L
L
A
T
I
O
N
+ -
+ -

-16-

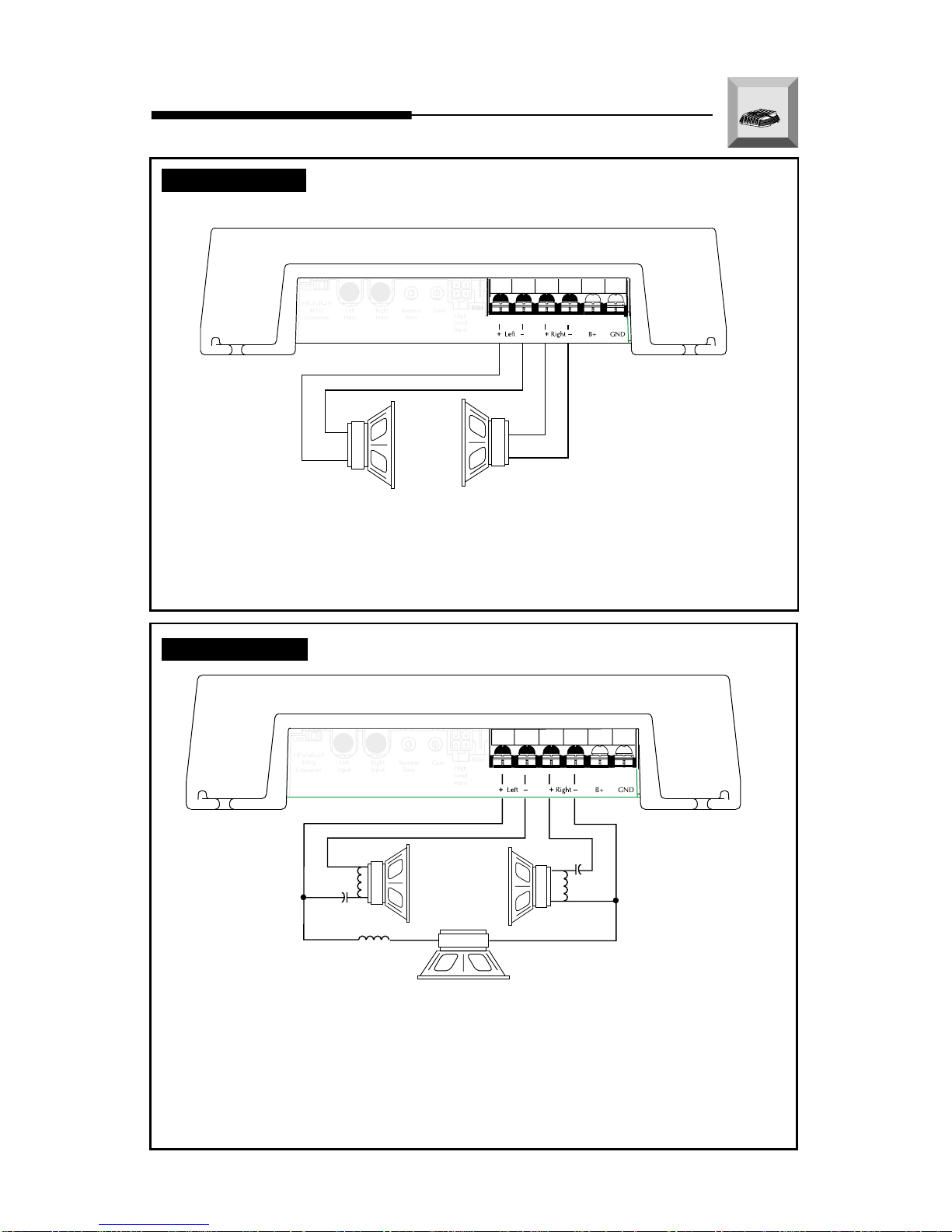

•RCA inputs are connected to both left and right channels
•Gain for left and right channels operate independently
•Impedance for each channel should be 2Ωminimum
•Crossover can be set for High-Pass (HP), Low-Pass (LP) or Full Range (FULL)
–
+
–
+
2Ωmin. 2Ωmin.
+–
4Ωmin.
–
+
–
+
2Ωmin. 2Ωmin.
•RCA inputs are connected to both left and right channels
•Gain for left and right channels are set equally to balance the subwoofer
•Impedance for each channel should be 2Ωminimum
•Impedance for mono channel should be 4Ωminimum
•Crossover is set for Full Range
•Passive Crossovers are needed for proper stereo/mono operation
2-Channel Mode
3-Channel Mode
I
N
S
T
A
L
L
A
T
I
O
N
+ -
+ -
Punch 100 Punch 120 Punch 160
2-channel
Punch 100 Punch 120 Punch 160
2-channel
INSTALLATION

-17-
+
–
RCA Input
4Ωmin.
Speaker
+
6
8
5
5
1
21 H
14
19
L
L
R
R
HP–Full–LP
Crossover
High
Level
Input
Right
Gain
Right
Input
Left
Input
Left
Gain
Crossover
Frequency
Remote
Bass Speaker
R –
•RCA inputs are connected to both left and right channels
•Gain for left and right channels are set equally to balance the subwoofer
•Impedance for mono channel should be 4Ωminimum
•Crossover can be set for High-Pass (HP), Low-Pass (LP) or Full Range (FULL)
*Keep grounds as short as possible
LED
Connect to B+ of
battery with
appropriate fuse
Connect to
chassis ground
of vehicle*
Less than
18"
Connect to
remote turn-on
lead of source
unit
B+ GND
REM
Power Connections
Bridged/Mono Mode
Punch 250 Punch 360 Punch 500
2-channel
I
N
S
T
A
L
L
A
T
I
O
N
+ -
+ -
Punch 250 Punch 360 Punch 500 Punch 800
2-channel

INSTALLATION
-18-

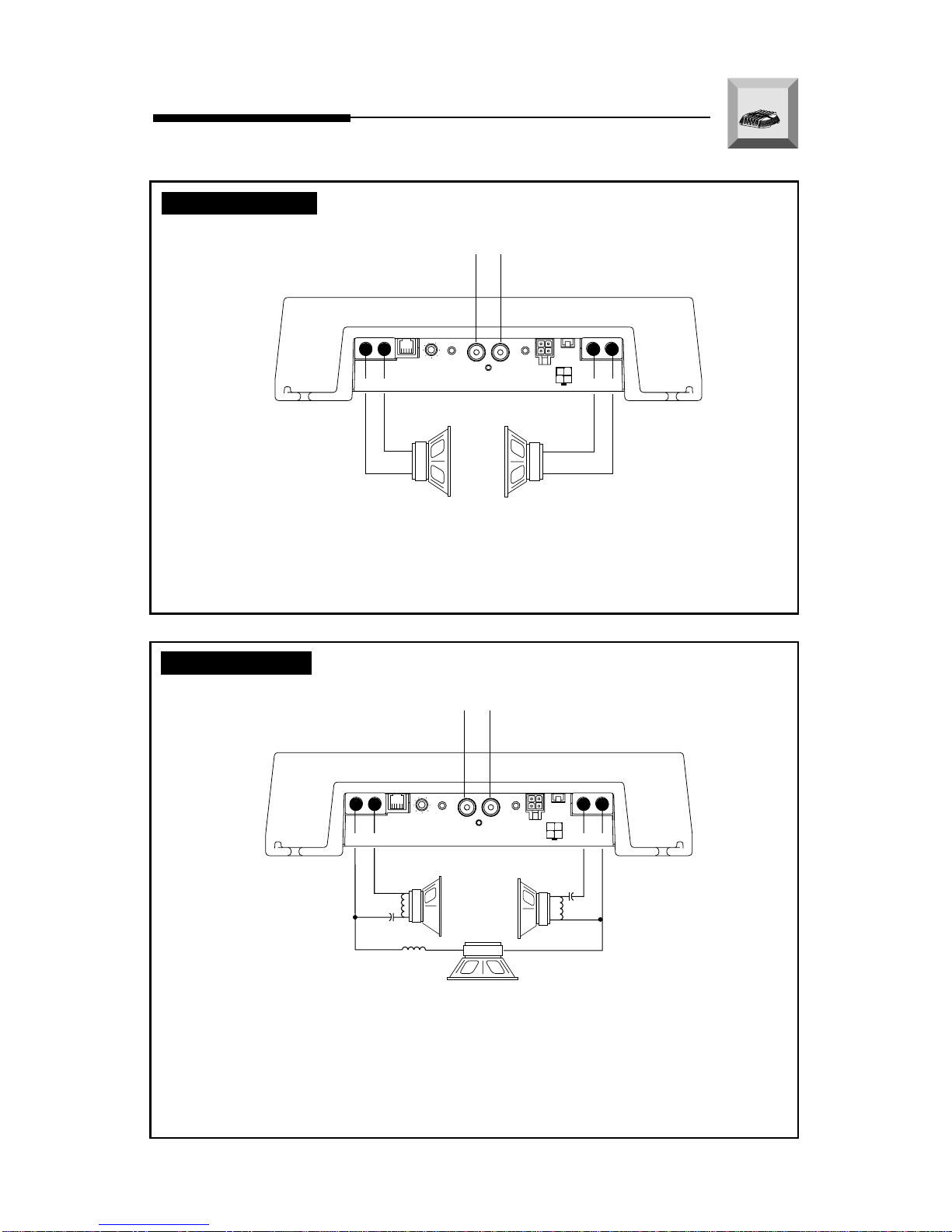

•RCA inputs are connected to both left and right channels
•Gain for left and right channels operate independently
•Impedance for each channel should be 2Ωminimum
•Crossover can be set for High-Pass (HP), Low-Pass (LP) or Full Range (FULL)
RCA Input
–
+
–
+
2Ωmin. 2Ωmin.
Speaker
+ L –
65
80
55
50
110
210 Hz
145
190
L+
L–
R+
R–
HP–Full–LP
Crossover
High
Level
Input
Right
Gain
Right
Input
Left
Input
Left
Gain
Crossover
Frequency
Remote
Bass Speaker
+R–
RCA Input
+
4Ω
–
–
+
2Ω2Ω
+
Speaker
+ L
6
8
5
5
1
21 H
14
19
L
L
R
R
HP–Full–LP
Crossove
High
Level
Input
Right
Gain
Right
Input
Left
Input
Left
Gain
Crossover
Frequency
Remote
Bass Speaker
R –
•RCA inputs are connected to both left and right channels
•Gain for left and right channels are set equally to balance the subwoofer
•Impedance for each channel should be 2Ωminimum
•Impedance for mono channel should be 4Ωminimum
•Crossover is set for Full Range
•Passive Crossovers are needed for proper stereo/mono operation
2-Channel Mode
3-Channel Mode
I
N
S
T
A
L
L
A
T
I
O
N
+ -
+ -
Punch 250 Punch 360 Punch 500 Punch 800
2-channel
Punch 250 Punch 360 Punch 500 Punch 800
2-channel
