Rockford Fosgate Punch200 trans ana 4-channel Guide

Punch200
trans•ana
4-channel
Punch400
trans•ana
4-channel
Punch600
trans•ana
4-channel
Punch800
trans•ana
4-channel
Punch600
trans•ana
5-channel
Installation
& Operation

Sections marked
TROUBLESHOOTING
include recommendations for
curing installation problems
Sections marked
INSTALLATION
include “slam dunk”
wiring connections
Welcome to Rockford Fosgate! This manual is designed to provide informa-
tion for the owner, salesperson and installer. For those of you who want
quick information on how to install this product, please turn to the
Installation Section of this manual or refer to the icons listed below. Other
information can be located by using the Table of Contents. We, at Rockford
Fosgate, have worked very hard to make sure all the information in this
manual is current. But, as we are constantly finding new ways to improve
our product, this information is subject to change without notice.
GETTING STARTED
I
N
S
T
A
L
L
A
T
I
O
N
+ -
+ -
TROUBLE-S
H
O
O
T
I
N
G
Visit our website for the latest information on all Rockford products.
If, after reading your manual, you still have questions regarding this product, we
recommend that you see your Rockford Fosgate dealer. If you need further assis-
tance, you can call us direct at 1-800-669-9899. Be sure to have your serial num-
ber, model number and date of purchase available when you call.
The serial number can be found on the outside of the box. Please record it in the
space provided below as your permanent record. This will serve as verification of
your factory warranty and may become useful in recovering your amplifier if it is
ever stolen.
Serial Number: __________________________________
Model Number:__________________________________

–i–
Dear Customer,
Congratulations on your purchase of the world's finest brand of car audio amplifiers.
At Rockford Fosgate we are fanatics about musical reproduction at its best, and we
are pleased you chose our product. Through years of engineering expertise, hand
craftsmanship and critical testing procedures, we have created a wide range of prod-
ucts that reproduce music with all the clarity and richness you deserve.
For maximum performance we recommend you have your new Rockford Fosgate
product installed by an Authorized Rockford Fosgate Dealer, as we provide spe-
cialized training through Rockford Technical Training Institute (RTTI).
Please read your warranty and retain your receipt and original carton for possible
future use.
Great product and competent installations are only a piece of the puzzle when it
comes to your system. Make sure that your installer is using 100% authentic instal-
lation accessories from Connecting Punch in your installation. Connecting Punch
has everything from RCA cables and speaker wire to Power line and battery con-
nectors. Insist on it! After all, your new system deserves nothing but the best.
To add the finishing touch to your new Rockford Fosgate image order your Rockford
wearables, which include everything from T-shirts and jackets to hats and sunglass-
es.
To get a free brochure on Rockford Fosgate products and Rockford accessories, in
the U.S. call 480-967-3565 or FAX [phone]. For all other countries, call +001-
480-967-3565 or FAX [phone].
PRACTICE SAFE SOUND™
CONTINUOUS EXPOSURE TO SOUND PRESSURE LEVELS OVER 100dBMAY
CAUSE PERMANENT HEARING LOSS. HIGH POWERED AUTOSOUND SYSTEMS
MAY PRODUCE SOUND PRESSURE LEVELS WELL OVER 130dB. USE COMMON
SENSE AND PRACTICE SAFE SOUND.

–ii –
Specifications PUNCH 200 PUNCH 400 PUNCH 600 PUNCH 800 PUNCH 600
4-channel 4-channel 4-channel 4-channel 5-channel
DynamicPowerRating (IHF-202 Standard)
- Measured at 14.4 Volts Front/Rear + Subwoofer
Bridged into a 4ΩLoad 165 Watts x 2 220 Watts x 2 317 Watts x 2 525 Watts x 2 240 Watts x 2+ -
Per channel into a 2ΩLoad 85 Watts x 4 130 Watts x 4 175 Watts x 4 270 Watts x 4 120 Watts x 4 + 240 Watts x 1
Per channel into a 4ΩLoad 55 Watts x 4 85 Watts x 4 99 Watts x 4 150 Watts x 4 75 Watts x 4 + 115 Watts x 1
Continuous Power Rating (Competition Standard) - Measured at 13.8 Battery Volts
RMS continuous power per channel, 25 Watts x 4 50 Watts x 4 75 Watts x 4 100 Watts x 4 50 Watts x 4 + 100 Watts x 1
both channels driven into a 4Ωload
from 20 to 20,000 Hz with less than
0.05% Total Harmonic Distortion (THD+N)
RMS continuous power per channel, 50 Watts x 4 100 Watts x 4 150 Watts x 4 200 Watts x 4 100 Watts x 4 + 200 Watts x 1
both channels driven into a 2Ωload
from 20 to 20,000 Hz, with less than
0.1% Total Harmonic Distortion (THD+N)
RMS continuous power bridged into a 100 Watts x 2 200 Watts x 2 300 Watts x 2 400 Watts x 2 200 Watts x 2 + -
4Ωload from 20 to 20,000 Hz, with
less than 0.1% Total Harmonic
Distortion (THD+N)
Signal-to-Noise Ratio >100dB A-weighted
Crossover Slope (Butterworth) 12dB/octave 12dB/octave 12dB/octave 12dB/octave 12dB/octave + 24dB/octave
Crossover Frequency 80Hz 80Hz
50Hz –210Hz 50Hz –210Hz 50Hz –210Hz + 50Hz –210Hz
Specifications are subject to change without notice.

–iii –
Dimensions PUNCH 200 PUNCH 400 PUNCH 600 PUNCH 800 PUNCH 600
4-channel 4-channel 4-channel 4-channel 5-channel
2.4”H 2.4”H 2.4”H 2.4”2.4”H
(6.09cm) (6.09cm) (6.09cm) (6.09cm) (6.09cm)
9.9”W 9.9”W 9.9”W9.9”W9.9”W
(25.15cm) (25.15cm) (25.15cm) (25.15cm) (25.15cm)
13.4”L 13.4”L 14.4”L 18.4”L 18.4”L
(34.04cm) (34.04cm) (36.57cm) (46.74cm) (46.74cm)
Frequency Response 20Hz to 20kHz ±0.5dB
Bandwidth 20Hz to 200kHz ±3dB
Damping Factor @ 4Ω(at output connector ) >200
Slew Rate 30 Volts/ ms
IM Distortion (IHF) <0.05%
Source Unit Compatibility (+15dB gain overlap) All All All All All
Input Sensitivity (+0dB gain overlap) Variable from 250mV to 4V (low level in)
Variable from 650mV to 11V (high level in)
Protection NOMAD - Internal analog-computer output protection circuitry limits power in case of
overload. Thermal switch shuts down the amplifier in case of overheating.
Battery Fuse Rating (External to Amplifier) 30A 50A 50A 60A* 50A
Fuse Type ATC AGU AGU AGU AGU
Equalization (45Hz Punch Bass) Variable Variable Variable Variable Variable
(0 to +18dB) (0 to +18dB) (0 to +18dB) (0 to +18dB) (0 to +18dB)
Input Impedance 20k ohms 20k ohms 20k ohms 20k ohms 20k ohms
* recommended fuse not supplied with amplifier Specifications are subject to change without notice.

–iv –
Table of Contents
Specifications............................................................................................ii
Introduction ..............................................................................................1
Amplifier Accessory Pack..........................................................................1
Feature Chart ............................................................................................2
Design Features ........................................................................................4
Installation Considerations........................................................................7
Mounting Location....................................................................................8
Battery and Charging ................................................................................9
Wiring the System ....................................................................................9
Using Passive Crossovers ........................................................................11
Table of Component Values ....................................................................12
Installation ..............................................................................................13
System Diagrams ....................................................................................25
Troubleshooting ......................................................................................29
Dynamic Power Measurements ..............................................................31
Warranty Information..............................................................................33
International Information ........................................................................35

Introduction
Rockford engineers designed the Punch multi-channel amplifiers to with-
stand the rugged automotive environment while delivering superior sound
quality in a flexible, reliable, and efficient package. TRANS•ana is a low
voltage circuit in the preamp stage of all Punch multi-channel amplifiers
that lets the music sound crystal clear and very real, even when played at
high volume levels. This is matched with TOPAZ, a unique grounding cir-
cuit used to eliminate noise problems associated with car audio systems
and their installation. Flexibility is accomplished with the use of high-level
inputs and a built-in crossover. The use of a protection circuit called
NOMAD, along with MOSFET and DSM (Discrete Surface Mount) and our
innovative MEHSA heat dissipating technology improves amplifier efficien-
cy. The result of these components give the Punch amplifier awesome
sound quality in a “Bullet Proof”package.
–1 –
Punch Amplifier Accessory Pack
The accessory pack shipped with the Punch multi-channel amplifiers
includes the mounting hardware necessary to secure the amp to the
vehicle.
Installation & Operation Manual
Punch Verification Certificate
(4) Amplifier mounting screws (#8 x 3/4" Phillips)
(4) Speaker/Power connector set screws (3/32" Allen)
(4) Endbell mounting screws (9/64" Allen)
(1) Allen wrench (3/32")
(1) Allen wrench (9/64")
(2) High Level Input harness (Punch 200/400/600/800, 4-channel)
- Replacement part #CC-1992 - 4 position molex
(1) High Level Input harness (Punch 600, 5-channel)
- Replacement part #CC-2347 - 8 pin mini-DIN
(1) Inline fuseholder (except Punch 800, 4-channel)
(1) ATC 30 amp fuse (Punch 200, 4-channel)
(1) ATC 50 amp fuse (Punch 400/600, 4-channel & Punch 600, 5-channel)
NOTE: Refer to the specifications section for recommended fuse size on
the Punch 800, 4-channel amplifier.

Punch Multi-Channel Amplifier Feature Chart
PUNCH AMPLIFIER MODEL 200 400 600 800 600
F/R + SUB
# of CHANNELS 44 4 4 5
RMS Power Stereo (4Ω)25x4 50x4 75x4 100x4 50x4 + 100x1
RMS Power Stereo (2Ω)50x4 100x4 150x4 200x4 100x4 + 200x1
RMS Power Bridged (4Ω)100x2 200x2 300x2 400x2 200x2 + –
Stable Into: (each channel) 2Ω2Ω2Ω2Ω2Ω+2Ω
Stable into: (bridged) 4Ω4Ω4Ω4Ω4Ω+–
CIRCUITRY1
TRANS•ana –circuit topology xx x x x
TRANS•nova –patented circuit topology2 –– – – –
Class-G –high efficiency topology –– – –SUB only
MEHSA –heat dissipating technology –xxx x
TOPAZ –patented noise eliminating circuitry3xx x x x
DSM –discrete surface mount xx x x x
MOSFETs –power supply & output devices xx x x x
NOMAD –protection circuit xx x x x
FEATURES
Die Cast Heatsink xx x x x
Hi-Level Inputs –for factory radios x x x x F/R only
RCA Inputs –for aftermarket radios xx x x x
Balanced Inputs –– – – –
Input Switches –eliminates “Y”adaptors xx x x x
Pass-Thru –feeds signal to aux. amp xx x x –
Pwr/Spk Screw Terminals –– – – Spk
Pwr/Spk Block Terminals x x x x Pwr
4 Gauge PWR/GND –– – – –
–2 –

PUNCH AMPLIFIER MODEL 200 400 600 800 600
Adjustable Punch Bass –––– –
(0dB/+6dB/+12dB @ 45Hz)
Variable Punch Bass ––xx x
(0dB ~+18dB @ 45Hz)
Adjustable Xover (80Hz) –––– –
Variable Xover (50Hz ~ 210Hz)
HP/FULL/LP4 HP/FULL/LP
4HP/FULL/LP4HP/FULL/LP4HP/FULL/LP4
Crossover Slope (Butterworth) 12dB 12dB 12dB 12dB 12dB + 24dB
5
Phase Warp (0 ~ 180) –––– –
GENERAL
B+ Fuse Size 30A ATC 50A AGU 50A AGU 60A AGU650A AGU
Dimensions (H x W x L)
–3 –
1Additional information on features, specifications and system designs can be
found at: www.rockfordfosgate.com
2 Trans•nova is patented under "U.S. Patent No. 4,467,288"
3 TOPAZ is patented under "U.S. Patent No. 5,751,823"
4 HP = 12dB/octave High-Pass / LP = 12dB/octave Low-Pass / FULL = Full Range
5 Front/Rear = 12dB/octave + Sub = 24dB/octave Low-Pass
6 Recommended fuse not supplied with amplifier
--INTERNAL USE ONLY--
Heatsink Type #4 #4 #5 #6 #6
2.4”H 2.4”H 2.4”H 2.4”H 2.4”H
(6.09cm) (6.09cm) (6.09cm) (6.09cm) (6.09cm)
9.9”W9.9”W 9.9”W 9.9”W9.9”W
(25.15cm) (25.15cm) (25.15cm) (25.15cm) (25.15cm)
13.4”L 13.4”L 14.4”L 18.4”L 18.4”L
(34.04cm) (34.04cm) (36.57cm) (46.74cm) (46.74cm)

–4 –
Design Features
Punch 200, 4-channel
Punch 400, 4-channel
Punch 600, 4-channel
10
Front High
Level Inputs
Gain
Gain
Crossover
Frequency
Front
R
L
R
L
RearPass-Thru
4-2
Input
Punch
Bass
HP-FULL-LP
Crossover
Front
Rear High
Level Inputs
Crossover
Frequency Punch Bass
Rear
L+
L–
R+
R–
Hz
65
80
55
50
110
210 Hz
145
190
Hz
L+
L–
R+
R–
65
80
55
50
110
210 Hz
145
190
HP-FULL-LP
Crossover
REM
B+ GND
LED
LR+ LR–RR+ RR–LF–LF+ RF–RF+
23211 2
56
109
810 6 10 84
9
7
1
L+
L–
R+
R–
L+
L–
R+
R–
8
10
465610
8
7
23 2 11 2
1
Front
Gain
HP–Full–LP
Front 80Hz
Crossover Front
High
Level
Input Front Pass-Thru Rear
RR
LL Rear
High
Level
Input
4 –2
Input HP-Full-LP
Rear 80Hz
Crossover Rear
Gain
REM
LED
LR+ LR–RR+ RR–B+ GND LF–LF+ RF–RF+

Design Features
–5 –
Punch 800, 4-channel
10
2311 2
5
810
7
1
LR+ LR- RR+ RR-
REM
B+ GND
LED
LF- LF+ RF+RF-
Hz
Front
Crossover
Frequency
Front
Gain Front High
Level Input
L+
L–
R+
R–
Front
Punch
Bass
Front Pass-Thru Rear
RR
LL Rear
High
Level
Input
Rear
Punch
Bass
Crossover
HP-Full-LP
Crossover
HP-Full-LP
4-2
Input Rear
Crossover
Frequency
Rear
Gain
L+
L–
R+
R–
65
80
55
50
110
210 Hz
145
190
Hz
65
80
55
50
110
210 Hz
145
190
2
10
6 9
10 6948
Punch 600, 5-channel
549 6
10 9 9
10 10 10 10 1
Sub LP
Crossover
Frequency
Sub
Gain
65
80
55
50
110
210 Hz
145
190
6/4/2
Input
Sub Rear Front
R
L
R
L
Sub
Punch
Bass
Rear
Crossover
Frequency
Rear
Punch
Bass
Rear
Gain
High Level
Input
Front
Crossover
Frequency
Front
Punch
Bass
Front
Gain
HP-Full-LP
Front
Crossover
HP-Full-LP
Rear
Crossover
65
80
55
50
110
210 Hz
145
190
GND LF-LF+
RF+
RF- LR+
RR-
RR+
LR-
LR+
LR-
RR+
RR-
RF- LF+ Sub-
RF+ LF- Sub+
REM
B+ GND
LED
LR+
LR-
RR+
RR-
RF- LF+ Sub-
RF+ LF- Sub+
11 232 888

–6 –

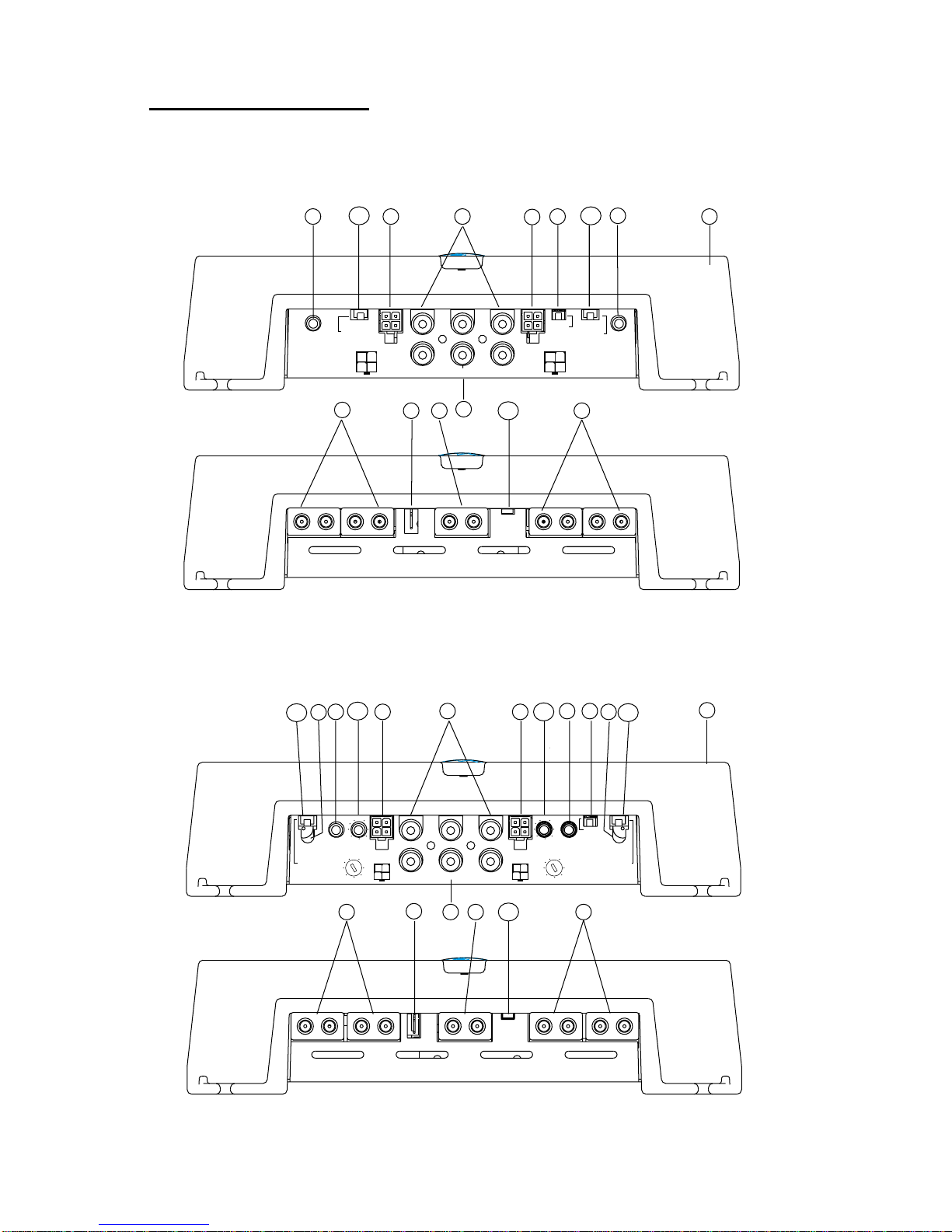

1. Cast Aluminum Heatsink –The cast aluminum heatsink of the Punch
amplifier dissipates heat generated by the amplifier's circuitry. The
inherent advantage of casting provides a 30% improvement of cooling
over conventional extrusion heatsink designs.
2. Speaker/Power Terminals –The heavy duty, gold-plated terminal block
connectors (+ and –) will accept wire sizes from 8 AWG to 18 AWG
and are immune to corrosion that can cause signal degradation. The
Punch 600, 5-channel also utilizes a barrier strip that will accept #8
spade lugs or bare speker wires sized from 12-18 AWG.
3. REM Terminal –This spade terminal is used to remotely turn on and
turn off the amplifier when +12V DC is applied.
4. Signal Input Switch –This switch allows the amplifier to be driven with
either 2 or 4 pairs of inputs. The Punch 600, 5-channel allows the
amplifier to be driven with either 2, 4, or 6 pairs of inputs.
5. RCA Input Jacks –The industry standard RCA jacks provide an easy
connection for signal level input. They are gold-plated to resist the sig-
nal degradation caused by corrosion.
6. High Level Inputs –The high level inputs use a detachable connector
terminated with 20 AWG leads. These inputs should be used if the
source unit has only speaker line (high level) outputs and not RCA out-
puts.
7. RCA Pass-Thru Jacks –The Pass-Thru provides a convenient source for
daisy-chaining an additional amplifier without running an extra set of
RCA cables from the front of the vehicle to the rear amplifier location.
8. Gain Control –The input gain control is preset to match the output of
most source units. It can be adjusted to match output levels from a vari-
ety of source units.
9. Punch Bass –The Punch Bass helps correct for acoustical deficiencies
in the listening environment by helping reproduce full range sound
without adding excessive boost. The Punch Bass control is a narrow
band adjustment centered at 45Hz variable from 0dB to +18dB.
10. Internal Crossover –The internal crossover is a 12dB/octave
Butterworth filter selectable for High-Pass (HP), Full Range (FULL), or
Low-Pass (LP) operation. The Punch 200/400, 4-channel amplifiers
utilize a fixed 80Hz crossover. The Punch 600/800, 4-channel and
Punch 600, 5-channel amplifiers utilize a crossover variable from
50Hz to 210Hz with the Sub channel operating at 24dB/octave.
11. LED Power Indicator –The LED illuminates when the unit is turned on.

Installation Considerations
The following is a list of tools you will need for installing the Punch
amplifier:
Voltmeter Wire strippers
Electric hand drill w/assorted bits Battery post wrench
17' (5 m) Red Power Wire Wire cutters
12' (4 m) Remote Turn-On Wire Assorted connectors
1.5' (45 cm) Black Grounding Wire Wire crimpers
–7 –
This section focuses on some of the vehicle considerations for installing
your new Punch amplifier. Checking your battery and present sound sys-
tem, as well as pre-planning your system layout and best wiring routes, will
save installation time. When deciding how to lay out your new system, be
sure that each component will be easily accessible for making adjustments.
Before beginning any installation, be sure to follow these simple rules:
1. Be sure to carefully read and understand the instructions before
attempting to install the amplifier.
2. For safety, disconnect the negative lead from the battery prior to begin-
ning the installation.
3. For easier assembly, we suggest you run all wires prior to mounting
your amplifier in place.
4. Route all of the RCA cables close together and away from any high cur-
rent wires.
5. Use high quality connectors for a reliable installation and to minimize
signal or power loss.
6. Think before you drill! Be careful not to cut or drill into gas tanks, fuel
lines, brake or hydraulic lines, vacuum lines or electrical wiring when
working on any vehicle.
7. Never run wires underneath the vehicle. Running the wires inside the
vehicle provides the best protection.
8. Avoid running wires over or through sharp edges. Use rubber or plas-
tic grommets to protect any wires routed through metal, especially the
firewall.
9. ALWAYS protect the battery and electrical system from damage with
proper fusing. Install a fuseholder and appropriate fuse on the +12V
power wire within 18”(45 cm) of the battery terminal.
10. When grounding to the chassis of the vehicle, scrape all paint from the
metal to ensure a good, clean ground connection. Grounding connec-
tions should be as short as possible and always be connected to metal
that is welded to the main body, or chassis, of the vehicle.

Mounting Location
The mounting location and position of your amplifier will have a great
effect on its ability to dissipate the heat generated during normal operation.
The design of our cast aluminum heatsink serves to easily dissipate the heat
generated over a wide range of operating conditions. However, to maxi-
mize the performance of your amplifier, care should be taken to ensure
adequate ventilation.
Trunk Mounting
Mounting the amplifier vertically on a surface with the fin grooves running
up and down will provide the best cooling of the amplifier.
Mounting the amplifier on the floor of the trunk will work but provides less
cooling capability than vertical mounting.
Mounting the amplifier upside down to the rear deck of the trunk will not
provide proper cooling and will severely affect the performance of the
amplifier and is strongly not recommended.
Passenger Compartment Mounting
Mounting the amplifier in the passenger compartment will work as long as
you provide a sufficient amount of air for the amplifier to cool itself. If you
are going to mount the amplifier under the seat of the vehicle, you must
have at least 1" (2.54cm) of air gap around the amplifier's heatsink.
Mounting the amplifier with less than 1" (2.54cm) of air gap around the
amplifier's heatsink in the passenger compartment will not provide proper
cooling and will severely affect the performance of the amplifier and is
strongly not recommended.
Engine Compartment Mounting
Rockford Fosgate amplifiers should never be mounted in the engine com-
partment. Not only will this void your warranty but could create an embar-
rassing situation caused by the ridicule from your friends.
–8 –

Battery and Charging
–9 –
Amplifiers will put an increased load on the vehicle's battery and charging
system. We recommend checking your alternator and battery condition to
ensure that the electrical system has enough capacity to handle the
increased load of your stereo system. Stock electrical systems which are in
good condition should be able to handle the extra load of any Rockford
amplifier without problems, although battery and alternator life can be
reduced slightly. To maximize the performance of your Rockford Fosgate
amplifier, we suggest the use of a heavy duty battery and an energy storage
capacitor.
Wiring the System
CAUTION: Avoid running power wires near the low level input cables,
antenna, power leads, sensitive equipment or harnesses. The power wires
carry substantial current and could induce noise into the audio system.
1. Plan the wire routing. Take care when running signal level RCA cables
to keep them close together but isolated from the amplifier's power
cables and any high power auto accessories, especially electric motors.
This is done to prevent coupling the noise from radiated electrical fields
into the audio signal. When feeding the wires through the firewall or
any metal barrier, protect them with plastic or rubber grommets to pre-
vent short circuits. Leave the wires long at this point to adjust for a pre-
cise fit at a later time.

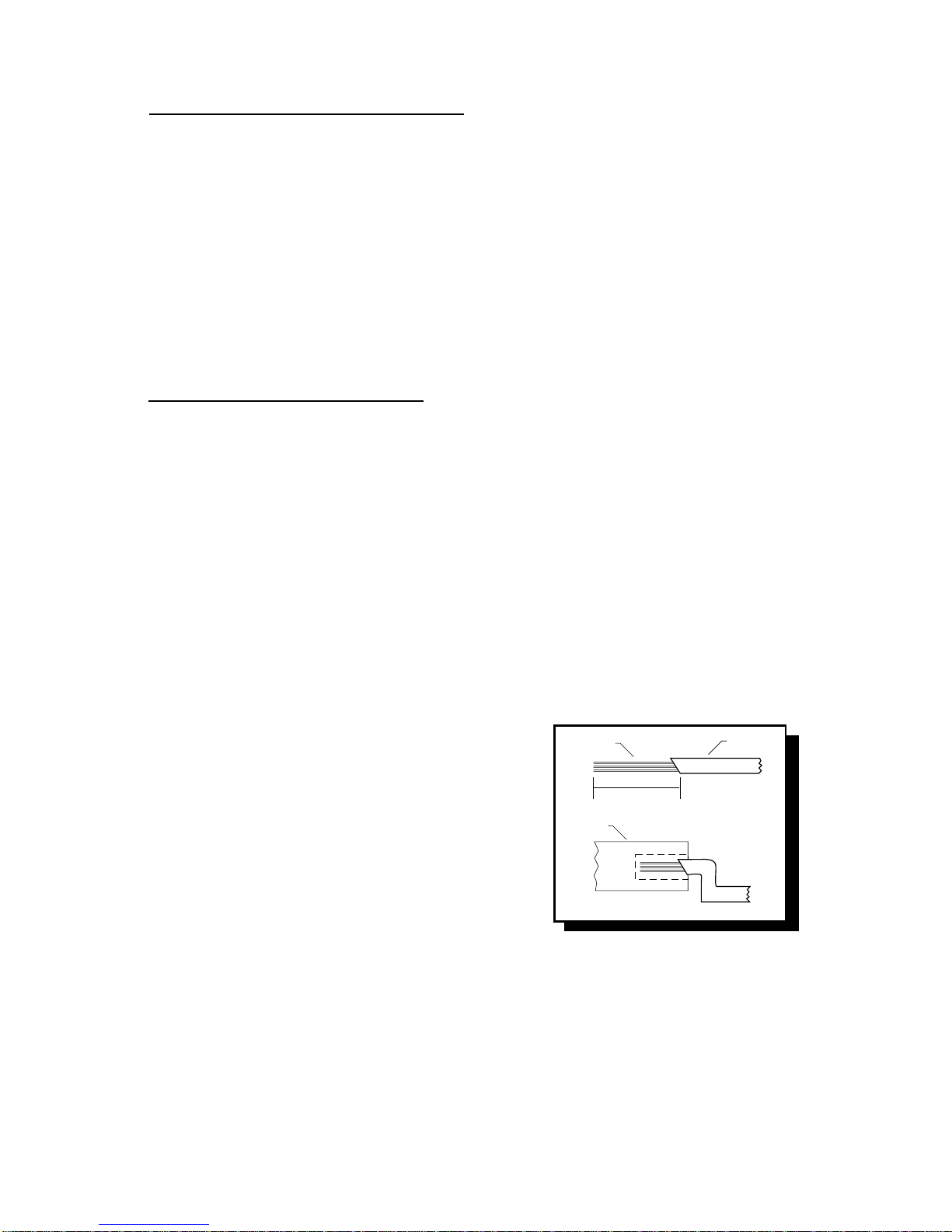

2. Prepare the Power cable for attachment
to the amplifier by stripping 5/8" of
insulation from the end of the wire. The
use of 8 gauge power cable can inter-
fere with the installation of the end
caps. Proper wire dress can prevent this
from occurring. To prevent the wire
from fraying, strip the insulation at a
45°angle. Insert the bared wire into the
B+ terminal with the long side of the insulation on the top. Bend the
cable down at a 90°angle. Tighten the set screw to secure the cable in
place.
3. Strip 3/8" from the battery end of the power cable and crimp a large
ring terminal to the cable. Use the ring terminal to connect to the bat-
tery positive terminal. Do not install the fuse at this time.
>< 5/8"
INSULATION
STRIP WIRE
>
>
AMP
>

–10 –
4. Prepare a length of cable to be used for the ground connection. Strip
5/8" of insulation from the end of the cable as described above and
connect to the appropriate terminal of the amplifier. Prepare the chas-
sis ground by scraping any paint from the metal surface and thorough-
ly clean the area of all dirt and grease. Strip the other end of the wire
and attach a ring connector. Fasten the cable to the chassis using a non-
anodized screw and a star washer.
5. Prepare the REM turn-on wire for connection to the amplifier by strip-
ping 1/4" of insulation from the wire end and crimping an insulated
spade connector in place. Slide the connector over the REM terminal
on the amplifier. Connect the other end of the REM wire to a switched
12 volt positive source. The switched signal is usually taken from the
source unit's auto antenna or the accessory lead. If the source unit does
not have these outputs available, the recommended solution is to wire
a mechanical switch in line with a 12 volt source to activate the ampli-
fier.
6. Securely mount the amplifier (with supplied screws) to the vehicle or
amp rack. Be careful not to mount the amplifier on cardboard or plas-
tic panels. Doing so may enable the screws to pull out from the panel
due to road vibrations or sudden vehicle stops.
7. Determine the number of inputs needed to drive the amplifier and
move the input switch to the desired setting.
8. Connect the source signal to the amplifier by plugging the RCA cables
or high level inputs into the input jack(s) at the amplifier.
9. Connect the speakers. Strip the speaker wires 5/8" and insert into the
appropriate terminal on the amplifier. Insert the bared wire into the
speaker terminal and tighten the set screw to secure into place. Be sure
to maintain proper speaker polarity. DO NOT chassis ground any of
the speaker leads as unstable operation may result.
10. Perform a final check of the completed system wiring to ensure that all
connections are accurate. Check all power and ground connections for
frayed wires and loose connections which could cause problems from
road vibrations.

–11 –
Using Passive Crossovers
A passive crossover is a circuit that uses capacitors and/or coils and is
placed on speaker leads between the amplifier and speaker. The crossover
delegates a specific range of frequencies to the speaker for optimum driver
performance. A crossover network can perform one of three functions:
High-Pass (capacitors), Low-Pass (inductors or coils) and Bandpass (combi-
nation of capacitor and coil).
The most commonly used passive crossover networks are 6dB/octave sys-
tems. These are easy to construct and require one component per filter.
Placing this filter in series with the circuit will reduce power to the speak-
er by 6dB/octave above or below the crossover point depending on
whether it is a high-pass or low-pass filter. More complex systems such as
12dB/octave or 18dB/octave can cause impedance problems if not profes-
sionally designed.
Passive crossovers are directly dependent upon the speaker's impedance
and component value for accuracy. When passive crossover components
are used in multiple speaker systems, the crossover's effect on the overall
impedance should be taken into consideration along with the speaker's
impedance when determining amplifier loads. CAUTION: The Punch
amplifiers are not recommended for impedance loads below 2Ωstereo
and 4Ωbridged (mono) loads.

–12 –
Table of Crossover Component Values
6dB/Octave Low-Pass 6dB/Octave High-Pass
Freq.
Hertz
Speaker Impedance
80 4.1mH 1000µF 8.2mH 500µF 16mH 250µF
100 3.1mH 800µF 6.2mH 400µF 12mH 200µF
130 2.4mH 600µF 4.7mH 300µF 10mH 150µF
200 1.6mH 400µF 3.3mH 200µF 6.8mH 100µF
260 1.2mH 300µF 2.4mH 150µF 4.7mH 75µF
400 .8mH 200µF 1.6mH 100µF 3.3mH 50µF
600 .5mH 136µF 1.0mH 68µF 2.0mH 33µF
800 .41mH 100µF .82mH 50µF 1.6mH 26µF
1000 .31mH 78µF .62mH 39µF 1.2mH 20µF
1200 .25mH 66µF .51mH 33µF 1.0mH 16µF
1800 .16mH 44µF .33mH 22µF .68mH 10µF
4000 .08mH 20µF .16mH 10µF .33mH 5µF
6000 51µH14µF .10mH 6.8µF .20mH 3.3µF
9000 34µH 9.5µF68µH 4.7µF .15mH 2.2µF
12000 25µH 6.6µF51µH 3.3µF 100µH 1.6µF
2 OHMS 8 OHMS
4 OHMS
LC L CL C
LC
L = Low-Pass (Inductor)
C = High-Pass (Capacitor)
For more information, see your Authorized Rockford Fosgate Dealer.
I
N
S
T
A
L
L
A
T
I
O
N
+ -
+ -

Installation
–13 –
Using RCA Inputs -
or- High Level Inputs
Punch 200, 4-channel
Punch 400, 4-channel
Punch 600, 4-channel
Punch 800, 4-channel
•RCA Inputs connect to radio's RCA preamp outputs
•High Level Inputs connect directly to radio's speaker outputs
NOTE: When using High Level Inputs on the Punch 600, 5-channel amplifier,
signal from the Front/Rear inputs are summed to provide a Subwoofer input.
Sub LP
Crossover
Frequency
Sub
Gain
65
80
55
50
110
210 Hz
145
190
6/4/2
Input
Sub Rear Front
R
L
R
L
Sub
Punch
Bass
Rear
Crossover
Frequency
Rear
Punch
Bass
Rear
Gain
High Level
Input
Front
Crossover
Frequency
Front
Punch
Bass
Front
Gain
HP-Full-LP
Front
Crossover
HP-Full-LP
Rear
Crossover
65
80
55
50
110
210 Hz
145
190
GND LF-LF+
RF+
RF- LR+
RR-
RR+
LR-
white
white/black
gray
gray/black
GND LF-LF+
RF+
RF- LR+
LF+
LF-
RF+
RF-
purple/black
purple
green/black
green LR+
LR-
RR+
RR-
shield/ground
RCA INPUT HIGH-LEVEL
INPUT
Using RCA Inputs -
or- High Level Inputs
Punch 600, 5-chan-
nel
I
N
S
T
A
L
L
A
T
I
O
N
+ -
+ -
CAUTION: Use only one input configuration to prevent damage to the
amplifier.
L+
L–
R+
R–
High Level
Inputs
white
white/black
gray
gray/black
L+ L–R+ R–white
white/black
gray
gray/black
L+ L–R+ R–
RCA INPUT
HIGH-LEVEL
INPUT
Front Rear
Hz
Front
Crossover
Frequency
Front
Gain Front High
Level Input
L+
L–
R+
R–
Front
Punch
Bass
Front Pass-Thru Rear
RR
LL Rear
High
Level
Input
Rear
Punch
Bass
Crossover
HP-Full-LP
Crossover
HP-Full-LP
4-2
Input Rear
Crossover
Frequency
Rear
Gain
L+
L–
R+
R–
65
80
55
50
110
210 Hz
145
190
Hz
65
80
55
50
110
210 Hz
145
190
The Punch Multi-Channel amplifier inputs can be used with
radios that have either RCA (low-level) preamp outputs or Speaker
(high-level) outputs.

–14 –

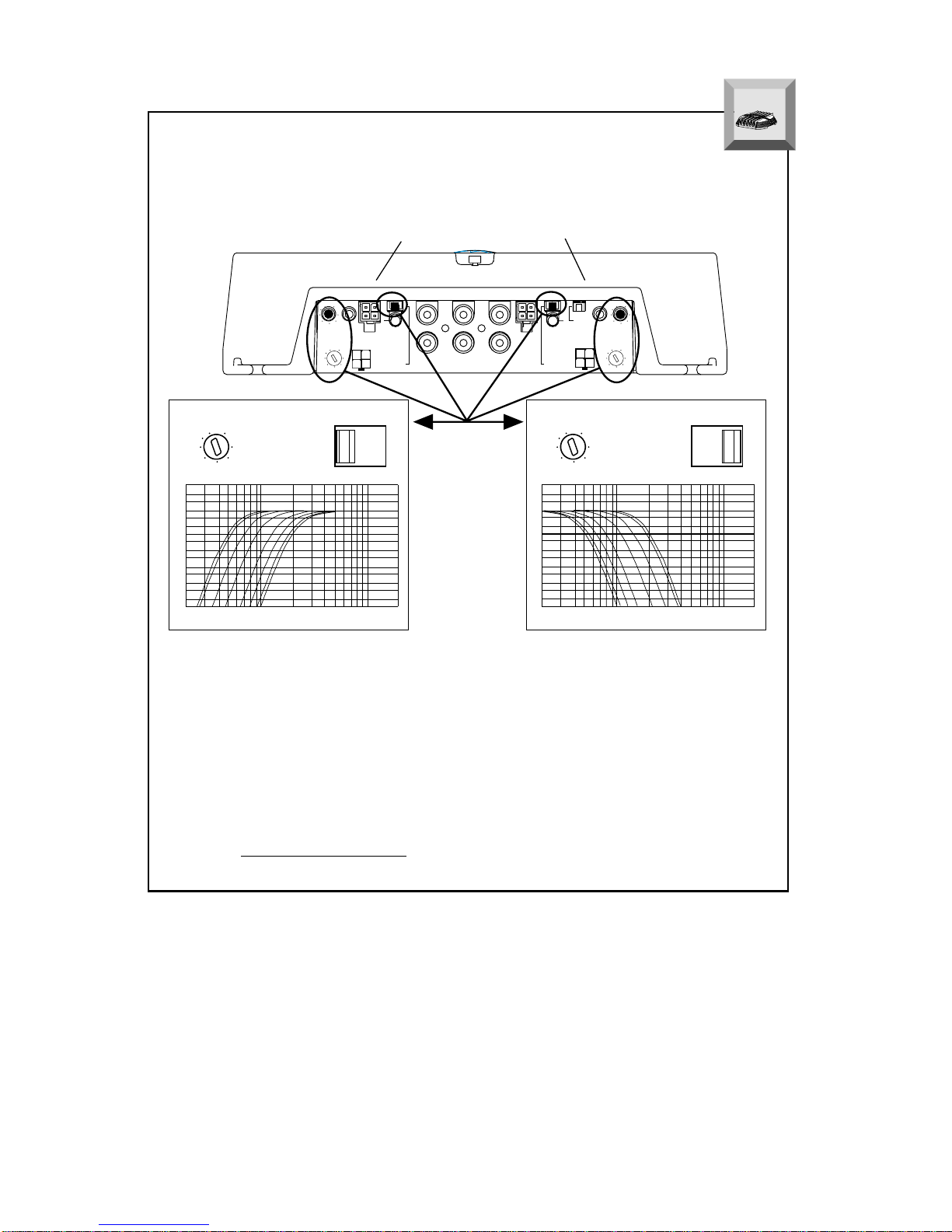

Crossover Operation
Punch 600, 4-channel
Punch 800, 4-channel
Punch 600, 5-channel
+3
+2
+1
0
—1
—2
—3
—4
—5
—6
—7
—8
—9
—10
—11
—12
Ap
50 80 210 500 1k 2k55 65 110 145
Low-P ss (LP)
Oper tion
Ap
+3
+2
+1
0
—1
—2
—3
—4
—5
—6
—7
—8
—9
—10
—11
—12 50 80 210 500 1k 2k
55 65 110 145
Frequency in Hz
FULL
65
80
55
50
110
210 Hz
145
190
LP
High-P ss (HP)
Oper tion
Frequency in Hz
Crossover Frequency Crossover
HP FULL
65
80
55
50
110
210 Hz
145
190
LP
Crossover Frequency Crossover
HP
Hz
Front
Crossover
Frequency
Front
Gain Front High
Level Input
L+
L–
R+
R–
Front
Punch
Bass
Front Pass-Thru Rear
RR
LL Rear
High
Level
Input
Rear
Punch
Bass
Crossover
HP-Full-LP
Crossover
HP-Full-LP
4-2
Input Rear
Crossover
Frequency
Rear
Gain
L+
L–
R+
R–
65
80
55
50
110
210 Hz
145
190
Hz
65
80
55
50
110
210 Hz
145
190
•HP Operation enables frequencies above the cut-off point to pass to
the speaker
•FULL Operation enables all frequencies to pass to the speaker
•LP Operation enables frequencies below the cut-off point to pass to
the speaker
NOTE: The Punch 200, 4-channel &Punch 400, 4-channel amplifiers
utilize a fixed 80Hz crossover with HP, FULL & LP configurations.
I
N
S
T
A
L
L
A
T
I
O
N
+ -
+ -
Front
channel Rear
channel
