Rockford Fosgate Punch FRC1203 Operating instructions

® ®
car audio
fanatics
for
punc
h
FRC1203
FRC1204
FRC1205
FRC1206
FRC1206F
FRC1269
FRC1369
FRC1246
FRC1257
F ULL R ANGE
S PEAKERS
INSTALLATION & OPERATION

– i –
SPECIFICATIONS
Model FRC1203 FRC1204 FRC1205 FRC1206 FRC1206F FRC1246 FRC1257 FRC1269 FRC1369 Nominal Diameter 3" 4" 5" 6.5" 6" 4" x 6" 5" x 7" 6" x 9" 6" x 9" Description 2-way 2-way 2-way 2-way 2-way 2-way 2-way 2-way 3-way Nominal Impedance 4Ω4Ω4Ω4Ω4Ω4Ω4Ω4Ω4Ω
Frequency Response 202Hz - 20kHz 107Hz - 20kHz 101Hz - 20kHz 76Hz - 20kHz 93Hz - 20kHz 128Hz - 20kHz 67Hz - 20kHz 48Hz - 20kHz 49Hz - 20kHz
Sensitivity(SPL@1w/1m) 89dB 85dB 86dB 87dB 88dB 85dB 88dB 89dB 89dB
Power Handling (Watts RMS/Peak) 15/30 30/60 40/80 50/100 50/100 30/60 60/120 75/150 75/150
Features Cone polypropylene polypropylene polypropylene polypropylene polypropylene polypropylene polypropylene polypropylene polypropylene
Surround foam foam foam foam foam foam foam foam foam Tweeter polyethermide polyethermide polyethermide polyethermide polyethermide polyethermide polyethermide polyethermide polyethermide Installation Speaker Grilles X X X X X X Speaker Wire X X X X X X X X X Mounting Hardware X X XXX XXXX Mounting Diameter (inches) 3" 3-21/32" 4-1/2" 5-21/32" 5-1/16" 3-29/32" x 6" 5-1/32" x 7-1/8" 6-1/8" x 8-3/4" 6-1/8" x 8-3/4"
Mounting Diameter (mm) 76mm 93mm 114mm 144mm 129mm 97.6 x 153mm 128 x 181mm 155 x 222mm 155 x 222mm Mounting Depth (inches) 1-5/8 1-27/32" 2-1/8" 2-9/16" 2-15/32" 1-15/16" 2-7/16" 3-1/16" 3-1/16"
Mounting Depth (mm) 41mm 47mm 54mm 65mm 63mm 49mm 62mm 78mm 78mm
Specifications are subject to change without notice.

Dear Customer,
Congratulationsonyourpurchaseof theworld'sfinestbrandof caraudiospeakers. At
Rockford Fosgate we are fanatics about musical reproduction at its best, and we are
pleasedyouchoseourproduct.Throughyearsofengineeringexpertise,handcraftsman-
ship and critical testing procedures, we have created a wide range of products that
reproduce music with all the clarity and richness you deserve.
For maximum performance we recommend you have your new Rockford Fosgate
product installed by an Authorized Rockford Fosgate Dealer, as we provide specialized
training through Rockford Technical Training Institute (RTTI). Please read your
warranty and retain your receipt and original carton for possible future use.
Greatproductand competentinstallationsare onlyapiece ofthepuzzlewhenitcomes
to your system. Make sure that your installer is using 100% authentic installation
accessories from Connecting Punch in your installation. Connecting Punch has
everything from RCA cables and speaker wire to Power line and battery connectors.
Insist on it! After all, your new system deserves nothing but the best.
To add the finishing touch to your new Rockford Fosgate image order your Rockford
wearables,whichincludeeverything from T-shirts and jackets to hats and sunglasses.
TogetafreebrochureonRockfordFosgateproductsandRockfordwearables,intheU.S.
call 602-967-3565 or FAX [phone]. For all other countries, call +001-602-
967-3565 or FAX [phone].
The serial number can be found on the outside of the box. Please record it in
the space provided below as your permanent record. This will serve as
verificationofyourfactorywarrantyandmaybecomeusefulinrecoveringyour
speakers if they are ever stolen.
Serial Number: ________________________________
Model Number:________________________________
If, after reading your manual, you still have questions regarding this product,
we recommend that you see your Rockford Fosgate dealer. If you need further
assistance, you can call us direct at 1-800-669-9899. Be sure to have your serial
number, model number and date of purchase available when you call.
PRACTICE SAFE SOUND™
CONTINUOUS EXPOSURE TO SOUND PRESSURE LEVELS OVER
100dBMAY CAUSE PERMANENT HEARING LOSS. HIGH
POWERED AUTOSOUND SYSTEMS MAY PRODUCE SOUND
PRESSURE LEVELS WELL OVER 130dB. USE COMMON SENSE
AND PRACTICE SAFE SOUND.
– ii –

TABLE OF CONTENTS
Specifications ........................................................................................... i
Dear Customer ........................................................................................ ii
Introduction .............................................................................................1
Package Contents..................................................................................... 1
Installation ...............................................................................................1
Warranty Information............................................................................... 3
International Information.......................................................................... 4
G ETTING S TARTED
Welcome to Rockford Fosgate! This manual is designed to provide
information for the owner, salesperson and installer. For those of you
who want quick information on how to install this product, please turn
tothe InstallationSection ofthismanualorrefertotheiconlistedbelow.
Other information can be located by using the Table of Contents. We,
at Rockford Fosgate, have worked very hard to make sure all the
information in this manual is current. But, as we are constantly finding
newways to improveour product, thisinformation is subjectto change
without notice.
Sections marked
INSTALLATION
include “slam dunk”
assembly and wiring
directions
I
N
S
T
A
L
L
A
T
I
O
N
® ®

INTRODUCTION
PACKAGE CONTENTS
This manual contains information on the construction, installation and
operation of the Punch FRC (Full Range Coaxial) Speakers. We recom-
mend you keep this manual for future reference.
The Punch Full Range Speakers are two-way and three-way speakers
designed to improve the performance of the factory installed car stereo
system. Sized to fit most automotive applications, the Punch Full Range
Speakers provide the first step in an upgrade to the factory system.
1 Pair of Full Range Speakers
1 Pair Grilles (FRC1204, FRC1205, FRC1206, FRC1206F, FRC1269,
FRC1369 only)
20' of 18 gauge Speaker Wire
Mounting Hardware
Installation & Operation Manual
– 1 –
Since some of these Punch Full Range Speakers are most often used
as direct replacements for stock speakers and are shipped without
grilles, some of the following instructions will not apply. For custom
installations see your Authorized Rockford Fosgate Dealer.
1. Determine where the speakers will be mounted. Ensure an area
large enough for the speaker to mount evenly. Be sure that the
mountinglocationisdeepenoughforthespeakertofit;ifmounting
inadoor,operateallfunctions(windows,locks,etc.)throughtheir
entire operating range to ensure there is no obstruction.
2. Refer to the specification chart to determine the proper diameter
hole to cut for your speaker model.
3. Using the plastic mounting ring as a template, mark the locations
for the mounting screws. Drill the holes with a 1/8" bit.
4. Feed the speaker wires through the cutout and the plastic mount-
ing ring (from the flat side) and connect to the speaker terminals.
Besuretoobserveproperpolaritywhenconnectingthewires.The
speaker's positive terminal is indicated with a "+".
INSTALLATION
I
N
S
T
A
L
L
A
T
I
O
N
® ®

– 2 –
5. Fit the ring and speaker to the cutout. Mount them using the
enclosed screws. Fit the grille inside the ring and press gently, but
firmly, into place.
INSTALLATION
I
N
S
T
A
L
L
A
T
I
O
N
® ®

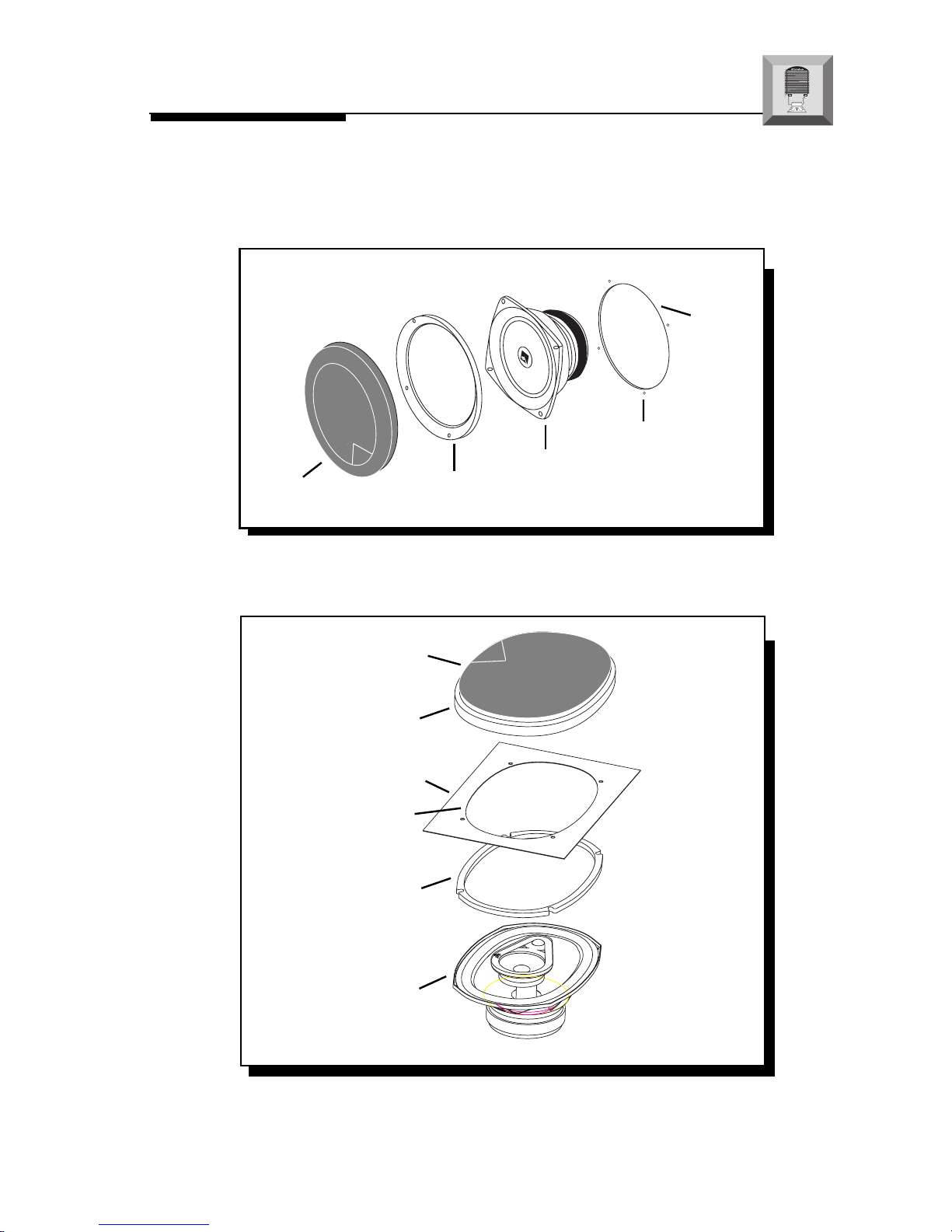

Example of standard door installation
Example of 6" x 9" rear-deck installation
Grille
Speaker
Gasket
Rear Deck
Mounting
Ring
Cut-Out
Mounting
Hole
Mounting
Ring
Speaker
Grille
Cut-Out

– 3 –
Ship to: Speakers
Rockford Acoustic Design
(Receiving-speakers)
609 Myrtle N.W.
Grand Rapids, MI 49504
RA#:_________________
LIMITED WARRANTY INFORMATION
Rockford Corporation offers a limited warranty on Rockford Fosgate products on the
following terms:
•Length of Warranty
1 year on speakers 90 days on speaker B-stock (receipt required)
3 years on electronics 90daysonelectronicB-stock(receiptrequired)
2 years on source units
•What is Covered
This warranty applies only to Rockford Fosgate products sold to consumers by
Authorized Rockford Fosgate Dealers in the United States of America or its
possessions. Product purchased by consumers from an Authorized Rockford
Fosgate Dealer in another country are covered only by that country’s Distributor
and not by Rockford Corporation.
•Who is Covered
This warranty covers only the original purchaser of Rockford product purchased
from an Authorized Rockford Fosgate Dealer in the United States. In order to
receive service, the purchaser must provide Rockford with a copy of the receipt
statingthecustomername,dealername,productpurchasedanddateofpurchase.
•Products found to be defective during the warranty period will be repaired or
replaced (with a product deemed to be equivalent) at Rockford's discretion.
•What is Not Covered
1. Damage caused by accident, abuse, improper operations, water, theft
2. Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford
Fosgate Service Center
4. Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer
•Limit on Implied Warranties
Anyimpliedwarrantiesincludingwarrantiesoffitnessforuseandmerchantability
are limited in duration to the period of the express warranty set forth above. Some
states do not allow limitations on the length of an implied warranty, so this
limitationmaynotapply. No person is authorized to assume for Rockford Fosgate
any other liability in connection with the sale of the product.
•How to Obtain Service
Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an
RA#(ReturnAuthorizationnumber)toreturnanyproducttoRockfordFosgate.You
are responsible for shipment of product to Rockford.
Ship to: Electronics
Rockford Corporation
Warranty Repair Department
2055 E. 5th Street
Tempe, AZ 85281
RA#:_________________

– 4 –
INTERNATIONAL
INFORMATION

Lea detenidamente las siguientes instrucciones de instalación del producto.
INTRODUCCIÓN
Este manual contiene información sobre la construcción, instalación y
funcionamiento de los altavoces de todo rango. Le recomendamos que
conserve el manual para futuras consultas.
INSTALACIÓN
La mayoria de estos altavoces se usan principalmente como reemplazo
directodelosaltavocesdeorigendelvehiculoynovienenequipadoscon
rejillas, por lo que algunas de las siguientes instrucciones no serán
aplicables. Para una instalación personalizada consulte a su distribuidor
autorizado Rockford Fosgate.
1. Determine donde han de montarse los altavoces. Asegúrese de que
hay espacio suficiente tanto de área como de profundidad para alojar
el altavoz. Si el montaje es en una puerta, todas las funciones han de
ser respetadas (alzacristales, cierres, etc.).
2. Consulte la hoja de caracteristicas para determinar el diametro del
agujero a realizar para su modelo de altavoz.
3. Use los anillos de montaje de plático como plantilla. Marque la
posición de los tornillos de anclaje.
4. Paseelcabledealtovozatravésdelanillodeplásticoyconécteloalos
terminalesdelaltavoz. Observelapolaridad. Elterminalpositivoestá
marcado con un punto.
5. Ajusteel anilloyel altavozal orificio. Mónteloutilizando los tornillos
suministrados. Fije la rejilla en el anillo de plástico y presione
firmemente.
– 5 –

Anillo Altavoz
Rejilla
Orificio
Agujero de montaje
ESPAÑOL
– 6 –

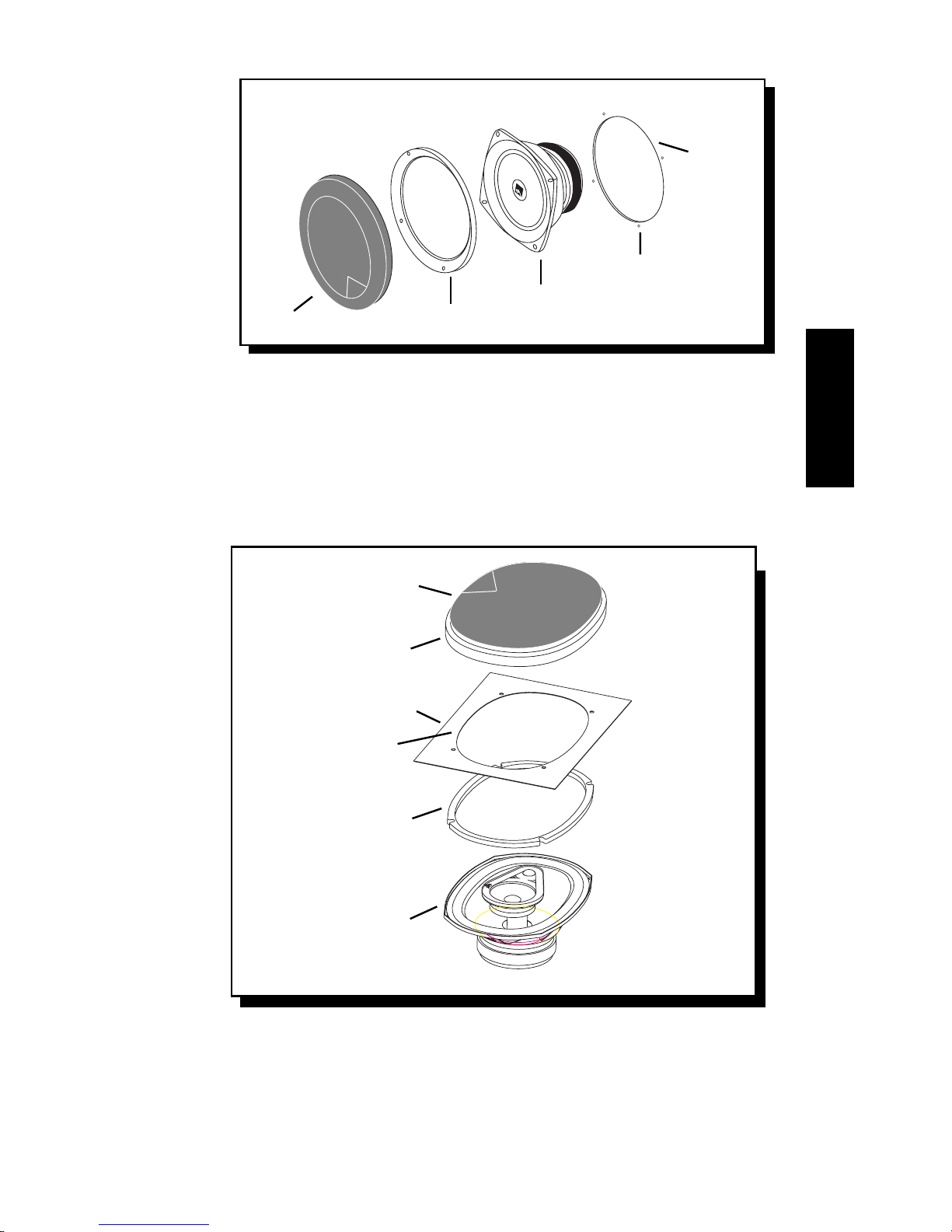

Example of 6" x 9" rear-deck installation
Gasket
Rear Deck
Rejilla
Anillo
Altavoz
Orificio
Example of standard door installation

Veuillez liere les instructions suivantes pour l'installation de ces produits.
INTRODUCTION
Ce manuel contient des informations sur la construction, l'installation et
le fonctionnement des haut-parleurs large bande. Nous vous proposons
de garder ce manuel pour tout référence future.
Leshaut-parleurs large bande sont des haut-parleurs à deux voies conçus
pour améliorer les performances des haut-parleurs installés d'origine.
Leurs tailles étant prévues pour les emplacements les plus courants, les
haut-parleurs large bande constituent le premier pas dans l'amélioration
des systèmes d'origine.
INSTALLATION
Comme certains de ces haut-parleurs sont souvent utilisés directement
en remplacement des haut-parleurs d'origine et sont livrés sans grilles
certaines des recommandations suivantes ne s'appliqueront pas. Pour
desinstallationspersonnalisésvoyezvotredealeragrééRockfordFosgate.
1. Déterminerl'endroitoùlehaut-parleurseramonté.Assurez-vousque
cet endroit est suffisamment large et profond pour monter le haut-
parleur de manière équilibrée. Si le haut-parleur est monté dans une
porteassurez-vousquetouteslescommoditésdelaportefonctionnent
complètement et correctement sans que le haut-parleur ne leur fasse
obstruction (lève-vitre, verrouillage, etc.).
2. Reportez-vous au tableau des spécifications techniques pour
déterminerlebondiamètredecoupedutroudestinéauhaut-parleur.
3. Utilisez l'anneau en plastique comme modèle et localisez
l'emplacement des vis. Préforez les trous avec une méche de 3 mm.
4. Faitespasserlesfilsdeconnexionautraversdutrouetdel'anneauen
plastiqueetconnectezlesauxbornesduhaut-parleur.Veuillezàbien
observer les polarités. La borne positive du haut-parleur est marqué
avec un point.
5. Fixez l'anneau et le haut-parleur autour du trou avec les vis livrées.
Placez la grille dans l'anneau et poussez la fermement.
– 7 –

Anneau de
Montage
Haut-Parleur
Grille
Découpe
FRANÇAIS
Trou de Montage
– 8 –
Example of 6" x 9" rear-deck installation
Grille
Gasket
Rear Deck
Anneau de Montage
Haut-Parleur
Découpe
Example of standard door installation

Bitte lesen Sie diese Gebrauchsanleitung zuerst sorgfältig durch. Das kann
Sie vor falschem Einsatz, Ausfallen oder sogar Beschädigung des Produktes
oder Ihres Fahrzeuges schützen.
EINBAU
DaeinigeVollbereichslatusprecheralsdirekterErsatz,fürdievomHersteller
mitgelieferten Lautsprecher dienen, treffen einige Punkte dieser
Bedienungsanleitung evtl auf Sie nicht zu. Bei Rückfragen wenden Sie
sich bitte an Ihren Rockford Händler.
1. Legen Sie den Einbauort des Lautsprechers fest. Seien Sie sicher, daβ
die Lautsprecher auf beiden Seiten passen. Stellen Sie fest, ob genung
Einbautiefe vorhanden ist. Beim Einbau in die Tür sollten Sie sich
vergewissern, daβkeine Funktion der Tür beeinträchtigt wird.
2. Siefindenunter“Specification”dierichtigenMassefürdenAusschnitt.
3. Benutzen Sie en Einbauring als Schnittvorlage und markieren Sie die
Löcher für die Befestigungsschrauben. Bohren Sie dann dafür die
passenden Löcher.
4. Führen Sie die Lautsprecherkabel durch die Öffnung und durch den
Montagering und klemmen Sie dann den Lautsprecher den. Positiv ist
mit einem farbigen Punkt markiert.
5. Montieren Sie nun den Montagering und den Lautsprecher mit den
mitgelieferten Schrauben. Pressen Sie dann das Gitter vorsichtig aber
fest an.
EINLEITUNG
Diese Einbauanleitung enthält Informationen über den Aufbau, für den
Einbau und über die Arbeitsweise der Vollbereichslautsprecher. Wir
empfehlen Ihnen, diese sorgfältig aufzubewahren.
Die Vollbereichslatusprecher sind Zwei-Wege Lautsprecher, die für die
Orginaleinbau-Plätze Ihres Fahrzeuges entwickelt und gefertigt werden.
Passend für die meisten Originaleinbau-Plätze und der erste Schritt zur
Verbesserung Ihrer Auto-HiFi Musikanlage.
– 9 –

Einbau-Loch
Einbau-Ring Mitteltöner
Gitter
Ausschnitt
DEUTSCH
– 10 –
Example of standard door installation
Example of 6" x 9" rear-deck installation
Gasket
Rear Deck
Gitter
Einbau-Ring
Mitteltöner
Ausschnitt

Sipregadileggerequesteistruzioniperl'installazionedelprodottoacquistato.
INTRODUZIONE
Questomanualecontieneinformazionisullacostruzione,installazionee
sulfunzionamentodeglialtoparlantiagammainteraRockfordFosgate.Vi
raccomandiamo di conservare questo manuale per riferimento futuro.
Gli altoparlanti a gamma intera sono dei sistemi a due vie progettati per
esaltareleprestazionideisistemihi-fiinstallatidaicostruttoridiautomobili.
Dimensionati in modo da adattarsi a quasi tulle le predisposizioni delle
auto, questi altoparlanti consentono il primo passo per l'ingresso nel
mondo dell'hi-fi.
INSTALLAZIONE
Essendo gli altoparlanti a gamma estesa normalmente impiegati negli
alloggiamenti previsti dai costruttori delle auto ed essendo spediti senza
griglie, alcune delle indicazioni seguenti potrebbero non adattarsi al
Vostrocaso.PerinstallazionipersonalizzatecontattateilVostroinstallatore
autorizzato Rockford Fosgate.
1. Determinate la zona in cui installare gli altoparlanti. Assicuratevi che
lo spazio sia sufficiente ad un corretto posizionamento. Assicuratevi
anche che la profonditá sia sufficiente. Se l'installazione avviene in
una porta, controllate che tutte le parti meccaniche (meccanismi dei
vetriechiusurecentralizzate)possanofunzionarenell'interoloroarco
operativo.
2. Fateriferimentoallatabellaconlespecifichetecnicheperdeterminare
il diametro del foro da praticare.
3. Impiegate l'anello in plastica di supporto della griglia come dima per
il posizionamento dei fori di fissaggio. Praticate fori da 3,5 mm.
4. Passate i cavi attraverso il foro e l'anello in plastica della griglia e
collegateli all'altoparlante. Controllate la polaritá (il positivo
sull'altoparlante é indicato da un pallino).
5. Accostate l'anello e l'altoparlante al foro e, impiegando le viti a
dotazione,fissateiltutto.Inseritelagrigliaalpropriopostoepremetela
con delicatezza, ma fermanente alla propria posizione.
– 11 –

foro di fissaggio
Anello di fissaggio
della griglia
Altoparlante
Griglia
foro
ITALIANO
– 12 –
Example of 6" x 9" rear-deck installation
Gasket
Rear Deck
Griglia
Anello di fissaggio
della griglia
Altoparlante
foro
Example of standard door installation

NOTES

NOTES

Rockford Fosgate
Rockford Corporation
546 South Rockford Drive
Tempe, Arizona 85281 U.S.A.
In U.S.A., [phone]
In Europe, Fax [phone]
In Japan, Fax [phone]
LIT10502
9/98 E.R.
MADE IN CHINA
This product is designed and developed in the USA by a dedicated
group of American workers. However, due to the global nature of
manufacturing facilities and the loudspeaker parts industry in general,
some parts may be manufactured in other countries.
Get maximum performance byGet maximum performance by
Get maximum performance byGet maximum performance by
Get maximum performance by
surfing for the ultimatesurfing for the ultimate
surfing for the ultimatesurfing for the ultimate
surfing for the ultimate
Punch system designs at:Punch system designs at:
Punch system designs at:Punch system designs at:
Punch system designs at:
www.rockfordfosgate.comwww.rockfordfosgate.com
www.rockfordfosgate.comwww.rockfordfosgate.com
www.rockfordfosgate.com
