Rockwell Automation Allen-Bradley SLC 500 User manual

User Manual Original Instructions
SLC 500 EtherNet/IP Adapter
Catalog Number 1747-AENTR

2Rockwell Automation Publication 1747-UM076E-EN-E - August 2021
SLC 500 EtherNet/IP Adapter User Manual
Important User Information
Read this document and the documents listed in the additional resources section about installation, configuration, and
operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize
themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.
Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to
be carried out by suitably trained personnel in accordance with applicable code of practice.
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be
impaired.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use
or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and
requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for
actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software
described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is
prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
These labels may also be on or inside the equipment to provide specific precautions.
The following icon may appear in the text of this document.
WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment,
which may lead to personal injury or death, property damage, or economic loss.
ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property
damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.
IMPORTANT Identifies information that is critical for successful application and understanding of the product.
SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous
voltage may be present.
BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may
reach dangerous temperatures.
ARC FLASH HAZARD: Labels may be on or inside the equipment, for example, a motor control center, to alert people to
potential Arc Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective Equipment (PPE). Follow ALL
Regulatory requirements for safe work practices and for Personal Protective Equipment (PPE).
Identifies information that is useful and can help to make a process easier to do or easier to understand.

Rockwell Automation Publication 1747-UM076E-EN-E - August 2021 3
Table of Contents
Preface
About This Publication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Download Firmware, AOP, EDS, and Other Files . . . . . . . . . . . . . . . . . . . . 7
Summary of Changes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Chapter 1
About the SLC 500 EtherNet/IP
Adapter
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Module Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Hardware Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
The 1747-AENTR in a
Logix System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Hardware/Software
Compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Diagnostic Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
What the Adapter Does . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Use of the Common Industrial Protocol (CIP). . . . . . . . . . . . . . . . . . . . . . 12
Understand the Producer/Consumer Model . . . . . . . . . . . . . . . . . . . . . . . 12
Support of Direct Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Chapter Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Chapter 2
Install Your Adapter Set the Network Address Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Enable or Disable the Web Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Determine Power Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Install the Adapter Module in the Chassis . . . . . . . . . . . . . . . . . . . . . . . . . 18
Connect Your Adapter to the Ethernet/IP Network through RJ-45
Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Chapter Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Chapter 3
Configure the Adapter for Your
EtherNet/IP Network
Configuration Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Gateway Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Subnet Mask . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Use the Rockwell Automation BootP/DHCP Utility . . . . . . . . . . . . . . . . . 24
Save the Relation List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Use DHCP Software to Configure Your Adapter. . . . . . . . . . . . . . . . . . . . 26
Chapter Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4Rockwell Automation Publication 1747-UM076E-EN-E - August 2021
Table of Contents
Chapter 4
Plan to Use Your EtherNet/IP
Adapter
Compatible 1746 and
1747 I/O Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Overview of Adapter Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Software Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Module Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Module Keying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Output Operation During Fault and Idle Modes . . . . . . . . . . . . . . . . 30
Chapter Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Chapter 5
Configure the Adapter for Direct
Connection through the RSLogix
5000 or Logix Designer
Application
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Set Up the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Create the Example Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Configure the I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Add the Local EtherNet/IP Bridge to the I/O Configuration . . . . . . 35
Add the Adapter to the I/O Configuration . . . . . . . . . . . . . . . . . . . . . . . . . 37
Add I/O Modules to the I/O Configuration . . . . . . . . . . . . . . . . . . . . . 39
Add Specialty I/O Modules using Advanced Connection . . . . . . . . . 42
Download the Program to the Controller . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Custom Settings (Edit Adapter Configuration). . . . . . . . . . . . . . . . . . . . . 47
Custom Settings for your
I/O Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Online Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Chapter Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Chapter 6
Troubleshoot with the Status
Indicators
Interpret the Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Chapter Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Appendix A
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Appendix B
Adapter Web Dialogs Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Work with the Home Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Work with the Diagnostics Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Use the Diagnostic Overview Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Use the Network Settings Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Use the Ethernet Statistics Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Use the I/O Connections Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Work with the Configuration Pages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Use the Device Identity Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Use the Network Configuration Page . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Use the Device Services Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Rockwell Automation Publication 1747-UM076E-EN-E - August 2021 5
Table of Contents
Appendix C
Configure the RSLinx Ethernet
Communication Driver
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Install the RSLinx Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Configure the AB_ETH/IP Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Index
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

6Rockwell Automation Publication 1747-UM076E-EN-E - August 2021
Table of Contents
Notes:

Rockwell Automation Publication 1747-UM076E-EN-E - August 2021 7
Preface
About This Publication Describes the procedures you use to install, program and troubleshoot your
EtherNet/IP™ Adapter module. This manual also includes several application
examples.
Download Firmware, AOP,
EDS, and Other Files
Download firmware, associated files (such as AOP, EDS, and DTM), and access
product release notes from the Product Compatibility and Download Center at
rok.auto/pcdc.
Summary of Changes This publication contains the following new or updated information. This list
includes substantive updates only and is not intended to reflect all changes.
Additional Resources These documents contain additional information concerning related products
from Rockwell Automation.
You can view or download publications at rok.auto/literature.
Topic Page
Updated template throughout
Added section Enable or Disable the Web Server 16…18
Resource Description
Ethernet Design Considerations Reference Manual, ENET-RM002 Provides design considerations such as EtherNet/IP infrastructure components, features,
protocol and prediction of system performance.
EtherNet/IP Device Level Ring Application Technique,
publication ENET-AT007 Describes DLR network operation, topologies, configuration considerations, and diagnostic
methods.
EtherNet/IP Web Server Module User Manual, ENET-UM527 Describes how to use the EtherNet/IP Web server module.
EtherNet/IP Network Devices User Manual, ENET-UM006 Describes how to use EtherNet/IP communication modules in Logix 5000™ control systems.
Ethernet Reference Manual, ENET-RM002 Describes basic Ethernet concepts, infrastructure components, and infrastructure features.
System Security Design Guidelines Reference Manual, SECURE-RM001 Provides guidance on how to conduct security assessments, implement Rockwell
Automation products in a secure system, harden the control system, manage user access,
and dispose of equipment.
UL Standards Listing for Industrial Control Products,
publication CMPNTS-SR002 Assists original equipment manufacturers (OEMs) with construction of panels, to help ensure
that they conform to the requirements of Underwriters Laboratories.
American Standards, Configurations, and Ratings: Introduction to Motor
Circuit Design, publication IC-AT001 Provides an overview of American motor circuit design based on methods that are outlined
in the NEC.
Industrial Components Preventive Maintenance, Enclosures, and Contact
Ratings Specifications, publication IC-TD002 Provides a quick reference tool for Allen-Bradley industrial automation controls and
assemblies.
Safety Guidelines for the Application, Installation, and Maintenance of
Solid-state Control, publication SGI-1.1
Designed to harmonize with NEMA Standards Publication No. ICS 1.1-1987 and provides
general guidelines for the application, installation, and maintenance of solid-state control in
the form of individual devices or packaged assemblies incorporating solid-state
components.
Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1 Provides general guidelines for installing a Rockwell Automation industrial system.
Product Certifications website, rok.auto/certifications. Provides declarations of conformity, certificates, and other certification details.

8Rockwell Automation Publication 1747-UM076E-EN-E - August 2021
Notes:

Rockwell Automation Publication 1747-UM076E-EN-E - August 2021 9
Chapter 1
About the SLC 500 EtherNet/IP Adapter
Overview This chapter provides an introduction to the features and functionalities of the
1747-AENTR SLC™ 500 EtherNet/IP Adapter. It includes the following sections.
Module Description The 1747-AENTR Adapter enables CompactLogix™ and ControlLogix®
processors to control SLC™ I/O modules. It is primarily designed to enable
migration of existing SLC controlled systems to Logix-based systems.
The adapter mainly acts as a gateway between the SLC backplane and
EtherNet/IP and typically replaces an SLC controller in the 1746 rack. On
remote SLC racks, it replaces the 1747-ASB module or the ControlNet® adapters
1747-ACN15 and 1747-ACNR15.
Control of the backplane I/O is accomplished with a CompactLogix or
ControlLogix controller communicating through an EtherNet/IP router in the
Logix backplane, across EtherNet/IP, and into the 1747-AENTR gateway.
As a gateway between the SLC backplane and EtherNet/IP, the 1747-AENTR
module is a CIP™ server (for both Explicit Messaging and I/O) on the Ethernet
port, and an SLC host on the 1746 backplane.
Connections can be made to support 1746 and 1747 analog, digital, and
specialty I/O modules installed in the backplane.
For the complete list of supported I/O modules, see the table, List of I/O
Modules Supported by the 1747-AENTR Adapter on page 27.
Topic Page
Module Description 9
Hardware Components 10
The 1747-AENTR in a Logix System 11
Hardware/Software Compatibility 11
Diagnostic Indicators 11
What the Adapter Does 11
Use of the Common Industrial Protocol (CIP) 12
Understand the Producer/Consumer Model 12
Support of Direct Connections 12
IMPORTANT Studio 5000 Logix Designer® application (previously RSLogix 5000®)
revision 21 and later, and firmware revision 2.001 and later supports:
• multiple chassis, with a maximum number of three chassis;
• a maximum of 30 SLC I/O modules;
• a maximum of 96 Class 1 connections;
• up to 8 Class 3 connections.

10 Rockwell Automation Publication 1747-UM076E-EN-E - August 2021
Chapter 1 About the SLC 500 EtherNet/IP Adapter
Hardware Components The adapter module consists of the following hardware components:
5.15
1.37
5.72
1747-AENTR
Link 1 Link 2
LINK1 LINK2 MOD
Side view
Network switches
Front view
Latch
PCB
Front cover
4-character dot matrix display
Module status indicator
Link 2 status indicator
Link 1 status indicator
RJ-45 Ethernet connectors
18
81
45845 45846
Ethernet connectors (RJ-45)
45844
Left side view Right side view
Bottom view

Rockwell Automation Publication 1747-UM076E-EN-E - August 2021 11
Chapter 1 About the SLC 500 EtherNet/IP Adapter
The 1747-AENTR in a
Logix System
In this example, the I/O modules communicate with the controller through the
1747-AENTR adapter. The controller can produce and consume tags to the I/O.
Configuration of devices and the network is done through the personal
computer running the controller and configuration software.
Hardware/Software
Compatibility
The adapter and the applications described in this manual is compatible with
the following firmware revisions and software releases.
Diagnostic Indicators The module has the following diagnostic indicators:
• Link 1 and Link 2 status indicator
• Module indicator
• 4-character status display
What the Adapter Does The 1747-AENTR EtherNet/IP adapter performs the following primary tasks:
• Control of real-time I/O data (also known as implicit messaging) – the
adapter serves as a bridge between I/O modules and the network
• Support of messaging data for configuration and programming
information (also known as explicit messaging)
45848
Computer running
controller and Rockwell
Automation configuration
software
ControlLogix controller
1747-AENTR adapter
PanelView™ terminal
EtherNet/IP Network
Product Firmware Revision/
Software Versions
1747-AENTR 1.001 or later
Logix controller v20 or later
RSLogix 5000 or Logix Designer v20 or later
RSLinx® software v2.59 or later

12 Rockwell Automation Publication 1747-UM076E-EN-E - August 2021
Chapter 1 About the SLC 500 EtherNet/IP Adapter
Use of the Common
Industrial Protocol (CIP)
The adapter uses the Common Industrial Protocol (CIP), the application layer
protocol specified for EtherNet/IP, the Ethernet Industrial Protocol. It is a
message-based protocol that implements a relative path to send a message
from the producing device in a system to the consuming devices.
The producing device contains the path information that steers the message
along the proper route to reach its consumers. Since the producing device
holds this information, other devices along the path simply pass this
information; they do not store it.
This has the following significant benefits:
• You do not need to configure routing tables in the bridging modules,
which greatly simplifies maintenance and module replacement.
• You maintain full control over the route taken by each message, which
enables you to select alternative paths for the same end device.
Understand the Producer/
Consumer Model
The CIP producer and consumer networking model replaces the old source
and destination (master and slave) model. The producer and consumer model
reduces network traffic and increases speed of transmission. In traditional I/O
systems, controllers poll input modules to obtain their input status. In the CIP
system, input modules are not polled by a controller. Instead, they produce
(multicast or unicast) their data periodically or at a cyclic rate.
Unicast is the default for version 20 with multicast as a selectable option. The
frequency of update depends upon the options chosen during configuration
and where on the network the input module resides. The input module,
therefore, is a producer of input data, and the controller is a consumer of the
data.
The controller also produces data for other controllers to consume. The
produced and consumed data is accessible by multiple controllers and other
devices over the EtherNet/IP network. This data exchange conforms to the
producer and consumer model.

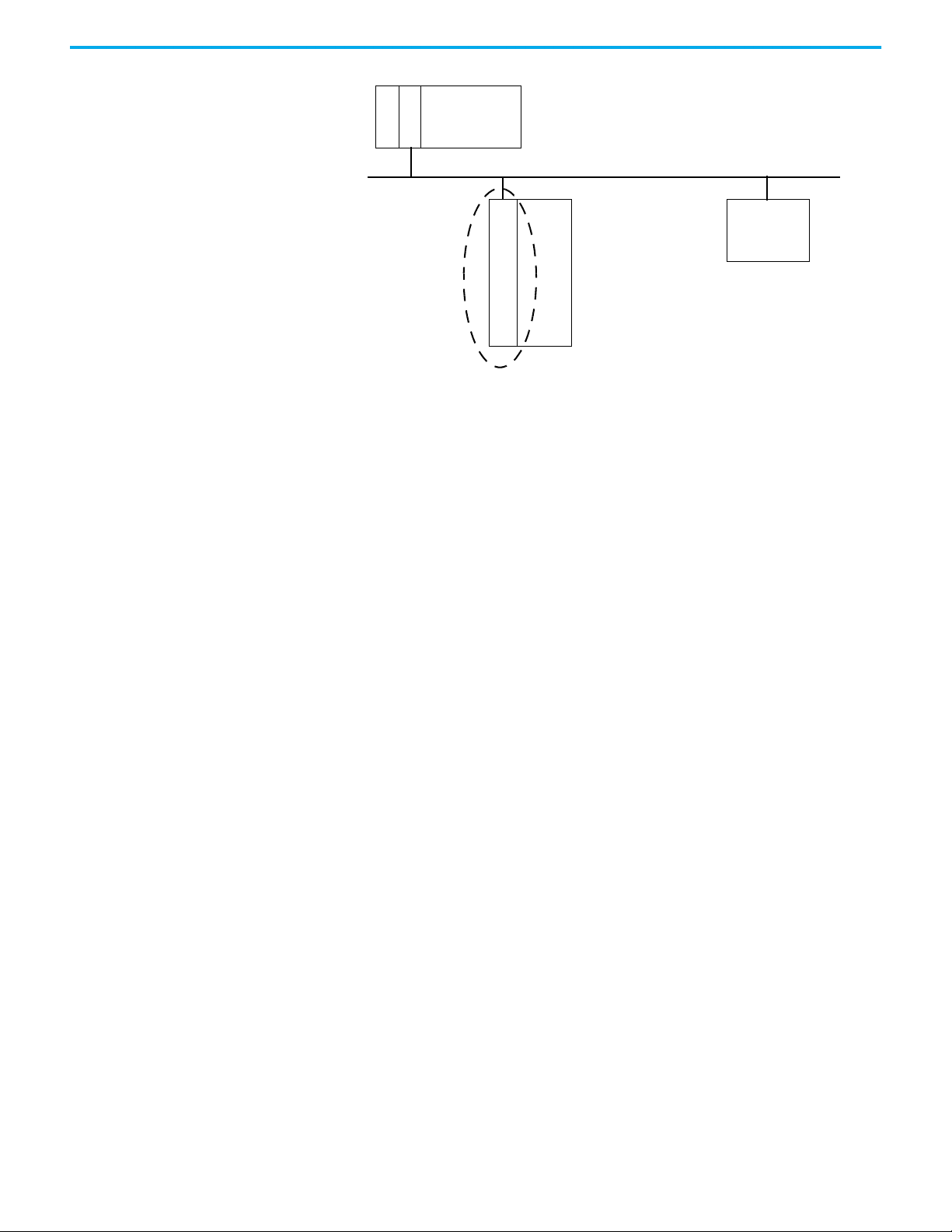

Support of Direct
Connections
The EtherNet/IP adapter only supports direct connections. A direct connection
is a real-time data transfer link between a Logix controller and a 1746/1747 I/O
module through the 1747-AENTR adapter. Direct I/O connections occur at a
cyclic rate specified by the RPI during configuration.
CONTROLLER
EtherNet/IP Network
E
N
B
T
Other
Network
Devices
1
7
4
7
-
A
E
N
T
R
SLC I/O

Rockwell Automation Publication 1747-UM076E-EN-E - August 2021 13
Chapter 1 About the SLC 500 EtherNet/IP Adapter
The adapter can support direct connections to devices in expansion racks. This
feature is supported on Logix Designer application (previously RSLogix 5000
software) revision 21 and later, and firmware revision 2.001 and later.
See the EtherNet/IP Network Devices User Manual, publication
ENET-UM006, for more information on connections.
Chapter Summary This chapter provided an overview of the module features, what it does, and its
function in a Logix system.

14 Rockwell Automation Publication 1747-UM076E-EN-E - August 2021
Chapter 1 About the SLC 500 EtherNet/IP Adapter
Notes:

Rockwell Automation Publication 1747-UM076E-EN-E - August 2021 15
Chapter 2
Install Your Adapter
This chapter describes how to install the 1747-AENTR adapter and connect it to
the EtherNet/IP network.
The following table lists where to find specific information.

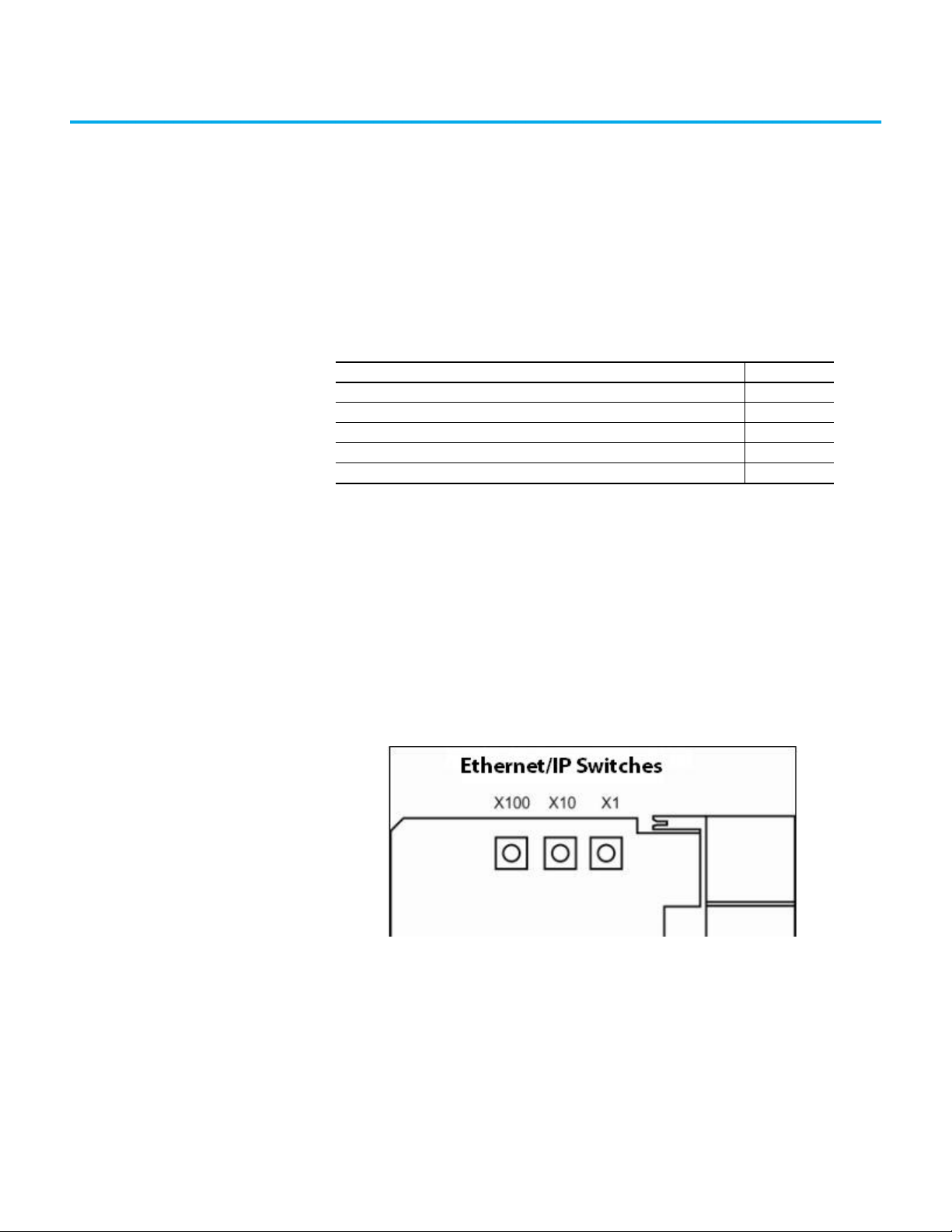

Set the Network Address
Switches
The network address switches are set to 999 and DHCP enabled, by default.
You can set the network Internet Protocol (IP) address in the following ways:
• Use the network address switches on the module.
• Use a Dynamic Host Configuration Protocol (DHCP) server, such as
Rockwell Automation BootP/DHCP.
• Retrieve the IP address from nonvolatile memory.
The adapter reads the network address switches first to determine if the
switches are set to a valid number. You set the node address by using the
network address switches. Valid settings range from 001…254.
When the switches are set to a valid number, the adapter’s IP address is
192.168.1.xxx (where xxx represents the number set on the switches).
The adapter’s subnet mask is 255.255.255.0 and the gateway address is set to
0.0.0.0. The adapter does not have a host name assigned, or use any Domain
Name System when using the network address switch settings.
If the switches are set to an invalid number (for example, 000 or a value greater
than 254 excluding 888), the adapter checks to see if DHCP is enabled. Setting
the switches to 888 restores default factory settings.
Topic Page
Set the Network Address Switches 15
Determine Power Requirements 18
Install the Adapter Module in the Chassis 18
Connect Your Adapter to the Ethernet/IP Network through RJ-45 Connection 19
Chapter Summary 20

16 Rockwell Automation Publication 1747-UM076E-EN-E - August 2021
Chapter 2 Install Your Adapter
DHCP Enabled and Not Enabled
See the chapter, Configure the Adapter for Your EtherNet/IP Network on
page 21, for information on how to use your BootP/DHCP utility to configure
your adapter for the network.
Enable or Disable the Web Server
With firmware revision 2.003 or later, the web server feature is disabled by
default. Use the network address switches to enable or disable the web server
for your application.
The following section describes how to enable or disable the web server based
on the IP address mode that is used.
IMPORTANT If you set the value of the adapter switch to 888 and then power cycle
the module, the following occurs:
• The DHCP Enabled function is enabled (set to True).
• The Ethernet link is negotiated automatically. The Auto Negotiate
function is set to True.
• The web server is enabled. The Disabled Web Server function is
disabled.
• The Ethernet ports are disabled. Both ports are re-enabled once the
switches are returned to their previous value and power is cycled.
DHCP Enabled and Not Enabled
If DHCP is Then the Adapter
Enabled
Asks for an address from a DHCP server. The DHCP server also assigns other Transport Control
Protocol (TCP) parameters.
The 1747-AENTR factory default is DHCP enabled. When you apply power, the module sends a
message containing its hardware address to any DHCP server on the network. The server(s)
replies by sending a message with an appropriate IP address for the adapter. The adapter
responds by acknowledging to a server that it will use the offered IP address.
Not enabled
Uses the IP address (along with other TCP configurable parameters) stored in nonvolatile
memory.
When the IP address assigned to the module, as indicated in the four-character dot-matrix
status display, is changed through the DHCP configuration utility, the DHCP is disabled.
When power is cycled to the device, it uses the new configuration and implements the new IP
address.
Value Description
000 Enables the web server. Cycle power to the adapter for the setting to take effect. When you apply power, the module LED
flashes red and the four-character status display scrolls the message “Web Server Enabled”.
901 Disables the web server. Cycle power to the adapter for the setting to take effect. When you apply power, the module LED
flashes red and the four-character status display scrolls the message “Web Server Disabled”.
IMPORTANT If you set the value of the switch to 901 and then cycle power to the
adapter, the following occurs:
• The web server is disabled.
• If the product supports SNMP, the SNMP server is also disabled.
This value is a transitional setting, the adapter does not operate while
the switch remains at this value. After the message “Web Server
Disabled” displays, change the value of the switch based on your IP
address mode and cycle power to the adapter.

Rockwell Automation Publication 1747-UM076E-EN-E - August 2021 17
Chapter 2 Install Your Adapter
Enable Web Server in Static IP mode
1. Set the switches to 000 and cycle power to the adapter.
The module LED flashes red and the four-character status display scrolls
the message “Web Server Enabled”.
2. Set the switches to the desired IP address and cycle power to the adapter.
3. In your web browser, enter the IP address of the adapter.
The web server home page displays.
Disable Web Server in Static IP mode
1. Set the switches to 901 and cycle power to the adapter.
The module LED flashes red and the four-character status display scrolls
the message “Web Server Disabled”.
2. Set the switches to the desired IP address and cycle power to the adapter.
3. In your web browser, enter the IP address of the adapter.
The web server home page does not display.
Enable Web Server in DHCP mode
Before you begin, verify that you have an active DHCP server on your network.
1. Set the switches to 000 and cycle power to the adapter.
The module LED flashes red and the four-character status display scrolls
the message “Web Server Enabled”.
2. Set the switches to 999 and cycle power to the adapter.
3. In RSLinx software, check the IP address that was assigned to the
adapter by the DHCP server and verify the connection.
4. In your web browser, enter the IP address of the adapter.
The web server home page displays.
Disable Web Server in DHCP mode
Before you begin, verify that you have an active DHCP server on your network.
1. Set the switches to 901 and cycle power to the adapter.
The module LED flashes red and the four-character status display scrolls
the message “Web Server Disabled”.
2. Set the switches to 999 and cycle power to the adapter.
3. In RSLinx software, check the IP address that was assigned to the
adapter by the DHCP server and verify the connection.
4. In your web browser, enter the IP address of the adapter.
The web server home page does not display.
Enable Web Server in User-set IP mode
1. Set the switches to 000 and cycle power to the adapter.
The module LED flashes red and the four-character status display scrolls
the message “Web Server Enabled”.
2. Set the switches to 999 and cycle power to the adapter.
3. In RSLinx software, change the Port Configuration setting to “Manual
IP”, set the desired IP address, and cycle power to the adapter.
4. In your web browser, enter the IP address of the adapter.
The web server home page displays.

18 Rockwell Automation Publication 1747-UM076E-EN-E - August 2021
Chapter 2 Install Your Adapter
Disable Web Server in User-set IP mode
1. Set the switches to 901 and cycle power to the adapter.
The module LED flashes red and the four-character status display scrolls
the message “Web Server Disabled”.
2. Set the switches to 999 and cycle power to the adapter.
3. In RSLinx software, change the Port Configuration setting to “Manual
IP”, set the desired IP address, and cycle power to the adapter.
4. In your web browser, enter the IP address of the adapter.
The web server home page does not display.
Determine Power
Requirements
The Ethernet adapter requires 5V DC with current consumption of 470 mA.
The power is supplied through backplane from SLC power supply. Remember
to consider this requirement when planning your system configuration.
Install the Adapter Module
in the Chassis
After you set the appropriate switch assemblies for your adapter module,
follow these procedures for installation.
See the Industrial Controller Wiring and Grounding Guidelines publication
1770-4.1 for proper grounding and wiring methods to use when installing your
module.
1. Remove power from the I/O chassis before inserting (or removing) the
module.
2. Align the circuit board with the chassis card guide in the left slot.
3. Install the module in slot 0 of the chassis by aligning the circuit board
with the chassis card guide.
The 1747-AENTR module must be installed only in slot 0 (leftmost slot)of
the chassis.

Rockwell Automation Publication 1747-UM076E-EN-E - August 2021 19
Chapter 2 Install Your Adapter
4. Press firmly and evenly to seat the module in its backplane connectors.
To remove the module, press the releases at the top and bottom of the
module and pull it out.

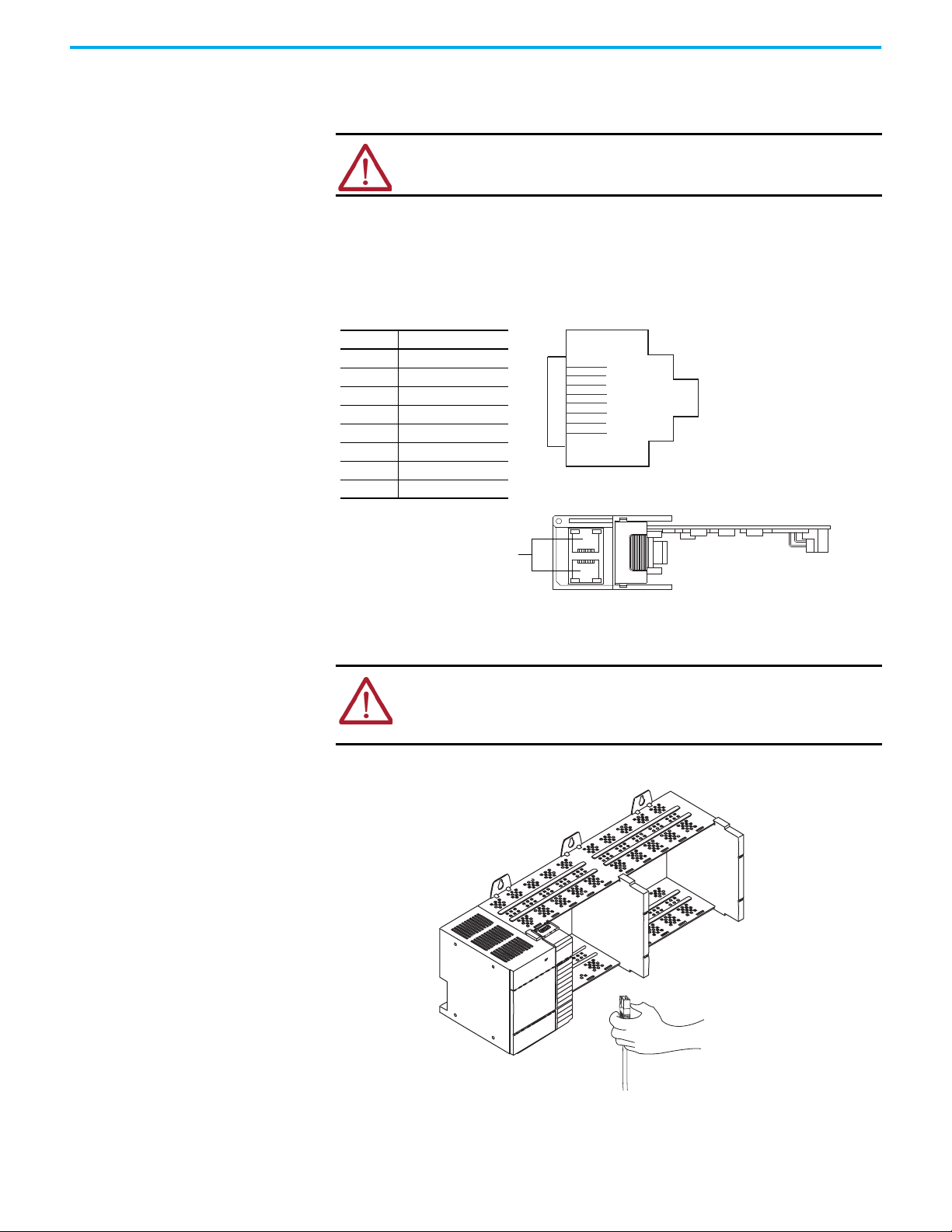

Connect Your Adapter to
the Ethernet/IP Network
through RJ-45 Connection
Connect your 1747-AENTR adapter module to an Ethernet/IP network as
shown in the following example:
Wire the RJ-45 connectors as shown.
To connect the module to the network, follow these steps:
1. Attach the cables with the RJ-45 connectors to the two Ethernet ports on
the bottom of the module.
ATTENTION: Do not force the module into the backplane connector. If you
cannot seat the module with firm pressure, check the alignment. Forcing the
module can damage the backplane connector or the module.
WARNING: If you connect or disconnect the communication cable with power
applied to this module or any device on the network, an electrical arc can occur.
This could cause an explosion in hazardous location installations. Be sure that
power is removed or the area is nonhazardous before proceeding.
18
81
Signal
1 TxData+
2 TxData-
3RecvData+
4 Reserved
5 Reserved
6RecvData-
7 Reserved
8 Reserved
RJ-45 connectors
1747-AENTR module bottom view
45844
RJ-45

20 Rockwell Automation Publication 1747-UM076E-EN-E - August 2021
Chapter 2 Install Your Adapter
2. Attach the other end of the cables to the devices in your network.
Chapter Summary This chapter provided instructions on how to install and wire the module. It
also included power requirements for the module.
IMPORTANT To install systems with rack extensions, you can see the SLC 500
Modular Hardware Style User Manual, publication 1747-UM011.
