Rocwood Rwepw5 User manual

please read & understand this manual; paying particular attention to the safety instructions before use.Incorrect use of the product could put the operator or machine in danger.Whilst every effort has been made to ensure the accuracy of information contained in this manual, our policy of continuous improvementdetermines the right to make modiﬁcations without prior warning.Images are used for illustration purposes only.RWEPW5ASSEMBLY REQUIRED

INSTRUCTION MANUALCopyright NoticeCopyright © RocwooD Ltd.Permission is granted to reproduce this publication for personal & educational use only.Commercial copying, redistribution, hiring or lending is prohibited.No part of this publication may be stored in a retrieval system or transmitted in any other form or means withoutwritten permission from RocwooD Ltd.In all cases this copyright notice must remain intact.

ON / OFF SwitchLanceHeavy Duty LanceTrigger LanceHigh Pressure Hose InletCar BrushAdaptor for Patio CleanerTurbo NozzleAngle Nozzle18 Metre Extension HoseBrush RotatingPatio & Deck CleanerInterchangeableJetsHigh Pressure HoseWater Inlet Extension Hose Adaptor

Consistent with our policy of continuous improvement, ROCWOOD reserves the right to change the design andconﬁguration of any of its products without notice or obligation. Therefore, please treat the text andimages in this manual as for illustrative purposes only. They may in no case serve as a basis for any legalclaimSPECIFICATION INSTRUCTION MANUALTechnical Spec:MOTOR TYPE: Induction MotorVOLTAGE: 240V/50HzMOTOR POWER: 2300WWORKING PRESSURE: 130BARMAX PRESSURE: 195BARFLOW: 6.5L/MINMAX FLOW: 8.0L/minHOSE LENGTH: 8M Reel + 18M Extension HoseWHEEL MOUNTEDMAX WATER TEMPERATURE 50ºCAUTO STOP/START CONTROL

IMPORTANT INFORMATION WARNING

INSTRUCTION MANUALRead this instruction manual carefully before operating this machine. Make sure that you are familiar with the controls and properly operate the machine. Following these instructions to reduce the risk of ﬁre, electric shock and personal injury. IF NOT USED PROPERLY THIS MACHINE CAN BE DANGEROUS!This machine can cause serious injury to the operator and others, the warning and safety instructions must be followed to ensure reasonable safety and efﬁciency in using this product. The operator isresponsible for following the warning and safety instructions in this manual and on the machine. Never use the product unless the ﬁxing screws or guards are correctly positioned. DESIGNED FOR DOMESTIC USE ONLY. For use in private gardens are those with an annual use not generally exceeding 50 hours and that are primarily used for cleaning machines, vehicles, buildings, tools, facades, terraces, gardening tools etc. by means of a high-pressure water jet. Potential risk may occur if not for such use. DOMESTIC USE ONLY but not in public facilities, parks or sports grounds and not for agricultural or forestry use. Compliance with the operating manual supplied by the manufacturer is a prerequisite for the proper usage of the pressure washer. The operating manual contains servicing and maintenance instructions as well as directions for use. TRAINING Read the instructions carefully: Be familiar with the controls and the proper use of the equipment. Never allow children or people unfamiliar with these instructions to use the product. Local regulations can restrict the age of the operator. Never operate while people, especially children, or pets are nearby. Keep in mind that the operator or user is responsible for accidents or hazards involving the machine that occur to other people or their property. !

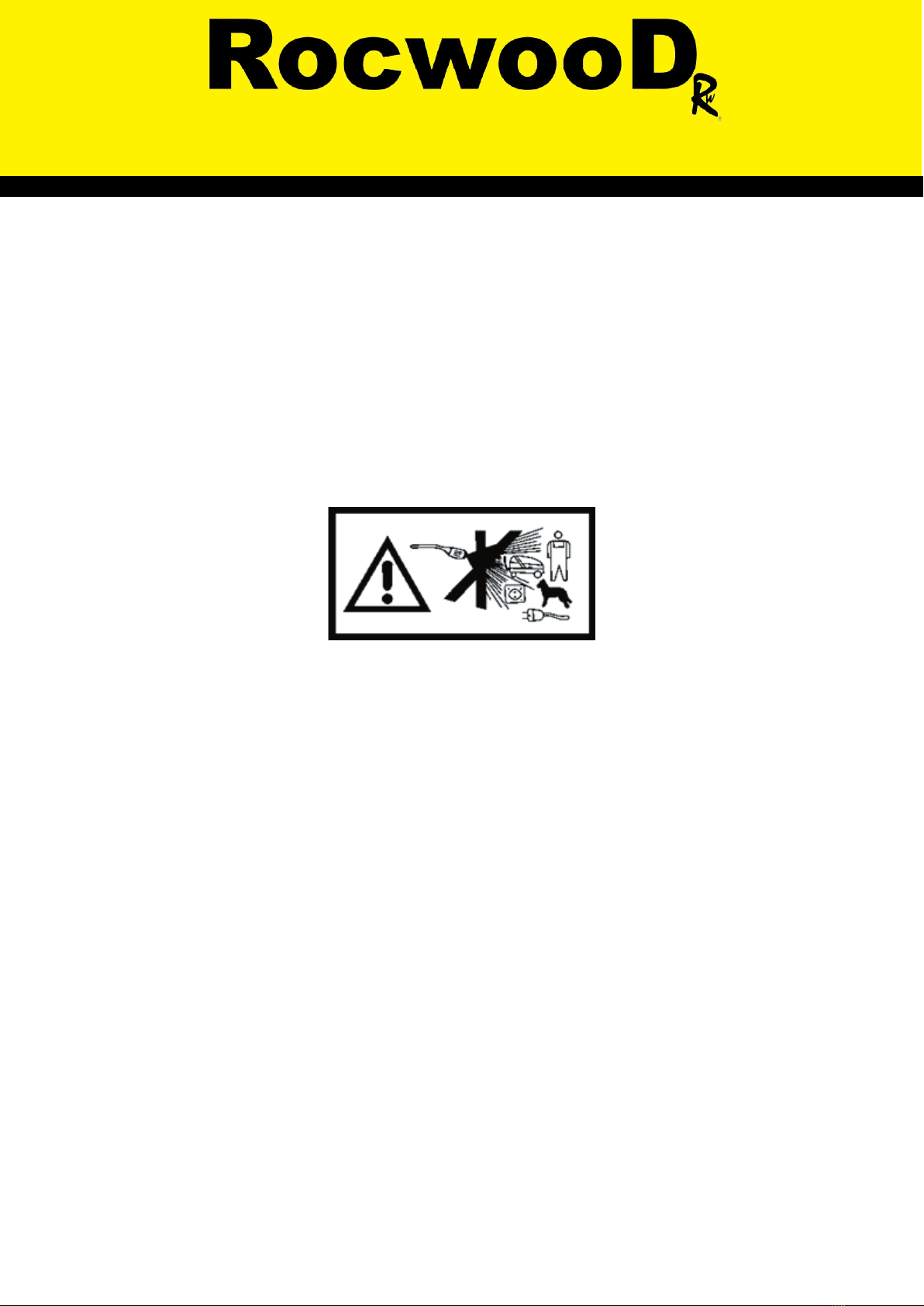

INSTRUCTION MANUALGENERAL SAFETY INSTRUCTIONS It is important that you read and understand the owner's manual and labels afﬁxed to the machine. Learn its application and limitations as well as the speciﬁc potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product. WARNING DANGER WARNING CAUTION CAUTION Read & understand operator’s manualbefore using the machine. Failure tofollow instructions could result in deathor serious injury.Check your machine before turning iton. Keep guards in place and inworking order. Frequently check tosee that foreign objects are removedfrom the tool area before turning iton. Replace damaged, missing orfailed parts before using it.Hi pressure jets can be dangerous ifthey are used incorrectly. The jet mustnot be directed towards persons,electrical equipment connected to themains or the appliance itself.Double Insulated – CLASS II - IPX5According to current guidelines, theunit must never be operated without asystem separator on the potable watersystem. Use a EN 12729 type BA systemseparator. Water that passes through asystem separator is class ฀ed as nonpotable.Always disconnect your machine fromthe electrical supply beforeclearing, inspecting or adjusting anypart of it, or if the supply cable hasbecome damaged or entangled.Safety alert symbol. Used to alert youto potential personal injury hazards.Obey all safety messages that followthis symbol to avoid possible injury.Indicates an imminently hazardoussituation which, if not avoided, willresult in serious injury.Indicates a potentially hazardoussituation which, if not avoided, couldresult in serious injury.Indicates a potentially hazardoussituation which, if not avoided, mayresult in minor or moderate injury.Used without the safety alert symbol,indicates a potentially hazardoussituation which, if not avoided, mayresult in property damage.Waste electrical products should notbe disposed of with household waste.Please recycle where facilities exist.Check with your local authority orretailer for recycling advice.Sound Power LevelImage used for illustration purposesonly, check machine and Declarationof Conformity for actual reading.CE marking is a certiﬁcation mark thatindicates conformity with health,safety, and environmental protectionstandards for products sold within theEuropean Economic Area.

INSTRUCTION MANUAL SAFETY INSTRUCTIONS When using this product, basic precautions must be followed, including: • Read all the instructions before using the product. • Pressure washer must not be used by children or untrained person. • Do not operate the product when fatigued or under the inﬂuence of alcohol or drugs. • Stay alert - watch what you are doing. RISK OF INJECTION OR INJURY • When you switch on the machine, a recoil movement is produced due to the force of the water jet. Use two hands to control the lance. • Equipment can cause serious injury if the spray penetrates the skin. Do not point the gun at anyone, animals, electrical devices, or the unit itself. In case of penetration, seek medical advice immediately. • Keep operating area clear of people, close supervision is necessary when a product is used near children. • Wear safety gloves, safety goggles and suitable protective clothing when using the appliance. • Do not modify or cover the spray wand and the spray nozzles in any way.• WARNING: Do not use the appliance close to other people unless they are wearing protective clothing. • CAUTION: Do not direct the jet towards yourself or other persons to clean clothing or shoes. • Hold the lance ﬁrmly in your hands. • The operator and persons within close proximity to the cleaning area must take necessary measures to protect themselves from dislodged debris when in use. • Wear protective gloves and clothing during use. • WARNING: The appliance has been designed for use with a cleaning agent supplied or recommended by the manufacturer. Using other cleaning products or chemical products may affect the safety of the appliance. • WARNING: Disconnect the appliance from the power supply before carrying out any maintenance. • CAUTION: To ensure the safety of the appliance, only use spare parts supplied or approved by the manufacturer. • Do not use the appliance if the power cable or important parts of the appliance are damaged, for example, the safety device, high pressure hose and handgun. • Do not use the appliance with wet hands. If the appliance is damp or wet, unplug it immediately. Do not place it in water. • Tyres and valves can be damaged by the high pressure jet and could burst. • Never use the machine in an environment where there is a danger of explosion. • It is forbidden to clean surfaces containing asbestos at high pressure. • This high-pressure washer must not be used in temperatures below 0°C. • CAUTION: The hose, accessories and high pressure couplings are important for the safety of the machine. Only use hoses, accessories and couplings recommended by the manufacturer. • WARNING: Inadequate extension cables may be dangerous. Cables and spools must always be completely unwound to avoid letting the cable overheat. • If an extension cable is used, the plug and socket must be waterproof and conform to the requirements below regarding the length and dimensions of the cable. − 1,0 mm ² max. 12,5 m − 1,5mm²max.20 m • If the power cable is damaged, it must be replaced by the manufacturer, their service agent or a qualiﬁed professional in order to avoid any danger. • WARNING: This machine is not designed to be used by persons (including children) with reduced physical, sensory or mental capacities or who lack experience or knowledge. • WARNING: It is advisable that you supervise children to ensure that they do not play with the appliance. • CAUTION: Risk of explosion – do not spray ﬂammable liquids, do not direct the jet towards ﬂammable liquids.

• WARNING: Water that has circulated in the anti-back ﬂow system is not considered drinkable.• WARNING: Do not use the appliance if the power cable or important parts of the appliance are damaged, for example, the safety devices, high pressure hoses and handgun.• WARNING: If you have an extension cable, it must be waterproof.• WARNING: When you switch on the machine, a recoil movement is produced due to the force of the water jet. Use two hands to control the lance. Wear safety gloves when using the appliance. Wear suitable protective clothing.• In case of accidental contact with detergent, wash with water. If the liquid comes into contact with the eyes, also seek medical assistance (the detergent can cause irritations or burns).• In the event that the appliance breaks down, do not attempt to repair it yourself but contact a professional technician to avoid any danger.MAIN POWER CONNECTIONThe following must be observed when connecting the high pressure washer to the power supply:• Connecting the electrical connection should be done by a qualiﬁed electrician conforming to 60364-1 CEI• It is recommended that the electrical supply to this machine should comprise a residual current device which interrupts the current if the leakage current exceeds 30 mA for 30ms.According to current guidelines, the unit must never be operated without a system separator on the potablewater system. Use a EN 12729 type BA system separator. Water that passes through a system separator isclassiﬁed as non-potable.WARNING: Always connect the system separator to the water supply and never directly to the device!CONNECTING TO THE WATER NETWORKWARNINGINSTRUCTION MANUAL

INSTRUCTION MANUAL

1. Adjustable Nozzle 2. Gun Lance 3. Gun 4. High Pressure Hose - 8M + 18M Extension Hose 5. Outlet Connector 6. Machine Body 7. Hose Reel 8. Electrical Cable - 5m 9. BS 3-Pin Plug 10. Water Inlet Hose (Not included) 11. Water Tap (Not Included) 12. Water Inlet Connector 12 11 10 9 8 7 6 5 4 3 2 1 KNOW YOUR MACHINE

PUSH PUSH UNLOCK LOCK INSTRUCTION MANUALASSEMBLYRemove the machine and contents from the carton. Be sure the carton is empty before discarding.SAFETY DEVICES• The unloader valve can reduce pressure if it exceeds pre-set values. The trigger gun features a locking device. When the knob is activated, the trigger gun cannot be operated.THERMAL SENSORA thermal sensor protects the motor against overloading. The machine can be restarted after a fewminutes, when the thermal sensor has cooled.CONNECTION OF GARDEN HOSEScrew the water inlet coupling tight on to the water inlet. Note: The inlet ﬁlter (A) must always beﬁtted in the water inlet pipe to ﬁlter out sand, limestone and other impurities as these will damage thepump valves.CAUTIONFailure to ﬁt the ﬁlter will invalidate the manufacturer’s warranty.Connect the garden hose with a standard quick coupling (1).

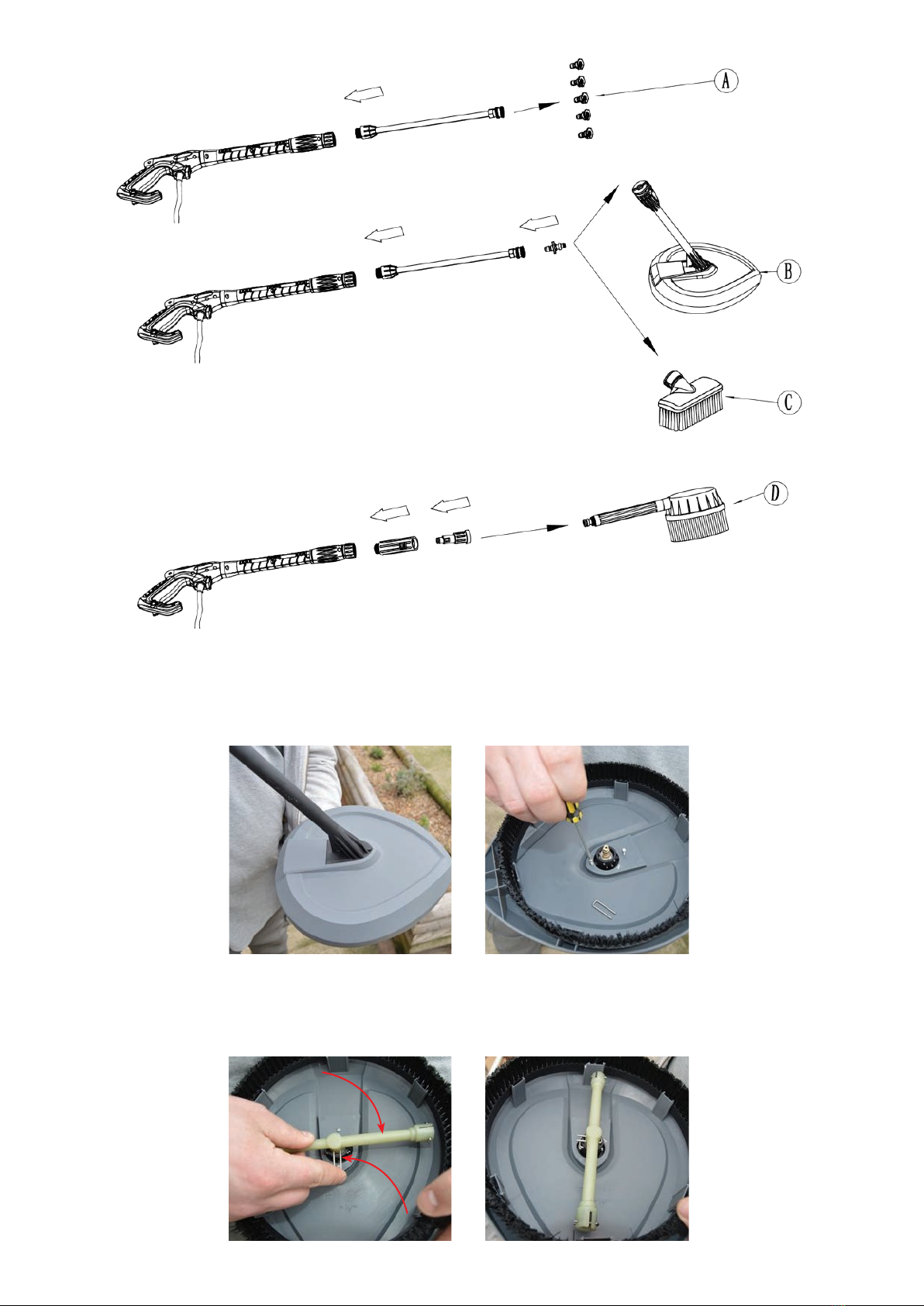

INSTRUCTION MANUALHIGH PRESSURE HOSE Attach the high-pressure hose to the trigger gun and machine. Detach the high-pressure hose by pressing the pawl (A) or button (B)LANCE & NOZZLE• Push the lance into the trigger gun • When inserted turn it. CAUTION: Make sure the lance is properly ﬁxed to the gun • Attach the nozzles. CAUTION: When attaching the nozzle, the button (A) on the nozzle should come out again. Check before activating the trigger that the nozzle is correctly attached.

ASSEMBLING THE PATIO CLEANER

Align the patio lance with the hole in the patio head. Turn the patio cleaner over and insert the 2 screws supplied, tighten ﬁrmly.

Place the rotary arm on to the patio lance and insert the U-pin to ﬁx the rotary arm in place. Make sure the rotary arm is properly ﬁxed to the patio lance with the U-pin.

Knurled WheelKnurled WheelInsert the patio Insert the patio lancelanceScrew Screw togethertogetherRotary armRotary armU-pinU-pin

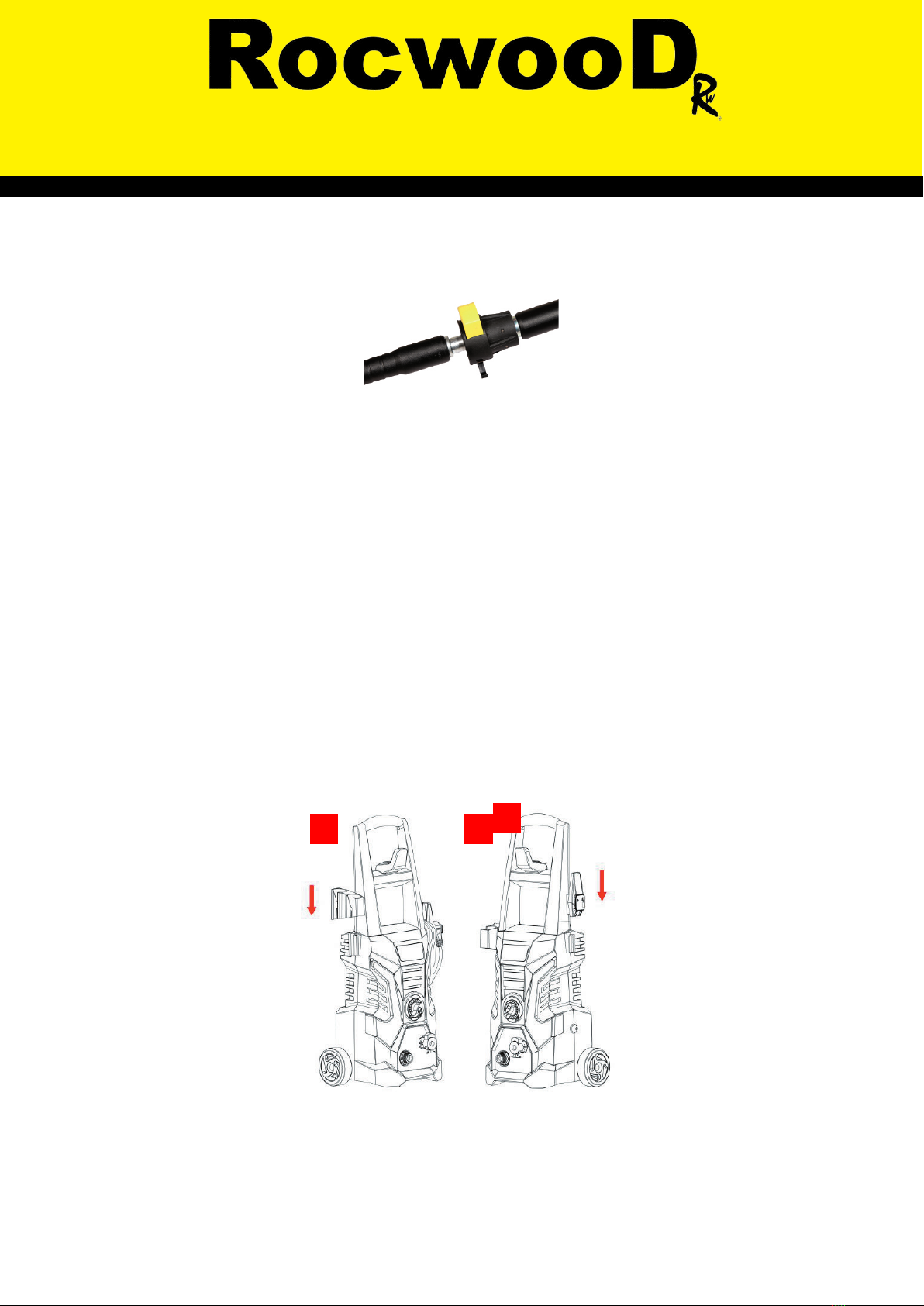

INSTRUCTION MANUAL 1 2 WATER CONNECTIONConnecting the water supply pipe. Follow your water supplier’s instructions. For connection information,see the data plate/technical speciﬁcations. Use a reinforced hose (not supplied) with a standardconnection (ext. diameter: 16mm/int. 12mm, maximum length: 25m).IMPORTANT! Only use water without any impurities. If there is a risk of sand particles in the inlet water(i.e. from your own well), an additional ﬁlter should be mounted.Let the water run through the water hose before connecting it to the machine to prevent sand and dirtfrom penetrating the machine. NOTE: Check that the ﬁlter is ﬁtted in the water inlet pipe and that it is notclogged up.Connect the water hose to the water supply by means of the quick connector (inlet water, max. pressure:10 bar, max. temperature: 50°C).Turn on the water.ATTACHMENTS1. Attach gun hook2. Attach cable hook3. Quick connector structure on the main body allows all accessories to be stored with the machine.DETERGENT BOTTLE1. Unscrew the lid of the built-in detergent bottle.2. Add detergent to bottle.3. Replace the nozzle of the spray gun to the detergent nozzle.4. And then spray detergent.ATTACHING THE HOSE EXTENSION

WARNING OPERATION WARNING POWER CONNECTION To reduce the risk of injuries, always switch off the motor and pull out the mains plug before working on the machine. !The product can be connected to any socket (with 230-240V alternating current). We recommend to always use the appliance via a Residual Current Device (RCD) with a tripping current of max. 30mA. 1. Mains leads on electrical garden equipment are particularly susceptible to insulation damage. The causes of this include the following: − Damage through crushing, if the mains lead becomes stuck under doors or windows. − Cracks caused by ageing of the insulation sheath. − Kinks caused by incorrect fastening of the mains lead. 2. Damaged mains lead should not be used under any circumstances as they may cause fatal injuries due to a damaged insulation sheath. 3. Always check the plug and cable and make sure they are in good condition before operation.!If the machine vibrates unusually during operation it may indicate that it is damaged! The product should be inspected and repaired immediately!• Check the product, its power cable and plug, as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. • Double check that accessories are properly connected. • Ensure that the air vents are always unobstructed and clear. Clean them if necessary, with a soft brush. Blocked air vents may lead to overheating and damage the product. • Switch the product off immediately if you are disturbed while working by people or animals entering the working area. Always let the product come to a complete stop before releasing the handle. • Do not overwork yourself. Take regular breaks to ensure you can concentrate on the work and have full control over the product. • Adjust the variable power. Operate the product at an appropriate speed. Do not operate it too fast on delicate surfaces. • Pay special attention when changing direction.START/STOP THE MACHINE The trigger gun (1) and lance is affected by thrust during operation - therefore always hold it ﬁrmly with both hands. IMPORTANT: Keep the nozzle pointed towards the ground. Check that the machine is in an upright position. − Release the trigger lock. − Activate the trigger of the trigger gun (1) and let the water run until all air has escaped from the water hose. − Press the Start/Stop switch (4). − Activate the trigger of the trigger gun (1) by pulling upwards with your ﬁngers on the trigger.. Always adjust the distance and thus the pressure of the nozzle to the surface, which is to be cleaned. Do not cover the machine during operation or use it in a room without adequate ventilation!INSTRUCTION MANUAL

INSTRUCTION MANUALNOTE: If the machine is left or not used for 5 minutes, it must be switched off: • Press the start/stop switch (4) to "O". • Disconnect the electrical plug (10) from the socket. • Shut off the water supply and activate the trigger of the trigger gun (1) to relieve the machine of pressure. • Lock the trigger gun (1)When releasing the trigger of the trigger gun (1), the machine automatically stops. The machine will start againwhen you re-activate the trigger gun (1)MULTI-NOZZLEThe pressure from the multi-nozzle can be adjusted by turning it.WARNING: Do not do this under operation to avoid hands hitting the jet.AFTER USEThe machine should be stored in a frost-free room! − Pump, hose and accessories should always be emptied of water prior to storing as follows: − Stop the machine (press the start/stop switch “O” and detach water hose, high pressure hose and nozzle − Restart the machine and activate the trigger of the trigger gun Let the machine run until no more water runs through the trigger gun. − Stop the machine, unplug and wind up hose and cable. − Place trigger gun, lance, nozzles and other accessories in the holders of the machine. − The hook can be used for storage of the hose and cord. All accessories can be stored in the washer after using.WARNINGNever start up a frozen machine. Frost damages are not covered by the manufacturer’s warranty

INSTRUCTION MANUALMAINTENANCE & STORAGE To ensure a long and problem free life span of your machine, please take the following advice: • Wash the water hose, high pressure hose, spray lance and accessories before mounting. • Clean the connectors of dust and sand. • Rinse the detergent spraying attachment after use. • Clean the nozzles. • Any repair should always be made in an authorized workshop with original spare parts. • Prior to cleaning or any maintenance, always ensure the power plug has been removed from the electric power supply. • When you have ﬁnished using the machine, always check to make sure the product is clean and free of dirt and debris. • Do not use solvents to clean the machine. • Store the machine in a dry place, and out of reach of children. • Regularly check for obvious defects, such as loose, dislodged or damaged ﬁxings and worn or damaged components. • Check that covers and guards are undamaged and correctly ﬁtted. Carry out necessary maintenance or repairs before using the product. • If the device should happen to fail despite the care taken in manufacturing and testing, the product should be returned to your retailer. • Do not clean the product while it is running. • Ensure that all the fastening elements (screws, nuts, etc.) are always tight, so that you can safely work with the product. • Check the product frequently for signs of wear. Replace worn or damaged parts. • Store your product in a dry place. • Clean the product with a brush or cloth. Do not use any solvents or water to remove dirt. POWER CABLE MAINTENANCE If the power cable needs replacing, the task must be carried out by the manufacturer, the manufacturer’s agent, or an authorised service centre in order to avoid a safety hazard. CLEANING OF INLET FILTER Clean the water inlet ﬁlter regularly once a month or more frequently according to the usage. • Carefully loosen the ﬁlter with a screwdriver and clean it. • Check that it is intact before re-mounting it. • The inlet ﬁlter must always be ﬁtted inside the water inlet pipe to ﬁlter out sand, limestone and other impurities, as they will damage the pump valves.CAUTION Failure to ﬁt the ﬁlter will invalidate your manufacturers warranty.CLEANING OF AIR VENTS The machine should be kept clean to let the cooling air pass through the machine vents freely. GREASING OF COUPLINGS To ensure the O-rings do not dry up the couplings should be greased regularly with multi-purpose grease.

ROUBLE SHOOTING INSTRUCTION MANUALWARNINGOnly perform the steps described in these instructions!All further inspection, maintenance & repair work must be performed by an authorised servicespecialist, if ﬁnancially viable.If the product does not perform properly, makes unusual sounds, the motor does not start or stop asdescribed, or any other irregularity or malfunction occurs, do not attempt to repair the product byyourself. Please contact customer services or your local authorised service dealer.!Before attempting any of the below actions, ensure the machine is removed from the electrical supply.If you can’t ﬁx the fault yourself, contact your retailer. Please be aware that any improper repairs will alsoinvalidate the warranty and additional costs may be incurred.

INSTRUCTION MANUALPark, Warrington, WA1 1GGess: Sterling House Mandarin Court, Centre rAdd- Ltd any: RocwooD CompDirector Managing

Position:

GriffithsStuart Mr e: ŵ

NaSignature: Date: 15/10/2019 lder: ohle fiical technand ry osignatrised oAuthGmbH cts TÜV Rheinland LGA ProduBody:Notified62321 IEC with accordance in was d followere procedunt meassessformity conThe 2011/65/EUing endma2015/862/EU ve ƟDirecHS oREN61000-3-3:2013 EN61000-3-2:2014, 55014-2:1997+A1+A2, EN55014:2006/+A1+A2, EN with accordance in was d followere procedunt meassessformity conThe 2014/30/EUve Ɵlity DirecĂƟďŝpŽŵCƟĐagneŽŵElectr2on: <2.5 m/sƟVibraHand-arm 2000/14/EC According to dB(A) 97 : WALevel LPower Sound dB(A) 3 = K : 80 dB(A) Uncertainty PALLevel ure 60335-2-79:2012 Sound PressIEC with accordance in was followed re procedunt meessassconformity The 2005/88/EC& by ed endŵas a2000/14/EC e ƟǀDirecise ŽNr ŽŽOutd 62233:2008EN 60335-2-79:2012, EN60335-1:2012+A11, EN with accordance in was followed re procedunt meessassconformity The 2006/42/ECve tiDirecMachinery ves: ectidirwing ollofe thes with liompCII Class: n ƟŽtecŽPr2300w t: InpuRated 50Hz ency: FrequRated ltage: 220-240V~ŽVRated ng label on machine atirper As . EŽType/Serial RWEPW5del(s): ŽMWasher Pressure Electric 2300w RocwooDn: atioDesignproduct: the that rter) declare (ImpoLL13 0HU - Ltd RocwooD We EC DECLARATION OF CONFORMITY

INSTRUCTION MANUALWARRANTYOur commitment to quality also includes our service. Should you,contrary to expectations, experience defects due to material ormanufacturing faults during private use within 2 years of the date ofpurchase we shall be liable for warranty in accordance with statutorywarranty regulations, provided that: - The product was not put to anyuse other than the intended.- Was not overloaded. - Was used with thecorrect accessories. - Repairs were not carried out by any other thanan authorised workshop. The warranty is only valid in connection withthe original receipt. Please keep in a safe place.Should it be necessary for the product to be returned for any reason, itis the customers responsibility to thoroughly clean the product, removingall debris. A sanitising charge will be levied otherwise and no workcarried out until the customer has agreed to pay this.
