RIDGID RD80702 User manual

OPERATOR’S MANUAL
MANUEL D’UTILISATION
MANUAL DEL OPERADOR
GASOLINE PRESSURE WASHER
NETTOYEUR HAUTE PRESSION À L’ESSENCE
LAVADORA A PRESIÓN CON MOTOR DE GASOLINA
RD80702/RD80905
To register your RIDGID
product, please visit:
http://register.RIDGID.com
Pour enregistrer votre
produit de RIDGID,
s’il vous plaît la visite:
http://register.RIDGID.com
Para registrar su producto
de RIDGID, por favor visita:
http://register.RIDGID.com
Your pressure washer has been engineered and manufactured to our high standard for dependability, ease of operation, and
operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using this
product. If you do not understand the warnings and instructions in the operator’s manual, do not use this product.
Ce nettoyeur haute pression à essence a été conçu et fabriqué
conformémentànos strictes normesde fiabilité, simplicité d’emploi
et sécurité d’utilisation. Correctement entretenu, cet outil vous
donnera des années de fonctionnement robuste et sans problème.
AVERTISSEMENT :
Pour réduire les risques de blessures, l’utilisateur doit
lire et veiller à bien comprendre le manuel d’utilisation
avant d’employer ce produit. Si tous les avertissements
et toutes les consignes de sécurités et instructions du
manuel d’utilisation ne sont pas bien compris, ne pas
utiliser ce produit.
Su lavadora de presión de gasolina ha sido diseñado y fabricado de
conformidad con nuestras estrictas normas para brindar fiabilidad,
facilidaddeusoyseguridadparaeloperador. Coneldebidocuidado,
le brindará muchos años de sólido funcionamiento y sin problemas.
ADVERTENCIA:
Para reducir el riesgo de lesiones, el usuario debe leer y
comprender el manual del operador antes de usar este
producto. Guarde este manual del operador y estúdielo
frecuentemente para lograr un funcionamiento seguro y
continuo de este producto
CONSERVER CE MANUEL POUR
FUTURE RÉFÉRENCE
GUARDE ESTE MANUAL PARA
FUTURAS CONSULTAS
SAVE THIS MANUAL FOR FUTURE REFERENCE

ii

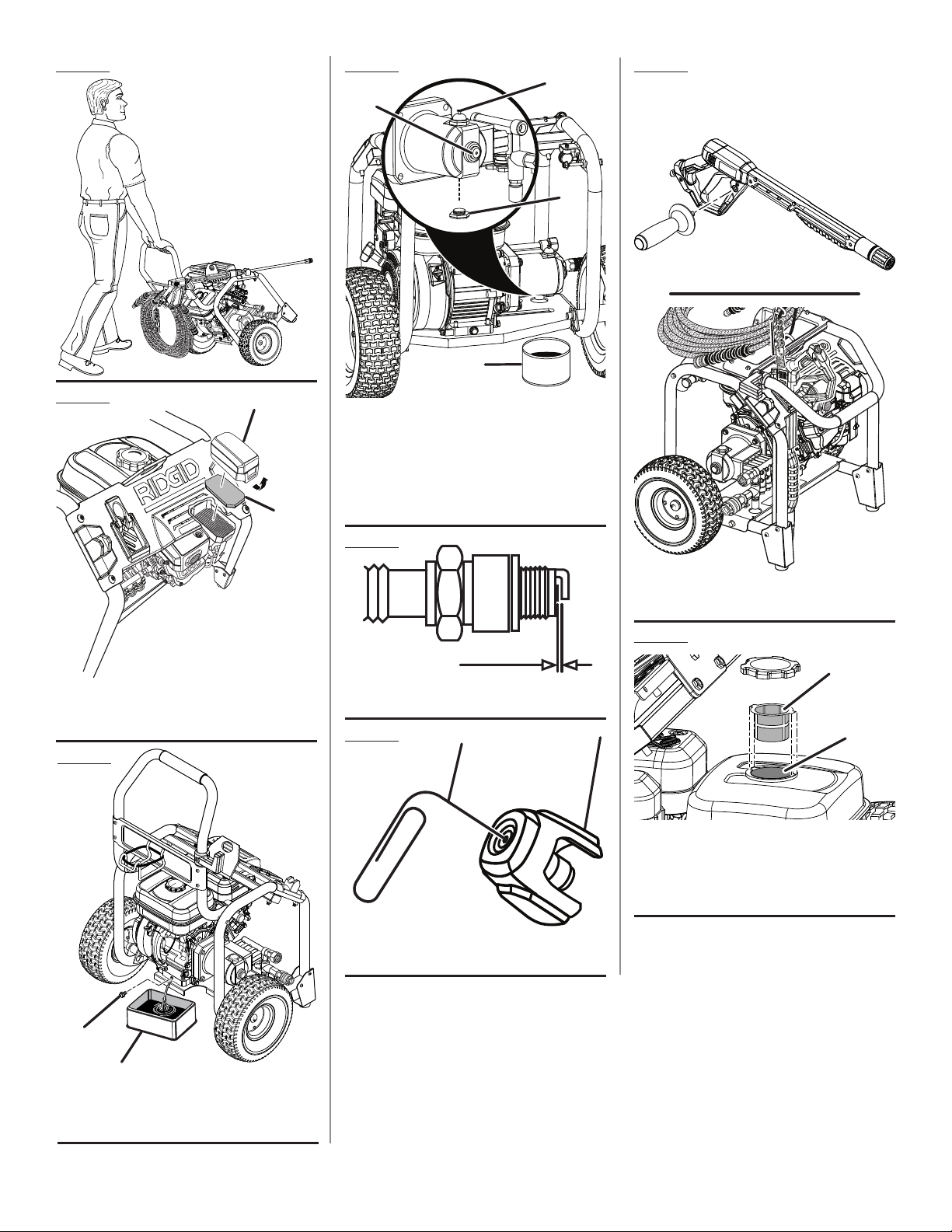

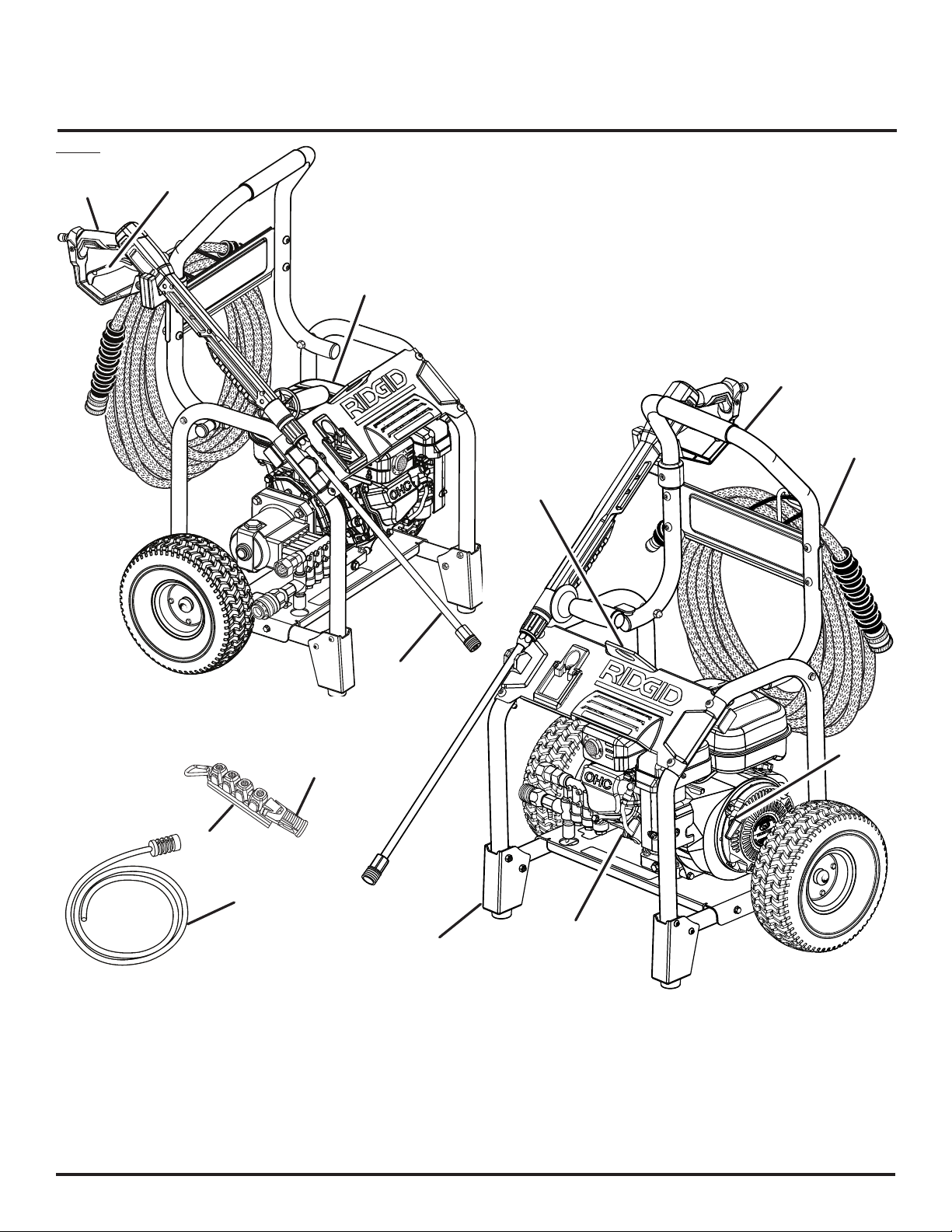

Fig. 1
See this fold-out section for all of the figures referenced in the operator’s manual.
Consulter l’encart à volets afin d’examiner toutes les figures mentionnées dans le manuel d’utilisation.
Consulte esta sección desplegable para ver todas las figuras a las que se hace referencia en el manual del operador.
A - Trigger handle (poignée de gâchette, mango
del gatillo)
B - Trigger with lock out (gâchette avec
verrouillage, gatillo con seguro)
C - Fuel tank (réservoir de carburant, tanque de
combustible)
D - Spray wand (lance de pulvérisation, tubo de
rociado)
E - Crane lifting hook (crochet de levage,
gancho de grúa de elevación)
Ab
c
H
e
F
G
L
K
d
M
JI
F - Handle (poignèe, mango)
G - High pressure hose (tuyau haute
pression, manguera de alta
presión)
H - Recoil starter (lanceur à rappel, arrancador
retráctil)
I - Oil cap/dipstick (bouchon / jauge d’huile,
tapa del aceite con varilla de nivel)
J - Support foot (pied de support, pie de
soporte)
K - Dual power soap nozzle (buse
détergente de double puissance, boquilla
detergente de doble potencia)
L - Nozzle holder with spring clip (porte-buses
avec ressort de support, sujetador de
boquillas con resorte de soporte)
M - Injectionhose(flexibled’injection,manguera
de inyección)

iii

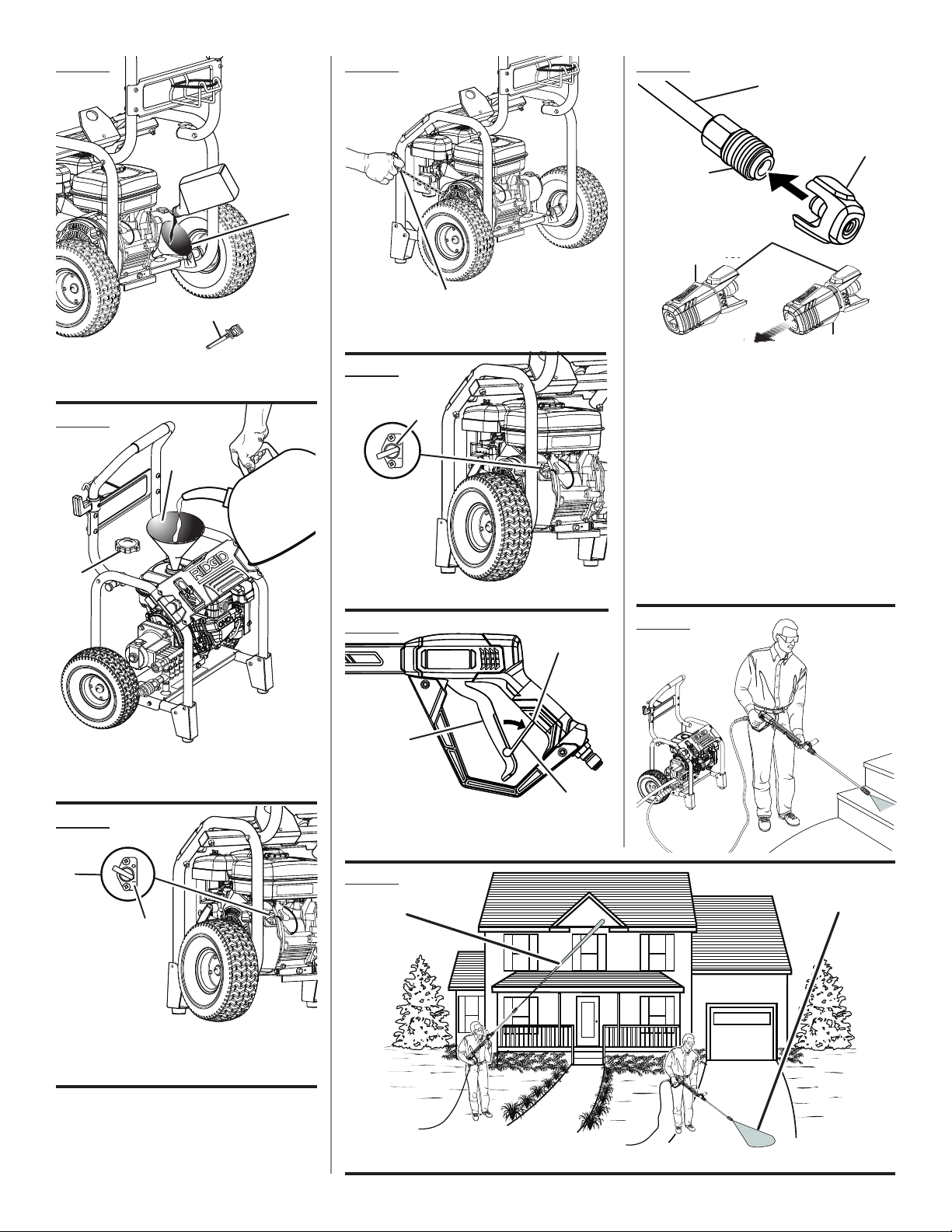

Fig. 2
A -Torx screw (Torx de vis, Torx de tornillo)
B - Handle (poignèe, mango)
C - Rear panel (panneau arrière, panel
posterior)
ON
O
A
b
c
Fig. 3
A - Hitch pin (axe de blocage, pasador de
enganche)
B - Washer (rondelle, arandela)
C - Wheel (roue, rueda)
D - Axle (essieu, eje)
Abc
d
Fig. 4
A - Nut (écrou, tuerca)
B - Support foot (pied de support, pie de
soporte)
C - Bolts (boulon, perno)
Fig. 5
A - Trigger handle rest (back) [support de
poignée de gâchette (arrière), soporte de
mango del gatillo (trasero)]
B - Screw (vis, tornillo)
C - Lock nut (écrou de blocage, tuerca de
seguridad)
D - Flat washer (rondelle plate, arandela plana)
Fig. 6
A - Handle knob (bouton de poignèe, perilla del
mango)
B - Label (étiquette, etiqueta)
C - Handle (poignèe, mango)
D - Shipping plug (bouchon d’expédition, clavija
de embarque)
A
b
c
d
b
Ac
Fig. 7
A - Trigger handle (poignée de gâchette,
mango del gatillo)
B - Auxiliary handle (poignée auxiliaire,
mango auxiliar)
C - Connector (connecteur, conector)
D - Spray wand (lance de pulvérisation, tubo
rociador)
Ab
cd
Fig. 8
A - High pressure hose (tuyau haute pression,
manguera de alta presión)
B - Collar (collier, collarín)
C - Inlet coupler (raccord d’entrée, acoplador
de entrada)
A
b
c
Fig. 9
A - Injection hose (flexible d’injection, manguera
de inyección)
A
Fig. 10
A - Garden hose (tuyau d’arrosage, manguera
de jardín)
B - Screen (tamis, cedazo)
C - Water intake (prise d’eau, entrada de agua)
Ab
c
Fig. 11
A - High pressure hose (tuyau haute pression,
manguera de alta presión)
B - Collar (collier, collarín)
Ab
A
b
c
b
d

iv
ON
O
ON
O
Fig. 12
A - Oil cap/dipstick (bouchon / jauge d’huile,
tapa del aceite con varilla de nivel)
B - Funnel (entonnoir, embudo)
A
b
Fig. 13
A - Funnel (entonnoir, embudo)
B - Fuel cap (bouchon de carburant, tapa del
tanque de combustible)
A
b
Fig. 14
OFF ON
A - Engine switch (commutateur de moteur,
interruptor del motor)
B - On (arrêt, encendido)
A
b
Fig. 15
A - Recoil starter (lanceur à rappel, arrancador
retráctil)
A
Fig. 16
OFF ON
A - Off (marche, apagado)
A
Fig. 17
A - Slot (encoche, ranura)
B - Lock out (verrouillage, seguro)
C - Trigger (gâchette, gatillo)
Fig. 18
A - Spray wand Spray wand (lance de
pulvérisation, tubo rociador
B - Quick-connect collar (collier de raccord
rapide, casquillo de conexión rápida)
C - Dual power soap nozzle (buse détergente
de double puissance, boquilla detergente de
doble potencia)
D - Short range detergent application
(application détergente court de gamme,
aplicación de detergente corto plazo)
E - “Click” (« déclic », “hasta que trabe”)
F - Nozzle (buse, boquilla)
G - Long range detergent application
(application détergente long de gamme,
aplicación de detergente largo plazo)
A
b
c
d
G
eF
c
A
b
Fig. 19
Fig. 20
A - Long range (long de gamme, largo plazo) B - Short range (short de gamme, corto plazo)
A b

v
to Move tHe MAcHIne
(pour dépLAcer
L’équIpeMent, pArA
Mover LA MáquInA)
Fig. 26
A - Paper clip (pièces de papier, clips de papel)
B - Nozzle (buse, boquilla)
Ab
Fig. 21
Fig. 22
A - Air filter cover (couvercle du filtre à air,
tapa del filtro de aire)
B - Air filter (filtre à air, filtro de aire)
A
b
Fig. 23
A - Oil drain plug (bouchon de vidange d’huile,
tapón de drenaje del aceite)
B - Container (récipient, recipiente)
A
b
Fig. 25
A
A - 0.026 in. [0,6-0,7 mm (0,026 po),
0,6-0,7 mm (0,026 pulg.)]
to store tHe MAcHIne
reMIsAGe de LA MAcHIne
pArA GuArdAr LA MáquInA
Fig. 27
Fig. 28
A - Fuel tank inlet screen (grillage d’admission
du réservoir de carburant, filtro de entrada
del tanque de combustible)
B - Tank filler neck (goulot de remplissage du
réservoir, boca del depósito)
A
b
Fig. 24
A - Sight glass (voyant d’huile, visor)
B - Pump top oil plug (pompe bouchon d’huile
superior, tapón del aceite de la bomba
arriba)
C - Oil drain plug (bouchon huile, tapón de
drenaje del aceite)
D - Container (conteneur, recipiente)
A
d
b
c

2
Introduction ...................................................................................................................................................................... 2
Introduction / Introducción
Important Safety Instructions ........................................................................................................................................... 3
Instructions importantes concernant la sécurité / Instrucciones importantes de seguridad
Specific Safety Rules........................................................................................................................................................ 4
Règles de sécurité particulières / Reglas de seguridad específicas
Symbols.........................................................................................................................................................................5-6
Symboles / Símbolos
Features............................................................................................................................................................................ 6
Caractéristiques / Características
Assembly.......................................................................................................................................................................7-9
Assemblage / Armado
Operation.....................................................................................................................................................................9-11
Utilisation / Funcionamiento
Maintenance..............................................................................................................................................................12-14
Entretien / Mantenimiento
Troubleshooting.............................................................................................................................................................. 15
Accessoires / Accesorio
Warranty ....................................................................................................................................................................16-20
Garantie / Garantía
Parts Ordering and Service ...............................................................................................................................Back page
Commande de pièces et réparation / Pedidos de piezas y servicio ..........................................................páge arrière / pág. posterior
TABLE OF CONTENTS
TABLE DES MATIÈRES / ÍNDICE DE CONTENIDO
This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability
have been given top priority in the design of this product making it easy to maintain and operate.
* * *
Ce produit offre de nombreuses fonctions destinées à rendre son utilisation plus plaisante et satisfaisante. Lors de la
conception de ce produit, l’accent a été mis sur la sécurité, les performances et la fiabilité, afin d’en faire un outil facile à
utiliser et à entretenir.
* * *
Este producto ofrece numerosas características para hacer más agradable y placentero su uso. En el diseño de este producto
se ha conferido prioridad a la seguridad, el desempeño y la fiabilidad, por lo cual se facilita su manejo y mantenimiento.
INTRODUCTION
INTRODUCTION / INTRODUCCIÓN

3 - English
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
Read and understand all instructions. Failure to
follow all instructions listed below, may result in
electric shock, fire and/or serious personal injury.
READ ALL INSTRUCTIONS
Know your tool. Read the operator’s manual carefully.
Learn the machine’s applications and limitations as well
as the specific potential hazards related to this tool.
Keep guards in place and in working order. Never oper-
ate the tool with any guard or cover removed. Make sure
all guards are operating properly before each use.
Remove adjusting keys and wrenches. Form habit of
checking to see that keys and adjusting wrenches are
removed from tool before turning it on.
To reduce the risk of injury, keep children and visitors
away. All visitors should wear safety glasses and be kept
a safe distance from work area.
Keep the area of operation clear of all persons,
particularly small children, and pets.
Do not operate the engine in a confined space where
dangerous carbon monoxide fumes can collect.
Carbon monoxide, a colorless, odorless, and extremely
dangerous gas, can cause unconsciousness or death.
Use right tool. Don’t force tool or attachment to do a
job it was not designed for. Don’t use it for a purpose not
intended.
Dress properly. Do not wear loose clothing, neckties,
or jewelry that can get caught and draw you into moving
parts. Rubber gloves and nonskid footwear are recom-
mended when working outdoors. Also wear protective
hair covering to contain long hair.
Do not operate the equipment while barefoot or when
wearing sandals or similar lightweight footwear. Wear
protective footwear that will protect your feet and improve
your footing on slippery surfaces.
Exercise caution to avoid slipping or falling.
Always wear eye protection with side shields marked
to comply with ANSI Z87.1. Following this rule will re-
duce the risk of serious personal injury.
Don’t overreach or stand on unstable support. Keep
proper footing and balance at all times.
Use only recommended accessories. The use of
improper accessories may cause risk of injury.
Follow the maintenance instructions specified in this
manual.
Check damaged parts. Before further use of the tool, a
guard or other part that is damaged should be carefully
checked to determine that it will operate properly and
perform its intended function. Check for alignment of
moving parts, binding of moving parts, breakage of parts,
mounting, and any other conditions that may affect its
operation. A guard or other part that is damaged must
be properly repaired or replaced by an authorized service
center to avoid risk of personal injury.
Never leave tool running unattended. Turn power off.
Don’t leave tool until it comes to a complete stop.
Keep the engine free of grass, leaves, or grease to
reduce the chance of a fire hazard.
Keep the exhaust pipe free of foreign objects.
Follow manufacturer’s recommendations for safe
loading, unloading, transport, and storage of
machine.
Be thoroughly familiar with controls. Know how to stop
the product and bleed pressure quickly.
Keep tool dry, clean, and free from oil and grease.
Always use a clean cloth when cleaning. Never use
brake fluids, gasoline, petroleum-based products, or any
solvents to clean tool.
Stay alert and exercise control. Watch what you are
doing and use common sense. Do not operate tool when
you are tired. Do not rush.
Do not operate the product while under the influence
of drugs, alcohol, or any medication.
Check the work area before each use. Remove all
objects such as rocks, broken glass, nails, wire, or string
which can be thrown or become entangled in the
machine.
Do not use tool if switch does not turn it off. Have
defective switches replaced by an authorized service
center.
Before cleaning, repairing, or inspecting, shut off the
engine and make certain all moving parts have stopped.
Disconnect the spark plug wire, and keep the wire away
from the plug to prevent accidental starting.
Avoid dangerous environment. Don’t use in damp or
wet locations or expose to rain. Keep work area well
lit.
Never use in an explosive atmosphere. Normal
sparking of the motor could ignite fumes.
Do not operate while smoking or near an open
flame.
Do not operate around dry brush, twigs, cloth rags, or
other flammable materials.
WARNING: Risk of injection or injury – Do not direct
discharge stream at persons.

4 - English
SPECIFIC SAFETY RULES
Never direct a water stream toward people or pets,
or any electrical device.
Before starting any cleaning operation, close doors
and windows. Clear the area to be cleaned of debris,
toys, outdoor furniture, or other objects that could create
a hazard.
Never pick up or carry a machine while the engine is
running.
Never start the machine if ice has formed in any part
of the equipment.
Do not use acids, alkalines, solvents, flammable
material, bleaches, or industrial grade solutions
in this product. These products can cause physical
injuries to the operator and irreversible damage to the
machine.
Always operate the machine on a level surface. If the
engine is on an incline, it could seize due to improper
lubrication (even at the maximum oil level).
WARNING: High pressure jets can be dangerous if
subject to misuse. The jet must not be directed at
persons, animals, electrical devices, or the machine
itself.
Never attempt to make any adjustments while the
engine (motor) is running (except where specifically
recommended by the manufacturer).
Protective covers must always cover rotating parts
when the engine is running.
Keep cooling air intake (recoil starter area) and muffler
side of the engine at least 3 feet away from buildings,
obstructions, and other combustible objects.
Keep the engine away from flammables and other
hazardous materials.
Keep away from hot parts. The muffler and other engine
parts become very hot; use caution.
Do not touch the spark plug and ignition cable when
starting and operating the engine.
Check fuel hoses and joints for looseness and fuel
leakage before each use.
Check bolts and nuts for looseness before each use.
A loose bolt or nut may cause serious engine prob-
lems.
Always refuel outdoors. Never refuel indoors or in a
poorly ventilated area.
Never store the machine with fuel in the fuel tank
inside a building where ignition sources are present,
such as hot water and space heaters, clothes dryers,
and the like.
If the fuel tank has to be drained, do this outdoors.
To reduce the risk of fire and burn injury, handle fuel
with care. It is highly flammable.
Do not smoke while handling fuel.
Add fuel before starting the engine. Never remove the
cap of the fuel tank or add fuel while the engine is running
or when the engine is hot.
Loosen fuel cap slowly to release pressure and to keep
fuel from escaping around the cap.
Replace all fuel tank and container caps securely.
Wipe spilled fuel from the unit. Move 30 feet away from
refueling site before starting engine.
If fuel is spilled, do not attempt to start the engine but
move the machine away from the area of spillage and
avoid creating any source of ignition until fuel vapors
have dissipated.
Never attempt to burn off spilled fuel under any
circumstances.
Before storing, allow the engine to cool.
Store fuel in a cool, well-ventilated area, safely away
from spark and/or flame-producing equipment.
Store fuel in containers specifically designed for this
purpose.
Empty fuel tank and restrain the unit from moving
before transporting in a vehicle.
When servicing use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
ONLY use cold water.
Make sure minimum clearance of 3 feet is maintained
from combustible materials.
Never spray close to the surface to be cleaned as you
can damage the surface.
Do not use the spring clip (provided with nozzle holder)
for support of human weight, playground equipment, or
athletic or overhead lifting of a load. Holds up to 5 lbs.
For outdoor use only.
Save these instructions. Refer to them frequently and
use them to instruct other users. If you loan someone this
tool, loan them these instructions also.

5 - English
SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their meaning for safe
operation of this product.
SYMBOL NAME EXPLANATION
Safety Alert Indicates a potential personal injury hazard.
Read Operator’s Manual To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Eye Protection Always wear eye protection with side shields marked to comply
with ANSI Z87.1.
Wet Conditions Alert Do not expose to rain or use in damp locations.
Hot Surface To reduce the risk of injury or damage, avoid contact with any
hot surface.
Risk of Injections
To reduce the risk of injection or injury, never direct a water
stream towards people or pets or place any body part in the
stream. Leaking hoses and fittings are also capable of causing
injection injury. Do not hold hoses or fittings.
Risk of Explosion Fuel and its vapors are explosive and can cause severe burns
or death.
Risk of Fire Fuel and its vapors are extremely flammable and explosive. Fire
can cause severe burns or death.
Toxic Fumes
Gas products emit carbon monoxide, an odorless, colorless,
poison gas. Breathing carbon monoxide can cause nausea,
fainting, or death.
Kickback To reduce the risk of injury from kickback, hold the spray wand
securely with both hands when the machine is on.
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation, which, if not avoided, will result
in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in property
damage.

6 - English
SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their meaning for safe
operation of this product.
SYMBOL NAME EXPLANATION
Electric Shock Failure to use in dry conditions and to observe safe practices
can result in electric shock.
Chemical Burns
To reduce the risk of injury or damage, DO NOT USE ACIDS,
ALKALINES,BLEACHES,SOLVENTS,FLAMMABLEMATERIAL,
OR INDUSTRIAL GRADE SOLUTIONS in this product.
FEATURES
PRODUCT SPECIFICATIONS
Engine............................................................................................................................................................................211cc
Fuel Tank Capacity.....................................................................................................................................................0.95 gal
Maximum Pounds Per Square Inch Pressure* .........................................................................................................3,300 psi
Maximum Gallons Per Minute*...................................................................................................................................3.0 gpm
Maximum Inlet Water Temperature ................................................................................................................................104˚F
*Max. rating determined by PWMA Standard 101
KNOW YOUR PRESSURE WASHER
See Figure 1.
The safe use of this product requires an understanding of
the information on the tool and in this operator’s manual as
well as a knowledge of the project you are attempting. Before
use of this product, familiarize yourself with all operating
features and safety rules.
CRANE LIFTING HOOK
The crane lifting hook in the center of the unit makes lifting
the machine for transportation and/or relocation easy.
ENGINE SWITCH
The engine switch is used in combination with the recoil
starter grip to start the engine. It is also used to turn the
engine off.
FUEL TANK
This fuel tank has a maximum capacity of 0.95 gal. Use
unleaded automotive gasoline in the engine.
HOSE STORAGE
Once the high pressure hose is rolled, hang it on the front of
the machine using the hook and loop strap for convenient
storage.
RECOIL STARTER
The recoil starter is pulled to start the machine.
DUAL POWER SOAP NOZZLE
The Dual Power Soap Nozzle can be easily adjusted for long
range or short range detergent application.
SPARK ARRESTOR
This engine is not factory equipped with a spark arrestor.
In some areas it is illegal to operate an engine without a spark
arrestor. A spark arrestor is available by calling customer
service for assistance.
SUBARU®ENGINE
This EX21fi Subaru engine enables the pressure washer to
achieve 3,300 psi.
THERMAL RELIEF VALVE
This pump feature will prevent water temperatures from
reaching harmful levels by releasing a small amount of wa-
ter. Once the water has cooled, the thermal relief valve will
reset itself.
TRIGGER HANDLE
Thetriggerhandlehas agrippingsurfacethatprovidesadded
control of the spray wand and helps reduce fatigue.
TRIGGER WITH LOCK OUT
Pulling the trigger releases a stream of water for high
pressure cleaning. The lock out provides protection against
unauthorized use.

7 - English
UNPACKING
This product requires assembly.
Carefully cut the box down the sides then remove the
product and any accessories from the box. Make sure
that all items listed in the packing list are included.
NOTE: This product is heavy. To avoid back injury, lift with
your legs, not your back, and get help when needed.
WARNING:
Do not use this product if any parts on the Packing
List are already assembled to your product when
you unpack it. Parts on this list are not assembled
to the product by the manufacturer and require
customer installation. Use of a product that may
have been improperly assembled could result in
serious personal injury.
Inspect the product carefully to make sure no breakage
or damage occurred during shipping.
Do not discard the packing material until you have care-
fully inspected and satisfactorily operated the product.
If any parts are damaged or missing, please call
1-866-539-1710 for assistance.
PACKING LIST
Pressure Washer
Rear Panel
Screw (1.4 in., Torx Hd.) (4)
Support Foot (2)
Lock Nut (1/4-20) (5)
Bolt (1/4-20 x 1.9 in., Hex Hd.) (4)
Axle (2)
Hitch Pin (2)
Washer (5/8 in.) (2)
Wheel (2)
Trigger Handle Rest (front and back)
Screw (1/4-20, 1.85 in., Torx Hd.)
Screw (#8 x 3/4 in.)
Washer (1/4 in.)
30 ft. High Pressure Hose
Injection Hose
Auxiliary Handle
Trigger Handle
Spray Wand
Nozzle Holder [with Quick-Connect Nozzle (4)
and Dual Power Soap Nozzle]
4-Cycle Engine Oil (SAE30 or SAE 10W30)
Operator’s Manual
ASSEMBLY
WARNING:
If any parts are damaged or missing do not operate
this product until the parts are replaced. Use of this
product with damaged or missing parts could result
in serious personal injury.
WARNING:
Do not attempt to modify this product or create
accessories not recommended for use with this
product. Any such alteration or modification is
misuse and could result in a hazardous condition
leading to possible serious personal injury.
WARNING:
To prevent accidental starting that could cause
serious personal injury, always disconnect the
engine spark plug wire from the spark plug when
assembling parts.
ATTACHING THE REAR PANEL
See Figure 2.
Locate the rear panel and 4 Torx screws (1.4 in.).
Using a Torx wrench (not provided), secure panel to
handle using the screws.
ATTACHING THE WHEEL ASSEMBLY AND
SUPPORT FOOT
See Figures 3 - 4.
Locate 2 support feet, 4 lock nuts, and 4 bolts.
Lift the machine and slide the support feet into the
machine base.
Secure in place using the bolts and nuts.
Locate 2 axles, 2 hitch pins, 2 washers (5/8 in.), and 2
wheels. Remove the hitch pin from the axle.
Slide the axle through the hole in the center of the
wheel.
Slide the washer onto the axle.
Lift the machine and slide the axle into the wheel mount-
ing hole in the machine base as shown.
Push the hitch pin into the hole on the end of the axle to
secure the wheel assembly.
NOTE: The hitch pin should be pushed into the axle until
the center of the pin rests on top of the axle.
Repeat with the second wheel.

8 - English
ASSEMBLY
ATTACHING THE TRIGGER HANDLE REST
See Figure 5.
Locate the trigger handle rest (front and back), Torx screw
(1/4-20 x 1.85 in.), screw (#8 x 3/4 in.), washer (1/4 in.),
and lock nut.
Push the screws into the holes. Tighten securely using
the lock nut.
RAISING AND LOWERING THE HANDLE
See Figure 6.
To raise the handle: pull the handle up until the handle
knob snaps through the locking hole to secure the handle
in place.
To lower the handle: pull the handle knob out then lower
the handle to the position shown in figure 6.
CAUTION:
Failure to remove pump oil plug label may result in
decreased pump life.
REMOVE THE LABEL AND SHIPPING PLUG
See Figure 6.
Remove pump oil cap label and shipping plug from the oil
pump.
WARNING:
Make sure the nozzle and hose connections are
secure before starting the machine. A non-secured
accessory could become a projectile if not properly
installed which could result in serious injury.
ASSEMBLING THE TRIGGER HANDLE
See Figure 7.
Place the threaded end of the spray wand in the connec-
tor on the end of the trigger handle.
Turn the connector clockwise until it stops. This secures
the wand in place.
When not in use, remove the spray wand from the trigger
handle by turning the connector counterclockwise. Store
the unassembled spray wand in the spray wand storage
area.
ATTACHING THE AUXILIARY HANDLE
See Figure 7.
Place the threaded stud on the end of the auxiliary handle
into the hole in the trigger handle as shown. Turn clock-
wise to tighten.
NOTE: You can install the handle on either the left or right
side of the spray wand, depending on operator prefer-
ence. The handle must always be used to prevent loss
of control and possible serious injury.
To switch sides, loosen the auxiliary handle and rotate to
the opposite side. Tighten securely before use.
CONNECTING HIGH PRESSURE HOSE TO
TRIGGER HANDLE
See Figure 8.
Pull back and hold the collar on the high pressure hose.
Insert the inlet coupler on the trigger handle into the collar.
 Release the collar and push until it locks into place. Pull
on the hose to be certain it is properly secured.
ATTACHING INJECTION HOSE
See Figure 9.
Beforedetergentcan be used with this machine, the injection
hose must be attached.
Push the open end of the clear injection hose securely
over the fitting as shown in figure 9.
Place the filtered end of the injection hose in the bottle
of detergent.
CONNECTING THE GARDEN HOSE TO THE
PRESSURE WASHER
See Figure 10.
CAUTION:
Always observe all local regulations when
connnecting hoses to the water main. Some areas
have restrictions against connecting directly to
public drinking water supply to prevent the feed-
back of chemicals into the drinking water supply.
Direct connection through a receiver tank or back-
flow preventer is usually permitted.

9 - English
The water supply must come from a water main. NEVER
use hot water or water from pools, lakes, etc. Before
connecting the garden hose to the pressure washer:
Run water through the hose for 30 seconds to clean any
debris from the hose.
Inspect the screen in the water intake.
If the screen is damaged, do not use the machine until
the screen has been replaced.
If the screen is dirty, clean it before connecting the garden
hose to the machine.
To connect the garden hose to the machine:
Uncoil the garden hose.
NOTE: There must be a minimum of 10 feet of unrestricted
hose between the pressure washer intake and the hose
faucet or shut off valve (such as a “Y” shut off connector).
With the hose faucet turned completely off, attach the
end of the garden hose to the water intake. Tighten by
hand.
CONNECTING THE HIGH PRESSURE HOSE TO
THE PUMP
See Figure 11.
After the high pressure hose has been uncoiled and attached
to the trigger handle:
Insert the nozzle on the end of the high pressure hose
collar into the collar until it clicks in place and is secured
properly.
Pull on the hose to be certain it is properly secured.
ASSEMBLY
OPERATION
APPLICATIONS
You may use this product for the purposes listed below:
Removing dirt and mold from decks, cement patios, and
house siding
Cleaning cars, boats, motorcycles, outdoor furniture, and
grills
ADDING OIL TO THE ENGINE
See Figure 12.
NOTE: This machine has been shipped with approximately
4 oz. of oil in the engine from testing. You must add oil to
the engine before starting it the first time.
CAUTION:
Any attempt to start the engine without adding oil
will result in engine failure.
Place pressure washer on a flat, level surface.
Unscrew the oil cap / dipstick by turning counter-
clockwise.
Using 4-stroke engine oil (SAE 30 or SAE 10W30), add
engine oil until the fluid level rises to the upper portion of
the hatched area on the dipstick (12 oz., 4-cycle engine
oil provided). Do not overfill.
Replace the oil cap/dipstick and securely tighten.
NOTE: This engine has a total oil capacity of 20 oz.
(.6 liters).
WARNING:
Do not allow familiarity with this product to make
you careless. Remember that a careless fraction of
a second is sufficient to inflict serious injury.
WARNING:
Always wear eye protection marked to comply with
ANSI Z87.1. Failure to do so could result in objects
being thrown into your eyes, resulting in possible
serious injury.
WARNING:
Donot use any attachmentsor accessories not recom-
mendedbythemanufacturerofthisproduct.Theuseof
attachments or accessories not recommended can
result in serious personal injury.
WARNING:
Never direct a water stream toward people or
pets, or any electrical device. Failure to heed this
warning could result in serious injury.

10 - English
ADDING GASOLINE TO THE FUEL TANK
See Figure 13.
WARNING:
Gasoline and its vapors are highly flammable and
explosive. To prevent serious personal injury and
property damage, handle gasoline with care. Keep
away from ignition sources, handle outdoors only,
do not smoke while adding fuel, and wipe up spills
immediately.
When adding gas to the pressure washer, make sure the unit
is sitting on a flat, level surface. If the engine is hot, let the
pressure washer cool before adding gas. ALWAYS fill the
fuel tank outdoors with the machine turned off.
NOTE: Use unleaded gas only. DO NOT mix oil with gas.
Turn the engine switch to OFF (O) position.
Before removing the fuel cap, clean the area around it.
Remove the fuel cap.
Insert a clean funnel into the fuel tank then slowly
pour gasoline into the tank. Fill tank to approximately
1/2 in. below the top of the tank neck (this allows for fuel
expansion).
Replace fuel cap and tighten securely.
Clean up any spills before starting the engine.
OXYGENATED FUELS
DO NOT USE E85 FUEL. IT WILL VOID YOUR WAR-
RANTY.
NOTE: Fuel system damage or performance problems re-
sulting from the use of an oxygenated fuel containing more
than the percentages of oxygenates stated below are not
covered under warranty.
Ethanol. Gasoline containing up to 10% ethanol by volume
(commonly referred to as E10) or 15% ethanol by volume
(commonly referred to as E15) are acceptable. E85 is not.
STARTING AND STOPPING THE PRESSURE
WASHER
See Figures 14 - 16.
CAUTION:
Do not run the pump without the water supply con-
nected and turned on. This will damage the high
pressure seals and decrease pump life.
OPERATION
Before starting the engine, connect all hoses and check all
fluids (oil and gas). Turn the garden hose on then squeeze
the trigger. This relieves air pressure caused by turning on
the water. Hold the trigger until a steady stream of water
appears.
NOTE: Make sure pump shipping plug has been removed
before starting the unit.
To start an engine that is cold or has run dry:
Fill the fuel tank (if necessary).
Connect the garden hose to the pump and turn on the
water supply.
Place the engine switch in the ON ( l ) position.
Give the recoil starter grip short, brisk pulls to start the
engine.
CAUTION:
If the engine does not start after each pull of the
starter grip and rope, squeeze the trigger to relieve
water pressure before attempting to start the engine
again.
Return the recoil starter gently to the engine housing. Do
not allow the rope to snap back.
If the engine fails to start:
Turn the engine switch to OFF (O) position.
Pull the starter grip and rope 4 times.
Place the engine switch in the ON ( l ) position.
Pull the starter grip and rope to start the engine.
To stop the engine using the engine switch:
Turn the engine switch to OFF (O) position.
USING THE SPRAY WAND TRIGGER
See Figure 17.
For greater control and safety, keep both hands on the
trigger handle at all times.
Pull back and hold the trigger to operate the pressure
washer.
Release the trigger to stop the flow of water through the
nozzle.
To engage the lock out:
Pull up on the lock out until it clicks into the slot.
To disengage the lock out:
Push the lock out down and into its original position.
For the most effective cleaning, the spray nozzle should be
between 8 in. and 24 in. from the surface to be cleaned. If
the spray is too close it can damage the cleaning surface.

11 - English
OPERATION
USING THE NOZZLES
See Figure 17 - 18.
Each of the nozzles has a different spray pattern. Before
starting any cleaning job, determine the best nozzle for the
job. The following chart offers some general guidelines to
help you choose the best nozzle for your application.
Nozzle Application
0º Red Spot cleaning of high, hard-to-reach areas
• Removing caked-on mud from heavy con-
struction, farm, or lawn equipment
• Cleaning tar, glue, or stubborn stains from
concrete
• Cleaning overhead areas
• Removing rust from steel and oxidation
from aluminum
15º Yellow For narrow surfaces
• Removing heavy mildew stains
• Removing marine growth from boats and
marine equipment
• Removing rust from steel and oxidation
from aluminum
• Removing grease or dirt from equipment
• Removing paint from wood, masonry or
metal
25º Green For general purpose or large surfaces
• General cleaning of dirt, mud, and grime
• Cleaning roofs, gutters, and downspouts
• Removing light mildew stains
• Removing algae and bacteria build-up from
pools
• Rinsing surfaces in preparation for
painting
40º White For wide-angle rinsing
• Light cleaning and washing
• Washing and rinsing of painted surfaces
and boats
• Cleaning roofs, windows, patios, and
driveways
Dual
Power
Soap
(Black)
For all detergent applications and for gentle
rinse
WARNING:
NEVER change nozzles without locking the lock out
on the trigger handle and never point the wand at
your face or at others. The quick-connect feature
contains small springs that could eject the nozzle
with some force. Failure to heed this may cause
personal injury.
Using the quick-connect collar, changing nozzles is easy.
To connect a nozzle to the spray wand:
Turn off the pressure washer and shut off the water
supply. Pull trigger to release water pressure.
Engage the lock out on the trigger handle by pushing up
on the lock out until it clicks into the slot.
Push the nozzle into the quick-connect collar until it clicks
in place and is secured properly.
To disconnect a nozzle from the spray wand once the
cleaning job is complete:
Turn off the pressure washer and shut off the water
supply. Pull trigger to release water pressure.
Engage the lock out on the trigger handle by pushing up
on the lock out until it clicks into the slot.
Remove the nozzle by placing hand over nozzle then
pulling back the quick-connect collar.
WASHING WITH DETERGENT
See Figures 19 - 20.
Use only detergents designed for pressure washers; house-
hold detergents, acids, alkalines, bleaches, solvents, flam-
mable material, or industrial grade solutions can damage
the pump. Many detergents may require mixing prior to use.
Preparecleaningsolutionas instructed on the solution bottle.
Remove the cap from the detergent container. Place the
injection hose with filter in the bottle, the filter end should
rest at the bottom of the bottle.
Install the Dual Power Soap Nozzle on the spray wand.
Spray the detergent on a dry surface using long, even,
overlapping strokes. To prevent streaking, do not allow
detergent to dry on the surface.
For long range detergent application:
With the Dual Power Soap Nozzle installed on the spray
wand and the engine turned off, pull the nozzle up until it
clicks into place.
For short range detergent application:
With the Dual Power Soap Nozzle installed on the spray
wand and the engine turned off, push the Dual Power Soap
Nozzle down as far as it will go.
Before shutting off the engine:
Place the injection hose in a bucket of clean water.
Flush for 1 - 2 minutes (spray clear water through the
spray wand).
Shut off the engine.
NOTE: Shutting OFF (O ) the engine will not relieve
pressure in the system. Pull trigger to release water
pressure.

12
OPERATION
RINSING WITH THE PRESSURE WASHER
Turn off the pressure washer and shut off the water
supply. Pull trigger to release water pressure.
Engage the lock out on the trigger handle by pushing up
on the lock out until it clicks into the slot.
Remove the nozzle by placing hand over nozzle then
pulling back the quick-connect collar.
Select the right nozzle for the job:
• Use medium pressure nozzle (green) for items such as
a car or boat.
• Use higher pressure nozzle for jobs such as strip-
ping paint and degreasing the driveway. When using
these nozzles, test a small area first to avoid surface
damage.
Start at the top of the area to be rinsed and work down,
overlapping the strokes.
MOVING THE PRESSURE WASHER
See Figure 21.
NOTE: Never lift or carry this product using the moving
handle.
Raise the handle.
Turn the pressure washer off.
Tilt the machine toward you until it balances on the wheels
then roll the machine to the desired position.

13 - English
MAINTENANCE
WARNING:
When servicing, use only identical replacement
parts. Use of any other parts may create a hazard
or cause product damage.
WARNING:
Always wear eye protection marked to comply with
ANSI Z87.1. Failure to do so could result in objects
being thrown into your eyes, resulting in possible
serious injury.
WARNING:
Before inspecting, cleaning or servicing the ma-
chine, shut off engine, wait for all moving parts to
stop, and disconnect spark plug wire and move
it away from spark plug. Failure to follow these
instructions can result in serious personal injury or
property damage.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, dust, oil, grease, etc.
WARNING:
Do not at any time let brake fluids, gasoline,
petroleum-based products, penetrating oils, etc.,
come in contact with plastic parts. Chemicals can
damage, weaken or destroy plastic which may
result in serious personal injury.
Only the parts shown on the parts list are intended to be
repaired or replaced by the customer. All other parts should
be replaced at an authorized service center.
Before running the engine, perform the following pre-
operation steps:
Check that all bolts, nuts, etc., are securely tightened.
Make sure the air filter is clean.
Check both the engine oil level and the fuel tank level;
refill as needed.
Inspect the work area for hazards.
If there is excessive noise or vibration, stop the unit
immediately.
CLEANING THE AIR FILTER
See Figure 22.
A dirty air filter will cause starting difficulty, loss of
performance, and shorten the life span of the engine. Check
the air filter monthly. For best performance, replace the air
filter at least once a year.
Push the tab on the air filter cover to open, then remove
the air filter cover.
Lift the edge of the air filter carefully and pull it out.
Wash the air filter with warm, soapy water.
Rinse and squeeze to dry.
Put small amount of motor oil (SAE 30 or SAE 10W30) on
the filter sponge. Squeeze out the excess oil then reinstall
the air filter.
NOTE: Make sure the filter is seated properly inside the
cover. Installing the filter incorrectly will allow dirt to enter
the engine, causing rapid engine wear.
Reinstall the air filter cover.
CHANGING THE ENGINE OIL
See Figure 23.
Place a container under the pressure washer.
Remove the oil drain plug and drain the old oil.
NOTE: Drain the oil while the engine is still warm but not
hot. Warm oil will drain quickly and more completely.
Replace the oil drain plug.
Replace the oil with new, clean oil. This engine will hold
12 oz. or .355 liters of oil (SAE 30 or SAE 10W30).
NOTE: Consult hazardous waste management guidelines in
your area for the proper way to dispose of used oil.
CHANGING THE PUMP OIL
See Figure 24.
NOTE: The pump was filled with oil at the factory.
Fill the crankcase with special Cat Pumps oil per pump
specifications [3GCXT, 3DNX 8.5 oz (251ml)]. Do not run
pump without oil in crankcase. Change initial fill after 50
hours of run time. Thereafter, change oil every 3 months or
500 hour intervals.
To check oil:
Place unit on a flat, level surface.
The sight glass is located above the drain plug. There is
a red dot in the center of the glass.
An oil level at the top of the red dot indicates oil is at
maximum level.
An oil level at or below the bottom of the red dot indicates
oil is below desired level, and oil should be added.
To change oil:
Place a container under the pressure washer.
Loosen the pump top oil plug. Remove the oil drain plug
and drain the old oil.

14 - English
MAINTENANCE
NOTE: Drain the oil while the pump is still warm but not
hot. Warm oil will drain quickly and more completely.
Replace the oil drain plug. Tighten securely.
Remove the pump top oil plug.
Fill with 8.5 oz. (251 ml) of Cat Pumps Oil.
Type: ISO 68 Premium Grade High Pressure Pump Oil
Model AP31045 or Cat Pumps Part Number: 6201
Replace pump top oil plug and tighten securely.
NOTE: Consult hazardous waste management guidelines in
your area for the proper way to dispose of used oil.
CHECKING A FOULED SPARK PLUG
See Figure 25.
Clean carbon deposits off the spark plug electrode using
a plug cleaner or wire brush.
Check electrode gap. The gap should be .6 mm - .7 mm.
Adjust the gap, if necessary, by carefully bending the side
electrode.
Replacement spark plug: NKG E6RC, Champion L87YC
or RL87YC, or equivalent
NOZZLE MAINTENANCE
See Figure 26.
Excessive pump pressure (a pulsing sensation felt while
squeezing the trigger) may be the result of a clogged or
dirty nozzle.
Turn off the pressure washer and shut off the water
supply. Pull trigger to release water pressure.
Remove the nozzle from the spray wand.
NOTE: Never point the spray wand at your face.
Using a straightened paper clip or nozzle cleaning tool
(not provided), free any foreign materials clogging or
restricting the nozzle.
Using a garden hose, flush debris out of nozzle by back
flushing (running the water through the nozzle backwards
or from the outside to the inside).
Reconnect the nozzle to the spray wand.
Turn on the water supply and start the engine.
STORING THE PRESSURE WASHER
See Figures 27 - 28.
Storethepressurewasherwiththe gastankemptyby running
the pressure washer until the gas runs out. Allow 30 minutes
of “cool down” time before storing the machine. Store in a
dry, covered area where the weather can’t damage it.
It is important to store this product in a frost-free area. Always
empty water from all hoses, the pump, and the detergent
container before storing.
NOTE: Use of a fuel stabilizer and pump saver will give you
better performance and increase the life of the machine.
Trigger and auxiliary handles:
Remove the auxiliary handle from the trigger handle and
store the auxiliary handle in the storage hole on the side of
the trigger handle.
Remove the spray wand from the trigger handle by turning
the connector counterclockwise. Store the unassembled
spray wand in the spray wand storage area.
Discharge Fuel:
Drainthefueltankcompletelybyrunningthepressurewasher
until the gas runs out. Stored gas can go stale in 30 days.
Engine Oil:
Drain the oil and replace with fresh, clean oil.
Spark Plug:
Disconnect spark plug wire and remove the spark plug.
Pour about a teaspoon of clean, air-cooled, four-cycle
oil through the spark plug hole into the combustion
chamber.
Leaving the spark plug out, pull the starter cord two or
three times to coat the inside of the cylinder wall.
Inspect the spark plug and clean or replace, as neces-
sary.
Reinstall the spark plug, but leave the spark plug wire
disconnected.
Air Filter:
Clean the air filter.
Fuel Tank Inlet Screen:
For best performance, clean the tank’s inlet screen yearly or
after every 100 hours of use. If the screen is damaged, call
customer service to order a replacement screen.
Remove fuel tank inlet screen.
Flush with warm soapy water.
Rinse and re-install screen in tank filler neck.
Fuel Tank Outlet Filter:
Dirty tank fuel filters will cause starting difficulty, loss of per-
formance, and shorten the life span of the engine. Contact an
authorized service dealer to check and clean the tank outlet
filter yearly. For best performance, have the filter replaced
after 200 hours of use.
Hoses and Pump:
Flush the injection hose with clean water for 1-2 minutes.
Remove all hoses. Empty the pump by pulling on the recoil
starter about 6 times. This should remove most of the liquid
from the pump.
PREPARING FOR USE AFTER STORAGE
Pull the recoil starter grip three or four times to clean oil
from the combustion chamber.
Remove spark plug from the cylinder. Wipe oil from the
spark plug and return it to the cylinder.
Reconnect the spark plug wire.
Refuel the machine as described earlier in the operator’s
manual.

15 - English
MAINTENANCE
PERIODIC MAINTENANCE SCHEDULE TABLE
Maintenance Items Each use Weekly 50 hours 500 hours
Check pump oil level X
Check oil quality (for discoloration or contamination) X
Check for oil leaks - inspect oil seals, drain plug,
oil plug, sight glass X
Check for water leaks under manifold, into crankcase X
Plumbing X
Change pump oil (initial change) X
Change pump oil* X
* If other than Cat Pumps special formula premium grade ISO68 hydraulic oil is used, change cycle should be every
300 hours.

16 - English
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Engine fails to start Engine switch is in OFF position. Move switch to start.
Engine is flooded or there is air in the fuel
supply system.
TurnswitchtoOFF,pullrope4times,turnswitch
back to ON, then pull until engine starts.
No fuel in tank. Fill tank.
Spark plug shorted or fouled. Replace spark plug.
Spark plug is broken (cracked porcelain or
electrodes broken).
Replace spark plug.
Ignitionlead wireshorted,broken,or discon-
nected from spark plug.
Replace lead wire or attach to spark plug.
Ignition inoperative. Contact authorized service center.
Lubricant level is too low. Add lubricant to engine.
Lubricant level is too high. Drain until lubricant reaches proper level.
Engine hard to start Water in gasoline. Drain entire system and refill with fresh fuel.
Weak spark at spark plug. Contact authorized service center.
Engine lacks power Dirty air filter.
Dirty fuel filter.
Lubricant level is too high or too low.
Clean or replace air filter.
Contact authorized service center.
Add or drain lubricant as needed until the
proper level is reached.
Detergent fails to mix with spray Detergent injection hose is not properly
submerged.
Insert injection hose into detergent
container.
High pressure nozzle attached. Use Dual Power Soap Nozzle to apply de-
tergent.
Injection hose is clogged/kinked. Remove or replace injection hose.
Chemical injector is clogged. Clean or replace injector.
Pump doesn’t produce pressure Low pressure nozzle installed. Replace with high pressure nozzle.
Inadequate water supply. Provide adequate water flow.
Trigger handle leaks. Check connections and/or replace trigger
wand.
Nozzle is clogged. Clean nozzle.
Pump is faulty. Contact authorized service center.
Air in line. Squeeze trigger on trigger handle to remove
air from line.
Water inlet clogged. Clean inlet screen.
Machine doesn’t reach high
pressure
Diameter of garden hose is too small. Replace with 3/4 in. garden hose.
Water supply is restricted. Check garden hose for kinks, leaks, or block-
ages; clean inlet screen.
Not enough inlet water. Open water source full force.
Wrong nozzle attached. Attach high pressure nozzle.
Not enough power. Increase engine speed.
