QUICK REFERENCE GUIDE
Rogue R3 Wash QRG Rev. 3
About This Guide
The Rogue R3 Wash Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu
options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
Safety Notes
• DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the
product from power via breaker or by unplugging it.
• DO NOT look at the light source when the product is on.
• CAUTION: This product’s housing may be hot when lights are operating. Mount this product in a location with
adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid
ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow
product to fully acclimate to the surrounding environment before connecting it to power.
• USE a safety cable when mounting this product overhead.
• DO NOToperate this product outdoors or in any locationwhere dust, excessive heat, water, or humidity may affect
it. (IP20)
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket to carry this product. Do not carry by the moving head.
• In the event of a serious operating problem, stop using immediately.
• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
Contact
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact your distributor to request support or return a
product. From inside the U.S., UK, Ireland, Mexico, or Benelux, use the information in Contact Us at the end of this QRG.
What is Included
• Rogue R3 Wash
• Neutrik® powerCON® power cord
• Omega bracket with mounting hardware
• Warranty Card
• Quick Reference Guide
AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
AC Plug
Power Linking
You can link up to 2 Rogue R3 Wash products at 120 V, 4 products at 208 V, or 4 products at 230 V. Never exceed this
number. Power linking cords can be purchased separately.
Replacing The Fuse
1. Disconnect this product from power
2. Using a flat head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely
disconnect the product from power via breaker or by unplugging it.
!

EN
2
Rogue R3 Wash QRG Rev. 3
QUICK REFERENCE GUIDE
DMX Linking
The Rogue R3 Wash will work with a DMX controller using a 3- or 5-pin DMX serial connection. ADMX Primer is
available from www.chauvetprofessional.com.
DMX Connection
The Rogue R3 Wash uses a 3- or 5-pin DMX data connection for its DMX personalities: 21, 62,71,and 107. See the User
Manual for information about connecting and configuring the product for DMX operation.
RDM (Remote Device Management)
Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally
along existing DMX cabling. Check the DMX controller’s User Manual or with the manufacturer as not all DMX controllers
have this capability. The Rogue R3 Wash supports RDM protocol that allows feedback to make changes to menu map
options. Download the User Manual from www.chauvetprofessional.com for more details.
Mounting
Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the
mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to
http://trusst.com/productcategory/truss-clamps/

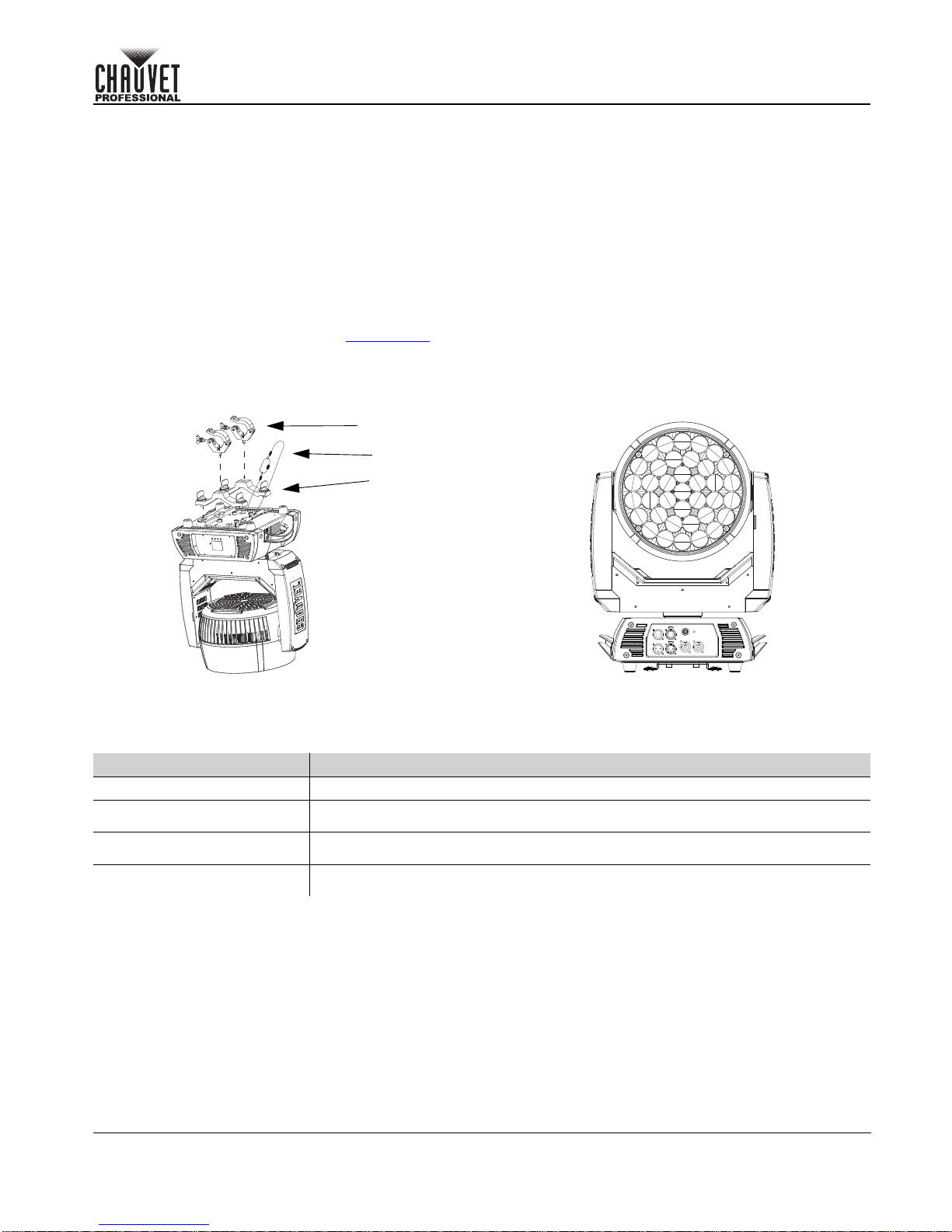

Product Mounting Diagram
Control Panel Description
Button Function
<MENU> Exits from the current menu or function
<ENTER> Enables the currently displayed menu or sets the currently selected value into the
selected function
<UP> Navigates upwards through the menu list or increases the numeric value when in a
function
<DOWN> Navigates downwards through the menu list or decreases the numeric value when in a
function
Omega Bracket
Mounting Clamp
Overhead
Mounting Floor Mounting
Safety Cable

3
EN
QUICK REFERENCE GUIDE
Rogue R3 Wash QRG Rev. 3

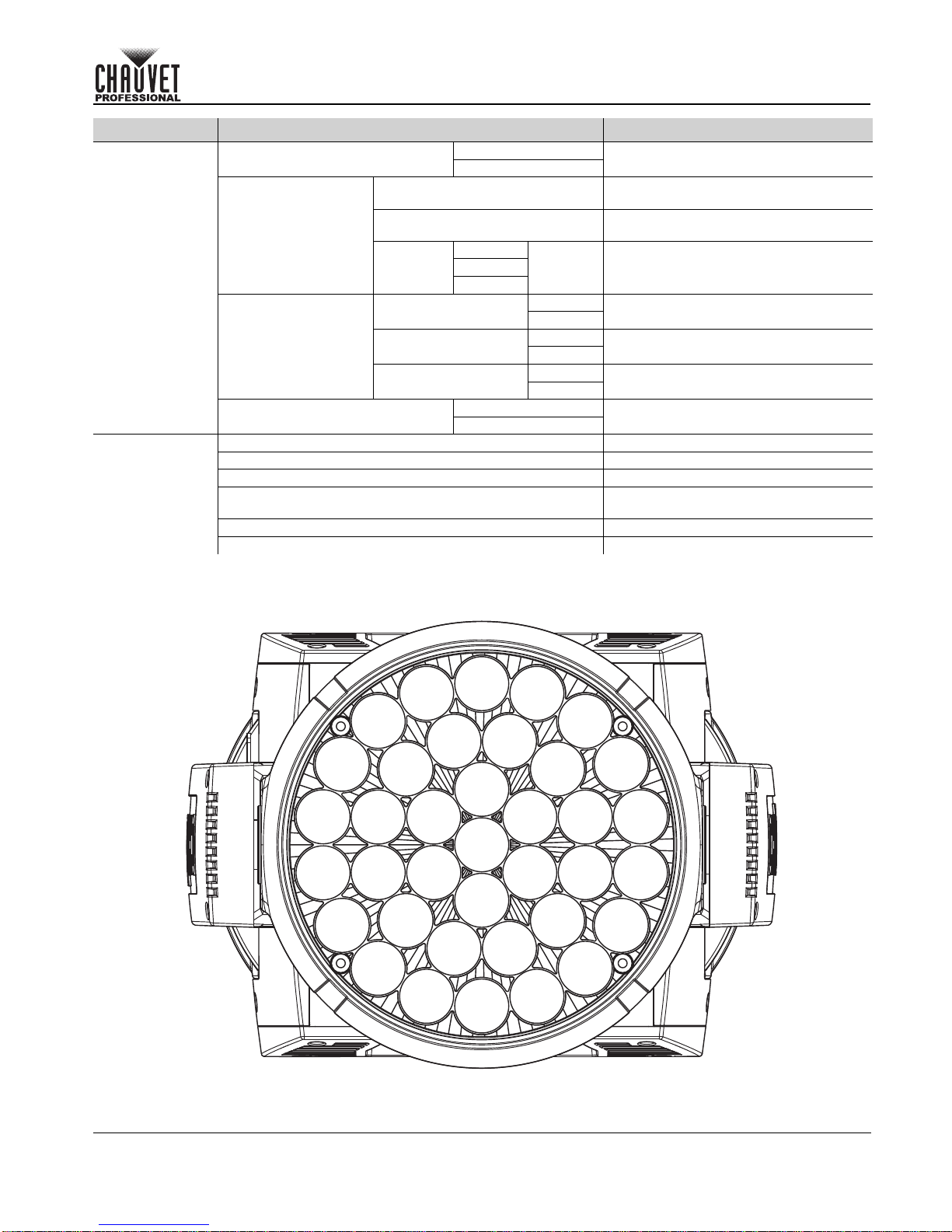

Menu Map
Main Level Programming Levels Description
Address 001-512 Sets the DMX starting address
Running Mode
DMX
21
Selects the DMX mode
62
71
107
Auto Test Runs the product’s test sequence
Manual Test
Pan
000-255 Allows manual control of all settings from
the control panel
Tilt
P/T Speed
Red
Green
Blue
White
CTC
Color
Pattern
LED Macro
LED Ma. Speed
LED Ma. Fade
Background
Background Dim.
Dimmer
Shutter
Zoom
Setup
Pan Reverse OFF Reverse pan operation
ON Normal pan operation
Tilt Reverse OFF Reverse tilt operation
ON Normal tilt operation
Zoom Reverse OFF Reverse zoom operation
ON Normal zoom operation
Pan Angle 540 Selects the 540° pan angle range 360 Selects the 360° pan angle range
180 Selects the 180° pan angle range
Tilt Angle 230 Selects the 230° tilt angle range 180 Selects the 180° tilt angle range
90 Selects the 90° tilt angle range
XY Mode Fast Sets pan/tilt speed
Slow
Fans Auto Selects the fan’s operation modeECO
Full
Display OFF Determines how long the backlight of the display will stay on after last command
button pressed
ON
Screen Rev OFF Normal control screen view
ON Rotates control screen view 180°
C Mixing Mode RGBW Product mixes color using the RGBW
method
CMY Product mixes color using the CMY
method
Dimmer Curve
Linear Liner dimmer
Square Square curve dimmer
I Squa Reverse square curve dimmer
Scurve S curve dimmer

EN
4
Rogue R3 Wash QRG Rev. 3
QUICK REFERENCE GUIDE
Rogue R3 Wash Zone Selection for DMX Control
Setup
Dimmer Speed Smooth Slow (Smooth) or fast (Fast) dimmer
curves
Fast
Color calibration
ON Max. output when RGBW DMX channels
are at full
OFF Factory calibrated color temperature
when RGBW DMX channels are at full
Custom RED 100-255 Manual calibration of color temperature
when RGBW DMX channels are at full
GREEN
BLUE
Reset Function
Pan/Tilt Yes Resets pan/tilt functions to the home
position
No
Zoom Yes Resets all Zoom functions to the home
position
No
All Yes Resets all functions to the home position
No
Factory Reset Yes Reverts the product back to the original
factory settings
No
Sys Info
Ver Displays the software version
Running Mode Displays the current running mode
DMX Address Displays the current DMX address
Temperature Displays the product’s temperature in
Celsius
Fixture Time Displays the product’s total time running
UID Shows product UID
Main Level Programming Levels Description
7
8
6
9
8
76
6
9
9
8
8
7
1
1
5
5
6
4
3
2
8
1
55
1
2
4456
9
1
2
5
1
7

5
EN
QUICK REFERENCE GUIDE
Rogue R3 Wash QRG Rev. 3
DMX Value
107 Channel Function Value Percent/Setting
1Pan000 255 0-100%
2FinePan000 255 Fine control (16-bit)
3Tilt000 255 0-100%
4 Fine Tilt 000 255 Fine control (16-bit)
5 Pan/Tilt Speed 000 255 0-100%
6Dimmer000 255 0-100%
7 Fine Dimmer 000 255 Fine control (16-bit)
8Shutter
000 019
020 024
025 064
065 069
070 084
085 089
090 104
105 109
110 124
125 129
130 144
145 149
150 164
165 169
170 184
185 189
190 204
205 209
210 224
225 229
230 244
245 255
off
on
strobe 1 with decreasing speed
on
strobe 2 (fast on slow off) with decreasing speed
on
strobe 3 (slow on fast off) with decreasing speed
on
strobe 4 (random strobe) with decreasing speed
on
strobe 5 (random fast on slow off) with decreasing speed
on
strobe 6 (random slow on fast off) with decreasing speed
on
strobe 7 (pulse strobe) with decreasing speed
on
strobe 8 (random pulse strobe) with decreasing speed
on
strobe 9 (fade on or off) with decreasing speed
on
strobe 10 (pulse strobe) with decreasing speed
on
9CTC000
001 255 No function
2800 to 10,000K
10 Color
000
001 002
003 004
005 006
007 008
009 010
11
012 048
049
050 086
087
088 124
125
126 162
163
164 200
201
202 238
239
240 247
248 255
No function
2700K R:156 G: 118 B: 0 W: 63
3200K R:156 G: 141 B: 5 W: 89
4200K R:156 G: 141 B: 14 W: 255
5600K R:156 G: 207 B: 54 W: 255
8000K R:130 G: 255 B: 96 W: 255
Blue R: 0 G: 0 B: 255 W: 0
R: 0 G: + B: 255 W: 0
Cyan R: 0 G: 255 B: 255 W: 0
R: 0 G: 255 B: - W: 0
Green R: 0 G: 255 B: 0 W: 0
R: + G: 255 B: 0 W: 0
Yellow R: 255 G: 255 B: 0 W: 0
R: 255 G: - B: 0 W: 0
Red R: 255 G: 0 B: 0 W: 0
R: 255 G: 0 B: + W: 0
Magenta R: 255 G: 0 B: 255 W: 0
R: - G: 0 B: 255 W: 0
Blue R: 0 G: 0 B: 255 W: 0
Color change, fast to slow
Color jump, fast to slow
11 Gobo
000 003
004 006
007 009
010 012
013 015
016 018
019 021
022 024
025 027
028 030
031 033
No function
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 8
Gobo 9
No Gobo

EN
6
Rogue R3 Wash QRG Rev. 3
QUICK REFERENCE GUIDE
11 Gobo
034 036
037 039
040 042
043 045
046 048
049 051
052 054
055 057
058 060
061 063
064 066
067 069
070 072
073 075
076 078
079 081
082 084
085 087
088 090
091 093
094 096
097 099
100 102
103 105
106 108
109 111
112 114
115 117
118 120
121 123
124 126
127 129
130 132
133 135
136 138
139 141
142 144
145 147
148 150
151 153
154 156
157 159
160 162
163 165
166 168
169 171
172 174
175 177
178 180
181 183
184 186
187 189
190 192
193 195
196 198
199 201
202 204
205 207
208 210
211213
214 216
217 219
220 222
223 225
226 228
229 231
Gobo 10
Gobo 11
Gobo 12
Gobo 13
Gobo 14
Gobo 15
Gobo 16
Gobo 17
Gobo 18
Gobo 19
Gobo 20
Gobo 21
Gobo 22
Gobo 23
Gobo 24
Gobo 25
Gobo 26
Gobo 27
Gobo 28
Gobo 29
Gobo 30
Gobo 31
Gobo 32
Gobo 33
Gobo 34
Gobo 35
Gobo 36
Gobo 37
Gobo 38
Gobo 39
Gobo 40
Gobo 41
Gobo 42
Gobo 43
Gobo 44
Gobo 45
Gobo 46
Gobo 47
Gobo 48
Gobo 49
Gobo 50
Gobo 51
Gobo 52
Gobo 53
Gobo 54
Gobo 55
Gobo 56
Gobo 57
Gobo 58
Gobo 59
Gobo 60
Gobo 61
Gobo 62
Gobo 63
Gobo 64
Gobo 65
Gobo 66
Gobo 67
Gobo 68
Gobo 69
Gobo 70
Gobo 71
Gobo 72
Gobo 73
Gobo 74
Gobo 75
107 Channel Function Value Percent/Setting

7
EN
QUICK REFERENCE GUIDE
Rogue R3 Wash QRG Rev. 3
11 Gobo
232 234
235 237
238 240
241 243
244 246
247 249
250 252
253 255
Gobo 76
Gobo 77
Gobo 78
Gobo 79
Gobo 80
Gobo 81
Gobo 82
Gobo 83
12 LED Built-in
000 015
016 017
018 019
020 021
022 023
024 025
026 027
028 029
030 031
032 033
034 035
036 037
038 039
040 041
042 043
044 045
046 047
048 049
050 051
052 053
054 055
056 057
058 059
060 061
062 063
064 065
066 067
068 069
070 071
072 073
074 075
076 077
078 079
080 081
082 083
084 085
086 087
088 089
090 091
092 093
094 095
096 097
098 099
100 101
102 103
104 105
106 107
108 109
110 111
112 113
114 115
116 117
118 119
120 121
122 123
124 125
126 127
No function
Built-in 1
Built-in 2
Built-in 3
Built-in 4
Built-in 5
Built-in 6
Built-in 7
Built-in 8
Built-in 9
Built-in 10
Built-in 11
Built-in 12
Built-in 13
Built-in 14
Built-in 15
Built-in 16
Built-in 17
Built-in 18
Built-in 19
Built-in 20
Built-in 21
Built-in 22
Built-in 23
Built-in 24
Built-in 25
Built-in 26
Built-in 27
Built-in 28
Built-in 29
Built-in 30
Built-in 31
Built-in 32
Built-in 33
Built-in 34
Built-in 35
Built-in 36
Built-in 37
Built-in 38
Built-in 39
Built-in 40
Built-in 41
Built-in 42
Built-in 43
Built-in 44
Built-in 45
Built-in 46
Built-in 47
Built-in 48
Built-in 49
Built-in 50
Built-in 51
Built-in 52
Built-in 53
Built-in 54
Built-in 55
Built-in 56
107 Channel Function Value Percent/Setting

EN
8
Rogue R3 Wash QRG Rev. 3
QUICK REFERENCE GUIDE
12 LED Built-in
128 135
136 137
138 139
140 141
142 143
144 145
146 147
148 149
150 151
152 153
154 155
156 157
158 159
160 161
162 163
164 165
166 167
168 169
170 171
172 173
174 175
176 177
178 179
180 181
182 183
184 185
186 187
188 189
190 191
192 193
194 195
196 197
198 199
200 201
202 203
204 205
206 207
208 209
210 211
212 213
214 215
216 217
218 219
220 221
222 223
224 225
226 227
228 229
230 231
232 233
234 235
236 237
238 239
240 241
242 243
244 245
246 247
248 255
Built-in 57
Built-in 58
Built-in 59
Built-in 60
Built-in 61
Built-in 62
Built-in 63
Built-in 64
Built-in 65
Built-in 66
Built-in 67
Built-in 68
Built-in 69
Built-in 70
Built-in 71
Built-in 72
Built-in 73
Built-in 74
Built-in 75
Built-in 76
Built-in 77
Built-in 78
Built-in 79
Built-in 80
Built-in 81
Built-in 82
Built-in 83
Built-in 84
Built-in 85
Built-in 86
Built-in 87
Built-in 88
Built-in 89
Built-in 90
Built-in 91
Built-in 92
Built-in 93
Built-in 94
Built-in 95
Built-in 96
Built-in 97
Built-in 98
Built-in 99
Built-in 100
Built-in 101
Built-in 102
Built-in 103
Built-in 104
Built-in 105
Built-in 106
Built-in 107
Built-in 108
Built-in 109
Built-in 110
Built-in 111
Built-in 112
Built-in 113
Built-in 114
13 LED Built-in Speed 000 127
128
129 255
Clockwise fast to slow
Stop
Counter-clockwise slow to fast
14 LED Built-in Delay 000 255 Fast to slow
107 Channel Function Value Percent/Setting

9
EN
QUICK REFERENCE GUIDE
Rogue R3 Wash QRG Rev. 3
15 Background Color
Macros
000
001 002
003 004
005 006
007 008
009 010
11
012 048
049
050 086
087
088 124
125
126 162
163
164 200
201
202 238
239
240 247
248 255
No function
2700K R:156 G: 118 B: 0 W: 63
3200K R:156 G: 141 B: 5 W: 89
4200K R:156 G: 141 B: 14 W: 255
5600K R:156 G: 207 B: 54 W: 255
8000K R:130 G: 255 B: 96 W: 255
Blue R: 0 G: 0 B: 255 W: 0
R: 0 G: + B: 255 W: 0
Cyan R: 0 G: 255 B: 255 W: 0
R: 0 G: 255 B: - W: 0
Green R: 0 G: 255 B: 0 W: 0
R: + G: 255 B: 0 W: 0
Yellow R: 255 G: 255 B: 0 W: 0
R: 255 G: - B: 0 W: 0
Red R: 255 G: 0 B: 0 W: 0
R: 255 G: 0 B: + W: 0
Magenta R: 255 G: 0 B: 255 W: 0
R: - G: 0 B: 255 W: 0
Blue R: 0 G: 0 B: 255 W: 0
Color change, fast to slow
Color jump, fast to slow
16 Background Color
Dimmer 000 255 0-100%
17 Background Color
Fine Dimmer 000 255 Fine control (16-bit)
18 Background Red 000 255 0-100%
19 Background Fine
Red 000 255 Fine control (16-bit)
20 Background Green 000 255 0-100%
21 Background Fine
Green 000 255 Fine control (16-bit)
22 Background Blue 000 255 0-100%
23 Background Fine
Blue 000 255 Fine control (16-bit)
24 Background White 000 255 0-100%
25 Background Fine
White 000 255 Fine control (16-bit)
26 Zoom 000 255 0-100%
107 Channel Function Value Percent/Setting

EN
10
Rogue R3 Wash QRG Rev. 3
QUICK REFERENCE GUIDE
27 Control
000 009
010 014
015 019
020 024
025 029
030 034
035 039
040 044
045 049
050 054
055 059
060 064
065 069
070 074
075 079
080 084
085 089
090 094
095 099
100 104
105 109
110 114
115 119
120 124
125 129
130 134
135 139
140 144
145 255
No function
Pan/Tilt blackout
No function
RGBW color mixing (5 sec.)
CMY color mixing (5 sec.)
No function
No function
No function
No function
Pan reset
Tilt reset
Zoom reset
No function
All reset
No function
Pan/Tilt reverse
Pan reverse
Tilt reverse
Cancel pan reverse
Cancel tilt reverse
Cancel pan/tilt reverse
No function
No function
Fan low speed
Fan full speed
Fan auto
Dimmer Fast mode
Dimmer Smooth mode
No function
28 Red (Cyan) 000 255 0-100%
29 Fine Red (Cyan) 000 255 Fine control (16-bit)
30 Green (Magenta) 000 255 0-100%
31 Fine Green (Magenta) 000 255 Fine control (16-bit)
32 Blue (Yellow) 000 255 0-100%
33 Fine Blue (Yellow) 000 255 Fine control (16-bit)
34 White 000 255 0-100%
35 Fine White 000 255 Fine control (16-bit)
36 Red 1 (Cyan) 000 255 0-100%
37 Fine Red 1 (Cyan) 000 255 Fine control (16-bit)
38 Green 1 (Magenta) 000 255 0-100%
39 Fine Green 1
(Magenta) 000 255 Fine control (16-bit)
40 Blue 1 (Yellow) 000 255 0-100%
41 Fine Blue 1 (Yellow) 000 255 Fine control (16-bit)
42 White 1 000 255 0-100%
43 Fine White 1 000 255 Fine control (16-bit)
44 Red 2 (Cyan) 000 255 0-100%
45 Fine Red 2 (Cyan) 000 255 Fine control (16-bit)
46 Green 2 (Magenta) 000 255 0-100%
47 Fine Green 2
(Magenta) 000 255 Fine control (16-bit)
48 Blue 2 (Yellow) 000 255 0-100%
49 Fine Blue 2 (Yellow) 000 255 Fine control (16-bit)
50 White 2 000 255 0-100%
51 Fine White 2 000 255 Fine control (16-bit)
52 Red 3 (Cyan) 000 255 0-100%
107 Channel Function Value Percent/Setting

11
EN
QUICK REFERENCE GUIDE
Rogue R3 Wash QRG Rev. 3
53 Fine Red 3 (Cyan) 000 255 Fine control (16-bit)
54 Green 3 (Magenta) 000 255 0-100%
55 Fine Green 3
(Magenta) 000 255 Fine control (16-bit)
56 Blue 3 (Yellow) 000 255 0-100%
57 Fine Blue 3 (Yellow) 000 255 Fine control (16-bit)
58 White 3 000 255 0-100%
59 Fine White 3 000 255 Fine control (16-bit)
60 Red 4 (Cyan) 000 255 0-100%
61 Fine Red 4 (Cyan) 000 255 Fine control (16-bit)
62 Green 4 (Magenta) 000 255 0-100%
63 Fine Green 4
(Magenta) 000 255 Fine control (16-bit)
64 Blue 4 (Yellow) 000 255 0-100%
65 Fine Blue 4 (Yellow) 000 255 Fine control (16-bit)
66 White 4 000 255 0-100%
67 Fine White 4 000 255 Fine control (16-bit)
68 Red 5 (Cyan) 000 255 0-100%
69 Fine Red 5 (Cyan) 000 255 Fine control (16-bit)
70 Green 5 (Magenta) 000 255 0-100%
71 Fine Green 5
(Magenta) 000 255 Fine control (16-bit)
72 Blue 5 (Yellow) 000 255 0-100%
73 Fine Blue 5 (Yellow) 000 255 Fine control (16-bit)
74 White 5 000 255 0-100%
75 Fine White 5 000 255 Fine control (16-bit)
76 Red 6 (Cyan) 000 255 0-100%
77 Fine Red 6 (Cyan) 000 255 Fine control (16-bit)
78 Green 6 (Magenta) 000 255 0-100%
79 Fine Green 6
(Magenta) 000 255 Fine control (16-bit)
80 Blue 6 (Yellow) 000 255 0-100%
81 Fine Blue 6 (Yellow) 000 255 Fine control (16-bit)
82 White 6 000 255 0-100%
83 Fine White 6 000 255 Fine control (16-bit)
84 Red 7 (Cyan) 000 255 0-100%
85 Fine Red 7 (Cyan) 000 255 Fine control (16-bit)
86 Green 7 (Magenta) 000 255 0-100%
87 Fine Green 7
(Magenta) 000 255 Fine control (16-bit)
88 Blue 7 (Yellow) 000 255 0-100%
89 Fine Blue 7 (Yellow) 000 255 Fine control (16-bit)
90 White 7 000 255 0-100%
91 Fine White 7 000 255 Fine control (16-bit)
92 Red 8 (Cyan) 000 255 0-100%
93 Fine Red 8 (Cyan) 000 255 Fine control (16-bit)
94 Green 8 (Magenta) 000 255 0-100%
95 Fine Green 8
(Magenta) 000 255 Fine control (16-bit)
96 Blue 8 (Yellow) 000 255 0-100%
107 Channel Function Value Percent/Setting

EN
12
Rogue R3 Wash QRG Rev. 3
QUICK REFERENCE GUIDE
97 Fine Blue 8 (Yellow) 000 255 Fine control (16-bit)
98 White 8 000 255 0-100%
99 Fine White 8 000 255 Fine control (16-bit)
100 Red 9 (Cyan) 000 255 0-100%
101 Fine Red 9 (Cyan) 000 255 Fine control (16-bit)
102 Green 9 (Magenta) 000 255 0-100%
103 Fine Green 9
(Magenta) 000 255 Fine control (16-bit)
104 Blue 9 (Yellow) 000 255 0-100%
105 Fine Blue 9 (Yellow) 000 255 Fine control (16-bit)
106 White 9 000 255 0-100%
107 Fine White 9 000 255 Fine control (16-bit)
71 Channel Function Value Percent/Setting
1Pan000 255 0-100%
2FinePan000 255 Fine control (16-bit)
3Tilt000 255 0-100%
4 Fine Tilt 000 255 Fine control (16-bit)
5 Pan/Tilt Speed 000 255 0-100%
6Dimmer000 255 0-100%
7 Fine Dimmer 000 255 Fine control (16-bit)
8 Shutter
000 019
020 024
025 064
065 069
070 084
085 089
090 104
105 109
110 124
125 129
130 144
145 149
150 164
165 169
170 184
185 189
190 204
205 209
210 224
225 229
230 244
245 255
off
on
strobe 1 with decreasing speed
on
strobe 2 (fast on slow off) with decreasing speed
on
strobe 3 (slow on fast off) with decreasing speed
on
strobe 4 (random strobe) with decreasing speed
on
strobe 5 (random fast on slow off) with decreasing speed
on
strobe 6 (random slow on fast off) with decreasing speed
on
strobe 7 (pulse strobe) with decreasing speed
on
strobe 8 (random pulse strobe) with decreasing speed
on
strobe 9 (fade on or off) with decreasing speed
on
strobe 10 (pulse strobe) with decreasing speed
on
9CTC000
001 255 No function
2800 to 10,000K
107 Channel Function Value Percent/Setting

13
EN
QUICK REFERENCE GUIDE
Rogue R3 Wash QRG Rev. 3
10 Color
000
001 002
003 004
005 006
007 008
009 010
11
012 048
049
050 086
087
088 124
125
126 162
163
164 200
201
202 238
239
240 247
248 255
No function
2700K R:156 G: 118 B: 0 W: 63
3200K R:156 G: 141 B: 5 W: 89
4200K R:156 G: 141 B: 14 W: 255
5600K R:156 G: 207 B: 54 W: 255
8000K R:130 G: 255 B: 96 W: 255
Blue R: 0 G: 0 B: 255 W: 0
R: 0 G: + B: 255 W: 0
Cyan R: 0 G: 255 B: 255 W: 0
R: 0 G: 255 B: - W: 0
Green R: 0 G: 255 B: 0 W: 0
R: + G: 255 B: 0 W: 0
Yellow R: 255 G: 255 B: 0 W: 0
R: 255 G: - B: 0 W: 0
Red R: 255 G: 0 B: 0 W: 0
R: 255 G: 0 B: + W: 0
Magenta R: 255 G: 0 B: 255 W: 0
R: - G: 0 B: 255 W: 0
Blue R: 0 G: 0 B: 255 W: 0
Color change, fast to slow
Color jump, fast to slow
11 Gobo
000 003
004 006
007 009
010 012
013 015
016 018
019 021
022 024
025 027
028 030
031 033
034 036
037 039
040 042
043 045
046 048
049 051
052 054
055 057
058 060
061 063
064 066
067 069
070 072
073 075
076 078
079 081
082 084
085 087
088 090
091 093
094 096
097 099
100 102
103 105
106 108
109 111
112 114
115 117
118 120
121 123
No function
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 8
Gobo 9
No Gobo
Gobo 10
Gobo 11
Gobo 12
Gobo 13
Gobo 14
Gobo 15
Gobo 16
Gobo 17
Gobo 18
Gobo 19
Gobo 20
Gobo 21
Gobo 22
Gobo 23
Gobo 24
Gobo 25
Gobo 26
Gobo 27
Gobo 28
Gobo 29
Gobo 30
Gobo 31
Gobo 32
Gobo 33
Gobo 34
Gobo 35
Gobo 36
Gobo 37
Gobo 38
Gobo 39
71 Channel Function Value Percent/Setting

EN
14
Rogue R3 Wash QRG Rev. 3
QUICK REFERENCE GUIDE
11 Gobo
124 126
127 129
130 132
133 135
136 138
139 141
142 144
145 147
148 150
151 153
154 156
157 159
160 162
163 165
166 168
169 171
172 174
175 177
178 180
181 183
184 186
187 189
190 192
193 195
196 198
199 201
202 204
205 207
208 210
211213
214 216
217 219
220 222
223 225
226 228
229 231
232 234
235 237
238 240
241 243
244 246
247 249
250 252
253 255
Gobo 40
Gobo 41
Gobo 42
Gobo 43
Gobo 44
Gobo 45
Gobo 46
Gobo 47
Gobo 48
Gobo 49
Gobo 50
Gobo 51
Gobo 52
Gobo 53
Gobo 54
Gobo 55
Gobo 56
Gobo 57
Gobo 58
Gobo 59
Gobo 60
Gobo 61
Gobo 62
Gobo 63
Gobo 64
Gobo 65
Gobo 66
Gobo 67
Gobo 68
Gobo 69
Gobo 70
Gobo 71
Gobo 72
Gobo 73
Gobo 74
Gobo 75
Gobo 76
Gobo 77
Gobo 78
Gobo 79
Gobo 80
Gobo 81
Gobo 82
Gobo 83
12 LED Built-in
000 015
016 017
018 019
020 021
022 023
024 025
026 027
028 029
030 031
032 033
034 035
036 037
038 039
040 041
042 043
044 045
046 047
048 049
050 051
052 053
054 055
No function
Built-in 1
Built-in 2
Built-in 3
Built-in 4
Built-in 5
Built-in 6
Built-in 7
Built-in 8
Built-in 9
Built-in 10
Built-in 11
Built-in 12
Built-in 13
Built-in 14
Built-in 15
Built-in 16
Built-in 17
Built-in 18
Built-in 19
Built-in 20
71 Channel Function Value Percent/Setting

15
EN
QUICK REFERENCE GUIDE
Rogue R3 Wash QRG Rev. 3
12 LED Built-in
056 057
058 059
060 061
062 063
064 065
066 067
068 069
070 071
072 073
074 075
076 077
078 079
080 081
082 083
084 085
086 087
088 089
090 091
092 093
094 095
096 097
098 099
100 101
102 103
104 105
106 107
108 109
110 111
112 113
114 115
116 117
118 119
120 121
122 123
124 125
126 127
128 135
136 137
138 139
140 141
142 143
144 145
146 147
148 149
150 151
152 153
154 155
156 157
158 159
160 161
162 163
164 165
166 167
168 169
170 171
172 173
174 175
176 177
178 179
180 181
182 183
184 185
186 187
Built-in 21
Built-in 22
Built-in 23
Built-in 24
Built-in 25
Built-in 26
Built-in 27
Built-in 28
Built-in 29
Built-in 30
Built-in 31
Built-in 32
Built-in 33
Built-in 34
Built-in 35
Built-in 36
Built-in 37
Built-in 38
Built-in 39
Built-in 40
Built-in 41
Built-in 42
Built-in 43
Built-in 44
Built-in 45
Built-in 46
Built-in 47
Built-in 48
Built-in 49
Built-in 50
Built-in 51
Built-in 52
Built-in 53
Built-in 54
Built-in 55
Built-in 56
Built-in 57
Built-in 58
Built-in 59
Built-in 60
Built-in 61
Built-in 62
Built-in 63
Built-in 64
Built-in 65
Built-in 66
Built-in 67
Built-in 68
Built-in 69
Built-in 70
Built-in 71
Built-in 72
Built-in 73
Built-in 74
Built-in 75
Built-in 76
Built-in 77
Built-in 78
Built-in 79
Built-in 80
Built-in 81
Built-in 82
Built-in 83
71 Channel Function Value Percent/Setting

EN
16
Rogue R3 Wash QRG Rev. 3
QUICK REFERENCE GUIDE
12 LED Built-in
188 189
190 191
192 193
194 195
196 197
198 199
200 201
202 203
204 205
206 207
208 209
210 211
212 213
214 215
216 217
218 219
220 221
222 223
224 225
226 227
228 229
230 231
232 233
234 235
236 237
238 239
240 241
242 243
244 245
246 247
248 255
Built-in 84
Built-in 85
Built-in 86
Built-in 87
Built-in 88
Built-in 89
Built-in 90
Built-in 91
Built-in 92
Built-in 93
Built-in 94
Built-in 95
Built-in 96
Built-in 97
Built-in 98
Built-in 99
Built-in 100
Built-in 101
Built-in 102
Built-in 103
Built-in 104
Built-in 105
Built-in 106
Built-in 107
Built-in 108
Built-in 109
Built-in 110
Built-in 111
Built-in 112
Built-in 113
Built-in 114
13 LED Built-in Speed 000 127
128
129 255
Clockwise fast to slow
Stop
Counter-clockwise slow to fast
14 LED Built-in Delay 000 255 Fast to slow
15 Background Color
Macros
000
001 002
003 004
005 006
007 008
009 010
11
012 048
049
050 086
087
088 124
125
126 162
163
164 200
201
202 238
239
240 247
248 255
No function
2700K R:156 G: 118 B: 0 W: 63
3200K R:156 G: 141 B: 5 W: 89
4200K R:156 G: 141 B: 14 W: 255
5600K R:156 G: 207 B: 54 W: 255
8000K R:130 G: 255 B: 96 W: 255
Blue R: 0 G: 0 B: 255 W: 0
R: 0 G: + B: 255 W: 0
Cyan R: 0 G: 255 B: 255 W: 0
R: 0 G: 255 B: - W: 0
Green R: 0 G: 255 B: 0 W: 0
R: + G: 255 B: 0 W: 0
Yellow R: 255 G: 255 B: 0 W: 0
R: 255 G: - B: 0 W: 0
Red R: 255 G: 0 B: 0 W: 0
R: 255 G: 0 B: + W: 0
Magenta R: 255 G: 0 B: 255 W: 0
R: - G: 0 B: 255 W: 0
Blue R: 0 G: 0 B: 255 W: 0
Color change, fast to slow
Color jump, fast to slow
16 Background Color
Dimmer 000 255 0-100%
17 Background Red 000 255 0-100%
18 Background Green 000 255 0-100%
19 Background Blue 000 255 0-100%
20 Background White 000 255 0-100%
21 Zoom 000 255 0-100%
71 Channel Function Value Percent/Setting

17
EN
QUICK REFERENCE GUIDE
Rogue R3 Wash QRG Rev. 3
22 Control
000 009
010 014
015 019
020 024
025 029
030 034
035 039
040 044
045 049
050 054
055 059
060 064
065 069
070 074
075 079
080 084
085 089
090 094
095 099
100 104
105 109
110 114
115 119
120 124
125 129
130 134
135 139
140 144
145 255
No function
Pan/Tilt blackout
No function
RGBW color mixing (5 sec.)
CMY color mixing (5 sec.)
No function
No function
No function
No function
Pan reset
Tilt reset
Zoom reset
No function
All reset
No function
Pan/Tilt reverse
Pan reverse
Tilt reverse
Cancel pan reverse
Cancel tilt reverse
Cancel pan/tilt reverse
No function
No function
Fan low speed
Fan full speed
Fan auto
Dimmer Fast mode
Dimmer Smooth mode
No function
23 Red (Cyan) 000 255 0-100%
24 Green (Magenta) 000 255 0-100%
25 Blue (Yellow) 000 255 0-100%
26 White 000 255 0-100%
27 Dimmer 1 000 255 0-100%
28 Red 1 (Cyan) 000 255 0-100%
29 Green 1 (Magenta) 000 255 0-100%
30 Blue 1 (Yellow) 000 255 0-100%
31 White 1 000 255 0-100%
32 Dimmer 2 000 255 0-100%
33 Red 2 (Cyan) 000 255 0-100%
34 Green 2 (Magenta) 000 255 0-100%
35 Blue 2 (Yellow) 000 255 0-100%
36 White 2 000 255 0-100%
37 Dimmer 3 000 255 0-100%
38 Red 3 (Cyan) 000 255 0-100%
39 Green 3 (Magenta) 000 255 0-100%
40 Blue 3 (Yellow) 000 255 0-100%
41 White 3 000 255 0-100%
42 Dimmer 4 000 255 0-100%
43 Red 4 (Cyan) 000 255 0-100%
44 Green 4 (Magenta) 000 255 0-100%
45 Blue 4 (Yellow) 000 255 0-100%
46 White 4 000 255 0-100%
47 Dimmer 5 000 255 0-100%
48 Red 5 (Cyan) 000 255 0-100%
71 Channel Function Value Percent/Setting

EN
18
Rogue R3 Wash QRG Rev. 3
QUICK REFERENCE GUIDE
49 Green 5 (Magenta) 000 255 0-100%
50 Blue 5 (Yellow) 000 255 0-100%
51 White 5 000 255 0-100%
52 Dimmer 6 000 255 0-100%
53 Red 6 (Cyan) 000 255 0-100%
54 Green 6 (Magenta) 000 255 0-100%
55 Blue 6 (Yellow) 000 255 0-100%
56 White 6 000 255 0-100%
57 Dimmer 7 000 255 0-100%
58 Red 7 (Cyan) 000 255 0-100%
59 Green 7 (Magenta) 000 255 0-100%
60 Blue 7 (Yellow) 000 255 0-100%
61 White 7 000 255 0-100%
62 Dimmer 8 000 255 0-100%
63 Red 8 (Cyan) 000 255 0-100%
64 Green 8 (Magenta) 000 255 0-100%
65 Blue 8 (Yellow) 000 255 0-100%
66 White 8 000 255 0-100%
67 Dimmer 9 000 255 0-100%
68 Red 9 (Cyan) 000 255 0-100%
69 Green 9 (Magenta) 000 255 0-100%
70 Blue 9 (Yellow) 000 255 0-100%
71 White 9 000 255 0-100%
62 Channel Function Value Percent/Setting
1Pan000 255 0-100%
2FinePan000 255 Fine control (16-bit)
3 Tilt 000 255 0-100%
4 Fine Tilt 000 255 Fine control (16-bit)
5 Pan/Tilt Speed 000 255 0-100%
6 Dimmer 000 255 0-100%
7 Fine Dimmer 000 255 Fine control (16-bit)
8 Shutter
000 019
020 024
025 064
065 069
070 084
085 089
090 104
105 109
110 124
125 129
130 144
145 149
150 164
165 169
170 184
185 189
190 204
205 209
210 224
225 229
230 244
245 255
off
on
strobe 1 with decreasing speed
on
strobe 2 (fast on slow off) with decreasing speed
on
strobe 3 (slow on fast off) with decreasing speed
on
strobe 4 (random strobe) with decreasing speed
on
strobe 5 (random fast on slow off) with decreasing speed
on
strobe 6 (random slow on fast off) with decreasing speed
on
strobe 7 (pulse strobe) with decreasing speed
on
strobe 8 (random pulse strobe) with decreasing speed
on
strobe 9 (fade on or off) with decreasing speed
on
strobe 10 (pulse strobe) with decreasing speed
on
71 Channel Function Value Percent/Setting

19
EN
QUICK REFERENCE GUIDE
Rogue R3 Wash QRG Rev. 3
9CTC000
001 255 No function
2800 to 10,000K
10 Color
000
001 002
003 004
005 006
007 008
009 010
11
012 048
049
050 086
087
088 124
125
126 162
163
164 200
201
202 238
239
240 247
248 255
No function
2700K R:156 G: 118 B: 0 W: 63
3200K R:156 G: 141 B: 5 W: 89
4200K R:156 G: 141 B: 14 W: 255
5600K R:156 G: 207 B: 54 W: 255
8000K R:130 G: 255 B: 96 W: 255
Blue R: 0 G: 0 B: 255 W: 0
R: 0 G: + B: 255 W: 0
Cyan R: 0 G: 255 B: 255 W: 0
R: 0 G: 255 B: - W: 0
Green R: 0 G: 255 B: 0 W: 0
R: + G: 255 B: 0 W: 0
Yellow R: 255 G: 255 B: 0 W: 0
R: 255 G: - B: 0 W: 0
Red R: 255 G: 0 B: 0 W: 0
R: 255 G: 0 B: + W: 0
Magenta R: 255 G: 0 B: 255 W: 0
R: - G: 0 B: 255 W: 0
Blue R: 0 G: 0 B: 255 W: 0
Color change, fast to slow
Color jump, fast to slow
11 Gobo
000 003
004 006
007 009
010 012
013 015
016 018
019 021
022 024
025 027
028 030
031 033
034 036
037 039
040 042
043 045
046 048
049 051
052 054
055 057
058 060
061 063
064 066
067 069
070 072
073 075
076 078
079 081
082 084
085 087
088 090
091 093
094 096
097 099
100 102
103 105
106 108
109 111
112 114
115 117
118 120
121 123
No function
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 8
Gobo 9
No Gobo
Gobo 10
Gobo 11
Gobo 12
Gobo 13
Gobo 14
Gobo 15
Gobo 16
Gobo 17
Gobo 18
Gobo 19
Gobo 20
Gobo 21
Gobo 22
Gobo 23
Gobo 24
Gobo 25
Gobo 26
Gobo 27
Gobo 28
Gobo 29
Gobo 30
Gobo 31
Gobo 32
Gobo 33
Gobo 34
Gobo 35
Gobo 36
Gobo 37
Gobo 38
Gobo 39
62 Channel Function Value Percent/Setting
