Rohde & Schwarz ZZA-GE23 User manual

R&S®ZZA-GE23
19 Inch Rack Adapter 2HU
Assembly Instruction, English
Assembly Instruction, English
Version 01
5601565502
(Æ1ÆÅ2)

The assembly instruction describes the installation of instruments in a 19 inch rack using the R&S ZZA-
GE23 Rack Adapter 2HU (order no. 5601.4059.02).
The following instruments are supported:
●R&S®NGP802 Two-channel 32V/20A Power Supply 400 W (5601.4007.05)
●R&S®NGP822 Two-channel 64V/10A Power Supply 400 W (5601.4007.06)
●R&S®NGP804 Four-channel 32V/20A Power Supply 800 W (5601.4007.02)
●R&S®NGP824 Four-channel 64V/10A Power Supply 800 W (5601.4007.03)
●R&S®NGP814 Four-channel 32V/20A & 64V/10A Power Supply 800 W (5601.4007.04)
© 2019 Rohde & Schwarz GmbH & Co. KG
Mühldorfstr. 15, 81671 München, Germany
Phone: [phone] - 0
Fax: [phone]
Email: [email protected]
Internet: www.rohde-schwarz.com
Subject to change – Data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
Throughout this manual products from Rohde & Schwarz are indicated without the ® symbol, e.g. R&S®ZZA-GE23 is indicated as
R&S ZZA-GE23.

1171.1307.42 - 05
1
Safety Instructions
Instrucciones de seguridad
Sicherheitshinweise
Consignes de sécurité
Risk of injury and instrument damage
The instrument must be used in an appropriate manner to prevent
electric shock, fire,
personal injury or instrument damage.
●
Do not open the instrument casing.
●
Read and observe the "Basic Safety Instructions" delivered as
printed brochure with the instrument.
●
Read and observe the safety instructions in the following sections.
Note that the data sheet may specify additional operating conditions.
●
Keep the "Basic Safety Instructions" and the product documentation
in a safe place and pass them on to the subsequent users.
Riesgo de lesiones y daños en el instrumento
El instrumento se debe usar de manera adecuada para p
revenir
descargas eléctricas, incendios, lesiones o daños materiales.
●
No abrir la carcasa del instrumento.
●
Lea y cumpla las "Instrucciones de seguridad elementales"
suministradas con el instrumento como folleto impreso.
●
Lea y cumpla las instrucciones de seguridad incluidas en las
siguientes secciones. Se debe tener en cuenta que las
especificaciones técnicas pueden contener condiciones adicionales
para su uso.
●
Guarde bien las instrucciones de seguridad elementales, así como
la documentación del producto, y entréguelas a usuarios
posteriores.

1171.1307.42 - 05
2
Gefahr von Verletzungen und Schäden am Gerät
Betreiben Sie das Gerät immer ordnungsgemäß, um elektrischen
Schlag, Brand, Verletzungen von Personen oder Geräteschäden zu
verhindern.
●
Öffnen Sie das Gerätegehäuse nicht.
●
Lesen und beachten Sie die "Grundlegenden Sicherheitshinweise",
die als gedruckte Broschüre dem Gerät beiliegen.
●
Lesen und beachten Sie die Sicherheitshinweise in den folgenden
Abschnitten; möglicherweise enthält das Datenblatt weitere
Hinweise zu speziellen Betriebsbedingungen.
●
Bewahren Sie die "Grundlegenden Sicherheitshinweise" und die
Produktdokumentation gut auf und geben Sie diese an weitere
Benutzer des Produkts weiter.
Risque de blessures et d'endommagement de l'appareil
L'ap
pareil doit être utilisé conformément aux prescriptions afin d'éviter
les électrocutions, incendies, dommages corporels et matériels.
●
N'ouvrez pas le boîtier de l'appareil.
●
Lisez et respectez les "consignes de sécurité fondamentales"
fournies avec l’appareil sous forme de brochure imprimée.
●
Lisez et respectez les instructions de sécurité dans les sections
suivantes. Il ne faut pas oublier que la fiche technique peut indiquer
des conditions d’exploitation supplémentaires.
●
Gardez les consignes de sécurité fondamentales et la
documentation produit dans un lieu sûr et transmettez ces
documents aux autres utilisateurs.

1171.0200.22-07.01
Customer Support
Technical support –where and when you need it
For quick, expert help with any Rohde & Schwarz product, contact our customer support center. A team
of highly qualified engineers provides support and works with you to find a solution to your query on any
aspect of the operation, programming or applications of Rohde & Schwarz products.
Contact information
Contact our customer support center at www.rohde-schwarz.com/support, or follow this QR code:
QR code to the Rohde & Schwarz support page

Description
R&S®ZZA-GE23
3Assembly Instruction, English 5601.5655.02 ─ 01
1 Description
The R&S ZZA-GE23 Rack Adapter 2HU is designed for installing units of the suppor-
ted instruments in 19 inch systems. The dimensions of the rackmount kits are designed
according to the 19 inch standard DIN 60297-3-101.
For the installation of the racks in 19 inch cabinets, rails must be used.
The R&S ZZA-GE23 Rack Adapter 2HU is supplied without front handles. However, it
can be retrofitted at any time with handles. Thus, you can define the look of the han-
dles individually according to your wishes. You can use all standard handle bars with
55 mm spacing and M4 thread. The outer dimensions should not exceed 65 mm. For
the assembly of the handles, use M4x10 countersunk screws.
Suitable examples:
●Ganter handle GN 425.6-8-55-EL (available from Ganter)
●Rohde & Schwarz handle series ST, ST 08.055.22 (available from
Rohde & Schwarz, Ettinger, .....)
All necessary screws for mounting are included.
Shipping of instruments built in to the rack is not permitted.

Prepare the Unit for Installation
R&S®ZZA-GE23
4Assembly Instruction, English 5601.5655.02 ─ 01
2 Prepare the Unit for Installation
Before the instrument can be installed in the rack, the following are required:
●Remove the appliance feet on the instrument
●Dismantle the upper and lower covers from the rear bracket
Remove appliance feet.
1. Remove the screws on the bottom.
2. Remove the feet.
Dismantle the rack adapter.
1. Loosen the screws on the rack adapter.

Prepare the Unit for Installation
R&S®ZZA-GE23
5Assembly Instruction, English 5601.5655.02 ─ 01
2
3
1
2

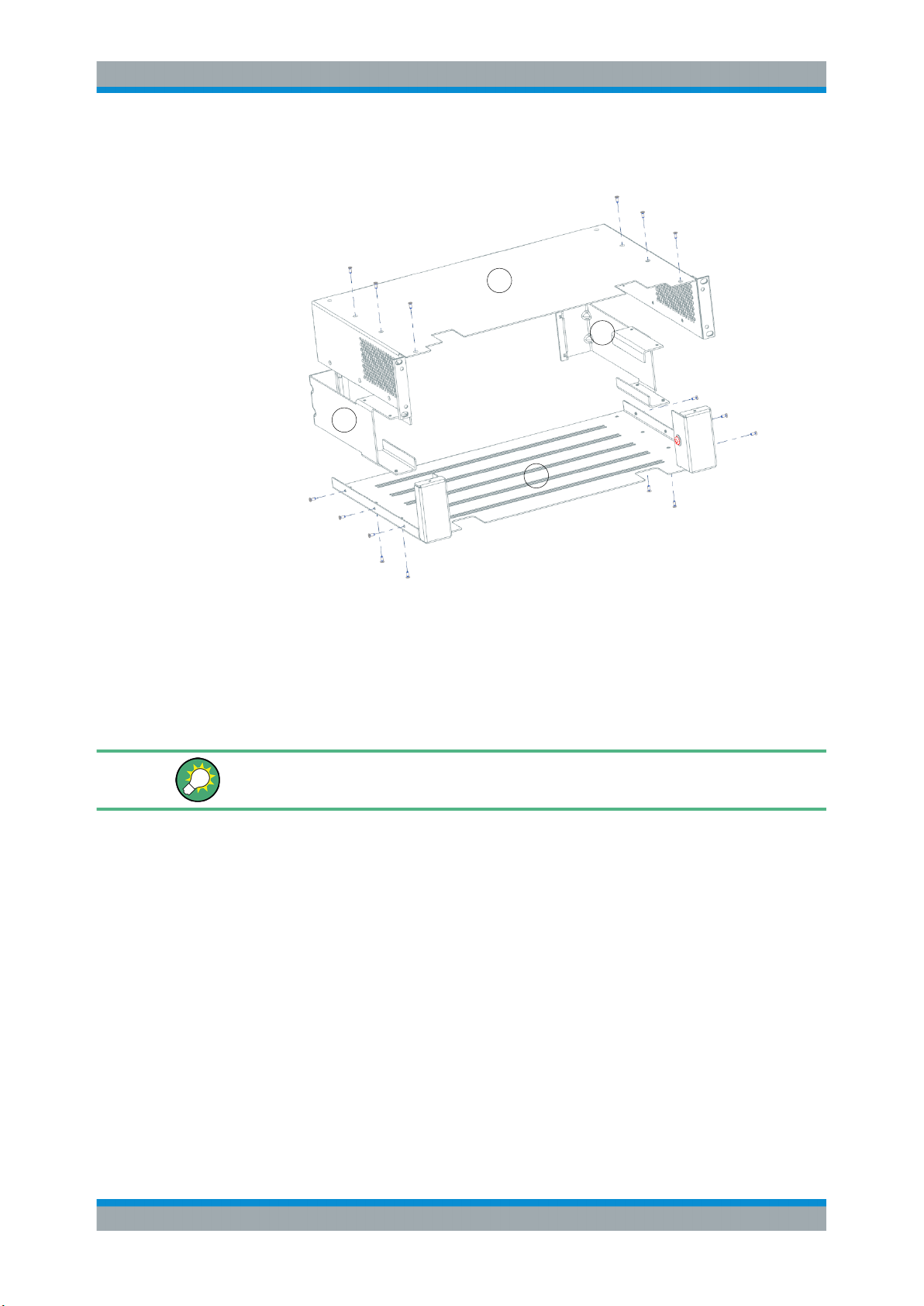

1 = R&S ZZA-GE23 subrack, upper cover
2 = R&S ZZA-GE23 subrack, rear bracket
3 = R&S ZZA-GE23 subrack, lower cover
2. Dismantle the upper and lower covers from the rear bracket.
Keep feet with screws well, if the instrument is to be operated again as a tabletop unit.

Install the Unit in the 19 Inch Rack
R&S®ZZA-GE23
6Assembly Instruction, English 5601.5655.02 ─ 01
3 Install the Unit in the 19 Inch Rack
Risk of instrument damage due to insufficient airflow in a rack
If the instrument is run with insufficient airflow for a longer period, the instrument over-
heats, which can disturb the operation or cause the instrument to shut down.
To avoid overheating, make sure that the air can circulate through the instruments.
Reserve enough space on the outsides (at least 10 cm) to ensure sufficient cooling.
To install the instrument:

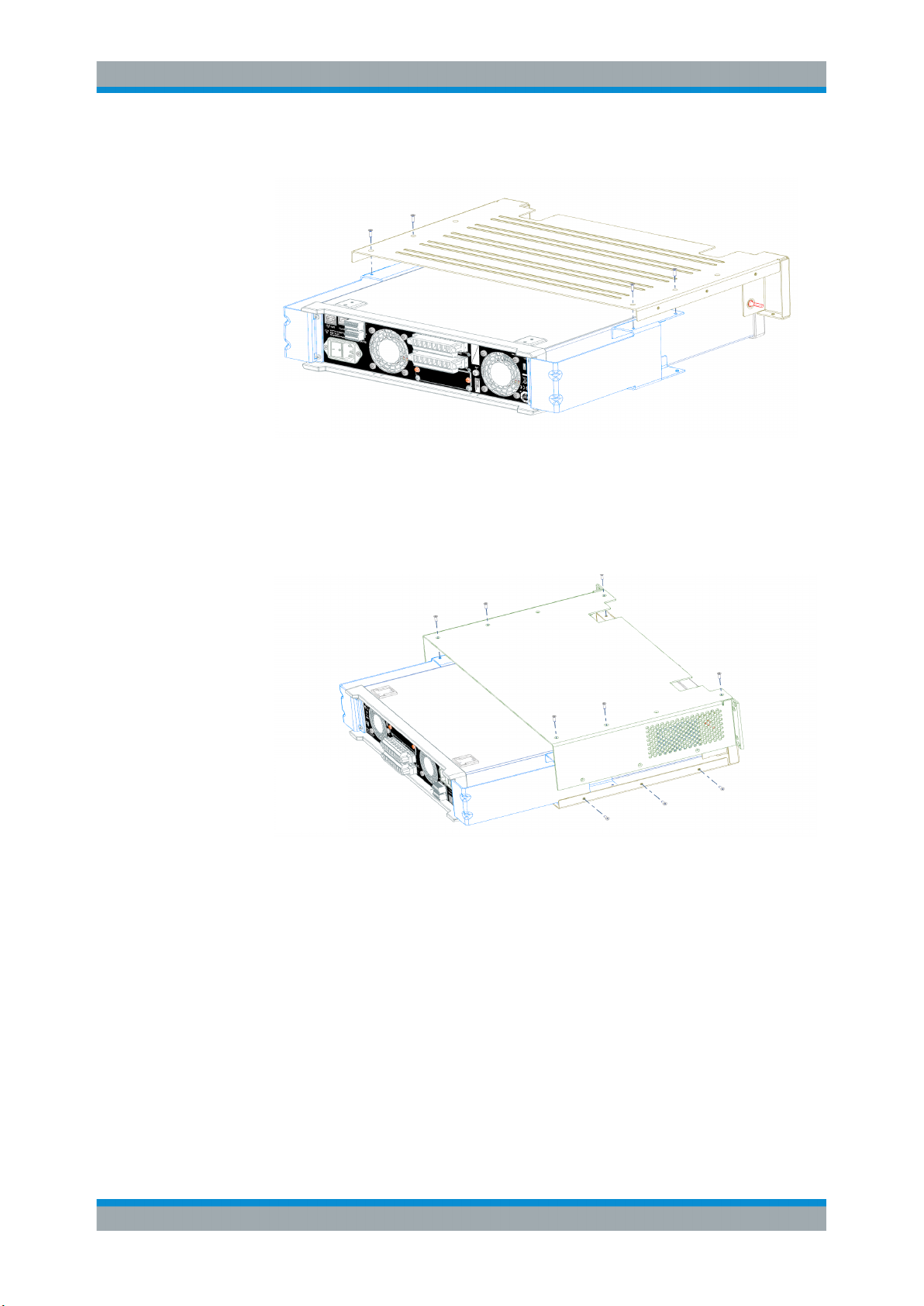

1. Place the instrument with the bottom feet position facing up.
2. Loosen the four screws at the rear panel partially and slide the two rear brackets
over the screws position.
3. Tighten the four screws back partially so that mounting of the lower cover can be
adjusted for step 5.
4. Mount the lower cover over the two rear brackets and tighten the four screws on
the lower cover.
5. Tighten the four screws back at the two rear brackets.

Install the Unit in the 19 Inch Rack
R&S®ZZA-GE23
7Assembly Instruction, English 5601.5655.02 ─ 01
6. Place the instrument with the bottom feet position facing down.
7. Mount the upper cover over the instrument and tighten the six screws on both top
and side of the upper cover.
