INSTRUCTION MANUAL
E

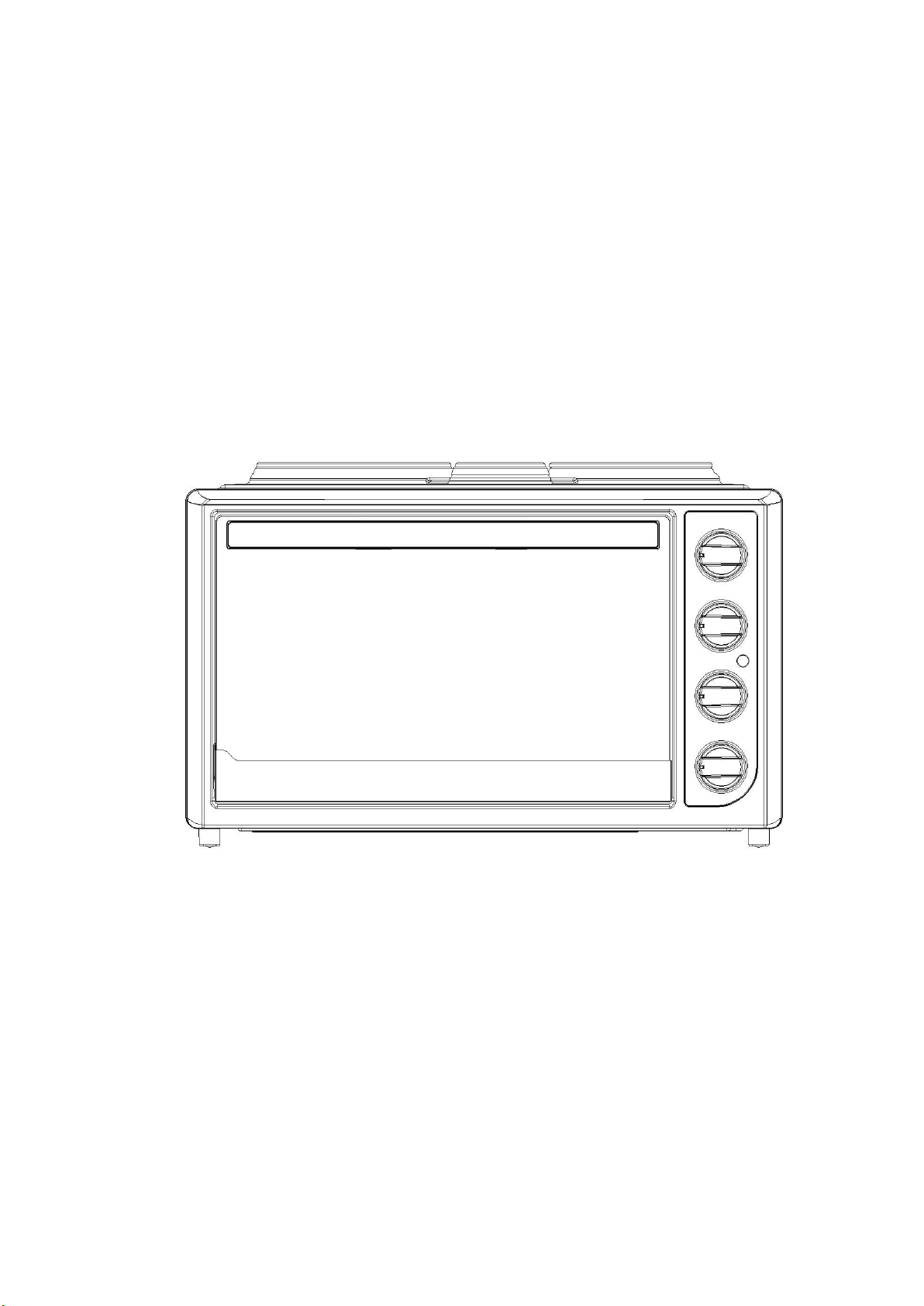

El le ec ct tr ri ic c O Ov ve en n
Model No.: R-2148/R-2148B
Please read the manual carefully before
HOUSEHOLD AND INDOOR USE ONLY

IMPORTANT SAFEGUARDS
When using electric appliances, basic safety precautions should always be followed including the
following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handle or knobs.
3. Close supervision is necessary when any appliance is used by or near children.
4. To protect against electric shock, do not immerse cord, plug, or any parts of the oven in water or other
liquids.
5. Do not let cord hang over edge of table or counter, or touch hot surfaces.
6. Do not operate appliance with damaged cord or plug or after the appliance malfunctions, or has been
damaged in any manner, return the appliance to the nearest Authorized Service Center for
examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause
hazard or injury.
8. Do not place on or near a hot gas or electric burner, or in a heated oven, or in a microwave oven.
9. When operating the oven, keep at least 12 cm of space on all sides of the oven to allow for adequate
air circulation.
10. Unplug from outlet when not in use, or before cleaning. Let it to cool down before putting on or taking
off parts, or before cleaning.
11. Do not cover any part of the oven with metal foil. This may cause overheating of the oven.
12. Extreme caution should be exercised when removing tray or disposing of hot grease or other hot
liquids.
13. Do not clean the oven with metal scouring pads. Metal chippings would touch electrical parts, and
endanger a risk of electric shock.
14. A fire may occur if the oven is covered by or placed near the flammable material, including curtains,
draperies, walls, and the like, when in operation. Do not store any item on the oven during operation.
15. Extreme caution should be exercised when using containers constructed if anything other than metal
or glass.
16. Do not place any of the following materials in the oven: cardboard, plastic, paper, or anything similar.
17. Do not store any materials, other than manufacturer’s recommended accessories, in this oven when
not in use.
18. To disconnect, turn any control to “off”, then remove plug from wall outlet. Always hold the plug, but
never pull the cord.
19. Always wear protective, insulated oven mitts when inserting or removing items from the hot oven.
20. This appliance has a tempered, safety glass door. The glass is stronger than ordinary glass and more
resistant to breakage. Avoid scratching door surface or nicking edges. If the door glass has a scratch
or nick, contact the nearestAuthorized Service Center for examination and repair.
21. Do not use outdoors.
22. Do not use appliance for other than intended use.
23. This appliance is for HOUSEHOLD USE ONLY.
24. The accessible surfaces are liable to get hot when the appliance is operating.
25. Glass Door cannot support goods in the fully open position.
26. The appliance is not intended to be controlled by an external timer or separate remote-control system.
27. If the surface of the hotplate is cracked, switch off the appliance to avoid the possibility of electric
shock. Return appliance the nearestAuthorized Service Center for repair.

28. Caution, hot surface! The temperature of accessible surface may be high when the appliance
is operation. Do not touch hot surfaces. Use handle or knobs.
29. This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
30. Children should be supervised to ensure that they do not play with the appliance.
31. For appliance with type Y attachment, if the supply cord is damaged, it must be replaced by the
manufacturer, its services agent or similarly qualified persons in order to avoid a hazard.
SAVE THESE INSTRUCTIONS
Before using your cooker for the first time, be sure to：
1. Read all instructions included in this manual.
2. Make sure oven is unplugged.
3. Remove all racks and pans. Wash the racks and pans in hot sudsy water or in dishwasher.
4. Thoroughly dry all accessories and re-assemble in oven. Plug oven into outlet and you are ready to
use your new cooker with Grill.
5. For the first time use, set the temperature knob to230 °C and set the function knob to the positi
on.Leave the oven operating for about 15 minutes with no food inside.
NOTE: The oven may smoke during cooking.This is normal for a new oven and will last no more
Than 10 to 15 minutes.
When begin to use:
1. Confirm the marked power consumption is in conformity with your household electric power.
2. Do not let cord hang over edge of table or counter to avoid that children may stumble over.
3. If the supply cord is damaged, the oven should not be used before it is repaired.
4. Oven should be sent to the manufacturer, authorized service agent or a similarly qualified person to
repair in order to avoid a hazard.
COMPONENTS:

Large Hotplate (Φ180mm): Use for cooking various casserole dishes and other desired use.
Small Hotplate (Φ145mm): Use for cooking various casserole dishes and other desired use.
Mini Hotplate (Φ90mm): Use for cooking coffee or milk.
Knob: Temperature Knob,Hotplate Function Knob
Wire Rack: For toasting, baking, and general cooking in casserole dishes and loading food tray.
Food Tray: For use in broiling and roasting various foods that contain water or will release water or oil
during cooking.
Door handle: Cool handle to avoid any scald.
Glass Door: Transparent tempered glass allows you to view the cooking process conveniently.
Food Tray Handle:Allows you to pick up Food Tray and Grill Rack to avoid any scald
CONTROL PANEL
TEMPERATURE SETTINGS
For small hot plate
For large hot plate
For oven
Temperature Knob: the temperature choice is
from 100 to 230℃. You could select desired
temperature according.
You can turn the temperature knobs clockwise to the desired
heat settings from 1 to MAX.

OVEN FUNCTION SETTING
You can turn the function knob to select the OFF, grill, lower
heating, convection or mini hotplate setting, .
Grill:
Only the top heating element will heat up.
Lower heating:
Only the bottom heating element will heat up.
Convectional:
The top and bottom heating elements will
heat up.
Mini Hotplate in function
NOTE: The oven and big and small hotplate can work at the same time.
OPERATION
Place the oven on a stable flat surface. Be sure that no other appliances are plugged
into the same circuit with the oven. Plug the oven into the mains socket. The oven
indicator light, hotplate indicator light will illuminate, when they are working.
OPERATION INSTRUCTION：
Using Your Oven:
1. Place the food on grill rack or Food tray and close the oven door.
a. Do not use any paper or plastic container.
b. Use Food tray for any food that is small in size or likely to drip while cooking.
c. Place the food evenly on the grill rack.
2. Insert the power plug into the socket.
3. When the cooking finished, please turn the function knob to “OFF” and use
accessory handle or oven mitts to remove hot food to avoid any scald.
4. Remove the power plug from the socket after cooking.

Oven cooking guide：
Grill
This setting is ideal for use when toasting bread and grilling chicken, sausage, pork chops and
bacon.
Lower heating
This setting can be used for most food cooked in the conventional function, but will take longer.
Convectional
This setting is ideal for use when cooking baked potatoes, roasting meat and vegetables, ready
meals, casseroles, stews, bread, cakes and desserts.
Using Your Hotplate
Hotplate could be used to cook various casserole dishes.
Cooking Utensils
1. Cooking gears that can be placed on top of the heater to heat food includes all utensils made of ferrite
element such as enamel, cast or stainless steel with a smooth base which diameter in 85--180mm,
have a flat bottom and are covered with lid.
2. Utensils that should not be used to heat food include that is made of aluminum or copper; and
containers with a base diameter no more than hotplate set value.
Operation Instructions
．Plug in the power socket
．Turn Function to (Large hotplate in function), (small hotplate in function) or (Large hotplate and
small hotplate in function), (mini hotplate in function).
CARE & CLEANING
ALWAYS UNPLUG OVEN AND ALLOW TO COOL BEFORE CLEANING
Your oven features a quick-clean coating. If desired, wipe walls with damp cloth. Do not use steel wool
scouring pads, abrasive cleaners or scrape walls with metal utensils as this may damage the quick-clean
interior. Wash all accessories in hot sudsy water or in a dishwasher. Wipe the door clean with a damp
cloth and wipe dry with a paper or cloth towel.
SPECIFICATION
Power Consumption: 220V-240V~ 50Hz
Note: The weight of the food which is put on the Food Tray/wire Rack can not be over 3.5kg. （just
for reference）（The food can not concentrate on one side of the Food Tray/Grill Rack, you would
better try you best to make the food put on the Food Tray/Wire Rack evenly）.

The maximum Output Power: 3100W
Big Hotplate(Φ180) Output: 1000W
Small Hotplate(Φ145) Output: 600W
Mini Hotplate(Φ90) Output: 450W
Oven Output: 1500W
Oven Capacity: 48Litres
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC
DIRECTIVE 2002/96/EC.
At the end of its working life, the product must not be disposed of as urban waste.
It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this
service.
Disposing of a household appliance separately avoids possible negative consequences for the environment
and health, deriving form inappropriate disposal and enables the constituent materials to be recovered to obtain
significant savings in energy and resources. As a reminder of the need to dispose of household appliances
separately, the product is marked with a crossed-out wheeled dustbin.
