Ronix 8922 User manual

CORDLESS LEAF BLOWER
8922

USER MANUAL 1
SPECIFICATION
Model 8922
Voltage 20V
No Load Speed 10000~15000RPM
Air Flow 11m3/min
Net. Weight 2.20kg
max blowing speed 45m/s
running time 12~15 minutes
THIS PRODUCT DOES NOT INCLUDE BATTERIES OR CHARGER
USABLE BATTERIES FOR 8922
Ronix Model No. Product
8990 20V battery pack, 2.0Ah Li-ion battery
8991 20V battery pack, 4.0Ah Li-ion battery
USABLE CHARGERS FOR 8922
Ronix Model No. Product
8992 20V fast charger, Output:22V 2.2A
8993 20V fast charger, Output:22V 4.5A
8994 20V fast charger, Output:22V 4.5A (Dual Model)

CORDLESS LEAF BLOWER
2
WARNING!
Read this manual and general safety Instructions carefully before using
the appliance, for your own safety. Your power tool should only be
passed on together with these instructions.
PART LIST
Blowing Pipe
Blower Outlet
On/Off - Switch Lock Button
GENERAL POWER TOOL SAFETY WARNINGS
Read all safety warnings and all instructions. Failure to follow all warnings
and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference. The term “power
tool” in the warnings refers to your mains operated (corded) power tool
or battery operated (cordless) power tool.
.WORK AREA
- Keep work area clean and well lit. Cluttered and dark areas
invite accidents.
- Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.

USER MANUAL 3
- Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
.ELECTRICAL SAFETY
- Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contract with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
- Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
- Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords increase the risk of
electric shock.
- When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk
of electric shock.
- If operating a power tool on a damp location is unavoidable, use a
residual current device (RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
.PERSONAL SAFETY
- Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tried
or under the influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in serious
personal injury.
- Use safety equipment. Always wear eye protection. Safety equipment
such as dust mask, non-skid safety shoes, hand hat, or hearing protection
used whenever conditions require will reduce personal injuries.
- Avoid accidental starting. Ensure the switch is in the off position before

CORDLESS LEAF BLOWER
4
plugging in.
- Carrying power tools with your finger on the switch or plugging in power
tools that have the switch on invites accidents.
- Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may
result in personal injury.
- Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
- Dress properly. Do not wear loose clothing or jeweler. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewelry or
long hair can be caught in moving parts.
- If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used. Use
of these devices can reduce dust related hazards.
POWER TOOL USE AND CARE
- Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the
rate of which it was designed.
- Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and
must be repaired.
- Disconnect the plug from the power source before making any
adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool
accidentally.
- Store idle power tool out of the reach children and do not allow persons
unfamiliar with the power tool of these instructions to operate the power
tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or sticking of moving
parts, breakage of parts and other condition that may affect the power
tool’s operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.

USER MANUAL 5
- Use the power tool, accessories and tool bits etc., in accordance with
these instructions and in the manner intended for the particular type
of power tool, taking into account the working conditions and the work
to be performed. Use of the power tool for operations different from
intended could lead to a hazardous situation.
SERVICE
Have your power tool serviced by qualified repair person using only
identical replacement parts. This will ensure that the safety of the power
tool is maintained.
SAFETY WARNINGS
CORDLESS BLOWER SAFETY INSTRUCTIONS
Save all warnings and instructions for future reference
TRAINING
1. Read the instructions carefully. Be familiar with the controls and the
correct use of the blower.
2. Never allow children, persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge or people
unfamiliar with these instructions to use the blower. Local regulations
may restrict the age of the operator.
3. Never operate the blower while people, especially children, or pets
are nearby.
4. Keep in mind that the operator or user is responsible for accidents or
hazards occurring to other people or their property.
PREPARATION
1. Always wear substantial footwear and long trousers while operating
the blower.
2. Do not wear loose clothing or jewelry that can be drawn into the air

CORDLESS LEAF BLOWER
6
inlet. Keep long hair away from the air inlets.

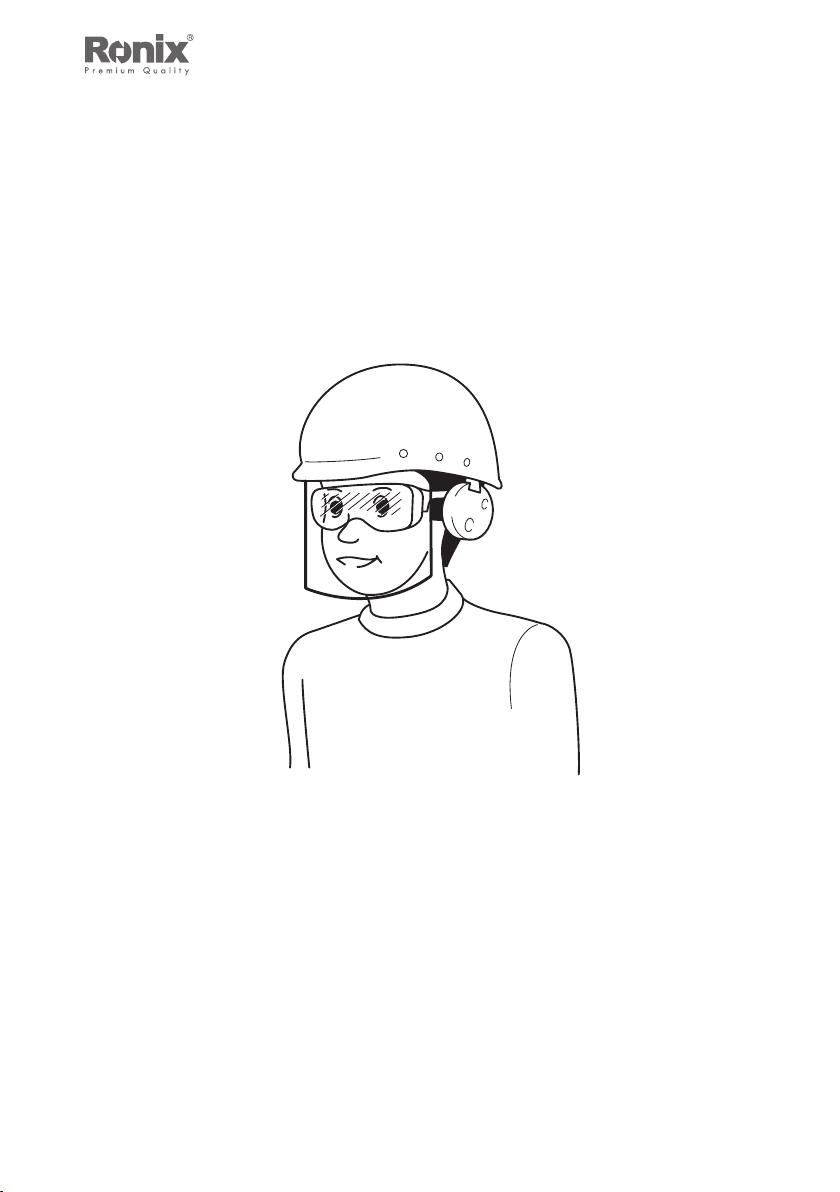

3. Always wear protective goggles to protect your eyes from injury when
using power tools. The goggles must comply with ANSI Z87.1 in the
USA, EN 166 in Europe, or AS/NZS 1336 in Australia/New Zealand.
In Australia/New Zealand, it is legally required to wear a face shield to
protect your face, too. It is an employer’s responsibility to enforce the
use of appropriate safety protective equipment by the tool operators and
by other persons in the immediate working area.
4. To prevent dust irritation the wearing of a face mask is recommended.
5. While operating the machine, always wear nonslip and protective
footwear. Non-skid, closed-toed safety boots and shoes will reduce the
risk of injury.
OPERATION
1. Switch off the blower and remove the battery cartridge and make sure
that all moving parts have come to a complete stop.
.Whenever you leave the blower.

USER MANUAL 7
.Before clearing blockages.
.Before checking, cleaning or working on the blower.
If the blower starts to vibrate abnormally.
2. Operate the blower only in daylight or in good artificial light.
3. Do not overreach and keep proper balance and footing at all times.
4. Always be sure of your footing on slopes.
5. Walk, never run.
6. Keep all cooling air inlets clear of debris.
7. Never blow debris in the direction of bystanders.
8. Operate the blower in a recommended position
9. Do not operate the blower at high places.
10. Never point the nozzle at anyone in the vicinity when using the
blower.
11. Never block suction inlet and/or blower outlet.
.Be careful not to block suction inlet or blower outlet with dust or dirt
when operating in dusty area.
.Do not use nozzles other than the nozzles provided by TMG.
.Do not use the blower to inflate balls, rubber boat or the similar.
12. Do not operate the blower near open window, etc
13. Operating the blower only at reasonable hours is recommended -
not early in the morning or late at night when people might be disturbed.
14. Using rakes and brooms to loosen debris before blowing is
recommended.
15. If the blower strikes any foreign objects or should start making any
unusual noise or vibration, immediately switch off the blower to stop it.
Remove the battery cartridge from the blower and inspect the blower
for damage before restarting and operating the blower. If the blower is
damaged, ask TMG Authorized Service Centers for repair.
16. Do not insert fingers or other objects into suction inlet or blower
outlet.
17. Prevent unintentional starting. Ensure the switch is in the off-position
before inserting battery cartridge, picking up or carrying the blower.
Carrying the blower with your finger on the switch or energizing the

CORDLESS LEAF BLOWER
8
blower that has the switch on invites accidents.
18. Never blow dangerous materials, such as nails, fragments of glass,
or blades.
19. Do not operate the blower near flammable materials. Avoid operating
the blower for a long time in low temperature environment.
MAINTENANCE AND STORAGE
1. Keep all nuts, bolts and screws tight to be sure the blower is in safe
working condition.
2. If the parts are worn or damaged, replace them with parts provided
by TMG.
3. Store the blower in a dry place out of the reach of children.
4. When you stop the blower for inspection, servicing, storage, or
changing accessory, switch off the blower and make sure that all moving
parts come to a complete stop, and remove the battery cartridge. Cool
down the blower before making any work on the blower. Maintain the
blower with care and keep it clean.
5. Always cool down the blower before storing.
6. Do not expose the blower to rain. Store the blower indoors.
7. When you lift the blower, be sure to bend your knees and be careful
not to hurt your back.
BATTERY TOOL USE AND CARE
1. Recharge only with the charger specified by the manufacturer. A
charger that is suitable for one type of battery pack may create a risk of
fire when used with another battery pack.
2. Use power tools only with specifically designated battery packs. Use
of any other battery packs may create a risk of injury and
3. When battery pack is not in use, keep it away from other metal objects,
like paper clips, coins, keys, nails, screws or other small metal objects,
that can make a connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
4. Under abusive conditions, liquid may be ejected from the battery;

USER MANUAL 9
avoid contact. If contact accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.
5. Do not use a battery pack or tool that is damaged or modified. Damaged
or modified batteries may exhibit unpredictable behavior resulting in fire,
explosion or risk of injury.
6. Do not expose a battery pack or tool to fire or excessive temperature.
Exposure to fire or temperature above 130 °C may cause explosion.
7. Follow all charging instructions and do not charge the battery pack or
tool outside the temperature range specified in the instructions. Charging
improperly or at temperatures outside the specified range may damage
the battery and increase the risk of fire.
ELECTRICAL AND BATTERY SAFETY
1. Do not dispose of the battery(ies) in a fire. The cell may explode.
Check with local codes for possible special disposal instructions.
2. Do not open or mutilate the battery(ies). Released electrolyte is
corrosive and may cause damage to the eyes or skin. It may be toxic if
swallowed.
3. Do not charge battery in rain, or in wet locations.
4. Do not charge the battery outdoors.
5. Do not handle charger, including charger plug, and charger terminals
with wet hands.
SERVICE
1. Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power
tool is maintained.
2. Never service damaged battery packs. Service of battery packs should
only be performed by the manufacturer or authorized service providers.
.IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CAR-
TRIDGE

CORDLESS LEAF BLOWER
10
1. Before using battery cartridge, read all instructions and cautionary
markings on (1) battery charger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively shorter, stop operating
immediately. It may result in a risk of overheating, possible burns and
even an explosion.
4. If electrolyte gets into your eyes, rinse them out with clear water and
seek medical attention right away. It may result in loss of your eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metal objects
such as nails, coins, etc.
(3) Do not expose battery cartridge to water or rain.
A battery short can cause a large current flow, overheating, possible
burns and even a breakdown.
6. Do not store the tool and battery cartridge in locations where the
temperature may reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if it is severely damaged
or is completely worn out. The battery cartridge can explode in a fire.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject to the Dangerous
Goods Legislation requirements. For commercial transports e.g. by
third parties, forwarding agents, special requirement on packaging and
labeling must be observed. For preparation of the item being shipped,
consulting an expert for hazardous material is required. Please also
observe possibly more detailed national regulations. Tape or mask off
open contacts and pack up the battery in such a manner that it cannot
move around in the packaging.
11. When disposing the battery cartridge, remove it from the tool and
dispose of it in a safe place. Follow your local regulations relating to
disposal of battery
12. Use the batteries only with the products specified by TMG Installing

USER MANUAL 11
the batteries to non-compliant products may result in a excessive heat,
explosion, or leak of electrolyte.
13. If the tool is not used for a long period of time, the battery must be
removed from the tool.
ASSEMBLY
.INSTALLING THE FRONT NOZZLE
1. Loosen 2 screws with the hex wrench, and then pull the screws all
the way.
1
1
1. Screw
2. Make sure that the TMG logo on the front nozzle is facing the direction
shown in the figure and then attach the front nozzle to the machine.
1
1. Front nozzle

CORDLESS LEAF BLOWER
12
3. Tighten the screws with the hex wrench.
1
1
1. Screw
OPTIONAL ACCESSORY
1. Attach the adapter pipe to the front nozzle, and then turn it clockwise
to lock it into place.
1
2
1.
Adapter pipe 2. Front nozzle
2. Attach the flat nozzle or extension nozzle to the adapter pipe, and
then turn it to lock it into place.
3
1
2

USER MANUAL 13
1. Flat nozzle 2. Extension nozzle 3. Adapter pipe
FUNCTIONAL DESCRIPTION
1. Button 2. Battery cartridge To remove the battery cartridge, slide it
from the tool while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the battery cartridge
with the groove in the housing and sli it into place. Insert it all the way
until it locks in place with a little click. If you can see the red indicator on
the upper side of the button, it is not locked completely.
.CRUISE CONTROL FUNCTION
Cruise control function allows the operator to maintain speed after turn
on the switch.
Turn the switch forward to start working and increase the speed.
I

CORDLESS LEAF BLOWER
14
OPERATION
II
Turn the switch backward to decrease the speed and stop working.
“0” = OFF
“I” = Low speed
“II” = High speed
.STORAGE
The hook hole on the bottom of the machine is convenient for hanging
the machine from a nail or screw on the wall. Store the machine in a
place out of the reach of children and not exposed to moisture or rain.
1
