Ronix 8012 User manual

CORDLESS DRIVER DRILL
8012, 8012C, 8014, 8018

USER MANUAL 3
TECHNICAL SPECIFICATION
GENERAL POWER TOOL SAFETY RULES
WARNING!
-Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in electric
shock, re and/or serious injury. -Save all warnings and
instructions for future reference. -The term «power tool» in
the warnings refers to your mains-operated (corded) power
tool or battery-operated (cordless) power tool.
.WORK AREA SAFETY
-Keep work area clean and well lit. Cluttered or dark areas
invite accidents.
-Do not operate power tools in explosive atmospheres,
such as in the presence of ammable liquids, gases or
Model 8012 8012C 8014 8018
Battery voltage 12V 12V 14.4V 18V
Max. torque 21Nm 21Nm 26Nm 30Nm
Net weight 1Kg 1Kg 1.2Kg 1.3Kg
Torque setting 21+1 step 21+1step 21+1step 21+1step
Chuck size 10mm
No load speed 0-400/0-1350RPM
Battery capacity 1.5Ah
Charge time 1Hr30

CORDLESS DRIVER DRILL
4
dust. Power tools create sparks which may ignite the dust
or fumes.
-Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
.ECTRICAL SAFETY
-Power tool plugs must match the outlet. Never modify the
plug in any way. Do not use any adapter plugs with earthed
(grounded) power tools. Unmodied plugs and matching
outlets will reduce risk of electric shock.
-Avoid body contact with earthed or grounded surfaces
such as pipes, radiators, ranges and refrigerators. There is
an increased risk of electric shock if your body is earthed
or grounded.
-Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
-Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away from
heat, oil, sharp edges or moving parts. Damaged or entan-
gled cords increase the risk of electric shock.
-When operating a power tool outdoors, use an extension
cord suitable for outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric shock.
-If operating a power tool in a damp location is unavoid-
able, use a ground fault circuit. Interrupter (GFCI) protect-
ed supply. Use of a GFCI reduces the risk of electric shock.

USER MANUAL 5
.PERSONAL SAFETY
-Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a power
tool while you are tired or under the inuence of drugs,
alcohol or medication. A moment of inattention while op-
erating power tools may result in serious personal injury.
-Use personal protective equipment. Always wear eye pro-
tection. Protective equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection used for ap-
propriate conditions will reduce personal injuries.
-Prevent unintentional starting. Ensure the switch is in the
off-position before connecting to power source and/ or bat-
tery pack, picking up or carrying the tool. Carrying power
tools with your nger on the switch or energizing power
tools that have the switch on invites accidents.
-Remove any adjusting key or wrench before turning the
power tool on. A wrench or a key left attached to a rotating
part of the power tool may result in personal injury.
-Do not overreach. Keep proper footing and balance at all
times. This enables better control of the power tool in un-
expected situations.
-Dress properly. Do not wear loose clothing or jewelry.
Keep your hair, clothing, and gloves away from moving
parts. Loose clothes, jewelry or long hair can be caught in
moving parts.
-If devices are provided for the connection of dust extraction
and collection facilities, ensure these are connected and
properly used. Use of dust collection can reduce dust-re-
lated hazards.

CORDLESS DRIVER DRILL
6
.POWERTOOL USE AND CARE
-Do not force the power tool. Use the correct power tool for
your application. The correct power tool will do the job better
and safer at the rate for which it was designed.
-Do not use the power tool if the switch does not turn it on and
off. Any power tool that cannot be controlled with the switch is
dangerous and must be repaired.
-Disconnect the plug from the power source and/or the bat-
tery pack from the power tool before making any adjustments,
changing accessories, or storing power tools. Such preven-
tive safety measures reduce the risk of starting the power tool
accidentally.
-Store idle power tools out of the reach of children and do not
allow persons unfamiliar with the power tool or these instruc-
tions to operate the power tool. Power tools are dangerous in
the hands of untrained users.
-Maintain power tools. Check for misalignment or binding of
moving parts, breakage of parts and any other condition that
may affect the power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents are caused
by poorly maintained power tools.
-Keep cutting tools sharp and clean. Properly maintained cut-
ting tools with sharp cutting edges are less likely to bind and
are easier to control.
-Use the power tool, accessories and tool bits etc. in accor-
dance with these instructions, taking into account the working
conditions and the work to be performed. Use of the power
tool for operations different from those intended could result
in a hazardous situation.

USER MANUAL 7
.BATTERY USE AND CARE
-Recharge only with the charger specied by the manufac-
turer. A charger that is suitable for one type of battery pack
may create a risk of re when used with another battery
pack.
-Use power tools only with specically designated battery
packs. Use of any other battery packs may create a risk of
injury and re.
-When battery pack is not in use, keep it away from other
metal objects, like paper clips, coins, keys, nails, screws or
other small metal objects that can make a connection from
one terminal to another. Shorting the battery terminals to-
gether may cause burns or a re.
-Under abusive conditions, liquid may be ejected from the
battery; avoid contact. If contact accidentally occurs, ush
with water. If liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery may cause irritation or
burns.
.SERVICE
-Have your power tool serviced by a qualied repair person
using only identical replacement parts. This will ensure that
the safety of the power tool is maintained.
-Follow instruction for lubricating and changing accessories.
-Keep handles dry, clean and free from oil and grease.

CORDLESS DRIVER DRILL
8
CORDLESS DRILL/SCREW DRIVER SAFETY
WARNING!
-Hold power tool by insulated gripping surfaces, when per-
forming an operation where the fastener may contact hidden
wiring or its own cord. Fasteners contacting a «live» wire may
make exposed metal parts of the power tool live and could
give the operator an electric shock.
-Always be sure you have a rm footing. Be sure no one
is below when using the tool in high locations.
-Hold the tool rmly.
-Keep hands away from rotating parts.
-Do not leave the tool running. Operate the tool only
when hand-held.
-Do not touch the drill bit or the work piece immediately
after operation; they may be extremely hot and could
burn your skin.
-Some material contains chemicals which may be toxic.
Take caution to prevent dust inhalation and skin contact.
Follow material supplier safety data.
WARNING! WORKING ENVIRONMENT
Do not let comfort or familiarity with product (gained from
repeated use) replace strict adherence to safety rules for
the subject product. Misuse or failure to follow the safety
rules stated in this instruction manual may cause serious
personal injury.

USER MANUAL 9
IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY
CARTRIDGE
-Before using battery cartridge, read all instructions and
cautionary markings on (1) battery charger, (2) battery,
and (3) product using battery.
-Do not disassemble battery cartridge.
-If operating time has become excessively shorter, stop op-
erating immediately. It may result in a risk of overheating,
possible burns and even an explosion.
-If electrolyte gets into your eyes, rinse them out with clear
water and seek medical attention right away. It may result
in loss of your eyesight.
.DO NOT SHORT THE BATTERY CARTRIDGE
-Do not touch the terminals with any conductive material.
-Avoid storing battery cartridge in a container with other
metal objects such as nails, coins, etc.
-Do not expose battery cartridge to water or rain. A battery
short can cause a large current ow, overheating, possible
burns and even a breakdown.
-Do not store the tool and battery cartridge in locations
where the temperature may reach or exceed 50° C (122°F).
-Do not incinerate the battery cartridge even if it is severely
damaged or is completely worn out. The battery cartridge
can explode in a re.
-Be careful not to drop or strike battery.
-Do not use a damaged battery.

CORDLESS DRIVER DRILL
10
TIPS FOR MAINTAINING MAXIMUM BATTERY LIFE
-Charge the battery cartridge before completely discharged.
Always stop tool operation and charge the battery cartridge
when you notice less tool power.
-Never recharge a fully charged battery cartridge. Over-
charging shortens the battery service life.
-Charge the battery cartridge with room temperature at
10°C - 40°C (50°F - 104°F). Let a hot battery cartridge
cool down before charging it.
LIGHTING UP THE FRONT LAMP
CAUTION:
Do not look in the light or see the source of light directly.
Pull the switch trigger to light up the lamp. The lamp keeps
on lighting while the switch trigger is being pulled.
NOTE:
Use a dry cloth to wipe the dirt off the lens of lamp. Be

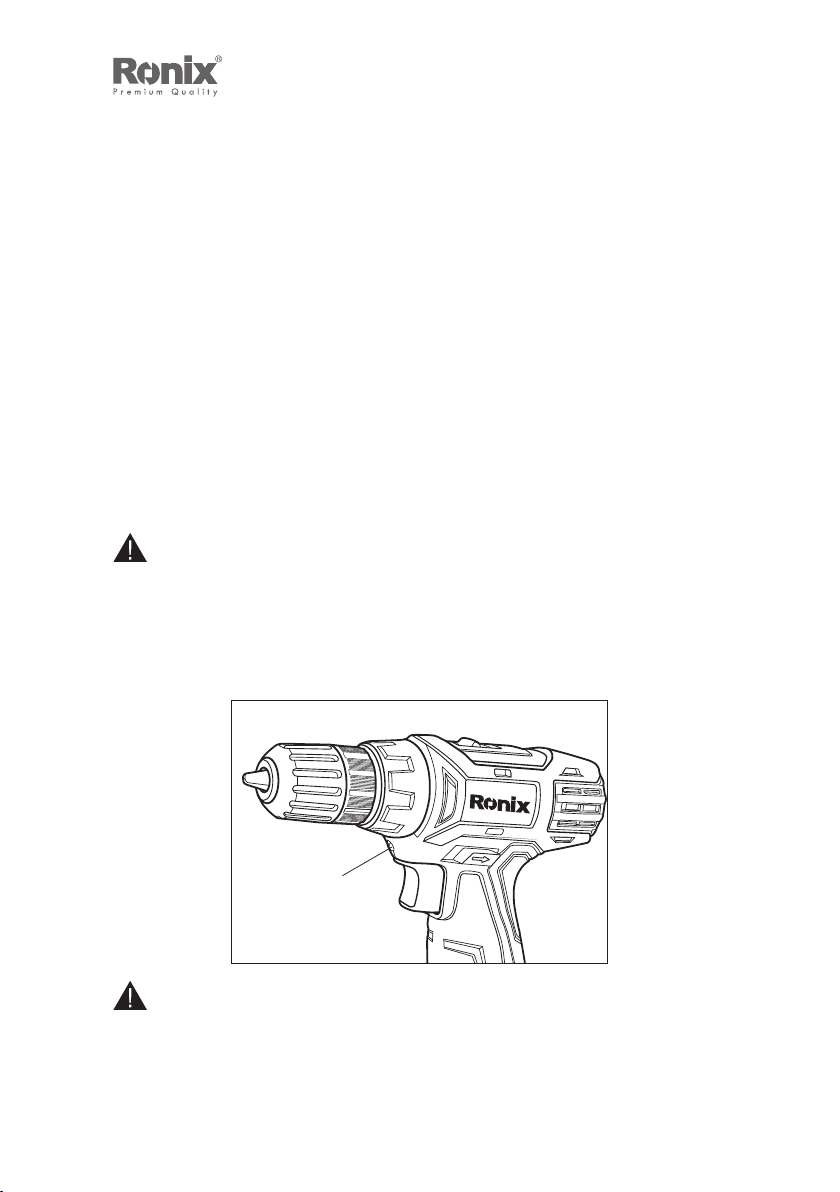

Lamp
1

USER MANUAL 11
careful not to scratch the lens of lamp, or it may lower the
illumination.
REVERSING SWITCH ACTION

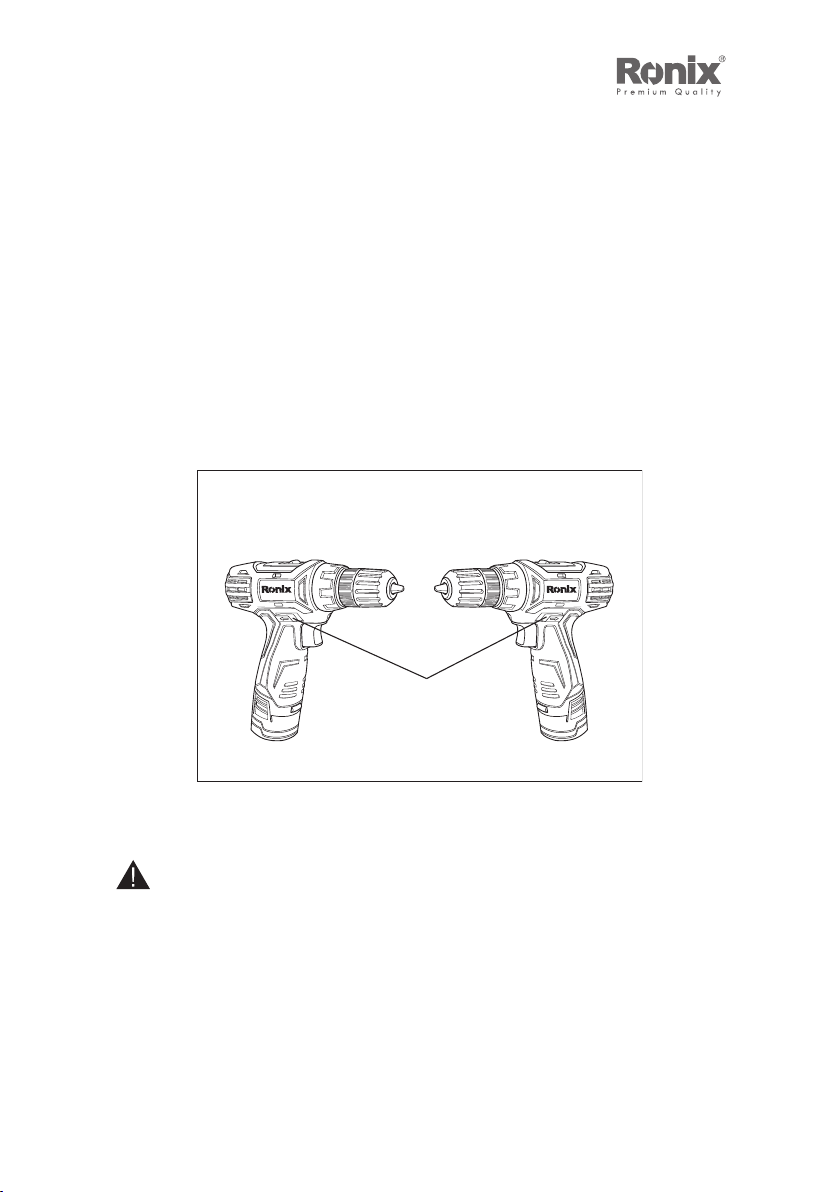

This tool has a reversing switch to change the direction
of rotation. Depress the reversing switch lever from the A
side for clockwise rotation or from the B side for counter-
clockwise rotation. When the reversing switch lever is in
the neutral position, the switch trigger cannot be pulled.
FUNCTIONAL DESCRIPTION
CAUTION:
Always be sure that the tool is switched off and the battery
cartridge is removed before adjusting or checking function
on the tool.
1
Reversing switch lever
A B

CORDLESS DRIVER DRILL
12
INSTALLING OR REMOVING BATTERY CARTIRDGE

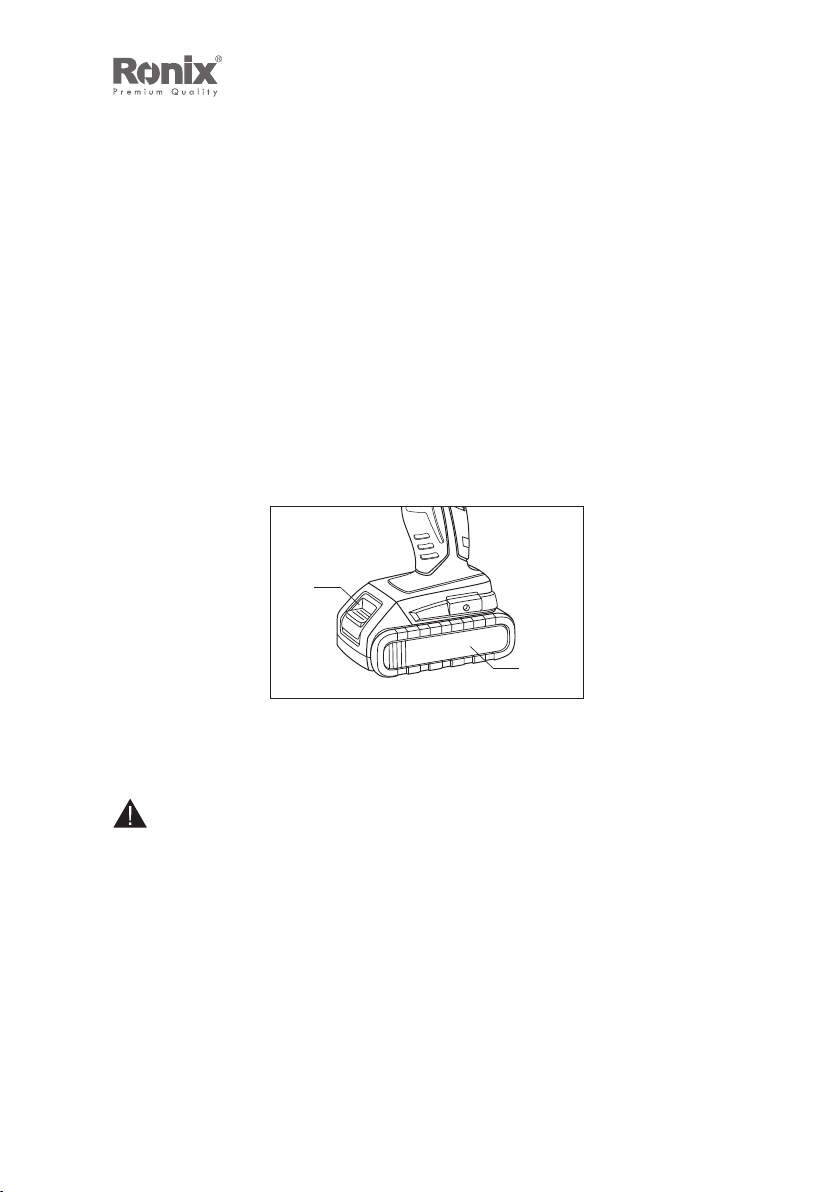

-To remove the battery cartridge, withdraw it from the tool
while sliding the button on the front of the cartridge.
-To insert the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip it
into place. Always insert it all the way until it locks in place
with a little click.
-Do not use force when inserting the battery cartridge. If
the cartridge does not slide in easily, it is not being inserted
correctly.
INSTALLING OR REMOVING BATTERY
SWITCH ACTION
A CAUTION:
-Before inserting the battery cartridge into the tool, always
check to see that the switch trigger actuates properly and
returns to the «OFF» position when released.
-Always check the direction of rotation before operation.
-Use the reversing switch only after the tool comes to a
complete stop. Changing the direction of rotation before
the tool stops may damage the tool.
Battery cartridge
Button
2
1

USER MANUAL 13
-When not operating the tool, always set the reversing switch
lever to the neutral position.
SPEED CHANGEA
To change the speed, rst switch off the tool and then slide
the speed change lever to the «H» side for high speed or
«L» side for low speed. Be sure that the speed change lever
is set to the correct position before operation. Use the right
speed for your job.
CAUTION:
-Always set the speed change lever fully to the correct po-
sition. If you operate the tool with the speed change lever
positioned halfway between the «L» side and «H» side,
the tool may be damaged.
-Do not use the speed change lever while the tool is run-
ning. The tool may be damaged.

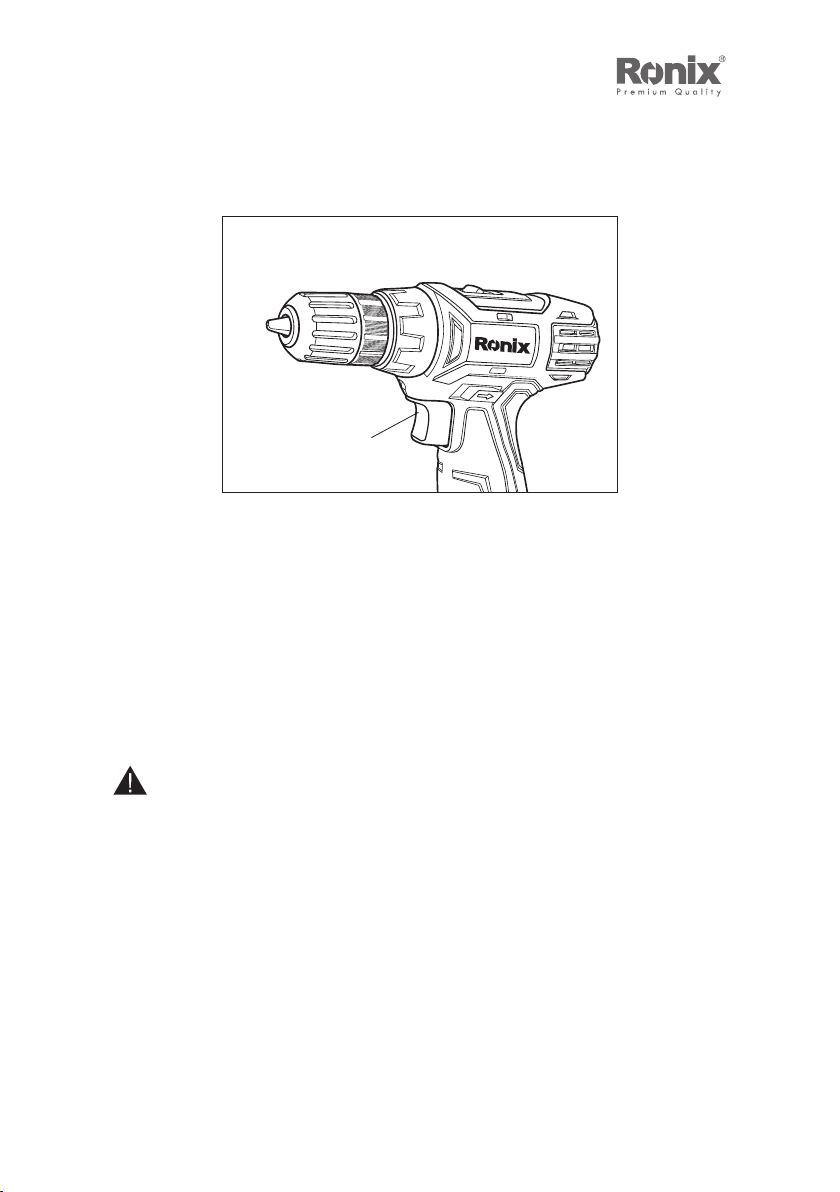

Switch trigger 1

CORDLESS DRIVER DRILL
14
ADJUSTING THE FASTENING TORQUE
The fastening torque can be adjusted in 18 steps by turning
the adjusting ring so that its graduations are aligned with the
pointer on the tool body. The fastening torque is minimum
when the number 1 is aligned with the pointer and maximum
when the marking is aligned with the pointer.
Before actual operation, drive a trial screw into your material
or a piece of duplicate material to determine which torque
level is required for a particular application.
H
L
1
H
L
Speed change lever
2
3
1Adjusting ring
Graduations
Pointer

USER MANUAL 15
ADJUSTING THE FASTENING TORQUE ASSEMBLY
CAUTION:
Always be sure that the tool is switched off and the battery
cartridge is removed before carrying out any work on the
tool.

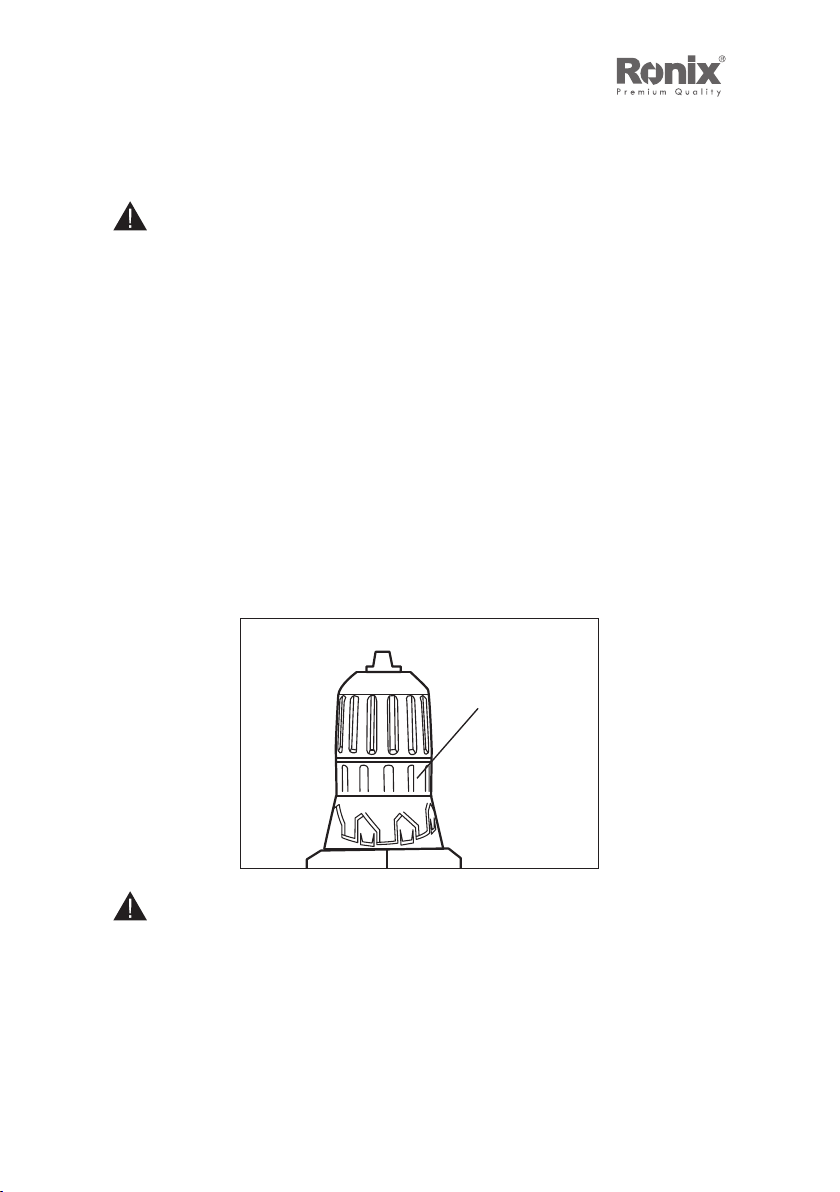

INSTALLING OR REMOVING DRIVER BIT OR DRILL
BIT
Turn the sleeve counter clockwise to open the chuck jaws.
Place the bit in the chuck as far as it will go. Turn the sleeve
clockwise to tighten the chuck. To remove the bit, turn the
sleeve counterclockwise.
NOTE:
When driving wood screws, predrill pilot holes to make
driving easier and to prevent splitting of the work piece.
See the chart.
1Sleeve

CORDLESS DRIVER DRILL
16
OPERATION
CAUTION:
Always insert the battery cartridge all the way until it locks in
place. If not, it may accidentally fall out of the tool, causing
injury to you or someone around you. Hold the tool rmly
with one hand on the grip and the other hand on the bottom
of the battery cartridge to control the twisting action.

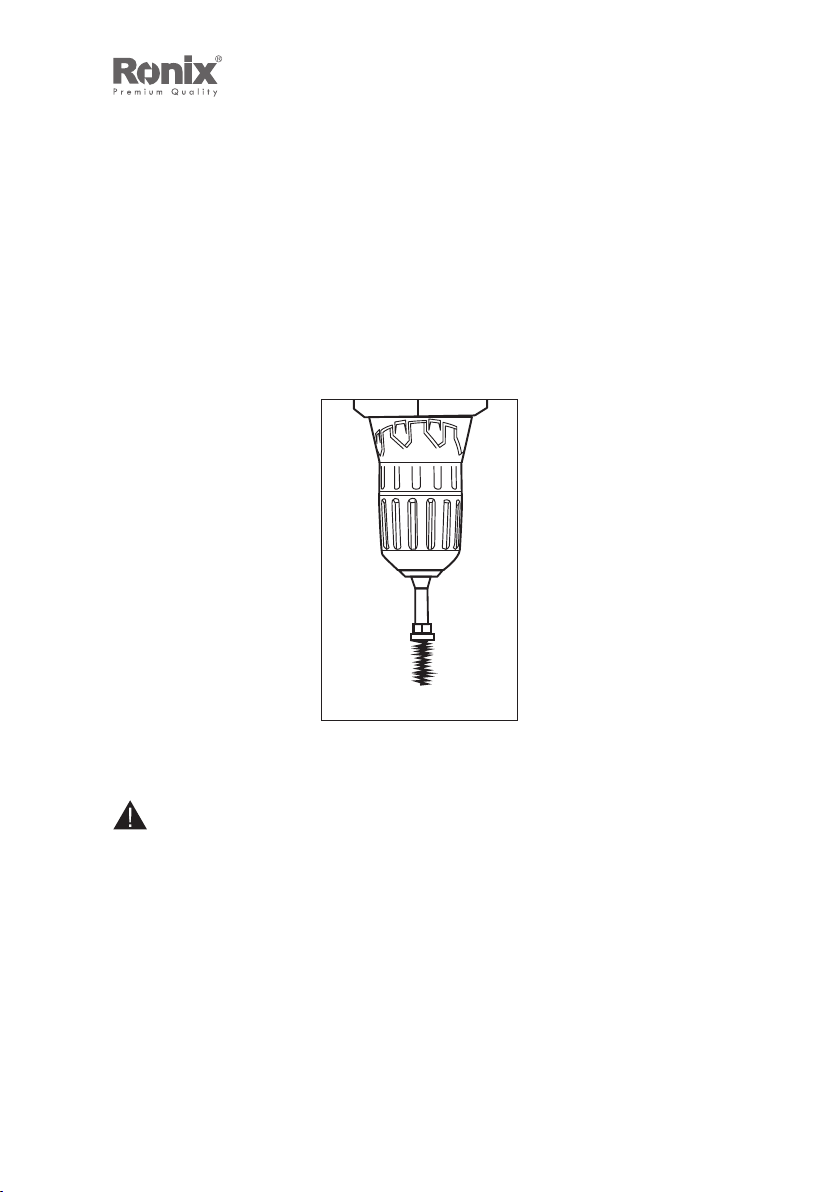

.DRILLING OPERATION
First, turn the adjusting ring so that the pointer points to the
marking. Then proceed as follows. When drilling in wood,
the best results are obtained with wood drills equipped
with a guide screw. The guide screw makes drilling easier
by pulling the bit into the work piece.
To prevent the bit from slipping when starting a hole, make
Nominal diameter of wood screw
(mm)
Recommended size of pilot hole
(mm)
3.1
3.5
2.0-2.2
2.2-2.5
3.8 2.5-2.8
4.5 2.9-3.2
4.8 3.1-3.4
5.1 3.3-3.6
5.5 3.7-3.9
5.8 4.0-4.2
6.1 4.2-4.4

USER MANUAL 17
an indentation with a center-punch and hammer at the
point to be drilled. Place the point of the bit in the indenta-
tion and start drilling. Use a cutting lubricant when drilling
metals.The exceptions are iron and brass which should be
drilled dry.
CAUTION:
Pressing excessively on the tool will not speed up the drill-
ing. In fact, this excessive pressure will only serve to dam-
age the tip of your bit, decrease the tool performance and
shorten the service life of the tool.
.SCREW DRIVING OPERATION
CAUTION:
Adjust the adjusting ring to the proper torque level for your
work. Place the point of the driver bit in the screw head and
apply pressure to the tool. Start the tool slowly and then
increase the speed gradually. Release the switch trigger
as soon as the clutch cuts in.
CAUTION:
-Make sure that the driver bit is inserted straight in the
screw head, or the screw and/or bit may be damaged.
-There is a tremendous force exerted on the tool/ bit at the
time of hole break through. Hold the tool rmly and exert
care when the bit begins to break through the work piece.
-A stuck bit can be removed simply by setting the reversing

CORDLESS DRIVER DRILL
18
switch to reverse rotation in order to back out. However,
the tool may back out abruptly if you do not hold it rmly.
-Always secure small work pieces in a vise or similar hold-
down device.
-If the tool is operated continuously until the battery car-
tridge has discharged, allow the tool to rest for 15 minutes
before proceeding with a fresh battery.
MAINTENANCE
CAUTION:
-Always be sure that the tool is switched off and the bat-
tery cartridge is removed before attempting to perform in-
spection or maintenance. -Never use gasoline, benzene,
thinner, alcohol or the like. Discoloration, deformation or
cracks may result.
