Roolen Breath User manual

Smart Ultrasonic Humidifier

Table of Contents
Content Of Packageing
Parts Identification
Operation and Use
Safty Instruction
Maintenance
Spec
Trouble Shooting
Warranty Information
P0
P1
P3-4
P5-P10
P11-P14
P15-P16
P17
P18
P19
TABLE OF CONTENTS
0

1
Adapter
Manual
( water tank )
Basin
CONTENT OF PACKAGING
Humidifier

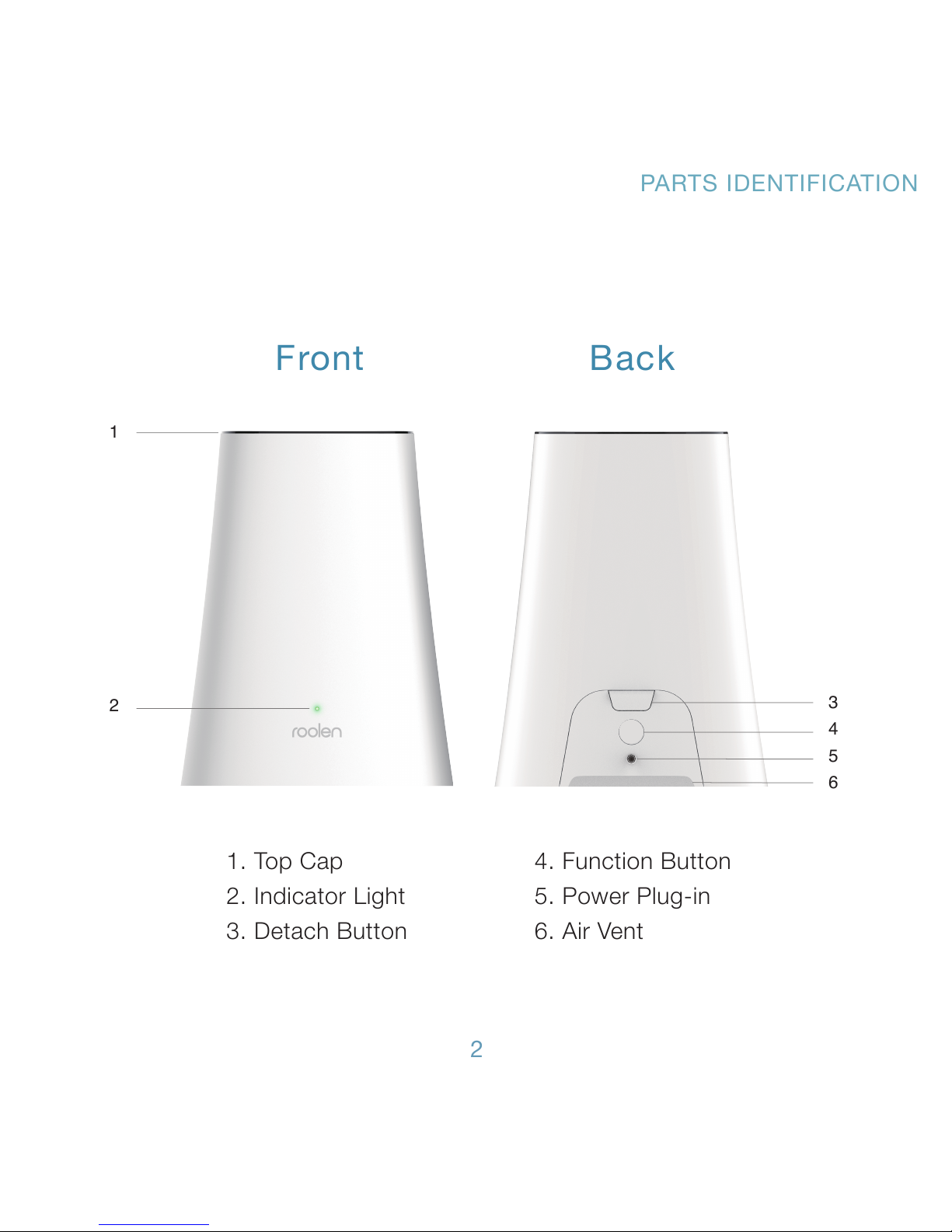

1. Top Cap
2. Indicator Light
3. Detach Button
4. Function Button
5. Power Plug-in
6. Air Vent
2
1
3
4
5
6
PARTS IDENTIFICATION
Front Back
2

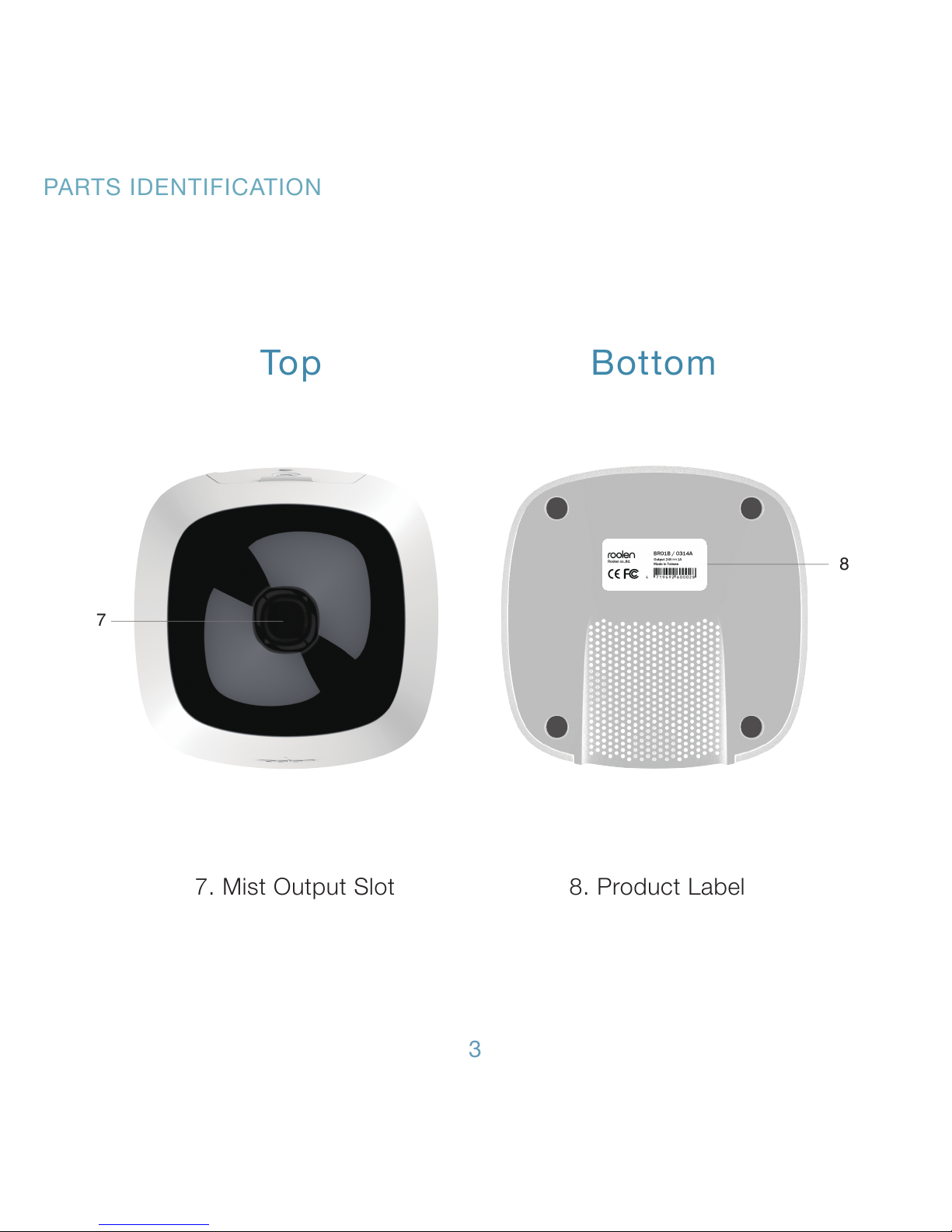

7. Mist Output Slot 8. Product Label
7
Top Bottom
PARTS IDENTIFICATION
8
3

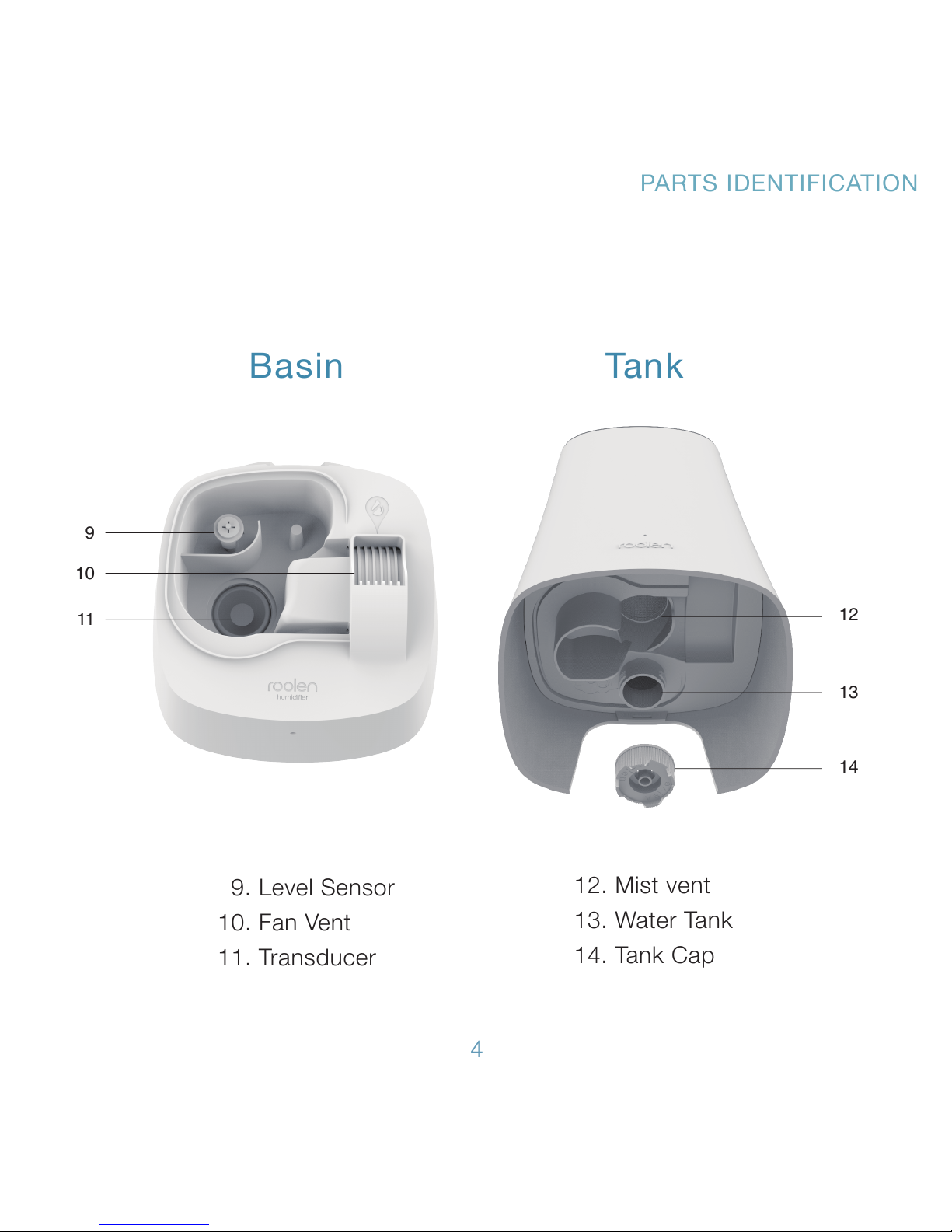

12. Mist vent
13. Water Tank
14. Tank Cap
9. Level Sensor
10. Fan Vent
11. Transducer
Basin Tank
12
13
14
9
10
11
PARTS IDENTIFICATION
4

OPERATION AND USE
5
P. 7

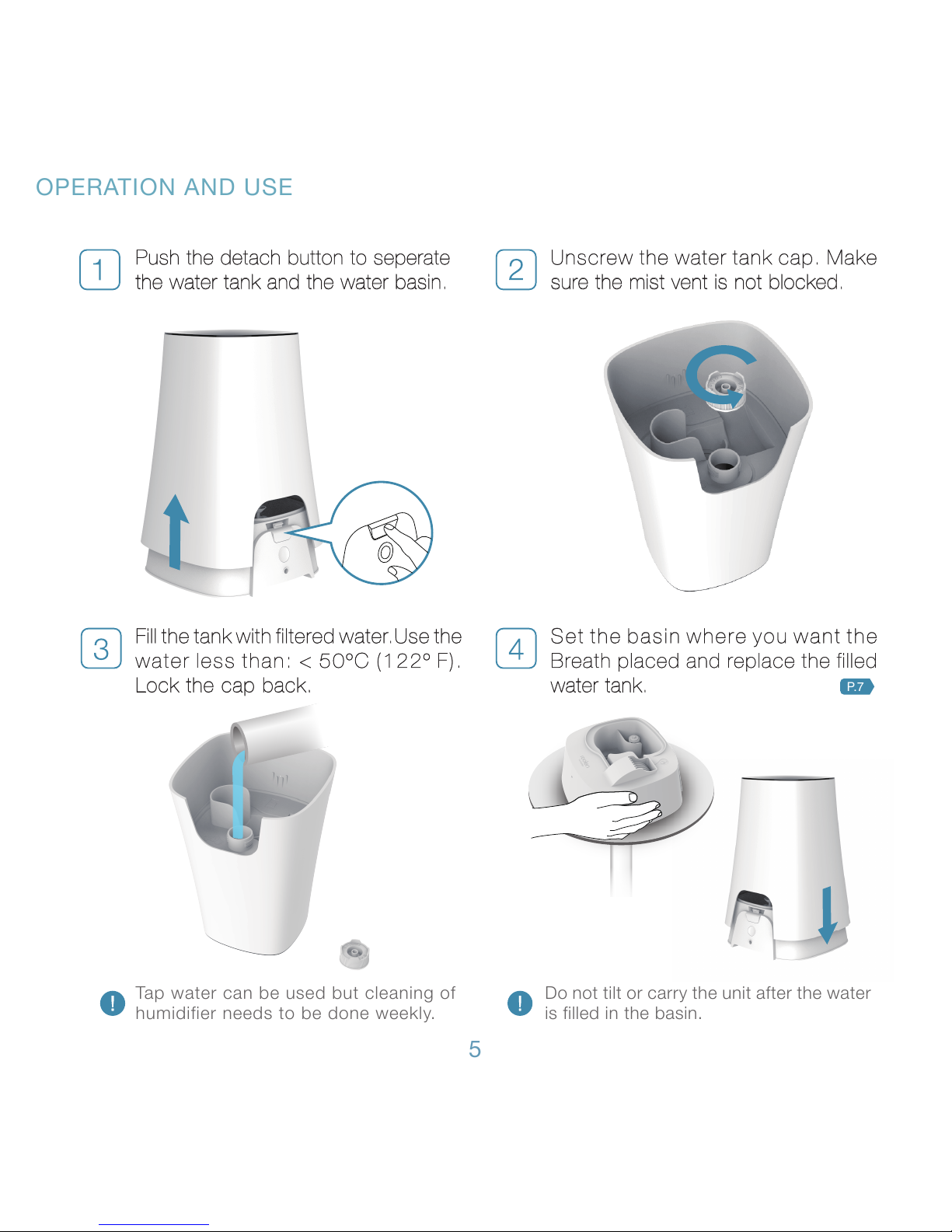

Set the basin where you want the
Breath placed and replace the filled
water tank.
Fill the tank with filtered water.Use the
water less than: < 50ºC (122º F).
Lock the cap back.
Tap water can be used but cleaning of
humidifier needs to be done weekly.
Do not tilt or carry the unit after the water
is filled in the basin.
Push the detach button to seperate
the water tank and the water basin.
Unscrew the water tank cap. Make
sure the mist vent is not blocked.

Stand by
Low
High
Auto
Out of water
OPERATION AND USE
6

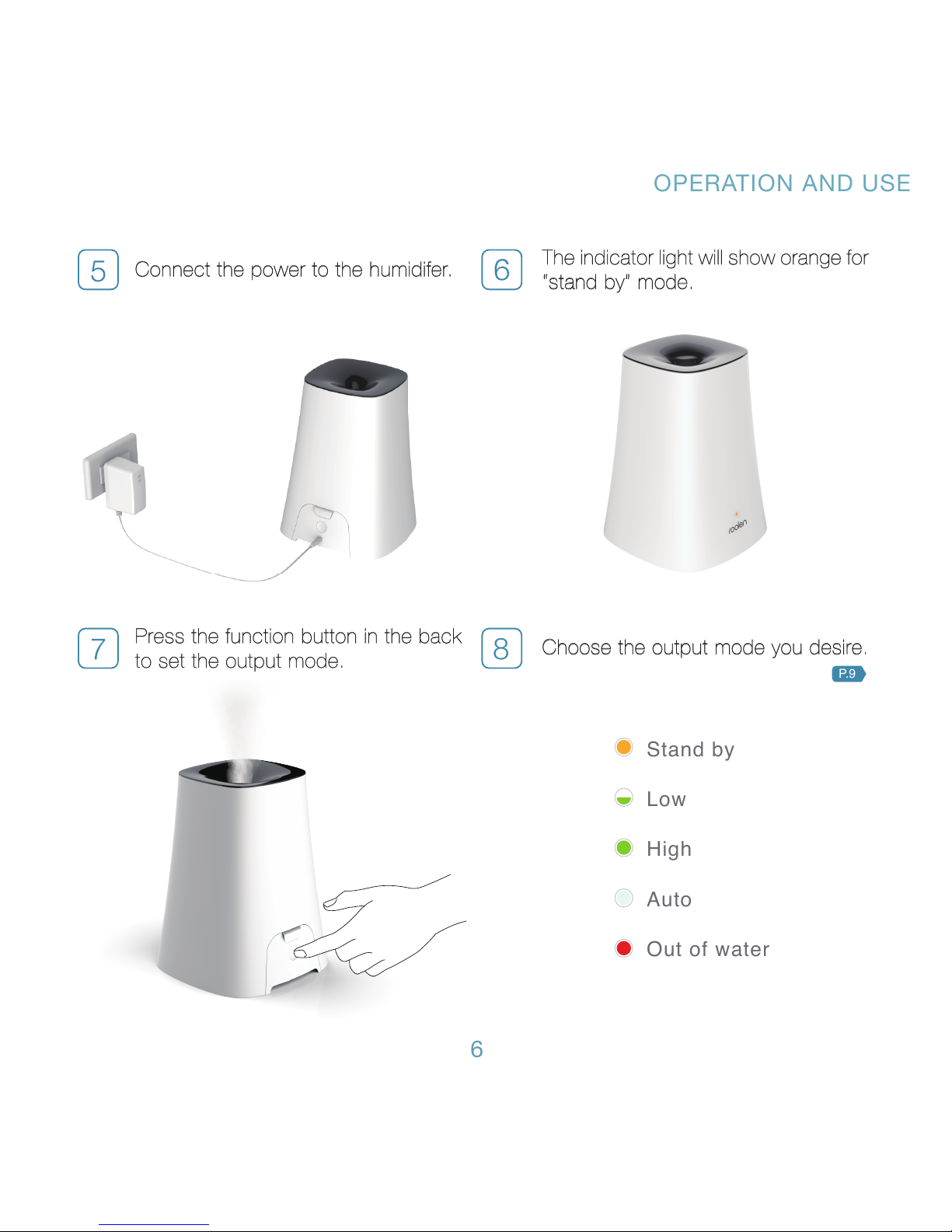

Choose the output mode you desire.
8
The indicator light will show orange for
“stand by” mode.
Press the function button in the back
to set the output mode.
Connect the power to the humidifer.
P. 9

OPERATION AND USE

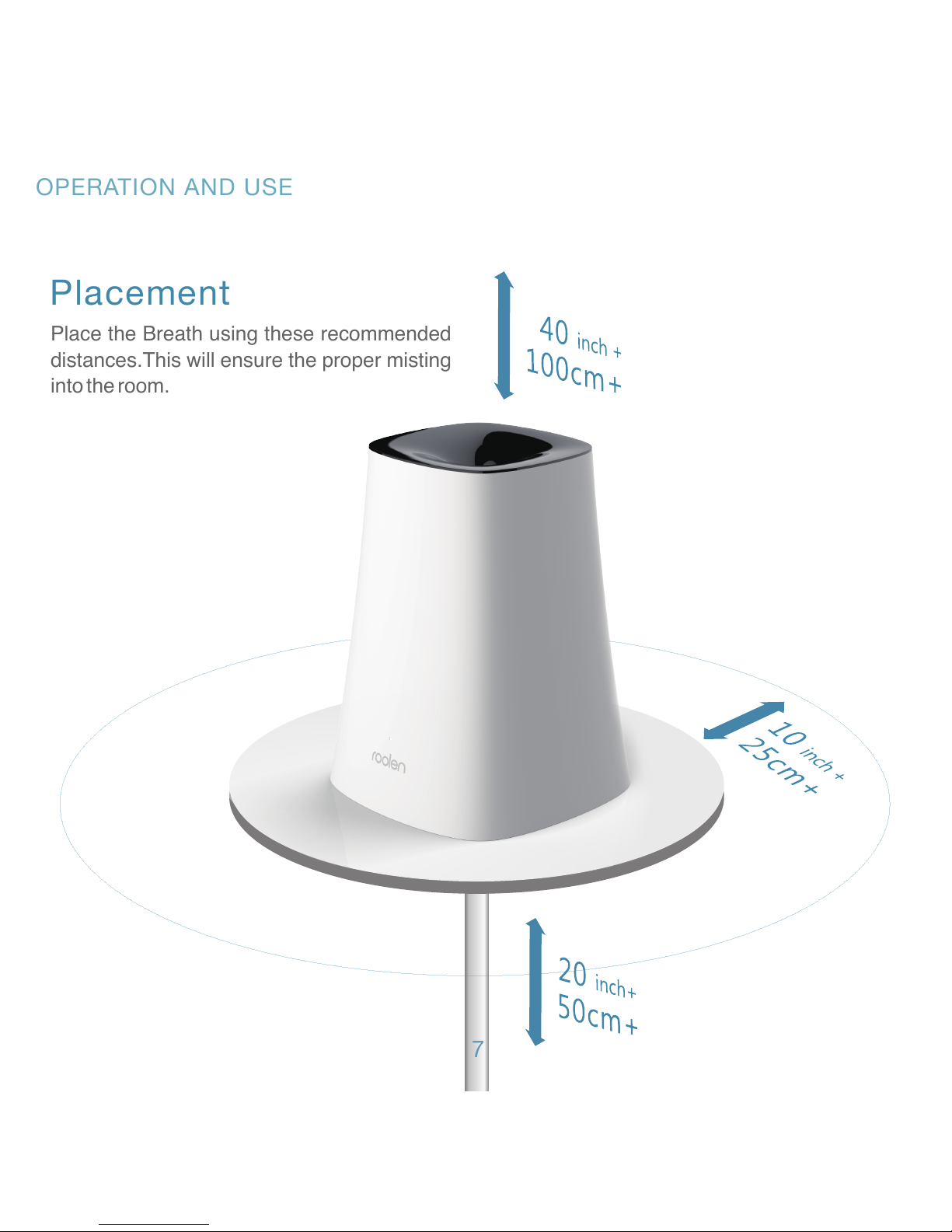

Placement
7
Place the Breath using these recommended
distances.This will ensure the proper misting
into the room.

OPERATION AND USE
The following types of water cannot be used due to its high mineral content.
WARNING
Do not mix with anything
Do not mix the water with any other substance such as lotion, oils or scents , etc.
Doing so, may cause short-circuits, malfunctions, or shorten the life of the transducer.
• Acidulated water
• Mineral water
• Ground water
• Geothermal water
• Ionized alkaline water
We suggest you use filtered water when using our product.
If it`s difficult for you to access filtered water at home. Water from your tap is
permitted but would require cleaning the misting device part in weekly basis.
We suggest you use filted water when using our product.
8

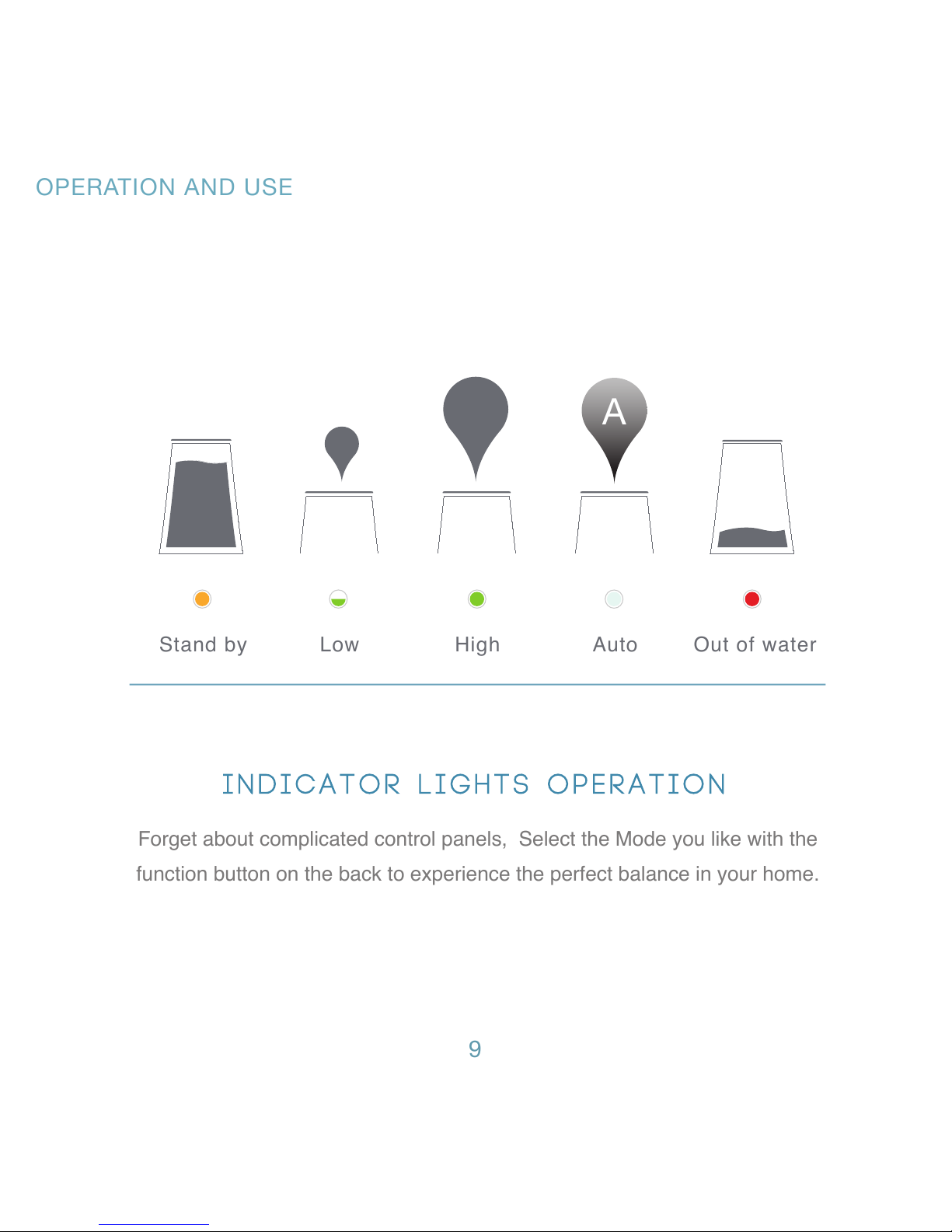

Stand by Low High Auto Out of water
9
Forget about complicated control panels, Select the Mode you like with the
function button on the back to experience the perfect balance in your home.
A
OPERATION AND USE

10

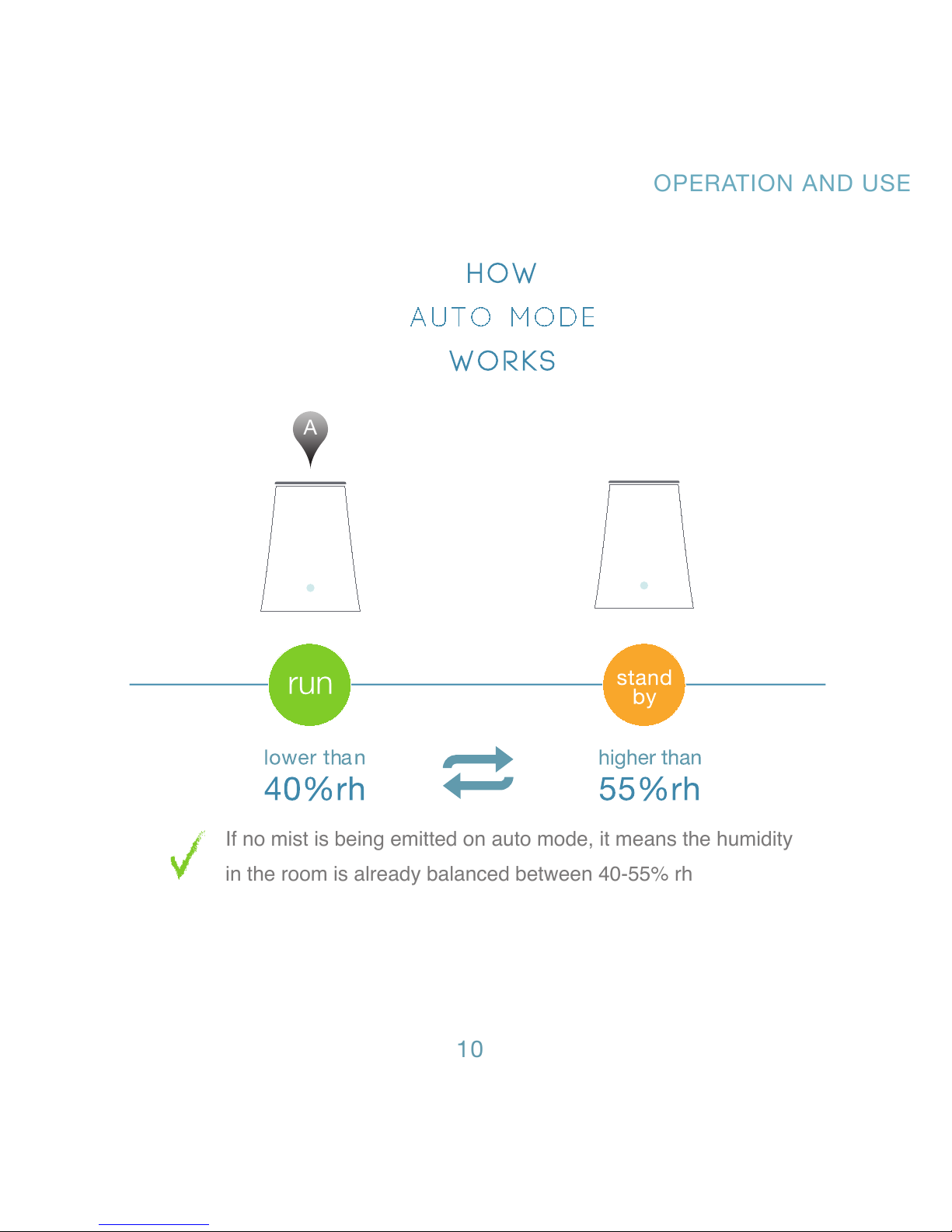

If no mist is being emitted on auto mode, it means the humidity
in the room is already balanced between 40-55% rh
OPERATION AND USE
A

PLEASE READ ALL THE SAFTY INSTRUCTIONS BEFORE USING HUMIDIFIER
Please comply with all instructions to avoid serious injuries. It must be understood
that the instruction manual cannot cover all possible conditions that may occur.
1. Check the product for any possible damages before using the humidifier. Extend the cord
and inspect for any defects. Do not use the product if the cord is damaged.
2. Keep the humidifier on a solid, flat, surface.
3. Keep the humidifier away from items and furnishings that can be damaged by water (wooden
furniture, wallpaper, etc.)
4. Place humidifier in an area that is out of reach from children.
5. Keep unit and cord away from heated materials.
6. Do not operate outdoors; this appliance is intended for indoor use only.
7. Do not operate without water. Turn off unit when tank is empty.
8. Do not immerse the base in water or in other liquids.
9. Do not add any chemicals or fragrance oils into the water tank.
SAFTY INSTRUCTION
11

10. The humidifier should always be unplugged and emptied when not in operation or while
being cleaned.
11. The humidifier should not be left unattended in a closed room since air could become
saturated and water vapor will condense on walls or furniture. Leave room door partly
open. Do not aim vapor opening directly at children, walls or furniture.
12. Caution: To avoid the risk of fire, shock or personal injuries, do not use an extension
cord.
13. The humidifier requires regular cleaning. Do not use detergent to clean the unit. Please
refer to and follow cleaning instructions.
14. The automatic shut-off safety sensor works when there is not enough water in the tank
or if the tank is separated from the bottom of the humidifier.
15. Do not move or tilt humidifier while it is operating.
16. Filtered or distilled water is recommended to avoid white dust.
17. This appliance is not intended for use by persons with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they are under supervi-
sion or given instructions concerning the use of appliance by a person responsible. for
their safety.
SAFTY INSTRUCTION
12

SAFTY INSTRUCTION
13

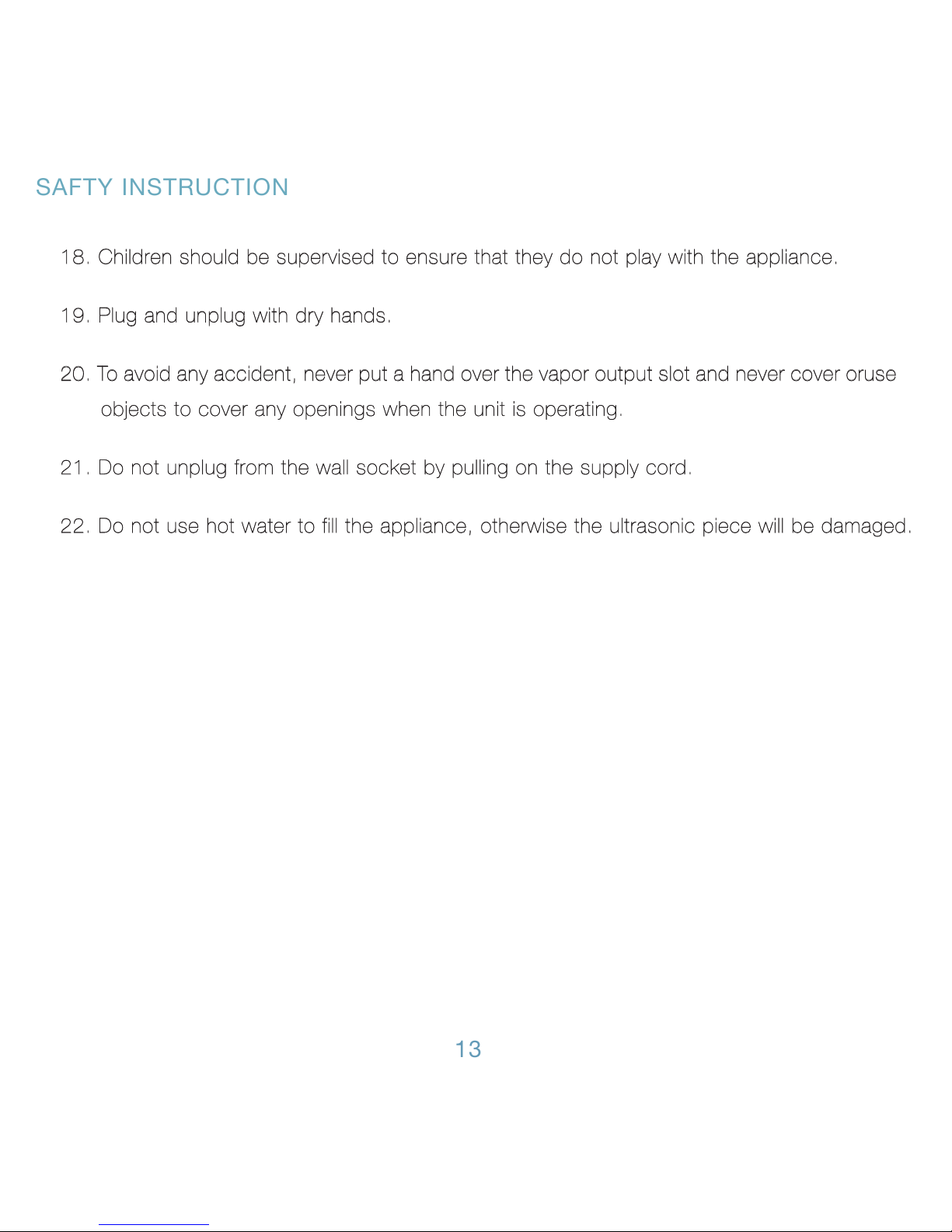

18. Children should be supervised to ensure that they do not play with the appliance.
19. Plug and unplug with dry hands.
20. To avoid any accident, never put a hand over the vapor output slot and never cover oruse
objects to cover any openings when the unit is operating.
21. Do not unplug from the wall socket by pulling on the supply cord.
22. Do not use hot water to fill the appliance, otherwise the ultrasonic piece will be damaged.

SAFTY INSTRUCTION
14
CAUTION
Do Not mix the water with any substance besides water, this may
cause malfunctions or weaken the life of transducer.
Do not place the unit on carpet, especially carpet with long fibers
or strands. This may block the air vent of humidifier, place it on a
flat level surface.
Too much humidity may damage the furniture, walls and carpeting
allowing fungi and bacteria to grow.
DO NOT immerse the base in water. When cleaning, please make
sure base does not get submerged in water or gets wet.
Use the water less than, < 50ºC or (122º F).
It may fog or develop condensation due to excessive indoor humidi-
ty.To prevent this situation, switch to low mode to reduce the humid-
ity or set to Auto mode where you will have the best humidity level
for your room.
The best humidity level for human is approximately 40-55%(percent)
of relative humidity.

Daily Maintenance
Unscrew the tank cap and empty water
tank.
MAINTENANCE
15
Empty water basin when humidifier is
not in use.
Dry the water basin and water tank
with soft clean cloth.
Replace the water tank. The humidifier
is now ready to use.

1. Detach the water tank from basin and empty the water from both the tank and the water basin.
2. Sanitize water tank and water basin with white vinegar and water solution.
3. Make sure that the water tank is completely dry without the cap secured.
4. Store the humidifier in a cool dry place.
Weekly Maintenance
End of Season Maintenance
1. Unplug the power cable.
2. Remove the water tank from the base and empty the water from both the tank and water basin.
3. Fill the tank with 2 cups of water and 1/4 cup of white vinegar. Shake vigorously and let it sit for
20 minutes. Shake vigorously again and empty the tank. Rinse the water tank a few times to rid
any vinegar smell. Wipe with clean soft cloth.
4. Do not pour water into the fan vent. Make sure nothing is blocking the fan vent.
5. Wipe the exterior surface of t he water tank and basin with clean soft cloth. Never immerse water
basin in water.
MAINTENANCE
16

Rating Voltage
Frequency
Power
Available Colors
Low / High / Auto Mode Run Time
Humidifying Capacity
Noise
Water Tank Capacity
Weight
Dimensions
17
SPEC
100-240v
50/60hz
20W
Black, White
24 hrs /12 hrs /24+ hrs
Up to 400sq.ft /28m2
< 25db
3.15L /0.83 Gallons
1.1KG /2.4 Lbs.
20 x 20 x 26cm /7.9" x 7.9" x 10.2"inch

Humidifier Ceases
to Function
Problem Solution
Unpleasant Odor
Lights On but No
Mist Being Emitted
Presence of Dust
Presence of Fog or
Condensation
• Clean the water tank with water and vinegar and rinse it with
clean water.
• Leave the tank open for some time without the cap on in a
cool dry place.
• Tap water may contain too many minerals, use of purified
water is recommended.
• Make sure that nothing is blocking the fan vent.
• Check the mist out put slot.
• Reduce the humidity of the room by leaving the door open
and switching the output mode to auto (dim green light).
• Ensure that the level sensor is assembled properly
18
TROUBLE SHOOTING
