GPS Tracking Device
Model NO.: M508
User Manual
Version ：Rope-E160704
Notes:..................................................................................................................................................................1
1. Product Introduction....................................................................................................................................2
2. Characteristics...............................................................................................................................................3
2.1 Red LED (power/working status) .........................................................................................................3
2.2 Blue LED(GPS status indicator)...........................................................................................................3
2.3 Green LED（GSM status indicator）..................................................................................................3
2.4.Specifications........................................................................................................................................4
2.5 Device outlet specification....................................................................................................................4
2.6 Device wiring diagram..........................................................................................................................5
3. Method of installation...................................................................................................................................6
3.1. Preparation before installation .............................................................................................................6
3.2 Installation.............................................................................................................................................6
4. Web based tracking online activation..........................................................................................................7
5. SMS Configuration.......................................................................................................................................7
6．Trouble shooting........................................................................................................................................10

ROPE
INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn
1
Notes:
z Please mount the device steadily on the flat place before using;
z Please make sure the voltage value is right before connecting with battery, and placing the wires to where
shouldn’t be trodden;
z Please power off when plugging or taking out of any module or connector;
z Please keep the device dry and don’t let any liquid fall into the device in case any damage caused in the
device or circuit;
If any problem caused as follows, please turn to professional technician:
z When power wire, keyboard, or socket are damaged;
z When liquid infiltrating into the device;
z When the device work unusually or cannot resume to normal even operated according to the instruction;
z When the device cannot work as usual after falling, throwing or breaking;
z When there is obvious damage in the device.

ROPE
INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn
2

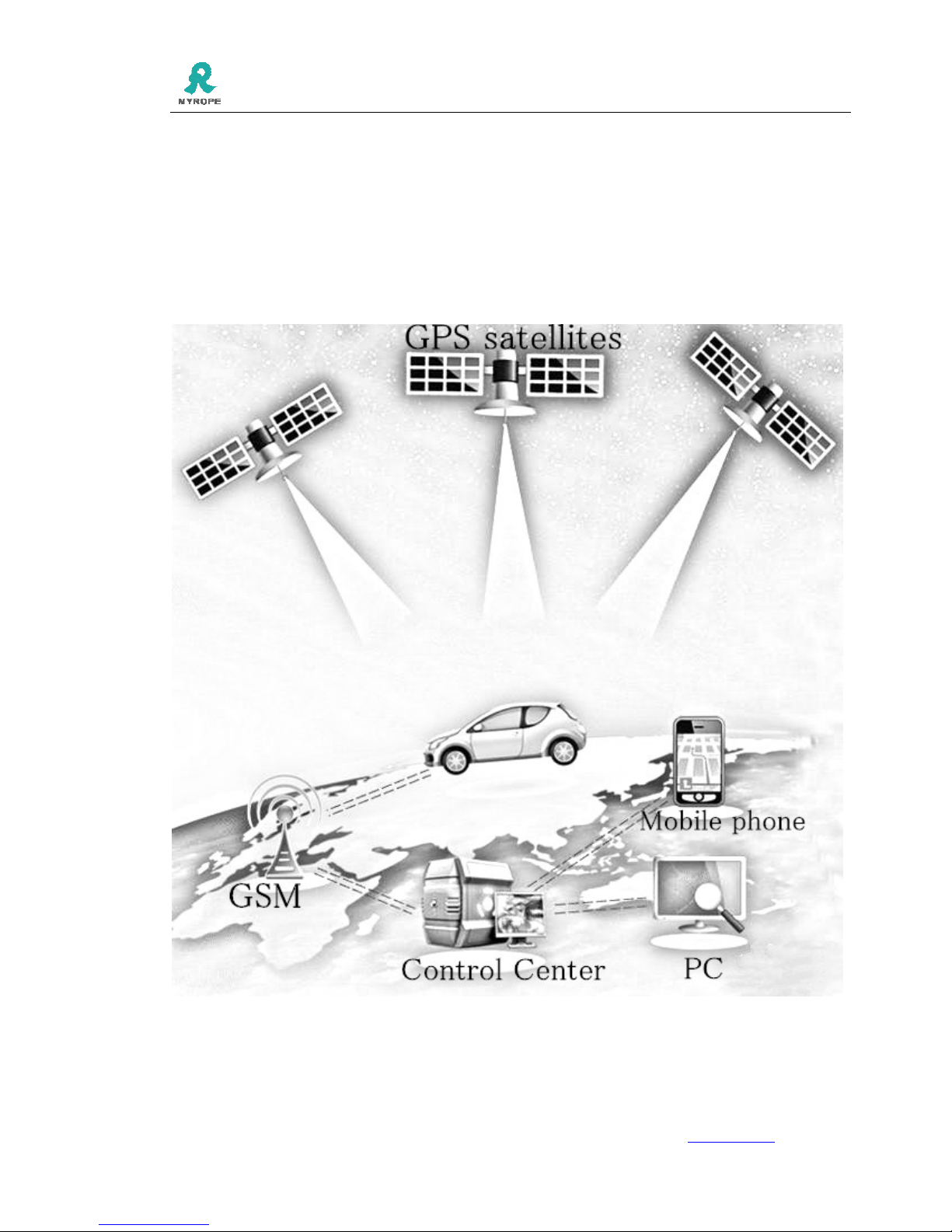

1. Product Introduction
GPS Tracking device mainly consists of two parts such as GPS module and GSM module. GPS module
is for getting location data from satellite, and GSM module is for transferring data to server so that people can
check the information via PC or mobile phone. Our GPS Tracking device, with the best quality, stable
performance and versatile functions，can be applied to various kind of fleet management like construction
trucks, rental cars, logistics vehicles and public transportation, anti-theft system and security purpose.

ROPE
INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn
3
2. Characteristics
1) GSM 850/900/1800/1900 Quad band
2) Wide for voltage input range: 11-50VDC(can customized 40-90VDC)
3) GPS continuous positioning, GPRS timing interval
4) Get location via SMS & web platform & APP.
5) Built-in vibration sensor, theft-proof
6) ACC ignition detection, car status prompt
7) Tele-cutoff (petrol/ electricity) remotely
8) Setting three SOS numbers for voice monitoring remotely and received SOS alarm
9) Emergency alarm
10) Voice monitor function
11) Power off alarm when the power supply is disconnected intentionally (with backup battery)
12) Support geo-fence alarm, over speed alarm
2.1 Red LED (power/working status)
LED Status Meaning
Alway keep on Working normally
Continuously in dark state Power off/Internal fault
2.2 Blue LED(GPS status indicator)
LED Status Meaning
Fast Flashing (bright 0.1s dark 2.9s) GPS located
Slow flashing(bright 1s dark 2s) Searching GPS signal
Continuously in dark state Power off/Internal fault
2.3 Green LED（GSM status indicator）
LED Status Meaning
Fast Flashing (bright 0.1s dark 2s) GSM working
Slow flashing(bright 1s dark 2s) Start GSM
Continuously in dark state Power off/Internal fault
Alway keep on Dialing out /talking

ROPE
INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn
4
2.4.Specifications
Items Parameters
work voltage 11VDC-36VDC
work current 50mA-160mA
GSM module inside contain frequency GSM 850/900/1800/1900Mhz
Communication protocol TCP
GPS module Ublox 7
GPS sensitivity -165dBm
C/A coding 1.023 MHz chip rate
Position accuracy 5-15m
Cold boot 26s
Work temperature -20～70℃
Humidity 5% to 95% noncondensing
Gravity Acceleration <4g
Operating Temperature -20℃—65℃
Humidity 5%—95%
weight 50g
2.5 Device outlet specification
Line No. Specification Color Instruction
1. 2 microphone red/black Connect to Microphone
3. 4 Power
Black(V-) red (V+) Connect to vehicle storage battery
5 ACC white Connect to ACC ignition
6 Motor yellow Connect to relay control line
7.8 SOS button red, black Connect SOS button

ROPE
INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn
5
2.6 Device wiring diagram
P
owerI/O Extend GPRS GPS
Connector Connector Antenna Antenna
Connector Connector
Power I/O Connector:
1. Black and purple cables for microphone
2. Black cable to power+
3. Red cable to power-
4. White cable to ACC
5. Yellow cable for relay(from relay to tracker: yellow to yellow, black to black)
Extend Connector:
1. The first row:
1st cable to power+ of camera
2nd cable to GND
3rd cable to RX of fuel sensor
4th cable is for >5V high voltage detection
5th cable is for >5V high voltage output
6th cable is for >5V high voltage output
7nd cable to GND
8nd cable to power+ of speaker
2. The second row:
1st cable to TX of camera
2nd cable to RX of camera
3rd cable to TX of fuel sensor
4th cable is for AD input
5th cable is for <5V low voltage detection
6th cable to TX of RFID reader
7nd cable is RX of RFID reader
8nd cable to power- of speakerThe 8nd cable to power- of speaker

ROPE
INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn
6
M
icrophone USBPort
Jack
3. Method of installation
3.1. Preparation before installation
3.1.1 Open the packing box to check whether the type of device is correct and whether the accessories are
included, or else please contact your distributor.
3.1.2 Choose SIM card: each device needs to insert a GSM SIM card.
Please refer to the distributor’s suggestions to choose the SIM card.
3.1.3 Installing SIM card into the tracker, open the device with screwdriver and put the SIM card into the
tracker (do not insert the SIM card backwards).
Note:
Power off before installing SIM card , or removing the SIM card
The SIM card should have GPRS charge
Ensure the SIM card is able to send the receive SMS
3.2 Installation
The device installation is covert. Please refer installation to an auto electrical contractor.
NOTE:
3.2.1 To prevent theft of the device, it should be installed as covertly as possible. Covertly installation is
suggested.
3.2.2 Avoid placing the device close to higher power electrical devices, such as reversing radar, anti-theft
device or other vehicle communication equipment;
3.2.3 The device should be fixed into position with cable ties or wide double-side tape.
3.2.4 The device has built-in GSM antenna and GPS antenna. During installation, please make sure the
receiving side face is up, with no metal object above the device to interfere with GPS reception. The

ROPE
INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn
7
following places are suggested for installation:
-shelter in the decorated board below the front windshield;
-shelter around the front instrument panel (non-metallic material face);
-in the decorated board below back windshield;
4. Web based tracking online activation
The GPRS web based tracking platform allows real time tracking with the latest Google maps.
Service platform login website : http://211.154.139.208:8000/webgps/
Vehicle management platform website ：http://211.154.139.208:8000/vms/
After you added device successfully on the VMS platform , you can send the SMS Commands to activate
device
1. Set IP and PORT
SMS command format ：
ss,apn,user_name,user_code,ip,port,system number,password
E.g.:
ss,cmnet, , ,211.154.139.208,7000, 13862626201,123456
Notes:
If no username and password, please leave it blank,
e.g: ss, apn, , ,IP,Port ,system number,Password
the system number on the platform should be the last 11digital number ,start from 13
eg: 13862626201
5. SMS Configuration
Function Command Notes
change
password pwd,old_pwd,new_pwd Eg : pwd,123456,666666
Default password is 123456
Replied SMS:
Config OK=Set successfully
Config failed=fail to set
set SOS specific
number service,phone1,phone2,phone3,password Eg:
service ,13512345001,13512345002,135
12345003,123456,
When configure OK, when press SOS
button, device will sends the information to
the service number that has been set up after
the alarm is triggered.
SOS Information content: Your Vehicle
Triggered emergency alarm, now the location
Of the car is http://maps.google.com/maps?q=
Latitude, longitude
Delete SOS
specific number service, , , ,123456
To the number you want to delete, just
leave it blank between“，，”
For example, if you want to delete phone
number 1, the sms command as below:
service, ,phone number 2,phone number
3,123456
You can choose to delete some or all the
SOS specific numbers.

ROPE
INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn
8
If want to delete all the 3 specific
numbers. SMS Command is:
service, , , ,123456
Checking
Parameter
setting
param,password
e.g: param,123456
Replied SMS content, eg
TCP，CMNET，1，1，211.154.139.208，
7000，13188888888
Setting parameters of reply terminal
Reply of terminal: TCP, APN, APN user
name,APN password, port, system number
When the password is worng, it will reply
as:Get status failed
Reboot device Restart,password
Eg: restart,123456 After receiving this command, the device will reboot after 1min
Restore factory
password ResetPwd Set successfully = Setting password has
been recovered to be 123456
Check GPS
location tgoogle,password After sending this command to device
successfully , it will reply a location
Google Map Link, you can check where
the car is by clicking Link .
Close oil disable eng, password
After the command is carried out, it will
reply ：Disable engine OK
To ensure the safety of the driver and
the car, this command is valid only
under two conditions: the GPS is
located; the speed is less than 15km/h.
Recovery oil enable eng,password
E.g: enable eng,123456 After the command is carried out, it will reply ：Enable engine OK
Monitoring tap,password
E.g : tap,123456
When device to receive the instruction,
will give the number of the number of
the transmission of this call to the
phone, after listening to the listener
mode
set up defences
arm,password E.g : arm,123456 Config OK=Set successfully Config failed=fail to set
After set up arm,ACC ignition will
automatic to send an illegal igniton
information to the server

ROPE
INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn
9
dismiss defences disarm,password
E.g : disarm,123456
Config OK=Set successfully
Config failed=fail to set
Set up on-line
message ss,apn,user_name,user_code,ip,port,id,
password
E.g ：
ss,cmnet,1,1,211.154.139.208,7000,1318
8888888,123456
Config OK=Set successfully
Config failed=fail to set
Running state status,password
E.g ：status,123456
Terminal reply: GSM signal strength,
connection and GPRS (GPRS=0 means
disconnected, GPRS=1 means connected), GPS
location satellite number of tracker, ACC
status, interval time of ACC ON and ACC OFF,
speed threshold (default speed threshold is 120,
if you had already set speed threshold, it will
read the number which you had set),
voltage values of external voltage.
Replied SMS content, eg
GSM=31
GPRS=1
GPS=10
ACC=N0
SPEED=120
ACCON=30S
ACCOFF=120S
VCC=12V
IMEI=356823031234501
When the password is worng, it will reply
as:Get status failed
Query service
number GetService, password The terminal will automatically reply to
the number of settings to send
instructions to the number
Enable auto
answer call to
do voice
monitoring
AUDIO-EN,password Config OK=Set successfully
Config failed=fail to set
Disable auto
answer call to
do voice
monitoring
AUDIO-DIS,password Config OK=Set successfully
Config failed=fail to set
Restore to
factory setting Reset,password
Eg:Reset,123456 Restore the IP to be 211.154.139.208, port to be 7000, china mobile APN
(device version NO.before
2016-04-07 08:00:00 use this
command: DEF-PARA,password )
Set GPS
location
uploading
interval time
interval,x1,x2,password
Eg: interval,30,100,123456
30==ACC ON 100==ACC OFF
Interval1 is for ACC ON, interval2 for
ACC OFF
(device version NO.before
2016-04-07 08:00:00 use this
command:
GINTERVAL,X1,X2,password)

ROPE
INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn
10
Active sleep
mode sleep enable,password eg: sleep enable,123456
Config OK=Set successfully
When acc off , device will not upload
data to server ,to save battery life , it
used for motorbike
Cancel sleep
mode sleep disable,password eg: sleep disable,123456 Config OK=Set successfully Device will restore upload data server
normal .
Enable monitoring
limited, only 3
service numbers
can monitor track
LisLimit,ON,password
Eg: LisLimit,ON,123456 (device version NO.before 2016-04-07
08:00:00 use this command:
LisLimite-Enable,password)
Disable the limited
of only service
number can
monitor
LisLimit,OFF,password
Eg: LisLimit,OFF,123456 (device version NO.before
2016-04-07 08:00:00 use this
command:
LisLimite-Disable,password)
Factory default status is disable limited
6．Trouble shooting
6.1. After installing it in the first time, if device cannot get connected with platform server, at this time it is
“logged off” status in platform.
Follow the instructions one by one as below:
1) Call the device to see what happens.
It rings: go to the next step.
It not rings:
a) check whether the SIM card installed correctly or not. Check whether the connection of power-line is
correction or not . (Details: If the users are testing the device in office or at home, M588 has to connect
with 12V DC external power supply. If it is tested in the car, make sure the installer connect all the cable
correctly.)
b) Check the LEDs’ status. In normal working status, the red LED is in bright flash 0.1s dark 2s , yellow
GSM LED bright flash 0.1s dark 2s and blue GPS LED bright flash 0.1s dark 2s
c) Check whether the vehicle is in no GSM area, such as basement;
2) Check whether the device reply after sending SMS command.
It replied:
a) Check whether theAPN is correct or not,
b) Whether the port is correct or not,
c) check whether the SIM card support GPRS.
c) check the IMEI number is correct or not
It not replied: check the SMS command format, make ensure it is correction.

FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1 ) Thi s d evice may n ot cause h armful interference, a nd (2) this device
must accept any interfere nce received, including interference tha t may cause undesired
operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment .This equipment should be installed and operated with
minimum distance 50 cm between the radiator& your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
