Rosemor Rotomac 360 Manual

Operation and Maintenance
Instructional Manual
Automatic Escalator Deep Cleaner
Rotomac 360
ROSEMOR INTERNATIONAL LIMITED
UNIT F MOSES WINTER WAY
WALLINGFORD
OXFORDSHIRE
OX10 9FE
TELEPHONE [phone]
FAX [phone]
[email protected]
www.rosemor.com

Automatic Escalator Deep Cleaning Machine – Rotomac 360
Created by Rosemor International Ltd Page 2
Rosemor International Ltd reserves the right to make adjustments to the machine and any
documentation. This operation and maintenance instruction manual is intended for service personnel
only!
Preliminary remarks
Safety and reliability are absolutely essential to guarantee a long and trouble-free service life of the
Rotomac 360. In order to fulfil these requirements, the operator must obtain sufficient skill in handling the
machine, its maintenance and care. It is therefore vital that the operator receives instruction and training
from Rosemor International Ltd specialists before the cleaning machine is started for the first time.
The present operation and maintenance instruction manual represent additional assistance for the
operator in obtaining the information necessary for correct and safe use of the cleaning machine.
Rosemor International Ltd customer service centre should be informed immediately if some technical fault
in this cleaning machine should occur.

Automatic Escalator Deep Cleaning Machine – Rotomac 360
Created by Rosemor International Ltd Page 3
Table of contents Page
1 Safety instructions................................................................................................... 4
1.1 Preliminary remarks ............................................................................................................................ 4
1.2 Owner’s duties..................................................................................................................................... 4
1.3 Intended and specified use.................................................................................................................. 4
1.4 Who may operate the machine? ......................................................................................................... 4
1.5 Safety for the operator......................................................................................................................... 4
1.6 Modifications and changes to the machine ......................................................................................... 5
1.7 General safety instructions .................................................................................................................. 5
1.8 Safety instructions for mains-operated machines ............................................................................... 5
1.9 Information on the warning signs......................................................................................................... 5
1.10 Warning signs and stickers ............................................................................................................... 6
1.11 Product liability................................................................................................................................... 6
1.12 Emissions .......................................................................................................................................... 6
1.13 Sources of danger ............................................................................................................................. 6
1.14 Procedure in case of emergency....................................................................................................... 6
2 Description ............................................................................................................... 7
2.1 Technical data ..................................................................................................................................... 7
2.2 List of reference numbers.................................................................................................................... 8

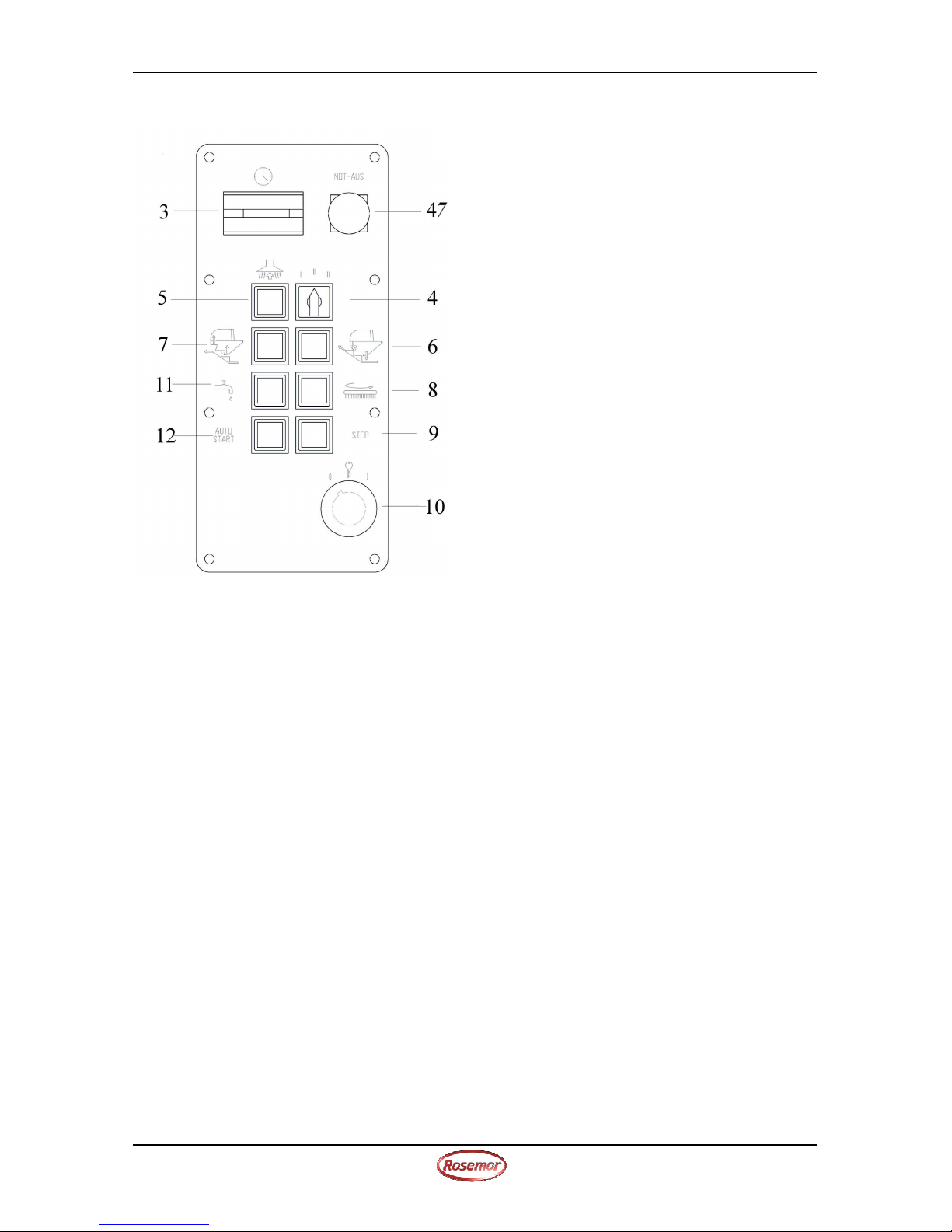

2.3 Location of components ...................................................................................................................... 9
3 Operation .................................................................................................................10
3.1 Before start-up................................................................................................................................... 10
3.2 Assemble brushes............................................................................................................................. 10
3.3 Filling fresh water .............................................................................................................................. 11
3.4 Preparations on site........................................................................................................................... 11
3.5 Safety measures on site .................................................................................................................... 12
3.6 Preliminary work ................................................................................................................................ 12
3.7 W orking instructions ......................................................................................................................... 12
3.8 Positioning machine on escalator...................................................................................................... 12

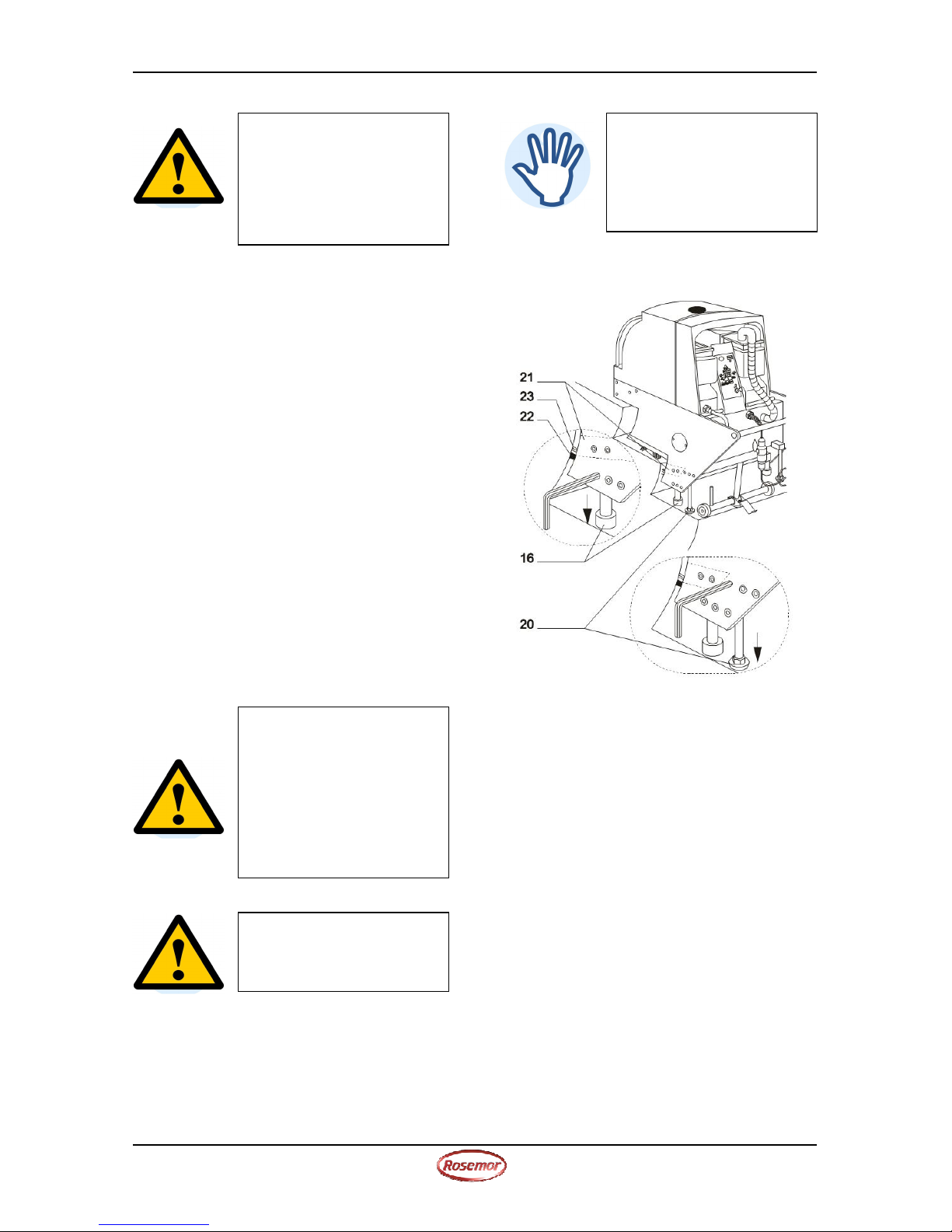

3.9 Setting step height............................................................................................................................. 13
3.10 Select cleaning programme............................................................................................................. 14
3.10.1 Programme 1: Initial and basic cleaning....................................................................................... 14
3.10.2 Programme 2: maintenance cleaning........................................................................................... 14
3.11 Cleaning the escalator..................................................................................................................... 15
3.12 Subsequent cleaning ....................................................................................................................... 16
3.13 Refilling with fresh water.................................................................................................................. 16
3.14 Emptying the dirty-water tanks ........................................................................................................ 16
3.15 Ending the cleaning process ........................................................................................................... 17

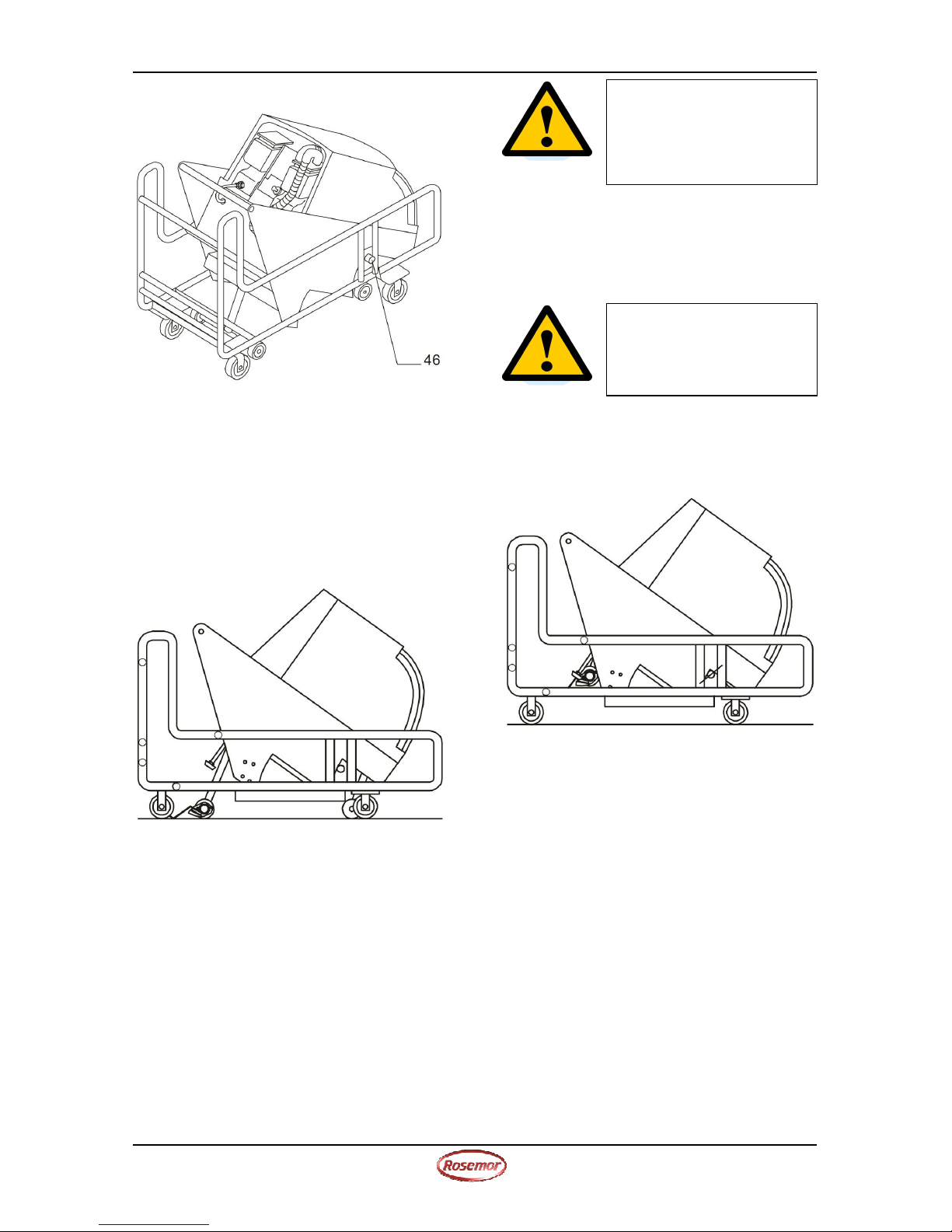

3.16 Use of transport trolley .................................................................................................................... 18
3.16.1 Preparation for transport....................................................................................................... ....... 18
3.16.2 Use of transport trolley for maintenance....................................................................................... 19
4 Maintenance / Care .................................................................................................20
4.1 Safety measures during cleaning and maintenance of the machine................................................. 20
4.2 Daily care........................................................................................................................................... 20
4.3 Weekly care....................................................................................................................................... 20
4.4 Maintenance after 30 service hours .................................................................................................. 20
4.5 Maintenance after 100 service hours ................................................................................................ 21
4.6 Annual maintenance.......................................................................................................................... 21
4.7 Tightening the chain .......................................................................................................................... 21
4.8 Cleaning and replacing fresh-water nozzles...................................................................................... 22
4.9 Troubleshooting and remedy............................................................................................................. 23

Automatic Escalator Deep Cleaning Machine – Rotomac 360
Created by Rosemor International Ltd Page 4
If work on the opened machine within
connected current is absolutely
necessary, such work may be carried out
only by a qualified electrician who is
familiar with all attendant dangers and the
relevant work stipulations (VDE0100).
When work is carried out on machine or
parts when live, only tools specially
intended for this purpose may be used.
1 Safety instructions
1.1 Preliminary remarks
The escalator deep machine Rotomac 360 was
manufactured according to state-of-the-art
technology and in compliance with all relevant
regulations. This, however, does not guarantee
that some other unavoidable dangers for
persons and property can occur. All personnel
working with this machine must therefore read
and follow these operating instructions, and in
particular the safety regulations, with great care.
These operating instructions must remain at the
machine for use by the operator. Each operator
must receive thorough instruction on handling
and working with the machine.
1.2 Owner’s duties
In accordance with EU directive on the use of
operating equipment 89/655/EEC Art.6(1) and 7
and EU framework directive 89/391/EEC Art.1(1)
and Art. 6(1), the owner of the equipment is
obliged to instruct all persons, particularly with
regard to safety, who will be authorised to work
on assembly, operation, maintenance, repair or
dismantling of the machine.
The owner is also obliged in accordance with EU
directive on the use of operating equipment
89/655/EEC Art.4a to inspect the machine
before start-up, following repair work and
following faults or malfunction.
1.3 Intended and specified use
The escalator deep cleaning machine Rotomac
360 is exclusively intended for basic and
maintenance cleaning of indoor and outdoor
escalators. Any use beyond this stipulation must
be considered as contrary to the manufacturer’s
intentions. The manufacturer will not be liable for
any damage resulting from such work; all risk in
this case will be borne exclusively by the
operator. Correct use of the machine also
includes compliance with the conditions of
operation and maintenance stipulated by the
manufacturer.
• The escalator deep cleaning machine Rotomac
360 is not intended, nor suitable for cleaning
hazardous dirt.
• The machine is not fire-proof.
• The machine is also not licensed for use in
cleaning public streets and paths.
1.4 Who may operate the machine?
The machine may only be used by persons who
have been instructed in its operation and who
are expressly authorised to carry out such work.
These persons should be at least 18 years old.
All relevant accident prevention regulations and
other generally recognised rules of safety
engineering, industrial medicine and the
Highway Code must be strictly observed.
Assembly, equipment, maintenance and repair
work demand special knowledge and may only
be carried out by specially trained experts.
1.5 Safety for the operator
• The user must under no circumstances touch
the plug of the power supply with damp hands.
• When the machine is being disconnected from
the power network, only the plug itself may be
pulled - never the power cable.
• The machine may be repaired or opened only
by qualified electricians.

Automatic Escalator Deep Cleaning Machine – Rotomac 360
Created by Rosemor International Ltd Page 5
1.6 Modifications and changes to the
machine
It is forbidden for reasons of safety to carry out
modifications to this machine. Any unauthorised
modifications to the machine automatically
invalidate all liability claims against the
manufacturer for any damage caused by the
modified machine.
Original parts and accessories have been
specially designed for this machine. Parts and
fittings made by other manufacturers have not
been tested by us and are therefore not
approved for use. Assembly and installation of
such parts could impair the safety and the
perfect functioning of the machine. Rosemor
International Ltd expressly refuses to accept
liability for any damage resulting from the use of
non-original parts and accessories.
1.7 General safety instructions
•When the machine is not in use, its must
always be locked away and the key
removed. If it is not possible to lock away
the machine, some other suitable measures
must be taken to prevent unauthorised use.
•Neither the electrical nor mechanical safety
devices on the machine may be changed or
put out of action.
•It must be ensured that no other persons, in
particular children, are in the vicinity of the
machine when it is in operation.
•The machine may only be transported in
elevators whose permitted load is adequate
for this purpose.
1.8 Safety instructions for mains operated
machines
Care must be taken that the mains cable incurs
no damage by being crushed, torn, frayed,
driven over, etc. This connection must be
examined regularly for damage, bare points,
scorched areas, etc. The machine may not be
used unless the mains connections are in
perfect condition. The plug must always be
disconnected prior to any cleaning or
maintenance work on the machine, or when
accessories are being fitted and replaced.
When parts, such as brushes, mains connection
cables, plugs, etc are being replaced, all
technical data provided by the manufacturer
must be observed and only original spare parts
used; otherwise safety of the machine could be
impaired. If the power cable is damaged, it must
be replaced by a service workshop approved by
Rosemor International Ltd as special tools are
required for such work.
1.9 Information on the warning signs
The purpose of the warning signs used in these
operating instructions is to emphasise certain
sources of danger in the automatic escalator
deep cleaning machine Rotomac 360.
The following symbols are used in these
operating instructions:
Indicates a possibly dangerous situation.
Failure to observe such warnings could
lead to serious injury.
Indicates a possibly dangerous situation
through contact with parts conducting
electricity.
Failure to observe these warnings could
lead to death or serious injury.
Indicates special information for optimum
use or to facilitate operation of the
machine.

Automatic Escalator Deep Cleaning Machine – Rotomac 360
Created by Rosemor International Ltd Page 6
1.10 Warning signs and stickers
1.11 Product Liability
The operator is expressly notified that the
machine must be used only for the intended
purpose. If the machine is not used for the
intended purpose, such use will be at the sole
risk and responsibility of the user. Rosemor
International Ltd will not accept any liability in
such cases.
1.12 Emissions
The A-assessed equivalent continuous sound
level of this machine measures 78 ± 2 dB (A).
1.13 Sources of Danger
If the operator on the escalator wishes to leave
machine, he must lower the machine, i.e. let the
machine rest on the glide strip. The machine
must then be moved in this lowered position with
the escalator to the bottom end of the escalator.
1.14 Procedure in case of emergency
Lower machine, turn key switch (10) to “0” and
remove key.
Markings, warning signs and
stickers may never be
removed!
Damaged or illegible warning
signs and stickers must be
replaced or repaired
immediately! The machine may not be left
unattended and unlocked on the
escalator. All safety instructions
and regulations applicable to the
escalator being cleaned must be
strictly observed.

Automatic Escalator Deep Cleaning Machine – Rotomac 360
Created by Rosemor International Ltd Page 7
2 Description
2.1 Technical data
Working width: 520 mm
Min step height: 185 mm
Max step height: 235 mm
Basic cleaning per step: 25 s (2x)
Maintenance cleaning per step: 45 s (2x)
Intensive cleaning per step: 60 s (2x)
Max. air volume of suction: 162 m³ / h
Low pressure: 300 mbar
Type of current/ frequency:
A.C. current
50 Hz
Rated voltage: 230 V
Rated power input: 1900 W
Power output: Brush motor 750 W
Suction motor 1500W
Spindle drive 2 x 180 W
Pump 40 W
Number of brushes: 11
Capacity of fresh-water tank: Max 10L of water and 1L of
cleaning chemical (RC91)
15 L
Capacity of dirty-water tank: 15 L
Dimensions Length 1350mm
Width 536mm
Height 1250mm
Operational weight (Including
filled fresh-water tank and mains
cables):
170Kg
Noise level 78 ± 2 dB (A)

Automatic Escalator Deep Cleaning Machine – Rotomac 360
Created by Rosemor International Ltd Page 8
2.2 List of reference numbers
1 Cover of dirty-water tank
2 Dirty-water tank
3 Service hours counter
4 Cycle Selection
5 Suction machine OFF/ON
6 LOWER machine
7 RAISE machine
8 Touch operation of brushes
9 STOP key
10 Key switch
11 Touch operation of pump
12 Automatic ON
13 Shaft
14 Device socket
15 Device plug
16 Travelling support/step height adj
17 Mains plug
18 Lifting spindle
19 Brake
20 Safety support / step height adjustment
21 Suction basin
22 Seal strip
23 Stripping brush
24 Brush
25 Cover for brush-replacement opening
26 Guide rail
27 Opening for replacing brush
28 Glide rail
29 Coupling for fresh-water tube
30 Fresh-water tank
31 Handle
32 Fresh-water tank cover
33 Hood
34 Chain
35 Chain wheel
36 Chain adjuster
37 Spray nozzle
38 Suction machine
39 Filter
40 Collecting container
41 Ball
42 Pressure spring
43 Spray nozzle
44 Coupling ring
45 Rim comb
46 Fixing axle
47 Emergency STOP button
Please note:
- Numbers 34 to 37 and 41 to 44 see Fig. 24 on
page 21,
- Numbers 38 to 40 see Fig. 23 on page 21,
- Number 45 see Fig. 16 on page 17.
- Number 46 see Fig. 17 on page 18.

Automatic Escalator Deep Cleaning Machine – Rotomac 360
Created by Rosemor International Ltd Page 9
2.3 Location of components
Fig. 1: Location of components
Fig. 2: Control panel

Automatic Escalator Deep Cleaning Machine – Rotomac 360
Created by Rosemor International Ltd Page 10
If possible, brushes of the
same design (brush length,
hardness etc.) should not be
installed directly behind each
other in order to avoid
unbalance effects and to
achieve an ideal cleaning
result!
3 Operation
3.1 Before start-up
All local safety regulations and instructions must
be observed for each start-up. The escalator
must be inspected jointly with the party
responsible for the escalator, who should also
be informed of any discoloration or paint stains
etc. caused by repair and renewal work.
3.2 Assemble brushes
If brushes (24) have not yet been installed in the
guide rail (26), the lid (25) on the opening for
replacing brushes (27) in the left side wall
should be opened (see Fig. 3: Brush assembly).
Fig. 3: Brush Assembly
The procedure below should be followed:
•Insert power plug
•Set key switch (10) to "1"
•Raise machine [pushbutton (7) on
operating console (4)]
•Move rail in the opening for replacing
brushes (27) (pushbutton (8) Touch
operation for bush)
•Set key switch (10) to "0"
•Shove in brush (24) until it hits against
the right side wall
•Set key switch (10) to "1"
•Move next rail completely in the opening
for replacing brushes (27) (pushbutton
(8) touch operation for brush)
•Set key switch (10) to "0"
•Repeat this procedure until all brushes
have been inserted
•Then screw on lid (24) once more
Fig. 4: Control Panel
Only use original Rosemor
International brushes: the
size and shape of these
have been tested and are
adjusted to fit the escalator!
A set of brushes consists of
brushes with different brush
lengths, bristles and bristle
materials.
In order to prevent the
brushes being moved by
accidental contact with the
pushbutton, the button will
only react to activation after
a delay of one second!

Automatic Escalator Deep Cleaning Machine – Rotomac 360
Created by Rosemor International Ltd Page 11
3.3 Filling fresh water
(see Fig. 5 on page 11)
•Unlock coupling (29) and separate from
fresh-water tank (30)
•Draw fresh-water tank forward on shaft
(13) and withdraw from machine
•Remove lid (32) and fill with a maximum
of 10 litres of fresh water and 1 litre of
cleaning chemical (RC91)
Fig. 5: Fill up with fresh water
Fig. 6: Adjusting seal strip
3.4 Preparations on site
The cleaning date should be co-ordinated with
the maintenance personnel (possibly process
electrician) in charge of the escalator.
The safety manager should also be informed if
necessary.
The operator must plug in the mains cable for
the machine, or a suitable socket must be
shown to him.
The operator must furthermore obtain instruction
on manual control of the escalator or else
ensure that some person familiar with the
workings of the escalator is available near by at
all times.
Each time the fresh-water
tank is being filled, the dirty-
water tank (2) should also be
inspected and emptied if
necessary. See Section 3.14
Emptying the dirty-water
tanks on page 16
Have the escalator switched
off by the relevant specialists
and secured against being
switched on by accident!
Remove escalator key!

Automatic Escalator Deep Cleaning Machine – Rotomac 360
Created by Rosemor International Ltd Page 12
3.5 Safety measures on site
All unauthorised persons must be prevented
from approaching the entrances at both ends of
the escalator by means of safety measures (e.g.
red-and-white barrier chains).
The machine, the transport trolley and, when
available, accessories trolley are to be placed in
the cordoned-off level area at the bottom of the
stairs to prevent any unauthorised use.
3.6 Preliminary work
Remove any dirt from the grooves in the steps
with a hand rake before brushing or sweeping
clean.
3.7 Working Instructions
Scratching or erosion on the escalator steps
caused by wear, corrosion or material faults can
not be repaired.
3.8 Positioning machine on escalator
The machine with extended lifting spindles (18)
should then be pushed into the escalator and
moved by authorised escalator operators to the
first completely extended step (Fig. 7).
The escalator is then stopped completely.
Fig. 7: Fixing the machine
Ensure that the escalator is
switched off by the relevant
personnel and secured
against accidental starting!
Remove escalator keys!
The detergent applied to the
escalator surface will lead to
danger of slipping! Shoes
with non-slip soles must
therefore always be worn
during work on the stairs!
Any objects jammed in the
machine, such as small
stones, bits of glass, etc. are
a significant impediment to
achieving a good result.
Care must therefore be
taken that all such objects
are removed in advance.
Handheld cleaning
equipment is ideal for this
purpose!
All foreign bodies such as:
cigarette packages, cans,
etc. must always be
removed before any work
commences!

Automatic Escalator Deep Cleaning Machine – Rotomac 360
Created by Rosemor International Ltd Page 13
3.9 Setting Step Height
•Move machine to the first completely
extended step
•Fix machine on the right or left hand
side of the escalator
•Lower machine and move forward as far
as possible on the tread of the stair
•Remove the clamp on the left travelling
support (16) (see Fig. 8) and move the
travelling support in or out until the
machine is positioned horizontally with
the left travelling support (27) on the
tread of the stair; then tighten the clamp
on the left travelling support
•Adjust the safety support (20) on the left
side of the machine according to the
same procedure
•Place machine on the right or left hand
side of the escalator, lower and push
forward as far as possible on the tread
of the stair
•Set the travelling support (16) and the
safety support (20) on the right side of
the machine according to the procedure
described above
•Start the cleaning operation.
Fig. 8: Setting step height
It will be possible to start the
cleaning process only when
the running gear has been
driven to the point where the
limit switch is activated at
the lifting spindles (18)!
Incorrectly adjusted
travelling supports (16) will
mean that the operator will
have to use more force!
Make sure that the machine
is resting uniformly on the
two parallel gliders and all
four supports and that the
wheels are approximately 2
mm distant from the step!
If this is not the case, the
adjustment procedure must
be repeated!
The machine is in danger of
falling if the travelling
supports (16) and safety
supports (20) are not
adjusted properly to the step
height of the escalator to be
cleaned.

Automatic Escalator Deep Cleaning Machine – Rotomac 360
Created by Rosemor International Ltd Page 14
3.10 Select Cleaning Programme
Fig. 9: Control Panel
The machine is provided with 3 cleaning
programmes, which have been tested and
optimised by Rosemor International Ltd. An ideal
cleaning performance is achieved with a
minimum use of water.
3.10.1 Programme 1: Quick Cleaning Cycle
Duration of a cleaning cycle 25 seconds.
3.10.2 Programme 2: Maintenance Cleaning
Duration of cleaning cycle 45 seconds.
3.10.3 Programme 3: Intensive Cleaning
Duration of cleaning cycle 60 seconds.

Automatic Escalator Deep Cleaning Machine – Rotomac 360
Created by Rosemor International Ltd Page 15
3.11 Cleaning the escalator
In order to achieve an ideal moisture content on
the brushes, the first step should be cleaned
twice at the beginning of the cleaning operation.
If there is strong sunlight or high temperature in
the surroundings, preliminary spray of the
escalator should be over a length of no more
than 3-4 steps, since the cleaning liquid dries
very quickly on warm steps. After the machine -
lying on the left side of the escalator - is pushed
into the escalator step until the wheels stop (see
Fig. 7), it is then lowered (Fig. 10: Lowering the
machine) and pushed into the stairs on the glide
rails (28) until the seal strip (22) is arrested (Fig.
11: Positioning the machine)
Fig. 10: Lowering the machine
Fig. 11: Positioning the machine
The pre-selected programme can now be
started. When the cleaning cycle has been
completed, the machine is raised (Fig. 12:
Raising the machine ).
Fig. 12: Raising the machine
The machine is then pushed forward again until
the wheels stop on the next highest step (Fig. 7),
and then lowered again. The machine can now
be pushed on the glide rails into the new
working position (Fig. 11: Positioning the
machine).
Repetition of the procedure described above will
allow the escalator to be cleaned from the
bottom to the top completely-extended step.
The switched-off and lowered machine is then
driven downwards with the escalator to the
position of the last extended step.
Always ensure that the
power cable is disconnected
and wound up before the
escalator is started again to
avoid accidents!
When raising the machine,
the operator must ensure
that the glide rails do not
hang on the inside walls of
the escalator.

Automatic Escalator Deep Cleaning Machine – Rotomac 360
Created by Rosemor International Ltd Page 16
After the cable has been connected once more,
the procedure described above can be started a
new and the escalator cleaned again up to the
top completely extended step. After the machine
has been run from the lower to the highest
completely extended step, one side of the
escalator will have been cleaned.
The machine must now be shifted from the left
to the right or vice versa (Fig. 13: Shifting
machine).
Fig. 13: Shifting machine
The cleaning process can then be started for the
right or left side and take place as described
above.
3.12 Subsequent cleaning
Manual cleaning equipment has been developed
by Rosemor International Ltd by means of
comprehensive practical tests.
With this equipment, any subsequent cleaning
that may become necessary, such as major
soiling on the edges and the joining areas
between two steps, can be carried out easily.
3.13 Refilling with fresh water
The operator must carry out regular checks at
the transparent feeder tube for fresh water (29)
to ensure that the machine is receiving a supply
of detergent solution. If bubbles appear in the
tube or if no liquid can be seen, the fresh-water
tank is empty and must be refilled. Let the
machine stand in the lowered position on the
escalator and fill fresh water along with cleaning
agent according to instructions in Section 3.3
3.14 Emptying the dirty-water tanks
(see Fig. 14: Remove dirty-water tank and
Fig.15: Insert dirty-water tank)
•Set key switch (10) to "0" position
•Draw the dirty-water tank (2) forward
and set down onto shaft (13)
•Remove tank lid (1) with suction tubes
and let hang to the side
•Grip tank on the carrying-troughs and
dispose of dirty water according to the
relevant environment regulations
•Place dirty-water tank (2) onto shaft (13)
and insertion area
•Replace tank cover (1)
•Place in tank (2) and check secure
mounting
•Set key switch (10) to position "1"
•Start suction with START/STOP key (5)
•Check fitting of tank cover!
•Switch off suction with START/STOP
key (5)
•The work can now be continued
All valid regulations
regarding waste water must
be strictly observed when
the dirty water is being
dumped!
When the fresh-water tank is
being filled it is essential that
the dirty-water tank is
emptied
The manual cleaning
equipment manufactured by
Rosemor International Ltd is
particularly suitable for minor
subsequent cleaning.

Automatic Escalator Deep Cleaning Machine – Rotomac 360
Created by Rosemor International Ltd Page 17
Fig. 14: Remove dirty-water tank
Fig. 15: Insert dirty-water tank
3.15 Ending the cleaning process
•Move machine as described in Section
3.11 with the escalator to the lowest
completely extended step.
•The machine is then raised over the
lifting spindle drive (18).
•If the escalator is going downwards,
leave the escalator at the lower end,
while making sure that:
Take out the machine with transport trolley
(Fig.17) (see Section 3.16 Use of transport
trolley) and bring to place of storage.
Fig.16: Removal of machine from escalator
When the machine is driving
over the rim comb (45) the
rear axle along with the
brake (19) must always be
raised in order to prevent the
machine catching on the
escalator’s rim combs

Automatic Escalator Deep Cleaning Machine – Rotomac 360
Created by Rosemor International Ltd Page 18
3.16 Use of transport trolley
Fig. 17: Transport trolley
3.16.1 Preparation for transport
For transport, the machine is removed from the
transport trolley with the shaft in front after the
fixing axle (46) has been removed and driven
into the shaft (see Fig. 18:).
Fig. 18: Moving into transport position
After the fixing axle (46) has been inserted and
secured, the travelling mechanism can be drawn
in and the machine thus placed on the transport
trolley.
The guide rollers of the transport trolleys allow
the machine to be manoeuvred easily (see
Fig.19)
Fig. 19: Machine in transport position
The fixing axle (46) must be
secured against slipping out
by means of the supplied
permanent cotter pin!
Before the travelling
mechanism is driven from
the stairs, the rollers on the
transport trolley must always
be secured with the brakes!

Automatic Escalator Deep Cleaning Machine – Rotomac 360
Created by Rosemor International Ltd Page 19
3.16.2 Use of transport trolley for
maintenance
In preparation for maintenance, the machine is
removed from the transport trolley with the shaft
in front, after the fixing axle (46) has been
withdrawn, and driven into the shaft (see Fig.
20:).
Fig . 20: Moving into maintenance position
After the fixing axle (46) has been inserted and
secured again, the travelling gear can be drawn
in to about half its length and the machine then
swung into the maintenance position on the
trolley.
In this way maintenance and cleaning work can
be carried out easily and quickly (see Fig. 21:).
Fig. 21: Machine in maintenance position
The fixing axle (46) must be
secured against slipping out
by means of the supplied
permanent cotter pin!
Before the travelling gear is
drawn in, the roller of the
transport trolley must always
be secured with the brakes!

Automatic Escalator Deep Cleaning Machine – Rotomac 360
Created by Rosemor International Ltd Page 20
4 Maintenance / Care
4.1 Safety measures during cleaning and
maintenance of the machine
•Before any maintenance or cleaning
work is carried out, the machine must be
separated from the mains with the main
switch being set to "0“ and the mains
plug disconnected. This will prevent
accidents caused by electrical voltage or
moving parts.
•During cleaning or maintenance work on
the machine, when parts are being
replaced or new equipment fitted for a
new function, care must be taken that
the machine can not accidentally start,
roll or turn over and that no parts can fall
down or flap closed.
If the operator has any questions or doubts
regarding safety, he must request advice from
the manufacturer or the relevant sales agent
before starting the machine.
4.2 Daily care
•Examine the power cable for any
damage.
•Always empty the dirty-water tank (2)
following use and rinse thoroughly with
water (Note instructions in Section
3.14).
•Inspect brushes (24) (Note instructions
in Section 3.2) and clean.
•Rinse out suction basin (21).
•Clean stripping brush (23).
4.3 Weekly care
•Clean and lightly lubricate the extended
lifting spindles (18).
•Check suction tubes for leaks.
•Check seal strips (22) and renew if
necessary (Fig. 22:).
Fig. 22: Suction basin / seal strip
4.4 Maintenance after 30 service hours
•Remove suction basin (21) and stripping
brush (23) and rinse (Fig. 22:)
•Check chains (34) for correct tension
and, if necessary, tighten with chain
adjuster 36) (see Section 4.6.1
Tightening the chain and Fig. 24:)
•Clean chains (34) and treat with a chain
spray (15)
•Check spray nozzles (37) and clean if
necessary
•Check glide rails (28) on the right and
the left. Replace if showing signs of
wear (Fig.22:)
•Check sliding elements of the step
adjustment device (16 and 19). Replace
in case of wear
•Check seal strip (22) and renew if
necessary (Fig. 22:)
Maintenance work may be
carried out by trained
personnel only.
