Rosenberger GPS25-4 User manual

GPS25-4
Operating Instructions
Please Keep Safe for Future
Reference
Document Version / Status: V3.0
Last Revision: 01/07/2019

GPS25-4
Operating Instructions
© Rosenberger 2018 – www.rosenberger.com Page 1 of 18
Contents
1Revision History .................................................................................................................................................. 2
2Symbols and What They Mean ........................................................................................................................... 3
3Warnings .............................................................................................................................................................. 4
4Safety Information ............................................................................................................................................... 5
5Device Description and Usage / Installation Instructions ............................................................................... 7
6Scope of Delivery ................................................................................................................................................ 9
7Controlling Elements and Connections ............................................................................................................ 9
8Commissioning .................................................................................................................................................. 10
9Function of the Device ...................................................................................................................................... 10
10Cleaning the Device .......................................................................................................................................... 11
11Troubleshooting ................................................................................................................................................ 12
12Service and Maintenance / Customer Service ................................................................................................ 12
13Technical Data ................................................................................................................................................... 13
14Disposing of the Device .................................................................................................................................... 14
15Contractual Warranty Terms and Product Liability ....................................................................................... 14
16Open Source Software ...................................................................................................................................... 15

GPS25-4
Operating Instructions
© Rosenberger 2018 – www.rosenberger.com Page 2 of 18
1 Revision History
Revision
Number / Date
Author Summary of Changes Changes
Marked
V1.0 / 08/23/2018 Simon Huber First draft N
V2.0 / 14/03/2019 Simon Huber
A
dding warning text N
V3.0 / 01/07/2019 Simon Huber
A
dding RF Exposure and OpenSource N
Date of this revision: 01.07.2019 Date of next revision

GPS25-4
Operating Instructions
© Rosenberger 2018 – www.rosenberger.com Page 3 of 18
2 Symbols and What They Mean
You may encounter the following symbols on the device and in these operating
instructions. The meanings of these are provided below.

These operating instructions contain important information
and so must be read with care.
Important warning. Failure to observe the warning:
 Puts people and the environment at risk!
 Can damage the device
 May stop the device from functioning correctly
Symbol according to WEEE Annex IV
You must observe the requirements governing the sale,
return, and environmentally sound disposal of electrical and
electronic equipment.
Do not dispose of Li-ion batteries via the municipal waste
disposal facilities. Instead, separate them from other
categories of waste and take them to the designated
collection points.


Useful information, important tips, etc.

GPS25-4
Operating Instructions
© Rosenberger 2018 – www.rosenberger.com Page 4 of 18
3 Warnings
This device complies with Part 15 of the FCC Rules and with Industry Canada
licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that
may cause undesired operation.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes:
1. I’appareil ne doit pas produire de brouillage;
2. I’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
The user manual or instruction manual for an intentional or unintentional radiator
shall caution the user that changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate the
equipment. In cases where the manual is provided only in a form other than paper,
such as on a computer disk or over the Internet, the information required by this
section may be included in the manual in that alternative form, provided the user can
reasonably be expected to have the capability to access information in that form.

GPS25-4
Operating Instructions
© Rosenberger 2018 – www.rosenberger.com Page 5 of 18
4 Safety Information
In principle, the device is safe to operate provided that you observe the information in these
operating instructions and on the device itself.
 The inside of the device contains hazardous electrical circuits that can be lethal
if touched. The device is only to be opened and/or repaired by authorized
personnel. Never open the device and never attempt to carry out any repairs
yourself. Instead, please contact your Customer Service team. For the contact
details, please see the "Service and Maintenance" section.
 The GPS25-4 device is intended for installation on an authorized Bosch Tool.
Within the context of this end-use application, the requirements concerning
- protection against operator contact,
- fire protection,
- air gaps and creepage distances,
- and the general requirements
must all be observed – while also taking account of the specific usage scenario
and the associated recognized standards of good practice for ensuring safety
and proper functioning.
 As a component of the Power Tool end-use application, the device is only safe
if used in accordance with the installation and operating instructions provided in
this technical manual.
 The module does not feature a supply circuit disconnect. A suitable disconnect
switch must be integrated into the supply circuit when installing the device.
 Before switching on the device, you must make absolutely sure that the line
voltage matches the device supply voltage. For the device specifications,
please refer to the device rating plate or the technical data.
- The device rating plate can be found on the device itself.
- The technical data for the device can be found in the
"Technical Data" section.
 Avoid prolonged exposure to high humidity and condensation. Protect the
device against moisture and chemicals.

GPS25-4
Operating Instructions
© Rosenberger 2018 – www.rosenberger.com Page 6 of 18
 Only use the spare parts and accessories included with delivery or spare parts
and accessories that have been officially approved by us. Using non-approved
spare parts and accessories can significantly impair the function of the device
and compromise your safety.
 The device is no longer safe to operate if:
- The housing has been damaged by excessive mechanical stress
- Water has got inside the device
- Smoke is emerging from inside the device
- The supply cable is damaged
In the event of any of the faults described above, switch the device off
immediately and disconnect it from the power supply. Contact your Customer
Service team right away. For further details, see the "Service and
Maintenance" section.
 Do not drop the device or allow it to fall!
 Users are not permitted to modify the product in any way. Any consequences
resulting from product modifications will not be covered by Customer Service
or by the contractual warranty terms.
 Your attention is expressly drawn to the fact that no product liability and
warranty claims can be asserted if the device has not been operated in
accordance with the information provided in these operating instructions and the
information on the device, or if it has been used other than intended!
 This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator an your body.
 The device features a lithium battery.
 Attention! Risk of explosion if battery is incorrectly replaced

GPS25-4
Operating Instructions
© Rosenberger 2018 – www.rosenberger.com Page 7 of 18
5 Device Description and Usage / Installation Instructions
 The GPS25-4 is a telematics unit that is solely intended for installation on a Bosch
Power Tool. Therefore, please also observe the information in the "Safety
Information" section.
Connecting the Device:
Only authorized specialist personnel are permitted to carry out installation work. For
this, the Power Tool must be disconnected from the line voltage by pulling out the
power plug. Before installing the unit, make sure that it is safe to do so by following
the five electrical safety rules.
Install the device in the jackhammer grip as follows:

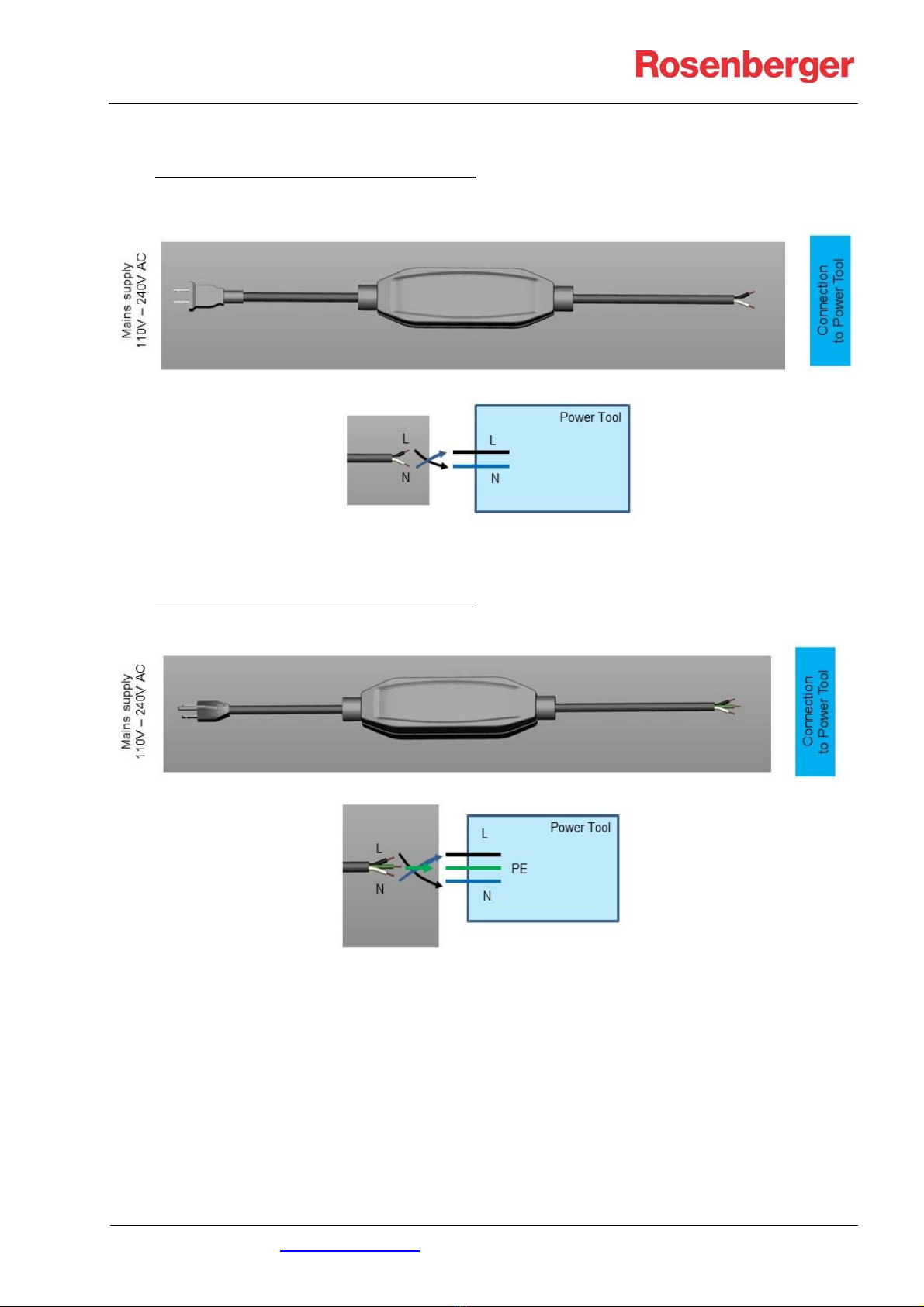

GPS25-4 with power cord 1614460102

GPS25-4
Operating Instructions
© Rosenberger 2018 – www.rosenberger.com Page 8 of 18
GPS25-4 with power cord 1614460101
GPS25-4 with power cord 1614461033

GPS25-4
Operating Instructions
© Rosenberger 2018 – www.rosenberger.com Page 9 of 18
 To verify that the device is functioning correctly, you have the option of
carrying out a visual check. For further details, see "Commissioning".
6 Scope of Delivery
 After unpacking the device, immediately check that everything is
present and in good condition. If an item is missing or damaged, please
let us know right away. For details of your Customer Service team,
please see the "Service and Maintenance" section.
Parts included with delivery:
 1x telematics unit GPS25-4
7 Controlling Elements and Connections
The device does not have any operating controls.

GPS25-4
Operating Instructions
© Rosenberger 2018 – www.rosenberger.com Page 10 of 17
8 Commissioning
The device must NEVER be commissioned by the operator (end customer/non-
specialist).
9 Function of the Device
The GPS25-4 device is a telematics unit that is intended for installation on a Bosch
Power Tool. The unit functions independently without the need for a specific
commissioning process.
Whenever the GPS25-4 is connected to the line voltage, the Li-ion battery starts
recharging regardless of its current state of charge.
When the GPS25-4 is disconnected from the line supply, the Li-ion battery supplies
the device with power.
The telematics unit automatically connects to an Internet application via a cellular
connection in order to log various events. For this purpose, the telematics unit
features – among other things – a GPS receiver, an acceleration sensor, and a
temperature sensor.

GPS25-4
Operating Instructions
© Rosenberger 2018 – www.rosenberger.com Page 11 of 17
10 Cleaning the Device
The device does not require cleaning to function correctly. Periodic cleaning at regular
intervals is not necessary.
It is essential to disconnect the device from the line supply
before cleaning it. To do this, unplug the supply cable from
the power receptacle. Do not immerse the device in water
under any circumstances. Only use the cleaning agents
approved by the manufacturer. For further details, see the
information below.







GPS25-4
Operating Instructions
© Rosenberger 2018 – www.rosenberger.com Page 12 of 17
11 Troubleshooting
Fault description Possible causes and remedy
Internet application
is not receiving
any data from
device
No power being supplied to device
- Line voltage supply leads defective/not
connected
- Battery not connected / Connection defective
- Battery defective
Remedy:
- Check that leads are connected correctly
- Replace device if defective
If your device cannot be successfully put into operation after using the fault scenarios described
above to identify and subsequently remedy the fault, please send the device to your Customer
Service team for repair. For details of your Customer Service team, please see the "Service and
Maintenance" section.
12 Service and Maintenance / Customer Service
The GPS25-4 component does not normally require any maintenance or servicing.
However, in the event of problems or if your device is defective, please contact our
Customer Service department. The device, or any parts thereof, may only be
examined and/or replaced by us.
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Hauptstraße 1
83413 Fridolfing
Germany
Phone: [phone]
www.rosenberger.com
Only authorized specialists are permitted to carry out
troubleshootin
g
b
y
identif
y
in
g
and remed
y
in
g
faults.



GPS25-4
Operating Instructions
© Rosenberger 2018 – www.rosenberger.com Page 13 of 17
13 Technical Data
Model: GPS25-4
FCC-ID: TXTGPS25-4
IC: 909H-GPS254
Line voltage connection: 110-240V AC
Rated frequency: 50/60 Hz
Battery connector: 3.0V – 4.2V DC
Charging current at battery connector: max. 500mA
Ambient conditions: temperature: -20°C-60°C
Humidity: max. 93+/- 3%
Altitude: max. 3000m
Device battery: Li-Ion, ABI-L-18650-1S1P-DR
Battery voltage: 3.6V
Battery capacity : 2500mAh
Cellular radio technology: LTE Cat M1 / NB1
Band: 2 / 4 / 5 / 12
Output Power: Class 3 (23dBm)
GPS sensitivity: -148dBm

GPS25-4
Operating Instructions
© Rosenberger 2018 – www.rosenberger.com Page 14 of 17
14 Disposing of the Device
The device has been developed and manufactured
using high-quality materials and components that can be
recycled and reused.
As stipulated by Directive WEEE2 2012/19/EU and the
German Electrical and Electronic Equipment Act
(ElektroG), the device must not be disposed of together
with
g
eneral/household
g
arba
g
e *.
Do not dispose of Li-ion batteries via the municipal
waste disposal facilities. Instead, separate them from
other categories of waste and take them to the
designated collection points.
Environmental protection information:
On reaching the end of its useful life, this product must not be disposed of with
normal household garbage. Instead, it must be taken to a recycling collection point
for electrical and electronic equipment. The materials can be recycled as per their
labels. By reusing or recycling waste electrical equipment, you can make a
significant contribution to the protection of our environment. Please contact your
municipal authority for details of your responsible waste disposal center.
* EU Directive WEEE 2002/96/EC was implemented in German law by the Electrical
and Electronic Equipment Act (ElektroG).
15 Contractual Warranty Terms and Product Liability
 The contractual warranty terms and any product liability claims – including during
the statutory warranty period – will be rendered null and void if the device is not
operated in accordance with the information provided in these operating
instructions and on the device itself.
 The contractual warranty terms and any product liability claims – including during
the statutory warranty period – will be rendered null and void if the device is
opened or operated improperly.
 Due to their limited useful life, any parts that are particularly subject to wear are
excluded from the statutory warranty. These include batteries, etc.

GPS25-4
Operating Instructions
© Rosenberger 2018 – www.rosenberger.com Page 15 of 17
16 Open Source Software
The Firmware of this product contains Open-Source-Software, which are subjected to the
Open Source license terms. The Open Source components can be changed during lifetime.
An overview of the used Open Source components and license, if prescribed by law, can
be downloaded from the following portal:
www.rosenberger.com/downloads/m2m
If applicable, the source code of the Open Source Software, depending on the license
terms of the Open Source Software, is available on request.
