Roshults 200372 User manual

MODULE COOKER HOB 50 - LPG
User Manual
22.01.17
EN

3 / 16
EN
Module Cooker Hob 50-LPG
USER MANUAL
22.01.17 5.1.4-R-UM-M-BBQ-G-X
EN Module Cooker Hob 50 PRODUCT SHEET
Module Cooker Hob 50
Module Cooker Hob 50
Design:
Broberg & Ridderstråle
Art no:
200372 / 200373, 30mbar + 28-30/37mbar (Adapted for EU market)
Colours:
Anthracite / Brushed Stainless Steel
Materials:
Stainless Steel
Measurements:
L 500 D 500 H 331 mm / L 19.7 D 19.7 H 13 in
Weight:
18.5 kg / 40.8 lb
Marking label:
CE
Power EU:
4kW
Color & Sample
Frame available in
Anthracite. Akzo Nobel
Röshults Sample: CO004
Brushed Stainless Steel. 316L
Röshults Sample: ME003
250
20
500
31
500
VIEW A-A
SCALE 1:4
A
A
THISDRAWINGISRÖSHULTSPROPERTYANDITISPROTECTEDBYDOMESTICANDINTERNATIONALLAW.
ITMAYNOTBEUSEDORDISTRIBUTEDWITHOUTRÖSHULTSPERMISSION.
DATE
2020-03-24
ARTHUR
RF
VIEW PLACEMENT EST. WEIGHT
N/A
TITLE
Cooker Hob 2020
0,5 - 6
>6 - 30
>30 - 120
>120 - 400
>400 - 1000
>1000 - 2000
>2000 - 4000
>4000 - 8000
0,1
0,2
0,3
0,5
0,8
1,2
2
3
DRAWING NUMBER PAGE
1:4
SCALE
11
of
FORMAT
A3
REVISION
A
Nom.Nom. Tol.
 Tol. 
Tolerance where not spec:
SS-ISO 2768-1m / SMS 723 AA
REV DESCRIPTION KM DATE
A 2020-03-24
250
31
500 500
A
B
VIEW A-A
SCALE 1:4
A
A
THISDRAWINGISRÖSHULTSPROPERTYANDITISPROTECTEDBYDOMESTICANDINTERNATIONALLAW.
ITMAYNOTBEUSEDORDISTRIBUTEDWITHOUTRÖSHULTSPERMISSION.
DATE
2020-03-24
ARTHUR
RF
VIEW PLACEMENT EST. WEIGHT
N/A
TITLE
Cooker Hob 2020
0,5 - 6
>6 - 30
>30 - 120
>120 - 400
>400 - 1000
>1000 - 2000
>2000 - 4000
>4000 - 8000
0,1
0,2
0,3
0,5
0,8
1,2
2
3
DRAWING NUMBER PAGE
1:4
SCALE
11
of
FORMAT
A3
REVISION
A
Nom.Nom. Tol.
 Tol. 
Tolerance where not spec:
SS-ISO 2768-1m / SMS 723 AA
REV DESCRIPTION KM DATE
A 2020-03-24
250
31
500 500
A
B

4 / 16
EN Module Cooker Hob 50-LPG USER MANUAL
22.01.17 5.1.4-R-UM-M-BBQ-G-X
EN Module Cooker Hob 50 PRODUCT SHEET
Module Cooker Hob 50
Module Cooker Hob 50
Design:
Broberg & Ridderstråle
Art no:
200374 / 200375, 50mbar (Adapted for EU market)
Colours:
Anthracite / Brushed Stainless Steel
Materials:
Stainless Steel
Measurements:
L 500 D 500 H 331 mm / L 19.7 D 19.7 H 13 in
Weight:
18.5 kg / 40.8 lb
Marking label:
CE
Power EU:
4kW
Color & Sample
Frame available in
Anthracite. Akzo Nobel
Röshults Sample: CO004
Brushed Stainless Steel. 316L
Röshults Sample: ME003
250
20
500
31
500
VIEW A-A
SCALE 1:4
A
A
THISDRAWINGISRÖSHULTSPROPERTYANDITISPROTECTEDBYDOMESTICANDINTERNATIONALLAW.
ITMAYNOTBEUSEDORDISTRIBUTEDWITHOUTRÖSHULTSPERMISSION.
DATE
2020-03-24
ARTHUR
RF
VIEW PLACEMENT EST. WEIGHT
N/A
TITLE
Cooker Hob 2020
0,5 - 6
>6 - 30
>30 - 120
>120 - 400
>400 - 1000
>1000 - 2000
>2000 - 4000
>4000 - 8000
0,1
0,2
0,3
0,5
0,8
1,2
2
3
DRAWING NUMBER PAGE
1:4
SCALE
11
of
FORMAT
A3
REVISION
A
Nom.Nom. Tol.
 Tol. 
Tolerance where not spec:
SS-ISO 2768-1m / SMS 723 AA
REV DESCRIPTION KM DATE
A 2020-03-24
250
31
500 500
A
B
VIEW A-A
SCALE 1:4
A
A
THISDRAWINGISRÖSHULTSPROPERTYANDITISPROTECTEDBYDOMESTICANDINTERNATIONALLAW.
ITMAYNOTBEUSEDORDISTRIBUTEDWITHOUTRÖSHULTSPERMISSION.
DATE
2020-03-24
ARTHUR
RF
VIEW PLACEMENT EST. WEIGHT
N/A
TITLE
Cooker Hob 2020
0,5 - 6
>6 - 30
>30 - 120
>120 - 400
>400 - 1000
>1000 - 2000
>2000 - 4000
>4000 - 8000
0,1
0,2
0,3
0,5
0,8
1,2
2
3
DRAWING NUMBER PAGE
1:4
SCALE
11
of
FORMAT
A3
REVISION
A
Nom.Nom. Tol.
 Tol. 
Tolerance where not spec:
SS-ISO 2768-1m / SMS 723 AA
REV DESCRIPTION KM DATE
A 2020-03-24
250
31
500 500
A
B

5 / 16
EN
Module Cooker Hob 50-LPG
USER MANUAL
Note!: The appliance shall be used outdoors
Safety instructions
Please save this instruction manual for future reference.
This Cooker Hob is designed only for outdoor use.
Don’t allow children to operate this cooker hob.
Warning!
For your safety, please note:
• Use outdoors only.
• Read the instructions before using the appliance.
Before the rst use
• Warning! Accessible parts may be very hot. Keep children away.
Use protective glove when handling particularly hot components.
• This appliance must be kept away from ammable materials
during use.
• Do not move the appliance during use.
• Turn off the gas supply at the gas cylinder after use.
• Do not modify the appliance.
• Don’t place the gas cylinder under or near the appliance.
• The pressure regulator shall meet the European standard EN16129.
• The length of the hose shall not exceed 1.5m.
• The gas cylinder must be stored in accordance with the
regulations in force.
• Only use propane and butane gas specied in the manual.
• Do not use ammable liquids to light or relight your Cooker Hob.
• Please follow the assembly instructions in this manual. Do not
modify the assembly, or change any component parts. Failure to
comply with these instructions may cause risk during use.
• In the event of a gas leak, immediately shut off the gas supply
at the cylinder, extinguish any open ame. Check the hoses
for damage and /or poor connection. If the leak continues,
immediately contact approved gas dealer. Do not use a naked
ame to check for gas leaks.
• Do not attempt to disconnect any gas ttings or connectors
when the appliance is being used.
• Never leave your cooker hob unattended when in use. Always
cook with great care.
• This appliance should be cleaned on a regular basis. During
cleaning, take care not to damage any component
parts, such as the burner or valves.
• Check the exible hoses at least once per month, and each time
you change the gas cylinder. If you nd signs of cracking or
deterioration, replace with a new hose of similar length and
quality.
• We recommend that this appliance is serviced by an approved
technician at least once per year. Do not attempt to
service this appliance yourself.
NO DESCRIPTION
01 Pan support
02 Inside re cap
03 Outside re cap
04 Flame spreader
05 Thermocouple
06 Igniter
07 Nozzle x2
08 Knob
09 Drip tray
10 Burner
11 Valve
12 Adjustable foot
Module Cooker Hob 50
Parts
DETAIL A
SCALE 1:3
A
THISDRAWINGISRÖSHULTSPROPERTYANDITISPROTECTEDBYDOMESTICANDINTERNATIONALLAW.
ITMAYNOTBEUSEDORDISTRIBUTEDWITHOUTRÖSHULTSPERMISSION.
DATE
2020-03-11
ARTHUR
RF
VIEW PLACEMENT EST. WEIGHT
N/A
TITLE
Cooker Hob 2020
0,5 - 6
>6 - 30
>30 - 120
>120 - 400
>400 - 1000
>1000 - 2000
>2000 - 4000
>4000 - 8000
0,1
0,2
0,3
0,5
0,8
1,2
2
3
DRAWING NUMBER PAGE
1:4
SCALE
2
1of
FORMAT
A3
REVISION
A
Nom.Nom. Tol.
 Tol. 
Tolerance where not spec:
SS-ISO 2768-1m / SMS 723 AA
REV DESCRIPTION KM DATE
A 2020-03-11
PåSidan 2 ser du benämningarna
01
08
09
02
03
04
DETAIL A
SCALE 1:3
A
THISDRAWINGISRÖSHULTSPROPERTYANDITISPROTECTEDBYDOMESTICANDINTERNATIONALLAW.
ITMAYNOTBEUSEDORDISTRIBUTEDWITHOUTRÖSHULTSPERMISSION.
DATE
2020-03-11
ARTHUR
RF
VIEW PLACEMENT EST. WEIGHT
N/A
TITLE
Cooker Hob 2020
0,5 - 6
>6 - 30
>30 - 120
>120 - 400
>400 - 1000
>1000 - 2000
>2000 - 4000
>4000 - 8000
0,1
0,2
0,3
0,5
0,8
1,2
2
3
DRAWING NUMBER PAGE
1:4
SCALE
2
1
of
FORMAT
A3
REVISION
A
Nom.Nom. Tol. Tol. 
Tolerance where not spec:
SS-ISO 2768-1m / SMS 723 AA
REV DESCRIPTION KM DATE
A 2020-03-11
PåSidan 2 ser du benämningarna
06
07
05
10
THISDRAWINGISRÖSHULTSPROPERTYANDITISPROTECTEDBYDOMESTICANDINTERNATIONALLAW.
ITMAYNOTBEUSEDORDISTRIBUTEDWITHOUTRÖSHULTSPERMISSION.
DATE
2020-04-20
ARTHUR
RF
VIEW PLACEMENT EST. WEIGHT
N/A
TITLE
0,5 - 6
>6 - 30
>30 - 120
>120 - 400
>400 - 1000
>1000 - 2000
>2000 - 4000
>4000 - 8000
0,1
0,2
0,3
0,5
0,8
1,2
2
3
DRAWING NUMBER PAGE
1:3
SCALE
11 of
FORMAT
A3
REVISION
A
Nom.Nom. Tol.
 Tol. 
Tolerance where not spec:
SS-ISO 2768-1m / SMS 723 AA
REV DESCRIPTION KM DATE
A 2020-04-20
1112
DETAIL A
SCALE 1:3
A
THISDRAWINGISRÖSHULTSPROPERTYANDITISPROTECTEDBYDOMESTICANDINTERNATIONALLAW.
ITMAYNOTBEUSEDORDISTRIBUTEDWITHOUTRÖSHULTSPERMISSION.
DATE
2020-03-11
ARTHUR
RF
VIEW PLACEMENT EST. WEIGHT
N/A
TITLE
Cooker Hob 2020
0,5 - 6
>6 - 30
>30 - 120
>120 - 400
>400 - 1000
>1000 - 2000
>2000 - 4000
>4000 - 8000
0,1
0,2
0,3
0,5
0,8
1,2
2
3
DRAWING NUMBER PAGE
1:4
SCALE
2
1of
FORMAT
A3
REVISION
A
Nom.Nom. Tol.
 Tol. 
Tolerance where not spec:
SS-ISO 2768-1m / SMS 723 AA
REV DESCRIPTION KM DATE
A 2020-03-11
PåSidan 2 ser du benämningarna

6 / 16
EN Module Cooker Hob 50-LPG USER MANUAL
• During the operation, the appliance shall be placed in a
ventilationed area.
• Flexible hose (gas cylinder) shall be changed every 2 years.
It is necessary to change the exible hose when the national
conditions require it.
• The user shall not manipulate any parts that are sealed by
manufacturer or his agent.
• Any modication of the apliance may be dangerous.
This appliance complies and is tested in accordance with Regulation
(EU) 2016/426 - appliances burning gaseous fuels and EN484:2019.
Safety practices to avoid personal injury
Keep the ventilation opening(s) of the cylinder enclosure free and
clear from debris.
When properly cared for, your Röshults Cooker Hob will give safe,
reliable service for many years. However, extreme care must be used
since the cooker hob produces intense heat and that can increase
accident potential. When using this appliance, basic safety practices
must be followed, including the following:
• Read this Care and User Manual carefully and completely before
using your cooker hob to reduce the risk of re, burn hazard or
other injury.
• Do not repair or replace any part of the cooker hob unless speci-
cally recommended in this manual. All other service should be
referred to a qualied technician.
• Children should not be left alone or unattended in an area
where the cooker hob is being used. Never allow them to sit,
stand or play on or around the cooker hob at any time.
• Do not store items of interest to children around or below the
cooker hob or in the sideboard. Never allow children to crawl
inside of the cooker hob or sideboard.
• Never let clothing, pot holders or other ammable materials
come in contact with or get too close to the pan support, burner
or hot surface until it has cooled. Fabric may ignite and result in
personal injury.
• For personal safety, wear proper apparel. Loose tting garments
or sleeves should never be worn while using this appliance.
Some synthetic fabrics are highly ammable and should not be
worn while cooking.
• Only certain types of glass, heat-proof glass ceramic,
earthenware, or other glazed utensils are suitable for cooker use.
Theses types of materials may break with sudden temperature
changes. Use only on low or medium heat settings according to
the manufacturer’s directions.
• Do not heat unopened food containers as a build-up of pressure
may cause the container to burst.
• Use a covered hand when using the cooker hob. Never lean over
the Cooker Hob.
• When lighting the burner, always pay close attention to what
you are doing.
Before you start the Cooker Hob
Read the instruction manual before installing and using the
appliance. These Instructions are valid only for those countries which
are indicated on the label on the appliance. The manufacturer cannot
be held responsible for any damage to things or persons caused by
an incorrect installation or by incorrect use of the appliance. The
manufacturer reserves the right to make changes to his products
when it is considered necessary and useful without affecting the
essential features regarding safety and function
Technical manual for the installer
The installation, all regulations, changes and maintenance referred
to in this part must only be carried out by qualied staff. Any wrong
installation can cause damage to persons, animals or things which
the manufacturer cannot be held responsible for. The safety and
automatic regulation devices on the appliances can only ever be
changed by the manufacturer or by the authorized supplier.
THE INSTALLATION OF THE APPLIANCE MUST BE
ACCORDING TO THE NATIONAL LAW.

7 / 16
EN
Module Cooker Hob 50-LPG
USER MANUAL

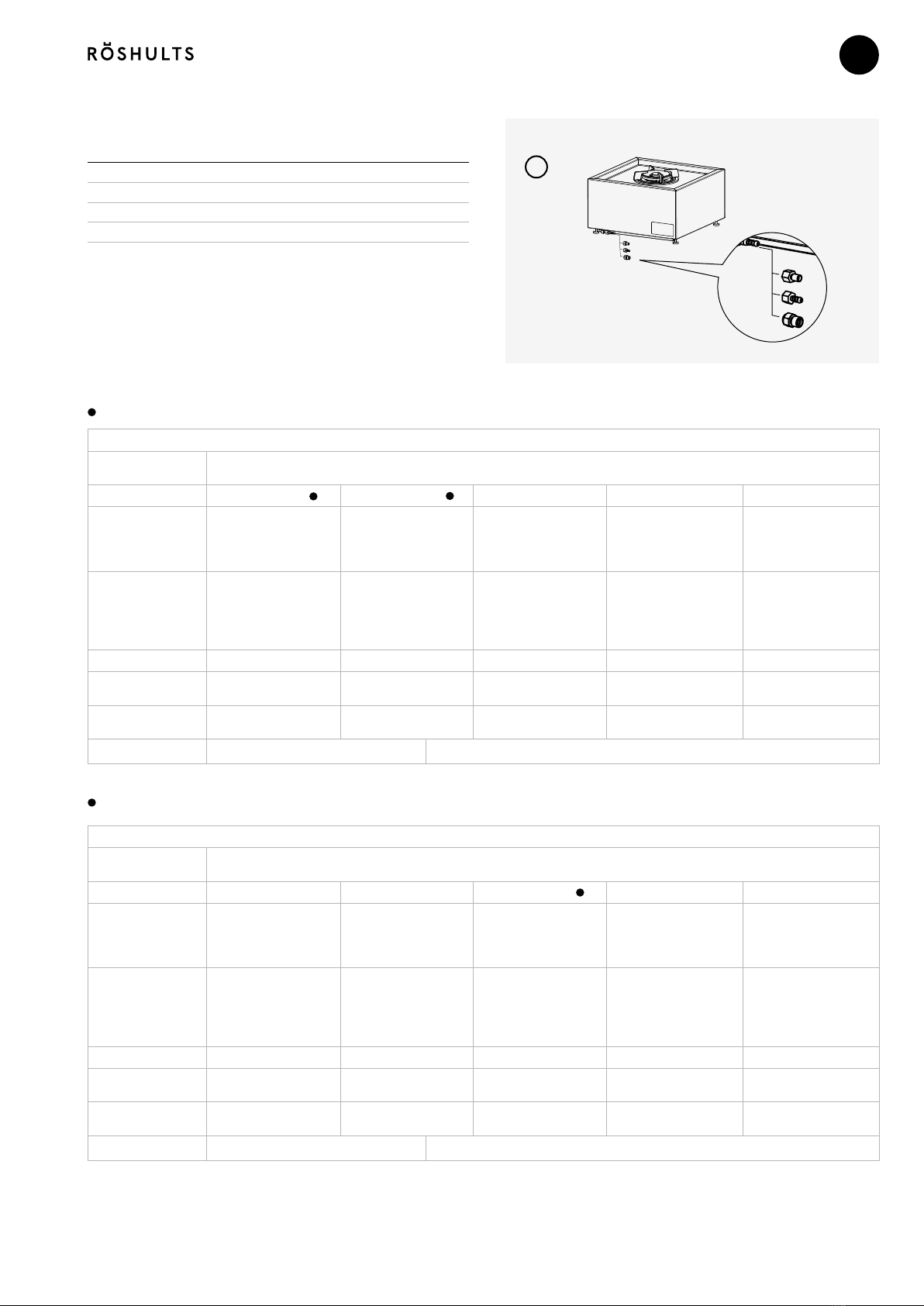

List of gas connection coupling:
NO DESCRIPTION Q’TY
01 Gas Connection coupling SE 1(Assembled on Cooker Hob)
02 Gas Connection coupling DE 1
03 Gas Connection coupling UK 1
04 Gas Connection coupling FR 1
Changing gas connection coupling
1. Select and connect the gas connection suitable for your country
regulation.
03
04
02
1
THISDRAWINGISRÖSHULTSPROPERTYANDITISPROTECTEDBYDOMESTICANDINTERNATIONALLAW.
ITMAYNOTBEUSEDORDISTRIBUTEDWITHOUTRÖSHULTSPERMISSION.
DATE
2019-10-28
ARTHUR
RF
VIEW PLACEMENT EST. WEIGHT
N/A
TITLE
Module Cooker Hob
0,5 - 6
>6 - 30
>30 - 120
>120 - 400
>400 - 1000
>1000 - 2000
>2000 - 4000
>4000 - 8000
0,1
0,2
0,3
0,5
0,8
1,2
2
3
DRAWING NUMBER PAGE
1:4
SCALE
11
of
FORMAT
A3
REVISION
A
Nom.Nom. Tol.
 Tol. 
Tolerance where not spec:
SS-ISO 2768-1m / SMS 723 AA
REV DESCRIPTION KM DATE
A 2019-10-28
Module Cooker Hob 50
Manufacturer name
address
Röshults Svenska Hantverk AB
Kärrviolsvägen 7, 554 75 Jönköping, Sweden
Gas Category I3 + (28-30/37) I3B/P(30) I3B/P(50) I2H I2E
Gas and
Supply
Pressure
G30 Butane at 28~30
mbar
G31 Propane at 37 mbar
G30 Butane and G31
Propane at 30mbar
G30 Butane and G31
Propane at 50mbar
Methane G20 20mbar Methane G20 20mbar
Country Code BE, CH, CY, CZ, ES, FR, GB,
GR, IE, IT, LT, LU, LV, PT,
SK, SI
BE, CY, DK, EE, FR, GB,
HU, IT, LT, NL, NO, SE, SI,
SK, RO, HR, TR, BG, IS, LU,
MT, FI
AT, CH, DE, SK AT, CH, CZ, DK, EE, ES, FI,
FR, GB, GR, IE, IT, LT, LV,
NO, PT, RO, SE, SI, SK
DE, LU, PL, RO
Burner 1 1 1 1 1
Nominal Heat Input
(single burner)
4.0kW 4.0kW 4.0kW 4.5kW 4.5kW
Burner
Injector Size
1.00mm / 0.44mm 1.00mm / 0.44mm 0.75mm / 0.43mm 1.58mm / 0.70mm 1.58mm / 0.70mm
Service center Röshults Svenska Hantverk AB Made in LT
Module Cooker Hob 50
Manufacturer name
address
Röshults Svenska Hantverk AB
Kärrviolsvägen 7, 554 75 Jönköping, Sweden
Gas Category I3 + (28-30/37) I3B/P(30) I3B/P(50) I2H I2E
Gas and
Supply
Pressure
G30 Butane at 28~30
mbar
G31 Propane at 37 mbar
G30 Butane and G31
Propane at 30mbar
G30 Butane and G31
Propane at 50mbar
Methane G20 20mbar Methane G20 20mbar
Country Code BE, CH, CY, CZ, ES, FR, GB,
GR, IE, IT, LT, LU, LV, PT,
SK, SI
BE, CY, DK, EE, FR, GB,
HU, IT, LT, NL, NO, SE, SI,
SK, RO, HR, TR, BG, IS, LU,
MT, FI
AT, CH, DE, SK AT, CH, CZ, DK, EE, ES, FI,
FR, GB, GR, IE, IT, LT, LV,
NO, PT, RO, SE, SI, SK
DE, LU, PL, RO
Burner 1 1 1 1 1
Nominal Heat Input
(single burner)
4.0kW 4.0kW 4.0kW 4.5kW 4.5kW
Burner
Injector Size
1.00mm / 0.44mm 1.00mm / 0.44mm 0.75mm / 0.43mm 1.58mm / 0.70mm 1.58mm / 0.70mm
Service center Röshults Svenska Hantverk AB Made in LT
This cooker hob can be adapted for either:
28-30/37mbar and 30mbar, see marking label on your Cooker hob
50mbar, see marking label on your Cooker hob

8 / 16
EN Module Cooker Hob 50-LPG USER MANUAL
Connecting gas line
The connection of gas cookers must be operated by professional
personnel with a gas maintenance qualication, and ensure
it complies with the statutory regulations and connection
requirements of the local ammable product management
department. (please see the fuel gas administrative departments
documents’ requirement, you can consult the gas products counter
of each department store and purchase special hose and pipe clip.)
THISDRAWINGISRÖSHULTSPROPERTYANDITISPROTECTEDBYDOMESTICANDINTERNATIONALLAW.
ITMAYNOTBEUSEDORDISTRIBUTEDWITHOUTRÖSHULTSPERMISSION.
DATE
2020-03-11
ARTHUR
RF
VIEW PLACEMENT EST. WEIGHT
N/A
TITLE
Cooker Hob 2020
0,5 - 6
>6 - 30
>30 - 120
>120 - 400
>400 - 1000
>1000 - 2000
>2000 - 4000
>4000 - 8000
0,1
0,2
0,3
0,5
0,8
1,2
2
3
DRAWING NUMBER PAGE
1:3
SCALE
11
of
FORMAT
A3
REVISION
A
Nom.Nom. Tol.
 Tol. 
Tolerance where not spec:
SS-ISO 2768-1m / SMS 723 AA
REV DESCRIPTION KM DATE
A 2020-03-11

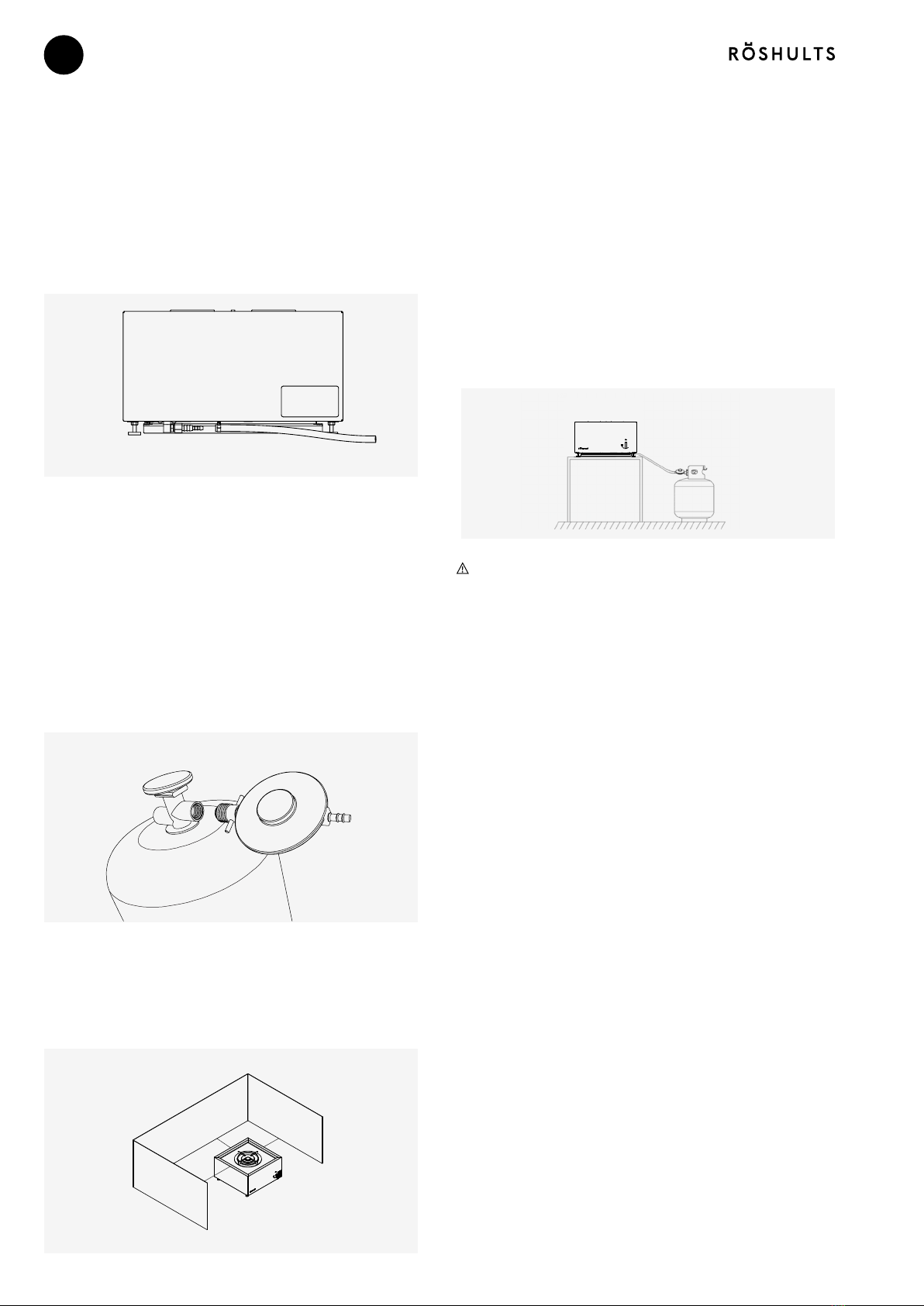

Preparation
You need a gas cylinder and a proper regulator to reach the gas
pressure to operate this Cooker Hob. Regulator should comply with
current version and national regulation.
Installation
After purchasing your gas cylinder you will then be ready to set it up
with your Cooker Hob.
The recommended cylinders are PC5, with a weight of 5kg and P6
with a weight of 6kg. Connect with CE-approved regulator and gas
hose.
Check all the parts, and make sure no part is missing. If there are any
parts missing, please contact customer service.
The distance between the appliance and the wall is as follows for
reference.
Operations
1. When changing the gas cylinder which shall be carried out away
from any source of ignition. Position the gas cylinder at any side
of your Cooker Hob, should not be placed under, keeping in mind
that the gas cylinder must be kept away from heat and in a safe
position.
2. Identify which type of regulator you need and follow the
instructions provided by the gas tube supplier. Also follow the
regulations valid for your country.
3. When ready to use your Cooker Hob insert the regulator into the
gas cylinder valve and tighten rmly.
Warning!
Before attempting to light your Cooker Hob you must refer to your
lighting instructions and warning / safety precautions.
Check the hose before each use, searching for cracking, cuts or any
abrasions. If the hose is found to be faulty in any way do not attempt
to use your Cooker Hob. When changing your gas cylinder ensures
that there are no sources of ignition close by res, cigarettes, naked
ames etc. Make sure that the appliance is switched off.
The appliance only can use liquid gas cylinder as per Technical Data
Label. The gas cylinder should meet the national requirement.
Safety precautions
• Always test gas line for leaks at connector with soapy water after
making connections.
• Use oven gloves when using the Cooker Hob.
• Use pan suitable for this Cooker Hob, minimum size diameter 13
cm and maximum size diameter 28 cm.
• Be prepared if an accident or re should occur. Know where the
rst aid kit and re extinguishers are and know how to use them.
• Keep any electrical supply cord and the fuel supply hose away
from any heated surfaces.
• Always cook with great care.
• Do not heat any unopened glass or metal container of food on
the Cooker Hob. Pressure may build up and cause the container
to burst, possibly resulting in serious personal injury or damage
to the Hob. It is recommended to use protective gloves when
operating the appliance, especially handling particularly hot
components.
THISDRAWINGISRÖSHULTSPROPERTYANDITISPROTECTEDBYDOMESTICANDINTERNATIONALLAW.
ITMAYNOTBEUSEDORDISTRIBUTEDWITHOUTRÖSHULTSPERMISSION.
DATE
2020-03-24
ARTHUR
RF
VIEW PLACEMENT EST. WEIGHT
N/A
TITLE
0,5 - 6
>6 - 30
>30 - 120
>120 - 400
>400 - 1000
>1000 - 2000
>2000 - 4000
>4000 - 8000
0,1
0,2
0,3
0,5
0,8
1,2
2
3
DRAWING NUMBER PAGE
1:10
SCALE
11
of
FORMAT
A3
REVISION
A
Nom.Nom. Tol.
 Tol. 
Tolerance where not spec:
SS-ISO 2768-1m / SMS 723 AA
REV DESCRIPTION KM DATE
A 2020-03-24
60
(cm)
60
60
VIEW A-A
SCALE 1:4
A
A
THISDRAWINGISRÖSHULTSPROPERTYANDITISPROTECTEDBYDOMESTICANDINTERNATIONALLAW.
ITMAYNOTBEUSEDORDISTRIBUTEDWITHOUTRÖSHULTSPERMISSION.
DATE
2020-03-24
ARTHUR
RF
VIEW PLACEMENT EST. WEIGHT
N/A
TITLE
Cooker Hob 2020
0,5- 6
>6- 30
>30- 120
>120- 400
>400- 1000
>1000- 2000
>2000- 4000
>4000- 8000
0,1
0,2
0,3
0,5
0,8
1,2
2
3
DRAWING NUMBER PAGE
1:4
SCALE
11
of
FORMAT
A3
REVISION
A
Nom.Nom. Tol.
 Tol. 
Tolerancewhere not spec:
SS-ISO 2768-1m / SMS 723AA
REV DESCRIPTION KM DATE
A 2020-03-24
250
31
500 500
A
B

9 / 16
EN
Module Cooker Hob 50-LPG
USER MANUAL
9 / 16
THISDRAWINGISRÖSHULTSPROPERTYANDITISPROTECTEDBYDOMESTICANDINTERNATIONALLAW.
ITMAYNOTBEUSEDORDISTRIBUTEDWITHOUTRÖSHULTSPERMISSION.
DATE
2020-03-11
ARTHUR
RF
VIEW PLACEMENT EST. WEIGHT
N/A
TITLE
Cooker Hob 2020
0,5 - 6
>6 - 30
>30 - 120
>120 - 400
>400 - 1000
>1000 - 2000
>2000 - 4000
>4000 - 8000
0,1
0,2
0,3
0,5
0,8
1,2
2
3
DRAWING NUMBER PAGE
1:3
SCALE
11 of
FORMAT
A3
REVISION
A
Nom.Nom. Tol.
 Tol. 
Tolerance where not spec:
SS-ISO 2768-1m / SMS 723 AA
REV DESCRIPTION KM DATE
A 2020-03-11

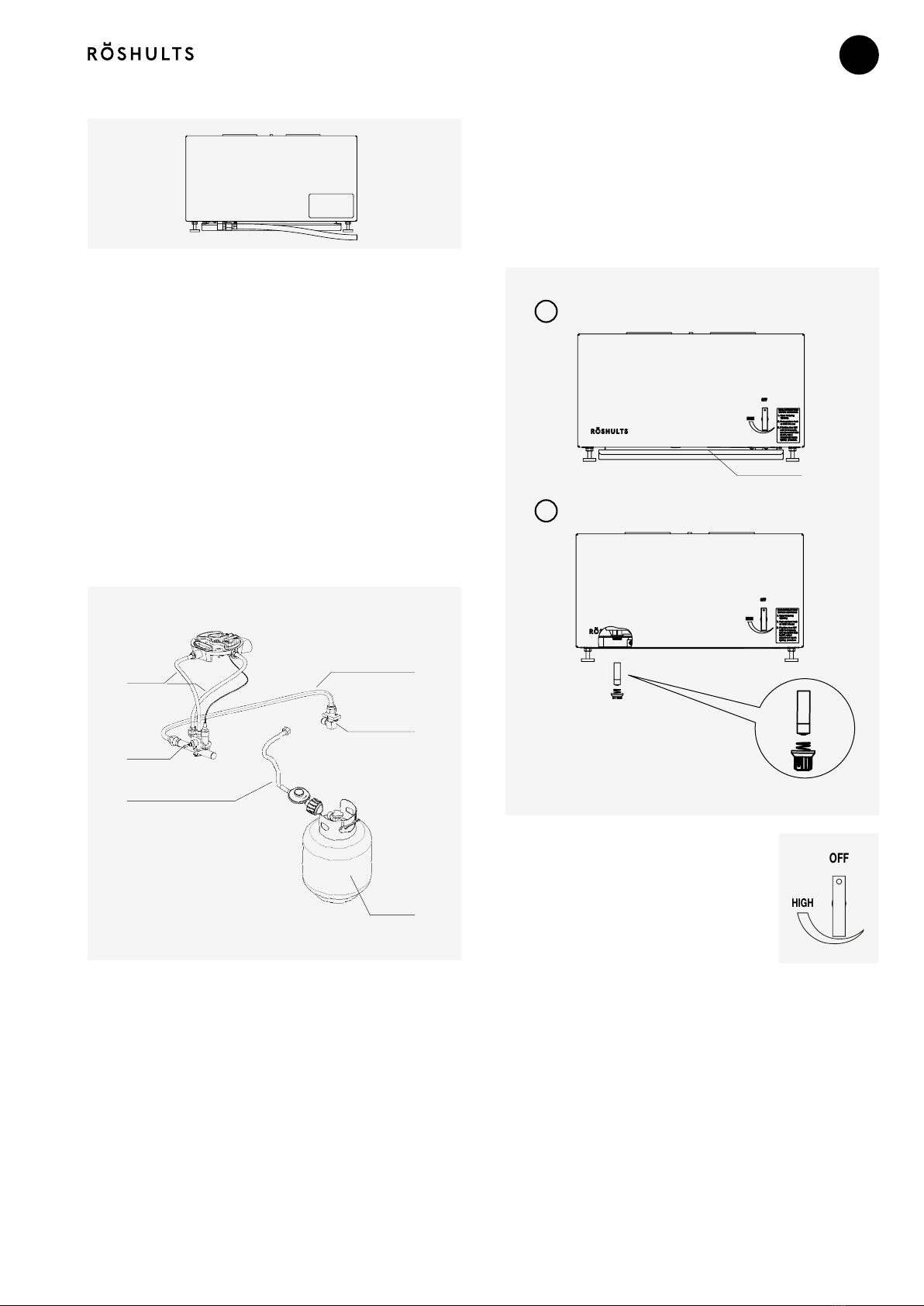

Soap water gas leak test
Note: After the gas pipeline is connected, the leakage test must
be carried out. Apply the soft brush with soap and water to the
connecting parts, open the gas valve, and carefully observe whether
there is bubble production.
Soap bubbles will appear where a leak is present. If a leak is present,
immediately turn off the gas supply, tighten any leaking ttings, turn
gas on, and recheck. Should the gas continue to leak from any or
all of the ttings, turn off the gas supply, and contact our customer
service at [phone].
To test
Make sure all control valves are in the “OFF” position. Turn the gas
supply on. Check all connections from the L.P. cylinder up to and
including the connection to the manifold pipe assembly (the pipe that
goes to the burner).
Apply a soapy water mixture to the following (see points A-F):
A. Cylinder
B. The reducing valve is connected to L type connection and other
end is connected to the gas cylinder (cloockwise).
C. L type connector.
D. The inlet end of the corrugated pipe is connected to the gas
valve, and the other end is connected with L type connector.
E. Gas valve.
F. The ends of the pipes connected to Valve and Burner.
A
C
D
B
E
F
Battery installation
The battery cover is located the left side of the product’s bottom
shell, as shown in the gure. Install the battery in the box according to
the positive and negative directions. Before assembling the battery
remove the drip tray. If the ignition is reduced frequently during using,
replace the battery in time. In order to guarantee ignition system is
effective for a long time, please use high-energy alkaline batteries.
Lighting the Cooker Hob
1. Press and turn the knob to “HIGH”,
at the same time. The ignition electrode
can be heard continuously and hold for
3 to 5 seconds.
2. If ignition does not occur in 5 seconds,
turn the knob to “OFF”, wait 5 minutes and
repeat lighting precedure.
3. After re safety protection device (thermocouple induction)
starts, release the knob.
Lighting Using match light with an extension rod
If the burner will not light after several attempts then the burner can
be match lit.
1. Turn OFF all burner valves.
2. Place a match on an extension rod and hold next to the burner.
1
2
Drip tray
OFF
HIGH

10 / 16
EN Module Cooker Hob 50-LPG USER MANUAL
3. Turn the control knob to the “HIGH” position and press knob.
Burner should light immediately.
4. If the burner does not light in 4 seconds turn the knob off, wait 5
minutes and repeat above procedures.
Warning!
Keep your face and hands as far away from the grill as possible when
lighting it.
Warranty, Care & Maintenance
Storage
Your gas cylinder must be stored outdoors in a well ventilated area
and must be disconnected from your Cooker Hob when not in use.
Ensure that you are outdoors and away from any sources of ignition
before attempting to disconnect your gas cylinder from your Cooker
Hob. When you are using your Cooker Hob after a period of storage,
please ensure to check for gas leaks and check for any obstructions
in the burner etc. before using.
Always follow the cleaning instructions to ensure the Cooker Hob
is safe. If the Cooker Hob is stored outdoors ensure to check that
all areas under the front panel are free from any obstructions (dirt,
insects etc.) as this may affect the ow of gas. Store your Cooker
Hob in a cool dry place. It may be necessary to dry the Cooker Hob
and the inside of the cover if used
Maintenance
Maintenance is recommended after each use for your Cooker Hob,
but it is absolutely necessary to perform maintenance at least every
90 days. By doing so, you will extend the life of your Cooker Hob. Your
Cooker Hob is easy to clean with minimum effort, just follow these
helpful hints for cleaning convenience.
Prior to cleaning or maintenance, disconnect it form the gas supply
and make sure the appliance is cool. Regularly check if the pipe is on
a good state, no abrasion or broken. Do not use steam equipment to
clean the appliance, as the steam will get in to the appliance, which
can result in danger.
Cleaning of ame spreader
Remove the ame spreader from the hob for cleaning with soapy
solutions, it’s best to use a soft cloth which used for the silver
cleaning. During or after cleaning, make sure to keep the ame
spreader lid and the burner dry, and put them in the corresponding
positions. It is very important to check the right position of the ame
spreader lid, as the wrong position may result in serious damage
The Cooker Hob is made from stainless steel and aluminium. Some
parts of the frame, depending on the model, can be powder coated
on top of stainless steel material.
The easiest way to keep your Cooker Hob in a good condition we
recommend cleaning the Cooker Hob after each use.
Use lukewarm water, soap and a sponge.
• Check the sand in the drip tray regularly to ensure that it is dry
and clean. Change the sand as required (use ne-grain sand or
cat litter box sand)
Outside/frame of the Cooker Hob
• Wipe down the outside of the Cooker Hob to ensure that there
is no residual marinade or fat/grease that could corrode the
surface. Use soap and water to remove any stubborn residues.
• For cleaning powder coated surface, use a cloth or a soft
sponge.
