ROSSO MOTORS E-QUAD T User manual

ROSSO E-QUAD T
ELECTRIC ATV
OWNERS MANUAL - EN
PRIOR TO FIRST USE, READ THIS MANUAL COMPLETELY AND ATTENTIVELY! IMPERATIVELY FOLLOW THE SAFETY INSTRUCTIONS!
NONOBSERVANCE CAN LEAD TO PERILOUS INJURIES! CAREFULLY KEEP THIS MANUAL!

PLEASE INSPECT YOUR EQUAD T UPON ARRIVAL AND REPORT
ANY DAMAGES THAT MAY HAVE OCCURRED DURING SHIPPING
⚠SAFETY INFORMATION ⚠
WARNING: Riding an electric ATV can be dangerous. Certain conditions or misuasage
may cause components to fail without fault of the manufacturer. Like other electric
products, electric ATVs can and are intended to move, and it is therefore possible to
lose control, fall off and/or get into dangerous situations that no amount of care,
instruction or expertise can eliminate. If such things occur you can be seriously
injured or die, even when using safety equipment and other precautions.
⚠ RIDE AT YOUR OWN RISK AND USE COMMON SENSE ⚠
This manual contains many warnings and cautions concerning the consequences of
failing to maintain, inspect or properly use your electric ATV. Because any incident
can result in serious injury or even death, we do not repeat the warning of possible
serious injury or death each time such a possibility is mentioned.
⚠ APPROPRIATE RIDER USE & PARENTAL SUPERVISION IS REQUIRED ⚠
This manual contains important safety information. It is your responsibility to review
this information and make sure that all riders understand all warnings, cautions,
instructions and safety topics and assure that young riders are able to safely and
responsibly use this product.
Rosso Motors recommends that you periodically review and reinforce the information
in this manual with younger riders, and that you inspect and maintain your children’s
electric ATV to insure their safety. A parent’s decision to allow his or her child to ride
this product should be based on the child’s maturity, skill and ability to follow rules.
Keep this product away from children too young to use it and remember that this
product is intended for use only by persons who are, at a minimum, completely
comfortable and competent while operating the product.
Persons with the following should be cautioned not to operate the ATV. Those with
heart conditions, pregnant women, persons with head, neck, back or any mental or
physical conditions that may make them more susceptible to injury, impair their
physical dexterity or mental capabilities to recognize, understand, and perform all of
the safety instructions and to be able to assume the hazards inherent in unit.
01

DO NOT EXCEED THE WEIGHT LIMIT OF 90 POUNDS. Rider weight does not
necessarily mean a person’s size is appropriate to fit or maintain control of the
electric ATV.
Maximum Operating Speed of 8MPH
ALWAYS have parental/adult supervision while riding and instruction on the ATV’s use prior to
riding for the first time.
ALWAYS wear a helmet and proper riding gear.
ALWAYS Ride defensively. Maintain a hold on the handlebars at all times.
ALWAYS Be careful and know your limitations. Risk of injury increases as the degree of riding
difficulty increases, The rider assumes all risk associated with aggressive riding activities.
ALWAYS watch out for potential obstacles that could catch your wheel or force you to swerve
suddenly or lose control.
ALWAYS ride on private property or non trafficked areas and not on public streets or
sidewalks.
ALWAYS ride off road. This ATV has tires designed for off road conditions, riding on concrete,
asphalt or pavement will cause additional wear to tires.
ALWAYS check and obey any local laws or regulations which may affect the locations where
the electric ATV may be used.
ALWAYS take extra care driving on bumpy, uneven, wet, icy or slick surfaces. Traction may be
decreased and the ATV may be harder to control.
ALWAYS apply the brakes to control the ATV’s speed when traveling downhill.
ALWAYS follow the battery care instructions & charge a min. of once a month if not in use.
ALWAYS perform the recommended inspections of the ATV prior to use to ensure all
components and safety features, such as covers & guards, are in place and in proper working
order.
AVOID twisting the throttle on the hand grip unless you are sitting properly on the electric
ATV and in a safe, outdoor environment suitable for riding.
AVOID pedestrians, skaters, skateboards, scooters, bikes, children or animals who may enter
your path, and respect the rights and property of others.
AVOID riding the electric ATV in wet or weather. Excess moisture in electrical components can
lead to corrosion and damage.
AVOID riding at night or in low light conditions where you may not be seen or are able to see
yourself.
NEVER ride your electric ATV in any areas where vehicle traffic is present.
NEVER touch the brakes or electric motor on your electric ATV when in use and/or
immediately after riding as they can become very hot.
NEVER attempt or perform stunts. This ATV was manufactured for performance and durability
but is not impervious to damage. Jumping or other aggressive riding can over-stress and
damage the product, The rider assumes all risks associated with high-stress activity.
NEVER carry passengers or allow more than one person at a time to ride the electric ATV.
NEVER place fingers and other body parts away near the drive chain, steering system, wheels
and all other moving components.
NEVER use headphones or a cell phone when riding.
NEVER hitch a ride with another product.
NEVER use near steps or swimming pools.
NEVER immerse the electric ATV in water, as the electrical and drive components could be
damaged by water.
NEVER risk damaging surfaces such as carpet or flooring by use of an ATV indoors.
02

Proper riding gear
Always wear proper protective equipment such as an approved safety helmet, elbow
pads and knee pads.
A helmet may be legally required by local law or regulation in your area.
A long-sleeved shirt, long pants and gloves are recommended.
Always wear athletic shoes (lace-up shoes with rubber soles), never ride barefooted or
in sandals, and keep shoelaces tied and out of the way of the wheels, motor and drive
system.
ATTENTION: Remove all contents from the shipping box/frame and retain until
assembly is completed to prevent discarding smart parts accidentally. Ensure the
ATV is off before assembling.
Assembly
●The ROSSO eQuad T requires minimum assembly. Please follow the instructions
below in order to get your eQuad T assembled properly.
●An assembly video can also be found at https://youtu.be/JpEG2dUaH6Y

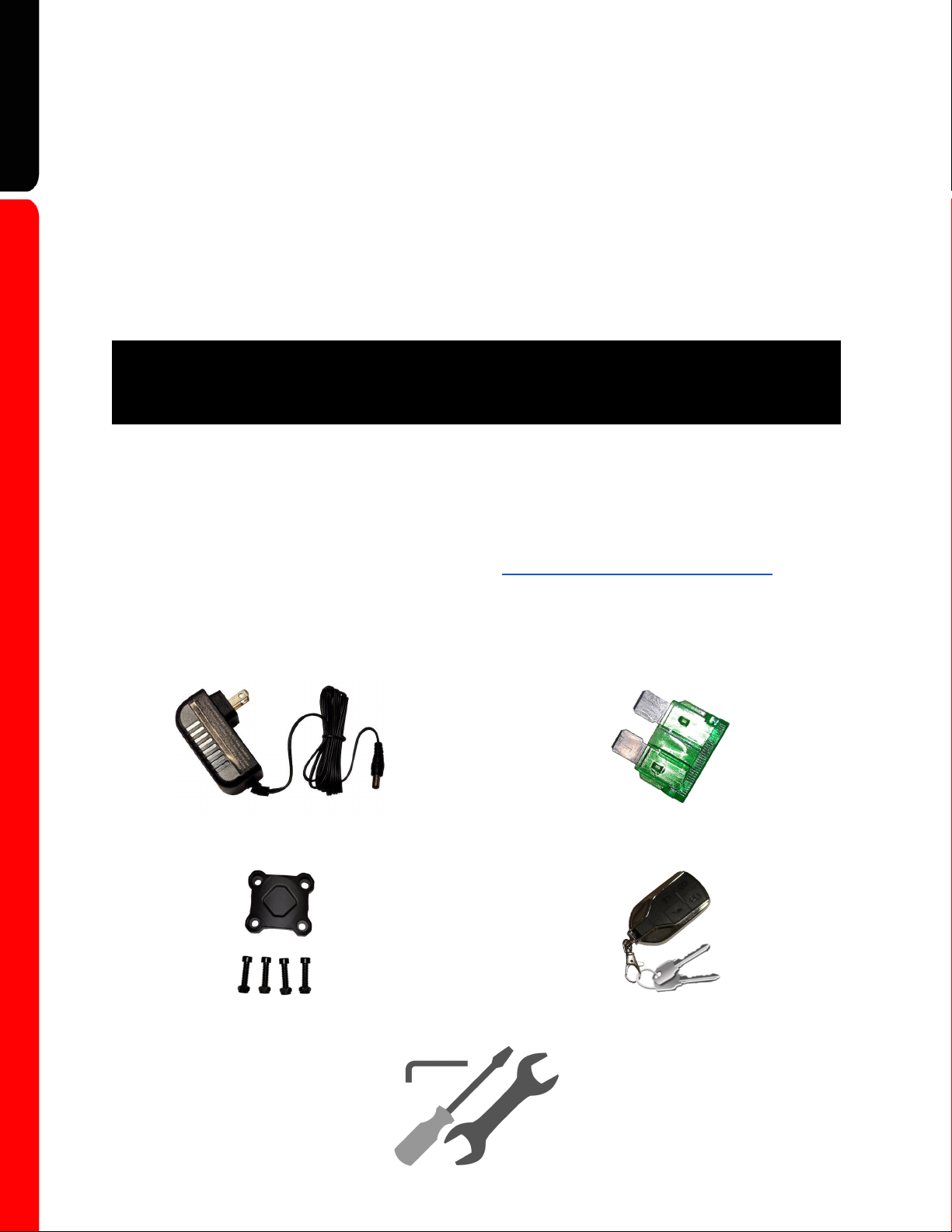

1. Check hardware box contents
Charger Spare Fuse (1 fuse pre-installed)
Handlebar Clamp Fob w/ Ignition & Speed Keys
Tool Kit
03

2. Handlebar installation
⚠ FAILURE TO PROPERLY ADJUST AND TIGHTEN BOLTS CAN CAUSE
LOSS OF CONTROL RESULTING IN CRASHING AND INJURY ⚠
Place handlebars into position on the bracket on the top of the steering column, cover
with the top handlebar bracket and install the 4 included bolts, adjust handlebars to
desired position, add nuts to each bolt and tighten all hardware. PLEASE NOTE: The
gaps between the upper and lower clamps should be the same on both sides.

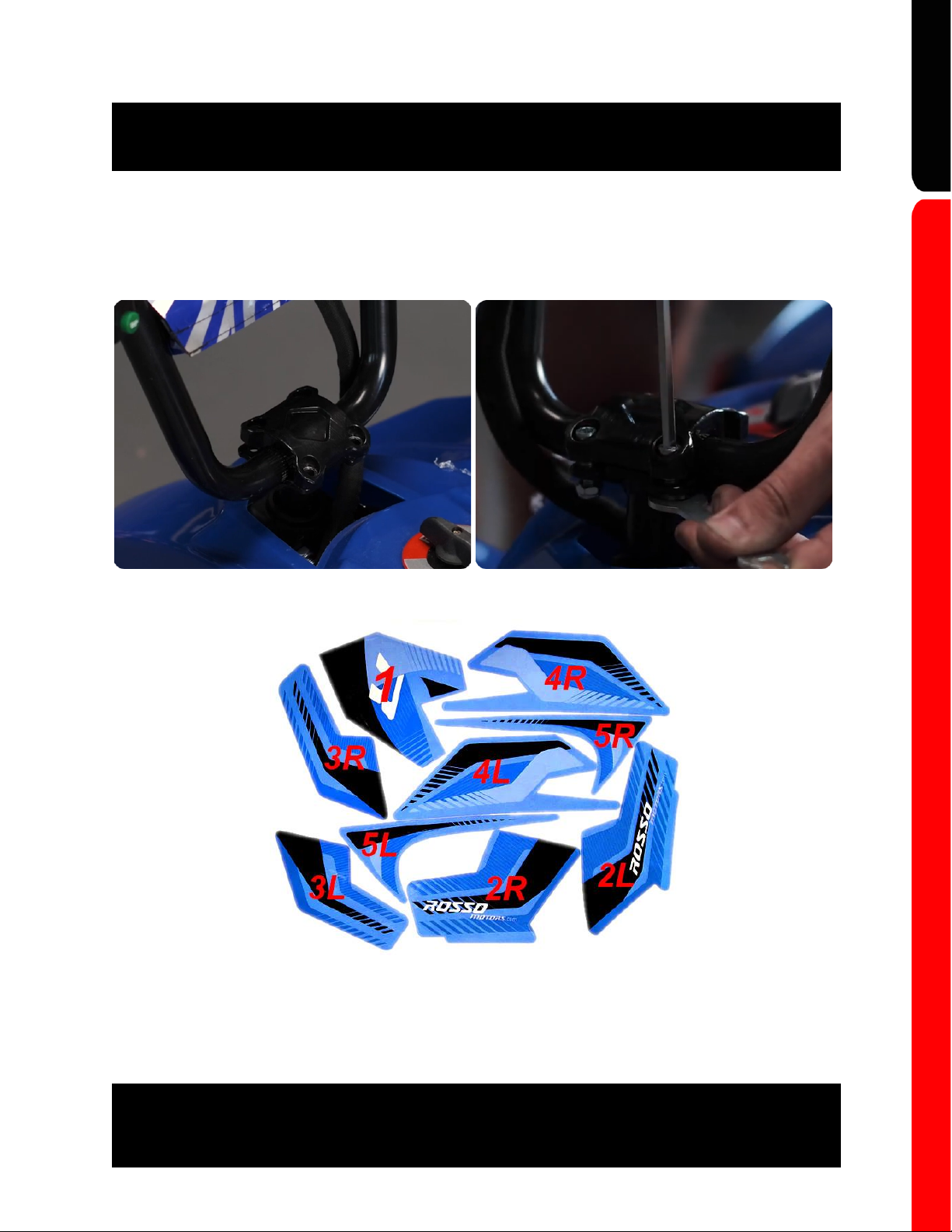

3. Decals Application (colors vary by model):
(Please note labels indicate drivers (R)ight and (L)eft)
1 - Front Face 4 - Outer Rear Fender Flares
2 - Side Body (above footboards) 5 - Inner Rear Fender Flares
3 - Front Fender Flares
ATTENTION: Your eQuad T arrives only partially charged to maintain battery
health and must be fully charged prior to first use. See the pg 5 for full details
on charging.
04

eQuad T Components
(a) Right handle: Throttle (f) Headlight
(b) Left handle: Brake Lever & Light/Horn switch (g) Charging Port (Right)
(c) Forward/Neutral/Reverse Switch On/Off Indicator Light (Left)
(d) Ignition Switch & Controller(internal) (h) Battery(internal)
(e) Taillight (i) 350W Motor
eQuad T Operation
Basic Operation
With the ATV powered on, gently twist the throttle towards you until the desired
speed is reached. Release the throttle and squeeze the brake lever to stop.
Charging
To charge your ATV first ensure that is turned off (see page #7) Next plug the charger
into the wall outlet, the light on the charger should illuminate. Finally plug the
charger into the charging port located at the top of the battery box on the right side
of the ATV below the body shell. The charging light should illuminate RED to indicate
it is actively charging the battery, if it does not please contact customer service.
05

The time for a full recharge is approx. 4-6 hours, the indicator on your charger will
turn from RED to GREEN when charging is complete. Always charge the battery
immediately after riding. Unplug the charger from the outlet & charging port once
charging has finished.
Note: If the charger gets warm during regular use, this is a normal response and is no
cause for concern. If your charger does not get warm during use, it does not mean
that it is not working properly. Chargers have built-in over-charge protection to
prevent the battery from being overcharged but prolonged heat from being actively
connected may damage the charger.
Fully charge battery before storing for an extended period of time and then every 4-6
weeks. Failure to recharge battery periodically may result in reducing battery life
time and can result in a battery that will not accept a charge.
To ensure long battery life, never store the product in temperatures above 70°F
(21°C) or below 32°F (0°C) This may permanently damage the battery.
Battery run time is on average 60-120 minutes of usage. Run time may vary depending
on riding conditions, rider weight, climate, and/or proper maintenance.
⚠ Failure to heed to following battery warnings may increase risk of
potential injury ⚠
Charge the battery pack ONLY with the supplied charger or manufacturer certified
replacement.
Examine the charger for damage to the cord, plug, enclosure and other parts. In the
event of such damage, the ATV must not be charged until it has been repaired or
replaced.
Do not leave charging overnight unattended. Unplug charger from the wall outlet and
ATV when not in use.
Always use caution while charging. Batteries are only to be charged under adult
supervision.
Always disconnect the charger before wiping down and/or cleaning the ATV.
Do not operate the charger near flammable materials or liquid.
06

⚠Any changes or modifications to the unit unless expressly
approved by the company responsible for compliance could void the
users authority to operate the equipment ⚠
FCC instructions for battery charger:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to PART 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and if not installed and used in accordance with the instructions may cause harmful
interference to radio communications. However there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
●Reorient or relocate the receiving antenna - increase the separation between
equipment and receiver.
●Connect the equipment to an outlet on a circuit different from that which the
receiver is connected to.
●Consult the dealer or an experienced radio/TV technician for help.
Turning the ATV OFF and ON
Your Rosso eQuad T can be turned on/off using 2different methods. Once the ATV is
started with that method it is locked into it and can only be operated that way until it
is turned off with that same method. The ON/OFF indicator light on the left side of
the ATV will be illuminated when the ATV is powered on.
PLEASE NOTE: Depending on the production date of your ATV you may not have an indicator light or you
may have a switch style indicator light. For ATV’s without the indicator, you can activate the horn
manually or with the fob to determine if the machine is on. For ATV’s with the switch style indicator,
the position of the switch does not affect the ATV only the light function is utilized.
Ignition Switch
The ATV can be turned on manually by placing the key into the ignition switch
(located on the right side of the ATV) and turning it to the IGNITION position. Once
turned on manually, the ATV can ONLY be turned off by manually turning the key back
to the OFF position. The fob will not function while the unit is manually turned on
with the keys
07

Key Fob
The e Quad t also features remote start/stop via the included fob. Once the ATV has
been turned on remotely it can ONLY be turned off with the fob.
⚡
Double Press to turn the eQuad ON
🔓
Press to turn the eQuad OFF
🔒
Press to hear a single alarm chirp
🔊
Press to hear repeating alarm chirp, press again to stop
PLEASE NOTE: The fob requires 1x CR2032 battery. (pre-installed) To replace the fob
battery first remove the key ring from the fob, then carefully, with a small
screwdriver, pry off the silver side pieces. Once they are removed the 2 halves of the
black fob body can be separated revealing the interior components and battery slot.
Once a new battery is installed, reassemble the fob in the reverse order.
Gear Shifter
F - Forward N - Neutral R - Reverse
To change between forward and reverse, while stationary, turn the gear shift knob,
located on the body between the rider’s legs, to the desired position. Always bring
the vehicle to a complete stop before changing gear, failing to do so will result in
damage to the switch.
08

eQuad Operations continued…
Headlight/Horn switch
Located on the left handle bar the green horn button can be pressed to honk the
horn. The red headlight switch is located directly beneath it and can be used to turn
the headlight on and off.
Pre-Ride Checklist:
Brakes - Check the brakes for proper function. When you squeeze the lever, the
brake should remain stationary and slow down if in motion and the internal
switch should disengage the motor. Do not ride if the brakes are not functioning
properly
Tires – Check tires periodically. Inspect tires for excess wear and replace as
needed. (Please note riding on abrasive surfaces such as concrete or asphalt
will increase tire wear.) Regularly check the tire pressure and inflate as
needed. Recommended tire pressure is: 12-15 PSI
⚠As tire pressure is key for safety and performance regular
inspection should not be skipped. Do not over inflate! ⚠
Frame and Handlebars - Check for loose, cracked or broken connections.
Although broken frames are rare, it is possible for an aggressive rider to run
into a curb or object and wreck, bend or break the frame.
Hardware - Check and secure all fasteners (nuts, bolts) before every ride. If
the unit is damaged, do not ride it.
Rider - Always wear proper protective gear, such as an approved safety helmet.
Elbow pads, knee pads, pants and long sleeves are recommended. Always wear
closed toe shoes and keep shoelaces tied and out of the way of the wheels,
motor and drive system. NEVER RIDE BAREFOOT OR IN SANDALS. Always
check and obey any local laws or regulations.
⚠Ensure that you are in a safe open area before you engage the
throttle. Do not engage the throttle unless you are in a stable riding
position with both hands on the handlebar controls. Always check
and obey any local laws or regulations. Failure to follow instructions
and inspections may damage the ATV or void your warranty ⚠
09

Maintenance and Care
⚠ Ensure the power to the eQuad is turned off before performing
any maintenance or cleaning ⚠
Brake adjustments
Not all riders will have the same hand strength and the brakes should be adjusted so
the rider is capable of engaging them properly.
⚠Failure to inspect and properly adjust brakes increases the risk of
having an accident. Riding with worn brake pads can reduce braking
performance and cause an accident. Check and adjust brakes if
needed before each ride. ⚠
Step 1 - To adjust the brake cable turn the adjuster on the brake lever clockwise to
loosen or counterclockwise to tighten.Only turn in small increments until desired
adjustment is reached. If adjusting this way doesn’t help and your brakes are still too
tight or loose proceed to Step 2.
Step 2 - If your brake cable is still too loose after making adjustment at the lever you
will need to manually adjust the length of the cable. Using a 10mm wrench loosen the
nut securing the brake cable pinch bolt (a) and adjust the length on the cable (b), this
may require pliers. Ensure the pinch bolt nut is securely fastened once the
adjustment is made.
10

Brake adjustments continued…
Step 3 - If after adjusting the brake correctly, there is still brake rub, (contact
between the brake disk and pad when the brake is not engaged) you can adjust the
position of the caliper on the rotor with adjustment knob. Adjust the position and
rotate the rear wheel manually until the wheel spins freely.
⚠The brake may be capable of locking up, causing the rear wheels
to skid, if not applied correctly. Always try to avoid skidding as this
may result in loss of ATV control and damage to the rear tires.
Practice breaking in an unobstructed open area to become familiar
with braking function and performing smooth controlled stops. ⚠
Chain Maintenance
⚠Before performing any maintenance on the chain ensure the
motor has had enough time to cool. Do not touch the motor after
use, it will/can be very hot. ⚠

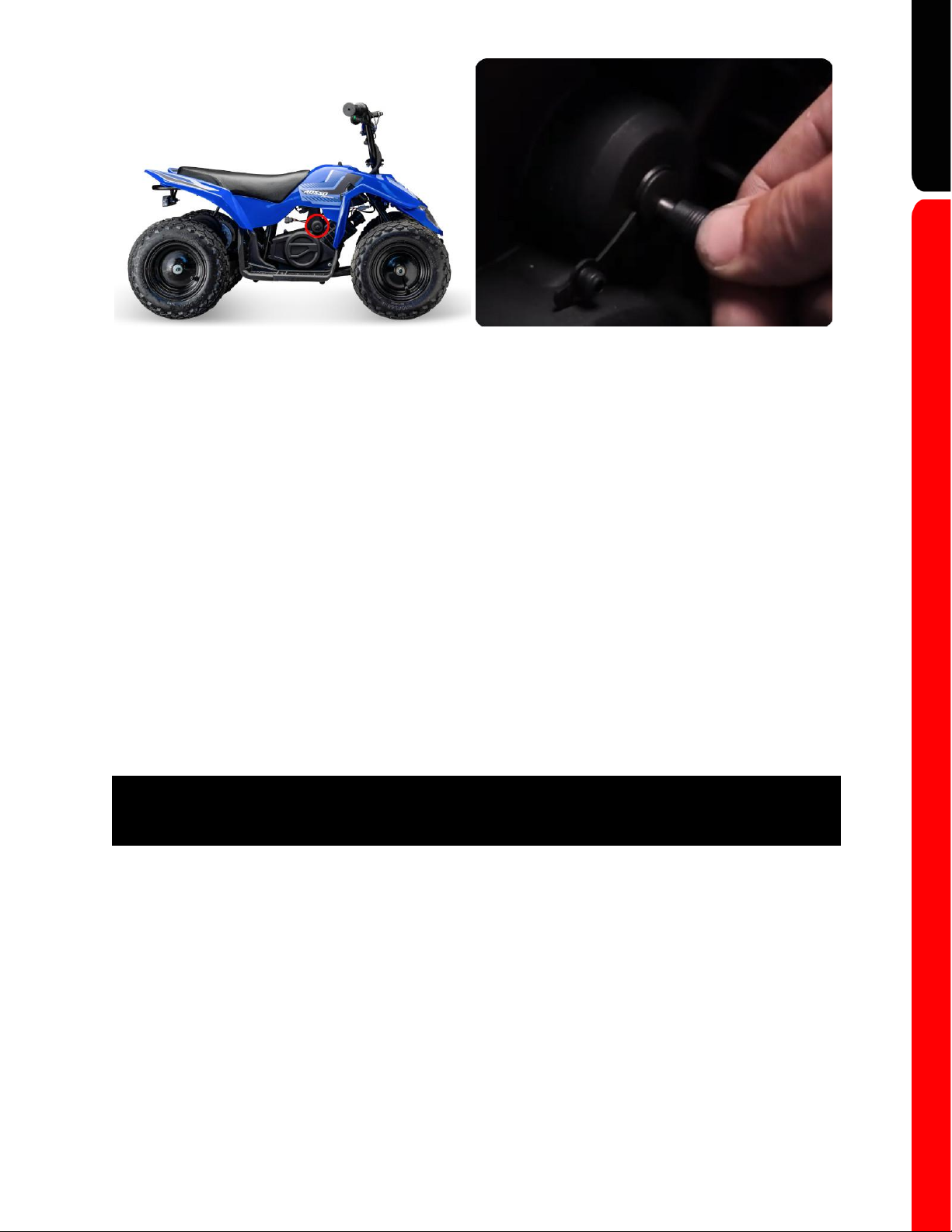

Your ATV is chain driven and should be periodically lubricated with lithium spray. To
do so, locate the screws securing the chain guard and remove them. Part the 2
sections of the guard to allow enough space to access the chain for inspection and
lubrication. Reclose the guard and replace the screws. The chain may make clicking
noises, this is normal.
⚠ Riding with a chain in poor condition can lead to serious injury. ⚠
11

Troubleshooting
Problem
Possible Cause
Solution
eQuad will not run
eQuad not turned on
Turn eQuad On (see page #7)
Battery not charged
Charge battery
Loose connection
Check connections on the battery,
controller & main switch
Throttle failure
Check throttle connections or replace
throttle
Brakes are too tight
Adjust brakes
Brake lever not released
Release brake lever
Blown Fuse
Replace fuse
Low travel distance
Battery low/ not charged
Charge battery
Low tire pressure
Inflate tires
Over weight capacity
90lb recommended weight capacity
Brakes are too tight
Adjust brakes
Battery not charging
No power at the outlet
Check power to the outlet
Charger damaged (no lights)
Replace charger
Loose or broken connection
Check connections
Battery damaged or at end
of life
Replace battery
Stops working
suddenly
Automatic overload cutoff
triggered
An excessive overload (eg: steep hill,
heavy rider) may have caused the
controller to automatically cut off power.
Turn the ATV off and wait 15s. Before
turning back on again.
Fuse Blown
Replace fuse
Remote button pressed by
accident
Ensure buttons are not being pressed
inside a pocket, bag, etc.
Making grinding or
load noise when
motor is running
Chain is dry
Lubricate chain
Quad Runs Slow
Brakes not adjusted
Adjust brakes
eQuad Overload
Max weight 90lbs, do not use eQuad to tow
Low tire pressure
Inflate tires
Terrain too steep/rugged
Ride on less severe ground
The tips above are meant as an introductory guide for diagnosing and correcting basic eQuad
issues. If the tips do not help or you are unsure of how to diagnose/fix an issue, please
contact our technical support for assistance
12

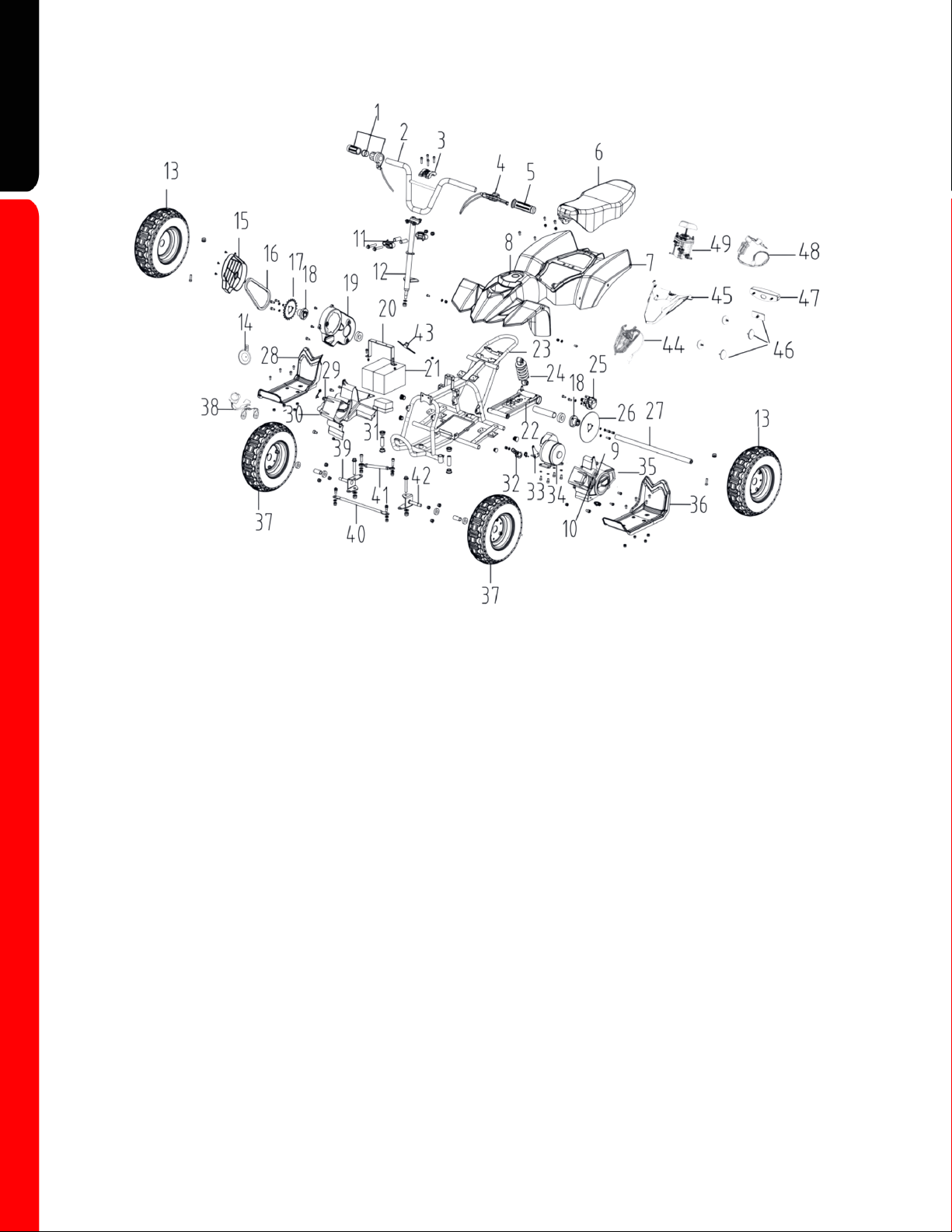

eQuad T Parts Diagram
#
Part Description
#
Part Description
#
Part Description
1
Throttle assembly
18
Gear drive mount
35
Battery box (left side)
2
Handlebar
19
Chain guard cover (inner)
36
Foot rest (left)
3
Handlebar clamp
20
Battery lock
37
Front wheel
4
Brake lever
21
Batteries
38
Alarm
5
Left grip
22
Rear fork
39
Front axle (right)
6
Seat
23
Frame
40
Steering bar
7
Body
24
Shock absorber
45
Steering adjustment tube
8
Deck cap
25
Brake caliper
42
Front axle (left)
9
On/Off indicator
26
Brake Disc (rotor)
43
Fuse
10
On/Off indicator housing
27
Axle
44
Headlight
11
Stem tube clamp
28
Foot rest (right)
45
Head cover
12
Stem tube
29
Charging Port
46
Reflectors
13
Rear wheel
30
Battery box (right side)
47
Taillight
14
Loudspeaker
31
Controller
48
Ignition switch
15
Chain guard cover (outer)
32
Guide wheel
49
F/N/R switch
16
Chain
33
Tensioner mount
17
Gear
34
Motor
13

Warranty
ROSSO MOTORS warranties this product to be free of manufacturing
defects for a period of 6 months from date of delivery. This Limited
Warranty does not cover normal wear and tear, (tires, tubes or cables) or
any damage, failure or loss caused by improper assembly, maintenance,
storage or use of your eQuad T Electric ATV. Installation of all
replacement parts provided, under this warranty, is the sole responsibility
of the eQuad’s owner.
This Limited Warranty voided if the product is:
• Used in a manner other than for recreation;
• Modified in any way;
• Rented.
ROSSO MOTORS is not liable for incidental or consequential loss or
damage due directly or indirectly to the use of this product.
For more information on your warranty please see our FAQ section online:
www.rossomotors.com/pages/faq
For any request regarding warranty, spare parts or replacement devices
do not hesitate to contact us by phone or e-mail. Have your order number
ready before contacting us.
E-Mail: [email protected] - Tel: [phone]
14

11400 Twigg Place Unit 1
Richmond, BC, V6V3C1
CANADA
E-Mail: [email protected]
Website: www.rossomotors.com
Tel: [phone]
© Rosso Motors, 2022. All Rights Reserved
