HOT DOG CORRAL
Model HDC
Series 9300000
Owner’s Manual
P/N 1010609
Rev. E
MANUFACTURING
NUMBERS:
9300300
9300302
9300304
9300306
9300308
9300309
9300320
9300321
9300322
9300324
9300330
9300331
9300332
9300334
9300336
9300340
9300341
9300342
9300344
9300350
9300351
9300352
9300356
9300374
9300380
C
®
®®

HOT DOG CORRAL
1
P/N 1010609 Rev. E
A.J. Antunes & Co.
General
The Roundup Hot Dog Corral is a unique and innova-
tive way to grill hot dogs. The hot dogs are placed in a
“corral” that moves up-and-down over a heated flat grill
surface. The corral motion allows the hot dogs to turn.
As the hot dogs turn, they roll in their own juices, pro-
ducing a self-basting hot dog that sears in all the natur-
al flavor.
The versatile Hot Dog Corral will accommodate any
size hot dog along with Polish sausage, bratwurst and
breakfast sausage.
This manual provides the safety, installation and oper-
ating procedures for the Hot Dog Corral. We recom-
mend that all information contained in this manual be
read prior to installing and operating the unit.
Your Hot Dog Corral is manufactured from the finest
materials available and is assembled to Roundup’s
strict quality standards. This unit has been tested at
the factory to ensure dependable trouble-free opera-
tion.
OWNER INFORMATION
Unpacking .................................................................6
Equipment Setup ......................................................6
Operation ...................................................................8
General ......................................................................8
Operating Instructions ...............................................8
Maintenance .............................................................8
Cleaning ...................................................................8
Inspecting and Aligning Drive Parts ..........................9
Troubleshooting ......................................................10
Wiring Diagrams...................................................... 11
Replacement Parts ............................................ 12-19
Warranty .................................................... Back Cover
Owner Information .....................................................1
General ......................................................................1
Warranty Information .................................................1
Service/Technical Assistance ....................................2
Important Safety Information ...................................2
Specifications ............................................................4
Electrical Ratings ......................................................4
Electrical Cord & Plug Configurations ......................4
Capacities .................................................................4
Dimensions ...............................................................5
Shipping Weight........................................................5
Installation .................................................................6
TABLE OF CONTENTS
IMPORTANT! Keep these instructions for future reference.
If the unit changes ownership, be sure this manual accompanies the equipment.
Warranty Information
Please read the full text of the Limited Warranty in this
manual.
If the unit arrives damaged, contact the carrier immedi-
ately and file a damage claim with them. Save all
packing materials when filing a claim. Freight damage
claims are the responsibility of the purchaser and are
not covered under warranty.
The warranty does not extend to:
• Damages caused in shipment or damage as
result of improper use.
• Installation of electrical service.
• Normal maintenance as outlined in this manual.
• Malfunction resulting from improper maintenance.
• Damage caused by abuse or careless handling.
• Damage from moisture into electrical
components
• Damage from tampering with, removal of, or
changing any preset control or safety device.

WARNING
GENERAL WARNING. Indicates informa-
tion important to the proper operation of
the equipment. Failure to observe may
result in damage to the equipment and/or
severe bodily injury or death.
Throughout this manual, you will find the following safety words and symbols that signify important safety issues
with regards to operating or maintaining the equipment.
WARNING
ELECTRICAL WARNING. Indicates infor-
mation relating to possible shock hazard.
Failure to observe may result in damage
to the equipment and/or severe bodily
injury or death.
CAUTION
GENERAL CAUTION. Indicates informa-
tion important to the proper operation of
the equipment. Failure to observe may
result in damage to the equipment.
WARNING
HOT SURFACE WARNING. Indicates
information important to the handling of
equipment and parts. Failure to observe
caution could result in personal injury.
IMPORTANT SAFETY INFORMATION
HOT DOG CORRAL
2P/N 1010609 Rev. E
A.J. Antunes & Co.
Service/Technical Assistance
If you experience any problems with the installation or
operation of your unit, contact your local Roundup
Authorized Service Agency.
Fill in the information below and have it handy when
calling your authorized service agency for assistance.
The serial number is on the specification plate located
on the unit.
Purchased From:
Date of Purchase:
Model No.:
Serial No.:
Mfg. No.:
OWNER INFORMATION (continued)
Refer to the service agency directory included with
your unit.
Authorized Service Agency
Name:
Phone No.:
Address:
Use only genuine Roundup replacement parts in this
unit. Use of replacement parts other than those sup-
plied by the manufacturer will void the warranty. Your
Authorized Service Agency has been factory trained
and has a complete supply of parts for this unit.
You may also contact the factory at 1-800-253-2991 if
you have trouble locating your local authorized service
agency.

HOT DOG CORRAL
3
P/N 1010609 Rev. E
A.J. Antunes & Co.
In addition to the warnings and cautions in this manual,
use the following guidelines for safe operation of the
unit.
• Read all instructions before using equipment.
• For your safety, the equipment is furnished with a
properly grounded cord connector. Do not
attempt to defeat the grounded connector.
• Install or locate the equipment only for its intend-
ed use as described in this manual. Do not use
corrosive chemicals in this equipment.
• Do not operate this equipment if it has a dam-
aged cord or plug, if it is not working properly, or
if it has been damaged or dropped.
• This equipment should be serviced by qualified
personnel only. Contact the nearest Roundup
authorized service facility for adjustment or repair.
• Do not block or cover any openings on the unit.
• Do not immerse cord or plug in water.
• Keep cord away from heated surfaces.
• Do not allow cord to hang over edge of table or
counter.
The following warnings and cautions appear
throughout this manual and should be carefully
observed.
• Turn the unit off, disconnect the power source
and allow unit to cool down before performing
any service or maintenance on the unit.
• The unit should be grounded according to
local electrical codes to prevent the possibili-
ty of electrical shock. It requires a grounded
receptacle with separate electrical lines, pro-
tected by fuses or circuit breaker of the prop-
er rating.
• All electrical connections must be in accor-
dance with local electrical codes and any
other applicable codes.
• WARNING ELECTRICAL SHOCK HAZARD.
FAILURE TO FOLLOW THESE INSTRUCTIONS
COULD RESULT IN SERIOUS INJURY OR
DEATH.
- Electrical ground is required on this appli-
ance.
- Do not modify the power supply cord plug.
If it does not fit the outlet, have a proper
outlet installed by a qualified electrician.
- Do not use an extension cord with this
appliance.
- Check with a qualified electrician if you are
in doubt as to whether the appliance is
properly grounded.
• This equipment is to be installed to comply
with the local plumbing codes and any other
applicable codes.
• Do not clean this appliance with a water jet.
• Do not use a sanitizing solution or abrasive
materials. The use of these may cause dam-
age to the stainless steel finish.
• Chlorides or phosphates in cleansing agents
(e.g. bleach, sanitizers, degreasers or deter-
gents) could cause permanent damage to
stainless steel equipment. The damage is usu-
ally in the form of discoloration, dulling of
metal surface finish, pits, voids, holes or
cracks. This damage is permanent and not
covered by warranty.
• The following tips are recommended for main-
tenance of your stainless steel equipment.
- Always use soft, damp cloth for cleaning,
rinse with clear water and wipe dry. When
required, always rub in direction of metal
polish lines.
- Routing cleaning should be done daily
using soap, ammonia detergent and
water.
- Stains and spots should be sponged
using a vinegar solution as required.
- Finger marks and smears should be
rubbed off using soap and water.
- Hard water spots should be sponged
using a vinegar solution.

HOT DOG CORRAL
4P/N 1010609 Rev. E
A.J. Antunes & Co.
Capacities
(Refrigerated Product Only–Not Frozen)
Model Voltage Watts Amps Hertz
HDC-20 120 1000 8.3 50/60
230 1000 4.3 50/60
HDC-21A 120 1000 8.3 50/60
230 1250 5.4 50/60
HDC-30A 120 1500 12.5 50/60
230 1500 6.5 50/60
HDC-35A 120 1500 12.5 50/60
230 1750 7.6 50/60
HDC-50A 120 1500 12.5 50/60
230 1750 7.6 50/60
SPECIFICATIONS
Model At One Time Per Hour
HDC-20 4-to-a-pound 7" Hot Dogs
20 200
HDC-21A 4-to-a-pound 7" Hot Dogs
21 210
HDC-30A 4-to-a-pound 7" Hot Dogs
30 300
HDC-35A 4-to-a-pound 7" Hot Dogs
35 350
HDC-50A 4-to-a-pound 7" Hot Dogs
50 500
Electrical Ratings
Electrical Cord & Plug Configurations
CAUTION
All electrical connections must be in accordance
with local electrical codes and any other applica-
ble codes.
WARNING
ELECTRICAL SHOCK HAZARD. FAILURE TO
FOLLOW THE INSTRUCTIONS IN THIS MANUAL
COULD RESULT IN SERIOUS INJURY OR DEATH.
• Electrical ground is required on this appliance.
• Do not modify the power supply cord plug. If it
does not fit the outlet, have a proper outlet
installed by a qualified electrician.
• Do not use an extension cord with this appli-
ance.
• Check with a qualified electrician if you are in
doubt as to whether the appliance is properly
grounded.
Description Configuration
NEMA-5-15P
15 Amp, 120 VAC
CEE 7/7 Schuko
16 Amp, 250 VAC
BS-1363
13 Amp, 250 VAC
Commercial Cord

HOT DOG CORRAL
5
P/N 1010609 Rev. E
A.J. Antunes & Co.
Dimensions
Model Width (A) Depth (B) Height (C) Shipping Weight
HDC-20 18-3/4" 21" 8-1/2" 45 lbs.
(476 mm) (533 mm) (216 mm) (20 kg)
HDC-21A 22-7/8" 15-1/4" 7-1/4" 38 lbs.
(581 mm) (387 mm) (184 mm) (17.2 kg)
HDC-30A 22-7/8" 20-5/8" 7-1/4" 48 lbs.
(581 mm) (524 mm) (184 mm) (21.2 kg)
HDC-35A 33-3/8" 15-1/4" 7-1/4" 54 lbs.
(848 mm) (387 mm) (184 mm) (24.5 kg)
HDC-50A 33-3/8" 20-5/8" 7-1/4" 70 lbs.
(848 mm) (524 mm) (184 mm) (31.75 kg)
AB
C

HOT DOG CORRAL
6P/N 1010609 Rev. E
A.J. Antunes & Co.
Figure 1. Hot Dog Corral
Driver Frame
Unpacking
1. Remove unit and all packing materials from ship-
ping carton.
2. Open the large box. Remove all packing materi-
als and protective coverings from the unit and
parts.
NOTE: If any parts are missing or damaged, contact
Antunes Technical Service IMMEDIATELY at 1-877-
392-7854 or 630-784-1000.
3. Wash driver frame in soap and water. Wipe all
surfaces of the unit with a hot damp cloth.
NOTE: Do not use a dripping wet cloth. Wring out
before use.
4. Install driver frame onto unit.
Equipment Setup
When placing the unit into service, pay attention to the
following guidelines.
• Make sure power to the unit is off and the unit is
at room temperature.
• Do not block or cover any openings on the unit.
• Do not immerse cord or plug in water.
• Keep cord away from heated surfaces.
• Do not allow cord to hang over edge of table or
counter.
• Place unit on a sturdy, level table or work surface.
Ensure that the line voltage corresponds to the stated
voltage on the unit specification label.
Turn off the rocker switch (power on/off). Connect the
unit to the power supply.
INSTALLATION
CAUTION
All electrical connections must be in accordance
with local electrical codes and any other applica-
ble codes.
WARNING
ELECTRICAL SHOCK HAZARD. FAILURE TO
FOLLOW THE INSTRUCTIONS IN THIS MANUAL
COULD RESULT IN SERIOUS INJURY OR DEATH.
• Electrical ground is required on this appliance.
• Do not modify the power supply cord plug. If it
does not fit the outlet, have a proper outlet
installed by a qualified electrician.
• Do not use an extension cord with this appli-
ance.
• The unit should be grounded according to local
electrical codes to prevent the possibility of
electrical shock. It requires a grounded recep-
tacle with separate electrical lines, protected by
fuses or circuit breaker of the proper rating.
• Check with a qualified electrician if you are in
doubt as to whether the appliance is properly
grounded.

HOT DOG CORRAL
7
P/N 1010609 Rev. E
A.J. Antunes & Co.
1 2120121 Spacer 2
2 3080158 Screw, Pan Hd., #8-32 x 5/8" 2
3 3250104 Washer, Flat, SS, 1/4" 2
4 3250169 Shoulder Bolt, Socket Hd.,
5/16 x 1/2" 4
5 3250135 Jamnut, 1/4-20 4
(early style units only)
6 1150104 Allen Wrench (not shown) 1
Item Part Description Qty.
No.
Food Shield (Optional)
NOTE: Early style corrals do not have weldnuts on
inside of side covers. When installing the food shield,
jamnuts (5, figure 2) must be used.
1. Turn the rocker (power on/off) switch to the OFF
position and unplug the unit.
2. Assemble the hardware to the left and right cover
panels as shown in Figure 2.
3. If a non-pivoting food shield is desired, follow
Installation A. If a pivoting food shield is desired,
use Installation B.

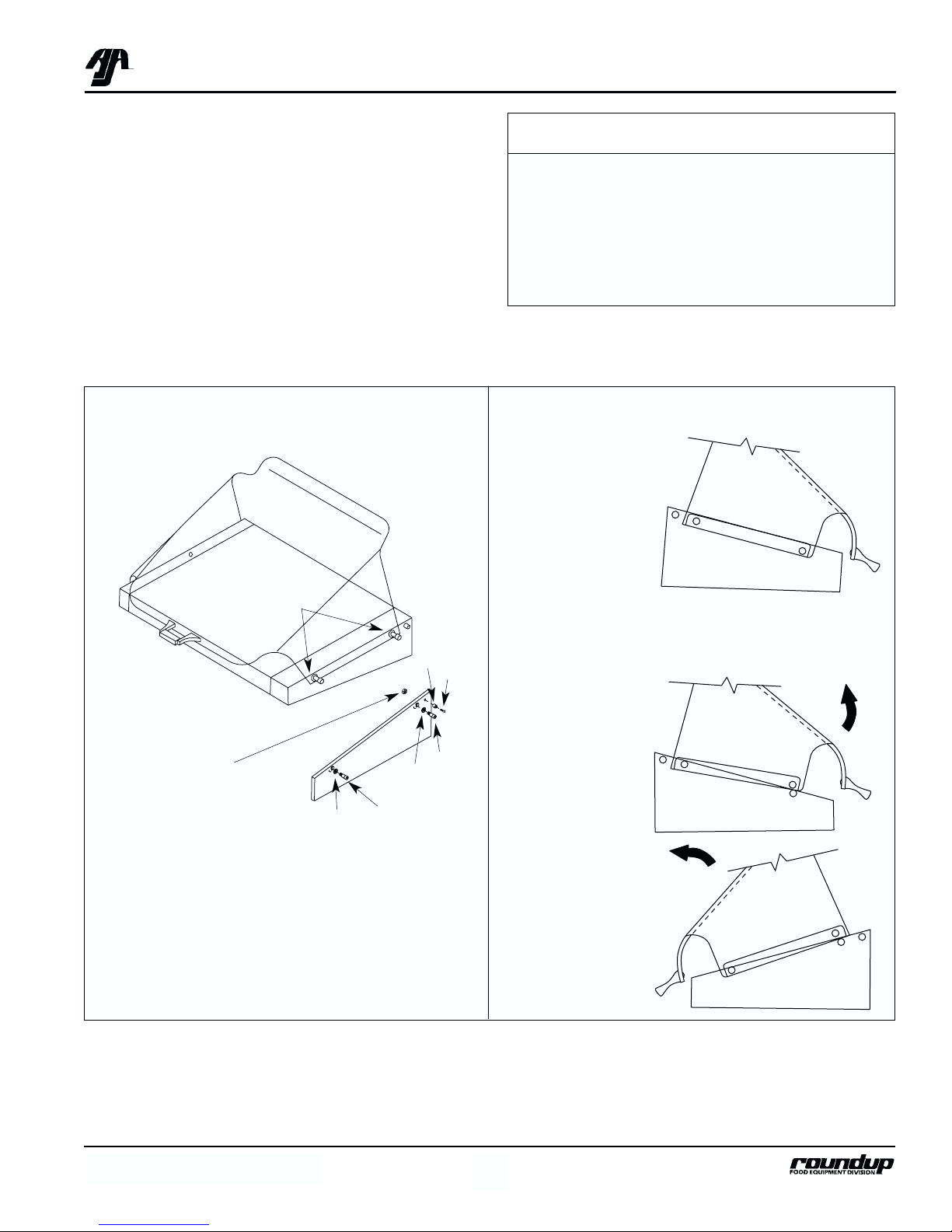

Figure 2. Optional Food Shield Components
Early style units do not
have a weldnut on the
inside of the panel and
must use a 1/4-20 hex
jamnut (P/N 325P125).
On early style panels
without weldnuts, it is
necessary to enlarge the
mounting holes to accept
the 1/4-20 shoulder bolts.
4
4
3
3
1
5
Install shoulder
bolts through all
mounting holes in
food shield.
NOTE: SG-21 & SG-35 shown. SGH-20 uses same mount-
ing, but is shaped differently.
Rear Pivot - Install
rear shoulder bolts
through mounting
holes in food shield.
Front of shield rests
on top of shoulder
bolts.
Front Pivot - Install
front shoulder bolts
through mounting
holes in food shield.
Rear of shield rests
on top of shoulder
bolts.
2
Installation B–Pivoting
Installation A–Non-pivoting

HOT DOG CORRAL
8P/N 1010609 Rev. E
A.J. Antunes & Co.
Figure 3. Controls
Rocker Switch
(Power On/Off)
Timer
(optional)
Front Thermostat
Control
Rear Thermostat
Control
General
Volume, preference and experience will determine what
temperature setting is best for your operation. When
holding hot dogs for long periods of time, it is recom-
mended to keep the setting under 160°F (71°C). This
may vary depending on the type of hot dog used and
the production rate required. If appearance of the hot
dog is deteriorating rapidly, reduce temperature setting.
As the hot dogs turn in their own juices, they become
self-basting, searing in all of the natural flavor. Excess
juices are allowed to collect in the lower lip at the front
of the grill. These juices can be absorbed with a paper
towel and discarded.
NOTE: The driver frame will accommodate almost any
diameter size hot dog or sausage up to 1-1/4" (31.8 mm).
Operating Instructions
1. Turn the rocker switch (power on/off) to the ON
position.
2. Set the thermostat controls to the desired setting.
NOTE: Hot Dog Corrals (except Model HDC-20) have
two separate heating zones–upper and lower. Some
custom models have left-to-right controls. Each zone
is controlled by a separate thermostat.
WARNING
Do not use a sanitizing solution or abrasive mate-
rials. The use of these may cause damage to the
stainless steel finish.
MAINTENANCE
CAUTION
Chlorides or phosphates in cleaning agents (e.g.
bleach, sanitizers, degreasers or detergents)
could cause permanent damage to stainless steel
equipment. The damage is usually in the form of
discoloration, dulling of metal surface finish, pits,
voids, holes or cracks. This damage is permanent
and not covered by warranty. The following tips
are recommended for maintenance of your stain-
less steel equipment:
• Always use soft, damp cloth for cleaning, rinse
with clear water and wipe dry. When required,
always rub in direction of metal polish lines.
• Routine cleaning should be done daily using
soap, ammonia detergent and water.
• Stains and spots should be sponged using a
vinegar solution.
WARNING
Turn the unit off, disconnect the power source
and allow the unit to cool down before performing
any service or maintenance on the unit.
3. Optional Timer: Set the timer by pressing the
start button once. To change timer, press and
hold the start button.
NOTE: The timer default setting is 8 minutes. The
timer range is 1 - 15minutes.
4. Allow 10-15 minutes as a warm-up period, then
place the hot dogs in the driver frame assembly.
OPERATION
• Finger marks and smears should be rubbed off
using soap and water.
• Hard water spots should be sponged using a
vinegar solution.

HOT DOG CORRAL
9
P/N 1010609 Rev. E
A.J. Antunes & Co.
Cleaning
The unit requires a minimum amount of maintenance.
To ensure proper operation, clean the unit after every
use.
1. Remove driver frame and wash in hot detergent
water using a soft brush. Rinse in clear water.
2. The flat grill surface can be easily cleaned with a
clean, wet cloth.
3. Wash cooking surface with a sudsy cloth and
rinse with a clean, wet cloth.
Inspecting and Aligning Drive Parts
If the drive frame does not move smoothly, inspect and
align the drive parts as follows:
1. Turn the rocker (power on/off) switch to the OFF
position and unplug the unit.
2. Remove the right and left side panel covers.
3. Place a straightedge on the outside surface of the
pivot arm and motor arm (Figure 5). There
should be no gap between the motor arm and
the straightedge.
4. To remove any gap, loosen the setscrews on the
pivot arm and motor arm (Figure 4).
5. Tighten pivot arm setscrew. Allow 3/32" (2.5 mm)
of in/out motion on the crossover shaft/arm when
tightening setscrew. This will compensate for
expansion in the parts.
6. Place the straightedge on the outer surface of the
pivot arm and motor arm. Position the motor arm
until no gap exists as shown in Figure 5.
7. Tighten motor arm setscrew.
NOTE: Be sure setscrews are resting on the flat sur-
face of the shafts when tightening.
8. If drive frame still does not move freely, loosen
setscrew and remove motor arm from motor
shaft.
CAUTION
Failure to allow room for drive parts expansion
can cause binding during operation and may
cause early motor failure.
Figure 4. Drive Components
INCORRECT
Remove Gap
Straight Edge
CORRECT
No Gap
Straight Edge
Figure 5. Aligning Drive Components
Left Side Cover
Driver Roller
Slide Bracket
Pins
Driver Frame
Right Side Cover
Motor Arm
Setscrew
Retaining Ring Pivot Arm w/setscrew
Driver Arm
Driver Roller
Grasp both slide bracket pins and move back and
forth to try and determine the source of the bind.
If may be necessary to adjust the height of the
slide bracket.
Inspect the drive rollers, bearings and retaining
rings for wear and replace if necessary.
NOTE: If any drive parts are replaced, repeat
steps 1 - 8.
9. Reinstall right and left side panel covers.

HOT DOG CORRAL
10 P/N 1010609 Rev. E
A.J. Antunes & Co.
TROUBLESHOOTING
WARNING
To avoid possible personal injury and/or damage to the unit, inspection, test and repair of electrical equip-
ment should be performed by qualified service personnel. The unit should be unplugged when servicing.
Unit will not heat up. Rocker
switch (power on/off) is on.
The driver frame does not
move smoothly.
The driver frame does not
move. Unit gets hot.
The driver frame scratches
the grill surface or slide
panels.
Power cord not plugged in.
Circuit breaker is off or has been
tripped in main power supply.
Thermostats not turned on.
Loose connections.
Defective wiring.
Defective power cord.
Defective rocker switch (power
on/off).
Defective thermostat.
Defective heating element(s).
Driver frame out of square.
Driver rollers or ratchet fasteners are
missing or need lubrication.
Drive mechanism bent or damaged.
Improper drive alignment.
Defective motor.
Loose or damaged drive component
or loose setscrew.
Defective motor.
Insulation contacting motor fan blade
Drive frame is out of square, bent or
damaged.
Plug power cord into outlet.
Turn on or reset circuit breaker.
Turn thermostats to proper setting.
Check wiring continuity. Tighten as needed.
Replace defective wires.
Check power cord continuity. Replace if
necessary.
If there is power to the switch in the ON
position but no power coming out, replace
switch.
Replace thermostat.
Replace heating element(s).
Repair or replace driver frame.
Install new driver rollers or ratchet fasteners
or lubricate with a small amount of food
grade grease.
Replace bent or damaged components.
See
Inspecting and Aligning Drive Parts
(page 9).
Replace motor.
Locate component and refasten or replace.
Tighten setscrew.
Replace motor.
Remove base plate and replace insulation
under insulation retainer.
Replace driver frame.
Problem Possible Cause Corrective Action

HOT DOG CORRAL
11
P/N 1010609 Rev. E
A.J. Antunes & Co.
WIRING DIAGRAMS
HDC-20/20RC
HDC-21A/30A/35A/50A

HOT DOG CORRAL
12 P/N 1010609 Rev. E
A.J. Antunes & Co.
REPLACEMENT PARTS (continued)
INSET A
28
44
43
45
See Inset A
11
38
3
4
36
36
35
41
5
14
38
31
13 38
2
40
1
23
24
40
30
27
39
39
25
38
38
39
26
DRIVE PARTS
34
47 9
10
47
37
840
6
7
6
40
24
19
18
17
20
22
21
29
48
34
33
34
33
34
46
32
16
42
15
HDC-20

HOT DOG CORRAL
13
P/N 1010609 Rev. E
A.J. Antunes & Co.
1 0010434 Driver Assy. 1
2 0501633 Panel, Rear 1
3 0500551 Slide Bracket 2
4 0020625 Slide Channel 2
5 0700463 Power Cord, NEMA 5-15P, 120V 1
0700425 Power Cord, CEE 7/7, 230V 1
0700556 Power Cord (UK) 1
6 2100129 Driver Roller 2
7 030P101* Screw, Shoulder Pivot 2
8 05K1706 Pivot Arm w/Setscrew 1
9 05K1705 Motor Arm w/Setscrew 1
10 080K217 Drive Arm Kit 1
11 0021213 Cover Panel, RH 1
12 300P104* Tubular Clip, 1/8" Diameter 1
13 7000270 Drive Motor, 120V 1
7000271 Drive Motor, 230V 1
14 0020603 Panel, RH 1
15 210K127 Foot Kit (Set of 4) 1
16 0501708 Retainer, Insulation 3
17 0400235 Insulation 1
18 0501670 Retainer, Heater 1
19 4030227 Heating Element, 120V 1
4030232 Heating Element, 230V 1
20 4030149 Thermostat 1
21 4010151 Rocker Switch,
Power On/Off, 120V 1
4010137 Rocker Switch,
Power On/Off, 230V 1
22 0501752 Panel, Front (HDC-20) 1
0502125 Panel, Front (HDC-20RC) 1
23 0020605 Grill 1
24 0800216 Shaft/Arm, Crossover 1
25 0020604 Panel, LH 1
26 0021214 Cover, Panel, LH 1
27 0501631 Panel, Bottom 1
28 4060304 Terminal Block 1
29 2100130 Knob, Thermostat, F°1
2100225 Knob, Thermostat, C°1
30 1000920 Label, Control Panel 1
31 4000157 Fan Blade, Motor 1
32 325P104* Washer, Flat, SS, 1/4" 1
33 215P152* Bearing, Pivot Arm 1
34 211P127* Retaining Ring 1
35 310P109* Screw, #10-32 x 3/8" 1
36 040P119* Snap Bushing, 5/8" 1
37 215P151* Bearing Shaft 1
38 218P113* Ratchet Fastener Glide 1
39 308P115* Screw, #8-32 x 3/8" 1
40 310P146* Nut, Hex, #10-32 1
41 040K251 Strain Relief 1
42 325P169* Shoulder Bolt, Socket Hd.,
5/16 x 1/2" 1
43 308P124* Screw, One-Way, #8-32 x 1/2" 1
44 308P143* Nut, KEPS, #8-32 1
45 306P123* Screw, #6-32 x 7/8" 1
46 306P130* Nut, KEPS, #6-32 1
47 325P166* Setscrew, 1/4-28 x 3/8" 1
48 306P104* Screw, #6-32 x 1/4" 1
49 100936 Roundup Emblem 1
NS 040K108 Bushing Bearing Kit 1
(Incl. Qty. 2 of 33 & 37;
Qty. 4 of 34) 1
NS 7000193 Food Shield Mounting Kit 1
(Optional-see page 9
for components)
* Only available in quantities of 10.
Item Part Description Qty.
No.
Item Part Description Qty.
No.
HDC-20/20RC

HOT DOG CORRAL
14 P/N 1010609 Rev. E
A.J. Antunes & Co.
REPLACEMENT PARTS (continued)
INSET A
28
44
43
45
See Inset A
42
11
38
3
4
36
36
35
41
5
14
38
31
13
38
2
40
1
23
24
40
27
39
39
25
39
38
39
26
DRIVE PARTS
34
47 9
10
47
37
840
7
6
40
24
19
18
17 20
15
22
34
33
34
33
34
21
29
48
46
32
16
30
49
12
HDC-20RC

HOT DOG CORRAL
15
P/N 1010609 Rev. E
A.J. Antunes & Co.
1 0010434 Driver Assy. 1
2 0501633 Panel, Rear 1
3 0500551 Slide Bracket 2
4 0020625 Slide Channel 2
5 0700463 Power Cord, NEMA 5-15P, 120V 1
0700425 Power Cord, CEE 7/7, 230V 1
0700556 Power Cord (UK) 1
6 2100129 Driver Roller 2
7 030P101* Screw, Shoulder Pivot 2
8 05K1706 Pivot Arm w/Setscrew 1
9 05K1705 Motor Arm w/Setscrew 1
10 080K217 Drive Arm Kit 1
11 0021213 Cover Panel, RH 1
12 300P104* Tubular Clip, 1/8" Diameter 1
13 7000270 Drive Motor, 120V 1
7000271 Drive Motor, 230V 1
14 0020603 Panel, RH 1
15 210K127 Foot Kit (Set of 4) 1
16 0501708 Retainer, Insulation 3
17 0400235 Insulation 1
18 0501670 Retainer, Heater 1
19 4030227 Heating Element, 120V 1
4030232 Heating Element, 230V 1
20 4030149 Thermostat 1
21 4010151 Rocker Switch,
Power On/Off, 120V 1
4010137 Rocker Switch,
Power On/Off, 230V 1
22 0501752 Panel, Front (HDC-20) 1
0502125 Panel, Front (HDC-20RC) 1
23 0020605 Grill 1
24 0800216 Shaft/Arm, Crossover 1
25 0020604 Panel, LH 1
26 0021214 Cover, Panel, LH 1
27 0501631 Panel, Bottom 1
28 4060304 Terminal Block 1
29 2100130 Knob, Thermostat, F°1
2100225 Knob, Thermostat, C°1
30 1000920 Label, Control Panel 1
31 4000157 Fan Blade, Motor 1
32 325P104* Washer, Flat, SS, 1/4" 1
33 215P152* Bearing, Pivot Arm 1
34 211P127* Retaining Ring 1
35 310P109* Screw, #10-32 x 3/8" 1
36 040P119* Snap Bushing, 5/8" 1
37 215P151* Bearing Shaft 1
38 218P113* Ratchet Fastener Glide 1
39 308P115* Screw, #8-32 x 3/8" 1
40 310P146* Nut, Hex, #10-32 1
41 040K251 Strain Relief 1
42 325P169* Shoulder Bolt, Socket Hd.,
5/16 x 1/2" 1
43 308P124* Screw, One-Way, #8-32 x 1/2" 1
44 308P143* Nut, KEPS, #8-32 1
45 306P123* Screw, #6-32 x 7/8" 1
46 306P130* Nut, KEPS, #6-32 1
47 325P166* Setscrew, 1/4-28 x 3/8" 1
48 306P104* Screw, #6-32 x 1/4" 1
49 100936 Roundup Emblem 1
NS 040K108 Bushing Bearing Kit 1
(Incl. Qty. 2 of 33 & 37;
Qty. 4 of 34) 1
NS 7000193 Food Shield Mounting Kit 1
(Optional-see page 9
for components)
* Only available in quantities of 10.
Item Part Description Qty.
No.
Item Part Description Qty.
No.
HDC-20/20RC

HOT DOG CORRAL
16 P/N 1010609 Rev. E
A.J. Antunes & Co.
REPLACEMENT PARTS (continued)
INSET A
28
44
33
47
See Inset A
37
13
38
39
14
11
12
40
40
35
34
9
8
39
43
30
17 16
10
39
6
7
32
5
3
4
41
1
2
23
18
41
19
20
15
32
32
21
39
39
32
22
DRIVE PARTS
36
49
45 25
26
50
46
36
27 41
24
42
24
41
18
48
31
40
49
36
29
46
51
52
53
54
HDC-21A/31A/35A/50A

HOT DOG CORRAL
17
P/N 1010609 Rev. E
A.J. Antunes & Co.
1 0010366 / 1 0020595 / 1 0010368 / 1 0020598 / 1 Driver Assy., 11 Rods, Standard
–0020989 / 1 ––Driver Assy., 10 rods, Special Order
–– –0021301 / 1–Driver Assy., Painted
2 0020845 / 1 0020846 / 1 0020843 / 1 0020844 / 1 Grill Assy.,
3 4030146 / 2 4030199 / 2 4030147 / 2 4030147 / 2 Heating Element, 120V
4030152 / 2 4030202 / 2 4030151 / 2 4030151 / 2 Heating Element, 230V
4 0400145 / 1 0400185 / 1 0400146 / 1 0400150 / 1 Insulation
5 0500667 / 2 0500667 / 2 0500667 / 2 0500667 / 2 Retainer, Bulb
6 0500664 / 2 0501103 / 2 0500664 / 2 0500714 / 2 Retainer, Insulation
7 0500570 / 1 0500570 / 1 0500619 / 1 0500619 / 1 Panel, Rear
8 0021008 / 1 0021007 / 1 0021008 / 1 0021007 / 1 Panel, RH
–– –0021302 / 1 Panel Weldment, Timer, RH
9 0700463 / 1 0700463 / 1 0700463 / 1 0700463 / 1 Power Cord, 120V, 6 ft.
0700453 / 1 0700453 / 1 0700453 / 1 0700453 / 1 Power Cord, 230V, 6 ft.
0700556 / 1 0700556 / 1 0700556 / 1 0700556 / 1 Power Cord, UK
–– –0700602 / 1 Power Cord, 120V, 8 ft.
10 4010151 / 1 4010151 / 1 4010151 / 1 4010151 / 1 Rocker Switch, Power On/Off, 120V
4010137 / 1 4010137 / 1 4010137 / 1 4010137 / 1 Rocker Switch, Power On/Off, 230V
11 0020625 / 2 0020625 / 2 0020625 / 2 0020625 / 2 Slide Channel
12 0500551 / 2 0500551 / 2 0500551 / 2 0500551 / 2 Slide Angle Bracket
13 0021211 / 1 0021212 / 1 0021211 / 1 0021212 / 1 Cover, Panel, RH
14 4030149 / 2 4030149 / 2 4030149 / 2 4030149 / 2 Thermostat
15 210K127 / 1 210K127 / 1 210K127 / 1 210K127 / 1 Foot Kit (Set of 4)
16 2100130 / 1 2100130 / 1 2100130 / 1 2100130 / 1 Knob, Thermostat, F°
2100225 / 2 2100225 / 2 2100225 / 2 2100225 / 2 Knob, Thermostat, C°
–– –2100133 / 2 Knob, Thermostat, #1 - 10
17 7000270 / 1 7000270 / 1 7000270 / 1 7000270 / 1 Drive Motor, 120V
7000271 / 2 7000271 / 2 7000271 / 2 7000271 / 2 Drive Motor, 230V
18 0800253 / 1 0800253 / 1 0800255 / 1 0800255 / 1 Shaft/Arm, Crossover
19 0500559 / 1 0500559 / 1 0500618 / 1 0500618 / 1 Panel, Front
20 0500560 / 1 0501105 / 1 0500616 / 1 0500713 / 1 Panel, Bottom
21 0020217 / 1 0020234 / 1 0020217 / 1 0020234 / 1 Panel, LH
22 0021217 / 1 0021216 / 1 0021217 / 1 0021216 / 1 Cover, Panel, LH
23 0500556 / 4 0500556 / 4 0500556 / 8 0500556 / 8 Retainer, Heater
24 2100129 / 2 2100129 / 2 2100129 / 2 2100129 / 2 Driver Roller
25 05K1705 / 1 05K1705 / 1 05K1705 / 1 05K1705 / 1 Motor Arm w/Setscrew
26 080K254 / 1 080K217 / 1 080K254 / 1 080K217 / 1 Driver Arm Kit
27 05K1706 / 1 05K1706 / 1 05K1706 / 1 05K1706 / 1 Pivot Arm w/Setscrew
28 4060304 / 1 4060304 / 1 4060304 / 1 4060304 / 1 Terminal Block
29 1000921 / 1 1000921 / 1 1000921 / 1 1000921 / 1 Label, Control Panel
30 4000157 / 1 4000157 / 1 4000157 / 1 4000157 / 1 Fan Blade, Motor
31 210P128* / 1 –210P128* /1 –Driver Glide/Retainer
32 308P103* / 4 308P103* / 4 308P103* / 4 308P103* / 4 Screw, #8-32 x 1/4"
33 308P124* / 1 308P124* / 1 308P124* / 1 308P124* / 1 Screw, One-Way, #8-32 x 1/2"
34 040K251 / 1 040K251 / 1 040K251 / 1 040K251 / 1 Strain Relief
–– –040P243 / 1 Strain Relief, Right Angle (not shown)
35 310P103* / 1 310P103* / 1 310P103* / 1 310P103* / 1 Screw, #10-32 x 1/4"
36 211P127* / 4 211P127* / 4 211P127* / 4 211P127* / 4 Retaining Ring
37 325P169* / 1 325P169* / 1 325P169* / 1 325P169* / 1 Shoulder Bolt, Socket Hd., 5/16 x 1/2”
38 308P151* / 1 308P151* / 1 308P151* / 1 308P151* / 1 Screw, SEMS, #8-32 x 5/16"
* Only available in quantities of 10.
Item Part No./Qty. Description
HDC-21A HDC-30A HDC-35A HDC-50A
HDC-21A/31A/35A/50A

HOT DOG CORRAL
18 P/N 1010609 Rev. E
A.J. Antunes & Co.
REPLACEMENT PARTS (continued)
INSET A
28
44
33
47
See Inset A
37
13
38
39
14
11
12
40
40
35
34
9
8
39
43
30
17 16
10
39
6
7
32
5
3
4
41
1
2
23
18
41
19
20
15
32
32
21
39
39
32
22
DRIVE PARTS
36
49
45 25
26
50
46
36
27 41
24
42
24
41
18
48
31
40
49
36
29
46
51
52
53
54
HDC-21A / 31A / 35A / 50A

HOT DOG CORRAL
19
P/N 1010609 Rev. E
A.J. Antunes & Co.
39 –218P113* / 1 –218P113* / 2 Ratchet Fasteners Glide
40 215P151* / 1 215P151* / 1 215P151* / 1 215P151* / 1 Bearing, Crossover Shaft/Arm
41 310P146* / 1 310P146* / 1 310P146* / 1 310P146* / 1 Nut, #10-32
42 030P101* / 1 030P101* / 1 030P101* / 1 030P101* / 1 Screw, Shoulder Pivot
43 306P104* / 1 306P104* / 1 306P104* / 1 306P104* / 1 Screw, #6-32 x 1/4"
44 308P143* / 1 308P143* / 1 308P143* / 1 308P143* / 1 Nut, KEPS, #8-32
45 325P166* / 1 325P166* / 1 325P166* / 1 325P166* / 1 Setscrew, 1/4-28 x 3/8"
46 406P234* / 1 406P234* / 1 406P234* / 1 406P234* / 1 Wire Strap
47 306P123* / 1 306P123* / 1 306P123* / 1 306P123* / 1 Screw, #6-32 x 7/8"
48 306P130* / 1 306P130* / 1 306P130* / 1 306P130* / 1 Nut, KEPS, #6-32
49 215P152* / 1 215P152* / 1 215P152* / 1 215P152* / 1 Bearing, Pivot Arm
50 300P104* / 1 300P104* / 1 300P104* / 1 300P104* / 1 Tubular Clip, 1/8" Diameter
51 –– –4070406 / 1 Timer, Electronic
52 –– –1001079 / 1 Label, Timer
53 1000136 / 1 1000136 / 1 1000136 / 1 1000136 / 1 Roundup Emblem
54 –– –304P105 / 4 Nut, Hex, KEPS, #4-40
NS 040K108 / 1 040K108 / 1 040K108 / 1 040K108 / 1 Bushing/Bearing Kit (Incl. Qty. 2 of 40 & 49;
Qty. 4 of 36)
NS 406P107* / 1 406P107* / 1 406P107* / 1 406P107* / 1 Cable Tie
NS 406P148* / 1 406P148* / 1 406P148* / 1 406P148* / 1 Wire Nut
NS 7000193 7000193 7000193 7000193 Food Shield Mounting Kit (Optional-see
page 9 for components)
* Only available in quantities of 10.
Item Part No./Qty. Description
HDC-21A HDC-30A HDC-35A HDC-50A
