Roundup VCT-2000 User manual

VERTICAL CONTACT
TOASTER
Model VCT-2000
Owner’s Manual
P/N 1010840 Rev. M 07/14
MANUFACTURING
NUMBERS:
9210200
9210201
9210202
9210203
9210208
9210210
9210213
9210215
9210217
9210400
9210401
9210410
A
S
D
L
I
S
T
E
CM
O
I
N
N
I
T
A
T
Testing & Certification
ITS
geprufte
Sicherheit

VERTICAL CONTACT TOASTER
2P/N 1010840 Rev. M 07/14
General
The Vertical Contact Toaster Model VCT-2000 is
designed for contact toasting of buns. The toaster
design allows the operator to place buns on both
sides of the heated platen at the same time. Buns are
placed into the top of the toaster and uniform, golden
brown, warm buns are then retrieved at the base of the
toaster.
This manual provides the safety, installation, and
operating procedures for the Vertical Contact Toaster
Model VCT-2000. We recommend that all information
contained in this manual be read prior to installing and
operating the unit.
Your Vertical Contact Toaster Model VCT-2000 is
manufactured from the finest materials available and is
assembled to Roundup’s strict quality standards. This
unit has been tested at the factory to ensure depend-
able trouble-free operation.
OWNER INFORMATION
TABLE OF CONTENTS
IMPORTANT! Keep these instructions for future reference. If the unit changes
ownership, be sure this manual accompanies the equipment.
Warranty Information
Please read the full text of the Limited Warranty in this
manual.
If the unit arrives damaged, contact the carrier imme-
diately and file a damage claim with them. Save all
packing materials when filing a claim. Freight damage
claims are the responsibility of the purchaser and are
not covered under warranty.
The warranty does not extend to:
• Damages caused in shipment or damage as
result of improper use.
• Installation of electrical service.
• Normal maintenance as outlined in this manual.
• Malfunction resulting from improper maintenance.
• Damage caused by abuse or careless handling.
• Damage from moisture into electrical
components
• Damage from tampering with, removal of, or
changing any preset control or safety device.
Owner information .....................................................2
Warranty Information .................................................2
Service/Technical Assistance ....................................3
Important safety information.....................................3
Specifications .............................................................5
Electrical Specifications.............................................5
Dimensions................................................................5
Electrical Cord and Plug Configurations ...................5
Installation...................................................................6
Unpacking..................................................................6
Equipment Setup.......................................................6
Assembling the Unit ..................................................6
Operation.....................................................................8
Operating Instructions ...............................................8
Temperature Adjustments..........................................8
Safety Features .......................................................10
Fault messages .......................................................11
Maintenance..............................................................12
Daily.........................................................................12
Replacing the Black and Silver Release Sheet (Every
4–6 weeks) ..............................................................13
Replacing Belt Wraps (Every 3–6 months) .............13
Conveyor Belt Chains (Every 3–6 months).............14
Roller Tensioners (Every 3–6 months) ....................15
Troubleshooting .......................................................16
Replacement Parts ...................................................20
Wiring Diagram.........................................................26
Limited Warranty ......................................................28

3
VERTICAL CONTACT TOASTER
P/N 1010840 Rev. M 07/14
Refer to the service agency directory included with your
unit.
Authorized Service Agency
Name:
Phone No.:
Address:
Use only genuine Roundup replacement parts in this
unit. Use of replacement parts other than those sup-
plied by the manufacturer will void the warranty. Your
Authorized Service Agency has been factory trained
and has a complete supply of parts for this toaster.
You may also contact the factory at 1-877-392-7854
(toll Free in the U.S.) or 630-784-1000 if you have trou-
ble locating your nearest Authorized Service Agency.
Throughout this manual, you will find the following safety words and symbols that signify important safety issues with
regards to operating or maintaining the equipment.
WARNING
GENERAL WARNING. Indicates informa-
tion important to the proper operation of
the equipment. Failure to observe may
result in damage to the equipment and/or
severe bodily injury or death.
WARNING
ELECTRICAL WARNING. Indicates infor-
mation relating to possible shock hazard.
Failure to observe may result in damage
to the equipment and/or severe bodily
injury or death.
CAUTION
GENERAL CAUTION. Indicates informa-
tion important to the proper operation of
the equipment. Failure to observe may
result in damage to the equipment.
WARNING
HOT SURFACE WARNING. Indicates
information important to the handling of
equipment and parts. Failure to observe
caution could result in personal injury.
IMPORTANT SAFETY INFORMATION
Service/Technical Assistance
If you experience any problems with the installation
or operation of your unit, contact your local Roundup
Authorized Service Agency.
Fill in the information below and have it handy when
calling your Authorized Service Agency for assistance.
The serial number is on the specification plate located
on the rear of the unit.
Purchased From:
Date of Purchase:
Model No.:
Serial No.:
Mfg. No.:
IMPORTANT
A.J. Antunes & Co. reserves the right to change specifications and product design
without notice. Such revisions do NOT entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased equipment.
OWNER INFORMATION (continued)

VERTICAL CONTACT TOASTER
4P/N 1010840 Rev. M 07/14
In addition to the warnings and cautions in this manual,
use the following guidelines for safe operation of the
unit.
• Read all instructions before using equipment.
• For your safety, the equipment is furnished with
a properly grounded cord connector. Do NOT
attempt to defeat the grounded connector.
• Install or locate the equipment only for its intend-
ed use as described in this manual. Do NOT use
corrosive chemicals in this equipment.
• Do NOT operate this equipment if it has a dam-
aged cord or plug, if it is not working properly, or
if it has been damaged or dropped.
• This equipment should be serviced by qualified
personnel only. Contact the nearest Authorized
Service Agency for adjustment or repair.
• Do NOT block or cover any openings on the unit.
• Do NOT immerse cord or plug in water.
• Keep cord away from heated surfaces.
• Do NOT allow cord to hang over edge of table or
counter.
The following warnings and cautions appear
throughout this manual and should be carefully
observed.
• Turn the power off, unplug the power cord,
and allow unit to cool down before performing
any service or maintenance.
• The toaster should be grounded according to
local electrical codes to prevent the possibil-
ity of electrical shock. It requires a grounded
receptacle with separate electrical lines pro-
tected by fuses or a circuit breaker of the
proper rating.
• Bread may burn. Therefore toasters must
not be used near or below curtains or other
combustible walls and materials. Failure to
maintain safe operating distances may cause
discoloration or combustion.
• When installing the conveyor Belt Wrap, be
careful not to wrap it around the upper and
lower support rods or permanent damage to
belt will occur. Make sure the Belt Wrap is
positioned between the upper and lower
support rods.
• Make sure both ends of Belt Wrap are aligned
evenly before installing Belt Wrap Pin.
• Failure to use Release Sheets may result in
damage to the equipment and loss of war-
ranty coverage.
• Do NOT clean this appliance with a water jet.
• If supply cord is damaged, it must be replaced
by the manufacturer or its service agent, or a
similarly qualified person.
• All electrical connections must be in accor-
dance with local electrical codes and any
other applicable codes.
• WARNING, ELECTRICAL SHOCK HAZARD.
FAILURE TO FOLLOW THESE INSTRUCTIONS
COULD RESULT IN SERIOUS INJURY OR
DEATH.
- Electrical ground is required on this unit.
- Do NOT modify the power supply cord
plug. If it does not fit the outlet, have a
proper outlet installed by a qualified elec-
trician.
- Do NOT use an extension cord with this
unit.
- Check with a qualified electrician if you are
unsure if the unit is properly grounded.
IMPORTANT SAFETY INFORMATION (continued)

5
VERTICAL CONTACT TOASTER
P/N 1010840 Rev. M 07/14
B
A
C
B
(no bun chute)
SPECIFICATIONS
Electrical Specifications
Dimensions
Model &
Mfg. No.
Width
(A)
Depth
(B)
Height
(C)
VCT-2000
9210200
21 1/4"
(540 mm)
15 1/4'
(387 mm)
23 1/4"
(591 mm)
VCT-2000
9210201
21 1/4"
(540 mm)
15 1/4'
(387 mm)
23 1/4"
(591 mm)
VCT-2000
9210202
21 1/4"
(540 mm)
15 1/4'
(387 mm)
23 1/4"
(591 mm)
VCT-2000
9210203
21 1/4"
(540 mm)
15 1/4'
(387 mm)
24 1/4"
(616 mm)
VCT-2000
9210208
21 1/4"
(540 mm)
15 1/4'
(387 mm)
23 1/4"
(591 mm)
VCT-2000
9210210
21 1/4"
(540 mm)
15 1/4'
(387 mm)
23 1/4"
(591 mm)
VCT-2000
9210213
21 1/4"
(540 mm)
15 1/4'
(387 mm)
23 1/4"
(591 mm)
VCT-2000
9210215
21 1/4"
(540 mm)
15 1/4'
(387 mm)
23 1/4"
(591 mm)
VCT-2000
9210217
21 1/4"
(540 mm)
15 1/4'
(387 mm)
23 1/4"
(591 mm)
VCT-2000
9210401
9210400 Heated
Base
21 1/4"
(540 mm)
10 3/4'
(273 mm)
23 1/4"
(591 mm)
VCT-2000
9210410 Heated
Base
21 1/4"
(540 mm)
10 3/4'
(273 mm)
23 1/4"
(591 mm)
Model &
Mfg. No.
Plug
Description
Plug
Configuration
VCT-2000
9210200
9210203
9210208
9210210
9210213
9210215
9210217
9210400
9210401
9210410
CEE 7/7, 16
Amp., 250 VAC
(Assembly Only).
VCT-2000
9210201
9210202
IEC-309, 16 Amp.,
250 VAC.
Pin & Sleeve
(Assembly Only).
Electrical Cord and Plug Configurations
Model &
Mfg. No. Volts Watts Amp. Hz.
VCT-2000
9210200
9210201
9210202
9210203
9210208
9210210
9210213
9210215
220 - 240 3019 - 3593 13.7 - 15 50
VCT-2000
9210400
9210401
9210410
Heated Base
220 - 240 3058 - 3640 13.9 - 15.2 50

VERTICAL CONTACT TOASTER
6P/N 1010840 Rev. M 07/14
WARNING
ELECTRICAL SHOCK HAZARD. FAILURE TO
FOLLOW THE INSTRUCTIONS IN THIS MANUAL
COULD RESULT IN SERIOUS INJURY OR DEATH.
• Electrical ground is required on this appliance.
• Do NOT modify the power supply cord plug. If
it does not fit the outlet, have a proper outlet
installed by a qualified electrician.
• Do NOT use an extension cord with this
appliance.
• The toaster should be grounded according to
local electrical codes to prevent the possibil-
ity of electrical shock. It requires a grounded
receptacle with separate electrical lines pro-
tected by fuses or a circuit breaker of the prop-
er rating.
• Check with a qualified electrician if you are
unsure if the appliance is properly grounded.
CAUTION
All electrical connections must be in accordance
with local electrical codes and any other appli-
cable codes.
CAUTION
Bread may burn. Therefore toasters must not be
used near or below curtains or other combustible
walls and materials. Failure to maintain safe oper-
ating distances may cause discoloration or com-
bustion.
Unpacking
1. Remove the unit and all packing materials from
shipping carton.
2. Open the included large box. It should contain the
following:
• Bun Chute (Figure 1) some models only.
• Bun Feeder (Figure 1) some models only.
• Two Release Sheets (Figure 1).
• Owner’s Manual.
• Maintenance Card (some models only).
• Authorized Service Agency Directory.
3. Remove all shipping tape and protective cover-
ings from the unit and parts.
NOTE: If any parts are missing or damaged, con-
tact Antunes Technical Service IMMEDIATELY at 1-
877-392-7854 (toll free in the U.S.) or 630-784-1000.
Equipment Setup
Before placing the toaster into service, pay attention to
the following guidelines:
• Make sure power to the unit is off and the toaster
is at room temperature.
• Do NOT block or cover any openings on the unit.
• Do NOT immerse cord or plug in water.
• Keep cord away from heated surfaces.
• Do NOT allow cord to hang over edge of table or
counter.
• Connect the unit to the proper power supply.
Refer to the specification plate for proper voltage
INSTALLATION
Assembling the Unit
NOTE: The factory has pre-installed a Release
Sheet over the Platen (Figure 1). Verify that it is
properly in place before proceeding.
1. Remove Bun Chute (some models) and Bun
Feeder from the box and install (Figure 1).
IMPORTANT: Make sure heat shield assembly is
activating the Conveyor Safety Interlock Switch
(see Figure 1). The conveyors will not rotate unless
the Heat Shield is in place and Conveyor Safety
Interlock Switch is activated.
WARNING
Failure to use Release Sheets may result in dam-
age to the unit and loss of warranty coverage.

7
VERTICAL CONTACT TOASTER
P/N 1010840 Rev. M 07/14
Conveyor
Safety
Interlock
Switch
Bun Feeder
(some models only)
Heat Shield
Release
Sheet
Retainer
Clips
Bun Chute Assembly
connected over the
bottom rear support rod
(some models only)
Rear Conveyor
Cover Assembly
(with Roller Tensioner)
Release
Sheet
Bun Chute
(some models only)
Platen
Front
Conveyor
Belt Chain
Rear Belt
Wrap
Front Belt
Wrap
Front Conveyor
Cover Assembly
Roller Tensioner
Rear
Conveyor
Belt Chain
Figure 1. VCT-2000 Toaster
INSTALLATION (continued)

VERTICAL CONTACT TOASTER
8P/N 1010840 Rev. M 07/14
NOTE: The toaster is tested and shipped with the heaters
set at the above recommended temperatures.
OPERATION
Figure 3. Bun Thickness Adjustment Controls
Operating Instructions
1. Set the Bun Thickness Adjustment Controls
(Figure 3) to desired setting.
NOTE: Recommended settings are #2 for heel and
#6 for crown.
2. Turn the Rocker Switch on. (Figure 2). Allow the
toaster to warm-up for 30 minutes before pro-
ceeding.
NOTE: The temperature display (Figure 2) will flash
“LO” until the toaster reaches its preset operating
temperature. When the toaster approaches the pre-
set temperature of 600°F (315°C), “USE” appears
in the temperature display and the unit is ready to
toast buns. If “USE” does not appear in the window
after warm-up period of approximately 30 minutes,
contact your Authorized Service Agency.
3. Drop Crowns and Heels into the slot (Figure 2).
Cut sides of heel and crown must face each
other.
4. Toasted buns will drop into the bun landing area
(Figure 2).
5. Test at least four buns before putting the toaster
into service.
6. Turn the Rocker Switch off when finished toasting
for the day and proceed with the Daily Cleaning
as outlined in the Maintenance section of this
manual.
Temperature Adjustments
The VCT-2000 uses a Platen Heater and two Auxiliary
Air Heaters. The Platen Heater consists of a heating
element built into the Platen to toast the cut side of
the bun. The two Auxiliary Heaters assist in provid-
ing additional heat to the buns. The first Auxiliary Air
Heater is located between the conveyor in the front
of the toaster. The second Auxiliary Heater is located
between the conveyor at the rear of the unit.
RECOMMENDED TEMPERATURES
Recommended temperature setting for the Platen heat-
er is 600°F (315°C).
Recommended temperature setting for the Auxiliary Air
Heaters is 400°F (204°C).
1
2
4
5
1 = 1/2"(12.7mm)
2 = 5/8"(15.9mm)
3 = 11/16"(17.5mm)
6 = 7/8"(22.2mm)
THICKNESS THICKNESS
1
2
3
4
6
6
5
4 = 3/4"(19.1mm)
5 = 13/16"(20.6mm)
3
Bun Thickness
Adjustment Control
(See Figure 3)
Bun Landing Area
Rocker
Switch
Temperature
Controls
& Temperature
Display
Hi-Limit
Reset
Power
Cord
Figure 2. VCT-2000 Toaster
1
2
4
5
1 = 1/2"(12.7mm)
2 = 5/8"(15.9mm)
3 = 11/16"(17.5mm)
6 = 7/8"(22.2mm)
THICKNESS THICKNESS
1
2
3
4
6
6
5
4 = 3/4"(19.1mm)
5 = 13/16"(20.6mm)
3

9
VERTICAL CONTACT TOASTER
P/N 1010840 Rev. M 07/14
TEMPERATURE CONTROL PANEL
NOTE: The term “set point temperature” refers to the
desired temperature setting.
To display the actual Platen temperature—providing it is
over 440°F (227° C)—press the TEMP UP button.
To display the actual Auxiliary Air Heater temperature—
providing it is over 360°F (182°C)—press the TEMP
DOWN button.
To switch the temperature display between Fahrenheit
(°F) and Celsius (°C), press and hold the TEMP SCALE
button for 5 seconds.
PLATEN HEATER TEMPERATURE ADJUSTMENT
1. Turn the Rocker Switch on and wait for the
Temperature Display to finish the power up
sequence (Figure 4).
2. Press and hold the TEMP UP and TEMP DOWN
buttons for over 1 second until the display flashes
the Platen set point temperature, then release
(Figure 5).
3. Press the TEMP UP button to raise the set point
temperature or press the TEMP DOWN button to
lower the set point temperature.
NOTE: The Maximum Platen Set point Temperature
is 600°F (315°C). If no change in temperature is made
within 5 seconds, the display reverts back to the pre-
vious set point.
4. Release the button when the desired set point is
displayed.
AUXILIARY AIR HEATER TEMPERATURE ADJUSTMENT
1. Turn the Rocker Switch on and wait for Temperature
Display to finish the power up sequence (Figure 4).
2. Press and hold the TEMP UP and TEMP SCALE
buttons for over 1 second until the display flashes
the set point temperature, then release (Figure 6).
3. Press the TEMP UP button to raise the set point
temperature or press the TEMP DOWN button to
lower the set point temperature.
NOTE: The maximum Auxiliary Air Heater Set point
Temperature is 400°F (204°C).
4. Release the button when the desired set point is
displayed.
NOTE: If no change in temperature is made within 5
seconds, the display reverts back to the previous set
point.
TEMP
UP TEMP
DOWN TEMP
SCALE
˚F
˚C
POWER
TEMP
UP TEMP
DOWN TEMP
SCALE
˚F
˚C
POWER
SP - P 600
TEMP
UP TEMP
DOWN TEMP
SCALE
˚F
˚C
POWER
TEMP
UP TEMP
DOWN TEMP
SCALE
˚F
˚C
POWER
400
SP - A
Figure 4. Temperature Power Up Sequence
3. SP-A (Set Point Auxiliary)
is displayed
1. SP-P (Set Point Platen)
is displayed
“Heat On” LED will blink on/off during warm up and when either
platen or auxiliary air heaters are calling for heat.
2. Current Platen Set Point
Temperature setting is shown
4. Current Auxiliary Air Set Point
Temperature is shown
5. “LO” is displayed until
platen temperature rises
above 550°F (288°C)
6. "USE" is displayed when
Platen Set Point Temperature*
is reached
TEMP
UP
TEMP
DOWN TEMP
SCALE
°F
°C
POWER
LO
USE
* Platen set point temperature must be between
460°F (238°C) and 600°F (315°).
OPERATION (continued)

VERTICAL CONTACT TOASTER
10 P/N 1010840 Rev. M 07/14
Safety Features
HI-LIMIT RESET BUTTON
A Hi-Limit Control turns off electrical power to the heat-
er and control circuits if the platen overheats. To reset
the control, allow sufficient time (10-15 minutes) for the
unit to cool, then locate the Reset Button at the rear
of the unit. Remove the black protective cap, press
the Reset Button, and reinstall the protective cap
(Figure 2).
NOTE: If the unit requires continuous resetting,
contact your Authorized Service Agency.
TEMP
UP
TEMP
DOWN TEMP
SCALE
°F
°C
POWER
551
Figure 5. Platen Heater Set Point Temperature
1. Press both buttons at the same
time for 1 second to start adjust-
ment sequence.
2. Press TEMP UP button to raise
platen set point temperature.
3. Press TEMP DOWN button
to lower platen set point
temperature.
TEMP
UP
TEMP
DOWN TEMP
SCALE
°F
°C
POWER
336
Figure 6. Auxiliary Air Heaters Set Point Temperature
1. Press both buttons at the same
time for 1 second to start adjust-
ment sequence.
2. Press TEMP UP button to raise
auxiliary air heaters set point
temperature.
3. Press TEMP DOWN button to
lower auxiliary air heaters
set point temperature.
OPERATION (continued)

11
VERTICAL CONTACT TOASTER
P/N 1010840 Rev. M 07/14
TEMP
UP
TEMP
DOWN
TEMP
SCALE
°F
°C
POWER
TEMP
UP
TEMP
DOWN
TEMP
SCALE
°F
°C
POWER
HI USE
Figure 7. “HI” Fault Message
“HI” will flash if platen
temperature exceeds 620°F
(327°C) or if platen thermocou-
ple is disconnected or “open”.
“HI” and “USE” will flash if
auxiliary heaters temperature
exceeds 440°F (227°C) or if
the Auxiliary Thermocouple
is disconnected or “open.”
Figure 8. “CHEC” Fault Message
TEMP
UP
TEMP
DOWN TEMP
SCALE
°F
°C
POWER
CHEC
“CHEC” will flash when
control compartment
ambient temperature is
excessive: 140°F (60°C) to
180°F (82°C). All heaters will
shut off.
TEMP
UP
TEMP
DOWN TEMP
SCALE
°F
°C
POWER
PO
“PO” will flash if
incoming power drops below
190 Volts. Toaster shuts
down.
Figure 9. “PO” and “PH” Fault Messages
Fault messages
• If the Platen Thermocouple is disconnected or
“open”, the display will flash “HI.” The Platen
Thermocouple must be reattached or replaced.
• If the Platen Heater temperature exceeds 620°F
(327°C) the display will flash “HI” and the heating
circuit will turn off (Figure 7). After the toaster has
cooled down, the unit must be turned off, then back
on to restart. If this condition repeats, contact your
Authorized Service Agency.
• If the Auxiliary Heating temperature exceeds 420°F
(215°C) the display will alternately flash “HI” and
“USE” (Figure 7). After the toaster has cooled
down, the unit must be turned off, then back on
to restart. If this condition repeats, contact your
Authorized Service Agency.
• The temperature controller has an ambient
temperature sensor that will disable the heating
circuits if the control compartment ambient
temperature becomes excessive: 140°F (60°C)
to 180°F (82°C).
When this occurs, the temperature display will flash
“CHEC” (Figure 8). To restart the unit, ambient must
drop to 140°F (60°C) and the unit must be turned
off, then back on. If this condition repeats, contact
your Authorized Service Agency.
• If incoming power drops below 175 Volts, the heat-
ing circuits are disabled and the display will read
“PO” (Figure 9). To reset, the voltage must be over
190 Volts, then the unit must be turned off and back
on. If this condition repeats, contact your Authorized
Service Agency.
• The “PH” fault message (Figure 9) is displayed if
the Conveyor Interlock Safety Switch (Figure 1)
is not properly engaged . When a PH fault exists,
reposition the Heat Shield so that it fully engages
the Conveyor Safety Interlock Switch. The unit
should return to normal operation when the Heat
Shield is positioned correctly.
If the “PH” Fault does not clear, contact your
Authorized Service Agency for service.
OPERATION (continued)
TEMP
UP
TEMP
DOWN
TEMP
SCALE
°F
°C
POWER
ph
“PH” will flash when the
Conveyor Safety Interlock
Switch is not properly
engaged.

VERTICAL CONTACT TOASTER
12 P/N 1010840 Rev. M 07/14
Daily
CLEANING THE BLACK AND SILVER RELEASE SHEET,
CONVEYOR BELT WRAPS, AND TOASTER
Tools Required:
• Heat-resistant gloves
• Clean towels
• Multipurpose Detergent Solution
• Sanitizer Solution
1. Turn the Rocker Switch off, unplug the power
cord, and allow the unit to cool for 30 minutes.
2. Put on heat-resistant gloves. Remove the Bun
Feeder, Heat Shield, and Bun Chute (some mod-
els). Wipe them with a damp sanitized towel and
allow them to air dry.
3. Remove the Release Sheet and place it on a
clean, flat dry surface. Wipe the silver side with
a clean towel dampened with Multipurpose
Detergent Solution immediately followed by a
second clean towel dampened with sanitizer and
allow it to air dry before continuing. Repeat this
step on the black side of the Release Sheet once
the silver side is dry.
4. Open the front Conveyor Cover and firmly wipe
the black Belt Wrap from left to right and top
to bottom with a clean towel dampened with
Multipurpose Detergent Solution immediately
followed by a second clean towel dampened with
sanitizer.
5. Close the front Conveyor Cover, open the rear
Conveyor Cover, and clean the Belt Wrap as
described in Step 4.
MAINTENANCE
WARNING
Turn the power off, unplug the power cord, and
allow the unit to cool down 30 minutes before
performing any service or maintenance.
CAUTION
To prevent damage to the unit, do NOT use abra-
sive cleaners on the Release Sheet or Belt Wrap.
CAUTION
Failure to use Release Sheets may result in dam-
age to the unit and loss of warranty coverage.
6. Close the rear Conveyor Cover, reinstall the Heat
Shield, plug in the power cord, turn the unit on,
until the uncleaned portion of the Belt Wrap is
accessible. Then turn the unit off and unplug the
unit.
7. Remove the Heat Shield, then open the rear
Conveyor Cover and clean the newly exposed
section of the Belt Wrap in the same manner as
before. Close the Conveyor Cover.
8. Open the front Conveyor Cover again and clean
the newly exposed section of the Belt Wrap in the
same manner as before.
9. Close the front Conveyor Cover and wipe down
the outside of the toaster with a clean, damp,
sanitized towel.
10. Install the Release Sheet by draping it over both
sides of the Platen with the crease centered on
the Platen.
NOTE: Rotate from the black side to the silver side
daily or weekly to prolong the life of the Release
Sheet.
11. Install the Bun Chute so the hooks are installed
over the lower rear yellow Support Rod. Install
the Heat Shield with the Release Sheet Retainer
clips securely over the Release Sheet and
Platen.
12. Reinstall the Bun Feeder and plug in the unit.
NOTE: Make sure the Heat Shield is activating the
Conveyor Safety Interlock Switch. The Conveyors
will not rotate unless the Heat Shield is in place
and the Conveyor Safety Interlock Switch is acti-
vated.
NOTE: Check the Release Sheet to make sure it is
not caught in the Conveyor. Additional Release
Sheets can be obtained through your Authorized
Service Agency under P/N 7000249 (3-Pack) or
7000250 (10-Pack).

13
VERTICAL CONTACT TOASTER
P/N 1010840 Rev. M 07/14
Replacing Belt Wraps (Every 3–6 months)
NOTE: Depending on toaster usage and how well
they are cleaned daily, the black Belt Wraps should
last 3 to 6 months. Additional Belt Wraps may be
purchased from your Authorized Service Agency.
1. Turn the Rocker Switch off, unplug the power
cord, and allow the unit to cool.
2. Remove the Bun Feeder and Heat Shield and set
the Compression Control Knobs to 6 and 6.
3. Open both Conveyor Covers and pull the Belt
Wrap Pin out of the “zipper” (Figure 11).
4. Remove and discard the old Belt Wrap(s).
5. Clean both Conveyor Belt Chains just as you
would clean the Belt Wraps during daily cleaning
(Figure 11).
6. Install the new Belt Wrap(s) around the Conveyor
Belt Chains inside the yellow rods with the “zip-
per” flap exposed and hanging down (Figures 12
& 13).
7. Close the Conveyor Cover(s), set the
Compression Control Knobs back to their normal
settings and reinstall the Heat Shield and Bun
Feeder.
CAUTION
INCORRECT CORRECT
Figure 12. Installing Belt Wrap
Figure 13. Aligning Belt Teeth
Belt Wrap
Pin
Belt Rotation
Upper Support Rod
Lower
Support Rod
CAUTION
Align the ends of the Belt Wrap properly (Figure
13) or the Belt Wrap may be damaged. Position
the Belt Wrap between the upper and lower yellow
support rods or damage to the unit may occur.
Figure 11. Removing Belt Wrap
Conveyor
Safety
Interlock
Switch
Conveyor
Cover Assy.
Belt Wrap
Pin
Replacing the Black and Silver Release
Sheet (Every 4–6 weeks)
NOTE: Depending on toaster usage and on how
well it is cleaned daily, the black and silver Release
Sheet should last 45 to 60 days.
1. Remove and discard the Release Sheet.
2. Lay a new Release Sheet on a clean, dry surface
and fold it in half lengthwise and gently crease it
at the fold using only your fingers.
3. Install the Release Sheet.
Fold over so
ends meet. Press Lightly
with finger to
form crease.
Conveyor Belt
Chains
MAINTENANCE (continued)

VERTICAL CONTACT TOASTER
14 P/N 1010840 Rev. M 07/14

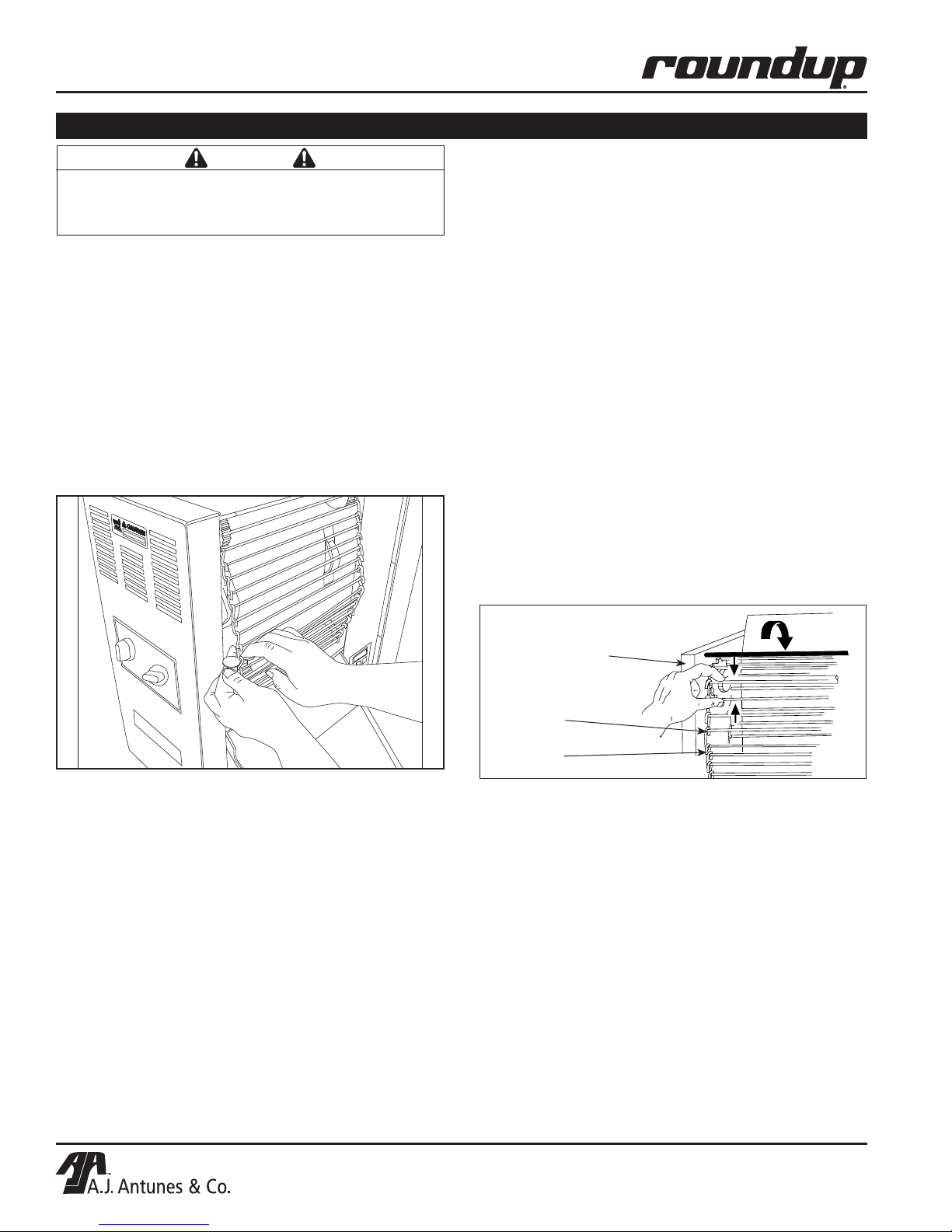

Figure 14. Removing Conveyor Belt Chains
Rotation
Upper Support Rod
Large Link
P/N 0800121
Small Link
P/N 0800204
Conveyor Belt Chains (Every 3–6 months)
MEASURING CONVEYOR BELTS CHAINS
Facing the toaster, locate the approximate center point
of the Conveyor Chain. Pull the Conveyor Chain away
from the edge of the toaster. Stand a U.S. Dime,
11/16” (1.8 cm) coin on end between the frame and the
chain. If the gap is significantly wider than the coin,
REMOVE links as described below. Then, measure
the gap again to make sure it is not too tight. Check
the opposite side of the toaster using the same mea-
surements.
ADJUSTING CONVEYOR BELT CHAINS
After a time, the Conveyor Chain links will wear and
the Conveyor Belt chain will stretch, eventually skipping
on the sprockets. This is easily remedied by removing
one or more conveyor links from each side of the belt.
There are two 1/2” small links on each side of the con-
veyor belt. The others are large, 3/4” long (Figure 14).
REMOVING CONVEYOR BELT CHAINS
1. Perform steps 1 - 4 under Replacing Belt Wraps
on the previous page.
2. Disconnect the Conveyor Belt Chain by squeez-
ing any two links together and unhooking both
ends of one link (Figure 14).
3. To shorten a stretched Conveyor Belt Chain,
remove one 1/2” link from the belt.
WARNING
Turn the power off, unplug the power cord and
allow the unit to cool down before performing any
service or maintenance.
4. Reassemble the Conveyor Belt Chain onto the
sprockets as described below.
NOTE: If the belt is too short to be reassembled,
remove an additional 1/2” small link and install a
3/4” large link. This will shorten the belt 1/4”.
REPLACING CONVEYOR BELT CHAINS
1. Remove the old Conveyor Belt Chain as
described in the previous steps.
2. Place the replacement Conveyor Belt Chain on
the top sprockets with hook ends down. Check for
correct positioning (Figure 14).
NOTE: The ends of the hooks must point down.
(Figure 14).
3. Wrap the Conveyor Belt Chain around lower
sprockets and connect by hooking both ends
together.
NOTE: Make sure the Conveyor Belt Chain is
installed under the Upper Support Rod and over the
Lower Support Rod.
MAINTENANCE (continued)

15
VERTICAL CONTACT TOASTER
P/N 1010840 Rev. M 07/14
Weld
Screws
Acorn Nuts
Spacers
Tensioner
Assy.
Tape
Figure 16. Replacing Roller Tensioner Assy.
Figure 15. Measuring Roller Tensioner
REPLACING ROLLER TENSIONERS
1. Remove the acorn nuts and old Roller Tensioner
assembly (Figure 15).
2. Replace Roller Tensioner assembly, and reas-
semble.
3. Make sure the spacers are placed inside the
tensioner arm. The spacers are smaller than the
holes to allow the tensioner to pivot freely.
MAINTENANCE (continued)
Roller Tensioners (Every 3–6 months)
MEASURING ROLLER TENSIONERS
1. Measure the Roller Tensioner on both inner
Conveyor Covers (See illustration). Adjust or
replace any damaged ones as recommended.
The space between the inner Conveyor Cover
and bottom of the tensioner wheel should be
13/16” (2.1 cm) or the height of a U.S. Nickel.

VERTICAL CONTACT TOASTER
16 P/N 1010840 Rev. M 07/14
TROUBLESHOOTING
WARNING
To avoid possible personal injury and/or damage to the unit, inspection, test and repair of electrical equip-
ment should be performed by qualified service personnel. The unit should be unplugged when servicing,
except when electrical tests are required. Use extreme care during electrical circuit tests. Live circuits will
be exposed.
Problem Possible Cause Corrective Action
Control Display Flash-
es “LO” continuously
Buns not toasting
properly.
Platen temperature is below 440ºF
(226ºC).
Allow the unit to warm up for 30 minutes and then
recheck. If the Control Display still reads “LO,” con-
tact your maintenance person or Authorized Service
Agency for service.
Control display flash-
es “LO” continuously.
Buns burn.
Failed Platen Thermocouple. Contact your maintenance person or Authorized
Service Agency for service.
Failed Control Board.
Temperature display
flashes “PH”.
The Heat Shield is not fully engag-
ing the Conveyor Safety Interlock
Switch.
Reposition the Heat Shield so that it fully engages
the Conveyor Safety Interlock Switch.
Loose wiring between the phase
control and A/C isolator boards.
Contact your maintenance person or Authorized
Service Agency.
Control Display
flashes “PO” continu-
ously.
The power to the unit is below 190
volts.
Turn the Rocker Switch off and then back on. If the
display still shows “PO,” check the power cord, plug,
and outlet for damage.
Reset the Circuit Breakers.
Contact your maintenance person, Authorized
Service Agency, or electrician for service.
Failed Control Board.
Failed Transformer.
Control flashes
“CHEC” continuously.
Control Compartment temperature is
above 140ºF.
Verify side vents on toaster are unblocked and not
near other heating appliances. If problem still per-
sists, contact your maintenance person or Autho-
rized Service Agency for service.
Failed Cooling Fan.
Failed Control Board.
Control Display
flashes “HI” continu-
ously. Buns burn.
Failed Platen Solid State relay. Contact your maintenance person or Authorized
Service Agency for service.
Failed Control Board.
Failed Platen Thermocouple.
Control Display flash-
es “HI” continuously.
Buns not toasting
properly.
Loose Platen Thermocouple connec-
tion on Control Board or the Platen
Thermocouple is open.
Re-secure the Platen Thermocouple connection to
the Control Board. If the Control Display still reads
“HI,” check the Thermocouple for continuity. Con-
tact your maintenance person or Authorized Service
Agency for service.
Failed Control Board.
Control Display
flashes “HI” & “LO” at
cold start up, then “HI”
& “USE” after 20 - 30
minutes.
Loose Auxiliary Thermocouple con-
nection on Control Board or Thermo-
couple is “open.”
Re -secure the Auxiliary Thermocouple connection to
the Control Board. If the Control Display still reads
“HI” & “LO” or “HI” & “USE,” check Thermocouple
for continuity. Contact your maintenance person or
Authorized Service Agency for service.

17
VERTICAL CONTACT TOASTER
P/N 1010840 Rev. M 07/14
TROUBLESHOOTING (continued)
Problem Possible Cause Corrective Action
No Control Display. Unit not plugged in. Plug unit into the proper electrical outlet.
Hi-Limit control has tripped. Allow unit to cool and reset the Hi-Limit control. If
it trips again, contact your maintenance person or
Authorized Service Agency.
Circuit Breakers turned off or tripped.
Damaged electrical outlet, plug, or
cord. Power On/Off Rocker Switch
damaged.
Reset Circuit Breakers. If they trip again, check the
cord, plug, and outlet for damage.
Contact your maintenance person, Authorized
Service Agency, or electrician.
Conveyor does not
turn.
Safety Interlock Switch is not acti-
vated.
Reposition the Heat Shield properly.
Heat Shield is bent or damaged. Replace Heat Shield (P/N 0011528).
Damaged or Missing Roller
Tensioner(s).
Adjust or replace Roller Tensioner(s).
Conveyor Belt/Chain has stretched.
Chain skipping on sprockets.
Measure and adjust the Conveyor Belt Chains as
described in the Maintenance section of this manual.
Motor Drive Chain came off
Sprocket(s).
Reinstall Drive Chain.
Drive Chain needs lubrication. Lubricate chain with (P/N 2190152).
Drive Motor has overheated. Allow unit to cool and check Conveyor(s) for ob-
structions or binding at sprockets. Measure and
adjust Conveyor Belt(s) as described in the Mainte-
nance section of this manual.
Drive Motor has failed. Contact your maintenance person or Authorized
Service Agency for service.
Buns not toasting
adequately.
Compression Settings are incorrect. Use the recommended settings. Set Heel to 2 and
Crown to 6.
Temperature Setting is incorrect. Verify that the Platen (SP-P) is set to 600°F (315°C)
and the Auxiliary (SP-A) is set to 400°F (204°C).
For making changes in the set point temperature,
see the Installation section of this manual.
Release Sheet is worn or needs
cleaning (replace every 4–6 weeks).
Inspect Release Sheet for cleanliness, worn sports,
tears, or wrinkles. Clean or replace Release Sheet
as described in the Maintenance section of this
manual.
Belt Wraps are worn or need clean-
ing (replace every 3–6 months).
Replace or clean Belt Wraps as described in the
Maintenance section of this manual.
Belt Wraps are not tacky/sticky. Clean or replace Belt Wraps as described in the
Maintenance section of this manual.
Buns do not meet specifications. Contact your Bun supplier.
Non-OEM Release Sheets used. Use only OEM Release Sheets (P/N 7000250).

VERTICAL CONTACT TOASTER
18 P/N 1010840 Rev. M 07/14
TROUBLESHOOTING (continued)
Problem Possible Cause Corrective Action
Crowns and/or Heels
must be forced into
the toaster. Buns
sticking and burn-
ing.
Belt Wraps not being cleaned prop-
erly.
Clean Belt Wraps as described in the Maintenance
section of this manual.
Conveyor Belt Wraps are not tacky/
sticky (replace every 3–6 months).
Clean Belt Wraps. If the Belt Wraps are too worn,
replace them as described in the maintenance
section of this manual.
Belt Wraps are dirty, worn, or dam-
aged (replace every 3–6 months).
Clean or replace Belt Wraps as described in the
Maintenance section of this manual.
Release Sheet is not being cleaned
properly.
Clean both sides of the black and silver Release
Sheet as described in the Maintenance section of
this manual.
Release Sheet is not being reversed
as required.
Reverse the Release Sheet or replace Release
Sheet as described in the Maintenance section of
this manual.
Release Sheet is dirty, worn, or
damaged (replace every 4–6
weeks).
Clean or replace Release Sheet as described in the
Maintenance section of this manual.
Conveyor Belt Chains are skipping
on Sprockets.
Measure and adjust the Conveyor Belt Chains as
described in the Maintenance section of this
manual.
Conveyor Safety Interlock Switch
is not being activated by the Heat
Shield.
Heat Shield is ajar. Reposition Heat Shield.
Heat Shield is damaged. Replace if necessary. If
the Conveyor Safety Interlock Switch is damaged,
contact your maintenance person or Authorized
Service Agency for service.
Belt Wraps slipping over Conveyor
Belt Chains.
Remove Belt Wraps and clean the Conveyor Belt
Chain links and Belt Wraps as described in the
Maintenance section of this manual.
Roller Tensioner(s) damaged or
missing.
Reinstall or replace Roller Tensioner(s) as described
in the Maintenance section of this
manual.
Drive Motor stalls intermittently. Contact your maintenance person or an Authorized
Service Agency for service.
Compression Settings are incorrect. Use the recommended settings. Set Heel to 2 and
Crown to 6.
Buns are not inserted into the toast-
er properly.
Buns must be inserted with the cut sides facing
each other on the correct Heel or Crown side.
Non-OEM or damaged Belt Wraps
used.
Replace with OEM Belt Wraps (P/N 7000416).
New Conveyor Belt
Wraps do not fit.
Compression Settings are incorrect. Set Compression Knobs to 6 and 6 when replac-
ing Belt Wraps or when adjusting Conveyor Belt
Chains.
Belt Wraps not installed correctly. Install Belt Wraps inside the Yellow Support Rods
with the “zipper flap” exposed and hanging down.
Non-OEM or damaged Belt Wraps
used.
Replace with OEM Belt Wraps (P/N 7000416).

19
VERTICAL CONTACT TOASTER
P/N 1010840 Rev. M 07/14
Problem Possible Cause Corrective Action
Toaster makes
unusual sounds.
Compression Settings are too tight. Set Compression Settings to the correct (or larger)
setting.
Conveyor Belt Wrap is installed
incorrectly.
Belt Wraps must be installed as described in the
Maintenance section of this manual.
Belt Wrap Pin rubbing on housing. Center the Pin in the Belt Wrap “zipper.”
Roller Tensioner(s) bent or missing. Measure, adjust, or replace the Roller Tensioner(s)
as described in the Maintenance section of this
manual.
Conveyor Belt Chains have
stretched.
Measure and adjust the conveyor Belt Chains as
described in the Maintenance section of this
manual.
Conveyor Belt Chains adjusted
incorrectly.
Sugar and/or carbon has accumu-
lated inside the Conveyor Belt Wrap
and between the Conveyor Belt
Chain and Tensioner Slide Rails.
Remove Belt Wraps, clean Conveyor Belt Chain
links just as you clean the Belt Wraps daily, and
then clean the Slide Rails on the Tensioners.
Next, clean the Belt Wrap on both sides before
reinstalling it.
Motor Drive Chain needs lubrication. Lubricate the Drive Chain carefully with P/N
2140152 at least once a year.
A Conveyor Shaft bearing is binding. Contact your maintenance person or Authorized
Service Agency for service.
TROUBLESHOOTING (continued)

VERTICAL CONTACT TOASTER
20 P/N 1010840 Rev. M 07/14
REPLACEMENT PARTS
Parts Identification
Platen
Hi-Limit
Control
Fan Blade
Hi-Limit Capillary
Probe
A/C Frequency
Board
Platen Relay
Rear Drive
Sprocket (Behind
Line Filter)
Transformer
Drive Chain
Rear Auxiliary Air
Heater
Conveyor Safety
Interlock Switch
Front Auxiliary
Air Heater
Rocker Switch
Auxiliary Air
Thermocouple
Drive Motor
Assembly
Platen
Thermocouple
Front Drive
Sprocket
Idler Sprocket
Auxiliary Air
Thermocouple
Temperature
Control
Auxiliary Relay
Line Filter
