OVERVIEW
This document describes the hardware and software setup for Roving Networks evaluation kits, which contain the
hardware you need to evaluate the RN-171 or RN-131 WiFly 802.11 b/g modules. The RN-171 and RN-131 WiFly
modules are mounted to evaluation boards. Each board contains status LEDs, connections for the programmer and UART
interfaces, a voltage regulator, and easy access to GPIO pins.
You can use the evaluation kits to configure and program the WiFly module using the command interface, create
connections, and transfer data. The command interface is made up of simple ASCII commands. See “Resources &
Related Documents” on page 13 for information on available documentation.
Evaluation Kit Description
The evaluation kits include the hardware required to connect the evaluation board to your computer. See Table 1 for
information on which hardware is provided with each kit. Additionally, Appendix A provides photographs and detailed
information on each kit’s contents. To evaluate the module on the evaluation board, you need a computer with a USB port
running the Microsoft Windows or Mac OS-X operating system.
NOTE: Before beginning your evaluation, you may need to install the driver for the USB cable. You can download the
drivers (as well as other tools and utilities) from the Roving Networks website at
http://www.rovingnetworks.com/support.php.
Table 1. Evaluation Kit Hardware, Note (1)
Hardware
Description
RN-131-EK
RN-171-EK
Evaluation board
Contains the WiFly module and connectors.
For RN-131
module
For RN-171
module

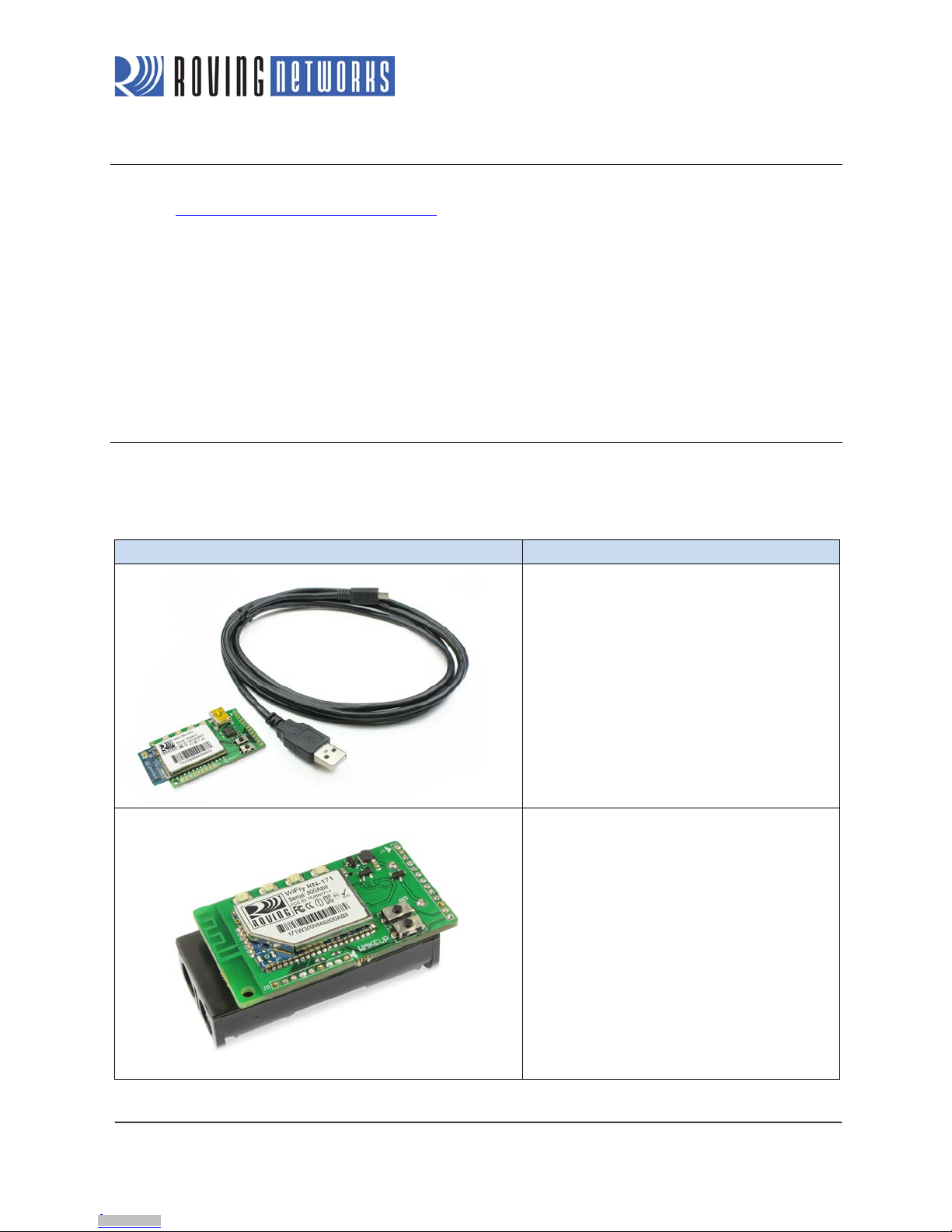

USB cable
Links your computer to the evaluation board.
✔
✔
Battery pack
Provides power to the evaluation board (requires 2 AA batteries).
✔
PCB trace antenna
Trace antenna included on the PCB.
✔
On-board chip antenna
and U.FL.
The PCB includes an on-board chip antenna and a U.FL.
connector.
✔
Notes:

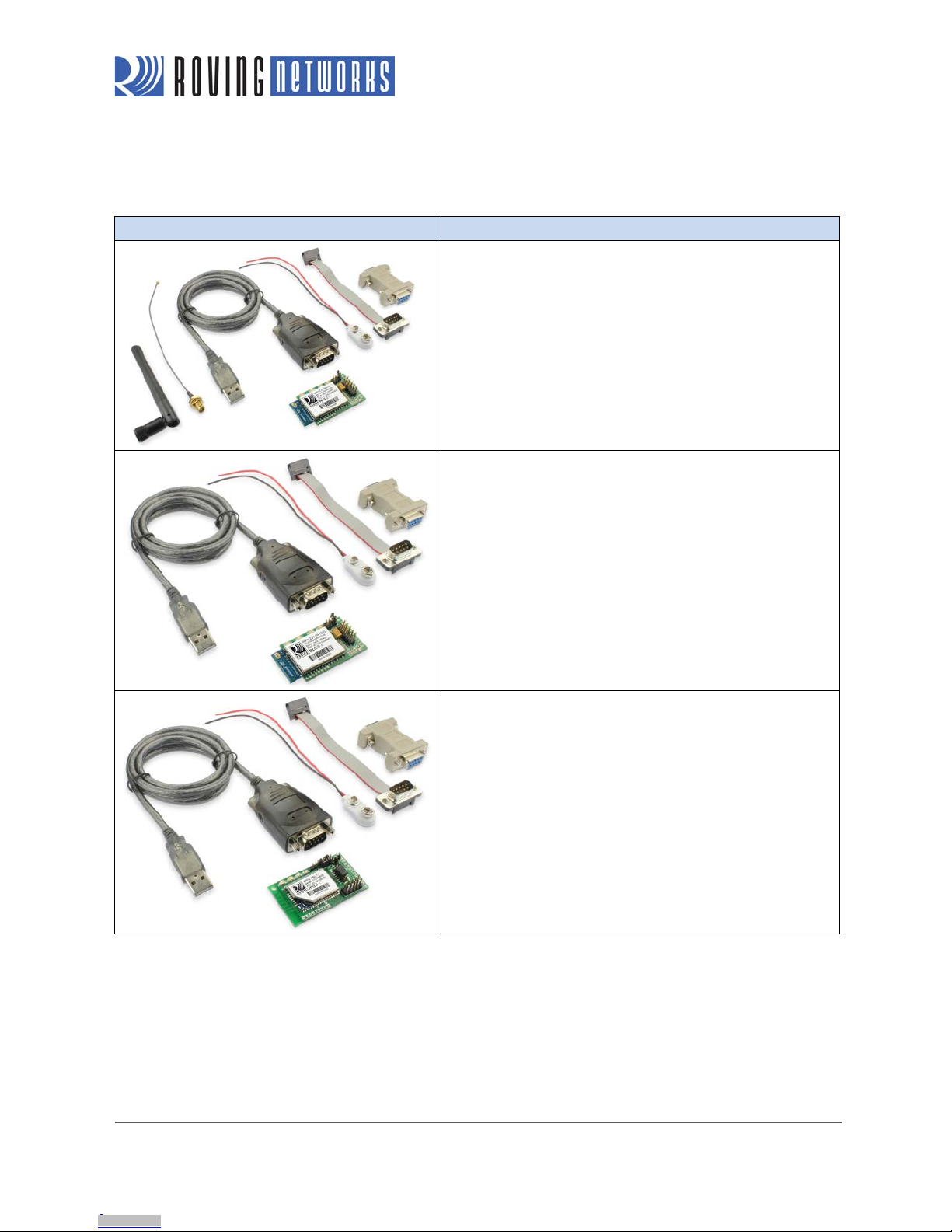

1. See “Appendix A: Legacy Evaluation Kits” on page 14 for more information on evaluation boards that use a serial cable.

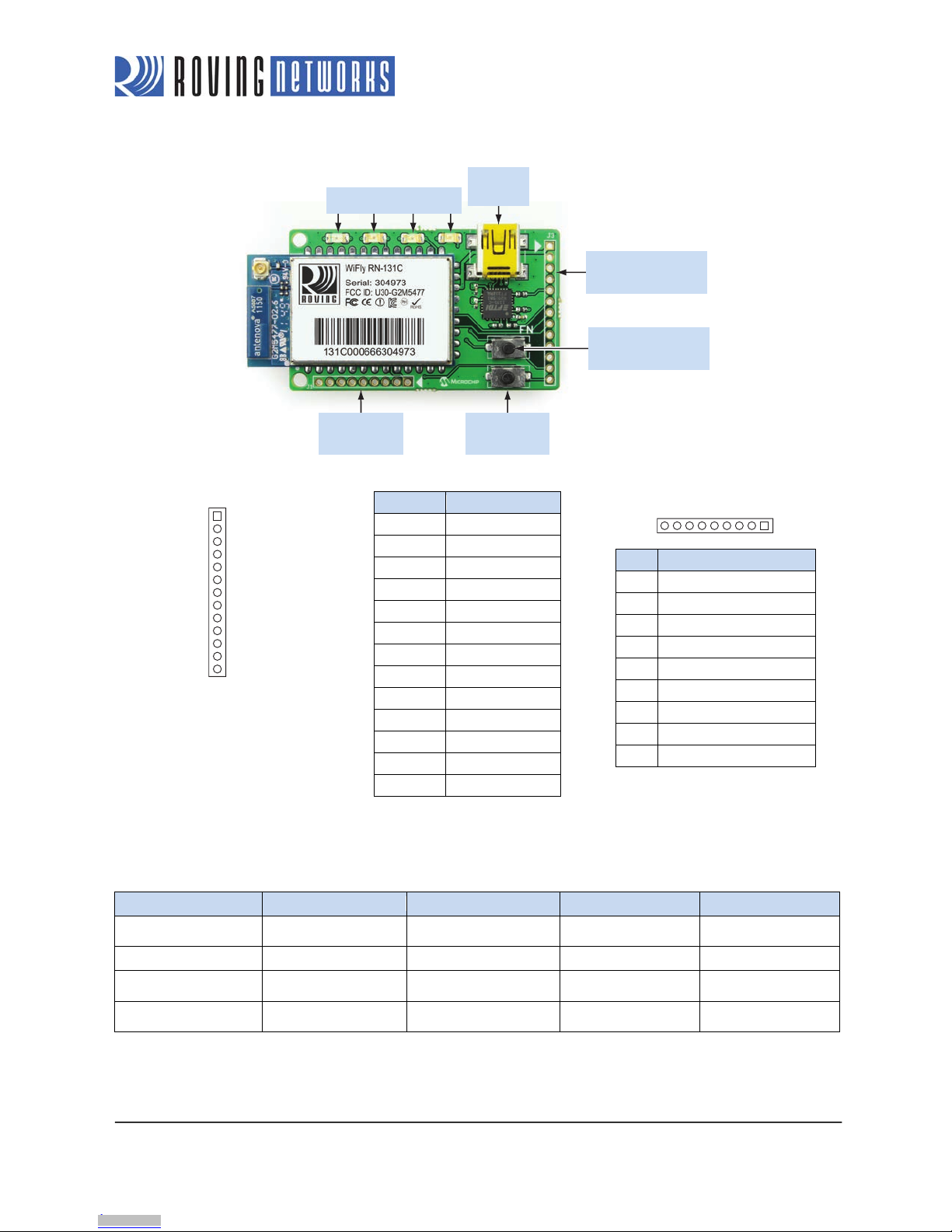

Figure 1 shows the RN-131-EK evaluation board and pin information. Table 2 describes the LED indicators.
Downloaded from Arrow.com.Downloaded from Arrow.com.

!
www.rovingnetworks.com Version 1.32r 10/9/2012 3
RN-WIFLY-EVAL-UM
Figure 1. RN-131-EK Evaluation Board
UART Interface (J3)
!
RX - input to evaluation board
TX - output from evaluation board
Pin
Description
1
3.3 VDC output
2
GND
3
UART RX
4
UART TX
5
UART RTS
6
UART CTS
7
GPIO4
8
GPIO5
9
GPIO6
10
GPIO7
11
GPIO8
12
GPIO9
13
Reset
Sensors (J1)
!
Pin
Description
1
Sensor Power
2
Sensor 4 (3.3-V tolerant)
3
Sensor 5 (3.3-V tolerant)
4
Sensor 7 (1.2 V only)
5
Sensor 5 (1.2 V only)
6
Sensor 4 (1.2 V only)
7
Sensor 6 (1.2 V only)
8
Sensor 3 (1.2 V only)
9
GND
WARNING: Sensors must not have more
than 1.2-V DC. Otherwise, the module may
be permanently damaged.
Table 2. RN-131-EK Evaluation Board LED Indicators
Condition
Blue LED
Red LED
Yellow LED
Green LED
On solid!
Unused
"!
"!
Connected over TCP
Fast blink!
Unused
Not associated!
Rx/Tx data transfer!
No IP address
Slow blink!
Unused
Associated, no Internet!
"!
IP address OK
Off!
Unused!
Associated, Internet OK!
"!
-

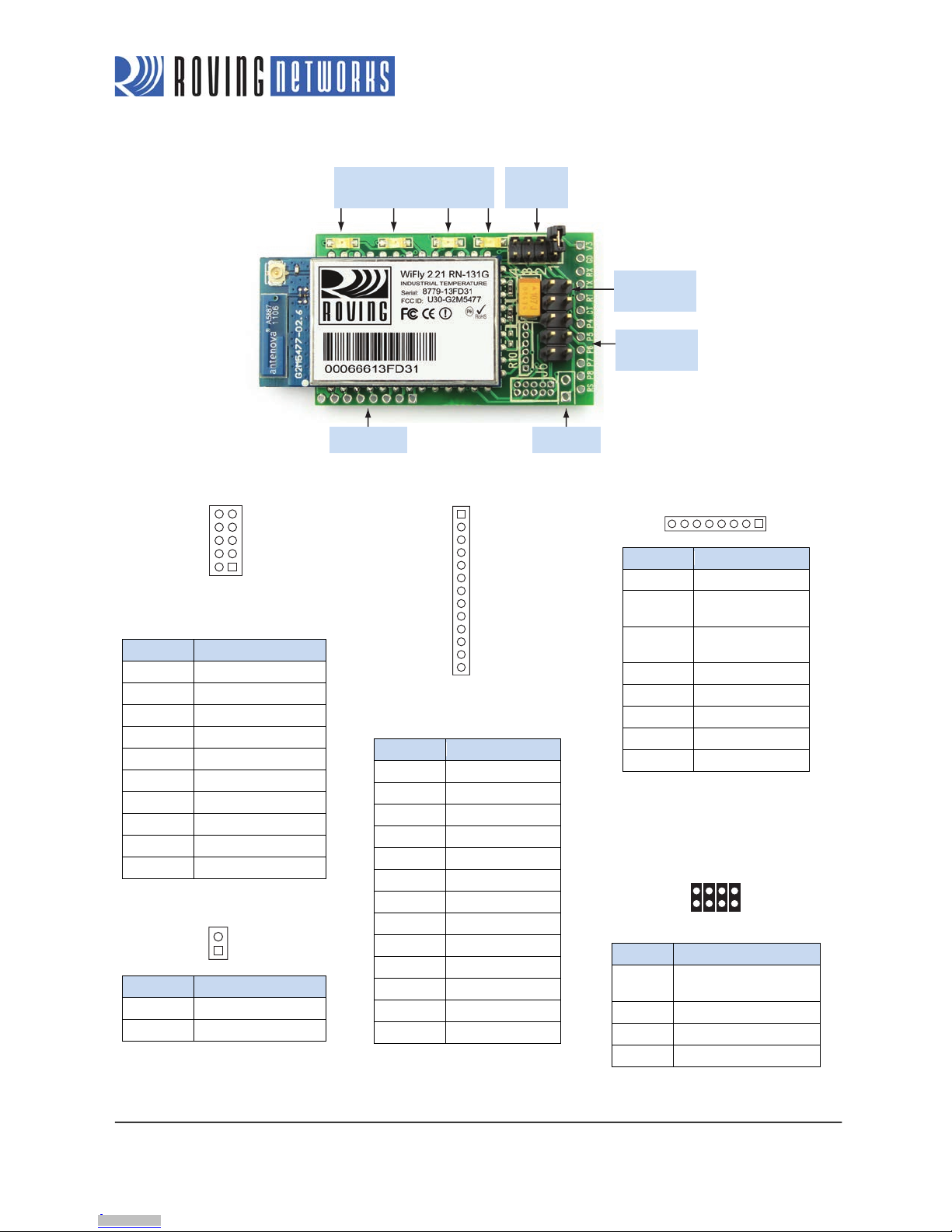

Figure 2 shows the RN-171-EK evaluation board and pin information. Table 3 describes the LED indicators.
Sensor
Interface (J1)
LED Indicators
UART Interface
(J3)
Reset
Pushbutton
USB
Connector
AP/WPS/Factory Reset
Pushbutton (GPIO9)
1
2
3
4
5
6
7
8
9
10
11
12
13
95234678 1
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

!
www.rovingnetworks.com Version 1.32r 10/9/2012 4
RN-WIFLY-EVAL-UM
Figure 2. RN-171-EK Evaluation Board
!
Sensor Interface (J5)
!
Pin
Description
1
Sensor Power
2
Sensor 4 (3.3-V tolerant)
3
Sensor 5 (3.3-V tolerant)
4
Sensor 7 (1.2 V only)
5
Sensor 5 (1.2 V only)
6
Sensor 4 (1.2 V only)
7
Sensor 6 (1.2 V only)
8
Sensor 3 (1.2 V only)
9
GND
WARNING: Voltage on pins marked 1.2 V
Only should not exceed 1.2 V or
permanent damage will occur.
UART Interface
(J4)
!
RX - input to evaluation board
TX - output from evaluation board
Pin
Description
1
3.3-VDC Output
2
GND
3
UART RX
4
UART TX
5
UART RTS
6
UART CTS
7
GPIO4
8
GPIO5
9
GPIO6
10
GPIO7
11
GPIO8, (1)
12
GPIO9
13
RESET
!
Note:
1. The RN-171 module drives GPIO8 HIGH on powerup, which overrides software configured powerup values, such as set sys value
0x0000 on GPIO8.
!
LED Indicators
UART Interface
(J4)
Sensor
Interface (J5)
PCB Trace
Antenna
AP/WPS/Factory Reset
Pushbutton (GPIO9)
Reset
Pushbutton
95234678 1
1
2
3
4
5
6
7
8
9
10
11
12
13
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

!
www.rovingnetworks.com Version 1.32r 10/9/2012 5
RN-WIFLY-EVAL-UM
Table 3. RN-171-EK Evaluation Board LED Indicators
Condition
Blue LED
Red LED
Yellow LED
Green LED
On solid!
Not used!
"!
"!
Connected over TCP
Fast blink!
Not used!
Not associated!
Rx/Tx data transfer!
No IP address
Slow blink!
Not used!
Associated, no Internet!
"!
IP address OK
Off!
Not used!
Associated, Internet OK!
"!
-
HARDWARE SETUP
To set up the evaluation hardware, perform the following steps:
1. Provide power to the board:
•RN-131-EK—The USB cable supplies power to the board.
•RN-171-EK—Insert 2 AAA batteries into the battery pack. Alternatively, the USB cable can supply power to
the board.
2. Connect the USB cable to a USB port on your computer and to the USB connector on the evaluation board.
Windows should automatically install the drivers for the cable. If it does not, download and install the FTDI drivers
from the Support page on the Roving Networks website at http://www.rovingnetworks.com/support.php. Note the
COM port to which you have attached the cable.
Figure 3 shows the completed hardware setup for the evaluation boards.
Figure 3. Hardware Setup
RN-131-EK Evaluation Board Hardware Setup
!
RN-171-EK Evaluation Board Hardware Setup
!
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

!
www.rovingnetworks.com Version 1.32r 10/9/2012 6
RN-WIFLY-EVAL-UM
CONFIGURATION
The WiFly module operates in two modes: data mode (default) and command mode. While in data mode, the WiFly
module is essentially a data pipe. When the module receives data over Wi-Fi, it strips the TCP/IP headers and trailers and
passes the user data to the UART. When data is written to the UART, the module constructs the TCP/IP packet and sends
it out over Wi-Fi. Thus, the entire process of sending/receiving data to the host is transparent to the end microprocessor.
See Figure 4.
Figure 4. Data & Command Modes
!
By default, the module is in data mode. Sending the escape sequence $$$ causes the module to enter command mode.
Once in command mode, you can configure the WiFly device using simple ASCII commands. To exit command mode and
return to data mode, type exit <cr>.
Basic configuration only requires the wireless network access point’s name (SSID) and authentication password. The WiFly
module can only associate with one network at a time. Roving Networks recommends that you begin your evaluation by
configuring the WiFly module using an open access point to simplify the setup.
There are two ways to configure the WiFly module:
•Over the UART, which is connected to a computer or microprocessor
•Via Wi-Fi using ad hoc networking
You need a terminal emulator to complete the setup.
NOTE: Roving Networks suggests using either the TeraTerm (Windows OS) or CoolTerm (Mac OS-X) terminal
emulator program.
Configuration Using a Cable
The RN-131-EK and RN-171-EK boards use a USB cable to allow your computer to communicate with the WiFly module
on your evaluation board. The following instructions describe how to use a terminal emulator to go into configuration mode,
send commands to find networks, associate with an access point, and save your configuration.
UART Wi-Fi Interface
WiFly
Module
Command
Mode
$$$ $$$
AB
User Data Wi-Fi
Wi-F
Fi
Host
AB
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

!
www.rovingnetworks.com Version 1.32r 10/9/2012 7
RN-WIFLY-EVAL-UM
Configure the Module Using a Terminal Emulator
To communicate with the module using a terminal emulator, perform the following steps:
1. Determine the COM port that was assigned to the USB cable. If you do not know the COM port number, you can find
it using the Windows Device Manager, which is in the system tools. In the Device Manager, browse and expand the
selection for Ports (COM & LPT). In the example shown in Figure 5, the port is COM9.
For OS-X, if you are using CoolTerm, you can view and select the port from within the application.
NOTE: Legacy evaluation boards use a USB-to-serial cable. If you are using one of these boards, use the COM port to
which the USB-to-serial cable is attached.
2. Open your terminal emulation program.
3. Specify the COM port. If you are using TeraTerm, select Serial and choose the COM port number from the Port drop-
down list box.
NOTE:The default serial port setting for the WiFly module is 9600 baud, 8 bits, no parity, and 1 stop bit.
Figure 5. Finding the COM Port Number in Windows
!
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

!
www.rovingnetworks.com Version 1.32r 10/9/2012 8
RN-WIFLY-EVAL-UM
Enter Command Mode
To enter command mode, perform the following steps in the terminal emulator:
1. Type $$$. You must type $$$ together quickly with no additional characters before or after them. The module replies
with CMD to indicate it is in command mode.
2. Type show net <cr> to display the current network settings.
NOTE: When a command completes, the terminal displays a prompt in the format <X.XX> where X.XX indicates the
module’s firmware version. In Figure 6, the version is 2.28.

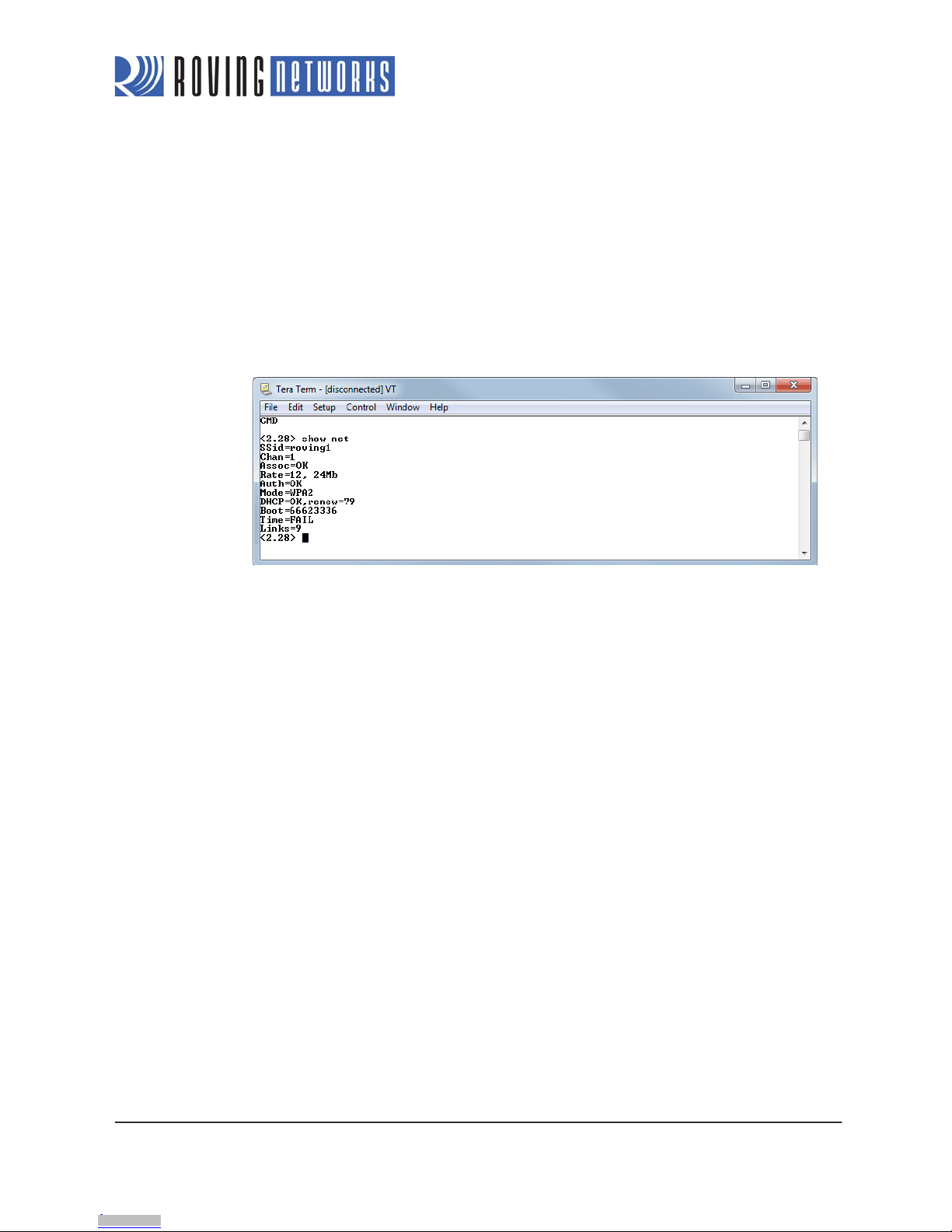

Figure 6. Show Current Network Settings
!
To issue commands to the module, you send a keyword followed by optional parameters. Commands are case sensitive,
and you cannot use spaces in parameters. Use a $to indicate a space, e.g., MY NETWORK should be written as
MY$NETWORK. Additionally, you can use shorthand for the parameters. For example, the following commands are
equivalent:
•set uart baudrate 115200
•set uart b 115200
•set u b 15200
NOTE: You cannot use shorthand for command keywords. For example, s uart baudrate 115200 is illegal.
The WiFly module supports a variety of command keywords. The Advanced User Manual, which is available on the
Support page of the Roving Networks website, provides a complete command reference. For evaluation purposes, you may
view the current settings using the get command; get everything shows all parameters.
Table 4 shows additional parameters for the set and get commands.
!
Example COM
Port Setting
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

!
www.rovingnetworks.com Version 1.32r 10/9/2012 9
RN-WIFLY-EVAL-UM
Table 4. Basic set & get Parameters
Parameter
Function
adhoc
Controls the ad hoc parameters.
broadcast
Controls the broadcast hello/heartbeat UDP message.
comm
Communication and data transfer, matching characters.
dns
DNS host and domain.
ftp
FTP host address and login information.
ip
IP settings.
option
Optional and infrequently used parameters.
sys
System settings, such as sleep and wake timers.
time
Realtime clock settings.
uart
Serial port settings, such as baud rate and parity.
wlan
Wireless interface, such as SSID, channel, and security options.
Find Available Networks
Once you are in command mode, you can instruct the WiFly module to search for available networks. Type scan <cr> in
the terminal emulator to view a list of Wi-Fi networks within range. See Figure 7.
Figure 7. Scan for Networks
!
Associate with an Access Point
You use the join keyword to associate with an open access point. As shown in the scan list, roving1 is an open access
point. To associate with an access point, type the following commands (refer back to Figure 7):
join roving1
or
join # 1
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

!
www.rovingnetworks.com Version 1.32r 10/9/2012 10
RN-WIFLY-EVAL-UM
To disconnect from a network, type leave <cr>. The red LED blinks quickly when the WiFly module is not associated with
an access point.
If you want the module to associate with a network automatically upon booting (i.e., persistent configuration), use the
set wlan command with the SSID name. For example, type:
set wlan ssid roving1
save
reboot
When the module wakes or power cycles, the module attempts to associate with the network roving1.
To associate with a secure network you must also include the network password. The WiFly module determines the
security type automatically. In this case, type:
set wlan ssid roving1
set wlan pass rubygirl
save
reboot
See Figure 8. You can confirm the security settings by typing get wlan <cr>.
Figure 8. Connect to a Secure Network
!
Configuration Using Ad Hoc Mode
You can configure the WiFly module over the air via an ad hoc network. Ad hoc networks are useful for point-to-point
communication. In ad hoc mode, the WiFly appears as an access point with which other Wi-Fi devices can associate. You
can turn on ad hoc mode using hardware or software configuration.
NOTE: The WiFly module only supports the OPEN mode for ad hoc networks.
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

!
www.rovingnetworks.com Version 1.32r 10/9/2012 11
RN-WIFLY-EVAL-UM
Enable Ad Hoc Mode via Hardware
To enable ad hoc mode using hardware, set GPIO9 high (3.3 V) at power up. For the RN-134 board, GPIO9 is on pin 1 on
the jumper block (J2). For the RN-174 board, GPIO9 is on the J6 connector. Upon power up with GPIO9 high, the WiFly
module creates an ad hoc network with the following settings:
SSID: WiFly-GSX-XX, where XX is the final two bytes of the device’s MAC address
IP address: 169.254.1.1
Enable Ad Hoc Mode via Software
To enable ad hoc mode in software, you use the set wlan command with the join, ssid, and chan parameters. For
example, type the following commands in command mode:
set wlan join 4
set wlan ssid my_adhoc_network
set wlan chan 1
Set the WiFly module’s IP address and netmask. Because automatic IP assignment fixes the first two bytes of the IP
address, use 255.255.0.0 as the netmask so that other devices connecting to the module can be reached. You can also
set the netmask to a smaller subnet if the other device’s IP addresses begin statically at the same subnet as the ad hoc
device.
set ip address 169.254.1.1
set ip netmask 255.255.0.0
Turn off DHCP so that the module does not attempt to obtain an IP address from another device.
set ip dhcp 0
Save your configuration and reboot. The module will be in ad hoc mode. See Figure 9.

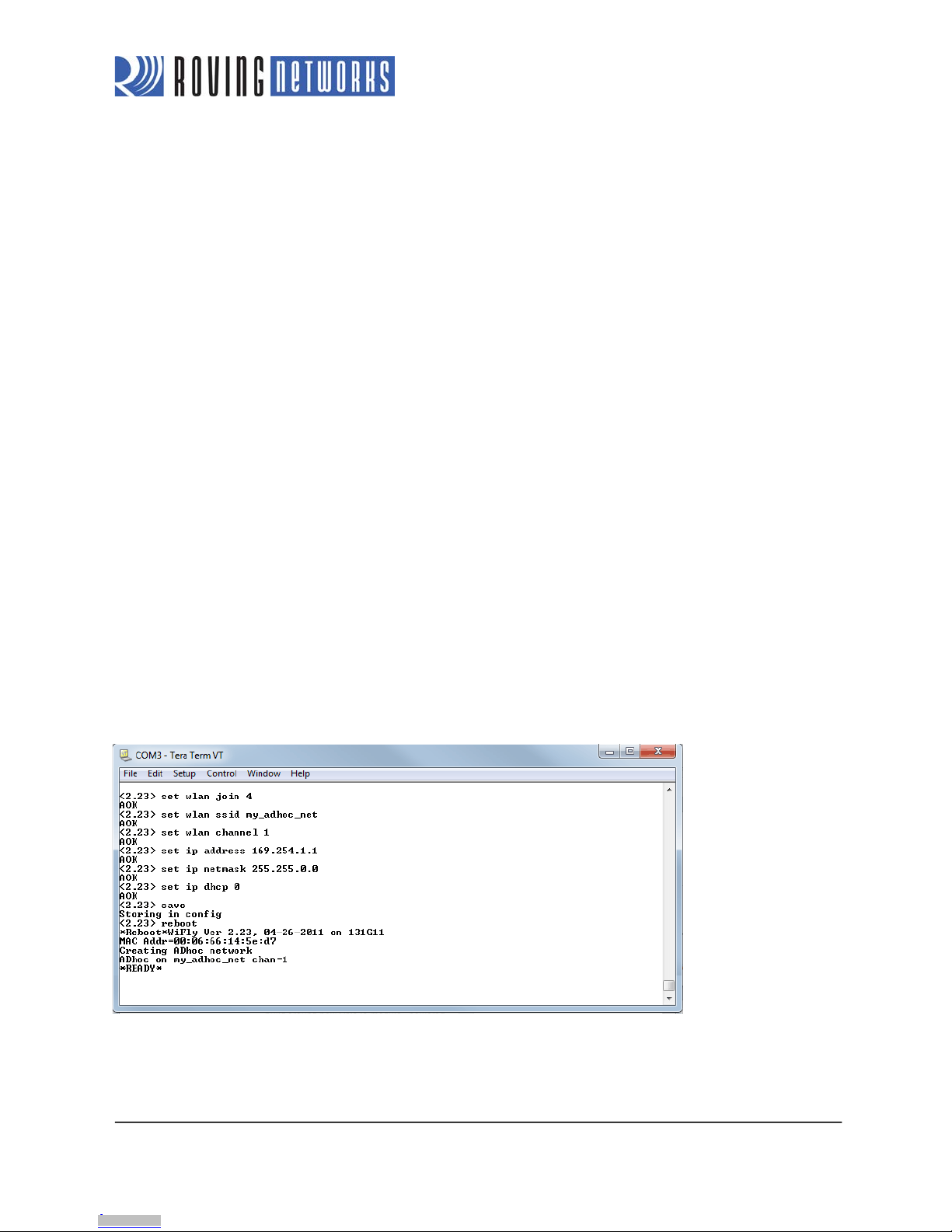

Figure 9. Enable Ad Hoc Network Mode
!
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

!
www.rovingnetworks.com Version 1.32r 10/9/2012 12
RN-WIFLY-EVAL-UM
Associate with an Ad Hoc Network
The WiFly module can associate with an ad hoc network created by another device. Type the commands:
set wlan ssid my_adhoc_network
save
reboot
To associate with an ad hoc network without saving the changes to the module’s flash memory, use the join command,
e.g., join my_adhoc_network <cr>.
If DHCP is enabled, the WiFly device obtains an IP address automatically when it associates with the ad hoc network. By
definition, auto IP sets the first two bytes of the subnet to 169.254.xxx.xxx. The WiFly device requires 2 to 3 seconds to
resolve the IP address.
To set the IP address statically, disable DHCP and explicitly assign the IP address:
set ip dhcp 0
set ip address 169.254.1.2
You can confirm that the device has properly associated with the ad hoc network using the ping keyword:
ping 169.254.1.1 10
Associate with the WiFly Module over an Ad Hoc Network from a Computer
You can associate with the ad hoc network from a computer by specifying the network name (and password, if required) in
the operating system. For example, choose Control Panel > Networking and Sharing > Networking and Sharing Center
(Windows Vista) or Control Panel > Network Connections (Windows XP). You can then view available networks and select
the name of the WiFly ad hoc network.
NOTE: Once associated with the ad hoc network, Windows Vista may require a few minutes to allocate an IP address.
To work around this issue, assign a static IP address under Network Settings > TCP/IP > Properties.
Once your computer is associated with the ad hoc network, you can use the WiFly module’s IP address to open a
connection or connect using telnet as you would with an enterprise connection.
NOTE: The WiFly module does not support ad hoc and infrastructure network modes simultaneously.
Once you have associated with the other network, you can telnet into the WiFly module to configure it. Open the telnet
connection using port 2000.
NEXT STEPS
Once you have set up the evaluation kit hardware and have gone through your initial evaluation using the instructions in
this user guide, refer to the labs in the WiFly Training Presentation to get started developing applications.
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

!
www.rovingnetworks.com Version 1.32r 10/9/2012 13
RN-WIFLY-EVAL-UM
RESOURCES & RELATED DOCUMENTS
For more information, refer to the following sources, which are available on the Support page on the Roving Networks
website at http://www.rovingnetworks.com/support.php:
•RN-171 Data Sheet
•RN-131 Data Sheet
•WiFly Command Reference, Advanced Features & Applications User Manual
•WiFly Training Presentation
•Drivers, tools, and utilities
EVALUATION KIT CONTENTS & ORDERING INFORMATION
Table 5 shows the evaluation kit contents and ordering information.
Table 5. Evaluation Kit Contents
Kit Photo
Contents
RN-131-EK
•RN-131-EK: Evaluation board for the
RN-131 module
•USB cable
RN-171-EK
•RN-171-EK: Evaluation board for the
RN-171 module
•USB cable
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

!
www.rovingnetworks.com Version 1.32r 10/9/2012 14
RN-WIFLY-EVAL-UM
APPENDIX A: LEGACY EVALUATION KITS
This appendix provides specifications for legacy Roving Networks evaluation kits. Table 6 provides an overview of the kits.
Table 6. Evaluation Kit Hardware
Hardware
Description
RN-131G-EVAL
RN-134-K
RN-174-K
Evaluation board
Contains the WiFly module and connectors.
For RN-131
module
For RN-131
module
For RN-171
module
USB-to-serial
cable
Links your computer to the evaluation board. Contains
the Prolific chipset.
✔
✔
✔
Null modem
Connects the 10-pin serial cable to the USB-to-serial
cable.
✔
✔
✔
10-pin serial
cable
Connects from the board’s RS-232 header to a DB9
connector.
✔
✔
✔
9-V battery clip
Provides power to the evaluation board (requires a
battery).
✔
✔
✔
Antenna cable
U.FL and reverse SMA connectors.
✔
4” dipole antenna
Reverse SMA connector.
✔
!
Figure 10 shows the RN-134 evaluation board and pin information. Table 7 describes the LED indicators.
!
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

!
www.rovingnetworks.com Version 1.32r 10/9/2012 15
RN-WIFLY-EVAL-UM
Figure 10. RN-134 Evaluation Board
RS-232 Interface (J1)
!
RX - input to evaluation board
TX - output from evaluation board
Pin
Description
1
No connect
2
RS-232
3
RS-232
4
No connect
5
GND!
6
No connect
7
RS-232
8
RS-232
9
5 to 12 VDC input
10
No connect
Power (J5)
!
Pin
Description
1
5 to 12 VDC
2
GND
UART Interface (J3)
!
RX - input to evaluation board
TX - output from evaluation board
Pin
Description
1
3.3 VDC output
2
GND
3
UART RX
4
UART TX
5
UART RTS
6
UART CTS
7
GPIO4
8
GPIO5
9
GPIO6
10
GPIO7
11
GPIO8
12
GPIO9
13
Reset
NOTE:The labels on the board for RX and
TX are incorrect.
Sensors (J4)
!
Pin
Description
1
Sensor PWR
2
Resistor network
to Sensor 4
3
Resistor network
to Sensor 4
4
Sensor 7
5
Sensor 4
6
Sensor 5
7
Sensor 6
8
GND
WARNING: Sensors must not have more
than 1.2-V DC. Otherwise, the module may
be permanently damaged.
Jumper Block (J2)
!
Pins
Description
1
Ad hoc mode and
factory reset
2
Config 1
3
Config 2
4
Config 3
LED Indicators
RS-232
Interface (J1)
Jumper
Block (J2)
UART
Interface (J3)
Power (J5)Sensors (J4)
5
4
3
2
1
10
9
8
7
6
2
1
1
2
3
4
5
6
7
8
9
10
11
12
13
15876432
1234
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

!
www.rovingnetworks.com Version 1.32r 10/9/2012 16
RN-WIFLY-EVAL-UM
Table 7. RN-134 Evaluation Board LED Indicators
Condition
Blue LED
Red LED
Yellow LED
Green LED
On solid!
Power On!
"!
"!
Connected over TCP
Fast blink!
"!
Not associated!
Rx/Tx data transfer!
No IP address
Slow blink!
"!
Associated, no Internet!
"!
IP address OK
Off!
No Power!
Associated, Internet OK!
"!
-
Figure 11 shows the RN-174 evaluation board and pin information and Table 3 describes the LED indicators.
!
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

!
www.rovingnetworks.com Version 1.32r 10/9/2012 17
RN-WIFLY-EVAL-UM
Figure 11. RN-174 Evaluation Board (Part 1 of 2)
!
RS-232 Interface (J3)
!
RX - input to evaluation board
TX - output from evaluation board
Pin
Description
1
No connect
2
RS-232 TX
3
RS-232 RX
4
No connect
5
GND!
6
No connect
7
RS-232 RTS
8
RS-232 CTS
9
External DC 2 to 3.3 V
or 5 to 12 V (see J7)
10
No connect
Power Select Jumper (J4)
High-Voltage Mode (Default). The board is
powered by a source up to 12 V DC.
!
Low-Voltage Mode. The board is powered
by 2.0- to 3.3-V DC only.
!
External Power Mode. Used when
powering the board with regulated 3.3-V
DC power.
!
GPIO Interface
TTL Signals (J8)
!
RX - input to evaluation board
TX - output from evaluation board
Pin
Description
1
3.3 VDD
2
GND
3
UART RX
4
UART TX
5
GPIO4
6
GPIO5
7
GPIO6
8
GPIO7
9
GPIO8 (1)
10
GPIO9
11
UART CTS
12
UART RTS
13
RESET
Sensors (J1)
!
Pin
Description
1
Sensor PWR
2
Sensor 4 (3.3-V tolerant)
3
Sensor 5 (3.3-V tolerant)
4
Sensor 7 (1.2 V only)
5
Sensor 5 (1.2 V only)
6
Sensor 4 (1.2 V only)
7
Sensor 6 (1.2 V only)
8
Sensor 3 (1.2 V only)
9
GND
WARNING: Voltage on pins marked 1.2 V
Only should not exceed 1.2 V or permanent
damage will occur.
Power (J7)
!
Pin
Description
1
External DC 2 to 3.3 V or
5 to 12 V (see J4)
2
GND2
Pull Up/Down (J2)
!
Ad Hoc Mode/Factory Reset (J6)
!
LED Indicators
RS-232
Interface (J3)
Power Select
Jumper (J4)
GPIO Interface
TTL Signals (J8)
Power
(J7)
Sensor
Interface (J1)
PCB Trace
Antenna ISP Connector
(J5)
Pull Up/
Down (J2)
Factory Reset/
Ad Hoc Mode (J6)
9
5234
678
1
10
1
2
3
4
5
6
7
8
9
10
11
12
13
95234678 1
12
123
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

!
www.rovingnetworks.com Version 1.32r 10/9/2012 18
RN-WIFLY-EVAL-UM
Figure 11. RN-174 Evaluation Board (Part 2 of 2)
ISP Connector (J5)
!
Pin
Description
1
GND
2
3.3 VDD
3
DMA UART TX
4
UART RX
5
FORCE AWAKE!
6
RESET
7
DMA UART RX
8
UART TX
9
3.3 VDD
10
GND
11
GPIO9
12
GPIO4
13
GPIO5
14
GPIO6
15
GPIO8
16
Not Used
!
!
!
Note:
2. The RN-171 module drives GPIO8 HIGH on powerup, which overrides software configured powerup values, such as set sys value
0x0000 on GPIO8.
Table 8. RN-174 Evaluation Board LED Indicators
Condition
Blue LED
Red LED
Yellow LED
Green LED
On solid!
Not used!
"!
"!
Connected over TCP
Fast blink!
Not used!
Not associated!
Rx/Tx data transfer!
No IP address
Slow blink!
Not used!
Associated, no Internet!
"!
IP address OK
Off!
Not used!
Associated, Internet OK!
"!
-
!
2
4
6
8
10
12
14
16
1
3
5
7
9
11
13
15
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

!
www.rovingnetworks.com Version 1.32r 10/9/2012 19
RN-WIFLY-EVAL-UM
RN-134 & RN-174 Hardware Setup
To set up the RN-134 and RN-174 evaluation kit hardware, perform the following steps:
1. Provide power to the board by soldering the provided 9-battery clip wire to the board (J7) and attaching a 9-V battery
to the clip.
2. Connect the 10-pin serial cable to the evaluation board (J3). When looking at the top of the board, the cable should
extend away from the board.
NOTE: If your computer has a DB9 connector, you can connect the 10-pin serial cable directly to it to complete
setting up the hardware. The COM port in this case is COM1.
3. Connect the USB-to-serial cable to a USB port on your computer. Windows should automatically install the drivers for
the cable. If it does not, download and install the Prolific drivers from the Support page on the Roving Networks
website at http://www.rovingnetworks.com/support.php. Note the COM port to which you have attached the cable.
4. Connect the USB-to-serial cable to the 10-pin serial cable using the null modem.
Figure 12 shows the completed hardware setup for the RN-134 and RN-174 evaluation boards.
NOTE:By default, the WiFly module uses either the on-board chip antenna (RN-131G-EVAL and RN-134) or the
PCB trace antenna (RN-174). If an antenna is included in your kit, you do not need to install it for the
evaluation described in this document.
Figure 12. Hardware Setup
RN-134 Evaluation Board Hardware Setup
!
RN-174 Evaluation Board Hardware Setup
!
NOTE: Refer to Power (J5) Figure 10 (RN-134) and Power (J7) in Figure 11 (RN-174) for information on where to
solder the wires.
!
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

!
www.rovingnetworks.com Version 1.32r 10/9/2012 20
RN-WIFLY-EVAL-UM
Table 9 shows the evaluation kit contents and ordering information.
Table 9. Legacy Evaluation Kit Contents
Kit Photo
Contents
RN-131G-EVAL Kit
•RN-134: Evaluation board for RN-131 module
•RN-USB-SERIAL: USB-to-serial cable with male DB-9
connector
•RN-UFL-SMA-6: U.Fl-to-SMA connector cable
•RN-SMA-4-RP: 4" reverse antenna with SMA connector
•10-way ribbon cable with male DB-9 termination
•Null modem
•Battery clip
RN-134-K Kit
•RN-134: Evaluation board for RN-131 module
•RN-USB-SERIAL: USB-to-serial cable with male DB-9
connector
•10 way ribbon cable with male DB-9 termination
•Null modem
•Battery clip
RN-174-K Kit
•RN-174: Evaluation board for RN-171 module
•RN-USB-SERIAL: USB-to-serial cable with male DB-9
connector
•10-way ribbon cable with male DB-9 termination
•Null modem
•Battery clip
!
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.
