Royal Line Onedrous Digital Bidet TH-0111 User manual

User manual covers the installation of the bidet toilet seat in box label 1 of 2 and the toilet in box labeled 2 of 2.
Onedrous Digital Bidet by Royal Line
TH-0111 User Manual
- This user manual contains the products warranty. Please submit to our warranty department within 15 days of purchase.
“Important safeguards/general cautions”- information that can protect user from safety hazards.
Please read carefully for proper usage.

For her front wash
Front Wash
Oscillating water stream
Turbo wash
Warm air dryer
Dry
Manual Control
Adjustable nozzle moves back and
forth to wash
Oscillating
Adjustable water temperature - 4 levels
Continuous
Adjustable seat temperature - 4 levels
Seat temperature control
Adjustable air dryer temperature - 5 levels
Dryer temperature control
Nozzle contains a stainless cap to prevent
debris. Nozzle is automatically washed before
and after each use.
Automatic Self-Cleansing Stainless Nozzle
To remove odor from toilet bowl
Deodorizer
Automatically flushes toilet
Auto flush
Minimize electricity consumption when
not in use
Sleep mode
Protect user from low temperature burn
Protection from low temperature burn
If short in electrical, special breakercuts the
power
Protection from electrical short
Antibacterial resin for nozzle, seat, and
seat cover
Antibacterial resin
Can use the product by manual control on
main unit instead of remote control
Automatically runs diagnosis
Self-Diagnosis
Seat cover and seat opens and closes slowly
Soft opening and closing
Improves hygiene by filtering out
contaminates from tap water
Water filters
For his and her back wash
Back Wash
Setting up and using the auto flush
Setting up and using the remote control
Initial operation
Checklist before use
How to use (Summary)
Operation (Basic)
Operation (Detail)
Separation of the unit from toilet bowl
Draining water from tank
Maintenance for winter season
12
14
15
16
17
18
22
26
27
27
Trouble shooting
Specifications
Information to the user
Warranty
28
29
30
30
Preparation

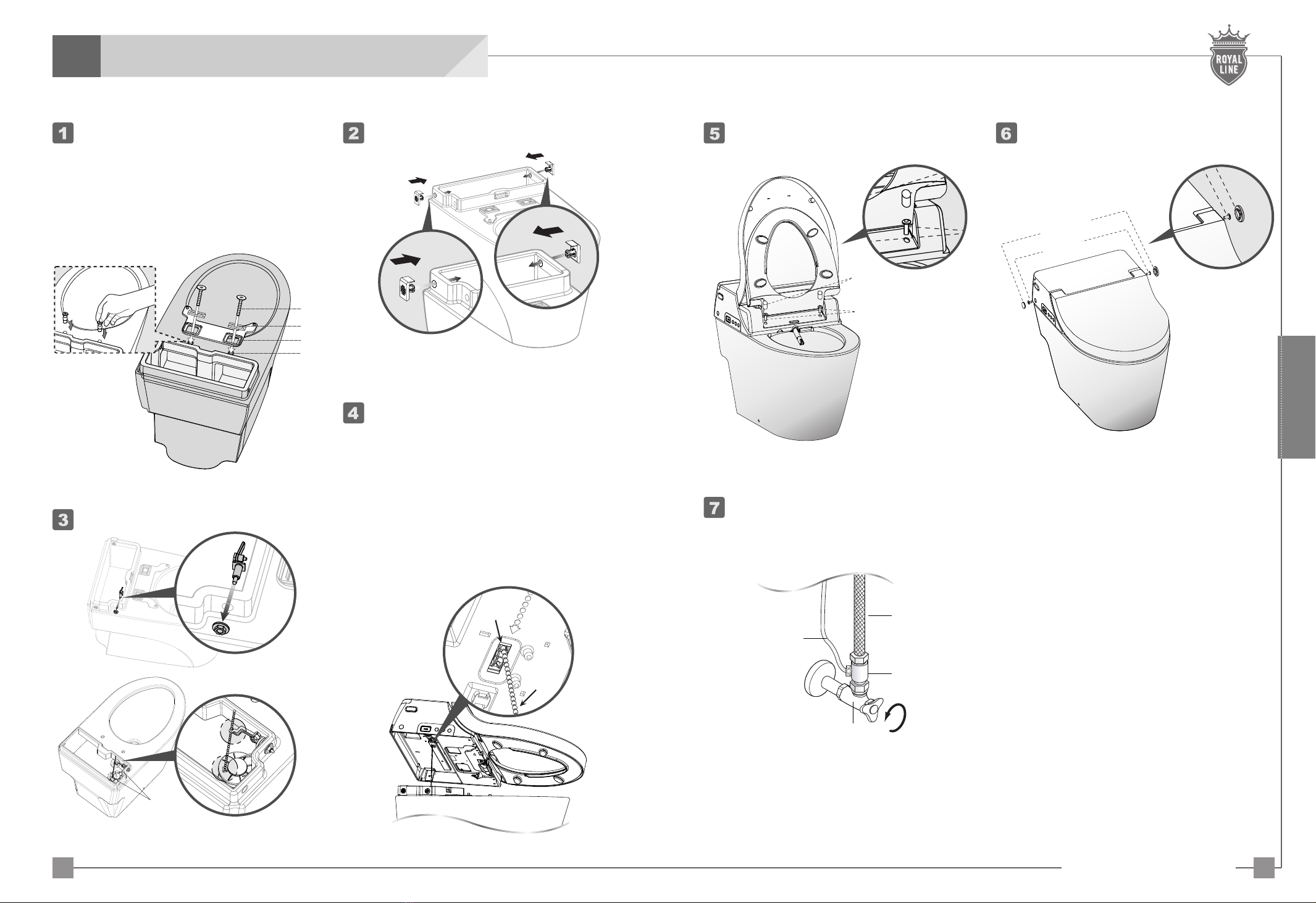

Installation
Operation
Other
Preparation Installation Operation Other
Installation Manual and Operating Instructions
2 3
Product features
Important safeguards
Cautions Before Installation
General Caution
Product components
2
4
4
6
10
Product Features Contents
Royal Line

1. Do not place or store product where it can fall or be pulled into a tub or sink.
2. Do not place in or drop into water or other liquid.
3. If unit falls into water, unplug unit and remove from water.
READ ALL INSTRUCTIONS BEFORE INSTALLATION AND USE
The following terms are used in this manual to indicate hazards.
**Insert hazard symbols from page 6 (Danger, Caution, Prohibited, instructions)
DANGER - To reduce the risk of electrocution:
CAUTION - To reduce the risk of burns, electrocution, fire, or injury to persons.
1. Close supervision is necessary when this unit is used by children, elderly, or disabled.
2. Use this product only for its intended use as described in this manual.
Do not use attachments not recommended by the manufacturer.
3. Never operate this product if it has a damaged cord or plug or if it is not working properly,
if it has been dropped or damaged, or dropped into water. Return the product to a service center for
examination and repair.
4. Keep the cord away from heated surfaces.
5. Never block the air openings of the product or place it on a soft surface, such as a bed or couch,
where the air openings may be blocked. Keep the air openings free of lint, hair, and the like.
6. Do not use the unit if you are sleeping or tired to the point of being drowsy.
7. Never drop or insert any object into any opening or hose.
8. Do not use outdoors or operate where aerosol (spray) or oxidated products are being used.
9. Unplug this product before filling. Fill (reservoir) with water. Do not overfill (or specify filling instructions)
SAVE THESE INSTRUCTIONS
THIS PRODUCT MUST BE PLUGGED into a 120V grounded GFCI outlet.
(North America 120V ac, 60Hz / Europe 220-240V-, 50/60Hz). The rated power consumption is 660w/ 600-700W.
In locations where only a standard two prong outlet is available, it is the responsibility of the user to install a grounded
three-prong outlet. Using high voltage is dangerous and may result in a fire, other accident, or damage to the unit.
Manufacturer is not responsible for damage resulting from high voltage, or operating without proper grounding.
󱎲
This unit must begrounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock.
This unit is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into
an outlet that is properly grounded.
󱎳
This unit is for use with a 120V circuit, and has a grounding plug (see sketch A in Figure 1). If a properly grounded
outlet is not available, a temporary adapter, (see sketch B and C) may be used to connect plug to a 2 - pole
receptacle. The temporary adapter should be plugged into a properly grounded outlet (sketch A) and should be
installed by a licensed electrician. The green colored rigid ear and lug, extending from the adapter must be connected
to a permanent ground.
This appliance has to be grounded.
GROUND INSTRUCTIONS
GROUNDING PIN
ADAPTER ADAPTER
METAL SCREW TAB for
Grounding Screw
GROUNDED
OUTLET
- Figure 1-
The use of an extension cord is not recommended or advised. If it is necessary to use an extension cord, use only a three-prong
extension cord (one to one), and a three slot built-in GFCI receptacle that will accept the plug for this product. The marked rating of the
extension cord should be equal to or greater than the electrical rating of the unit (10amp). Consult a licensed electrician if you are not
sure whether it is properly grounded.
GROUNDED
OUTLET BOX
WIRING REQUIREMENT
Improper grounding can result in electric shock. Electric wiring has to be done
in accordance with all local codes, or in the absence of local codes,
with National Electrical Codes.
Preferred Connection Temporary Connection
DANGER
Installation Manual and Operating Instructions
4 5
1IMPORTANT SAFEGUARDS
Preparation
This product should be on its own circuit. Sharing a circuit could cause the
branch circuit fuse to blow or the circuit breaker to trip. Continuous usage
under these conditions may result in fire or damage to the unit.
CAUTION
The following terms are used in this manual to indicate hazards.
Indicates an immediately hazardous situation
Danger
Indicates potentially hazardous situation and, if not avoided, may result in minor or
moderate injury or damage to the unit.
Caution
Emphasis on what not to do
Prohibited How to operate and install unit Instructions
2Cautions Before Installation

Safety Warning
Do not plug in the power cord before
connecting the water supply hose
- May result in fire or damage to the unit. - This product is only for 120V
- Using cleaning detergents or air fresheners can change the color of the external
Surface and can also cause problems with function of the seat.
This unit requires a dedicated outlet
Do not plug in the power cord before connecting
the water supply hose
Children, elderly, patients and those who
are physically limited should use the low
temperature setting for the seat, water, and
dryer.
After using the unit at high temperatures, the temperature should
be readjusted to “Low” for the elderly, children, and those with
sensitive skin.
When cleaning the product, do not use detergent
(oxidized products, sink products, toilet cleaning products, and
any type of stain remover) on the external surface of the
electronic toilet seat. Also do not spray air fresheners onto
seat as the unit has a deodorizer.
Connect the product to cold water supply.
- May cause fire or electric shock
The product must be connected to a 120V power source.
Do not connect power cord if the cord is damaged or broken.
Do not plug the unit into a loose electrical outlet.
The following terms are used in this manual to indicate hazards.
Indicates an immediately hazardous situation
Danger
Indicates potentially hazardous situation and, if not avoided, may result in minor or
moderate injury or damage to the unit.
Caution
Emphasis on what not to do
Prohibited How to operate and install unit Instructions
Safety Warning
Do not separate, disassemble, or repair the unit,
or allow foreign substances inside the unit.
- Only qualified service personnel should repair
this product.
Do not splash water on the main unit or
power cord, and do not utilize it in areas of
high levels of humidity
This product must be grounded before usage
and plugged into an AC120V/60Hz power
outlet. Please ground to prevent from electric
shock.
- May cause an electric shock or damage to the unit
if not properly grounded
Do not plug or unplug the power cord with
wet hands
- It can cause electric shock or bodily injury
Keep the cord away from flammable
substances.
Unplug the power cord when cleaning the
product. Turn off power to outlet prior to
installing unit.
- May cause failure or electric shock
Sitting on seat or using dryer for a long time may cause low temperature burns.
Those who cannot adjust the temperature or those who have sensitive skin should take special precautions.
oxidized
products
oxidized
products
oxidized
products
oxidized
products
oxidized
products
oxidized
products
oxidized
products
oxidized
products
oxidized
products
oxidized
products
oxidized
products
oxidized
products
oxidized
products
oxidized
products
oxidized
products
oxidized
products
oxidized
products
oxidized
products
sink
products
sink
products
sink
products
sink
products
sink
products
sink
products
sink
products
sink
products
sink
products
sink
products
sink
products
sink
products
sink
products
sink
products
sink
products
sink
products
sink
products
sink
products
toilet cleaning
products
toilet cleaning
products
toilet cleaning
products
toilet cleaning
products
toilet cleaning
products
toilet cleaning
products
toilet cleaning
products
toilet cleaning
products
toilet cleaning
products
toilet cleaning
products
toilet cleaning
products
toilet cleaning
products
toilet cleaning
products
toilet cleaning
products
toilet cleaning
products
toilet cleaning
products
toilet cleaning
products
toilet cleaning
products
Installation Manual and Operating Instructions
6 7
3General Cautions
Preparation

Installation Manual and Operating Instructions
8 9
3General Cautions
General cautionGeneral caution
Do not stand on seat or seat cover.
Do not sit on closed seat cover.
- Do not stand on top of the seat cover,
seat or main body unit.
- This can damage or break the unit.
Do not use a broken product.
Do not slam or close the seat cover forcefully,
may cause damage to the soft closing feature.
- Can damage the product
Prevent children from putting foreign substances or
inserting their hand into the dryer outlet or onto the
nozzle
- Can cause burns
- Can cause product failure
Constant direct sunlight may cause
discoloration of unit
- May cause discoloration
Do not pull the connecting hose forcefully
or bend it.
- Water may leak or not be supplied.
Never put the product in water
- May cause electric shock or damage the product
When cleaning power cord, please
clean with dry cloth
A guardian should be present when
the seat is in use by a child.
- May cause injury
Do not push the control button,
if not using the product.
When cleaning or not using the product over
a long period of time, be sure to unplug the
unit. (Refer to page 27)
- May cause electric shock
Do not let urine contact the dryer outlet
or nozzle area.
- May cause failure
- If nozzle is clogged, please clean
with a soft brush.
Simple
control
Sitting on seat or using dryer for a long time may cause low temperature burns.
Those who cannot adjust the temperature or those who have sensitive skin should take special precautions.
When the following people sit down on the seat, a guardian should pay extra attention so that they will not fall when sitting
on the toilet seat or standing up from it. - Children, elderly, or those who cannot independently sit or stand on the seat.
dryer outlet
Preparation

Product components
T valve
Power plug
Skin sensor embedded
in seat
Lid
Caution label
Heated Seat
Simple Control
Main unit
Water supply hose
(for toilet flush
water tank)
Water supply hose
(for bidet)
Manual Flush
Remote control receiver
Toilet bowl
Nozzle
(refer above)
Water supply hose
(for toilet flush water tank)
Front packing and bolt (2pcs)
Side packing and bolt (2pcs)
holding screws and
sockets (2pcs)
Remote control
Holder
User manual
1.5v AAA type
Battery (2pcs)
For plumbing For product fixation For remote control Installation instructions
Dry washed area
Front wash
The nozzle position can be adjusted 5 levels.
The water pressure and dryer temperature
can be adjusted 5 levels
Flush the toilet
Washes nozzle for 20 seconds
Turbo wash
Back wash
Stop all operation
When selected during wash function, it starts massage wash.
(To stop function push the button one more time.)
When selected during wash function nozzle oscillates automatically for
a wider wash. To stop oscillating function, push the button again.
The seat temperature can be adjusted 4 levels
(off, low, middle, high) and can be checked by LED light
The water temperature can be adjusted
4 levels (off, low, middle, high) and can be
checked by LED light
With automatic energy function, the seat temperature will stay at 89.6℉. If no one is using bidet, it returns to sleep mode.
The automatic sleep mode can be adjusted by pressing energy safe button. (On/Off)
After user stands up from seat, it works approximately one more minute and then automatically turns off. When the dryer function is
selected, deodorization stops. After dryer function stops, deodorization starts again. (normal operational conditions) Deodorizer starts again
when user sits on the seat.
Main function
Extra function
>> Remote control
front
>> Remote control
Remote control receiver
Main unit Remote control
Front wash
Back wash
Turbo wash
Installation Manual and Operating Instructions
10 11
4Product Components
Preparation

Connect
the ball chain to
toilet lever and
siphon cover.
- Please make sure to tighten bolts and nuts.
Install base plate Fixed hinge install
Manual water flush lever
Connecting water flush ball chain
- Connect the flexible tube with T-valve and
turn water supply valve to allow water to flow.
•Please turn mounting bolts gently with hand.
(Do not use power tools or driver)
Installing front mounting bolts
Connect the flexible tube
Installing rear mounting bolts
급수 호스
(변기용)
T Valve
water supply valve
1) Plug in power and unit will beep.
2) Press “stop” button on slim key (side button / seat unoccupied) for
about 3 seconds, the ball chain will begin turning.
3) Insert ball chain to the ball chain connector as photo below
※Make sure that the ball chain is inserted properly and
place the bidet on the toilet bowl.
※After checking ball chain, place the bidet on the toilet bowl.
4) After installing from mounting bolts (#5) and rear mounting bolts (#6)
press “Front wash” button on slim key for about 3 seconds to initialize.
ball chain
connector
ball
chain
※Make sure there is no water leakage. Do not use power tools or screw driver.
Mounting bolt
Bolt case
Base plate
Toilet mounting holes
Rubber cap
Mounting bolts
water inlet hose
(for bidet)
water inlet hose
(for toilet bowl)
Mounting bolts
Rubber cap
Installation Manual and Operating Instructions
12 13
5
Setting up and using the auto flush
Installation
※Bidet and contents can be found in box labeled 2 of 2.

Initial setting for RF transmission remote control
Remote control holder should be installed in an area that will not be exposed to water
Connect power plug to 120V outlet.
- If LED light is not working after plugging in outlet, push the (back wash) or (front wash) button on the simple control.
(Remember this control pad is located on the side of the bidet top.)
- It will make "beep" sound if water begins to flow into the unit
- This product only works when user sits on the seat.
- Please be aware that you must be in contact with the skin sensor to initiate functions.
Push back wash or front wash then water will begin to flow into unit.
While sitting on the unit, please check each function by following user manual.
Turn to the left to open the inlet valve and check to make sure there are no leaks in the
hose connection.
water supply hose
(for toilet flush water tank)
water supply valve
water supply hose
(for bidet)
Skin sensor
Before installing the product, please turn on the water for 3 minutes to flush the hose
- Make sure that the selected spot will not be exposed to water and
the area where you intend to affix the holder is clean and dry.
- Place remote control holder in convenient spot near the toilet bowl.
- Place 2 AAA type batteries into remote control
❶ Without sitting on the unit, push and hold the (top) and (front wash) button for 5 seconds on the
simple control until the seat LED turns on.
❷ Push the (stop) button and (seat) button at the same time on the remote control for 10 seconds.
❸ When the seat LED turns off, RF type remote control and main unit are synchronized.
Back side of
double sided tape
(+, - Please consider the right polarity)
FLUSH
OCCUPIED
ENERGY SAVER
POWER
OFF
State
ON
State
Flashing
State
FLUSH
OCCUPIED
ENERGY SAVER
POWER
➞
Setting up remote control
Installation Manual and Operating Instructions
14 15
6
Setting up and using the remote control
Installation
7
Initial operation

Only use a grounded 120V/60Hz outlet for this unit
- To operate properly, this product needs to be plugged in.
Open the water valve and determine if
there are any leaks
- To operate properly, water has to be supplied.
Please sit on center of seat.
- If baby seat is installed on the seat, the product will not operate properly,
(Skin sensor will not detect a person.)
- Before use of this product, please remove the skin sensor sticker.
If water pressure is weak.
- During flushing, water pressure may be slightly diminished.
- You may experience delayed / nominal nozzle function if water pressure is too low.
Checklist after installation
Cleaning the body unit
water supply valve
skin sensor
- If user’s skin is not in direct contact with the skin sensor
- If baby seat is installed on the product
If skin sensor is not working, the control button
may not work.
Sit on the seat
- Please have full contact with the skin sensor when sitting on the seat
- If the skin sensor cannot detect the skin, back wash, front wash, turbo wash, and
dryer function may not work.
Push the dryer button.
- Dryer function operates while the LED light (water pressure/dry temperature) on
remote control is on
- The dryer function works approximately 3 minutes and stops automatically
- Push the dryer button again for more drying
Push the auto flush button.
- Change auto flush to manual flush by holding button for 3 seconds
Push front wash, back wash, or
turbo wash button.
- Can use front wash, back wash, or turbo wash functions
- Each function operates for approximately 2 minutes and stops
automatically
- Push the button again to continue use.
Push the stop button.
- All functions will immediately stop: Back wash, turbo wash, front wash, or
dryer function will stop.
Installation Manual and Operating Instructions
16 17
8
Checklist before use
9
How to use (Summary)
Operation
Beware to not use any bathroom cleaning detergents such as benzene acid chemical detergent on the seat exterior.
- Using any type of chemical products or rough scrubbers on the electronic toilet seat surface,
which is made out of plastic material can either damage or change its color.
Do not spray water directly or use a shower hose on the main body unit.
- Can cause fire or damage to the unit.
When cleaning, the power cord must be unplugged from the power outlet, and make sure water does not contact the cord and/or outlet.
After cleaning, use a soft cloth to dry the unit.
Do not use any cleaning products such as Oxy Clean.

Installation Manual and Operating Instructions
18 19
10
Operation (Basic)
- Please make sure that your skin is in direct contact with the skin sensor
when sitting on the seat to fully activate.
- Each function runs for approximately 2 minutes.
Push Front wash, Back wash, or Turbo wash button
Push the dry button
- The dry function operates for approximately 3minutes
- When the dry button in pushed, the auto flush function works automatically.
Push the Stop button.
- Back wash, turbo wash, front wash or dryer function will stop
- Before and after any wash function, the nozzle will automatically clean itself. It is normal to see water spraying
Automatic self-cleaning nozzle
Sit on the seat
How to clean the nozzle
Reference
- Front wash, Back wash, or Turbo wash stops automatically after 2 minutes.
- For additional use, press function again.
- Front Wash and back wash button are located on the front of the remote control.
Reference
- When dryer function is selected, deodorization stops
After dryer function stops, deodorization starts again. (Normal operational conditions)
- Do not press the control buttons (remote control/single controls) harder than needed.
- This can cause damage. The skin sensor on the seat is only activated with body it comes on contact with person.
Please be aware to pull down your clothes amply and do not cover the seat with any clothing items, as it can prevent the seat from activating.
- Push the auto flush button on remote control to operate
auto flush function.
- By pushing the button for 3 seconds, the auto flush function will
change to manual flush.
Push the auto flush button.
- Without sitting on the seat - Push the [Back wash button] for 3 seconds
on simple control (side controls on seat).
The nozzle will come out and stop.
- Brush the nozzle with a soft bristled brush.
- After cleaning, press the [Stop button] and the nozzle will perform its
self-cleaning function
Even if the stop button is not pushed, nozzle cleaning function runs approximately for 2 minutes and
will automatically stop.
Reference
Operation
Nozzle Seperation Nozzle Combination
Nozzle Change

Installation Manual and Operating Instructions
20 21
10
Operation (Basic)
- Push water pressure/dryer temperature (+High or - Low) to set air dryer temperature.
- Dryer temperature which was previously set is saved.
(Push water (+) high or (-) low button to set dry temperature.)
※Air Dryer temperature can be adjusted by 5 levels.
- If seat temperature button is selected, LED display will show selected temperature.
Automatic self-cleaning nozzle function
- Without sitting on the seat, water flows automatically.
- Nozzle moves for about 20 seconds to wash entire nozzle and then automatically retracts.
Reference
- Please close the seat cover when the product is not used.
It will keep seat warm and save electricity.
Low temperature safe mode
- After 15 minutes sitting on the seat, maximum seat temperature will be reduced gradually in
5 minute increments for 30 minutes.
Seat temperature control
Nozzle position control
Air Dryer temperature control
Manual Control
- Water pressure and nozzle position of front and back wash can be adjusted by 5 levels.
- Remote control cannot be used if front wash, back wash, oscillate, or massage function are being operated manually.
- To use oscillate or massage function after using simple control, please push the same button on the remote control
one more time and push the oscillate or massage button
※Manual controls can be used if there is a power outage or remote control is damaged or lost
Low - High Low - High Low - High Low - High
Room temperature / off 34℃37℃40℃
seat temperature
Low - High
- Manual controls include manual flush, front wash,
back wash, and stop button.
- Manual flush button( ) can be used during
power outages.
Front wash
button
Manual flush
button
Back wash
button
Stop
button
- To set the nozzle position, please push the nozzle position button
(back or front) while using front wash, back wash, or turbo wash.
- Nozzle position which was previously set is saved.
※Nozzle position can be adjusted by 5 levels.
Operation

Water pressure control
- Push water pressure/dry temperature (+ High or - Low) to set
water pressure from 1 to 5 levels.
- Water pressure which was previously set is saved.
(Push (+) High or (-) Low button to set water pressure)
Water temperature control
Massage
- During the Front wash, Back wash, or Turbo wash function, push the Turbo wash/Massage button to start the
Massage function.
(When massage function is working, push the turbo/massage button to stop the function.)
Auto massage function: The massage function is automatically activated when using each wash function.
(Front, Back, or Turbo wash)
Oscillating
- After using each wash function (Front, Back, or Turbo wash) push stop button and then push massage button. Hold for 3 seconds to
set massage level. Unit will beep when set.
- Push the button again for 3 seconds to cancel massage setting. Unit will beep twice when cancelled.
- After auto massage function is set for each wash function (Front wash, Back wash, or Turbo wash), massage function will be operated
automatically during each function even If user did not put the massage button.
How to set auto massage function
- When Nozzle cleaning / Oscillate button is selected during each wash function
(Front wash, Back wash, or Turbo wash) it will oscillate.
Auto oscillation function: Even if user does not push oscillation button when user uses each wash function,
(Front wash, Back wash, or Turbo wash) oscillation is set to operate automatically when
user uses each function.
- After using each wash function (Front wash, Back wash, or Turbo wash), push stop button and then push oscillate button for 3 seconds,
then auto oscillate function will be set up with “beep” sound. Push the button one more time for 3 seconds, and it will cancel the oscillation
function. Unit will beep twice when cancelled.
- After auto oscillation function is set for each wash function (Front wash, Back wash, or Turbo wash), oscillation function will operate
automatically during each function even if user did not push the oscillation button.
How to set or cancel the auto move function
- When selected “Beep”,
when canceled “Beep beep”
- When selected “Beep”,
when canceled “Beep beep”
- Even if the power is out or reboot it,
auto move function setting will remain
- It is recommended that the water filter be changed every six months, as water pressure can be
weakened if debris clings onto the water filter.
- Please contact us by phone, email, or go to our website to purchase a new water filter.
(NOTE) If the water pressure is weak.
Hold for 3 seconds to set
massage level.
Unit will “Beep” when set.
Hold for 3 seconds to cancel massage
setting. Unit will “Beep” twice when
deactivated.
Hold for 3 seconds to set
auto oscillation level and
unit will “Beep” when set.
Hold for 3 seconds to cancel
oscillation setting.
“Beep beep” will sound.
- Press the water temperature button, and LED display will change, so you can select your
desired water temperature. You can set the water temperature while using water.
Low - High Low - High Low - High Low - High
Room temperature / off 93.2℉98.6℉104℉
water temperature
Low - High
Installation Manual and Operating Instructions
22 23
11
Operation (Detail)
Operation

Installation Manual and Operating Instructions
24 25
11
Operation (Detail)
- Keep seat cover closed when not in use to prevent heat from being lost.
- Keep temperature set to low.
- Please unplug the power cord if you do not plan to use the unit for a long period of time.
Deodorizer
- Select: Single Chime
- Cancel: Double Chime
Deodorizer ON/Off (initial setting is Off)
- Please press button for ( )3 seconds (press button again for 3 seconds, the function is cancelled.)
- After setting deodorizer function, it is automatically activated when sensing person.
- Deodorizer function automatically stops after approximately 1 minute
Energy saver
saver On/ Off
- When pressing ( )the energy saver LED on the main unit, energy saver will turn on.
- Energy saver mode automatically maintains a water and seat temperature of 89.6℉(32℃)
Other energy saver tips
In order to save energy, please abide by the following instructions:
In energy saver mode, the seat heating temperature could appear to be lower than
the actual temperature setting.
Battery Replacement
- If LED light on main unit does not go on when pressing button on the remote control - change battery.
- LED light turns on with initial push of desired button, press again to activate function.
- After 10 minutes, unit goes into energy saver mode.
- You will need to reset functions after changing batteries.
( Be careful +, - ,polarity)
Replace batteries
Change batteries when LED is flashing.
󱎲
󱎳
Please insert batteries into remote
Closed battery cover
󱎲
󱎲
󱎳
“Deodorizer” button
Press 3 seconds
Single chime
“Deodorizer” button
Press 3 seconds
Double chime
Reference
- Deodorizer function stops while dryer is selected. After dryer function completes, deodorizer automatically activates.
1:1 real size
1.5V Alkarine AAA battery
Operation
OFF
State
ON
State
Flashing
State
FlUSH
OCCUPIED
ENERGY SAVER
POWER

Installation Manual and Operating Instructions
26 27
12
Separation of unit from the toilet bowl
※Please follow the instructions below when moving or separating the unit from the toilet for cleaning purposes
Disconnect the power plug
Shut the water supply valve
Push and hold the drain button in the center of the bidet top
to completely drain the water from the internal unit.
Loosen the nut on the hose that is connected to the unit,
and then separate the electronic toilet seat from the
toilet in the following order as illustrated.
Do not turn the seat upside-down. This can cause damage to the unit as well as fire hazard.
Disconnect the T-valve from the water supply. (Refer to page 13)
※Raise main unit of bidet after separated Fix Cap (arrow indicated) & fixed bolt
Separate bidet after disconnecting bidet and toilet hose
Connect the water hose to the toilet which was disassembled while installing the electronic
toilet seat, and turn the water valve to the left to open it. See if there is any leaking from
the water hose connection.
water supply valve
Shut the valve by turning it to the right
Press and hold the drain button located on the side of the body unit.
Disconnect the power plug
water supply valve
Drain button
Drain button
Check if the power cord is plugged in securely.
- power is connected, led is lighten
Adjust the ( ) button to “low” to prevent water
from freezing.
If the product is not used for a long period of time, please
disconnect the power cord and drain the water from the
internal unit.
Operation
13
Draining water from tank
14
Maintenance for winter season
FlUSH
OCCUPIED
ENERGY SAVER
POWER

Installation Manual and Operating Instructions
28 29
15
Trouble shooting
16
Specifications
※ Please be sure to check the following aspects before asking for help.
Trouble shooting Factors to check
The water does not spray
- Check if the water tank is filled.
- See if the water valve is open
- Check if the water filter (strainer) is clogged.
The unit is not operating
- Check if the power cord is connected.
- See if the power is turned off from the main unit.
- Make sure that the Skin sensor on the seat touches your skin when
you sit on the seat.
Water is leaking - Ensure plumbing is properly connected. If water is leaking from the main unit
disconnect and contact service personnel.
Water pressure is weak - Check if the water pressure is set to “low”
Seat, water and
dryer is not warm
When the nozzle doesn’t
come out
- See if seat temperature is set to “low”.
- See if the water temperature is set to “low”.
- See if the dryer temperature is set to “low”.
- Make sure skin is touching Skin sensor
When water is cold or warm
Body unit shakes
- Adjust the temperature
- Tighten the bolts (do not over-tighten)
Dryer does not work - Make sure skin is in contact with skin sensor
Other
TH-0111Specification
Water
inlet type
Wash device
Heated
Seat
Warm Air
Dryer Device
Economy mode
○
Type
Water inlet pressure
Back
120V / 60Hz / 1400W
Direct inlet Flow Type, Low Tank
1.0 ~7.0 kgf/cm²(14.2psi ~ 99.6 psi)
Max. 700cc ±150cc / min
Front Max. 700cc ±150cc / min
Water pressure adjustments 1 ~ 5 levels
Warm water temperature
control Room Temp. ~ 93.2℉, 98.6 ℉, 104 ℉
Temperature control Room Temp. ~ 93.2℉, 98.6 ℉, 104 ℉
Heater 55W
Safety device Thermal fuse, temperature sensor in seat, Prevent low-temp burning
Warm air control Room temp ~ 113 ℉, 5 levels
Power rating
Heater
250W
Safety device Thermal fuse
ELB
×
Turbo wash function
○
Deodorizer
○
Inlet water temperature 41℉~ 93.2℉(recommended 50℉~ 93.2℉)
Ambient temperature 41℉~ 104℉(recommended 50℉~ 93.2℉)
Dimensions W: 415mm(16.34inch) L: 695mm(27.36inch) H: 145mm (5.71inch)
Weight 43.74kg (96.43 lbs) ( China bowl:38kg(83.78lbs) Bidet:5.74kg(12.66lbs)
* Recommended water pressure is 1.0 ~7.0 kgf/cm²
Heater 1340W
Safety device Bi-metal, Thermal fuse, Flow sensorHeated

Installation Manual and Operating Instructions
30 31
17
Information to the user
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the distance between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment and limited warranty.
WARNING
This Warranty does not cover the following
Zip code
To ensure your warranty protections you must complete and return this card
with a copy of your receipt to Royal Line, within 15 days after date of
purchase to validate your warranty.
Service Department
Inquiries and support
Email: [email protected]
Phone: [phone]
Attn: Warranty Dept.
Royal Line LLC
3361 Park Avenue
Wantagh, NY 11793
󱈼
Other
18
Warranty
ONE YEAR WARRANTY
VALID ONLY WITH ORIGINAL PURCHASE RECEIPT
Warranty: Royal Line LLC warrants this product against defects in any parts or workmanship for a period of 1 year from
the original purchase date. This product is for residential use only. It is not intended to be used in commercial or industrial
settings. This product warranty covers only the original consumer purchaser of the product.
Warranty Coverage: This warranty is void if the product has been damaged by accident, neglect, improper handling or
operation, shipping damage, abuse , misuse, unauthorized repairs, made or attempted, alterations, improper
assembly/installation or maintenance, commercial use or other causes no arising out of defect in materials or
workmanship. This warranty does not extend to any units which have been altered or modified or to damage to product
or parts there of which have had the serial numbers removed, altered, defaced, or rendered illegible.
Implied Warranties: Any implied warranties which the purchaser may have are limited in duration to 1 year from the date
of purchase. This limited warranty is in lieu of all other warranties expressed or implied, including warranties or
merchantability and fitness for a particular purpose and excludes all liability for incidental or consequential damages for
any cause whatsoever.
Warranty Performance: During the above 1 year warranty period, a product with a defect will be replaced when the
product is returned to an authorized dealer. The replacement part will be in warranty for the balance of the 1 year period
and an additional one-month period. No charge will be made for such replacement.
