Royal WH1093 Quick guide

R O Y A L
GB
ID
147165000
WASHING MACHINE WH1093
MESIN CUCI WH1093
I N S T A L L A T I O N A N D I N S T R U C T I O N M A N U A L
P E M A S A N G A N D A N B U K U P E T U N J U K
lux_wh1093_eu.qxp 10/19/2006 2:50 PM Page 1

2
Installation
• This appliance is heavy. Care should be taken when
moving it.
• It is dangerous to alter the specifications or attempt
to modify this product in any way.
• All packing and transit bolts must be removed before
use. Serious damage can occur to the product and to
property if this is not adhered to. See relevant section
in instructions.
• Care must be taken to ensure that the appliance does
not stand on the electrical supply cable.
• If the machine is situated on a carpeted floor, please
adjust the feet in order to allow air to circulate freely.
Child Safety
• This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the
controls or play with the product.
• Pets and children have been known to climb into
washing machines. Please check your drum before
use.
• The glass door becomes very hot during the washing
cycle. Keep children away from the vicinity of the
appliance whilst it is in operation.
•Keep all packaging well away from children.
•Keep all detergents in a safe place out of children’s
reach.
•When the appliance is to be scrapped, cut off the
electrical supply cable and destroy the plug with the
remaining cable. Disable the door catch in order to
prevent children from becoming trapped inside while
playing
Use
• Always unplug the appliance and turn off the water
supply after use.
• Do not overload the appliance. See relevant section
in the instruction book.
• Only wash fabrics which are designed to be machine
washed. If in doubt, consult the care label on the clothes.
• Before washing, ensure that all pockets are empty
and buttons and zips are fastened. Avoid washing
frayed or torn articles and treat stains such as paint,
ink, rust, and grass before washing. Underwired bras
must NOT be machine washed.
• Any objects such as coins, safety pins, nails, screws,
stones or any other hard, sharp material can cause
extensive damage and must not be placed into the
machine.
• Garments which have been in contact with volatile
petroleum products should not be machine washed.
If volatile cleaning fluids are used, care should be
taken to ensure that the fluid is removed from the
garment before placing in the machine.
• Wash small items such as socks, laces, washable belts
etc in a washing bag or pillow case as it is possible for
such items to slip down between the tub and the
inner drum.
• Only use the advised quantities of fabric softener.
Damage to the fabric can ensue if you over-fill. Refer
to the manufacturer’s recommendations of quantities.
• As some duvets and eiderdowns should be washed in
large commercial machines because of their bulk,
please check with the manufacturer of the item
before washing in a domestic machine.
Maintenance and Cleaning
• Leave the porthole door slightly ajar between washes
to preserve the door seal.
• For information on maintenance and cleaning your
washing machine see page 23 of this Instruction
manual.
Service
• This product should only be repaired or serviced by
an authorised Service Engineer and only genuine
approved spare parts should be used.
Important Safety Information
It is most important that this instruction book should be retained with the appliance for future reference.
Should the appliance be sold or transferred to another owner, or should you move house and leave the
appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to
know the functioning of the appliance and the relevant warnings.
These warnings have been provided in the interest of safety. You MUST read them carefully before use or
installation by a qualified person.
If you are unsure of the meanings of these warnings contact the John Lewis branch from which you purchased
the appliance.
Lux_WH1093.qxp 10/10/2006 3:44 PM Page 2

3
Ecological hints
To save water and energy and help protect the
environment, we recommend that you follow these
hints:
• Normally soiled laundry may be washed without
prewashing in order to save detergent, water and
time (the environment is protected too!).
• The machine works more economically if it is fully
loaded.
• With adequate pre-treatment, stains and limited
soiling can be removed; the laundry can then be
washed at a lower temperature.
• Measure out detergent according to the water
hardness, the degree of soiling and the quantity of
laundry being washed.
Environment Information
• Materials marked with the symbol are recyclable.
• Check with your local Council or Environmental
Health Office to see if there are facilities in your area
for re-cycling this appliance.
• When the appliance is to be scrapped, cut off the
power supply cable and make the door lock device
unusable to prevent young children from being
trapped inside.
• Help to keep your country tidy - use authorised
disposal sites for your old appliance.
The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product.
For more detailed information about recycling of this
product, please contact your local city office, your
household waste disposal service or the shop where
you purchased the product.
Important
Your machine is fitted with a balance control device, which ensures the machine is stable during the spin.
If the wash load appears not to have been spun sufficiently at the end of the wash cycle, because it is not evenly
distributed in the drum, the balance control device may have operated. It will therefore be necessary to redistribute
the wash load manually and select a spin programme. For more detailed information see the section headed
“Something Not Working”.
Lux_WH1093.qxp 10/10/2006 3:44 PM Page 3

4
Contents
For the User
Important Safety Information 2
Description of the Appliance 5
Door lock indicator 5
Detergent dispenser drawer 5
Child safety feature 5
The Control Panel 11-15
Programme information 15
Special features 16
Using your washing machine 17-18
Load the laundry 17
Measure out the detergent 17
Measure out the fabric softener 17
Select the desired programme 17
Select the spin speed or the “No spin” option 17
Select the desired options 17
Select the “Delay start” 18
Start the programme 18
How to change an option or a programme
during its cycle 18
How to interrupt a programme 18
How to open the door during the cycle of
a programme 18
End of programme 18
Hints and tips on Washing 19
Wash Care Symbols 20
Washing Programmes 21-22
Maintenance and Cleaning 23-24
Descaling 23
After each wash 23
Maintenance Wash 23
External cleaning 23
Cleaning the dispenser drawer 23
Cleaning the drawer recess 23
Cleaning the pump 23-24
Cleaning the water inlet filter 24
The dangers of freezing 24
Emergency emptying out 24
Something Not Working 25-26
For the Installer
Installation 6
Technical Specifications 6
Unpacking 7
Positioning 7
Water inlet 8
Water drainage 8-9
Levelling 9
Special conditions 9
In the interest of the environment 9

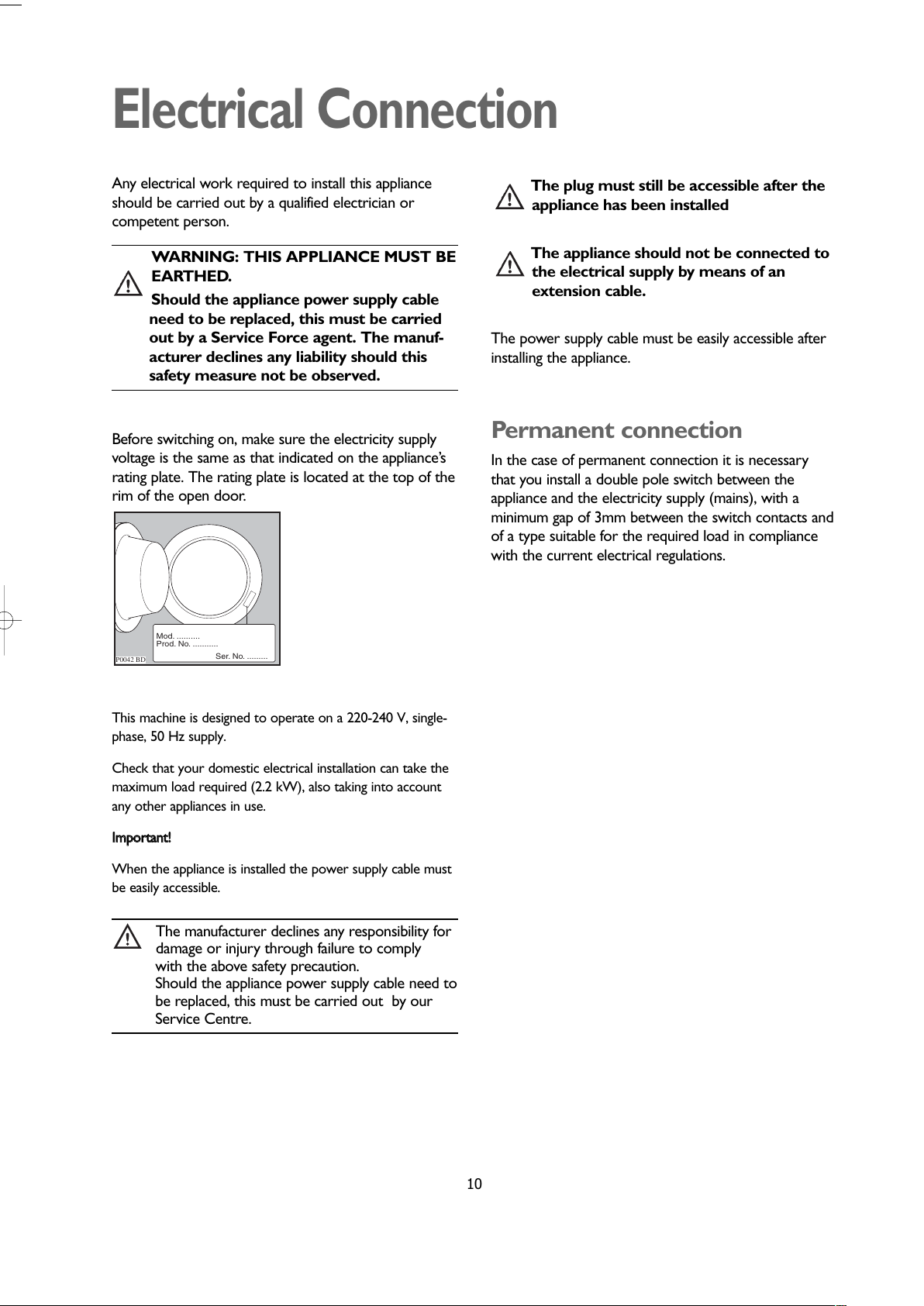

Electrical connection 10
Guide to use the Instruction Manual
The following symbols will be found in the text to
guide you throughout the instructions:
Safety instructions
Hints and tips
Environmental information
This appliance complies with the following E.E.C.
Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive)
and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
Lux_WH1093.qxp 10/10/2006 3:44 PM Page 4

5
Description of the Appliance
1 Detergent dispenser drawer
2 Control panel
3 Door opening handle
4 Filter
5 Adjustable feet
6 Door lock indicator
Door lock Indicator
It stays on during the whole programme indicating that
the door is locked.
When the light goes out, the door can be opened.
Detergent dispenser drawer
Prewash
Main wash
Fabric softener
Child safety feature
This machine incorporates a special child safety feature
to prevent small children from being trapped inside the
machine.
To activate this device, rotate the button (without
pressing it) inside the door clockwise until the groove is
horizontal. If necessary use a coin.
To disable this device and restore the possibility of
closing the door, rotate the button anti-clockwise until
the groove is vertical.
5
3
4
1 2
6
Start/PauseStainPrewash
Delay startQuick WashSuper rinse
Wash time
Spin
Night cycle
Child lock
WH10 3
5°
Economy 60°
60°
Economy 40°
Economy 60°
30°
Off
40°
40°
30°
60°
Cold
Synthetics
Cold
Easy Iron 40°
Miniprogram 30°
Spin
Drain
Rinse
Delicate 30°
Delicate 40°
Delicate Cold
Handwash 40°
Handwash 30°
Handwash
Cold
Cottons
Royal
P1131
Lux_WH1093.qxp 10/10/2006 3:44 PM Page 5

6
Installation
It is dangerous to alter the specifications or
attempt to modify this product in any way.
Care must be taken to ensure that the appliance
does not stand on the electrical
supply cable.
Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
Any plumbing work required to install this
appliance should be carried out by a qualified
plumber or competent person.
DIMENSIONS Height 85 cm
Width 60 cm
Depth 60 cm
MAXIMUM LOAD Cotton 7.0 kg
Synthetics 3.0 kg
Delicates 3.0 kg
Woollens 2.0 kg
Hand wash 2.0 kg
Silk 1.0 kg
SPIN SPEED 1000 rpm max.
POWER SUPPLY VOLTAGE/ FREQUENCY 220-240 V/50 Hz
TOTAL POWER ABSORBED 2200W
MINIMUM FUSE PROTECTION 10 A
WATER PRESSURE Minimum 0.05 MPa
Maximum 0.8 MPa
Technical specifications
Lux_WH1093.qxp 10/10/2006 3:44 PM Page 6

7
5. Set the machine upright and remove the remaining
rear screw. Slide out the relevant pin.
6. Plug all the holes with the plugs which you will
find in the envelope containing the instruction
manual.
Important !
You are advised to keep all the packaging for re-
use in case the machine is to be transported again.
In case of moving out the same precautions as per
paragraph “The dangers of freezing” must be
taken i.e. the residual water in the hoses must be
pumped out.
Keep all packaging away from children
Positioning
Install the machine on a flat hard floor.
Make sure that air circulation around the machine is
not impeded by carpets, rugs etc. Check that the
machine does not touch the wall or other kitchen
units.
Never place cardboard, wood or similar materials
under the machine to compensate for any unevenness
in the floor.
Your new washing machine has been designed to be
permanently plumbed in to your home’s water supply
and drainage system. However, if this is not possible, it
may be connected to suitable existing tap with the
drain hose discharging into a sink.
The appliance has one inlet hose, with female 3/4” BSP
thread connector. If this connection is not compatible
with the plumbing of the existing installation, a variety
of connectors are available from good hardware stores
and plumber merchants to suit most domestic
plumbing. Any alteration to your existing plumbing
must be carried out by a competent person, or
qualified plumber.
Installation on a Suspended Floor
Suspended wooden floors are particularly susceptible
to vibration. To help prevent vibration we recommend
you place a waterproof wood panel, at least 15 mm
thick under the appliance, secured to at least 2 floor
beams with screws. If possible install the appliance in
one of the corners of the room, where the floor is
more stable.
P0002
P1128
Unpacking
Warning ! Slide out the polythene bag containing the
polystyrene block before using the
appliance. Pull off adhesive strips from
inside machine on top of drum.
Keep all packaging away from children
All transit bolts and packing must be
removed before using the appliance.
You are advised to keep all transit devices so that they
can be refitted if the machine ever has to be
transported again.
1. Using a spanner, unscrew and remove the two
rear bottom screws. Slide out the two plastic
pins. Lay the machine on its back, taking care not
to squash the hoses. This can be avoided by
placing one of the corner packing pieces between
the machine and the floor
2. Remove the polystyrene block(s) from the
bottom of the machine and release the two
plastic bags.
3. Very carefully slide out the left polythene bag,
removing it towards the right and then
downwards.
4. Very carefully slide out the right polythene bag,
removing it towards the left and then upwards.
Remove the bottom cover found inside the drum
of your appliance, lay it’s hook as the arrow ’A’
indicates and push the top of the cover to seal it
closed.
P1129
P0001
P1123
2
3
1
P1126
P1127
Lux_WH1093.qxp 10/10/2006 3:44 PM Page 7

8
Water inlet
Connect the hose to a tap with a 3/4” thread.
Always use the hose supplied with the appliance to
connect to the water supply.
Do not use previously used hoses for water
connection.
Installation should comply with local water authority
and building regulations’ requirements.
The appliance must be connected to a cold water
supply.
A minimum water pressure of 0.05 MPa is required for
safe operation of the appliance.
If you cannot make the cold water connection direct
from the rising mains, you may be able to operate the
appliance from your cold water storage system.
There should be a minimum distance of 5.02m
(16.5 ft) between the appliance’s inlet and the bottom
of the water storage tank.
Set the hose correctly by loosening the ring nut. After
positioning the inlet hose, be sure to tighten the ring
nut again to prevent leaks.
Water drainage
This appliance is designed to be permanently plumbed
into your home's drainage system using one of the
following methods.
1. Into a drainage standpipe.
Firstly form a hook in the end of the drain hose using
the “U” piece” supplied.
P0021
P1088
Place the drain hose into your standpipe, which should
have an internal diameter of approximately 38mm thus
ensuring there is an air break between the drain hose
and standpipe.
When discharging into a standpipe ensure that the top
of the standpipe is no more than 90cm (35.4'') and no
less than 60cm (23.6'') above floor level.
The drain hose may be extended to a maximum of 4
metres. An additional drain hose and joining piece is
available from your local Service Force Centre.
The joining piece must have an internal diameter of
18mm.
If your drain hose looks like this (see below) you do
not require the “U” piece”. Just push the hose firmly
into the standpipe.
P1212
P1039
3 pin
Min. 60 cm (23.6)
Max. 90 cm (35.4)
30 cm (12")
38 mm (11.2)
standpipe
diameter
U piece
supplied
P1199
Lux_WH1093.qxp 10/10/2006 3:44 PM Page 8

9

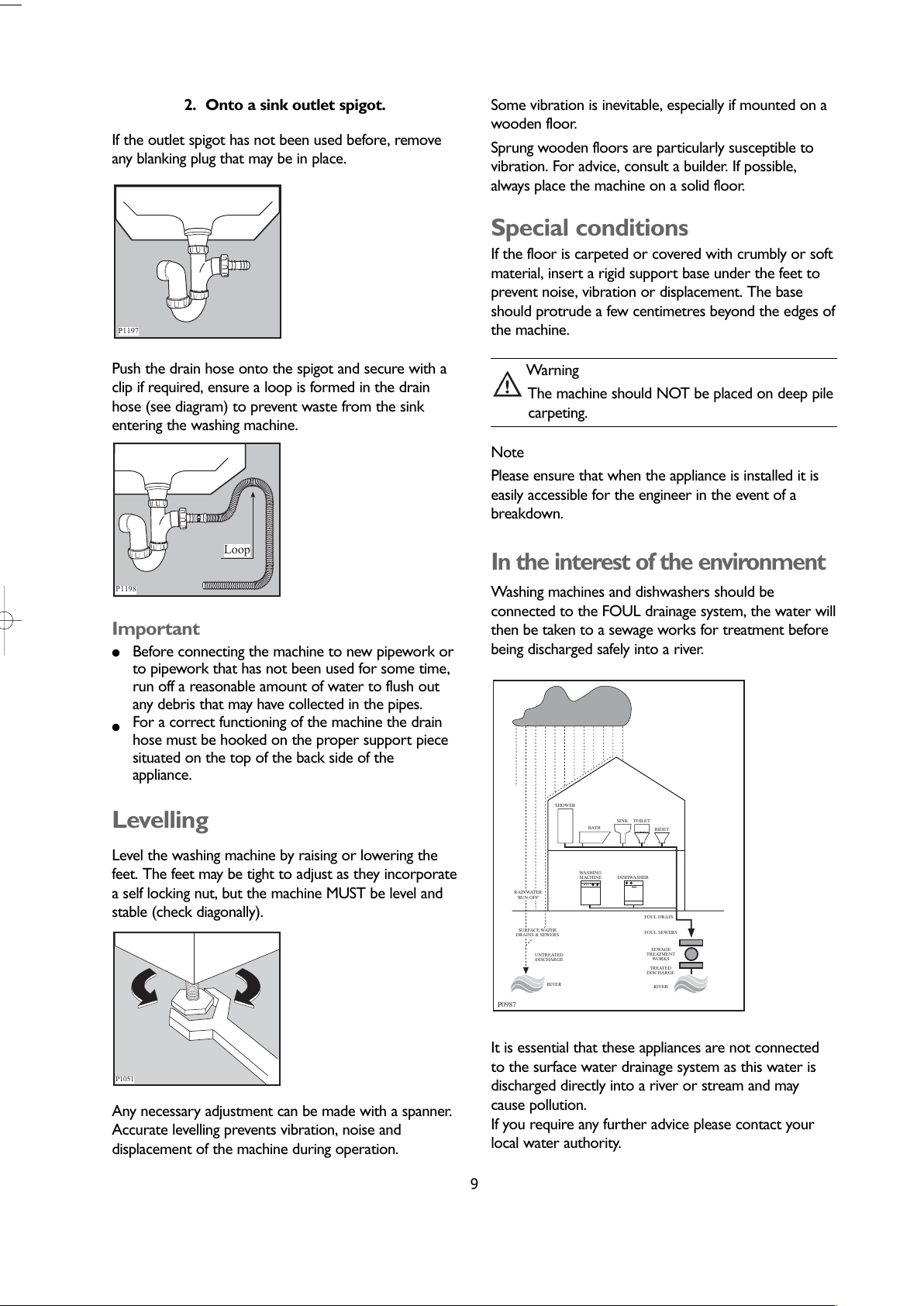

2. Onto a sink outlet spigot.
If the outlet spigot has not been used before, remove
any blanking plug that may be in place.
Push the drain hose onto the spigot and secure with a
clip if required, ensure a loop is formed in the drain
hose (see diagram) to prevent waste from the sink
entering the washing machine.
Important
●Before connecting the machine to new pipework or
to pipework that has not been used for some time,
run off a reasonable amount of water to flush out
any debris that may have collected in the pipes.
●For a correct functioning of the machine the drain
hose must be hooked on the proper support piece
situated on the top of the back side of the
appliance.
Levelling
Level the washing machine by raising or lowering the
feet. The feet may be tight to adjust as they incorporate
a self locking nut, but the machine MUST be level and
stable (check diagonally).
Any necessary adjustment can be made with a spanner.
Accurate levelling prevents vibration, noise and
displacement of the machine during operation.
P1051
P1198
Loop
P1197
Some vibration is inevitable, especially if mounted on a
wooden floor.
Sprung wooden floors are particularly susceptible to
vibration. For advice, consult a builder. If possible,
always place the machine on a solid floor.
Special conditions
If the floor is carpeted or covered with crumbly or soft
material, insert a rigid support base under the feet to
prevent noise, vibration or displacement. The base
should protrude a few centimetres beyond the edges of
the machine.
Warning
The machine should NOT be placed on deep pile
carpeting.
Note
Please ensure that when the appliance is installed it is
easily accessible for the engineer in the event of a
breakdown.
In the interest of the environment
Washing machines and dishwashers should be
connected to the FOUL drainage system, the water will
then be taken to a sewage works for treatment before
being discharged safely into a river.
It is essential that these appliances are not connected
to the surface water drainage system as this water is
discharged directly into a river or stream and may
cause pollution.
If you require any further advice please contact your
local water authority.
SH WER
BATH
SINK T ILET
BIDET
WASHING
MACHINE DISHWASHER
RAINWATER
'RUN- FF'
SURFACE WATER
DRAINS & SEWERS
UNTREATED
DISCHARGE
RIVER
F UL DRAIN
F UL SEWERS
SEWAGE
TREATMENT
W RKS
RIVER
P0987
TREATED
DISCHARGE
Lux_WH1093.qxp 10/10/2006 3:44 PM Page 9

10
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
Should the appliance power supply cable
need to be replaced, this must be carried
out by a Service Force agent. The manuf-
acturer declines any liability should this
safety measure not be observed.
Before switching on, make sure the electricity supply
voltage is the same as that indicated on the appliance’s
rating plate. The rating plate is located at the top of the
rim of the open door.
This machine is designed to operate on a 220-240 V, single-
phase, 50 Hz supply.
Check that your domestic electrical installation can take the
maximum load required (2.2 kW), also taking into account
any other appliances in use.
IImmppoorrttaanntt!!
When the appliance is installed the power supply cable must
be easily accessible.
The manufacturer declines any responsibility for
damage or injury through failure to comply
with the above safety precaution.
Should the appliance power supply cable need to
be replaced, this must be carried out by our
Service Centre.
Mod. ..........
Prod. No. ...........
Ser. No. .........
Mod. ..........
Prod. No. ...........
Ser. No. .........
P0042 BD
The plug must still be accessible after the
appliance has been installed
The appliance should not be connected to
the electrical supply by means of an
extension cable.
The power supply cable must be easily accessible after
installing the appliance.
Permanent connection
In the case of permanent connection it is necessary
that you install a double pole switch between the
appliance and the electricity supply (mains), with a
minimum gap of 3mm between the switch contacts and
of a type suitable for the required load in compliance
with the current electrical regulations.
Electrical Connection
Lux_WH1093.qxp 10/10/2006 3:44 PM Page 10

11
The Control Panel
12374856910 11
Start/PauseStainPrewash
Delay startQuick WashSuper rinse
Wash time
Spin
Night cycle
Child lock
WH10 3
5°
Economy 60°
60°
Economy 40°
Economy 60°
30°
Off
40°
40°
30°
60°
Cold
Synthetics
Cold
Easy Iron 40°
Miniprogram 30°
Spin
Drain
Rinse
Delicate 30°
Delicate 40°
Delicate Cold
Handwash 40°
Handwash 30°
Handwash
Cold
Cottons
Royal
1 Detergent dispenser drawer
2 Programme selector dial
The selector is divided into the following sections:
• Cottons, linens
• Synthetics
• Delicates
• Handwash
• Special programmes “Easy Iron 40°” and “Minipro -
gram 30°”.
• Reset / Off programme OFF
The selector dial can be turned either clockwise or
anticlockwise.
Positions “Economy 60° ” correspond to an
ENERGY SAVING programmes and position “Cold” to
a cold wash. Before setting the dial to any position
ensure that the machine is turned to the “Off”
position.
Important
At the end of the programme the selector dial
must be turned to position “Off”.
3 Spin button
Press this button to reduce the maximum speed of the
final spin proposed by the machine for the selected
programme.
The display will show the selected spin speed and only
for 5 seconds the max speed allowed for the selected
programme.
After 5 seconds the display will show selected spin
speed and then the selected programme.
If you select «00»option, the machine eliminates all the
spin phases. The display will show for 5 seconds the
message «No Spin».
5°
Economy 60°
60°
Economy 40°
Economy 60°
30°
Off
40°
40°
30°
60°
Cold
Synthetics
Cold
Easy Iron 40°
Miniprogram 30°
Spin
Drain
Rinse
Delicate 30°
Delicate 40°
Delicate Cold
Handwash 40°
Handwash 30°
Handwash
Cold
Cottons
L001
Spin speed
The following speeds are available for the different
fabrics:
• Cottons : 1000/ 800/ 600/ 400/ 0
max 1000 r.p.m.
• Synthetics : 900/ 800/ 600/ 400/ 0
max 900 r.p.m.
• Delicates : 700/ 600/ 400/ 0 max 700 r.p.m.
No spin «00»option
No spin option can be selected by depressing the spin
button .By selecting this option the spinning phases are
suppressed.
If you select this option with programmes for cotton
and synthetics, the machine will perform some extra
rinses.
4 Super rinse button
This option can be selected with all programmes
except Handwash and Miniprogram 30.
The machine will add 2 rinses for cotton and 1 rinse
for Synthetics and Delicates.
This option is recommended for people who are
allergic to detergents, and areas where the water is
very soft.
1000 Extra rinse YES
h min
2.33
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L003
1000 Cotton 95°
h min
2.23
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L002
Lux_WH1093.qxp 10/10/2006 3:44 PM Page 11

12
5 Quick Wash button
This option can be used for lightly soiled items in order
to obtain a good washing programme in a short time.
This option is not available for “Cotton E 60°, “Cotton
E 40°”, “Synthetic E 60°”, “Handwash” and
“Miniprogram 30°” programmes.
The washing time will be reduced according to the
type of fabric .
When this option is selected the corresponding light
illuminates and the display shows “Quick” for 5
seconds.
6 Delay Start button
The wash programme can be delayed from 30 min – 60
min – 90 min, 2 hours and then by 1 hour up to a
maximum of 20 hours by means of this button.
Selecting the delayed start
●Select the programme and the required options.
●Select the delay start.
The corresponding light illuminates and the display
shows for 5 seconds the message «Start in...» to
indicate that a delay start has been selected.
●Depress “Start/ Pause” button: the machine starts
its countdown in hours and, for the last 2 hours, in
minutes.
The programme will start after the selected delay has
expired.
Cancelling the delayed start
●Depress “Start/ Pause” button.
●Depress repeatedly “Delay start” button until the
message «Delay Start NO» is displayed.
●Depress “Start/Pause” button again to start the
programme.
Important!
The door will be locked throughout the delay time (the
door locked light is on).
If you need to open the door, you must first set the
washing machine to Pause by pressing the “Start/
Pause” button. The door locked light goes out. After
you have closed the door press the “Start/ Pause”
button again.
1000 Quick YES
h min
2.23
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L004
7 Night cycle button
When you choose this option, the machine will not
drain the water of the last rinse, so as not to wrinkle
the laundry. As all spinning phases are suppressed, this
washing cycle is very noiseless and it can be selected at
night or in times with a more economical power rate.
This option can be selected with all washing
programmes.
The machine will add 3 rinses for cotton and 1 rinse
for Synthetics and Delicates.
The cycle finishes with the water in the tub. To drain
the water and to have the final spin, re-press the pause
button.
8 Prewash button
Select this option if you wish your laundry to be
prewashed before the main wash (not available for
“Miniprogram 30°” and “Handwash” programmes).
The prewash ends with a short spin at 700 rpm in
programmes for cotton and synthetic fabrics, whereas
in the programme for delicate fabrics the water is only
drained. This option can be selected for heavily soiled
laundry but not together with “Stain”option.
1000 Prewash Yes
h min
2.54
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L007
1000 ight cycle YES
h min
2.32
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L006
1000 Start in 30 min
h min
2.23
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L005
Lux_WH1093.qxp 10/10/2006 3:44 PM Page 12

13
9 Stain button
Select this button if you wish to add to the washing of
heavy soiled laundry a stain phase: at the temperature
of 40°C the special detergent for stains is loaded from
the compartment marked .
This function is available in cotton, synthetic & delicate
programmes with a temperature of 40° or higher. The
washing time will be prolonged by few minutes.
The “Prewash” and the “Stain” options cannot be
selected together
10 Start / Pause button
This button has two functions: Start – Pause.
Start
After having selected the required programme,
press this button to start the machine; the
corresponding pilot light stops flashing and stays on
during the washing programme.
If you have selected the delayed start, the machine
begins its countdown. The duration of the
programme and the delay appears on the display.
Pause
To interrupt a programme which is running, depress
the “Start/ Pause” button: the corresponding pilot
light starts start to flash.
To restart the programme from the point at which it
was interrupted, press the “Start/ Pause”
button again.
At the end of the programme the Start/pause button
light goes out.
1000 Cotton 95°
h min
2.23
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L009
1000 Stain Yes
h min
2.34
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L008
11 Display
The display shows the following information:
Duration of the programme – spin speed -
option selection - washing phases - delayed start
– incorrect option selection – alarm message –
end of programme.
Duration of the selected programme
After selecting a programme, the duration is
displayed in hours and minutes (for example 2.23).
The duration is calculated automatically on the basis
of the maximum recommended load for each type
of fabric.
If the load of laundry to be washed is small, at the
beginning of the cycle the display will still indicate the
programme duration relevant to the maximum load.
The duration value will be gradually adjusted during the
execution of the cycle.
After the programme has started, the remaining
time is updated every minute.
Standby
After 10 minutes of inactivity in Setup Mode or at the
End of the Cycle, the backlight of the display
automatically switches off. Pressing any key or moving
the selector the display returns in its normal status.
Spin speed
After selecting a programme, the maximum spin
speed proposed for the selected fabric/programme
is displayed.
If you press repeatedly the “Spin” button it is
possible to reduce the spin speed proposed by the
machine.
If you select «00» all the spin phases will be suppressed.
The display will show for 5 seconds the message «No
spin».
1000 Cotton 95°
h min
2.23
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L0011
1000 Cotton 95°
h min
2.23
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L0010
Lux_WH1093.qxp 10/10/2006 3:44 PM Page 13

14
Option selection
Depending on the programme, different functions can
be combined. These must be selected after choosing
the desired programme and before depressing the
“Start/ Pause” button.
When you press an option button, (for ex. the
Prewash ) the corresponding light illuminates and, on
the display, appears the description of the selected
function.
If you press the same button again, the button light
goes out and the display shows that this option has
been deactivated.
Washing phases
During the washing cycle, the display will show the
different washing phases.
Delayed start
The selected delay (20 hours max) set by means
of the relevant button appears on the display for
5 seconds, then the selected programme
displays.Press the Start/ Pause button to start the
delay start.
1000 Spinning
h min
2.05
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L0016
1000 Washing
h min
2.23
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L0015
1000 Prewash o
h min
2.54
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L0014
1000 Prewash Yes
h min
2.54
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L0013
0 o spin
h min
2.23
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L0012
The countdown is updated every hour and for the
last 2 hours, every 30 minutes.
Incorrect option selection
If an option which is not compatible with the set
wash programme is selected, the message
«Selection error» is displayed for about 3
seconds.
Alarm messages
In the event of operating problems, some
corresponding messages are displayed (for more
information see paragraph “Something not working”
at page 25).
Some of these problems are due to an incorrect use
of your washing machine and are easy to resolve.
End of programme
When the programme has finished (when the water
has emptied out) and the light of the “Start/ Pause”
button and the door locked light go out, then the
door can be opened and the display will show
alternatively the messages «Door openable» and
«Cycle ended».
1000 o incoming water
h min
2.23
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L0019
1000 Selection error
h min
2.23
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L0018
1000 Start in 30 min
h min
2.23
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L0017
Lux_WH1093.qxp 10/10/2006 3:44 PM Page 14

15
Programme information
Cottons 95°- 60°- 40°- 30°- Cold
These programmes must to be used for lightly or
normally soiled cotton. The washing time will reduced
only by few minutes.
They can be used in combination with all Wash option.
Synthetic 60° - 40°- 30°- Cold
These Programme must be used for synthetic fabrics.
or mixed fabrics e.g lingerie, coloured garments.
Rinses
With this programme it is possible to rinse and spin
the cotton or linen garments which have been
washed by hand. The machine performs 3 rinses,
followed by a final spin at the maximum speed.
The spin speed can be reduced by depressing
button .
The final spin is foreseen only for cotton items as in
the spin programme.
Drain
Turn first the programme selector dial to “Off”,
then select programme (Drain) and finally depress
the “Start/ Pause” button.
Spin
Separate spin at the maximum speed for hand
washed garments. It must to be used for cotton
items. You can reduce the speed by means of
button to adapt it to the fabrics to be spun.
Easy Iron 40°
Selecting this button the laundry is gently washed and
spun to avoid any creasing. In this way ironing is easier.
Furthermore the machine will perform 6 rinses instead
of 3 for cotton and synthetics.
1000 Cycle ended
h min
0
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L0021
1000 Door openable
h min
0
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L0020
Miniprogram 30°
This is complete programme that can be combined
with the following options:
“Spin” spin reduction and “ Delay Start”. To be used
for laundry which is lightly soiled or which needs
freshening up.
Washing temperature 30°C
Max. load 3 Kg.
Programme duration 30 minutes.
Final spin speed 700 rpm.
Off = Reset / Switching the machine off
To reset a programme turn the selector dial to “Off”.
Now can a new programme be selected.
Lux_WH1093.qxp 10/10/2006 3:44 PM Page 15

16
Child lock
The ‘Child Lock‘ feature will allow you to lock the
controls while the machine is running to prevent
tampering.
To activate ‘Child Lock’ the machine must be
running. e.g., Programme must be selected and the
programme started by pressing the ‘Start’ button.
Activate ‘Child Lock’ by pressing the ‘Spin’ and
‘Night cycle’ buttons simultaneously for 5 seconds
until the padlock symbol is displayed on the
screen.
To de-active ‘Child Lock’ simply press the ‘Spin’ and
‘Night cycle’ buttons simultaneously until the
padlock symbol in the screen disappears.
‘Child Lock’ will remain activated until you de-
activate it, even if the machine is turned off.
Buzzer
This appliance incorporates a buzzer, which makes
sound an acoustic signal when selecting the
programmes, in case of an incorrect option selection, if
the programme selector dial is turned to an other
washing position during the programme, at the end of
the cycle and in the event of operating problems. To
deactivate the acoustic signal, press simultaneously for
3 seconds the buttons “Super rinse” and “Prewash”
untill the display will show for 5 seconds the message
«Buzzer NO».
By pressing these 2 buttons again the acoustic signal is
reactivated. The display will show for 5 seconds the
message «Buzzer YES».
1000 Buzzer Yes
h min
2.23
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L0025
1000 Buzzer o
h min
2.23
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L0024
1000 Cotton 95°
h min
2.23
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L0023
Spin
Night cycle
Child lock
L0022
Special Features
Change language Option
You can change the language setting if you would like
the indicators in the display to appear in a different
language.
To change the default language, press simultaneously
for 3 seconds the buttons “Quick wash” and “Stain”
until the display will show the current selected
language. Scroll the buttons “Quick wash” and “Stain”
to select the desired language. Press “ Start/ Pause”
button to set the selected language. The display will
blink the selected language for three times to show the
set language.
1000 I DO ESIA
h min
2.23
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L0039
1000 E GLISH
h min
2.23
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L0038
Lux_WH1093.qxp 10/10/2006 3:44 PM Page 16

17
Using your washing machine
Before the first wash, we recommend that you pour 2
litres of water into the main wash compartment of
the detergent drawer. Then run a cotton 90°C cycle,
without any laundry in the machine, to remove any
manufacturing residue from the drum and tub. Pour 1/2
a measure of detergent into the dispenser drawer and
start the machine.
WASHING 5 KG OF WHITE COTTON AT 90°C
Suppose you have 5 kg of laundry to wash. It is white
cotton and is suitable for high temperature washing.
1.Load the laundry
Open the door. Place the laundry in the drum, one item
at a time, shaking them out as much as possible. Close
the door.
2.Measure out the detergent
Pull out the dispenser drawer until it stops. Measure out
the amount of detergent required and pour it into the
main wash compartment .
If you wish to carry out the prewash, a soak programme
or a stain phase, pour detergent or stain remover into
the appropriate compartment marked .
Important!
Do not use normal detergent for the “Stain” option,
always use a STAIN remover.
3. Measure out the fabric softener
If required, pour fabric softener into the compartment
marked , and bleach in to the compartment marked
, without exceeding the «MAX» mark.
L0035
L0034
P0004
4. Select the desired
programme
Turn the programme selector dial to the desired
position. The duration of the programme and the
maximum spin speed allowed for the selected
programme appear on the display.
5. Select the spin speed or «00»
(No spin) option
Depress repeatedly the spin speed button to choose the
required speed or «00» (No Spin) option.
6. Select the desired options
Depress the button relevant to the selected option. The
corresponding light illuminates and the display shows the
description of the selected option.
1000 super rinse YES
h min
2.33
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L0031
1000 Prewash Yes
h min
2.54
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L0030
0 o spin
h min
2.23
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L0029
1000 Cotton 95°
h min
2.23
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L0028
1000 Cotton 95°
h min
2.23
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L0027
5°
Economy 60°
60°
Economy 40°
Economy 60°
30°
Off
40°
40°
30°
60°
Cold
Synthetics
Cold
Easy Iron 40°
Miniprogram 30°
Spin
Drain
Rinse
Delicate 30°
Delicate 40°
Delicate Cold
Handwash 40°
Handwash 30°
Handwash
Cold
Cottons
L0026
Lux_WH1093.qxp 10/10/2006 3:44 PM Page 17

18
7. Select the Delay start
The delay starting of a programme, press repeatedly
the “Delay Start” button to select the desired delay.
The figures corresponding to the selected delay will be
displayed for about 5 seconds.
8. Start the programme
To start the selected programme, press the “Start/
Pause” button; the corresponding light stops flashing
and stays on. The machine starts operating.
The door locked light illuminates to indicate that the
door is blocked.
If you have selected the delay start the machine starts
its countdown. The display shows the delay and the
duration of the programme.
During this period it is possible to load other laundry:
• depress “Start/ Pause” button, the door locked light
goes off.
• load the laundry.
• close the door and depress “Start/ Pause” button
again.
9. How to change an option or
a programme during its cycle
It is possible to change any option before the
programme carries it out.
Before you make any change, you must pause the
washing machine by pressing the “Start/ Pause” button.
Changing a running programme is possible only by
resetting it.
Turn the programme selector dial to “Off” and then to
the new programme position. The washing water in the
tub will not emptied out. Start the new programme by
depressing the “Start /Pause” button.
Start/Pause
L0033
1000 Start in 30 min
h min
2.23
Child lock
Start/Pause
Spin
StainPrewash
Delay start
Night cycle
Quick WashSuper rinse
L0032
10. How to Interrupt a
programme
Depress the “Start / Pause” button to interrupt a
programme which is running, the corresponding light
starts to flash. Depress the same button again to
restart the programme.
11. How to open the door
during the cycle of a
programme
You can open the door, after having set the washing
machine to Pause, provided the following conditions
exist:
• the washing machine is not in the heating phase
beyond 55°C;
• the level of the water is not high;
If these requirements are met, when you pause the
washing machine, the door locked light goes off and the
door can be opened.
Should it not be possible to open the door, and should
it be absolutely necessary to do so, switch the machine
off by turning the selector dial to “Off”.
After approximately 3 minutes, you can open the door.
Pay attention to the level and temperature of
the water in the washing machine!
When you close the door to restart the programme
turn the dial to the previous programme repeating the
options previously selected and press “Start/ Pause”
button.
12. End of programme
The machine stops automatically. The light of the “Start
/ Pause” button goes out, the display shows
alternatively the messages «Door openable» and«Cycle
ended» and some acoustic signals are given.
Turn the programme selector dial to Reset “Off” to
switch the machine off.
Remove the laundry from the washing machine.
Check whether the drum is completely empty, by
rotating it with your hand. The purpose of this is to
prevent any items of laundry from remaining
accidentally in the drum, where they might get damaged
in a subsequent wash (e.g. by shrinking) or bleed colour
into another load of laundry.
We advise you to close the water supply tap and
disconnect the plug from the socket.
Leave the door ajar in order to air the washing
machine.
Lux_WH1093.qxp 10/10/2006 3:44 PM Page 18

19
Hints and Tips on Washing
Do NOT overload the machine. Weigh the laundry the
first few times you use the appliance.
The average weights of the most common items are
listed below as a guide:
1000g = 1 kg
Sheet 700-1000 g
Pillow case 100-200 g
Tablecloth 400-500 g
Serviette 50-100 g
Tea towel 70-120 g
Linen hand towel 100-150 g
Towelling hand towel 150-250 g
Towelling bath towel 700-1000 g
Bath robe 1000-1500 g
Man’s shirt 200-300 g
Apron 150-200 g
• Load the laundry loosely alternating large items with
small ones.
• Sort the laundry according to the type of fabric,
colour-fastness and how dirty it is.
• Avoid washing unhemmed or torn items as they may
unravel.
• Before washing, empty all pockets of small objects
which may have been left inside (coins, keys, screws
etc). as these could damage the drain pump.
• When washing curtains, remove the hooks.
• Close poppers and zips and fasten loose buttons.
• It is essential to wash new coloured items separately
when washing for the first time.
• When washing fabrics requiring different wash
temperatures together, always select the lowest
temperature.
• White items should not be washed with coloured
items.
• Very small items (handkerchiefs, ribbons, socks etc)
should be washed in a washing bag or a pillow case.
• Use a good quality detergent suitable for automatic
washing machines.
• Use the correct quantities of detergent.
• For wool, use gentle detergent only in small
quantities.
• Bleach is very corrosive; it should be used with care
and kept out of reach of children.
• Some stains such as fruit, wine, grass, rust etc. are
difficult to remove and should be treated before
washing with specific products, which can be found in
most household shops. In some cases it may help to
soak the stain before washing with a special pre-soak
product or biological detergent.
• Only wool marked “Pure New Wool - washable,
preshrunk” can be washed in the the wool
programme; other types of wool should be washed in
Wool programme.
• If you have used the machine to wash, rinse or spin
only non-colour fast garments, there may be dye left
in the sump. To ensure any subsequent wash is not
contaminated with the dye, select and carry out a
rinse and spin programme, without any garments, to
ensure that any dye is removed from the sump.
• Once you have finished using the machine, you are
advised to unplug it and turn off the water tap.
Lux_WH1093.qxp 10/10/2006 3:44 PM Page 19

20
Wash Care Symbols
Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling
code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct
programme on your washing machine.
WASHING SYMBOL
BLEACHING
IRONING
DRY CLEANING
TUMBLE DRYING
WASH ACTION FABRIC
Hot iron
Warm iron
Cool iron
Cotton, Linen, Viscose
Polyester mixtures, Wool
Acrylic, Nylon, Polyester
Important Notes
For best results, always use the dispenser drawer for
dispensing detergents and liquid additives.
Once the dispenser has been filled, close it by pushing
it in gently. This is particularly important if you are using
fabric conditioner to avoid the conditioner entering the
machine prematurely.
When using liquid detergent and a prewash
programme, place the detergent into the correct
compartment in the dispenser drawer, after the
prewash has finished.
95
60
50
40
40
40
Chlorine bleach may be used
May be tumble dried
with high heat setting
with low heat setting
A cross through any symbol means «DO NOT»
May be dry cleaned. Other letters and/or a bar beneath the circle will
indicate the required process to the dry cleaner.
Normal (Maximum)
Normal (Maximum)
White Cotton or Linen
without Special Finishes
Cotton, Linen or Viscose
without Special Finishes
Colourfast at 60°C.
Reduced (Medium)
Normal (Maximum)
Reduced (Medium)
Much Reduced (Minimum)
Hand wash only
Nylon, Polyester/Cotton, Viscose
with Special Finishes,
Cotton/Acrylic Mix.
Cotton, Linen or Viscose
Colourfast at 40°C but not 60°C.
Acrylics, Acetate, Triacetate, Wool
mixes, Polyester/wool blends.
Wool, wool mixtures, Silks
Do not machine wash
X
Lux_WH1093.qxp 10/10/2006 3:44 PM Page 20
