RuggON RuggVMC MT7010 User manual

MT7010
User’s Manual

MT7010
V1.0
2
Contents
CONTENTS ..................................................................................................................................................................... 2
SAFETY PRECAUTIONS ........................................................................................................................................... 4
REGULATORY AND CERTIFICATION .................................................................................................................. 6
FCC ................................................................................................................................................................................................... 6
CE MARKING .................................................................................................................................................................................. 7
RED .................................................................................................................................................................................................. 7
LITHIUM BATTERY SAFETY STATEMENT ............................................................................................................................... 7
CHAPTER 1. PRODUCT INTRODUCTION .......................................................................................................... 8
HARDWARE SPECIFICATIONS ................................................................................................................................................... 8
OPERATING SYSTEM SUPPORT .............................................................................................................................................. 9
ENVIRONMENT ............................................................................................................................................................................... 9
I/O PORTS .................................................................................................................................................................................... 10
DIMENSION AND WEIGHT ........................................................................................................................................................ 11
MT7010 Standard ....................................................................................................................................................................... 11
PACKAGE LIST ............................................................................................................................................................................ 12
CHAPTER 2. HARDWARE MOUNTING ............................................................................................................. 13
CHAPTER 3. START UP .......................................................................................................................................... 14
POWERING THE SYSTEM ........................................................................................................................................................ 14
Connector Power ........................................................................................................................................................................ 14

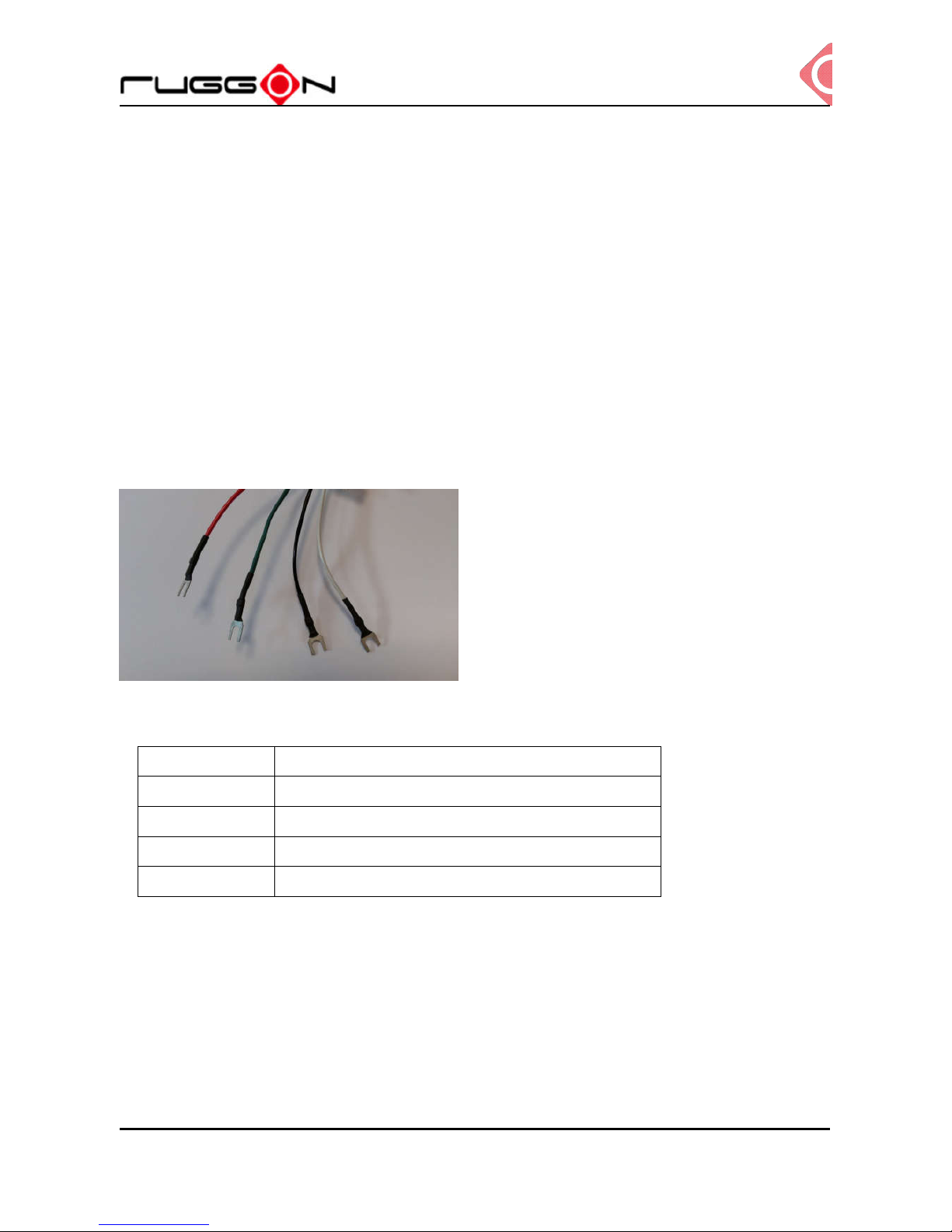

Power source from car power cable ............................................................................................................................... 14
Powering Down the System ................................................................................................................................................. 16
LED STATUS................................................................................................................................................................................ 17
ADJUST THE SPEAKER VOLUME .......................................................................................................................................... 18
AUTO-BRIGHTNESS ADJUSTMENT ...................................................................................................................................... 18
INTERNAL MICROPHONE ......................................................................................................................................................... 19
PROGRAMMABLE BUTTONS ................................................................................................................................................... 19
POWER MANAGEMENT ............................................................................................................................................................ 19
CHAPTER 4. JUMPERS AND CONNECTORS ................................................................................................ 20
BOTTOM VIEW ............................................................................................................................................................................... 20

MT7010
V1.0
3
EXTERNAL CONNECTORS PIN ASSIGNMENTS ................................................................................................................ 21
Power Connector ........................................................................................................................................................................ 21
RS-232 Port ................................................................................................................................................................................... 22
USB and RS-232/422/485 Port .......................................................................................................................................... 23
GPIO and CANbus Port .......................................................................................................................................................... 24

MT7010
V1.0
4
Safety Precautions
1. Read these safety instructions carefully. 
2. Keep this user’s manual for later reference. 
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do
not use liquid or spray detergents for cleaning. 
4. For plug-in equipment, the power outlet socket must be located near the equipment and
must be easily accessible. 
5. Keep this equipment away from humidity. 
6. Put this equipment on a stable surface during installation. Dropping it or letting it fall
may cause damage. 
7. Do not leave this equipment in either an unconditioned environment or in an above
40oC storage temperature as this may damage the equipment. 
8. The openings on the enclosure are for air convection to protect the equipment from
overheating. DO NOT COVER THE OPENINGS. 
9. Make sure the voltage of the power source is correct before connecting the equipment
to the power outlet. 
10. Place the power cord in a way so that people will not step on it. Do not place anything
on top of the power cord. Use a power cord that has been approved for use with the
product and that it matches the voltage and current marked on the product’s electrical
range label. The voltage and current rating of the cord must be greater than the volt-
age and current rating marked on the product. 
11. All cautions and warnings on the equipment should be noted.
12. If the equipment is not used for a long time, disconnect it from the power source to avoid
damage by transient overvoltage.
13. Never pour any liquid into an opening. This may cause fire or electrical shock.
14. Never open the equipment. For safety reasons, the equipment should be opened only
by qualified service personnel.
15. If one of the following situations arises, get the equipment checked by service
personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.

MT7010
V1.0
5
d. The equipment does not work well, or you cannot get it to work according to the
user’s manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
16. Do not place heavy objects on the equipment.
17. The unit uses a three-wire ground cable which is equipped with a third pin to ground the
unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does
not support this kind of plug, contact your electrician to replace your obsolete outlet.
18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY RE- PLACED.
REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE REC- OMMENDED BY
THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE
MANUFACTURER’S INSTRUCTIONS.

MT7010
V1.0
6
Regulatory and Certification
FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and the receiver.
 Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
Shielded interconnect cables and shielded AC power cable must be employed with this
equipment to insure compliance with the pertinent RF emission limits governing this device.
Changes or modifications not expressly approved by the system’s manufacturer could void
the user’s authority to operate the equipment.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This device is operation in 5.15 – 5.25GHz frequency range, then restricted in
indoor use only, Outdoor operations in the 5.15 – 5.25GHz is prohibit.

MT7010
V1.0
7
.
RF exposure warning
This equipment must be installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20
cm from all persons and must not be co-located or operating in conjunction with any other antenna or
transmitter. End-users and installers must be provide with antenna installation instructions and
transmitter operating conditions for satisfying RF exposure compliance.
CE Marking
This product has passed the CE test for environmental specifications when shielded cables
are used for external wiring. We recommend the use of shielded cables. Please contact your
local representative for ordering information.
This product has passed the CE test for environmental specifications. Test conditions for
passing included the equipment being operated within an industrial enclosure. In order to
protect the product from being damaged by ESD (Electrostatic Discharge) and EMI leakage,
we strongly recommend the use of CE-compliant industrial enclosure products.
RED
This device complies with the essential requirements of the Radio Equipment
Directive (2014/53/EU).
Lithium Battery Safety Statement
Lithium battery inside. Danger of explosion if battery is incorrectly replaced. Replace only
with same or equivalent type recommended by battery manufacturer.
THIS PRODUCT CONTAINS LITHIUM-ION BATTERY PACKS. IT MUST BE DISPOSED OF
PROPERLY. CONTACT LOCAL ENVIRONMENTAL AGENCIES FOR INFORMATION ON
RECYCLING AND DISPOSAL PLANS IN YOUR AREA.

MT7010
V1.0
8
Chapter 1. Product Introduction
MT7010 is the in-vehicle terminal with 7” high resolution display with 500nits brightness and
flexible to expand varied wireless connection capability designed, it’s for the fleet
management, asset management, EOBR and ELDs application.
This includes ISO 7637-2, SAE J1455 and SAE J1113 compliance and optimized power
system design for cold cranking, load dump, transient voltage and ESD.
With IP65 protection rating, wide temperature design, wide power range input, and rich
expanding interfaces supporting in-vehicle connectivity.
Hardware Specifications
Item Description
Processor Qualcomm MSM8909 (Quad-Core Cortex-A7 1.3 GHz)
Memory LPDDR2 RAM 2GB (Europe, North America version)
LPDDR2 RAM 1GB (China version)
Storage eMMC 16GB (Europe, North America version)
eMMC 8GB (China version)
Display
 7 inch TFT LCD
 500 nits
 Viewing angel: 145(H)/ 160(V) (CR>10)
Touch Panel  Projected Capacitive Touch Screen
Wireless
Connectivity
 802.11 a/b/g/n
 Bluetooth 4.1
 GPS / GLONASS / BEIDOU (TBD)
Item Description
Power Input 9-36VDC,3.5A
Battery 1950mAh, 3.6V
Housing
(Mechanical) PC+ABS, fanless design
Certification CE, FCC, CB

MT7010
V1.0
9
Operating System Support
 Android 5.1
Environment
 Operating temperature:
 -20°C (-4°F) to 60°C (140°F)
 In accordance withMIL-STD-810G CHANGE1 Method 501.6 High Temperature
Procedure II - Operation
 In accordance with MIL-STD-810G CHANGE1 Method 502.6 Low Temperature
Procedure II – Operation
 Storage temperature:
 -30°C (-22°F) to 70 °C (158°F)
 In accordance with MIL-STD-810G CHANGE1 Method 501.6 High Temperature
Procedure I – Storage
 In accordance with MIL-STD-810G CHANGE1 Method 502.6 Low Temperature
Procedure I - Storage
 Relative humidity:5% to 95% @ 30°C (86°F) to 60°C (140°F) non-condensating in
accordance with MIL-STD-810G CHANGE1 Method 507.6 Humidity Procedure II
Aggravated Cycles (Fig 507.6-7)
 Vibration Test:
 Operating: MIL-STD-810G CHANGE1 Method 514.7 Category 4,
Fig 514.7C-2 Common carrier (US highway truck vibration exposure);
Fig 514.7C-3 Composite two-wheeled trailer;
Fig 514.7C-4 Composite wheeled vehicle
 Non-Operating: MIL-STD-810G CHANGE1 Method 514.7 Category 24, Fig
514.7E-1 (General minimum integrity exposure)
 Shock Test:
 Operation: MIL-STD-810G CHANGE1 Method 516.7 Procedure 1 Functional
Shock
 Non-Operation: MIL-STD-810G CHANGE1 Method 516.7 Procedure V Crash
Hazard Shock

MT7010
V1.0
10
I/O Ports
Item Description
Serial 1 x RS-232 (RX, TX)/422/485, non isolation (COM1)
RS-232, with 5V/600mA & 12V/300mA x 1 (COM2)
USB USB 2.0 for host A-type connector (500mA) x 1
Ethernet Gigabit RJ45 x 1
GPIO
DI/ DO x 2
Input: GPI 0~30V
Output:
(1) circuit design reserved for 2 x GPO 5V
(2) default setting 2 x GPO: OC output, High level depends on
external pull up resistor, Up to 30 VDC maximum sink 50 mA per
channel
CAN CANbus and SAE J1939
Audio Headset for Mic-in/ Audio out x 1
Internal Mic-in x 2
Speaker Built-in dual 2W speaker
