Runtastic TP00270 User manual

Page 2of 16
SCOPE OF DELIVERY
1 Receiver
(Art.no. RUNDC2,
Model: TP00270)
incl. lithium battery (3V, CR1220)
Remove the isolator within the case of the
receiver, for this purpose open the case.
1 Chest strap
(consisting of a sensor and elastic strap)
(Art.no. RUNDC2, model: TD00380)
incl. lithium battery (3V, CR2032)
The elastic strap can be found in the
cardboard insert in which the chest strap
sensor is packaged; open the cardboard
insert to remove the elastic strap.
ELECTROMAGNETIC COMPATIBILITY
It is imperative that very strong magnetic
fields (e.g. from transformers) are avoided, as
they can impair transmission. Non-
observance of this information can result in
malfunctions or damage to your receiver and
chest strap.

Page 3of 16
RISKS FOR CHILDREN AND INDIVIDUALS
REQUIRING ASSISTANCE
This device is not intended for use by
individuals (including children) with limited
physical, sensorial or emotional capacities or
limited experience and / or knowledge unless
they are supervised by an individual
responsible for their safety or receive
instructions from the latter as to how the
device should be used.
SAFETY NOTE
Important: Always consult your doctor prior
to starting a regular exercise program. The
receiver with chest strap is not a medical
device; it is a training aid for monitoring and
displaying your heart rate. Wearers of
pacemakers should only use devices for
monitoring heart rate after consulting their
doctor.
Note: The chest strap can contain latex
components. In rare cases, allergic reactions
can occur to this substance, in the form of –
possibly relatively intense – skin irritations
and redness. Therefore, if you should notice
only slight redness, please turn to our
customer service department or consult a
dermatologist.

Page 4of 16
BATTERY OPERATION
Your receiver and chest strap are each
powered by a lithium battery (receiver: 3V,
CR1220; chest strap: 3V, CR2032).
The following section provides you with
information about using batteries:
Always replace a battery with a battery
of the same type.
Batteries should not be charged or re-
activated by any other means and they
should not be disassembled, discarded
in a fire or short-circuited.
Always keep batteries out of the reach of
children. Batteries can be fatal if
swallowed. Therefore, keep batteries and
the chest strap out of the reach of small
children. If a battery is swallowed, seek
medical advice immediately.
Never expose the batteries to excessive
heat from direct sunlight, fire or other
such sources! This increases the risk of
leakage. Ignoring this information may
result in damage and possibly even to
the batteries exploding.
Remove a depleted battery from the
receiver and/or chest strap immediately,
as they may otherwise leak. When doing
this avoid contact with your skin, eyes
and mucous membranes. If you should
come into contact with battery acid,
rinse the affected area immediately with
plenty of clean water and seek medical
advice. If necessary, clean the battery
contacts and the counter-contacts in the

Page 5of 16
unit. Keep the operating instructions safe
so that you can refer to the relevant
battery information.
Ignoring this information may result in
damage and possibly even to the batteries
exploding. You can find information on
replacing the battery for the receiver and the
chest strap under the sections entitled
"Changing the battery for the receiver" and
"Changing the battery for the chest strap.”
DISPOSAL
Batteries are hazardous waste.
Batteries can be disposed of
correctly by shops selling
batteries and at municipal
collection points where
there are appropriate
containers. If you wish to discard
your receiver and/or chest strap,
please dispose of these in
accordance with the applicable regulations.
Your municipal collection point can provide
you with the relevant information.
KRIPPL-WATCHES
Warenhandels GmbH
Maria-Theresia-Straße 41,
4600 Wels, Austria
Dispose of the packaging according
to the applicable regulations. Your
municipal collection point can
provide you with the relevant information.

Page 6of 16
GETTING STARTED
1. Installation Runtastic app/activation code
Insert the below mentioned link in the
address bar of your browser to get to
Runtastic.com. The descriptions on this site
will help you to finish the activation of the
code step by step.
http://www.runtastic.com/activate
Alternatively, you can also scan the QR-code
with your smartphone, to get to this site. For
using this feature, you have to go to the
individual “App Store” of your smartphone to
download the free version of the QR-scanner.
Now scan the QR-code and follow the
instructions on Runtastic.com.
Additionaly, you will have the opportunity to
purchase the heart rate function as well as
many other functions from the App Store or
Market.

Page 7of 16
2. Attaching the chest strap
Front of sensor:
Rear of sensor:
Connect the elastic strap to the sensor.
Adjust the strap so that the sensor rests firmly
against your chest below your pectoral
muscles.
To ensure good contact with your skin, you
will need to moisten the contacts of the
sensor or apply an ECG gel (available from
health stores).
Mounting for soft strap
Sensor contact
surfaces

Page 8of 16
3. Connect your Runtastic hardware
Plug the receiver into
the headphone jack
on your smartphone.
Observe the correct
positioning of the
receiver: You can
also connect your smartphone's headphones
to the receiver (the receiver features a
connection socket at the top).
NOTE:
1. Should there be no heart rate reading, it
might be that the contacts for the
receiver in your smartphone are poled
differently. In this case, open the case of
the receiver (as described in point
„Changing the battery for the receiver“)
and change the position of the switch in
the case from A to B. Reattach the cover
of the receiver and repeat the activation
process of the heart rate measurement
as described in point 4. „Activating heart
rate measurement“. If there is unstable
heart rate reading, please contact the
following e-mail address:
[e-mail]
2. The function of the microphone and the
loudspeaker will be disabled when the
receiver is plugged in the phone, it is
however possible to use a headset.
3. The remote control of the iPhone
earphone does not work when the

Page 9of 16
receiver is plugged in the phone.
4. The receiver will be turned on and
consume battery when it is plugged into
the phone, even if the Runtastic app is
not activated. Please take off the
receiver when it is not in use.
5. The battery life of the receiver is around
2.5 years if it is used 1 hour per day.
Please change the battery when it is no
longer functioning and cannot receive
signal from the chest strap.
4. Activating heart rate measurement
To activate the heart rate measurement
function open the Runtastic app on your
smartphone.
iPhone:
Go to "Settings" and select “Heart Rate
Settings”. Select the option “Runtastic
Receiver with Chest Strap” and slide
“Enable Runtastic Receiver” to “ON“ and
then press the button “Re-Pair”. Should there
be no heart rate reading, please refer to the
point 1. of NOTE on page 8.
Android operating systems:
Go to "Settings" and select "Heart Rate
Settings”. Select the option "Receiver +
Chest strap (5.3 kHz)". Should there be no
heart rate reading, please refer to the point 1.
of NOTE on page 8.

Page 10 of 16
BlackBerry:
Go to "Settings" and select "Heart Rate".
Select the option "Heart Rate Monitoring"
and then the setting "enabled", followed by
the option "Heart Rate Sensor" and the
setting "Runtastic". Should there be no heart
rate reading, please refer to the point 1. of
NOTE on page 8.
Windows Phone:
Go to "Settings" and select "Heart Rate
Settings". Set the option "Runtastic Receiver
(5.3 kHz)" to ON. Should there be no heart
rate reading, please refer to the point 1. of
NOTE on page 8.
5. Switching between coded and uncoded
transmission
Sixteen coded and one uncoded channel can
be selected. Pressing the button on the back
of the chest strap
switches between the coded channels. If you
press and hold the button for 5 seconds, it
will automatically switch to the uncoded
channel. Pressing the button again will switch
back to the encoded channels.
iPhone:
Go to "Settings" and select “Heart Rate
Settings”, Select the option “Runtastic
Receiver with Chest Strap”. On the bottom of

Page 11 of 16
the screen you can see on which channel the
chest strap is sending.
Should you wish to change the channel, press
the button on the chest strap as described
above to switch to the next coded channel,
and then press the button “Re-Pair” and your
smartphone will establish a connection to the
chest strap again.
Android operating systems:
Go to "Settings" and select "Heart Rate
Settings", under point "Sensor Channel" you
can see on which channel the chest strap is
sending. If it is using a coded channel, it
shows a digit. If it uses the uncoded channel,
it reads “Uncoded”. Should you wish to
change the channel, you have to disconnect
the chest strap from the receiver by switching
to “No pulse connection”. Now switch the
channel as described above by pressing the
button on the chest strap. Switch to point
"Receiver + Chest strap (5.3 kHz)" again,
your smartphone will establish a connection
to the chest strap again on the new channel.
BlackBerry:
Go to "Settings" and select "Heart Rate
Settings", under point "Sensor Channel" you
can see on which channel the chest strap is
sending. If it is using a coded channel, it
shows a digit. If it uses the uncoded channel,
it reads “Uncoded”. Should you wish to
change the channel, press the button on the
chest strap as described above to switch to

Page 12 of 16
the next encoded channel, select "Connect
Sensor" again and your smartphone will
establish a connection to the chest strap
again.
Windows Phone:
Go to "Settings" and select "Heart Rate",
under point "Sensor Channel" you can see
on which channel the chest strap is sending.
If it is using a coded channel, it shows a digit.
If it uses the uncoded channel, it reads
“Uncoded”. Should you wish to change the
channel, press the button on the chest strap
as described above to switch to the next
coded channel, select "Connect Sensor"
again and your smartphone will establish a
connection to the chest strap again.
NOTE:
Advantage of encoded transmission:
Transmission between the chest strap
and receiver is encoded, thereby making
it less susceptible to interference, e.g.
from a chest strap worn by another
person.
Advantage of uncoded transmission:
Transmission between the chest strap
and receiver uses a frequency that is
supported by most fitness equipment,
thereby enabling you to use the chest
strap with many other devices, such as
treadmills and cross trainers.

Page 13 of 16

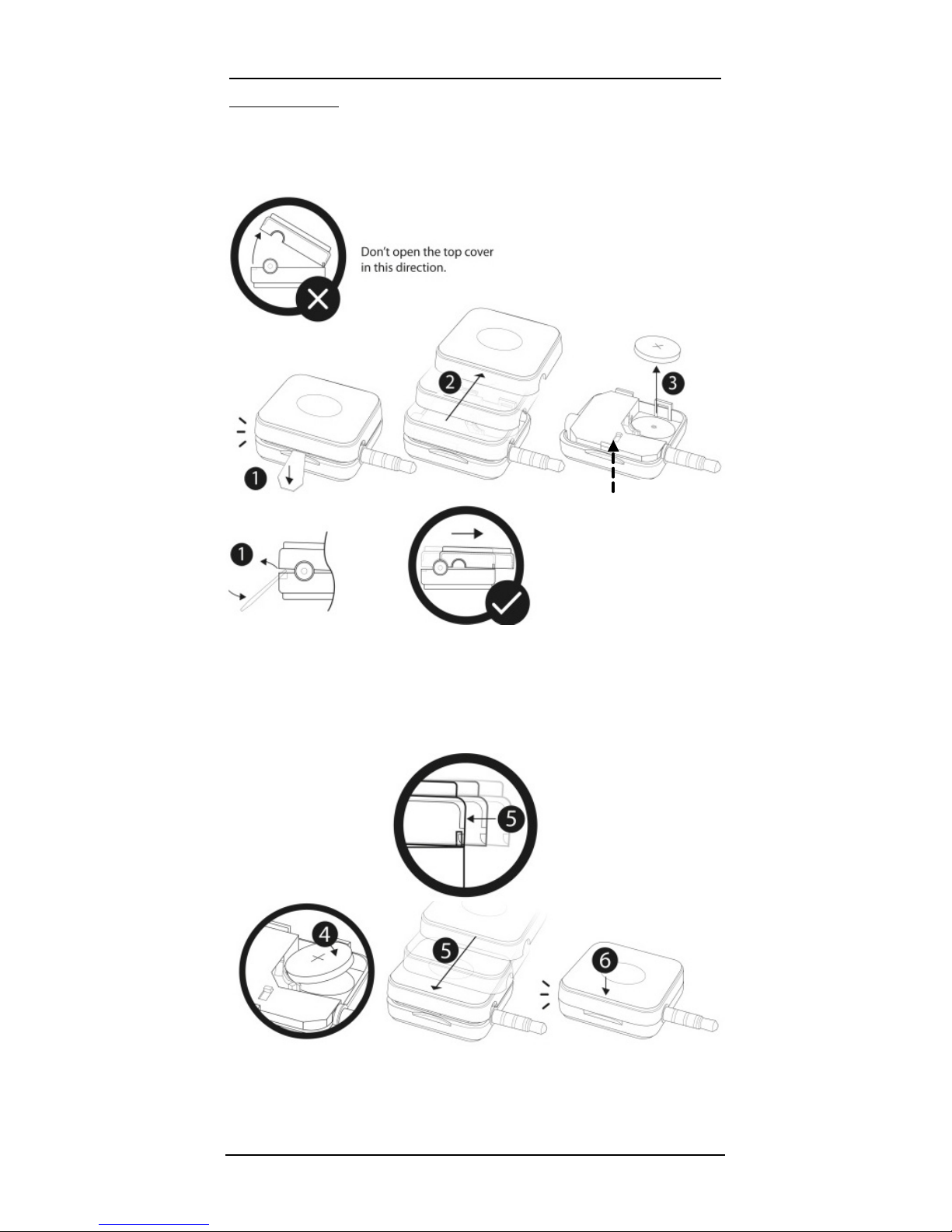

CHANGING THE BATTERY FOR THE
RECEIVER
Open the housing of the receiver as shown in
the illustration.
Remove the old battery and insert a new
CR1220 3V battery. When doing this please
ensure that the positive terminal (+) is facing
upwards and that the battery touches
the contact in the housing.
SWITCH B↔A

Page 14 of 16
CHANGING THE BATTERY FOR THE CHEST
STRAP
Open the battery compartment cover by
inserting a coin and turning it
counterclockwise. Remove the old battery
and insert a new CR2032 3V battery. When
doing this please ensure that the positive
terminal (+) is facing upwards. Replace the
battery compartment cover and secure it in
place by turning it clockwise. When doing this
make sure that the cover is firmly closed in
order to prevent moisture from entering the
chest strap.
TECHNICAL DATA
Receiver
Power supply:
1 lithium battery (3V 0,1 mA CR1220)
Chest strap
Power supply:
1 lithium battery (3V 0.5 mA CR2032)
Transmission frequency between chest strap
and receiver: 5.3 kHz
Water tightness
The receiver and chest strap are splash
water resistant. The table below indicates
the activities and conditions for which they
are suitable:
Perspi-
ration
Shower
Bathing,
swimming
Water-
sports
Yes No No No

Page 15 of 16
DECLARATION OF CONFORMITY
EMC Directive 2004/108/EC:
Summary of the declaration of conformity:
Krippl-Watches hereby declares that the
receiver (art. no. RUNDC2, model: TP00270)
and chest strap (art. no. RUNDC2, model:
TD00380) conform to the basic requirements
and other relevant provisions of Directive
2004/108/EC. You can access the declaration
of conformity in its entirety by visiting the
following website: www.runtastic.com
WARRANTY
We provide a 24 months warranty for this
product. The warranty period begins on the
date of purchase (till receipt, purchase
voucher). During this period you will receive
free of charge a new or repaired product. The
warranty does not include batteries, improper
handling, dropping, shock or the like.
In case of a claim you have the following
possibilities:
a) contact your point of sale or
b) write us an e-mail: [e-mail]
PLEASE NOTE: FOR ORGANIZATIONAL
REASONS, WE CANNOT ACCEPT ANY
UNANNOUNCED PACKAGES WHICH HAVE
NOT BEEN PREPAID.

Page 16 of 16
www.runtastic.com
