Russell Hobbs RHDW14SS User manual

RHDW14SS
14place settings

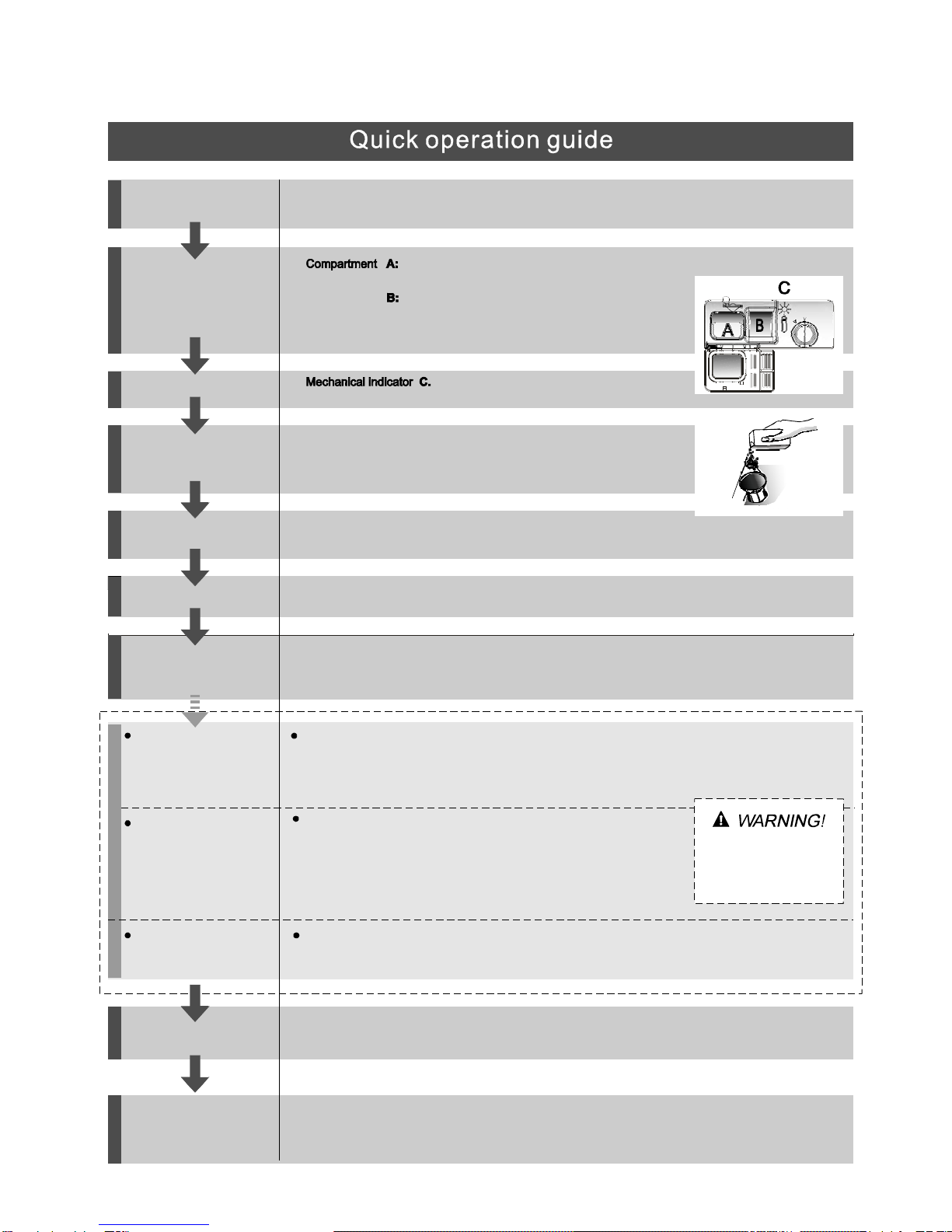

Half-load function

Witheachwashcycle.
Compartment
For programmes with pre-wash only.
(Follow the user instructions!)
Electric indicator on control panel (if provided).
Check the rinse aid level
(On models with water softener system only.)
Electric indicator on control panel (if provided).
If there is no salt warning light in the control panel
(for some models), you can estimate when to fill the salt into
the softener by the number of cycles the dishwasher has run.
Check the regeneration
salt level
Load the baskets
Select a program
Turn on the water tap and press the . The machine will start working
after about 10 seconds.
Start/Pause Button
Running the dishwasher
Switch off the appliance
Fill the detergent dispenser
Changing the program
Add forgottendishes in the
dishwasher.
Scrape off any large amount of leftover food. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loadinginstructions.
Close the door, Press the Program Button until the selected program lights up.
( See the section entitled Operation instruction )“”
When the working cycle has finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the On/Off Button.
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hotsteam may escape
when thedoorisopened!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state ).
Switch on the appliance Press the On/Off button to switch on the appliance, Open the door.
For detailed operating method read the corresponding content onthe instruction manual.
1. A runningcycle canonlybe modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Press the Start/Pause button, the machine will be instandby state, press the program
button more than 3 seconds then you can change the program to thedesired cycle setting
3. Press the Start/Pause Button, the dishwasher will runafter 10 seconds
Turn off the water tap,
unload the baskets Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will alsodry better.Unload the appliance, startingfrom the lower basket.
1.Press the Start/Pause Button to stop the washing.
2.Open the door a little .
3.After the spray arms stop working, you can open the door
completely.
4.Add forgotten dishes.
5.Close the door
6.Press the Start/Pause Button, the dishwasher will run
after 10 seconds.

To review the section on troubleshooting Tips
willhelp you tosolve some common problems
by yourself .
Dear Customer,
Please carefully readthismanualbefore usingthe
dishwasher,it will help you to use and maintainthe
dishwasher properly.
Pass it on to anysubsequent owner of the appliance.
Thismanual contains sections on safety Instructions,
Operating Instructions, InstallationInstructions and
Troubleshooting Tips, etc.
The manufacturer, following a policy of constant
development andupdating of the product, may
make modifications without giving prior notice.
Keep it as arefer in the later days.
If you can not solvethe problems by yourself ,
please ask for the help of professional technicians.
This appliance is intended tobe used in household
andsimilar applications suchas:
-staff kitchen areas in shops,offices and other
working environments;
-farm houses;
-by clients inhotels, motels and other residential
type environments;
-bedand breakfast type environments.
DishwasherFeatures.................................... ...3
A WaterSoftener...........................................4、
AttentionbeforeorafterloadingtheDishwasher
Baskets..........................................................9

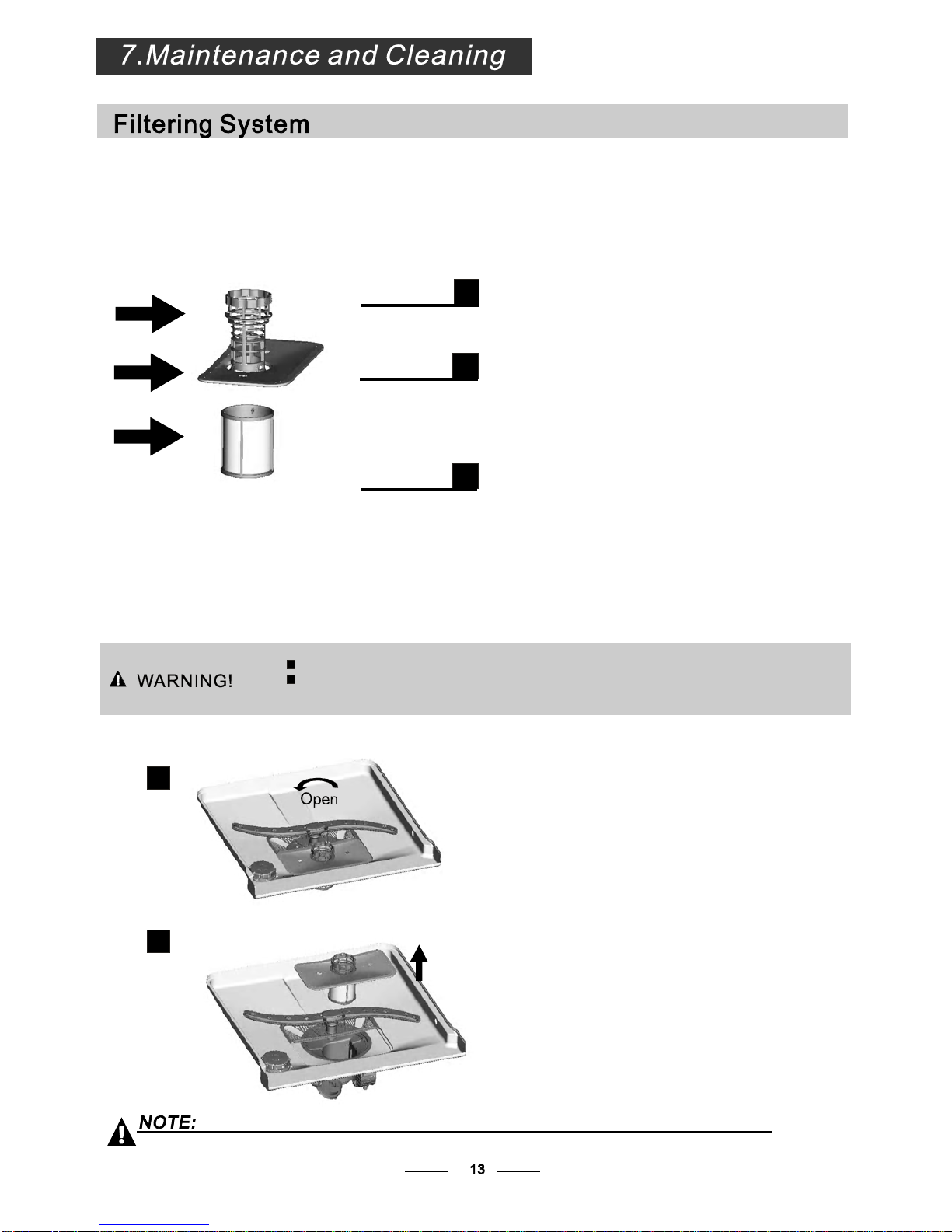

FilteringSystem.............................................13
Caring for the Dishwasher..................... .........14.
B Loading the Salt into the Softener.................5、
C Fill the RinseAidDispenser.........................5、
D Function of Detergent .................................6 、

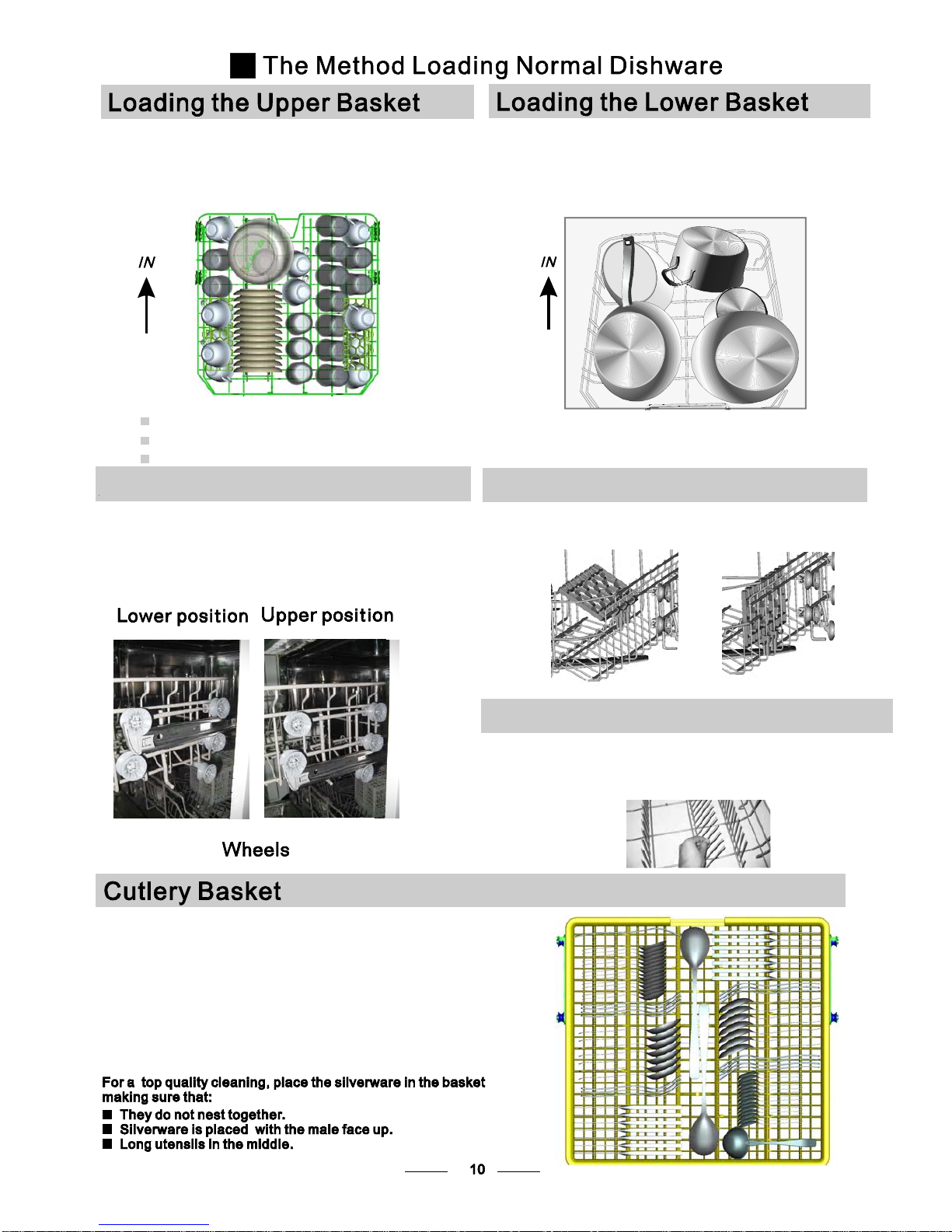

Loading the upper ...............................10Basket
Loading the Lower ...............................10Basket
Wash CycleTable...........................................11
Turning ontheAppliance................................11
Change the Programme.............. ................12....
At the End ofthe Wash Cycle...........................12
Control Panel...................................................3
Positioning theAppliance................... ..........15..
Water Connection.................................. .......16.
About Power Connection........................ .......15.
Start of dishwasher................................ ......17..
Before calling for service........................... .....18.
Errorcodes.................................... ..............19.
Technical information.............................. .....20..

This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of anelectric shock by providing a path of
least resistance of electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
Keep children away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
ren
Donotabuse,siton,orstandonthedoorordish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
(This instruction is only applicable to machines
with a visual heating element.)
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
During installation, the power supply must not
be excessively or dangerously bent or flattened.
Do not tamper with controls.
Do not place any heavy objects the
door when it is open. The appliance could tip
forward.
on or stand on
When loading items to be washed:
1) Locate sharp items so that they are not likely
to damage the door seal;
2 Warning: Knives and other utensils with
sharp points must be loadedin the basket
with their points down orplaced in a
horizontalposition.
)
When using your dishwasher, you should
prevent plastic items from coming into contact
with the heating element.(This instruction is only
applicable to machines with a visual heating
element.)
Ifthesupply cord isdamaged, itmust bereplaced
bythemanufactureroritsserviceagentora
similarly qualified person in order to avoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
Dishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed.Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
Check that the detergent comparment is empty
after completion of the wash cycle.
The applianceis to be connected to the water
mains using new hose sets and that old hose-sets
should not be reused.
The maximum number of place settings to be
washed is 14.
The maximum permissible inlet water pressure is
1Mpa.
The minimum permissible inlet water pressure is
0.04Mpa.
Children should be supervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
)
When using your dishwasher, follow the precautions listed below:
The door should not be left open,
since this could increase the risk of tripping.
Improper connection of the equipment-grounding
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.

Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard international abbreviations:
PE for polyethylene, e.g. sheet wrapping material
PS for polystyrene,e.g.padding material
POM polyoxymethylene, e.g. plastic clips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g. Control Panel .
Packaging material couldbe dangerous for children!
Fordisposing ofpackage and theappliance please goto arecycling centre. Therefore cut
off the powersupplycable and makethe doorclosing device unusable.
Cardboard packaging is manufactured from recycled paperand shouldbe disposedin the
waste paper collection for recycling.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriatewaste handling of this product.
For moredetailed information about recycling of this product, please contact your local
city office and your household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such
waste separately for special treatment is necessary.






beforeusing it for the first time.
To get the best performance from yourdishwasher, read all operating instructions
1.On/Off Button: To turn on/off the power supply.
2. Program Button :To Press thebutton to selecta
wash Program.
5
.
.Start /Pause button:To startthe selected
washing program or pause the washing program
when the machine is working.
4.Half load functions Button: To select Half load
functions.
3.Delay Button : To Press the button to delay.
6.Power indicator: To show when the power on
7.Program indicators: to show which program
you havechose;
8.Delay indicators: to show the delay time
(3h/6h/9h )
9.Half load/ indicators:when you choose
Half load,the Half load indicator ;when the
salt warning light saltwarning
light thesalt container must only be refilled
11 12
Back View
1
2
3
4
5
7
8
910
Front view
Lower basket
Salt container
Dispenser
Cupshelf
Spray arms
Filter assembly
Inlet pipe connector
Drain pipe
Upperbasket
Cutlery rack
Top spray arm
1
Innerpipe
5
6
7
8
9
10
12
11
3
24
6

The water softener must be set manually, using the water hardness dial.
The water softener is designed to remove minerals and salts from thewater, which wouldhave
a detrimentalor adverse effect on the operation of the appliance.
The higher the content of these minerals and salts,the harder your water is.
The softener should be adjusted according to the hardness ofthe water in your area. Your local WaterAuthority
can adviseyou onthehardnessofthewaterinyour area.
Adjusting Salt Consumption
The dishwasher is designed to allow for adjustment in the amount of salt consumed based onthe hardness of
the water used. Thisisintended to optimiseand customisethelevel o f salt consumption.
1. Open the door ,Switch on the appliance;
2. Press for more than 5 seconds to start the water softener
set model within 60secondsafter the appliance was switched on( TheSaltand
Rinse aid warninglights will be on periodically when it get in the set model );
3. Press the to select the proper set according to your local environment,
the sets will change in the following sequence: H1->H2->H3->H4->H5->H6;
4. Press the Powerbutton to end the set up model.
Start /Pause button
Start /Pause button
WATER SOFTENER
Thehardness ofthe water variesfrom place to place. If hard water is used inthe dishwasher, deposits will
form on the dishesand utensils.
The applianceis equipped with a special softener that uses a salt container specifically designed to eliminate
lime and minerals from the water.
Contact your local water board for information on the hardness of your water supply.
Pleasefollow thesteps below for adjustment in saltconsumption.
If your model does not have any water softener, you mayskip this section.
Before using your dishwasher for the first time:
A. Set the water softener
B. Add 1.5Kg dishwasher salt and then full fill the salt container with water
C. Filltherinseaiddispenser
D. Fill in detergent
Contact your local water board for information on the hardness of your water supply.
Clark: Britishdegree
fH: French degree
DH: German degree
dH=1.25Clarke=1.78fH=0.178mmol/l
1
The manufactory setting: H4 (EN 50242)
dH mmol/l
0~90~5 0~0.94 H1 0
10-20
6-11 1.0-2.0 H2 9
21-30
12-17 2.1-3.0
H3
12
H4 20
fH
0~6
7-14
15-21
Clarke
WATER HARDNESS
SelectorPosition Salt consumption
(gram/cycle)
18-22 31-40 22-28 3.1-4.0
41-60
23-34 4.1-6.0 H5 30
H6 60
29-42
35-55 61-98 43-69 6.1-9.8

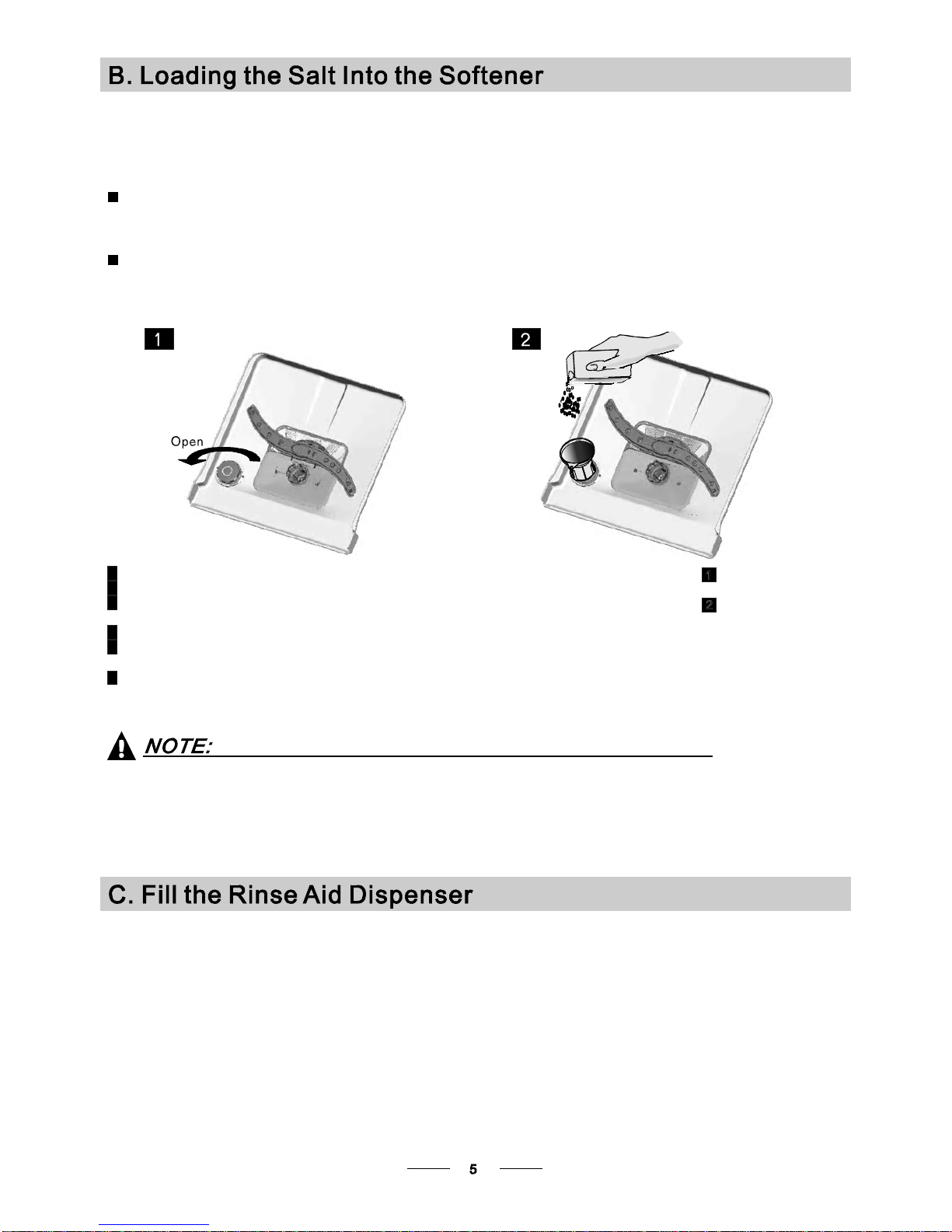

1. The salt container must only be refilled when the salt warning light in the control panel comes on.
Depending on how well the salt dissolves, thesalt warning light may still be on even though the
salt container is filled.
If there is no salt warning light in the control panel (for some Models),you can estimate when to fill
the salt into the softener by the cycles that the dishwasher has run.
2. If there are spills of the salt,a soak or a rapid program should be run to remove the excessive salt.
Always use the salt intended for use with dishwasher.
The salt container is located beneath the lower basket and should be filled as explained
inthe following:
Attention!
Only use salt specifically designed for the use indishwashers! Every other type of
salt not specifically designed for theuse in a dishwasher, especially table salt, will
damage the water softener. In case of damages caused by the use of unsuitable
salt the manufacturer does not give any warranty nor is liable for any damages caused.
Only fill withsalt just before starting one of thecomplete washingprograms.
This will prevent any grains of salt or salty water, which may have been spilled,
remaining on the bottom of the machine for any period of time, which may cause
corrosion.
The rinse aid isreleasedduring the final rinse to prevent water from forming droplets onyour dishes, which can
leave spots and streaks. Italso improvesdrying by allowing water toroll offthe dishes. Your dishwasheris
designed touseliquid rinseaids. The rinseaid dispenser islocated inside thedoornext to the detergentdispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. The volume of the rinse aidcontaineris about 110ml.
RinseAid Dispenser
Function of RinseAid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
Attention!
Only use branded rinse aid for dishwasher. Neverfill therinse aid dispenser withanyother substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
Full fillthe salt container withwater,It isnormal for asmall amount of water tocomeout ofthe
salt container.
AAfter the lower basket has been removed, unscrew and remove the cap from the salt container.
C
DAfter filling the container , screw the cap tightly back clockwise.
EThe saltwarning lightwillstop being after thesalt container has beenfilled withsalt.
FImmediately after filling the salt into the salt container, a washing program should be started
program Otherwise thefilter system, pumpor other important parts of the machine may be damaged
bysalty water.This isoutof warranty.
(Wesuggest to use a short
).
BPlace the end of the funnel (supplied) into the hole and introduce about 1.5kg of dishwasher salt.

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser,being careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it tothe closed (right) arrow.
Adjusting RinseAid Dispenser
The rinse aid dispenser has six or four settings.Always start with the dispenser
set on "4". If spots and poor drying are a problem, increase the amount of rinse
aid dispensed by removing the dispenser lid and rotating the dial to "5". If the
dishes still are not drying properly or are show spots, adjust the dial to the next
higher lever until your dishes are spot-free. The recommended setting is "4".
(Factory value is "4".)
Increase the dose if there aredropsof waterorlimespotsonthe dishes after washing.
Reduce it ifthere are sticky whitish stains on your dishesor abluish film on glassware or
knife blades.
1
2
3
As the rinse aid diminishes, the size of the black dot
ontherinse aidlevel indicator changes, as illustratedbelow.
Full
3/4full
1/2full
1/4 full -Should refilltoeliminate spotting
Empty
When to Refill the RinseAid Dispenser
Ifthereis no rinse-aid warning light in thecontrolpanel, you can estimate the amount from the colour
of the optical level indicator C located next to the cap. When the rinse-aidcontainer is full, the whole
indicator will be dark .As the rinse-aid diminishes, the size of the dark dot decreases. You should never let
the rinse aid level fall 1 / 4 full.
during the nextwash. Don'tforgetto replacethe cap before you close dishwasher door.
Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming
Detergents with its chemical ingredients are necessary to remove dirt,crush dirtand transport it out of the dishwasher.
Most of the commercial quality detergents are suitablefor this purpose.
""
ProperUse of Detergent
Useonly detergent specificallymade for the use in dishwashers. Keep yourdetergent fresh and dry.
Don't put powdereddetergent into the dispenser until you're ready to wash dishes.
Attention!

Amountof DetergenttoUse
Dishwasher detergent is corrosive! Take care to keep it out of reach of children.
Basedontheir chemicalcomposition, detergentscan besplit in twobasic types:
Detergent tabletsofdifferent brandsdissolve atdifferent speeds. For thisreasonsome
detergenttablets cannot dissolve and develop theirfull cleaning power during short
programs. Therefore please use long programs whenusingdetergent tablets, to
ensure the complete removal of detergent residuals.
The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the wash cycle table . Your dishwasher uses less detergent and rinse aid than
Conventionaldishwasher.Generally, only one tablespoon of detergent is needed for
anormal wash load. Moreheavily soileditems need more detergent.Alwaysaddthe
detergent just before starting the dishwasher, otherwise it couldgetdamp and will not
dissolve properly.
Concentrated Detergent
DetergentTablets
Detergent Dispenser
conventional, alkaline detergentswith causticcomponents
low alkaline concentrated detergents with natural enzymes
Normally new pulverised detergent is without phosphate.Thus the watersoftener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardness of water is only 6 dH. If detergents without phosphate are used in the case of hard water
often white spots appear on dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
be removed completely. In thiscase please choosea program with a higher temperature.
°
Detergents
There are 3 sorts of detergents
1.Withphosphate andwithchlorine
2.With phosphate and without chlorine
3.Withoutphosphate and without chlorine
Always add the detergent just before starting each wash cycle.
Only use branded detergentaidfordishwasher.
If the lid is closed: press release button.The lid will spring open.
Detergent tablet
Detergent powder

Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on the right:
Theplace of main wash cycle detergent placed.
Theplace of pre-wash cycle detergent placed.
Please observe the manufacturers dosing and storage
Recommendations asstatedonthedetergent packaging.
Close the lid and press untilit locks in place.
If the dishes are heavily soiled, place anadditional
detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.
A
B
Fill in Detergent
You find information about the amount of detergent for thesingle programme onthe last page.
Pleaseaware, that accordingtothe level soiling and the specific hardness of water differencesare possible.
Pleaseobserve themanufacturer's recommendations onthe detergentpackaging.

Cutlery withwooden,horn china or
mother-of-pearl handles
Plastic items that arenot heat resistant
Older cutlery with glued parts that arenot
temperatureresistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made fromsyntheticfibres
Some types of glasses can become
dull aftera large number of washes
Silver and aluminum parts have a
tendency to discolourduringwashing
Glazed patterns may fade if machine
washed frequently
Are not suitable Are oflimited suitability
Dishesand itemsof cutlery mustnot lie insideoneanother, orcover each other.
To avoid damage to glasses, theymust not touch.
Load large itemswhich are most difficult to clean into the lower basket.
The upper basket is designed to holdmoredelicate and lighter dishware such as glasses, coffee
andteacups
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp itemsof cutlery such as carving knives must be positioned
horizontallyin the upper basket.
Please do not overload your dishwasher. This is important forgood results and for
reasonable consumption of energy.
Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that
water cannot collect in the container or a deepbase.
Consider buyingutensils which are identifiedas dishwasher-proof.
Usea mild detergentthatis describedas 'kind todishes'. Ifnecessary,seek further
information from thedetergent manufacturers.
Forparticular items,select aprogramwith aslowa temperatureaspossible.
Toprevent damage, do not take glass and cutlery out of the dishwasher immediately
after the programme has ended.
(For best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlerybasketsmay vary from your model.)
Scrape off any largeamounts ofleftover food. Soften remnants of burnt food in pans.
It is not necessary to rinse thedishes under running water.
Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tipover.
4.All utensils are placed in the way thatthe spray arms can rotate freely during washing.
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the lower basket first and then the upper basket.

The upper basket is designed to hold more delicate
and lighter dishware such as glasses, coffee and
teacups and saucers, aswell as plates, small bowls
andshallowpans (as long astheyarenot toodirty).
Positionthedishes andcookwaresothatthey will
notgetmoved bythespray ofwater.
We suggest that you place large items and the most
difficult to cleanitemsaretobe placedintothelower
basket: suchas pots, pans, lids, serving dishes and
bowls, as shown in the figure below. It is preferable to
place serving dishes and lids on the side of the racks
in order to avoid blocking the rotation of the top spray
arm.
Pots,servingbowls,etc,mustalwaysbeplacedtopdown.
Deep pots should be slanted to allow water to flow out.
Please be reminded that:
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.
Folding Spikes of Lower Basket
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Adjusting the Upper Basket
The height of the upperbasket can be adjusted in order to
create more space for largeutensilsboth for the upper
/lower basket. The height of the upper basket can be
adjusted byplacingthewheels on different heightofthe
rails. Long items, serving cutlery, salad servers and knives
shouldbeplacedontheshelfsothattheydonotobstruct
therotationofthesprayarms..
Folding back the cup shelives
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Cutleryshouldbe placed inthecutlery rackseparately
from each other in the appropriate positions, and do
make sure theutensils do not nest together, this may
causebadperformance.
The upper basket is designed to hold more delicate
and lighter dishware such as glasses, coffee and
teacups and saucers, aswell as plates, small bowls
andshallowpans (as long astheyarenot toodirty).
Positionthedishes andcookwaresothatthey will
notgetmoved bythespray ofwater.
We suggest that you place large items and the most
difficult to cleanitemsaretobe placedintothelower
basket: suchas pots, pans, lids, serving dishes and
bowls, as shown in the figure below. It is preferable to
place serving dishes and lids on the side of the racks
in order to avoid blocking the rotation of the top spray
arm.
Pots,servingbowls,etc,mustalwaysbeplacedtopdown.
Deep pots should be slanted to allow water to flow out.
Please be reminded that:
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.
Folding Spikes of Lower Basket
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Adjusting the Upper Basket
The height of the upperbasket can be adjusted in order to
create more space for largeutensilsboth for the upper
/lower basket. The height of the upper basket can be
adjusted byplacingthewheels on different heightofthe
rails. Long items, serving cutlery, salad servers and knives
shouldbeplacedontheshelfsothattheydonotobstruct
therotationofthesprayarms..
Folding back the cup shelives
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Cutleryshouldbe placed inthecutlery rackseparately
from each other in the appropriate positions, and do
make sure theutensils do not nest together, this may
causebadperformance.

*EN 50242 : This programme is the test cycle. The information for comparability test
in accordance with EN 50242, as follows:
Capacity: 14 setting
Position Upper basket: upper wheels onrails
Rinse aid setting: 6
Pl:0.49w; Po:0.45w.
Starting a cycle wash
Draw out the lower and upper basket, load the dishes and push them back.
Itis commended to load the lower basketfirst, then the upper one (see the section entitled
Loading the Dishwasher ).
Pour in thedetergent (see the section entitled Salt, Detergent and RinseAid ).
Insert the plug into the socket. The power supply is 220-240 VAC /50 Hz, the specification
of thesocket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
Close the door, press the ON/OFF Button, and the ON/OFF light will turn on.
“”
“”
Press the program Button , the wash program willbechanged as followsdirection:
If a program is selected, the response light will light. Then close the doorand
Intensive->Normal->ECO->Glass->1Hour ;->Rapid
1
2
3
4
5
PresstheStart/Pause
Button,the dishwasher begins to start.
Means: need to fill rinse into the Rinse-Aid Dispenser.
()
ECO
Intensive
Normal
(*EN 50242)
5/25g
5/25g
5/25g
Rapid
Pre-wash(50 )
Wash (65 )
Rinse
Rinse
Rinse(55 )
Drying
℃
℃
℃
Pre-wash( 45 )
Wash (55 )
Rinse
Rinse(65 )
Drying
℃
℃
℃
Wash (50 )
Drying
Pre-wash
Rinse
Rinse(60 )
℃
℃
Wash (40 )
Rinse
Rinse (45 )
℃
℃
160
170
140
40
1.35
1.02
1.45
0.6
19
15
12
11.5
1Hour
Wash(60 )
Rinse(55 )
Drying
Pre-wash(50 )℃
℃
℃
60
10
1
5/25g
20g
Glass
Rinse
Drying
Pre-wash
wash(40 )
Rinse(60 )
℃
℃
120
0.85
15
5/25g
For normally soiled loads,
such as , plates,glasses
andlightly soiled pans.
pots
For heaviest soiled crockery,
and normally soiledpots
pans dishesetc withdried
onsoiling.
、
、
Ashorter wash for lightly
soiled loadsthat do not
needdrying.
For lightlysoiled loads that
donot need excellent drying
efficiency.
For lightlysoiled crockery
and glass.
(or )3in1
(or )3in1
(or )3in1
Thisis Standard programme,
it is suitable to clean normally
soiled tableware andit is the
mostefficientprogrammein
teams of its combined energy
and waterconsumption for
that type of tableware.

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off
the appliance using the ON/OFF button, shut offthe water supply and open the door of the dishwasher.
Wait for afew minutesbefore unloading thedishwasher toavoidhandling the dishes and utensils while they
are still hot and more susceptible to breakage. They will also dry better.
Switch Off theDishwasher
1.Switch off the dishwasher by pressing the ON/OFF button.
2.Turnoffthewatertap!
The program light is on but is not blinking, only in this case the programme has ended.
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should thereforebe allowed to cool down around 15 minutes
before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloadingthe dishwasher
It is normal that the dishwasher is wet inside.
Empty thelower basket first and then the upperone. This will avoid water dripping from the upper Basket onto
the dishes in the lower one.
Aforgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working, you can open the door
completely.
2
3
Open the door a little .
14
5
The dishwasher will run after 10 seconds.
Wash thearms in soapy and warm water and use a soft brush to
clean thejets. Replace them afterrinsing them thoroughly.
When following this procedure from step1 to step 3, the filter system will be removed;
when following it from Step 3 to Step 1, the filter system will be installed.
It is dangerous to open the door when washing, because the hot water may scald you.
If you open the door , the machine will pause. The program light will
stop blinking and the buzzer will mooing every minuteunless you close the door . After
you close the door ,the machine will keepon workingafter 10 seconds.
during awashcycle
Premise:
Acycle that is underway can only be modified if it has only been running for a short time. Otherwise, the
detergent may have already been released, and the appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the
Detergent " ).
Then you can change theprogram to the desired cycle setting,
(see the section entitled " Starting a wash cycle. . ." ).
Press the Start/Pause Button to stop washing ,Then press programme button after 3 seconds, the programme will cancel
Press the Start/Pause Button, the dishwasher will run
after 10seconds.
1
2
When you press the Start/Pause button to pause during washing, the will
stop blinkingand the dishwasher will mooingeveryminute unless you pressthe
Start/Pause button to start.
runningindicator
If your model has broken rememberfunction, themachine will go on to finish the selected
program .
after the power cut

The filter preventslarger remnants of food or other objects from getting inside the pum.
Theresidues may block thefilter, inthis casethey mustbe removed.
The filter system consists of a coarse filter,a flat (Main filter)
Anda microfilter(Fine filter).
Food and soil particles trapped inthisfilter arepulverizedby a
special jet onthe lower spray arm and washed down to drain.
Larger items, such as pieces of bones or glass, that could block
the drainaretrappedin the coarse filter. To removetheitems
caught by the filter, gently squeeze the tap on thetop of this
filterandliftout.
Thisfilter holds soiland food residuesin the sumpareaand
preventsitfrom being redeposit on the dishes during wash cycle.
Main filter
1
Coarse filter
2
Fine filter
3
2
3
1
Filterassembly
Thefilter efficiently
For best performance and results, the filter must be cleaned regularly. this reason, it is a good idea to
remove the larger food particlestrapped in the filter after each wash cycle by rinsing the semicircular filter and
cup under running water. To remove the filter device, pull the cup handle in the upward direction.
removes food particles from the wash water,allowing it to be recycled during the cycle.
For
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance level ofthe appliance
and damage dishes and utensils.
1
2
Step 1 Turn the filter in anti-clockwise direction,：
Step 2 lift the filter assy up：
When following this procedure from step1 to step 2, the filter system will be removed;
when following it from Step 2 to Step 1, the filter system will be installed.

The control panel can be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appliance polish wax.
Never usesharp objects, scouring pads or harsh cleaners onany part of the dishwasher.
ProtectAgainst Freezing
1.Cut off the electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain the water from the inlet pipe andwater valve. (Use a pan to gather the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottomof the tub and use a sponge to soak up water in the sump.
please take frost protection measures on the dishwasher in winter. Every fter washing cycles,
please operate as follows time a
：
Cleaning the Filter
CleaningThe Door
To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures
on the last page and reinsert the entire assembly in the dishwasher, positioning it in itsseat and pressing downwards.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted andtheperformance ofthe dishwasher couldbe decreased.
To clean theedge around the door, you should use only a soft warm, damp cloth.
To avoid penetrationof waterinto the door lock and electrical components, do not
use a spray cleaner of any kind.
Never usea spray cleaner to clean the door panel as it may damage the door lock
and electricalcomponents.
Abrasive agents or some paper towels should not be used because of the risk of
scratching or leaving spots on the stainless steel surface.
Cleaning the SprayArms
If your dishwasher cannot work because of the ice,
please contact professional service persons.
It is necessary to clean the spray arms regularly for hard
waterchemicalswillclogthesprayarmjetsandbearings.
- Inspect the filters for blocking after every time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Removeany foodremnants and
cleanthefilters underrunningwater.
Remarks:
The entirefilter assembly shouldbe cleaned once a week.
Toremovethelowersprayarm,pull out the spray armupward.

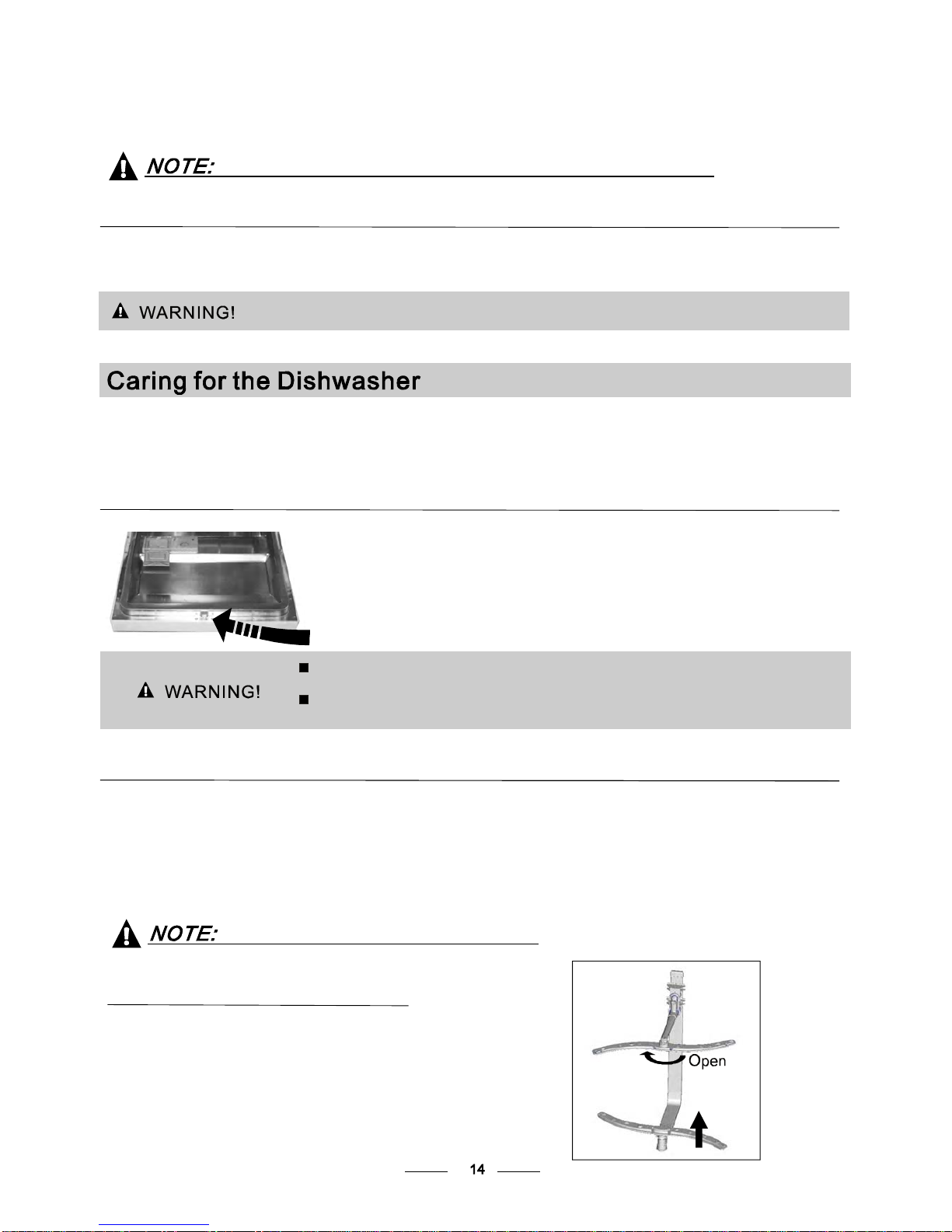

To remove the upper spray arm, hold the nut, rotate the arm
clockwise toremoveit.
Wash the arms in soapy and warm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.

Itis recommend that yourun awashcycle with the
dishwasher empty and then remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
sealstolastlongerandpreventodoursfromforming
withintheappliance.
If the appliance must be moved, try to keep it in the
vertical position.If absolutelynecessary, itcanbe
positioned on its back.
Oneofthefactorsthatcauseodourstoforminthe
dishwasher is food that remains trapped in the seals.
Periodic cleaning with adamp sponge will prevent this
from occurring.
Before cleaning or performing maintenance, always
remove the plug from the socket.
Tocleantheexteriorandrubberparts ofthedishwasher,
donot use solventsor abrasive cleaning products.
Only use acloth with warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened withwater an a little
vinegar, or a cleaning product madespecifically for
dishwashers.
Remove the Plug
No Solvents orAbrasive Cleaning Moving theAppliance
Seals
After every wash, turn off the water supply to the
appliance and leave the doorslightlyopen so that
moisture and odours are not trapped inside.
After Every Wash
When not in Use for aLongTime
Ensure the voltage and frequency of the power being corresponds to
those on the rating plate. Only insert the plug into an electrical socket whichis earthed
properly. If the electrical socket to which the appliance must be connected is not
appropriate fortheplug, replace the socket, ratherthan usingaadaptors orthelike as
they couldcause overheatingandburns.
Pleaselook at therating label to know the ratingvoltage and connectthe dishwasher to the appropriate power supply.
Use the required fuse 10 amp, timedelay fuse or circuitbreaker recommended and provide separate circuit serving
only this appliance.
Position the appliance in the desired location.The back should rest against the wall behind it, and the sides,
along the adjacent cabinets or walls.The dishwasher is equippedwith water supply and drain hoses thatcan
be positioned either to the right or theleft sides to facilitate proper installation.
Once the appliance is positioned for levelling, the height of the dishwasher
may be alteredvia adjustment of the screwing level of the feet. In any case,
theapplianceshould notbe inclined more than 2 .
For personal safety:
DO NOT USEAN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDERANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING
CONNECTION FROM THE POWER CORD.
This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of
electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a
cord having an equipment-earthing conductor and an earthing plug. The plug mustbe plugged into an
appropriate outlet that is installed and earthed in accordance with all local standards and requirements.

Connect thecold water supply hose to a threaded 3/4(inch) connector and make sure
that it is fastened tightly in place.
If the water pipes are new or have not been used for an extended period of time, let the
water run to make sure that the water is clear. This precaution is needed to avoid the
risk of the water inlet to be blocked and damage theappliance.
Please closethe hydrant after using.
for personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE
FROM THE POWER CORD. EARTHING CONNECTION
Improper connection of the equipment earthing conductor can result in the risk of an
electric shock.
Check with a qualified electrician or service representative if you are in doubt whether the
appliance is properly earthed.
Do not modify the plug provided with the appliance. If the plug does not fit properly to the
outlet, please have a qualified electrician to install a proper outlet.

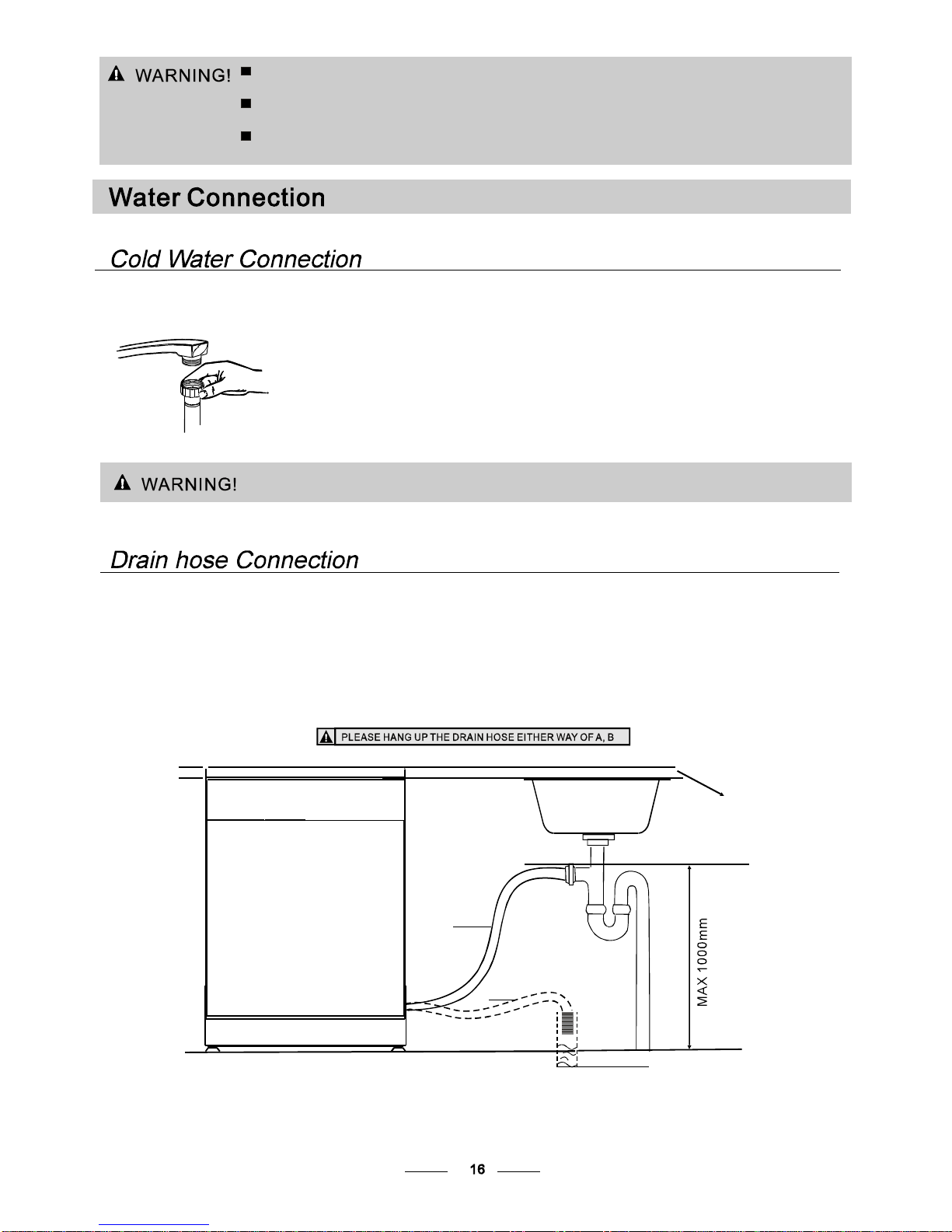

Insert the drainhose into adrainpipe with a minimum diameter of 40mm,or letit run into the sink, making sureto
avoid bendingor crimpingit.The topof the hosemust be lessthan 1000mm.
A
Counter
Front
Drain pipe
NOTE
The top of the hose
must be less than
1000mm.
φ40mm
B

The following things should be checked before starting the dishwasher.
The content of this manual is very helpfulto the users.
After installation, please make sure tokeep this manual.
1
The dishwasher is level and fixed properly
2 The inlet valve is open
3 There is a leakage at the connections of theconducts
4 The wires aretightly connected
5 The power is switched on
6 The inlet and drain hoses are knotted
7 Allpackingmaterials andprintings shouldbe taken out from the dishwasher
Extension Hose
Ifyou needa drainhoseextension,makesure tousea similar drain hose.
It mustbe no longer than 4 metres; otherwise the cleaning effectof the dishwasher could be reduced.
Water Outlet
Connect the waterdrain hose.The drain hose must be correctly fittedto avoid water leaks.
Ensure that the water drain hose is not kinked or squashed.
If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly
into the sink.Itwillbe necessary todrainexcesswater from hosesinto abowlorsuitable
container that is held outside and lower thanthe sink.
How to Drain Excess Water From Hoses
Syphon Connection
The waste connection must be at a height less than 1000 mm (maximum) from the bottom of the dish.
The water drain hose should befixed .
