Russound ACT-1 User manual

LIMITED WARRANTY
The Russound ACT-1 and ACT-1UK are fully guaranteed for Two (2) years from the date of purchase
against all defects in materials and workmanship. During this period Russound will replace any defec-
tive parts and correct any defect in workmanship without charge for either parts or labor. For this
warranty to apply, the unit must be installed and used according to its written instructions. If service is
necessary, it must be performed by Russound. The unit must be returned to Russound at the owner’s
expense and with prior written permission. Accidental damage and shipping damage are not consid-
ered defects under the terms of the warranty. Russound assumes no responsibility for defects resulting
from abuse or servicing performed by an agency or person not specifically authorized in writing by
Russound. Damage to or destruction of components due to improper use voids the warranty. In these
cases the repair will be made at the owner’s expense. To return for repairs, the unit must be shipped to
Russound at the owner’s expense, along with a note explaining the nature of the service required. Be
sure to pack in a corrugated container with at least 3 inches of resilient material to protect the unit
from damage in transit.
5 Forbes Rd. Newmarket, NH 03857, USA
☎ 603.659.5170 • Fax [phone]
e-mail: [email protected]
Come visit us at:
12VDC Triggered ACOutlet
ACT-1
Instruction Manual
ACT-1 120VAC
ACT-1UK 230VAC
SPECIFICATIONS
ACT-1 ACT-1UK
Current Rating: 10 amps at 120VAC 10 amps at 230VAC
Circuit Breaker: 10 amp re-settable 10 amp re-settable
12VDC Input Connector: 1/8” male jack, 1/8” male jack,
tip(+), sleeve(-) tip(+), sleeve(-)
Input DC Current: 100mA at 12VDC 100mA at 12VDC
Weight: 12.5oz (.4kg) 12.5oz (.4kg)
Dimensions: 3 3/4”W x 2”H x 5”D 3 3/4”W x 2”H x 5”D
(9.5 x 5.1 x 12.7 cm) (9.5 x 5.1 x 12.7 cm)
NOTICE
ACT-1 Must Mount Vertically.
ACT-1 Doit Monter Verticalement.
ACT-1 ACT-1UK

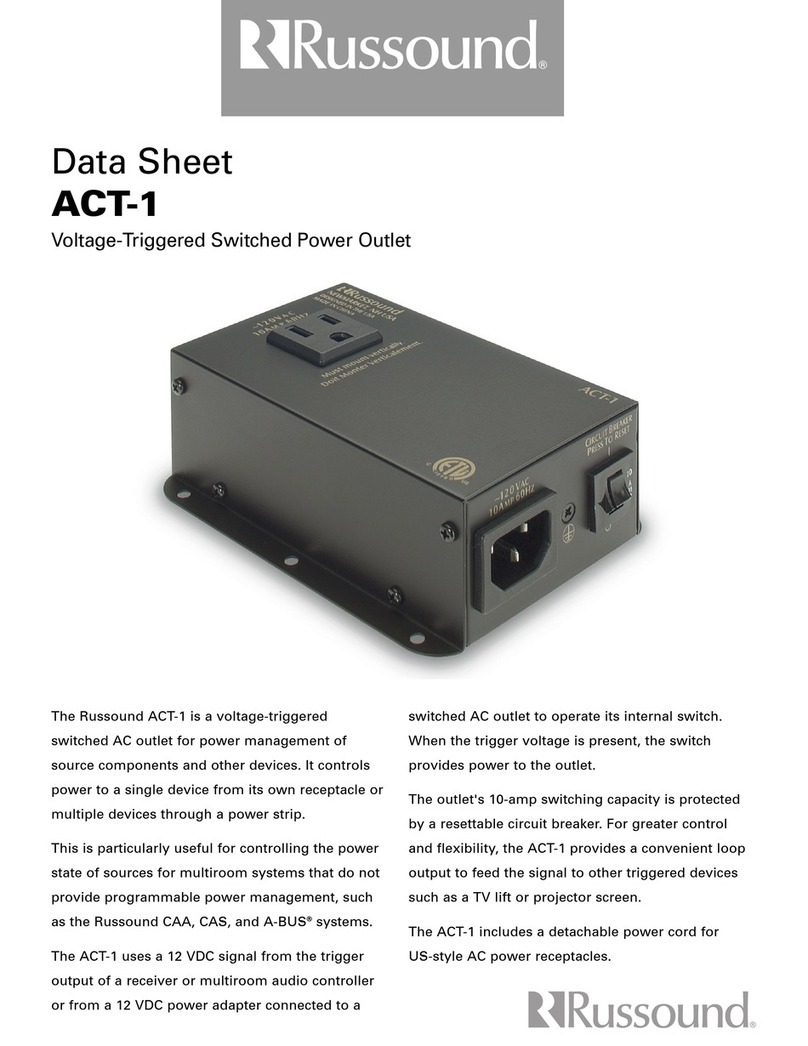

PRODUCT OVERVIEW
The ACT-1 is a 12 Volt DC triggered 120 or 230 VAC outlet with a re-set-
table circuit breaker. The ACT-1 can switch up to 10 Amps to a power strip
or a single component. When activated by a 12 Volt Trigger output (from an
audio distribution system for example) the ACT-1 can be used to turn on the
power to several audio components or other devices.
MOUNTING
The ACT-1 can be mounted to a flat surface using the holes located along
the side flanges. See Figure 1.
CONNECTION INSTRUCTIONS
Connect the ACT-1 to the component with the 12 Volt triggered ouput
(rated at 100mA or greater) using an 1/8” jack. The tip is positive (+) and the
sleeve is negative (-). Plug the ACT-1 ACpower cord into a standard 120VAC
outlet (230VACon UKmodel) and plug the component or power strip into
the AC outlet on the side of the ACT-1. See Figure 2.
The 12 Volt Trigger Output can be used to loop the 12V trigger to another
device.
Figure 1
12V
TRIG
100mA
Loopto other12VDC
triggereddevice
12VDCTriggerOutput
fromAudioDistribution System
120VACOutlet
Tuner
Power Strip
CD
Tape
1/8"
Phono
Jack
Neg(-)
Pos (+)
Figure 2 - Connections for ACT-1
10
A
M
P
C
IRCUIT
B
REAKER
P
RESS
T
O
R
ESET
I
O
~230V
AC
10A
MP
50H
Z
10
A
M
P
Figure 3 - ACT-1 Rear
Figure 4 - ACT-1UK Rear
NOTE: Connections for the ACT-1UK
work the same as the ACT-1 even
though the jacks look different.
US UK
