Russound BSK-1 User manual
Overview
The BSK-1 Bluetooth Source Kit enables the user of a portable
media player, smartphone, or other Bluetooth equipped device
to wirelessly transmit audio content to any typical audio

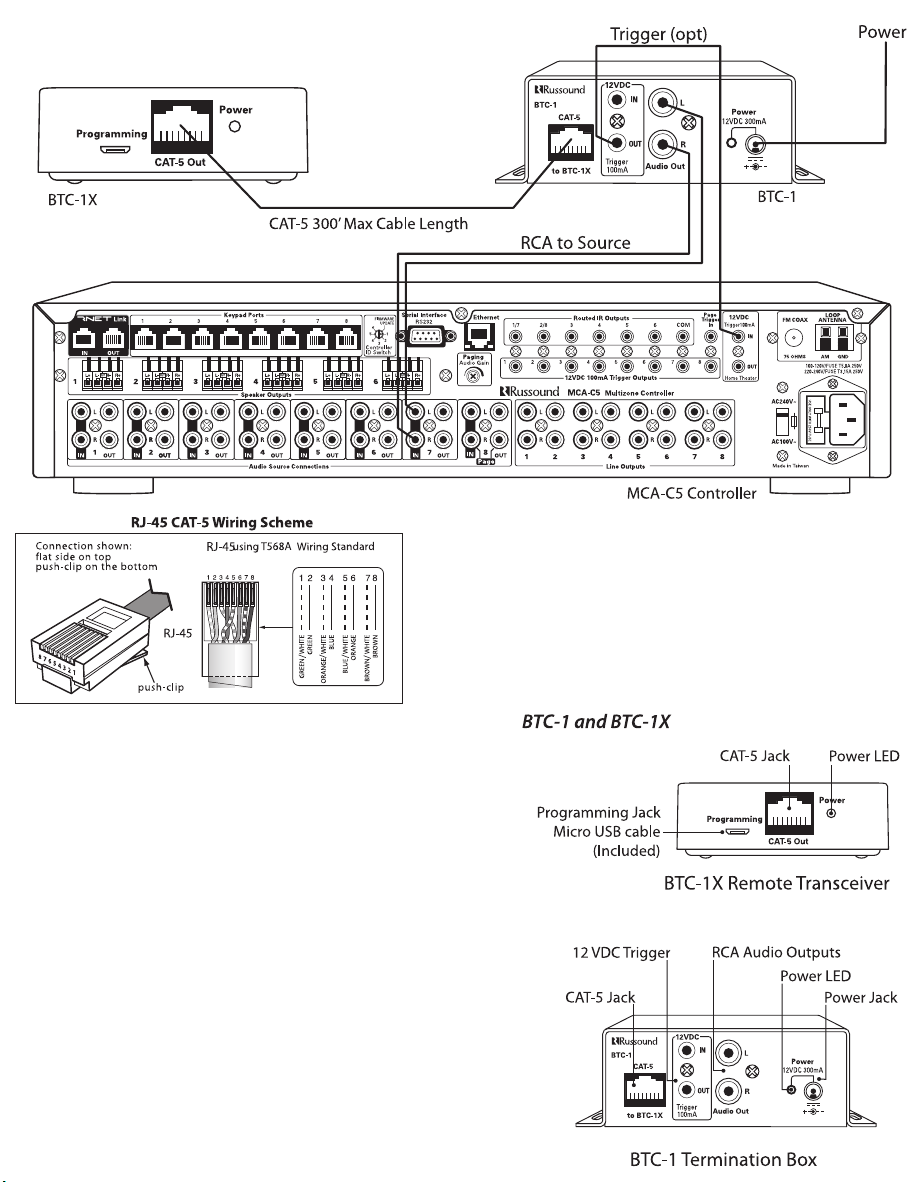

system. The BTC-1X Remote Transceiver connects to the BTC-1
Termination Box via a single CAT-5 cable. The CAT-5 cable both
powers the transceiver and transmits audio signals from the
BTC-1 Termination Box which is then connected to any amplier
or receiver for audio and 12VDC trigger signals. On Russound
multiroom audio systems, it can be designated either as a
global source for the multiroom system or as a local source for
an individual "Primary Zone" with automatic control over zone
power, source selection and volume level.
The compact BTC-1X Remote Transceiver can sit on a at
surface or be placed in a standard electrical box in an ideal
location so that the user can connect and move throughout the
listening area without interrupting the audio stream. Housed in
a compact surface-mount metal box, the BTC-1 Termination Box
is connected directly to the amplier or receiver via RCA audio
patch cables and an optional 12VDC trigger cable.
Safety Instructions
1. Read Instructions - All the safety and operating instructions
should be read before the equipment is operated.
2. Retain Instructions - The safety and operating instructions
should be retained for future reference.
3. Heed Warnings - All warnings on the equipment in the
operating instructions should be adhered to.
4. Follow Instructions - Follow all operating and user
instructions.
5. Water and Moisture - The equipment should not be used
near water; for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool.
6. Mounting - The equipment should be mounted or secured as
recommended by the manufacturer.
7. Heat - The equipment should be situated away from heat
sources such as radiators, heat registers, stoves, or other equipment
(including ampliers) that produce heat.
8. Power Sources - The product should be connected to a power
supply only of the type described in the operating instructions or
as marked on the equipment.
9. Grounding or Polarization - Precaution should be taken so
that the grounding or polarization means of the product is not
defeated.
10. Avoid spills and foreign objects. Ensure liquids and objects
don’t get into the product enclosure through any openings.
11. Damage Requiring Service - The equipment should be
serviced by qualied service personnel when: the power supply
cord or the plug has been damaged; objects have fallen, liquid has
been spilled into the equipment; the equipment has been exposed
to rain; the equipment does not appear to operate normally; or the
equipment has been dropped or the enclosure is damaged.
12. Servicing - The user should not attempt to service the
equipment beyond that described in the operating instructions. All
other servicing should be referred to qualied service personnel.
13. Care – From time to time you should wipe any dust
accumulation from the equipment with a soft dry cloth.
Copyright ©2020 Russound/FMP Inc. All rights reserved. All trademarks
are the property of their respective owners. Russound is not responsible
for typographical errors or omissions. Specications are subject to change
without notice.
The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Russond is under license.
Other trademarks and trade names are those of their respective owners.
Russound, Inc. 1 Forbes Rd., Newmarket, NH 03857, USA
tel 603.659.5170 • fax 603.659.5388 www.russound.com
28-1369 09.14.20, Rev. 7
fold
fold
fold
fold
fold
fold
fold fold
Testing
Verify the red power LED is lit on the BTC-1 Termination
Box and the green LED is lit on the BTC-1X Remote
Transceiver.
Turn on a Bluetooth® enabled source i.e. media player,
smartphone, or computer. Open the Bluetooth menu
and enable the pairing feature on the device. Select the
Russound BSK-1 product by its congured name from the
list of available Bluetooth enabled products.
Select the desired audio from the device and start the
playback.
For Local Source congurations
The Local Source feature is designed for use when the
Primary Zone is in the O state and is not available if the
Primary Zone is already in use.
When an audio output signal from the BSK-1 is detected
by the MCA-Series controller, the Primary Zone will turn
on, select the BSK-1 source and set the zone's volume level
based on the settings made through WebCong software.
The volume on the source device should be at its highest
setting to assure the audio output level from the BSK-1 will
be strong enough to detect and activate the Local Source
feature. If the audio signal level is not strong enough
for the MCA-Series controller to detect, the local source
feature will not activate or, if already in use, will shut the
local source feature o after 10 minutes of no audio signal
detection.
For non-Local Source congurations
Turn on a zone and select the BSK-1 source input and
adjust the volume to the desired level. Audio from the
Bluetooth enabled source should be heard throughout the
zone.
Normal Use
Only one device at a time may be actively paired with
the BSK-1 in the multiroom system. Activate the Bluetooth
feature from the source device and connect or 'pair' with
the BSK-1 by selecting its assigned name. If being used as a
Local Source and the Primary Zone is in the O state, it will
automatically be turned on, select the BSK-1 source input
and volume level adjusted. Otherwise manually choose
your music and start playing. Choose the appropriate
source input on the Russound system and enjoy the music.
When nished, disconnect your device from the BSK-1 or
turn o the Bluetooth feature of the source device. If you
move your device out of range (15M without obstruction)
it will automatically sever the connection. If you are unable
to connect to the BSK-1, another device within range may
be connected.
Specications
BTC-1X Remote Transceiver
Power requirements: supplied by BTC-1 via CAT-5
Frequency: 2,400-2,483.5 MHz
CAT-5 connection: RJ-45 (T568A standard)
Dimensions: 70mm x 56mm x 26mm (W x D x H)
Weight: 3.1 ounces
Max cable length: 300’(CAT-5) BTC-1X to BTC-1
50', (15M) without obstruction|
BTC-1 Termination box
Power requirements: 12VDC 300mA
CAT-5 connection: RJ-45 (T568A standard)
Trigger Output: 12VDC 100 mA Max
Trigger Input: 12VDC
Audio Connections: 2 RCA
Dimensions: 122mm x 51mm x 38mm (W x D x H)
Weight: 7.3 ounces
Max cable length: 25’(RCA cable) BTC-1 to
Amplier/ Receiver
300’ (CAT-5) BTC-1X to BTC-1
Limited Warranty
The Russound BSK-1 is fully guaranteed for two (2) years
from the date of purchase against all defects in materials and
workmanship. During this period Russound will replace any
defective parts and correct any defect in workmanship without
charge for either parts or labor. For this warranty to apply, the unit
must be installed and used according to its written instructions. If
service is necessary, it must be performed by Russound. Russound
assumes no responsibility for defects resulting from abuse or
servicing performed by an agency or person not specically
authorized in writing by Russound. Damage to or destruction of
components due to improper use voids the warranty. In these
cases the repair will be made at the owner’s expense. Accidental
damage and shipping damage are not considered defects under
the terms of the warranty. To return for repairs, the unit must
be shipped to Russound at the owner’s expense, along with a
Return Authorization number and documentation explaining
the nature of the service required. Any product returned without
prior written permission will be returned to sender. Russound
sells products only through authorized Dealers and Distributors
to ensure that customers obtain proper support and service.
Any Russound product purchased from an unauthorized dealer
or other source, including retailers, mail order sellers and online
sellers will not be honored or serviced under existing Russound
warranty policy. Any sale of products by an unauthorized source
or other manner not authorized by Russound shall void the
warranty on the applicable product.
To obtain Return Authorization please contact us at:
rarequest@russound.com
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15 of
the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one of or
more of the following measures: reorient or relocate the receiving
antenna; increase the separation between the equipment and
receiver; connect the equipment into an outlet on a circuit
dierent from that to which the receiver is connected, or consult
the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Overview
The BSK-1 Bluetooth Source Kit enables the user of a portable
media player, smartphone, or other Bluetooth equipped device
to wirelessly transmit audio content to any typical audio
system. The BTC-1X Remote Transceiver connects to the BTC-1
Termination Box via a single CAT-5 cable. The CAT-5 cable both
powers the transceiver and transmits audio signals from the
BTC-1 Termination Box which is then connected to any amplier
or receiver for audio and 12VDC trigger signals. On Russound
multiroom audio systems, it can be designated either as a
global source for the multiroom system or as a local source for
an individual "Primary Zone" with automatic control over zone
power, source selection and volume level.
The compact BTC-1X Remote Transceiver can sit on a at
surface or be placed in a standard electrical box in an ideal
location so that the user can connect and move throughout the
listening area without interrupting the audio stream. Housed in
a compact surface-mount metal box, the BTC-1 Termination Box
is connected directly to the amplier or receiver via RCA audio
patch cables and an optional 12VDC trigger cable.
Safety Instructions
1. Read Instructions - All the safety and operating instructions
should be read before the equipment is operated.
2. Retain Instructions - The safety and operating instructions
should be retained for future reference.
3. Heed Warnings - All warnings on the equipment in the
operating instructions should be adhered to.
4. Follow Instructions - Follow all operating and user
instructions.
5. Water and Moisture - The equipment should not be used
near water; for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool.
6. Mounting - The equipment should be mounted or secured as
recommended by the manufacturer.
7. Heat - The equipment should be situated away from heat
sources such as radiators, heat registers, stoves, or other equipment
(including ampliers) that produce heat.
8. Power Sources - The product should be connected to a power
supply only of the type described in the operating instructions or
as marked on the equipment.
9. Grounding or Polarization - Precaution should be taken so
that the grounding or polarization means of the product is not
defeated.
10. Avoid spills and foreign objects. Ensure liquids and objects
don’t get into the product enclosure through any openings.
11. Damage Requiring Service - The equipment should be
serviced by qualied service personnel when: the power supply
cord or the plug has been damaged; objects have fallen, liquid has
been spilled into the equipment; the equipment has been exposed
to rain; the equipment does not appear to operate normally; or the
equipment has been dropped or the enclosure is damaged.
12. Servicing - The user should not attempt to service the
equipment beyond that described in the operating instructions. All
other servicing should be referred to qualied service personnel.
13. Care – From time to time you should wipe any dust
accumulation from the equipment with a soft dry cloth.
Copyright ©2020 Russound/FMP Inc. All rights reserved. All trademarks
are the property of their respective owners. Russound is not responsible
for typographical errors or omissions. Specications are subject to change
without notice.
The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Russond is under license.
Other trademarks and trade names are those of their respective owners.
Russound, Inc. 1 Forbes Rd., Newmarket, NH 03857, USA
tel 603.659.5170 • fax 603.659.5388 www.russound.com
28-1369 09.14.20, Rev. 7
fold
fold
fold
fold
fold
fold
fold fold
Testing
Verify the red power LED is lit on the BTC-1 Termination
Box and the green LED is lit on the BTC-1X Remote
Transceiver.
Turn on a Bluetooth® enabled source i.e. media player,
smartphone, or computer. Open the Bluetooth menu
and enable the pairing feature on the device. Select the
Russound BSK-1 product by its congured name from the
list of available Bluetooth enabled products.
Select the desired audio from the device and start the
playback.
For Local Source congurations
The Local Source feature is designed for use when the
Primary Zone is in the O state and is not available if the
Primary Zone is already in use.
When an audio output signal from the BSK-1 is detected
by the MCA-Series controller, the Primary Zone will turn
on, select the BSK-1 source and set the zone's volume level
based on the settings made through WebCong software.
The volume on the source device should be at its highest
setting to assure the audio output level from the BSK-1 will
be strong enough to detect and activate the Local Source
feature. If the audio signal level is not strong enough
for the MCA-Series controller to detect, the local source
feature will not activate or, if already in use, will shut the
local source feature o after 10 minutes of no audio signal
detection.
For non-Local Source congurations
Turn on a zone and select the BSK-1 source input and
adjust the volume to the desired level. Audio from the
Bluetooth enabled source should be heard throughout the
zone.
Normal Use
Only one device at a time may be actively paired with
the BSK-1 in the multiroom system. Activate the Bluetooth
feature from the source device and connect or 'pair' with
the BSK-1 by selecting its assigned name. If being used as a
Local Source and the Primary Zone is in the O state, it will
automatically be turned on, select the BSK-1 source input
and volume level adjusted. Otherwise manually choose
your music and start playing. Choose the appropriate
source input on the Russound system and enjoy the music.
When nished, disconnect your device from the BSK-1 or
turn o the Bluetooth feature of the source device. If you
move your device out of range (15M without obstruction)
it will automatically sever the connection. If you are unable
to connect to the BSK-1, another device within range may
be connected.
Specications
BTC-1X Remote Transceiver
Power requirements: supplied by BTC-1 via CAT-5
Frequency: 2,400-2,483.5 MHz
CAT-5 connection: RJ-45 (T568A standard)
Dimensions: 70mm x 56mm x 26mm (W x D x H)
Weight: 3.1 ounces
Max cable length: 300’(CAT-5) BTC-1X to BTC-1
50', (15M) without obstruction|
BTC-1 Termination box
Power requirements: 12VDC 300mA
CAT-5 connection: RJ-45 (T568A standard)
Trigger Output: 12VDC 100 mA Max
Trigger Input: 12VDC
Audio Connections: 2 RCA
Dimensions: 122mm x 51mm x 38mm (W x D x H)
Weight: 7.3 ounces
Max cable length: 25’(RCA cable) BTC-1 to
Amplier/ Receiver
300’ (CAT-5) BTC-1X to BTC-1
Limited Warranty
The Russound BSK-1 is fully guaranteed for two (2) years
from the date of purchase against all defects in materials and
workmanship. During this period Russound will replace any
defective parts and correct any defect in workmanship without
charge for either parts or labor. For this warranty to apply, the unit
must be installed and used according to its written instructions. If
service is necessary, it must be performed by Russound. Russound
assumes no responsibility for defects resulting from abuse or
servicing performed by an agency or person not specically
authorized in writing by Russound. Damage to or destruction of
components due to improper use voids the warranty. In these
cases the repair will be made at the owner’s expense. Accidental
damage and shipping damage are not considered defects under
the terms of the warranty. To return for repairs, the unit must
be shipped to Russound at the owner’s expense, along with a
Return Authorization number and documentation explaining
the nature of the service required. Any product returned without
prior written permission will be returned to sender. Russound
sells products only through authorized Dealers and Distributors
to ensure that customers obtain proper support and service.
Any Russound product purchased from an unauthorized dealer
or other source, including retailers, mail order sellers and online
sellers will not be honored or serviced under existing Russound
warranty policy. Any sale of products by an unauthorized source
or other manner not authorized by Russound shall void the
warranty on the applicable product.
To obtain Return Authorization please contact us at:
rarequest@russound.com
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15 of
the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one of or
more of the following measures: reorient or relocate the receiving
antenna; increase the separation between the equipment and
receiver; connect the equipment into an outlet on a circuit
dierent from that to which the receiver is connected, or consult
the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Connection Instructions
Read all instructions before starting the installation.
Determine the ideal location for the BTC-1X Remote
Transceiver based on whether it will be a global or local
source, keeping in mind that structural elements, concrete,
and other 2.4 gHz transmitters may interfere with the
signal. The BTC-1X Remote Transceiver may be located in a
freestanding position or in a standard 18 ci electrical box.
The BTC-1X Remote Transceiver must be accessible for
programming a custom name later.
Route a single CAT-5 cable from the BTC-1 Termination
Box to the BTC-1X Remote Transceiver location. The
recommended maximum CAT-5 cable length is 300
feet (91.44 meters) between the BTC-1X and the BTC-1
Termination Box. If the BTC-1X location is freestanding,
the CAT-5 cable can be terminated to a RJ-45 wall plate
using the T568A standard wiring conguration. A CAT-5
jumper cable would then be connected from the wall plate
to the BTC-1X. If the location is in-wall, the CAT-5 cable is
routed into an 18 ci or larger US standard electrical work
box where it is terminated with a RJ-45 plug which is then
connected to the BTC-1X.
The BTC-1 Termination Box should be placed close to the
amplier or receiver (distance not to exceed 25 ft). Install
the BTC-1 by either mounting it to a at surface or to the
back of an A/V equipment rack using screws through the
holes in the mounting anges. Terminate the end of the
CAT-5 cable connected to the BTC-1X Remote Transceiver
with an RJ-45 plug using the T568A standard wiring
conguration. Connect the cable to the BTC-1 Termination
Box.
Connect RCA audio patch cables from the termination
box’s audio outputs to the designated source input on the
amplier/receiver.
The provided two conductor 12VDC trigger cable
terminated with a 1/8”male plug at each end is connected
from the termination box’s 12VDC trigger output to the
trigger input on the amplier/receiver. This will wake the
device from standby once the BSK-1 is actively paired with
aBluetooth® enabled source.
If this is to be used as a local source for a Russound
MCA-Series controller zone, use WebCong conguration
software to assign it to a Primary Zone and set the Local
Source turn on volume level which is unique from the
zone turn on volume level.
Connect the included 12VDC power supply to the
BTC-1 Termination Box but do not plug into the wall until
installation has been completed.
Connection DiagramSource conguration for Russound MCA-Series controllers
Congure the MCA-Series Controller using SCS-C5
conguration software.
The BSK-1 is supported by C-Series products with the
minimum rmware listed below :
MCA-C3 v4.00.00 or higher
MCA-C5 v5.00.00 or higher
MDK-C5 v5.00.00 or higher
SCS-C5 v5.00.00 or higher
My Russound v2.00.00 or higher
All current rmware update les are located on the
Russound Support center, www.russound.com.
The installer congures the source input which the
BSK-1 is connected to by selecting the device from the
drop-down list of source device types on the source setup
page. A drop down list will be presented for selection of
a Primary Zone with a default selection of 'None' along
with a turn on volume setting for the Primary Zone if this
is to be used as a Local Source. If this is to be used as a
global source for all zones leave the selection as 'None'.
Otherwise, select a Primary Zone from the list and adjust
the turn on volume for the Primary Zone for when the BSK-
1 is being used. Doing so enables the audio sensing for
that source input to trigger local source settings for the
selected zone as follows:
• Turn on the Primary Zone.
• Select the BSK-1 source for the Primary Zone
• Set the Primary Zone volume for Local Source use
Adjust the Source Volume Trim on the Source Summary
page within SCS-C5 so that the BSK-1 output level
appropriately matches that of the other audio sources.
Save the system conguration to the controller
Assigning a custom name to the device
The BTC-1X comes congured with the Name Russound.
To create a more secure network, it is recommended that
a unique Name be created at the time of installation and
provided to the homeowner.
Follow the steps below to create a unique Name for each
BTC-1X.
Note: CAT-5 cable must be connected during
programming to provide power to BTC-1X.
1. Plug in the micro USB cable (included) to the USB
programming port in the BTC-1X. (see diagram)
2 Connect the micro USB cable to the USB port on the PC.
3. Download the BSK-1 programming software from the
dealer portal at www.russound.com.
4. Launch the BTC-1X Conguration Tool software.
5. Enter a unique Name, then Write to device.
6. Disconnect the micro USB cable from the BTC-1X rst,
then cycle the power on the BTC-1X by removing the
CAT-5. Cycling the power will reboot the BTC-1X with
the assigned custom Name.
Important Considerations
• Disconnect the power cord to the controller before
making any connections to the controller.
• Verify that all connections and polarity are correct.
• Keep all power cords away from all signal cables to
prevent humming from induced noise.
• Choose reliable signal cables and patch cords.
• Avoid running audio cords or CAT-5 signal cables close
to house electrical wiring for any distance. If you have
to run them parallel, make sure to space the wires at
least two feet from the AC line. If you need to cross an
AC line it should be at a 90° angle.
Connection Instructions
Read all instructions before starting the installation.
Determine the ideal location for the BTC-1X Remote
Transceiver based on whether it will be a global or local
source, keeping in mind that structural elements, concrete,
and other 2.4 gHz transmitters may interfere with the
signal. The BTC-1X Remote Transceiver may be located in a
freestanding position or in a standard 18 ci electrical box.
The BTC-1X Remote Transceiver must be accessible for
programming a custom name later.
Route a single CAT-5 cable from the BTC-1 Termination
Box to the BTC-1X Remote Transceiver location. The
recommended maximum CAT-5 cable length is 300
feet (91.44 meters) between the BTC-1X and the BTC-1
Termination Box. If the BTC-1X location is freestanding,
the CAT-5 cable can be terminated to a RJ-45 wall plate
using the T568A standard wiring conguration. A CAT-5
jumper cable would then be connected from the wall plate
to the BTC-1X. If the location is in-wall, the CAT-5 cable is
routed into an 18 ci or larger US standard electrical work
box where it is terminated with a RJ-45 plug which is then
connected to the BTC-1X.
The BTC-1 Termination Box should be placed close to the
amplier or receiver (distance not to exceed 25 ft). Install
the BTC-1 by either mounting it to a at surface or to the
back of an A/V equipment rack using screws through the
holes in the mounting anges. Terminate the end of the
CAT-5 cable connected to the BTC-1X Remote Transceiver
with an RJ-45 plug using the T568A standard wiring
conguration. Connect the cable to the BTC-1 Termination
Box.
Connect RCA audio patch cables from the termination
box’s audio outputs to the designated source input on the
amplier/receiver.
The provided two conductor 12VDC trigger cable
terminated with a 1/8”male plug at each end is connected
from the termination box’s 12VDC trigger output to the
trigger input on the amplier/receiver. This will wake the
device from standby once the BSK-1 is actively paired with
aBluetooth® enabled source.
If this is to be used as a local source for a Russound
MCA-Series controller zone, use WebCong conguration
software to assign it to a Primary Zone and set the Local
Source turn on volume level which is unique from the
zone turn on volume level.
Connect the included 12VDC power supply to the
BTC-1 Termination Box but do not plug into the wall until
installation has been completed.
Connection DiagramSource conguration for Russound MCA-Series controllers
Congure the MCA-Series Controller using SCS-C5
conguration software.
The BSK-1 is supported by C-Series products with the
minimum rmware listed below :
MCA-C3 v4.00.00 or higher
MCA-C5 v5.00.00 or higher
MDK-C5 v5.00.00 or higher
SCS-C5 v5.00.00 or higher
My Russound v2.00.00 or higher
All current rmware update les are located on the
Russound Support center, www.russound.com.
The installer congures the source input which the
BSK-1 is connected to by selecting the device from the
drop-down list of source device types on the source setup
page. A drop down list will be presented for selection of
a Primary Zone with a default selection of 'None' along
with a turn on volume setting for the Primary Zone if this
is to be used as a Local Source. If this is to be used as a
global source for all zones leave the selection as 'None'.
Otherwise, select a Primary Zone from the list and adjust
the turn on volume for the Primary Zone for when the BSK-
1 is being used. Doing so enables the audio sensing for
that source input to trigger local source settings for the
selected zone as follows:
• Turn on the Primary Zone.
• Select the BSK-1 source for the Primary Zone
• Set the Primary Zone volume for Local Source use
Adjust the Source Volume Trim on the Source Summary
page within SCS-C5 so that the BSK-1 output level
appropriately matches that of the other audio sources.
Save the system conguration to the controller
Assigning a custom name to the device
The BTC-1X comes congured with the Name Russound.
To create a more secure network, it is recommended that
a unique Name be created at the time of installation and
provided to the homeowner.
Follow the steps below to create a unique Name for each
BTC-1X.
Note: CAT-5 cable must be connected during
programming to provide power to BTC-1X.
1. Plug in the micro USB cable (included) to the USB
programming port in the BTC-1X. (see diagram)
2 Connect the micro USB cable to the USB port on the PC.
3. Download the BSK-1 programming software from the
dealer portal at www.russound.com.
4. Launch the BTC-1X Conguration Tool software.
5. Enter a unique Name, then Write to device.
6. Disconnect the micro USB cable from the BTC-1X rst,
then cycle the power on the BTC-1X by removing the
CAT-5. Cycling the power will reboot the BTC-1X with
the assigned custom Name.
Important Considerations
• Disconnect the power cord to the controller before
making any connections to the controller.
• Verify that all connections and polarity are correct.
• Keep all power cords away from all signal cables to
prevent humming from induced noise.
• Choose reliable signal cables and patch cords.
• Avoid running audio cords or CAT-5 signal cables close
to house electrical wiring for any distance. If you have
to run them parallel, make sure to space the wires at
least two feet from the AC line. If you need to cross an
AC line it should be at a 90° angle.
Connection Instructions
Read all instructions before starting the installation.
Determine the ideal location for the BTC-1X Remote
Transceiver based on whether it will be a global or local
source, keeping in mind that structural elements, concrete,
and other 2.4 gHz transmitters may interfere with the
signal. The BTC-1X Remote Transceiver may be located in a
freestanding position or in a standard 18 ci electrical box.
The BTC-1X Remote Transceiver must be accessible for
programming a custom name later.
Route a single CAT-5 cable from the BTC-1 Termination
Box to the BTC-1X Remote Transceiver location. The
recommended maximum CAT-5 cable length is 300
feet (91.44 meters) between the BTC-1X and the BTC-1
Termination Box. If the BTC-1X location is freestanding,
the CAT-5 cable can be terminated to a RJ-45 wall plate
using the T568A standard wiring conguration. A CAT-5
jumper cable would then be connected from the wall plate
to the BTC-1X. If the location is in-wall, the CAT-5 cable is
routed into an 18 ci or larger US standard electrical work
box where it is terminated with a RJ-45 plug which is then
connected to the BTC-1X.
The BTC-1 Termination Box should be placed close to the
amplier or receiver (distance not to exceed 25 ft). Install
the BTC-1 by either mounting it to a at surface or to the
back of an A/V equipment rack using screws through the
holes in the mounting anges. Terminate the end of the
CAT-5 cable connected to the BTC-1X Remote Transceiver
with an RJ-45 plug using the T568A standard wiring
conguration. Connect the cable to the BTC-1 Termination
Box.
Connect RCA audio patch cables from the termination
box’s audio outputs to the designated source input on the
amplier/receiver.
The provided two conductor 12VDC trigger cable
terminated with a 1/8”male plug at each end is connected
from the termination box’s 12VDC trigger output to the
trigger input on the amplier/receiver. This will wake the
device from standby once the BSK-1 is actively paired with
aBluetooth® enabled source.
If this is to be used as a local source for a Russound
MCA-Series controller zone, use WebCong conguration
software to assign it to a Primary Zone and set the Local
Source turn on volume level which is unique from the
zone turn on volume level.
Connect the included 12VDC power supply to the
BTC-1 Termination Box but do not plug into the wall until
installation has been completed.
Connection DiagramSource conguration for Russound MCA-Series controllers
Congure the MCA-Series Controller using SCS-C5
conguration software.
The BSK-1 is supported by C-Series products with the
minimum rmware listed below :
MCA-C3 v4.00.00 or higher
MCA-C5 v5.00.00 or higher
MDK-C5 v5.00.00 or higher
SCS-C5 v5.00.00 or higher
My Russound v2.00.00 or higher
All current rmware update les are located on the
Russound Support center, www.russound.com.
The installer congures the source input which the
BSK-1 is connected to by selecting the device from the
drop-down list of source device types on the source setup
page. A drop down list will be presented for selection of
a Primary Zone with a default selection of 'None' along
with a turn on volume setting for the Primary Zone if this
is to be used as a Local Source. If this is to be used as a
global source for all zones leave the selection as 'None'.
Otherwise, select a Primary Zone from the list and adjust
the turn on volume for the Primary Zone for when the BSK-
1 is being used. Doing so enables the audio sensing for
that source input to trigger local source settings for the
selected zone as follows:
• Turn on the Primary Zone.
• Select the BSK-1 source for the Primary Zone
• Set the Primary Zone volume for Local Source use
Adjust the Source Volume Trim on the Source Summary
page within SCS-C5 so that the BSK-1 output level
appropriately matches that of the other audio sources.
Save the system conguration to the controller
Assigning a custom name to the device
The BTC-1X comes congured with the Name Russound.
To create a more secure network, it is recommended that
a unique Name be created at the time of installation and
provided to the homeowner.
Follow the steps below to create a unique Name for each
BTC-1X.
Note: CAT-5 cable must be connected during
programming to provide power to BTC-1X.
1. Plug in the micro USB cable (included) to the USB
programming port in the BTC-1X. (see diagram)
2 Connect the micro USB cable to the USB port on the PC.
3. Download the BSK-1 programming software from the
dealer portal at www.russound.com.
4. Launch the BTC-1X Conguration Tool software.
5. Enter a unique Name, then Write to device.
6. Disconnect the micro USB cable from the BTC-1X rst,
then cycle the power on the BTC-1X by removing the
CAT-5. Cycling the power will reboot the BTC-1X with
the assigned custom Name.
Important Considerations
• Disconnect the power cord to the controller before
making any connections to the controller.
• Verify that all connections and polarity are correct.
• Keep all power cords away from all signal cables to
prevent humming from induced noise.
• Choose reliable signal cables and patch cords.
• Avoid running audio cords or CAT-5 signal cables close
to house electrical wiring for any distance. If you have
to run them parallel, make sure to space the wires at
least two feet from the AC line. If you need to cross an
AC line it should be at a 90° angle.
Overview
The BSK-1 Bluetooth Source Kit enables the user of a portable
media player, smartphone, or other Bluetooth equipped device
to wirelessly transmit audio content to any typical audio
system. The BTC-1X Remote Transceiver connects to the BTC-1
Termination Box via a single CAT-5 cable. The CAT-5 cable both
powers the transceiver and transmits audio signals from the
BTC-1 Termination Box which is then connected to any amplier
or receiver for audio and 12VDC trigger signals. On Russound
multiroom audio systems, it can be designated either as a
global source for the multiroom system or as a local source for
an individual "Primary Zone" with automatic control over zone
power, source selection and volume level.
The compact BTC-1X Remote Transceiver can sit on a at
surface or be placed in a standard electrical box in an ideal
location so that the user can connect and move throughout the
listening area without interrupting the audio stream. Housed in
a compact surface-mount metal box, the BTC-1 Termination Box
is connected directly to the amplier or receiver via RCA audio
patch cables and an optional 12VDC trigger cable.
Safety Instructions
1. Read Instructions - All the safety and operating instructions
should be read before the equipment is operated.
2. Retain Instructions - The safety and operating instructions
should be retained for future reference.
3. Heed Warnings - All warnings on the equipment in the
operating instructions should be adhered to.
4. Follow Instructions - Follow all operating and user
instructions.
5. Water and Moisture - The equipment should not be used
near water; for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool.
6. Mounting - The equipment should be mounted or secured as
recommended by the manufacturer.
7. Heat - The equipment should be situated away from heat
sources such as radiators, heat registers, stoves, or other equipment
(including ampliers) that produce heat.
8. Power Sources - The product should be connected to a power
supply only of the type described in the operating instructions or
as marked on the equipment.
9. Grounding or Polarization - Precaution should be taken so
that the grounding or polarization means of the product is not
defeated.
10. Avoid spills and foreign objects. Ensure liquids and objects
don’t get into the product enclosure through any openings.
11. Damage Requiring Service - The equipment should be
serviced by qualied service personnel when: the power supply
cord or the plug has been damaged; objects have fallen, liquid has
been spilled into the equipment; the equipment has been exposed
to rain; the equipment does not appear to operate normally; or the
equipment has been dropped or the enclosure is damaged.
12. Servicing - The user should not attempt to service the
equipment beyond that described in the operating instructions. All
other servicing should be referred to qualied service personnel.
13. Care – From time to time you should wipe any dust
accumulation from the equipment with a soft dry cloth.
Copyright ©2020 Russound/FMP Inc. All rights reserved. All trademarks
are the property of their respective owners. Russound is not responsible
for typographical errors or omissions. Specications are subject to change
without notice.
The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Russond is under license.
Other trademarks and trade names are those of their respective owners.
Russound, Inc. 1 Forbes Rd., Newmarket, NH 03857, USA
tel 603.659.5170 • fax 603.659.5388 www.russound.com
28-1369 09.14.20, Rev. 7
fold
fold
fold
fold
fold
fold
fold fold
Testing
Verify the red power LED is lit on the BTC-1 Termination
Box and the green LED is lit on the BTC-1X Remote
Transceiver.
Turn on a Bluetooth® enabled source i.e. media player,
smartphone, or computer. Open the Bluetooth menu
and enable the pairing feature on the device. Select the
Russound BSK-1 product by its congured name from the
list of available Bluetooth enabled products.
Select the desired audio from the device and start the
playback.
For Local Source congurations
The Local Source feature is designed for use when the
Primary Zone is in the O state and is not available if the
Primary Zone is already in use.
When an audio output signal from the BSK-1 is detected
by the MCA-Series controller, the Primary Zone will turn
on, select the BSK-1 source and set the zone's volume level
based on the settings made through WebCong software.
The volume on the source device should be at its highest
setting to assure the audio output level from the BSK-1 will
be strong enough to detect and activate the Local Source
feature. If the audio signal level is not strong enough
for the MCA-Series controller to detect, the local source
feature will not activate or, if already in use, will shut the
local source feature o after 10 minutes of no audio signal
detection.
For non-Local Source congurations
Turn on a zone and select the BSK-1 source input and
adjust the volume to the desired level. Audio from the
Bluetooth enabled source should be heard throughout the
zone.
Normal Use
Only one device at a time may be actively paired with
the BSK-1 in the multiroom system. Activate the Bluetooth
feature from the source device and connect or 'pair' with
the BSK-1 by selecting its assigned name. If being used as a
Local Source and the Primary Zone is in the O state, it will
automatically be turned on, select the BSK-1 source input
and volume level adjusted. Otherwise manually choose
your music and start playing. Choose the appropriate
source input on the Russound system and enjoy the music.
When nished, disconnect your device from the BSK-1 or
turn o the Bluetooth feature of the source device. If you
move your device out of range (15M without obstruction)
it will automatically sever the connection. If you are unable
to connect to the BSK-1, another device within range may
be connected.
Specications
BTC-1X Remote Transceiver
Power requirements: supplied by BTC-1 via CAT-5
Frequency: 2,400-2,483.5 MHz
CAT-5 connection: RJ-45 (T568A standard)
Dimensions: 70mm x 56mm x 26mm (W x D x H)
Weight: 3.1 ounces
Max cable length: 300’ (CAT-5) BTC-1X to BTC-1
50', (15M) without obstruction|
BTC-1 Termination box
Power requirements: 12VDC 300mA
CAT-5 connection: RJ-45 (T568A standard)
Trigger Output: 12VDC 100 mA Max
Trigger Input: 12VDC
Audio Connections: 2 RCA
Dimensions: 122mm x 51mm x 38mm (W x D x H)
Weight: 7.3 ounces
Max cable length: 25’ (RCA cable) BTC-1 to
Amplier/ Receiver
300’ (CAT-5) BTC-1X to BTC-1
Limited Warranty
The Russound BSK-1 is fully guaranteed for two (2) years
from the date of purchase against all defects in materials and
workmanship. During this period Russound will replace any
defective parts and correct any defect in workmanship without
charge for either parts or labor. For this warranty to apply, the unit
must be installed and used according to its written instructions. If
service is necessary, it must be performed by Russound. Russound
assumes no responsibility for defects resulting from abuse or
servicing performed by an agency or person not specically
authorized in writing by Russound. Damage to or destruction of
components due to improper use voids the warranty. In these
cases the repair will be made at the owner’s expense. Accidental
damage and shipping damage are not considered defects under
the terms of the warranty. To return for repairs, the unit must
be shipped to Russound at the owner’s expense, along with a
Return Authorization number and documentation explaining
the nature of the service required. Any product returned without
prior written permission will be returned to sender. Russound
sells products only through authorized Dealers and Distributors
to ensure that customers obtain proper support and service.
Any Russound product purchased from an unauthorized dealer
or other source, including retailers, mail order sellers and online
sellers will not be honored or serviced under existing Russound
warranty policy. Any sale of products by an unauthorized source
or other manner not authorized by Russound shall void the
warranty on the applicable product.
To obtain Return Authorization please contact us at:
rarequest@russound.com
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15 of
the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one of or
more of the following measures: reorient or relocate the receiving
antenna; increase the separation between the equipment and
receiver; connect the equipment into an outlet on a circuit
dierent from that to which the receiver is connected, or consult
the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Overview
The BSK-1 Bluetooth Source Kit enables the user of a portable
media player, smartphone, or other Bluetooth equipped device
to wirelessly transmit audio content to any typical audio
system. The BTC-1X Remote Transceiver connects to the BTC-1
Termination Box via a single CAT-5 cable. The CAT-5 cable both
powers the transceiver and transmits audio signals from the
BTC-1 Termination Box which is then connected to any amplier
or receiver for audio and 12VDC trigger signals. On Russound
multiroom audio systems, it can be designated either as a
global source for the multiroom system or as a local source for
an individual "Primary Zone" with automatic control over zone
power, source selection and volume level.
The compact BTC-1X Remote Transceiver can sit on a at
surface or be placed in a standard electrical box in an ideal
location so that the user can connect and move throughout the
listening area without interrupting the audio stream. Housed in
a compact surface-mount metal box, the BTC-1 Termination Box
is connected directly to the amplier or receiver via RCA audio
patch cables and an optional 12VDC trigger cable.
Safety Instructions
1. Read Instructions - All the safety and operating instructions
should be read before the equipment is operated.
2. Retain Instructions - The safety and operating instructions
should be retained for future reference.
3. Heed Warnings - All warnings on the equipment in the
operating instructions should be adhered to.
4. Follow Instructions - Follow all operating and user
instructions.
5. Water and Moisture - The equipment should not be used
near water; for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool.
6. Mounting - The equipment should be mounted or secured as
recommended by the manufacturer.
7. Heat - The equipment should be situated away from heat
sources such as radiators, heat registers, stoves, or other equipment
(including ampliers) that produce heat.
8. Power Sources - The product should be connected to a power
supply only of the type described in the operating instructions or
as marked on the equipment.
9. Grounding or Polarization - Precaution should be taken so
that the grounding or polarization means of the product is not
defeated.
10. Avoid spills and foreign objects. Ensure liquids and objects
don’t get into the product enclosure through any openings.
11. Damage Requiring Service - The equipment should be
serviced by qualied service personnel when: the power supply
cord or the plug has been damaged; objects have fallen, liquid has
been spilled into the equipment; the equipment has been exposed
to rain; the equipment does not appear to operate normally; or the
equipment has been dropped or the enclosure is damaged.
12. Servicing - The user should not attempt to service the
equipment beyond that described in the operating instructions. All
other servicing should be referred to qualied service personnel.
13. Care – From time to time you should wipe any dust
accumulation from the equipment with a soft dry cloth.
Copyright ©2020 Russound/FMP Inc. All rights reserved. All trademarks
are the property of their respective owners. Russound is not responsible
for typographical errors or omissions. Specications are subject to change
without notice.
The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Russond is under license.
Other trademarks and trade names are those of their respective owners.
Russound, Inc. 1 Forbes Rd., Newmarket, NH 03857, USA
tel 603.659.5170 • fax 603.659.5388 www.russound.com
28-1369 09.14.20, Rev. 7
fold
fold
fold
fold
fold
fold
fold fold
Testing
Verify the red power LED is lit on the BTC-1 Termination
Box and the green LED is lit on the BTC-1X Remote
Transceiver.
Turn on a Bluetooth® enabled source i.e. media player,
smartphone, or computer. Open the Bluetooth menu
and enable the pairing feature on the device. Select the
Russound BSK-1 product by its congured name from the
list of available Bluetooth enabled products.
Select the desired audio from the device and start the
playback.
For Local Source congurations
The Local Source feature is designed for use when the
Primary Zone is in the O state and is not available if the
Primary Zone is already in use.
When an audio output signal from the BSK-1 is detected
by the MCA-Series controller, the Primary Zone will turn
on, select the BSK-1 source and set the zone's volume level
based on the settings made through WebCong software.
The volume on the source device should be at its highest
setting to assure the audio output level from the BSK-1 will
be strong enough to detect and activate the Local Source
feature. If the audio signal level is not strong enough
for the MCA-Series controller to detect, the local source
feature will not activate or, if already in use, will shut the
local source feature o after 10 minutes of no audio signal
detection.
For non-Local Source congurations
Turn on a zone and select the BSK-1 source input and
adjust the volume to the desired level. Audio from the
Bluetooth enabled source should be heard throughout the
zone.
Normal Use
Only one device at a time may be actively paired with
the BSK-1 in the multiroom system. Activate the Bluetooth
feature from the source device and connect or 'pair' with
the BSK-1 by selecting its assigned name. If being used as a
Local Source and the Primary Zone is in the O state, it will
automatically be turned on, select the BSK-1 source input
and volume level adjusted. Otherwise manually choose
your music and start playing. Choose the appropriate
source input on the Russound system and enjoy the music.
When nished, disconnect your device from the BSK-1 or
turn o the Bluetooth feature of the source device. If you
move your device out of range (15M without obstruction)
it will automatically sever the connection. If you are unable
to connect to the BSK-1, another device within range may
be connected.
Specications
BTC-1X Remote Transceiver
Power requirements: supplied by BTC-1 via CAT-5
Frequency: 2,400-2,483.5 MHz
CAT-5 connection: RJ-45 (T568A standard)
Dimensions: 70mm x 56mm x 26mm (W x D x H)
Weight: 3.1 ounces
Max cable length: 300’ (CAT-5) BTC-1X to BTC-1
50', (15M) without obstruction|
BTC-1 Termination box
Power requirements: 12VDC 300mA
CAT-5 connection: RJ-45 (T568A standard)
Trigger Output: 12VDC 100 mA Max
Trigger Input: 12VDC
Audio Connections: 2 RCA
Dimensions: 122mm x 51mm x 38mm (W x D x H)
Weight: 7.3 ounces
Max cable length: 25’ (RCA cable) BTC-1 to
Amplier/ Receiver
300’ (CAT-5) BTC-1X to BTC-1
Limited Warranty
The Russound BSK-1 is fully guaranteed for two (2) years
from the date of purchase against all defects in materials and
workmanship. During this period Russound will replace any
defective parts and correct any defect in workmanship without
charge for either parts or labor. For this warranty to apply, the unit
must be installed and used according to its written instructions. If
service is necessary, it must be performed by Russound. Russound
assumes no responsibility for defects resulting from abuse or
servicing performed by an agency or person not specically
authorized in writing by Russound. Damage to or destruction of
components due to improper use voids the warranty. In these
cases the repair will be made at the owner’s expense. Accidental
damage and shipping damage are not considered defects under
the terms of the warranty. To return for repairs, the unit must
be shipped to Russound at the owner’s expense, along with a
Return Authorization number and documentation explaining
the nature of the service required. Any product returned without
prior written permission will be returned to sender. Russound
sells products only through authorized Dealers and Distributors
to ensure that customers obtain proper support and service.
Any Russound product purchased from an unauthorized dealer
or other source, including retailers, mail order sellers and online
sellers will not be honored or serviced under existing Russound
warranty policy. Any sale of products by an unauthorized source
or other manner not authorized by Russound shall void the
warranty on the applicable product.
To obtain Return Authorization please contact us at:
rarequest@russound.com
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15 of
the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one of or
more of the following measures: reorient or relocate the receiving
antenna; increase the separation between the equipment and
receiver; connect the equipment into an outlet on a circuit
dierent from that to which the receiver is connected, or consult
the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Overview
The BSK-1 Bluetooth Source Kit enables the user of a portable
media player, smartphone, or other Bluetooth equipped device
to wirelessly transmit audio content to any typical audio
system. The BTC-1X Remote Transceiver connects to the BTC-1
Termination Box via a single CAT-5 cable. The CAT-5 cable both
powers the transceiver and transmits audio signals from the
BTC-1 Termination Box which is then connected to any amplier
or receiver for audio and 12VDC trigger signals. On Russound
multiroom audio systems, it can be designated either as a
global source for the multiroom system or as a local source for
an individual "Primary Zone" with automatic control over zone
power, source selection and volume level.
The compact BTC-1X Remote Transceiver can sit on a at
surface or be placed in a standard electrical box in an ideal
location so that the user can connect and move throughout the
listening area without interrupting the audio stream. Housed in
a compact surface-mount metal box, the BTC-1 Termination Box
is connected directly to the amplier or receiver via RCA audio
patch cables and an optional 12VDC trigger cable.
Safety Instructions
1. Read Instructions - All the safety and operating instructions
should be read before the equipment is operated.
2. Retain Instructions - The safety and operating instructions
should be retained for future reference.
3. Heed Warnings - All warnings on the equipment in the
operating instructions should be adhered to.
4. Follow Instructions - Follow all operating and user
instructions.
5. Water and Moisture - The equipment should not be used
near water; for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool.
6. Mounting - The equipment should be mounted or secured as
recommended by the manufacturer.
7. Heat - The equipment should be situated away from heat
sources such as radiators, heat registers, stoves, or other equipment
(including ampliers) that produce heat.
8. Power Sources - The product should be connected to a power
supply only of the type described in the operating instructions or
as marked on the equipment.
9. Grounding or Polarization - Precaution should be taken so
that the grounding or polarization means of the product is not
defeated.
10. Avoid spills and foreign objects. Ensure liquids and objects
don’t get into the product enclosure through any openings.
11. Damage Requiring Service - The equipment should be
serviced by qualied service personnel when: the power supply
cord or the plug has been damaged; objects have fallen, liquid has
been spilled into the equipment; the equipment has been exposed
to rain; the equipment does not appear to operate normally; or the
equipment has been dropped or the enclosure is damaged.
12. Servicing - The user should not attempt to service the
equipment beyond that described in the operating instructions. All
other servicing should be referred to qualied service personnel.
13. Care – From time to time you should wipe any dust
accumulation from the equipment with a soft dry cloth.
Copyright ©2020 Russound/FMP Inc. All rights reserved. All trademarks
are the property of their respective owners. Russound is not responsible
for typographical errors or omissions. Specications are subject to change
without notice.
The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Russond is under license.
Other trademarks and trade names are those of their respective owners.
Russound, Inc. 1 Forbes Rd., Newmarket, NH 03857, USA
tel 603.659.5170 • fax 603.659.5388 www.russound.com
28-1369 09.14.20, Rev. 7
fold
fold
fold
fold
fold
fold
fold fold
Testing
Verify the red power LED is lit on the BTC-1 Termination
Box and the green LED is lit on the BTC-1X Remote
Transceiver.
Turn on a Bluetooth® enabled source i.e. media player,
smartphone, or computer. Open the Bluetooth menu
and enable the pairing feature on the device. Select the
Russound BSK-1 product by its congured name from the
list of available Bluetooth enabled products.
Select the desired audio from the device and start the
playback.
For Local Source congurations
The Local Source feature is designed for use when the
Primary Zone is in the O state and is not available if the
Primary Zone is already in use.
When an audio output signal from the BSK-1 is detected
by the MCA-Series controller, the Primary Zone will turn
on, select the BSK-1 source and set the zone's volume level
based on the settings made through WebCong software.
The volume on the source device should be at its highest
setting to assure the audio output level from the BSK-1 will
be strong enough to detect and activate the Local Source
feature. If the audio signal level is not strong enough
for the MCA-Series controller to detect, the local source
feature will not activate or, if already in use, will shut the
local source feature o after 10 minutes of no audio signal
detection.
For non-Local Source congurations
Turn on a zone and select the BSK-1 source input and
adjust the volume to the desired level. Audio from the
Bluetooth enabled source should be heard throughout the
zone.
Normal Use
Only one device at a time may be actively paired with
the BSK-1 in the multiroom system. Activate the Bluetooth
feature from the source device and connect or 'pair' with
the BSK-1 by selecting its assigned name. If being used as a
Local Source and the Primary Zone is in the O state, it will
automatically be turned on, select the BSK-1 source input
and volume level adjusted. Otherwise manually choose
your music and start playing. Choose the appropriate
source input on the Russound system and enjoy the music.
When nished, disconnect your device from the BSK-1 or
turn o the Bluetooth feature of the source device. If you
move your device out of range (15M without obstruction)
it will automatically sever the connection. If you are unable
to connect to the BSK-1, another device within range may
be connected.
Specications
BTC-1X Remote Transceiver
Power requirements: supplied by BTC-1 via CAT-5
Frequency: 2,400-2,483.5 MHz
CAT-5 connection: RJ-45 (T568A standard)
Dimensions: 70mm x 56mm x 26mm (W x D x H)
Weight: 3.1 ounces
Max cable length: 300’ (CAT-5) BTC-1X to BTC-1
50', (15M) without obstruction|
BTC-1 Termination box
Power requirements: 12VDC 300mA
CAT-5 connection: RJ-45 (T568A standard)
Trigger Output: 12VDC 100 mA Max
Trigger Input: 12VDC
Audio Connections: 2 RCA
Dimensions: 122mm x 51mm x 38mm (W x D x H)
Weight: 7.3 ounces
Max cable length: 25’ (RCA cable) BTC-1 to
Amplier/ Receiver
300’ (CAT-5) BTC-1X to BTC-1
Limited Warranty
The Russound BSK-1 is fully guaranteed for two (2) years
from the date of purchase against all defects in materials and
workmanship. During this period Russound will replace any
defective parts and correct any defect in workmanship without
charge for either parts or labor. For this warranty to apply, the unit
must be installed and used according to its written instructions. If
service is necessary, it must be performed by Russound. Russound
assumes no responsibility for defects resulting from abuse or
servicing performed by an agency or person not specically
authorized in writing by Russound. Damage to or destruction of
components due to improper use voids the warranty. In these
cases the repair will be made at the owner’s expense. Accidental
damage and shipping damage are not considered defects under
the terms of the warranty. To return for repairs, the unit must
be shipped to Russound at the owner’s expense, along with a
Return Authorization number and documentation explaining
the nature of the service required. Any product returned without
prior written permission will be returned to sender. Russound
sells products only through authorized Dealers and Distributors
to ensure that customers obtain proper support and service.
Any Russound product purchased from an unauthorized dealer
or other source, including retailers, mail order sellers and online
sellers will not be honored or serviced under existing Russound
warranty policy. Any sale of products by an unauthorized source
or other manner not authorized by Russound shall void the
warranty on the applicable product.
To obtain Return Authorization please contact us at:
rarequest@russound.com
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15 of
the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one of or
more of the following measures: reorient or relocate the receiving
antenna; increase the separation between the equipment and
receiver; connect the equipment into an outlet on a circuit
dierent from that to which the receiver is connected, or consult
the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Other manuals for BSK-1
1
Table of contents
Other Russound Adapter manuals
