Manual abstract:
11.Grounding or Polarization - Precaution should be taken so that the grounding or polarization means of an appliance is not defeated. WARNING: TO
REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE
RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER - SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL. 12.Power Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon
or against them, paying particular attention to cords at plugs, receptacles, and the point where they exit from the appliance. 13.Cleaning - The appliance
should be cleaned only as recommended by the manufacturer.
14.Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time. 15.Object and Liquid
Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through the openings. 16.
Damage Requiring Service - The appliance should be serviced by qualified service personnel when: A. The power supply cord or the plug has been damaged;
or B. Objects have fallen, liquid has been spilled into the appliance; or C. The appliance has been exposed to rain; or D.The appliance does not appear to
operate normally; or E.
The appliance has been dropped or the enclosure is damaged. 17.Servicing - The user should not attempt to service the appliance beyond that described in the
operating instructions. All other servicing should be referred to qualified service personnel. The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance. If you have any questions please call Russound Inc. at
1-800-638-8055 or 603-659-5170. Safety Instructions: 1. Read Instructions - All the safety and operating instructions should be read before the appliance is
operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference. 3. Heed Warnings - All warnings on the appliance in the
operating instructions should be adhered to. 4. Follow Instructions - All operating and user instructions should be followed. 5. Water and Moisture - The
appliance should not be used near water; for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. 6.
Carts and Stands - The appliance should be used only with a cart or stand that is recommended by the manufacturer.
An appliance and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the appliance and cart
combination to overturn. 7. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer. 8.
Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. Do not block vents above or to the
sides of the unit. This product requires ventilation to the sides and above for proper operation. Do not place the unit above a heat-generating component such
as an audio amplifier. Do not place a heat-generating component directly above the unit.
Be sure to leave at least 2 inches of space to the sides of the unit with open air flow above. A single-space rack mount vent or about 1.75 inches must be kept
clear above the unit. 9. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances
(including amplifiers) that produce heat. Precautions: 1. Power WARNING: BEFORE TURNING ON THE POWER FOR THE FIRST TIME, READ THE
FOLLOWING SECTION CAREFULLY.
You're reading an excerpt. Click here to read official RUSSOUND
SMS3 INSTALL user guide
http://somemanuals.com/dref/77375

2. Do Not Touch The Unit With Wet Hands Do not handle the unit or power cord when your hands are wet or damp. If water or any other liquid enters the
unit's cabinet, unplug the unit from power immediately and take the unit to a qualified service person for inspection.
3. Location of Unit Place the unit in a well-ventilated location. Take special care to provide plenty of ventilation on all sides of the unit especially when it is
placed in an audio rack. If ventilation is blocked, the unit may overheat and malfunction. Do not expose the unit to direct sun light or heating units as the unit
internal components temperature may rise and shorten the life of the components. Avoid damp and dusty places. 4. Care From time to time you should wipe
off the front and side panels of the cabinet with a soft cloth. Do not use rough material, thinners, alcohol or other chemical solvents or cloths since this may
damage the finish or remove the panel lettering. 2 COPYRIGHT AND DISCLAIMERS This manual Copyright ® 2006 Russound.
All rights reserved. This product includes some software components that are licensed under the General Public License (GPL). Source code for GPL
components is available upon request. This product includes software developed by GlobeCom GCAB AB. Copyright ® 1999 GlobeCom GCAB AB.
All rights reserved. Music recognition technology and related data are provided by Gracenote®. CD and music-related data from Gracenote, Inc., Copyright
© 2000-2003 Gracenote. Gracenote CDDB® Client Software, Copyright © 2000-2003 Gracenote.
This product and service may practice one or more of the following U.S. patents: #5,987,525; #6,061,680; #6,154,773; #6,161,132; #6,230,192; #6,230,207;
#6,240,459; #6,330,593, and other patents issued or pending. Gracenote and CDDB are registered trademarks of Gracenote. The Gracenote logo and
logotype, the Gracenote CDDB logo, and the "Powered by Gracenote" logo are trademarks of Gracenote. ReadyToPlay, Inc. is an independently owned and
operated company, with no affiliation to Russound. Russound is not responsible for, nor shall be a part of, any transaction(s) between ReadyToPlay, Inc., the
dealer and/or the consumer. All other trademarks are the property of their respective owners.
End-User License Agreement USE OF THIS PRODUCT IMPLIES ACCEPTANCE OF THE TERMS BELOW. This product contains technology and data from
Gracenote of Emeryville, California ("Gracenote"). The technology from Gracenote (the "Gracenote Embedded Software") enables this product to do disc
identification and obtain music-related information, including name, artist, track, and title information ("Gracenote Data"), which is included on the
Gracenote Database (the "Gracenote Database"). You agree that you will use Gracenote Data, the Gracenote Database, and Embedded Software for your
own personal non-commercial use only. You agree that you will access Gracenote Data only by means of the standard end user functions and features of this
product. You agree not to assign, copy, transfer or transmit the Embedded Software or any Gracenote Data to any third party. YOU AGREE NOT TO USE
OR EXPLOIT GRACENOTE DATA, THE GRACENOTE DATABASE, OR GRACENOTE COMPONENT, EXCEPT AS EXPRESSLY PERMITTED HEREIN.
You agree that your non-exclusive license to use the Gracenote Data, the Gracenote Database, and Embedded Software will terminate if you violate these
restrictions. If your license terminates, you agree to cease any and all use of the Gracenote Data, the Gracenote Database, and Gracenote Embedded
Software. Gracenote reserves all rights in the Gracenote Data, Gracenote Database, and Gracenote Embedded Software, including all ownership rights.
You agree that Gracenote may enforce its rights under this Agreement against you directly in its own name. The Embedded Software and each item of
Gracenote Data are licensed to you "AS IS." Gracenote makes no representations or warranties, express or implied, regarding the accuracy of any Gracenote
Data. Gracenote reserves the right to delete data or to change data categories in any Data updates and for any cause that Gracenote deems sufficient.
You're reading an excerpt. Click here to read official RUSSOUND
SMS3 INSTALL user guide
http://somemanuals.com/dref/77375

No warranty is made that the Embedded Software is error-free or that functioning of the Embedded Software will be uninterrupted.
Gracenote is not obligated to provide you with any new enhanced or additional data types or categories that Gracenote may choose to provide in the future.
GRACENOTE DISCLAIMS ALL WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND NON-INFRINGEMENT. GRACENOTE DOES NOT WARRANT THE
RESULTS THAT WILL BE OBTAINED BY YOUR USE OF THE GRACENOTE COMPONENT OR ANY GRACENOTE SERVER. IN NO CASE WILL
GRACENOTE BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES OR FOR ANY LOST PROFITS OR LOST REVENUES. 3 TABLE OF
CONTENTS Before You Begin .
6 Product Introduction Description .7 Installation Applications7 RNET-enabled System.7 IR-controlled System.7 RS-232 System7 IP-controlled System.7
Component Guide SMS3 Handling and Power Considerations 8 SMS3 Back Panel9 Installation Options Ventilation Requirements 10 SMS3 Installation Quick
Look .10 SMS3 LAN Connection Quick Look .10 LAN with Cable or Dial-up Modem.11 Video Display 12 CAV6.6 with Distributed Video Signal 12-13 CAS44
with RF Modulated Distributed Video Signal.14 Controlling the SMS3 SMS3-RC Remote Control 15 UNO-S2 16 UNO-S1 17 UNO-TS2 Touchscreen 18-19
SRC2 Remote Control20 Start Up Test Operations Power Up 21 Start Up 21 LAN Connection .
22 Network IP Address22 Test CD Cataloging Function.23-24 Internet Radio Handler 25-28 Options & Status Configuration Setup Schedules 29 System Time
.29 Review Music .29 Backup30 Restore .31 4 TABLE OF CONTENTS Configure.31 Encoding Format32 WAV .32 FLAC 32 OGG .32 MP3 .33 Stream
Options Stream Names33 RNET Sources .34 Remote Control.
35 Volume Leveling 35 Output Levels36 Online Update 36 Network Settings .37 Import HDD (ReadyToPlay disk) .38 Before You Go Final Checklist.39
Technical Specifications 40 Warranty.40 IMPORTANT Backups of the SMS3 Smart Media Server's hard drive should be performed on a regular basis to
preserve and protect the files.
An external hard drive is HIGHLY RECOMMENDED for backups (FireWire IEEE 1394 (strongly recommended) or USB 2.0/1.1 interface) (SMS3 - must be
160GB or higher, SMS3-250 - must be 250GB or higher). The external hard drive must be dedicated to the SMS3, as backups reformat the drive. The drive
should be left with and connected to the SMS3 to be available for incremental backups as music and media are added.
Do not connect the formatted backup drive to a computer! 5 BEFORE YOU BEGIN INSTALLATION REQUIREMENTS AND CONSIDERATIONS Successful
SMS3 Smart Media Server installation and operation is based on several requirements. Installer must have: RJ-45 CAT-5 patch cable for LAN connection - to
connect SMS3 to home network's router Audio CD for test purposes - to verify CD catalog process and audio output Installer should have: Access to
computer on-site - to easily enter custom names for Themes and Streams - to transfer files across LAN from PC to SMS3 hard drive - to set up RNET source
numbers External hard drive (FireWire IEEE 1394 strongly recommended, or USB 2.0/1.1 interface), SMS3: must be 160GB or higher capacity; SMS3-250:
must be 250GB or higher capacity - HIGHLY RECOMMENDED to back up SMS3 hard drive Installation site must have: A home LAN (Local Area Network) -
to provide access for networked PC control of SMS3 DHCP (Dynamic Host Configuration Protocol) Router with NAT/Firewall - to allow dynamic IP
addressing of SMS3 on network - to allow more than one PC on the network to access the SMS3 Internet connection - to allow the SMS3 to retrieve updated
artist/album/track name information from the Gracenote CDDB Music Recognition Service - to allow the SMS3 to retrieve album cover art from MUZE
Entertainment Information Service - to connect to and play internet radio streams on the SMS3 Video display device (i.e., TV) wired to the CAV6.6 or
connected directly to the SMS3 - to view the SMS3 graphical interface during source configuration and music choices Installation site should have: Personal
computer on home LAN - To view and control the SMS3 through the graphical user interface, allow file sharing of MP3s, digital photos, to install Internet
radio mime handler (Windows only) Dedicated external hard drive HIGHLY RECOMMENDED (SMS3-must be 160GB or higher; SMS3-250must be 250GB
or higher) (FireWire IEEE 1394 strongly recommended, or USB 2.
You're reading an excerpt. Click here to read official RUSSOUND
SMS3 INSTALL user guide
http://somemanuals.com/dref/77375

0/1.1 interface) - to create backups of the SMS3 hard drive (cataloged music, configurations) 6 PRODUCT INTRODUCTION DESCRIPTION The SMS3

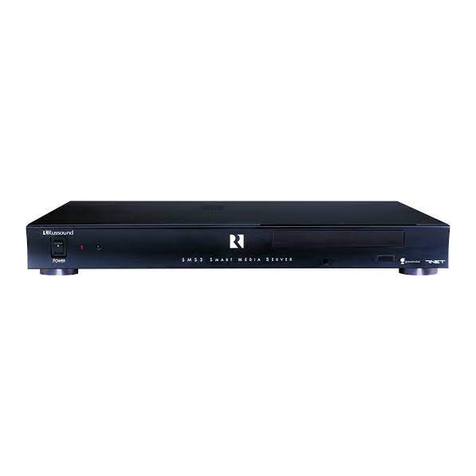

Smart Media Server is an intelligent audio source that plays music stored on its hard drive and plays streaming audio from the internet. The music is selected
and controlled by IR remote control, through the UNO keypads (RNET system) or networked computer.
The graphical user interface is viewed on a video display and within the web browser. The "3" in the SMS3 Smart Media Server name stands for its three
media streams or private virtual stations. Each of these streams acts as an independent source, with its own set of RCA connections. It is really three media
servers in one. The "Media" in the Smart Media Server name refers to its ability to store and display digital photos to accompany music selections. Over 2500
hours (4100 for SMS3-250) of compressed music can be stored on the SMS3. To preserve cataloged music and server configurations, Russound recommends
making periodic back-ups of the SMS3 hard drive. An external hard drive connects to the rear panel using a FireWire IEEE 1394 (strongly recommended) or
USB 2.0/1.1 interface.
The SMS3 Smart Media Server has a built-in CD-ROM reader and hard drive to archive stored files of audio CDs. Russound has teamed with Gracenote®
music recognition service and Muze® entertainment information service to provide CD information and album art for the SMS3 via the Internet. This
information, called metadata, includes song title, artist and album name, and genre (rock, jazz, etc.) When a CD is being cataloged by the SMS3, the media
server consults the Gracenote music recognition service database via the Internet (or from the database loaded onto the media server, when no internet
connection is present), then checks in to the Russound cover graphics server for album cover art from Muze that is displayed when the album is played. When
artist, album and track name are displayed, this information has been retrieved from the Gracenote CDDB music recognition service.
Once the music files are stored, they can be retrieved by artist, genre, song title, etc. With its internet connection the SMS3 can also stream internet radio or
be programmed to pick up an internet radio feed at scheduled times of the day for news or favorite programming. INSTALLATION APPLICATIONS The
SMS3 can be used in a Russound RNET-enabled system or in another IR-controlled audio system. It can be controlled by the SMS3-RC remote control,
through a web browser, or an RNET-system keypad and remote control. RNET-enabled System The SMS3 fully integrates with the CAM6.
6 and CAV6.6 multizone systems. It communicates via the RNET Link In/Out connection. Using an UNO keypad or SRC2 remote control for operation, UNO
keypads will display artist and song information. IR-controlled System The SMS3 can be controlled by infrared commands received through the IR connection
on the rear panel, in addition to the IR receiver on the front panel. There is one IR connection on the SMS3. You will need an IR link cable (Russound PN
09-0508 or equivalent) for this connection. The SMS3 IR codes may be learned into many other manufacturers' remote controls. RS-232-controlled System
The SMS3 can be controlled using the RNET RS-232 protocol provided via the RS-232 port on the rear panel. It can also be controlled by any
RS-232-enabled control system (e.
g., Crestron® or AMX®). Documentation on RS-232 operation is available to dealers on the Russound web site, www.russound.com. IP-controlled System
The SMS3 can be controlled through a telnet-style or http-style interface that provides full control and status of the SMS3 via the Ethernet network. 7
COMPONENT GUIDE SMS3 HANDLING AND POWER SMS3 Care and Handling The SMS3 Smart Media Server is a very sophisticated electronic
component. Accordingly, care should be taken not to drop, shake or bump the unit, especially when in use. Hardware The unit contains a full-size 160GB hard
drive (250GB for the SMS3-250), a powerful compact processor, an Ethernet LAN connection, and connections for a keyboard and mouse.
You're reading an excerpt. Click here to read official RUSSOUND
SMS3 INSTALL user guide
http://somemanuals.com/dref/77375

It supports an external hard drive (FireWire IEEE 1394, strongly recommended, or USB 2.
0/1.1) for database backups. The SMS3 will reformat the external hard drive on the first backup, so a dedicated backup hard drive is recommended. Software
For its operating system, the SMS3 Smart Media Server uses embedded Linux. When controlled by a networked computer, the SMS3 is compatible with
Internet Explorer 6 and Mozilla Firefox web browsers.
Power The SMS3 Media Server is not designed to be shut on and off after each use. It should remain powered all the time. When used with the CAV6.6 or
CAM6.6 controller, the SMS3 will be power managed by default to disconnect all three streams after all zones have been off for 5 minutes.
This does not power off the SMS3. The SMS3 cannot be plugged into a switched outlet because it can be damaging to the hard drive when the unit
immediately loses power. Sudden losses of power can cause loss of essential operating data on the hard drive, causing the hard drive to no longer operate.
The only proper way to shut down the media server is to toggle the power switch up, allowing the unit to perform a graceful shutdown. SMS3 Software
Version 02.05.08 and higher supports automatic shutdowns when used with the APC Smart-UPS brand uninterruptible power supplies. No configuration is
necessary. Simply connect the SMS3 to the APC Smart-UPS with a USB cable. In the event of a power outage, the UPS will continue to power the SMS3 until
its battery life reaches a low level.
At that point the UPS will issue a command to the SMS3 via the USB cable to initiate a graceful shutdown. CAV6.6 CAT-5 RJ-45 cable SMS3 LINK RCA
Composite Video Cable and Jumpers Smart Media Server MOUSE 1394 POWER IR IN +12VDC 6A MAX LAN CRT VGA S-VIDEO COMPOSITE VIDEO
RS232 INTERFACE KEYBOARD C US IN OUT AUDIO OUTPUTS USB 2.0/1.1 APC Smart-UPS Power Supply ASSEMBLED IN THE USA NEWMARKET,
NH SMS3 Media Server USB cable Sample configuration of SMS3 connection to APC Smart-UPS Power Supply 8 COMPONENT GUIDE SMS3 REAR
PANEL 7 9 12 SMS3 LINK Smart Media Server MOUSE 1394 POWER IR IN +12VDC 6A MAX LAN CRT VGA S-VIDEO COMPOSITE VIDEO RS232
INTERFACE KEYBOARD C US IN OUT AUDIO OUTPUTS USB 2.0/1.1 ASSEMBLED IN THE USA NEWMARKET, NH 1 1 2 3 4 5 6 8 10 11 13 RNET
LINK IN/LINK OUT - Links to other Russound components that are RNET compatible such as the CAV6.6 and CAM6.6 STREAM AUDIO OUTPUTS - Three
line level audio signal outputs (RCA Cable) 1394 DATA TRANSFER PORT - Input/output connection for 1394A standard data transfers such as external hard
drives for backups IR INPUT - IR control input POWER SUPPLY - 12VDC external power supply connection KEYBOARD PORT - PS/2 6-pin mini DIN
connection for keyboard input (recommended for diagnostics only) MOUSE PORT - PS/2 6-pin mini DIN connection for mouse input (recommended for
diagnostics only) CRT VGA CONNECTION - DB-15 connection for monitor output (cannot be used if either S-video or composite video output are in use)
NETWORK CONNECTION - RJ-45 port for LAN connection USB PORTS - Two USB input/output connections for USB 2.0/1.
1 master devices (use for backup devices only) S-VIDEO - 4-pin S-video output connection (cannot be used if either VGA or composite video output are in
use) COMPOSITE VIDEO - RCA jack for composite video output (composite video cable) (cannot be used if either S-video or VGA output are in use) RS-232
INTERFACE - DB-9 connection for RS-232 input/output communication with RS-232 devices 9 2 3 4 5 6 7 8 9 10 11 12 13 INSTALLATION OPTIONS
OVERVIEW VENTILATION REQUIREMENTS IMPORTANT: The SMS3 should be situated so that its location or position does not interfere with its proper
ventilation. Do not block vents above or to the sides of the unit, as it requires ventilation to the sides and above for proper operation. Do not expose to
excessive dust, and do not allow dust to build up on the unit and block vent holes.
You're reading an excerpt. Click here to read official RUSSOUND
SMS3 INSTALL user guide
http://somemanuals.com/dref/77375

Do not place the SMS3 above a heat-generating component such as an audio amplifier, and do not place a heat-generating component directly above the
SMS3. Be sure to leave at least 2 inches of space to the sides of the unit with open air flow above.
A single-space rack mount vent or about 1.75 inches must be kept clear above the unit. AUTOMATIC THERMAL SHUTDOWN The SMS3 is equipped with a
thermal threshold shut down that is activated through the server's software. Excessive dust build-up on the internal heat sink can cause a shut down. If a
thermal shut down occurs, the unit will emit a warbled beep for five seconds, then will power off.
If this occurs, do not re-power the SMS3 until sufficient cooling time (at least 10 minutes) has passed. Check for proper unit ventilation and remove any dust
build-up with compressed air. If the unit is powered while temperatures are still above threshold, the SMS3 will repeat the beep and shut down again. SMS3
INSTALLATION QUICK LOOK 1. 2. 3. 4. Connect Connect Connect Connect SMS3 SMS3 SMS3 SMS3 to to to to a controller amplifier (RNET controller
Source Setup is command type PERIPHERAL) LAN video display an unswitched power supply SMS3 LOCAL AREA NETWORK (LAN) CONNECTION
QUICK LOOK 1. Connect SMS3 to a DHCP (Dynamic Host Configuration Protocol) router with NAT/Firewall. 2.
Check LEDs on Ethernet connector (back of SMS3). A solid green light indicates a physical network connection; a flashing yellow LED indicates network
activity. 3. Obtain SMS3 IP address on LAN through video display (page 20) 4. From a computer networked on the same LAN, use a web browser to locate
the SMS3 (IP address) on the LAN TROUBLESHOOTING NETWORK PROBLEMS 1. Are the LEDs on the Ethernet connector (back of SMS3) illuminated? If
NO, troubleshoot cable and connection. This LED lights up when ANY network is connected. 2. What does the SMS3 report as its IP address (page 20)? If no
IP address appears, then DHCP is not working. Refer to router instructions.
10 INSTALLATION OPTIONS LAN WITH CABLE OR DIAL-UP MODEM NOTE: For security reasons, it is REQUIRED that the SMS3 be connected to the
internet behind a DHCP router with NAT/Firewall. The router cannot be in bridge mode and the SMS3 cannot be placed in the router's DMZ. The diagram
above shows a typical LAN connection for homes using a Cable or DSL modem to connect to the Internet. The SMS3 connects to the DHCP router with
NAT/Firewall. SMS3 Media Server SMS3 LINK Smart Media Server MOUSE 1394 POWER IR IN +12VDC 6A MAX LAN CRT VGA S-VIDEO COMPOSITE
VIDEO RS232 INTERFACE KEYBOARD C US IN OUT AUDIO OUTPUTS USB 2.
0/1.1 ASSEMBLED IN THE USA NEWMARKET, NH WAN LAN Notebook Computer MODEM DHCP Router with NAT The diagram above shows a typical
LAN connection for homes using a dial-up modem to connect to the Internet. The SMS3 connects to the DHCP router with NAT/Firewall. 11 INSTALLATION
OPTIONS VIDEO DISPLAY Distributed Video Signal The SMS3 Smart Media Server uses a video display to show the graphical user interface during
operation. The SMS3 outputs one video signal that is available in three formats - composite video, S-video and VGA.
The SMS3 supports only one video output format in use at any given time. For simultaneous video outputs, a commercial product that allows this should be
used. An example is the GrandTec GEZ-1000 USB 1.1 PC to Video Cable product, which supports simultaneous composite, S-video and VGA outputs. To view
the SMS3 interface, connect a video display (TV, display panel, etc.) directly to the SMS3 back panel using an S-video, composite video or VGA connection.
Another viewing option is connecting a computer monitor to the SMS3 15-pin VGA connection on the rear panel. There are several options available to
distribute the SMS3 video display. With video distribution systems such as the CAV6.6, the composite video signal must be shared between all three streams
(sources).
The CAV6.6 has a video signal output for each source input that can be looped to the next input with an RCA video patch cable.
You're reading an excerpt. Click here to read official RUSSOUND
SMS3 INSTALL user guide
http://somemanuals.com/dref/77375

For non-video distribution systems such as the CAS44, an RF modulator and RF distribution amplifier may be used as an alternate means of distributing
video to each room in the system. With one video stream out, if there is more than one video interface (TV, display) using the same signal, all show the same
view and all will update at the same time. When a menu command is received by the SMS3, the video signal will display the stream that was the target of the
command. Note: The video display is auto-sensing; it is looking for a load on the composite or S-video connection. If the video is connected after the SMS3 is
powered, there will be no signal, as the SMS3 default setting is VGA output only. Simply reboot the SMS3 after connecting to a TV or video display, and the
video display will sense the load. CAV6.6 With Distributed Video Signal In a CAV6.
6 system, the SMS3's three streams are configured as three sources, with command type PERIPHERAL. Its composite video signal is shared between all three
sources by using an RCA cable to loop the video from source out to source in. Refer to the diagram on the next page for connections. 1. Connect the three
RCA cables from the SMS3 three sources to the controller amplifier source inputs.
For RNET-enabled systems, SMS3 source numbers are preconfigured: SMS3 Stream 1=RNET Source 3 SMS3 Stream 2=RNET Source 4 SMS3 Stream
3=RNET Source 5 These source numbers can be re-configured from the SMS3 if necessary. 2. Connect a CAT-5 patch cable from the CAV6.6 RNET Link Out
port to the SMS3 RNET Link In port. 3.
Using a straight-through Ethernet RJ-45 CAT-5 patch cable, connect from the SMS3 LAN port to an open port on the network router. 4. Connect the
composite video cable from the SMS3 composite video port to the Source 3 video input. 5. Use an RCA loop cable to connect the Source 3 video out to Source
4 video in. Loop another cable from Source 4 video out to Source 5 video in. 6. Connect an RCA cable from the video source's video in jack to the CAV6.6's
Zone Video Output. 12 INSTALLATION OPTIONS CAV6.
6 WITH DISTRIBUTED VIDEO SIGNAL Composite Video Jumper Zone 1 (2 recommended) Media Server Composite Video Cable (1 included) RCA Cable
UNO-S2 keypad TV (3 included) RCA Composite Video Cable CAV6.6 RCA Composite Video Cable and Jumpers SMS3 LINK Smart Media Server MOUSE
1394 POWER IR IN +12VDC 6A MAX LAN CRT VGA S-VIDEO COMPOSITE VIDEO RS232 INTERFACE KEYBOARD C US IN OUT AUDIO OUTPUTS
USB 2.0/1.1 ASSEMBLED IN THE USA NEWMARKET, NH SMS3 Media Server Ethernet CAT-5 RJ-45 patch cable To LAN CAV6.6 With Distributed Video
Signal Note: CAM6.6 installation is similar to CAV6.6 above but without video support. Please refer to Page 14 for employing RF modulation to distribute
video in non-video distribution systems. 13 INSTALLATION OPTIONS CAS44 WITH RF MODULATED DISTRIBUTED VIDEO SIGNAL In multisource, non-
video distribution systems such as the CAS44, the SMS3's three streams are configured as three sources. To distribute the video signal, an RF modulator and
RF distribution amplifier may be used as an alternate means of distributing video to each room in the system.
The composite video out of the SMS3 is supplied to an RF modulator to convert the signal to a specific channel which the television tuners throughout the
home can receive, just like a TV station. An RF distribution amplifier will accept the RF modulator's output, amplify and distribute it to multiple outputs that
can be wired to each television through a coaxial cable such as RG6. The television will need to be tuned to the channel that the RF modulator is set for in
order to see the composite video signal output of the SMS3. CAS44 Installation with RF Modulator 1. Using the three RCA cables, connect the SMS3's three
source outputs to the controller amplifier source inputs.
2. Using the IR link cable, connect the controller amplifier's IR emitter port to the SMS3 IR In port. 3. Using a straight-through Ethernet RJ-45 CAT-5 patch
cable, connect from the SMS3 LAN port to an open port on the network router.
You're reading an excerpt. Click here to read official RUSSOUND
SMS3 INSTALL user guide
http://somemanuals.com/dref/77375

4.
Using a composite video cable, connect the SMS3 composite video port to the RF modulator video input. 5. Using coaxial cable (RG6), connect the RF
modulator's video output to the RF distribution amplifier modulator input. 6. Using coaxial cable (RG6), connect the RF distribution amplifier modulator's TV
output to the television's cable/antenna input. Note: Some modulators are unable to be sensed by the SMS3 during boot-up. In the event that you are unable to
get video through the modulator, boot up the SMS3 with a TV connected to the Composite Video Out. Once you have video on the TV, you can switch over to
the modulator. RCA Coaxial Cable (RG6) ZONE 1 To LAN SMS3 Media Server CATV INPUT SMS3 LINK Smart Media Server TV OUTPUT MOD INPUT
MOUSE 1394 POWER IR IN +12VDC 6A MAX LAN CRT VGA S-VIDEO COMPOSITE VIDEO RS232 INTERFACE TV IN OUT AUDIO OUTPUTS
KEYBOARD C US USB 2.0/1.
1 RF Distribution Amp ASSEMBLED IN THE USA NEWMARKET, NH RCA Coaxial Cable (RG6) MSvr1 RCA Cable IR Link Cable RCA Composite Video
Cable VIDEO INPUT AUDIO AUDIO L R OUTPUT RF Modulator Source Mute Trigger In Out CAUTION Update RS232 Interface CPU Run Keypad Ports
12VDC 100mA Max WARNING: SHOCK HAZARD DO NOT OPEN. AVIS: RISQUE DE CHOC ELECTRIQUE NES PAS OVRIR. AC240V~ AC110V~ KPL
110V/F3.0A H 250V 240V/T1.25A H 250V 100-120V~3A, 220-240V1.25A, 50-60Hz Designed in USA Made in Taiwan CAS44 Controller RCA Cable
Speakers IR Link Cable Pos (+) Neg () CAS44 Controller With RF Modulated Distributed Video Signal 14 CONTROLLING THE SMS3 SMS3 REMOTE
CONTROL 1 EXIT - Backs out of current menu (same as left arrow) MENU RIGHT - Navigates to the right within a menu MENU HOME - Returns to the
home page (What's Playing) NEXT SONG - Advances to the next song in the theme PLAY - Starts a stopped or paused stream STREAM SELECT - Selects
Stream 1, 2 and 3 for control of that stream POWER - Places the selected stream into standby mode (press again to take out of standby mode) FAVORITES -
Saves and recalls favorite themes PREVIOUS SONG - One tap starts song over, second tap returns to the previous song in the theme MENU DOWN -
Navigates down within a menu INFO - Advances to the More Details screen under "What's Playing" OK - Selects highlighted item on page MENU LEFT -
Navigates to left within a menu HELP - Advances to the main Help page MENU UP - Navigates up within a menu GENRE - Advances to the Genre list when
selecting music THEME - Advances to the Theme list when selecting music ARTIST - Advances to the Artist list when selecting music SEARCH - Advances to
Text Search when selecting music 15 2 16 17 18 19 3 Genre Theme Artist Search 4 15 5 14 13 12 11 10 9 5 3 4 8 9 1 2 7 6 10 11 6 8 12 13 7 14 15 16 NOTE:
The SMS3-RC remote control is used for direct control of the SMS3 and for IR repeating systems only. It will not control the SMS3 via the UNO keypads. 17
18 19 CONTROLLING THE SMS3 UNO-S2 Keypad 9 Media Server 1 2 8 3 7 6 5 1 2 3 4 5 4 SOURCE SELECT - Selects stream to control PLAY - Displays
info for What's Playing VOLUME - Adjusts volume up/down in room NEXT SONG - Advances to the next song in the theme PREVIOUS SONG - One press
restarts the current song. Two presses returns to the previous song in the theme STOP - Exits any menu SEARCH THEMES - Scrolls through list of themes
PAUSE - Pauses/unpauses audio of active stream DISPLAY - Shows name of song, theme, stream, etc. 6 7 8 9 16 CONTROLLING THE SMS3 UNO-S1
Keypad 5 MSvr3 1 3 2 4 1 2 3 3 4 4 SOURCE SELECT - Selects stream to control VOLUME - Adjusts volume up/down in room NEXT SONG - Advances to
the next song in the theme (press) NEXT THEME - Advances to the next theme in the Themes list (press and hold) PREVIOUS SONG - Returns to the previous
song in the theme (press) PREVIOUS THEME - Advances to the previous theme in the Themes list (press and hold) DISPLAY - Shows name of song, theme,
stream, etc.
You're reading an excerpt. Click here to read official RUSSOUND
SMS3 INSTALL user guide
http://somemanuals.com/dref/77375

5 17 CONTROLLING THE SMS3 UNO-TS2 Touchscreen The UNO-TS2 offers an expanded view of source information and selections when used with the
Russound SMS3 Media Server in an RNET system. A single view shows the active theme, artist name, song title and album name. Linked screens show more
detailed song information and lead to search fields to choose music by genre, artist, album and more. Media Server Main Screen On the UNO-TS2 home
screen, press the SMS3 source button to select the media server. The main screen for the media server shows the current Stream, current Theme, and What's
Playing now.
When navigating within the media server screen set, you can return to this screen by pressing "main" on the navigation bar. The hard button secondary
functions let you scroll through Themes or select another song within the current Theme without leaving the main screen. His Music Relax at Night B.B. King
Why I Sing The Blues Chains and Things Example of SMS3 Media Server Main screen Media Server More Detail Screen The More Detail screen for the
media server shows expanded information for the current song: artist, album, song, and genre.
The hard button secondary functions let you scroll through Themes or select another song within the current Theme without leaving the screen. B.B. King B.B.
King Why I Sing The Blues Chains and Things Electric Blues main Example of SMS3 Media Server More Detail (What's Playing) screen 18 CONTROLLING
THE SMS3 UNO-TS2 Touchscreen Media Server Music Request Screen The Request Music screen for the media server lets you request music a variety of
ways: by Artist, by Album, by Genre and more. Press the desired item to proceed to that category's selections. by Theme by Genre by Artist by Album by Song
Title by Internet Radio main Example of SMS3 Media Server Music Request screen Media Server Request "by" Screen Each "request" selection screen shows
the first four or five items in the list selected. To drill down the item you want, use the "enter text" field to enter the name desired. The hard button secondary
functions let you scroll through the alphabet to spell the name, using "letter" to choose the letter and "cursor" to move to the next character.
As letters are entered, the list displays the results. Additional results can be viewed by pressing the scroll up/down buttons on the left of the screen. When you
see the selection you want, touch the selection bar to play it, or if choosing artist, advance to the next screen in the selection process. Note: For Request by
Theme and Request by Internet Radio screens, selections are made using the scroll arrows, as these screens do not show a text entry field. Stream 1 [J] 1.Jack
Johnson 2.James Taylor 3.Jeff Beck 4.Jethro Tull main Example of SMS3 Media Server "Request by Artist" screen 19 CONTROLLING THE SMS3 SRC2
Remote Control 1 1 RUSSOUND SYSTEM BUTTON - Activates control of Russound system controller and keypads, and connected sources VOLUME
UP/DOWN - Raises and lowers the volume for the room you are in MUTE - Mutes audio output of the room you are in INFO - Shows "More Details" song
information RIGHT/FORWARD - Navigates to the right or forward DOWN - Navigates down a list EXIT - Exits out of current page, exits out of any name
entry field PLAY - Shows "Now Playing" on UNO keypad FORWARD - Skips to next song in current theme INPUT (Direct) - Directly selects streams by
source number PAUSE - Pauses/unpauses stream of media server GUIDE - Accesses page-appropriate Help files OK - Selects highlighted option
LEFT/BACK - Navigates to the left or back MENU - Returns to home page UP - Navigates up a list CHANNEL UP/DOWN - Scrolls through Themes list
INPUT (Toggle) - Toggles through 3 streams and other configured sources 2 3 4 5 6 18 7 17 16 15 2 8 9 3 4 10 11 12 13 14 15 14 5 6 13 12 7 8 11 9 16 17 18
10 NOTE: The SRC2 Remote Control is used to control the SMS3 via UNO keypads only.
You're reading an excerpt. Click here to read official RUSSOUND
SMS3 INSTALL user guide
http://somemanuals.com/dref/77375

20 START UP TEST OPERATIONS After all audio connections are made, a connection to the LAN is established and a video display is connected to show
the media server interface, the SMS3 should be powered up and tested.
POWER UP Attach the external power supply connector to the SMS3's power jack. Plug the power supply into an unswitched powered outlet. The SMS3
cannot be plugged into a switched outlet because it can be damaging to the hard drive when the unit immediately loses power. Sudden losses of power can
cause loss of essential operating data on the hard drive, causing the hard drive to no longer operate. To power the SMS3, toggle the front panel power switch
up; the red power LED will light up.
The only proper way to shut down the media server is to toggle the power switch up, allowing the unit to perform a graceful shutdown in four seconds. When
used with the CAV6.6 or CAM6.6 controller, the SMS3 will be power managed by default to disconnect all three streams after all zones have been off for 5
minutes. START UP It will take a few minutes for the SMS3 to complete its boot-up procedure.
During boot-up two beeps will sound. The first beep indicates a good LAN connection and the second beep indicates a connection to the DHCP server. Once
boot-up is completed, the home page will appear on the local video display (TV or monitor). SMS3 Smart Media Server "Home" Page 21 START UP TEST
OPERATIONS LAN CONNECTION To check the SMS3 LAN connection using the video display, choose Options & Status from the home page, and select
Network from the list of options. This brings up the Network page. NETWORK IP ADDRESS The Network page provides the SMS3's IP (Internet Protocol)
address as assigned by the router. The IP address identifies the SMS3's location on the network. The user needs the SMS3's IP address to move music and
image files from a PC on the network to the media server. Note: If the Network page is not visible from the PC interface, disable any active pop-up blockers.
IP Address 10.
0.1.XXX To use the Media Server on a PC browse to http://10.0.1.XXX http://10.0.1.###?STREAM=X (where X=1,2,or3) To view Diagnostics on a PC
browse to http://10.0.
1.XXX/diags.pl Press any key to continue If there is no LAN connection, the Network page will show no IP address. 22 START UP TEST OPERATIONS TEST
SMS3 CD CATALOGING FUNCTION To test the SMS3's CD cataloging function, load a music CD into the CD drive and close the drawer. Make sure the
CD is clean and free of scratches.
Dirty or damaged CDs may take much longer to catalog. In some cases it may seem that the cataloging process may have stopped. If this occurs, eject the
CD, clean it and try again. The amber LED on the front panel blinks while the CD is cataloged. It takes about 12 minutes to catalog a CD.
When the cataloging process is finished, the amber LED will go dark, the CD will stop spinning and the drawer will open. 1 2 3 4 5 6 SMS3 SMART MEDIA
SERVER SMS3 Front Panel 1 2 3 4 5 6 MAIN POWER SWITCH - Turns power on and off (toggle up) POWER ON/OFF LED - Indicates power on or off IR
RECEIVER - Receives IR signal from SMS3-RC remote control INTERNAL CD DRIVE - Single CD drive for acquiring files CD OPERATION LED -
Indicates drive is accessing CD OPEN/CLOSE BUTTON - Opens/closes CD drive 23 START UP TEST OPERATIONS TEST SMS3 CD CATALOGING
FUNCTION (cont'd) After a few minutes, the first music loaded onto an empty SMS3 will start playing on all three streams ("All Songs" theme plays). To view
song information, use the video display to view the "What's Playing" page for one of the three streams. Song Information - "What's Playing" screen 24 START
UP INTERNET RADIO HANDLER INTERNET RADIO HANDLER The SMS3 uses an Internet Radio Handler application to add internet radio stations to the
SMS3 hard drive via a Windows-based PC interface. For Macintosh computers, a file-sharing procedure is used. Refer to the SMS3 User Manual for more
information.
You're reading an excerpt. Click here to read official RUSSOUND
SMS3 INSTALL user guide
http://somemanuals.com/dref/77375

This application activates when the user selects an internet radio station while on the web. The application moves the internet radio station link onto the
SMS3's hard drive into the designated Internet Radio folder for use in themes. This software application is preloaded on the SMS3 hard drive, and must be
installed onto the client's networked PC. View of SMS3 hard drive from Windows Explorer window To access the media server hard drive from a PC, first
determine the media server's IP address by viewing the Network page under Options & Status.
In the Internet Explorer address window, enter \\IP address of media server. (Example: \\192.186.0.52) You will see a series of folders on the SMS3: Icons,
Images, IncomingMusic, Music and Software. Open the "Software" folder on the SMS3. Locate the Internet Radio Handler.exe file. Drag and drop the file
onto the PC desktop. View of SMS3 hard drive Software folder from Windows Explorer window 25 START UP INTERNET RADIO HANDLER Double-click
on the icon to install the program onto the PC, and follow the steps for installation.
Once installed, the program will automatically launch on startup of the PC. "Start-up" screen for SMS3 Internet Radio Application INTERNET RADIO TEST
To test the installation and operation of the Internet Radio Handler, use the networked PC on which the handler application is loaded. Make sure the SMS3 is
powered on and connected to the LAN. Browse to an internet radio stream (e.g.
, www.shoutcast.com) and click on a stream. The Internet Radio Handler will ask if the stream is to be played locally or forwarded to the media server. After
choosing "Forward to Media Server" a naming dialog box appears.
Enter a name for the stream and click "OK." "Add to" screen for SMS3 Internet Radio Application "Name" screen for SMS3 Internet Radio Application 26
START UP INTERNET RADIO HANDLER FIREWALL INTERACTION WITH INTERNET RADIO HANDLER A security alert window may appear the first
time the Internet Radio Handler is used. This occurs if the computer's operating system or other security software employs a program blocker in its firewall.
For Microsoft Windows XP Service Pack (SP) 1, there should be no issues using the Internet Radio Forwarding Agent. For Windows XP Service Pack (SP) 2,
the following procedure can be used. For other software firewalls, refer to the program's Help files for specific information. Using the Media Forwarding
Agent for the first time with SP2 will result in a Windows Security Alert window asking if you want Windows Firewall to keep blocking this program. Select
Unblock to add the program to the firewall Exception list. This allows the Forwarding Agent to communicate with the SMS3. A restart of the computer may be
needed for these changes to take effect.
Windows Security Alert window If you do not unblock the Forwarding Agent then it cannot talk to the SMS3 and you will get an error message telling you the
Media Server could not be found, followed by another error message saying there was an error sending the file to the Media Server. Error message windows
if "Keep Blocking" is selected 27 START UP INTERNET RADIO HANDLER The Media Forwarding Agent can be added to the Exceptions list manually. Go
to the computer's Control Panel and select Windows Firewall. In the Windows Firewall menu select the Exceptions tab. If "MediaFwdAgent" is not in the list,
select "Add Program" and add the program. When the program is added manually it will show up as "SMS3 Internet Radio Application." Make sure the box is
checked and hit OK. A restart of the computer may be necessary for these changes to take effect. Windows Firewall Menu in Windows XP with SP2 After
choosing "Forward to Media Server" a naming dialog box appears. Enter a name for the stream and click "OK.
" The named stream will now appear in the Internet Radio list on the SMS3. It may take a few minutes before these are available. To test, select the internet
radio station and you should hear it play on the selected stream.
You're reading an excerpt. Click here to read official RUSSOUND
SMS3 INSTALL user guide
http://somemanuals.com/dref/77375

Note: If the stream does not appear, check that the PC's time clock is accurate, and the media server's system time is correct. Selecting Internet Radio
"station" Theme 28 START UP OPTIONS & STATUS CONFIGURATION OPTIONS & STATUS SELECTIONS The menu selections listed under Options &
Status allow access to configurable functions.
Some of these are geared toward the user, some are available only to the installer. SETUP SCHEDULES Schedules are used to automatically select Themes
to play at specific times of specific days. More information on Schedules and how to set them is found in the SMS3 User Manual. System Time (under Setup
Schedules) It is important to set the correct system time on the media server, as many behind-the scenes functions such as internet stream imports are
governed by this setting. If the current time shown in the System Time window is incorrect, the time can be corrected from the Schedules page.
Select System Time, and select the appropriate Internet Time zone from the pulldown list. The time can also be manually adjusted by selecting None for the
Internet Time zone, and entering the desired Date and Time in the appropriate windows. Be sure to follow the date and time formats as shown. System Time
using Internet Time zone System Time using manual settings REVIEW MUSIC If the media server detects errors in artist name or song titles during the
cataloging process, the errors can be reviewed and corrected in Review Music. More information on Review Music is found in the SMS3 User Manual. 29
START UP OPTIONS & STATUS CONFIGURATION BACKUP Backups of the media server's hard drive should be performed on a regular basis to preserve
and protect the files. An external hard drive is used (160GB or higher, 250GB or higher for SMS3-250; FireWire IEEE 1394 strongly recommended, or USB
2.0/1.1 interface). The external hard drive must be dedicated to the SMS3, as backups reformat the drive.
The drive should be left connected to the SMS3 to be available for incremental backups as music and media are added. Do not connect the formatted backup
drive to a computer. Select Backup or Auto-Backup Select Backup or Fast Backup Select Auto-Backup The SMS3 supports a standard Backup, Fast Backup or
Auto-Backup. A standard backup option takes the most time to complete, but preserves audio stream quality while in process. A fast backup option may be
selected to speed up the backup process, but audio stream quality may be affected (drop-out or skip). Fast backup may cause audio dropouts and cause the
user interface to feel sluggish. An automatic backup option performs a standard backup every day at 4 a.m. when the external hard drive is connected to the
SMS3. This option is either enabled or disabled.
The first time a complete backup is performed on the media server, it may take a few hours or a few days, depending on how many files are loaded into the
media server's hard drive, and how much the media server is being used during the backup. Once the initial backup is performed, subsequent backups should
take much less time. These are incremental backups and only copy those files that are new or have changed since the last backup. Once the external hard
drive is connected to the SMS3, select Backup/Restore from the Options & Status page. Choose Backup or Auto-Backup.
From the System Backup page, select either Backup or Fast Backup. The media server will display "Backup/Restore in progress" on the screen. The SMS3
will display "Backup procedure is complete" when finished. When Auto-Backup is selected, the Automated Backup page appears. Choose Enable to set
automatic backups, and Disable to end automatic backups.
Check the SMS3 system time settings for accuracy, as the Auto-Backup commences at 4 a.m. according to the SMS3's time setting. 30 START UP OPTIONS &
STATUS CONFIGURATION RESTORE The Restore function restores the media server's database and configurations using a previously recorded backup
from that hard drive. Restore is used only in case of a hardware failure.
You're reading an excerpt. Click here to read official RUSSOUND
SMS3 INSTALL user guide
http://somemanuals.com/dref/77375

After selecting Backup/Restore, make sure the external hard drive is connected to the FireWire (strongly recommended) or USB port on the back of the
SMS3. Select Restore. The media server will display "Backup/Restore in progress" on the screen. Once the Restore procedure is complete, the SMS3 will
restart. CONFIGURE There are several "installer only" settings that should be reviewed during SMS3 installation.
These settings are accessed through the password (abc) protected "Configure" selection under Options & Status. The Configuration options are: Encoding
Format, Stream Options, Online Update, Network Settings and Import HDD. 31 START UP OPTIONS & STATUS CONFIGURATION ENCODING FORMAT
The encoding format for CDs must be set before cataloging music. When the media server reads an audio CD and stores the tracks as files on its internal hard
drive, the encoding format tells it how to convert and store that file. It can be converted with no loss of information or some loss of information, stored
compressed to save hard drive space, or stored uncompressed to preserve its playback quality. FORMAT The format choices available are WAV, FLAC, OGG
and MP3 (default setting). Each encoding format is unique and has its advantages depending on your preferences. WAV Audio files in WAV format are
uncompressed and retain all information when encoded. Use WAV when audio playback quality is valued over preserving hard drive space on the media
server, or if file size is not a concern. FLAC Audio files in FLAC format are compressed to at least 50% of their original style but are lossless, meaning that
audio is compressed without any loss in audio playback quality.
Use FLAC when smaller file size is as important as playback quality. OGG (short for OGG Vorbis) Audio files in OGG format are compressed and may lose
some information to make them smaller. Typically, OGG removes only those parts that won't be noticed by the human ear. Use OGG when small file size and
hard drive space conservation is more important than original-quality playback. 32 START UP OPTIONS & STATUS CONFIGURATION MP3 Audio files in
MP3 format are compressed, and may lose some information to make it easier to compress.
As with OGG, the information lost with MP3 is typically not discernable to the average listener. Use MP3 when smaller files are desired (if the audio files
may be moved to a portable MP3 player) or if hard disk space is at a premium. Playback quality will be less than that of the original, but should not be
discernable to the listener. QUALITY If you choose MP3 or OGG, (an encoding format that compresses the file), you must also select a Quality setting: High,
Normal or Economy. The differences between the settings are compression rates and information loss.
High - Less compression, more information retained (MP3 = 320 Kbps, OGG = 184 Kbps) Normal - Standard level of compression and information loss
(MP3 = 192 Kbps, OGG = 121 Kbps) Economy - More compression, less information retained (MP3 = 92 Kbps, OGG = 87 Kbps) CHANGING THE
ENCODING QUALITY From the Options & Status page, choose Configure. Enter the password "abc" to reach the Encoding Format page. Under Format,
select WAV, FLAC, OGG or MP3. If OGG or MP3 is selected, proceed to Quality. Select High, Normal or Economy. Note: The Encoding Format and Quality
setting stay in effect for every CD cataloged until the settings are changed. If you want different encoding quality settings for different music CDs, you must
choose the desired settings prior to cataloging those CDs. STREAM OPTIONS There are five selections to make under Stream Options: Stream Names, RNET
Sources, Remote Control, Volume Leveling and Output Levels. STREAM NAMES The SMS3's three streams are pre-named Stream 1, Stream 2 and Stream 3.
These names can be edited from this page.
Select the window next to the Stream Name # and enter the new name using the name entry field. 33 START UP OPTIONS & STATUS CONFIGURATION
Note: If used with an RNET-enabled system, changes to the SMS3 stream names appear within the graphical user interface only and DO NOT show up on the
UNO keypads.
You're reading an excerpt. Click here to read official RUSSOUND
SMS3 INSTALL user guide
http://somemanuals.com/dref/77375

UNO keypads display only source names assigned through the RNET system. To eliminate confusion, it is recommended to match the CAV/CAM source
names with the media server's stream names. RNET SOURCES When the SMS3 is used in an RNET-enabled system, the three streams are associated with
source numbers within the RNET system. The SMS3's streams are pre-configured: Stream 1=Source 3, Stream 2=Source 4, Stream 3=Source 5. These can be
reassigned from this screen if necessary; however, command type PERIPHERAL must be set for selected source numbers in the RNET system. For a non-
RNET system, or RNET systems that are not using all three streams, the "No RNET Source" selection is available. 34 START UP OPTIONS & STATUS
CONFIGURATION REMOTE CONTROL On the SMS3-RC remote control, the Favorite buttons can be assigned to specific themes. The F1, F2 and F3
buttons are pre-assigned with three of the media server's default themes.
To assign a new theme to a favorite button, select the field next to the button name to bring up a list of themes, then select one of the themes for that button.
Once a theme has been assigned to a Favorite button, it can be recalled at a touch without navigating through screens. VOLUME LEVELING Volume
leveling adjusts the playback level of songs to compensate for differing recording levels of music files. This setting "evens out" the volume changes between
songs played in themes and is enabled or disabled for each stream. Leveling is applied only when a song is heard on playback and does not change the saved
file's compression setting.
35 START UP OPTIONS & STATUS CONFIGURATION OUTPUT LEVELS The Output Levels can be adjusted to reduce volume on a per-stream basis if
users are experiencing "hot" outputs or static bleed-through to amplifiers. Many multizone controllers and receivers have different input sensitivity levels. The
SMS3 has the ability to set reduced line-output levels in the event that the default levels over-drive some pieces of equipment. For instance, if you are
connecting to an external amplifier from the zone line-level outputs on the CAV6.6 or CAM6.
6, if you encounter distortion or audio clipping from the media server source, set the Output Level to Reduced in the Stream Options menu. You can change
the output level on a perstream basis for maximum flexibility. ONLINE UPDATE Note: As a precaution, it is highly recommended that you complete a backup
of the database before performing online updates! The update process is designed to preserve the database, but data should be protected with a backup to be
safe. Note: After completing any update to the SMS3, be sure to clear the browser cache of all web browsers on computers used with the SMS3 in order to
view the updates. The SMS3 firmware can be updated via an online process from the Online Update page. During the online update, the media server must be
connected to an active internet feed. Select Online Update, and when ready, select Initiate Update. The media server will lock out user functions during this
time. When the update is complete, the page will display an "Update Complete" message and the media server will be restarted. 36 START UP OPTIONS &
STATUS CONFIGURATION NETWORK SETTINGS The Network Settings page allows a Static IP address to be entered for the SMS3.
Using a static IP address makes it easier to bookmark the SMS3 for easy access from a computer's browser. The current IP address of the SMS3 is shown at
the top of the window. If a static IP address is desired, enter the IP address in the window next to Static IP and select Apply IP. The new IP address will show
at the top of the window. Note: A DHCP server with NAT/firewall is still required for the SMS3 even if a static IP address is to be used. Note: Do not enter a
Static IP address that matches its dynamic IP address or that falls within the DHCP server's address allocation pool. Refer to the DHCP server's manual for
more information. 37 START UP OPTIONS & STATUS CONFIGURATION IMPORT HDD The Import HDD page provides an interface to allow importation
of music files specifically from an external hard drive that has been loaded by a music encoding service (ReadyToPlay).
You're reading an excerpt. Click here to read official RUSSOUND
SMS3 INSTALL user guide
http://somemanuals.com/dref/77375

A music encoding service takes a collection of music CDs and loads them onto an external hard drive in formats supported by the SMS3. The resulting music
files and metadata are now ready to be loaded on the SMS3.
To import files from an external hard drive that has been loaded by a music encoding service (ReadyToPlay), select Import HDD and connect the drive to the
SMS3. Power the drive on, and select Continue. On the next screen, press Start Import when ready. This process takes about 15 minutes per gigabyte of data
on the disk. Note: The external hard drive must stay powered and connected during the import process.
If interrupted, the importation does not pick up where it left off, but must be manually restarted from the beginning. 38 BEFORE YOU GO FINAL
CHECKLIST FINAL CHECKLIST Here are a few things to check before you leave the SMS3 and the installation site. 1. SMS3 is plugged into unswitched
power outlet 2. SMS3 has IP address on LAN 3.
SMS3 graphical user interface appears on video display 4. CDs can be loaded, cataloged and ejected 5. Cataloged CDs can be heard through the audio
system 6. Encoding format is selected (if other than MP3) 7. Streams are named 8. Streams are associated with RNET source numbers (on RNET system) 9.
Internet Radio Handler has been downloaded and installed on customer's networked PC 10. Static SMS3 IP address is set and bookmarked in web browser of
customer's networked PC 11. Internet streams can be played from the SMS3 12. SMS3 is set with appropriate System Time The Dean of Media says, "Great
job!" 39 TECHNICAL SPECIFICATIONS SMS3 Smart Media Server Dimensions: Weight: Power Requirements: 17"W x 12.
9"D x 1.75"H (43 x 32.8 x 4.4 cm) 12 lbs. (5.4 kg) External power supply, 100-240 VAC, 50-60Hz +12VDC 6A output, 72W max Frequency Response:
THD+N: Signal to Noise Ratio: Audio Source Outputs: Line Audio Output: Video Output Formats: Communication Ports: 20Hz - 20kHz +/- 0.5dB [ 0.05% ]
80dB 3 2 Vrms Composite, S-Video, VGA RNET link IR receiver (front panel), IR jack (rear panel) Ethernet LAN RS-232 control Hard Drive: Internal EIDE
160GB (SMS3) Internal EIDE 250GB (SMS3-250) CD Drive: Music File Formats: Full size CDROM MP3 (CBR, VBR) WAV OGG Vorbis Image File
Formats: System Requirements for Internet Radio Handler: Web Browser Requirements: JPEG, GIF, PNG, TIFF Windows 2000 and Windows XP Internet
Explorer 6.0 or higher Firefox, Mozilla, 1.0 or higher Netscape 7.
0 or higher 40 WARRANTY The Russound SMS3 Smart Media Server is fully guaranteed against all defects in materials and workmanship for one (1) year
from the date of purchase. During this period, Russound will replace any defective parts and correct any defect in workmanship without charge for either
parts or labor. For this warranty to apply, the unit must be installed and used according to its written instructions. If service is necessary, it must be
performed by Russound. The unit must be returned to Russound at the owner's expense and with prior written permission.
Accidental damage and shipping damage are not considered defects, nor is damage resulting from abuse or from servicing by an agency or person not
specifically authorized in writing by Russound. This Warranty does not cover: · Loss of data · Damage caused by abuse, accident, misuse, negligence, or
improper installation or operation · Power surges and lightning strikes · Normal wear and maintenance · Products that have been altered or modified · Any
product whose identifying number, decal, serial number, etc. has been altered, defaced or removed Russound sells products only through authorized Dealers
and Distributors to ensure that customers obtain proper support and service. Any Russound product purchased from an unauthorized dealer or other source,
including retailers, mail order sellers and online sellers will not be honored or serviced under existing Russound warranty policy. Any sale of products by an
unauthorized source or other manner not authorized by Russound shall void the warranty on the applicable product.
You're reading an excerpt. Click here to read official RUSSOUND
SMS3 INSTALL user guide
http://somemanuals.com/dref/77375

Damage to or destruction of components due to application of excessive power voids the warranty on those parts. In these cases, repairs will be made on the
basis of the retail value of the parts and labor. To return for repairs, the unit must be shipped to Russound at the owner's expense, along with a note
explaining the nature of service required. Be sure to pack the unit in a corrugated container with at least three (3) inches of resilient material to protect the
unit from damage in transit. Before returning a unit for repair, call Russound at [phone] for a Return Authorization number. Write this number on the
shipping label and ship to: Russound ATTN: Service 5 Forbes Road Newmarket, NH 03857 Due to continual efforts to improve product quality as new
technology and techniques become available, Russound/FMP, Inc. reserves the right to revise system specifications without notice. 41 NOTES 42 NOTES 43
Russound 5 Forbes Road, Newmarket, NH 03857 tel [phone] · fax 603.
659.5388 e-mail: [email protected] www.russound.com Copyright © 2006 Russound® All rights reserved. All trademarks are property of their respective
owners Russound is not responsible for typographical errors or omissions Specifications subject to change without notice 28-0113 Rev..
You're reading an excerpt. Click here to read official RUSSOUND
SMS3 INSTALL user guide
http://somemanuals.com/dref/77375
Powered by TCPDF (www.tcpdf.org)
