Ryobi CID1823VK User manual

This new cordless hammer drill has been engineered and manufactured to Ryobi’s high standard for dependability, ease of
operation, and operator safety. When properly cared for, the drill-driver will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator's manual before
using this product.
Thank you for buying a Ryobi product.
OPERATOR'S MANUAL
1/2 in. (13 mm) THREE SPEED
CORDLESS HAMMER DRILL
MODEL NO. CID1823VK
SAVE THIS MANUAL FOR FUTURE REFERENCE
15

1
5
1
5
15
15
F
Fig. 1
Fig. 2 Fig. 3
Fig. 4 Fig. 5
G
A
B
C
D
E
A
B
C
A
BC
C
B
A
E
D
A
BC

1
5

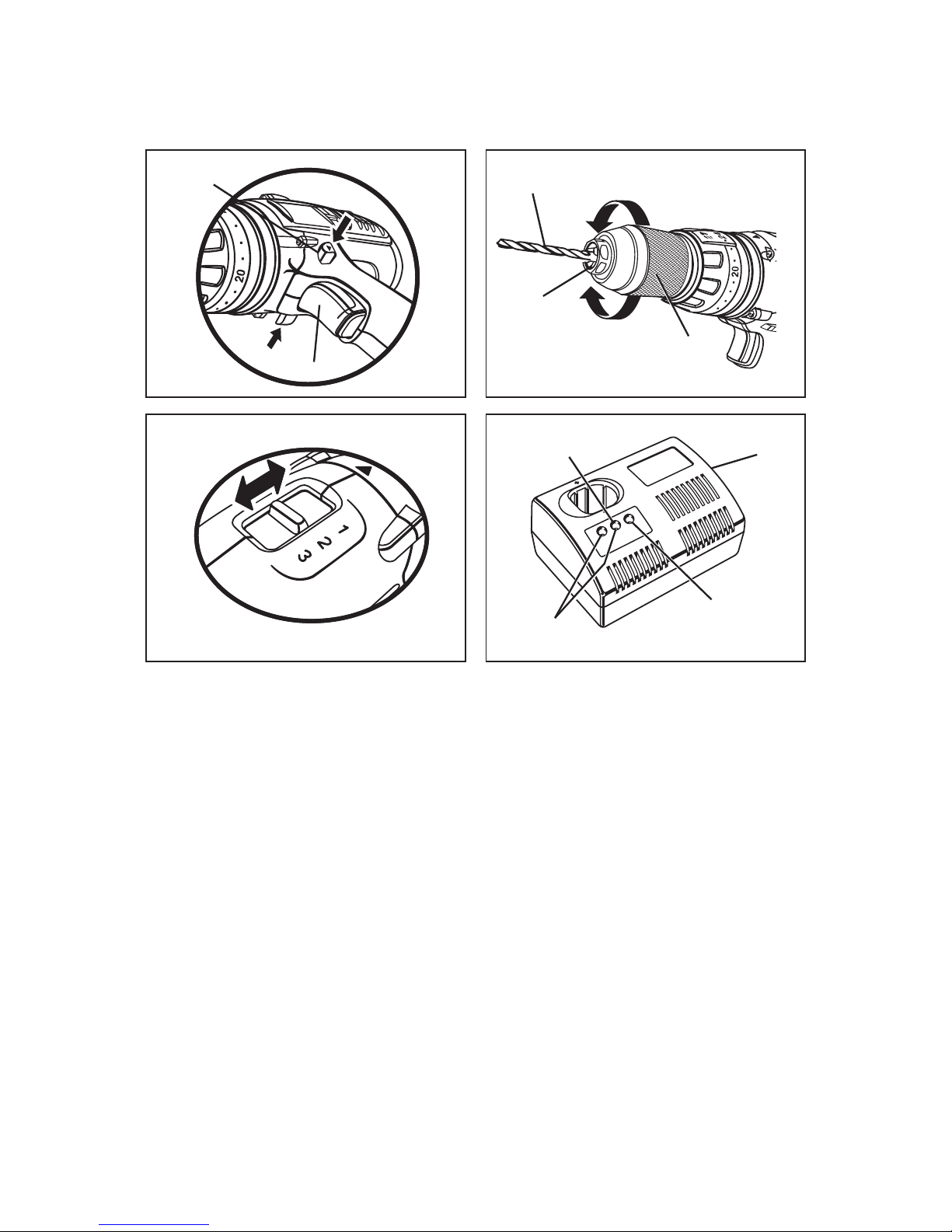

Fig. 6 Fig. 7
Fig. 8 Fig. 9
A
C
D
B
CA
D
E
B
D
C
A
B

1
RULES FOR SAFE OPERATION
WARNING
When using battery operated tools, basic safety
precautions should always be followed to reduce
the risk of fire, leaking batteries and personal
injury, including the following: Read all these
instructions before operating this product and
save these instructions.
Keep your work area clean and well lit. Cluttered
benches and dark areas invite accidents.
Consider work area environment. Do not expose
tools to rain. Do not use tools in damp or wet
locations. Do not use tools where there is risk to
cause fire or shock.
Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools
create sparks which may ignite the dust or fumes.
Keep bystanders, children, and visitors away
while operating a power tool. Distractions can
cause you to lose control.
Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use tool while tired or under the influence
of drugs, alcohol, or medication. Amoment of
inattention while operating power tools may result in
serious personal injury.
Dress properly. Do not wear loose clothing
or jewelry. Contain long hair. Keep your hair, clothing,
and gloves away from moving parts. Loose clothes,
jewelry, or long hair can be caught in moving parts.
Do not abuse the supply cord. Never carry the
charger by the cord or yank it to disconnect it from
the socket. Keep the cord away from heat, oil and
sharp edges.
Secure work. Use clamps or a vice to hold the work.
It is safer than using your hand and it frees both
hands to operate the tool.
Maintain tool with care. Keep cutting tools sharp
and clean for better and safer performance. Follow
instructions for lubrication and changing accessories.
Inspect tool cord periodically and if damaged have it
repaired by an authorised Ryobi service agent.
Keep handles dry, clean and free from oil and grease.
Check damaged parts. Before further use of the
tool, a guard or other part that is damaged should
be carefully checked to determine that it will
operate properly and perform its intended function.
Check for alignment of moving parts, free running
of moving parts, breakage of parts, mounting and
any other conditions that may affect its operation.
Aguard or other part that is damaged should be
properly repaired or replaced by an authorized
Ryobi service agent unless otherwise indicated
in this instruction manual. Have defective
switches replaced by an authorised Ryobi
service agent. Do not use the tool if the switch
does not turn it on and off.
Avoid accidental starting. Be sure switch is in the
locked or off position before inserting battery pack.
Carrying tools with your finger on the switch or inserting
the battery pack into a tool with the switch on,
invites accidents.
Do not overreach. Keep proper footing and
balance at all times. Proper footing and balance
enable better control of the tool in unexpected
situations. Do not use on a ladder or unstable support.
Use safety equipment. Always wear eye protection.
Dust mask, nonskid safety shoes, hard hat, or hearing
protection must be used for appropriate conditions.
Do not force tool. Use the correct tool for your
application. The correct tool will do the job better
and safer at the rate for which it is designed.
Disconnect battery pack from tool or place the
switch in the lock off position before making any
adjustments, changing accessories, or storing
the tool. Such preventive safety measures reduce
risk of starting the tool accidentally.
Store idle tools out of reach of children and other
untrained persons. Tools are dangerous in the
hands of untrained users.
Use only accessories that are recommended by
the manufacturer for your model. Accessories that
may be suitable for one tool, may create a risk of
injury when used on another tool.
When servicing a tool, use only identical
replacement parts. Use of unauthorised parts or
failure to follow Maintenance Instructions may create
a risk of shock or injury.
Have your tool repaired by a qualified person.
This tool is in accordance with the relevant safety
requirements. Repairs should only be carried out by
an authorised Ryobi service agent using original
spare parts, otherwise this may result in considerable
danger to the user.
Battery tools do not have to be plugged into an
electrical outlet; therefore, they are always in
operating condition. Be aware of possible hazards
when not using your battery tool or when changing
accessories. Following this rule will reduce the risk of
electric shock, fire, or serious personal injury.

RULES FOR SAFE OPERATION
If under abusive conditions, liquid is ejected from
the battery, avoid contact. If this accidentally
occurs, flush with water. If liquid contacts eyes
additionally, seek medical help.
Do not place battery tools or their batteries near
fire or heat. This will reduce the risk of explosion and
possibly injury.
WARNING
Batteries vent hydrogen gas and can explode in
the presence of a source of ignition, such as a
pilot light. To reduce the risk of serious personal
injury, never use any cordless product in the
presence of open flame. An exploding battery can
propel debris and chemicals. If exposed, flush
with water immediately.
CHARGER SAFETY
To reduce risk of injury, charge only nickel-cadmium
type rechargeable batteries. Other types of batteries
may burst, causing personal injury and damage.
Do not expose charger to wet or damp conditions.
Use of an attachment not recommended or sold by the
battery charger manufacturer may result in a risk of
fire, electric shock, or injuries to person.
To reduce risk of damage to charger body and cord,
pull by charger plug rather than cord when
disconnecting charger.
Make sure cord is located so that it will not be
stepped on, tripped over, or otherwise subjected to
damage and stress.
An extension cord should not be used unless
absolutely necessary. Use of improper extension cord
could result in a risk of fire and electric shock.
If extension cord must be used, make sure:
a. That pins on plug of extension cord are the same
number, size and shape as those of plug on charger.
b. That extension cord is properly wired and in good
electrical condition.
Do not operate charger with a damaged cord or plug.
If damaged, have it replaced immediately by an
authorised Ryobi service agent.
Do not operate charger if it has received a sharp blow,
been dropped, or otherwise damaged in any way;
have it inspected by an authorised Ryobi service agent.
Do not disassemble charger; take it to an authorised
Ryobi service agent when service or repair is
required. Incorrect reassembly may result in a
risk of electric shock or fire.
To reduce risk of electric shock, unplug the charger
from outlet before attempting any maintenance or
cleaning. Turning off controls will not reduce this risk.
Disconnect charger from power supply when not in use.
Risk of electric shock. Do not touch uninsulated portion
of output connector or uninsulated battery terminal.
Save these instructions. Refer to them frequently and
use them to instruct others who may use this unit.
If you loan someone this unit, loan them these
instructions also.
2
SPECIFICATIONS
Model CID1823VK
Voltage 18 V
Chuck (mm) 13
Switch Variable speed
No load speed (drill mode):
-Lo speed (min-1)0- 370
-Hi speed (min-1)0- 750
- Super-Hi speed (min-1)0- 2200
No load speed (impact mode):
-Lo speed (min-1)0- 5920
-Hi speed (min-1)0- 12000
- Super-Hi speed (min-1)0- 35200
Max. Torque (Nm) 55
Weight - incl. battery pack (kg) 3
Battery pack:
-2.0 Ah 130255006
Charger 2601038

3
FEATURES
Figure 1
A. Keyless chuck
B. Trigger
C. Direction of rotation selector (Forward/Reverse)
D. Screwdriver bits
E. Battery pack
F. Depth gauge Rod
G. Auxiliary handle
Figure 2
A. Battery pack
B. Latches
C. Depress latches to release battery pack
Figure 3
A. Auxilary Handle
B. To Tighten
C. To Loosen
Figure 4
A. Drill bit
B. Depth Gauge Rod
C. Drilling Depth
Figure 5
A. To Decrease torque
B. To Increase torque
C. Torque adjusting Ring
D. Drill mode
E. Impact mode
Figure 6
A. Forward / Reverse selector
B. Reverse
C. Forward
D. Switch
Figure 7
A. Unlock (release)
B. Chuck
C. Drill bit
D. Chuck jaws
E. Lock (tighten)
Figure 9
A. Battery Charger
B. Green Light
C. Red
D. Yellow and green
Light
OPERATION
LED FUNCTION OF CHARGER
See Figure 9.
LED WILL BE ON TO INDICATE STATUS OF CHARGER
AND BATTERY PACK:
Red LED on = Fast charging mode.
Green LED on = Fully charged battery pack.
No LED on = Defective charge or battery pack.
CHARGING YOUR BATTERY PACK
The battery pack for your tool has been shipped in a low
charge condition to prevent possible problems.
Therefore, you should charge it prior to use.
Note: Batteries will not reach full charge the first time
they are charged. Allow several cycles for them to
fully charge.
TO CHARGE
Charge battery pack only with the charger provided.
Make sure power supply is normal house voltage,
240 volts, 50 Hz, AC only.
Connect charger to power supply.
Place battery pack in charger. Align raised rib on
battery pack with groove in charger.
Press down on battery pack to be sure contacts on
battery pack engage properly with contacts in charger.
When properly connected, red light will turn on.
When your battery pack becomes fully charged,
the red light will turn off and the green light will turn on.
After normal usage, 1 hour of charge time is required
to be fully charged.
When yellow and green lights "ON" indicates control
charge or possible faulty battery.
Aminimum charge time of 1 to
1-1/2 hours is required to recharge a completely
discharged tool.
DO NOT place charger in an area of extreme heat or
cold. It will work best at temperatures above 10ºC
and below 38ºC.
IMPORTANT INFORMATION FOR RECHARGING HOT
BATTERIES
When using your tool continuously, the batteries in your
battery pack will become hot. You should let a hot battery
pack cool down for approximately 30 minutes before
attempting to recharge.
TO INSTALL BATTERY PACK
Lock switch trigger on your drill by placing the
direction of rotation selector in centre position.
See Figure 6.

OPERATION
Place battery pack in your drill. Align raised rib on
battery pack with groove inside drill. See Figure 2.
Make sure the latches on battery pack snap in place
and battery pack is secured in drill before beginning
operation.
TO REMOVE BATTERY PACK
Lock the trigger on your drill by placing the
direction of rotation selector in centre position.
See Figure 6.
Locate latches of battery pack and depress to release
battery pack from your drill. See Figure 2.
Remove battery pack from your drill.
ADJUSTING THE AUXILIARY HANDLE
See Figure 3.
Follow these steps to adjust the auxiliary handle.
Loosen the auxiliary handle by turning the knob
counterclockwise.
Rotate the auxiliary handle to the desired location.
Tighten the auxiliary handle securely by turning the
knob clockwise.
ADJUSTING THE DEPTH GAUGE ROD
See Figure 4.
Follow these steps to adjust the depth gauge rod.
Lock the trigger by placing the rotation selector
in the centre position.
Loosen the auxiliary handle by turning the knob
counterclockwise.
Adjust the depth gauge rod so that the drill bit
extends beyond the end of the rod to the required
drilling depth.
Tighten the auxiliary handle by turning the knob
clockwise.
ADJUSTING THE TORQUE
See Figure 5.
The tool is equipped with an adjustable torque clutch for
driving different types of screws into different materials.
Adjust the torque as necessary.
We recommend that you use carbide-tipped bits and
select impact mode when drilling in hard material such as
brick, tile, concrete, etc.
CAUTION
The impact drill is not designed for reverse
hammering. Failure to obey this caution may
result in property damage.
TRIGGER
See Figure 6.
To turn your drill ON, depress the trigger .
To turn it OFF, release the trigger .
VARIABLE SPEED
This tool has a variable speed switch that delivers higher
speed and torque with increased trigger pressure. Speed
is controlled by the amount of trigger depression.
TRIGGER LOCK
See Figure 6.
The trigger can be locked in the OFF position.
This feature can be used to prevent the possibility of
accidental starting when not in use. To lock trigger, place
the direction of rotation selector (Forward/Reverse
Selector) in centre position.
Note: When selector is in centre position, trigger is
locked.
REVERSIBLE
See Figure 6.
This tool has the feature of being reversible. The direction
of rotation is controlled by a selector located above the
trigger.With the drill held in normal operating position,
the direction of rotation selector should be positioned
to the left of the switch for drilling. The drilling direction
is reversed when the selector is to the right of the
switch. When the selector is in centre position,
the trigger is locked. To stop, release trigger and allow
the chuck to come to a complete stop.
ELECTRIC BRAKE
This drill has an electric brake. When the trigger is
released, the chuck stops turning. When the brake is
functioning properly, sparks will be visible through the
vent slots on the housing. This is normal and is the
action of the brake.
4

OPERATION
ADJUSTING THE SPEED
See Figure 8.
Follow these steps to adjust the speed.
For super high speed: Slide the three-speed gear
train switch to “3”.
For high speed: Slide the three-speed gear train
switch to “2”.
For low speed: Slide the three-speed gear train
switch to “1”.
Note: If you have difficulty changing from one gear
range to the other, turn the chuck by hand until the
gears engage.
CAUTION
To prevent gear damage, always allow chuck to
come to a complete stop before changing the
speed or the direction of rotation.
KEYLESS CHUCK
See Figure 7.
Your drill has a keyless chuck. As the name implies,
you can hand tighten or release drill bits in the
chuck jaws. Rotate the chuck with your hand.
The arrows on the chuck indicate which direction to
rotate the chuck body in order to LOCK (tighten) or
UNLOCK (release) the drill bit.
WARNING
Do not hold chuck body with one hand and use
power of the drill to tighten chuck jaws on drill bit.
Chuck body could slip in your hand or your hand
could slip and come in contact with rotating drill bit.
This could cause an accident resulting in serious
personal injury.
MAINTENANCE
WARNING
When servicing, use only identical replacement
parts. Use of any other part may create a hazard
or cause product damage.
Avoid using solvents when cleaning plastic parts.
Most plastics are susceptible to damage from various
types of commercial solvents and may be damaged by
their use. Use clean cloths to remove dirt, dust, oil,
grease, etc.
WARNING
Do not at any time let brake fluids, gasoline,
petroleum-based products, penetrating oils, etc.
come in contact with plastic parts. They contain
chemicals that can damage, weaken or
destroy plastic.
Do not abuse power tools. Abusive practices can damage
tool as well as workpiece.
WARNING
Do not attempt to modify this tool or create
accessories not recommended for use with
this tool. Any such alteration or modification is
misuse and could result in a hazardous condition
leading to possible serious personal injury.
5

RYOBI TECHNOLOGIES AUSTRALIA PTY. LTD.
RYOBI TECHNOLOGIES AUSTRALIA PTY. LTD.
A.B.N. 98 002 277 509
SYDNEY: 359-361 Horsley Road, Milperra, N.S.W. 2214.
Contact during normal business hours.
Tel: (02) 9792 9888 - Fax: 1800 807 993 - www.ryobi.com.au
RYOBI NEW ZEALAND PTY. LTD.
AUCKLAND:
503 Mt Wellington Highway, Mt Wellington, N.Z.
Tel: (09) 573 0230 - Free Call: 0800 279 624 - Fax: (09) 573 0231 - www.ryobi.co.nz
Contact during normal business hours.
Subject to the guarantee condition below, this Ryobi tool
(hereinafter called “the product”) is guaranteed by Ryobi
(hereinafter called “the Company”) to be free from defects
in material or workmanship for a period of 24 months from
the date of original purchase covering both parts and
labour. Under the terms of this guarantee, the repair or
replacement of any part shall be the opinion of the
Company or its authorised agent. Should service become
necessary during the warranty period, the owner should
contact the Authorised Ryobi Retailer from whom the
Product was purchased, or the nearest Company Branch
Office. In order to obtain guarantee service, the owner
must present the sales docket and Guarantee Certificate
to confirm date of purchase. This product is sold by the
dealer or agent as principal and the dealer has no
authority from the Company to give any additional
guarantee on the Company’s behalf except as herein
contained or herein referred to.
Guarantee Conditions
This guarantee only applies provided that the Product
has been used in accordance with the manufacturer’s
recommendations under normal use and reasonable care
(in the opinion of the Company) and such guarantee
does not cover damage, malfunction or failure resulting
from misuse, neglect, abuse, or used for a purpose for
which it was not designed or is not suited and no repairs,
alterations or modifications have been attempted by
other than an Authorised Service Agent.This guarantee
will not apply if the tool is damaged by accident or if
repairs arise from normal wear and tear.
The Company accepts no additional liability pursuant to
this guarantee for the costs of travelling or transportation
of the Product or parts to and from the service dealer
or agent - such costs are not included in this guarantee.
Certain legislation, including the Trade Practices Act,
1974 (as amended) and other state and territorial laws
give rights to the buyer and impose liability on the seller
in certain circumstances. Nothing herein shall have the
effect of excluding, restricting or modifying any condition,
guarantee, right or liability imposed, to the extent only
that such exclusion, restriction or modification would
render any term herein void.
MELBOURNE: 960 Stud Road, Rowville,Vic. 3178
Tel : (03) 9764 8655
BRISBANE: All enquiries Tel : 1300 361 505
TOWNSVILLE: All enquiries Tel : 1300 361 505
PERTH:
33-35 Sorbonne Cres., Canning Vale,W.A. 6155.
Tel : (08) 9455 7775
ADELAIDE: All enquiries Tel : 1300 360 216
HOBART: All enquiries Tel : 1300 360 216
Purchased From
Address Of Dealer
Date Model No Serial No
For your record and to assist in establishing date of purchase (necessary for in-guarantee service)
please keep your purchase docket and this form completed with the following particulars.
Present: This Form With Your Purchase Docket When Guarantee Service Is Required.
Table of contents
Other Ryobi Drill manuals

Ryobi
Ryobi PSBCK01K User manual

Ryobi
Ryobi R18DD2-0 User manual

Ryobi
Ryobi EDP-5530L User manual

Ryobi
Ryobi D40 Quick start guide

Ryobi
Ryobi ONE+ CDC18022N User manual

Ryobi
Ryobi P215 User manual

Ryobi
Ryobi EID-100-2RE Operation manual

Ryobi
Ryobi RSDS1500 User manual

Ryobi
Ryobi R18MMS-0 User manual

Ryobi
Ryobi D45C User manual
Popular Drill manuals by other brands

Black & Decker
Black & Decker BDCHD18 Original instructions

DeWalt
DeWalt D25762 instruction manual

Bosch
Bosch GBM 6 RE Professional Original instructions

Shibuya
Shibuya H1511 Operator's instruction manual

Alpha tools
Alpha tools A-BM 50 EK operating instructions

Metabo
Metabo BZ 9.6 SP operating instructions
