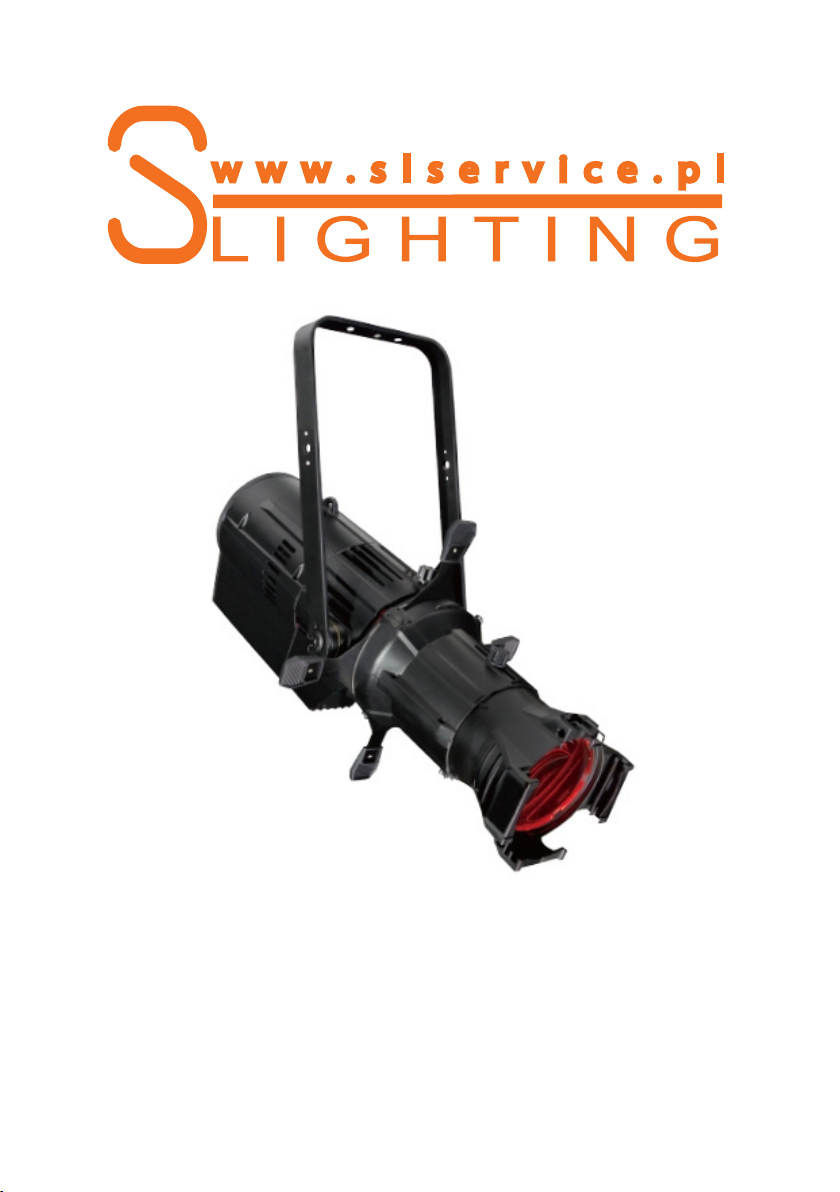

S-Lighting S-PROFILE User manual

USER MANUAL
S-PROFILE

TABLE OF CONTENTS
1. IntroductIon 3
2. Safety InformatIon 3
3. Product InformatIon 4
3.1 SPecIfIcatIon 4
3.2 cleanIng and maIntenance 5
3.3 dMX-512 7
4. dISPlay menu 9
5. dMX functIonS and valueS 11

3 www.slservice.pl S-LIGHTING S-Prole
1. IntroductIon
2. Safety InformatIon
Thank you for choosing our product! Please consult
this manual for any safety reasons, to ensure a painless
and trouble-free operation, as well as for any reference
needed.
We encourage you to check out our other products at our
website: http://slservice.pl/ !
To maintain this device’s condition and to ensure a safe
operation, it is absolutely necessary for the user to follow
these safety instructions and warning notes written in this
user manual.
- This device falls under protection-class I. Therefore it is essential
that the device should be earthed.
- The electric connection and installation should be done
by qualied personnel in order to minimize the risk
of accidental electric shock and damaging the device.
- Always disconnect from the mains, when the device is not
in use or before cleaning it. Only handle the power cord by the plug.
Never pull out the plug by tugging the power cord.
- Make sure the power cord is never crimped or damaged
by sharp edges - if this would be the case, immediately
replace the cable for the exact same type.
- Before connecting the unit to the mains, make sure it is not
damaged mechanically. If you notice any signs of damage,
you should contact your dealer immediately. In this case
do not connect the device to the mains.
- Make sure that the available voltage is not higher than 240V.
- Never look directly into the light source (especially if you have
any epileptic past)!
- The device must be installed on a stable structure. Always use steel
security cable to attach the device to a stable structure.
- Do not use this device in high humidity conditions and at tempera-
tures above 40°C.
- Do not cover the ventilation slots when operating to avoid internal
overheating.

S-LIGHTING S-Prole www.slservice.pl4
Power supply voltage: 100-240V
Power consumption: 300W
Voltage frequency: 50/60Hz
Diode type and power: 300W RGBLA 5in1 LED
Number of diodes: 1pcs
Beam angle: 25°-50°
Scan rate: 600/1200/2000/4000/6000/25000 Hz
Dimming: 16-bit dimmer
DMX standard: DMX 512
DMX channels: 6/8/8/11/17
AC IN: powerCON
AC OUT: powerCON
DMX IN: XLR - 3 pin
DMX OUT: XLR - 3 pin
IP Rating: IP20
Cooling: Active
Height [cm]: 37
Width [cm]: 37
Depth [cm]: 70
Weight [kg]: 10.3
3. Product InformatIon
3.1 SPecIfIcatIon
- CAUTION: This product’s housing may be hot when lights
are operating.
- DO NOT connect this product to a dimmer or rheostat.
In case of a serious operating problem stop using this product
immediately!
Important:
Damages caused by a disregard of this user manual are not subject
to warranty or any liability.

5 www.slservice.pl S-LIGHTING S-Prole
3.2 cleanIng and maIntenance
There are no servicable parts inside the device. Maintenance and
service operations are only to be carried out by authorized dealers.
If you need any spare parts, please use only genuine parts.
If the power supply cable of this device becomes damaged,
it has to be replaced by authorized dealers only, in order
to avoid hazards.
Never remove the ground pins from power cord nor spin
any cooling fan with compressed air, as this can damage the compo-
nents in your xture.
If you have further questions, please contact your dealer.
We recommend a frequent cleaning of the device, as dust,
smoke and other debris will build up on the optics and ho-
using. After disconnecting the power wipe the devi-
ce with a soft, lint-free and damp cloth. Never use alcohol
or solvents, as these may damage the nish. A dry paint brush is an
excellent tool to remove surface dust.
Be sure to periodically check for loose parts that could damage the
device or potentially allow the device to cause injury. Make sure all
overhead and wall installations have a secondary safety accessory
installed, such as safety cable rated for your device type and size.
Check the power cord as well, make sure there is no damage that
could cause electrical shock, never remove the ground pin. There are
no user-servicable parts in this device. Do not attempt to open and
repair the xture.
CAUTION! Always disconnect from mains before
starting any maintenance operation!
Before replacing a fuse, disconnect the power
cord! Always replace with the same type
and rating of fuse!

S-LIGHTING S-Prole www.slservice.pl6
Mounting & rigging
This device can be mounted in any orientation (vertical, horizontal).
Always make sure there is adequate ventilation and no ammable
surfaces within 2 feet (0.6 meters) of the device. You can mount
the device using clamps or with threaded bolt type hardware.
Always install the included safety eyebolt and cable when mounting
in overhead or wall locations.
Expected LED lifespan
LEDs gradually decline in brightness over time, mostly because
of heat. Packaged in clusters, LEDs exhibit higher operating
temperatures than in ideal, single LED conditions. For this
reason, using clustered LEDs at their fullest intensity signicantly
reduces the LEDs’ lifespan. Under normal conditions, this lifespan
can be 40’000 to 50’000 hours.
If extending this lifespan is vital, lower the operating temperatu-
re by improving the ventilation around the product and reducing
the ambient temperature to an optimal operating range. In addition,
limiting the overall projection intensity may also help to extend
the LEDs’ lifespan.
Warning: Do not mount the xture in the
ventilation path of a nearby heating supply
duct. The heated airow will cause device
failure due to overheating.

7 www.slservice.pl S-LIGHTING S-Prole
3.3 dMX-512
- 2-conductor twisted pair plus a shield,
- maximum capacitance between conductors - 30pF/ft,
- maximum capacitance between conductor & shield - 55 pF/ft,
- maximum resistance of 20 ohms / 1000 ft (304.8m in normal),
- nominal impedance 100-140ohms.
Cable connectors:
Cables must have a male XLR connector on one end and a female
XLR connector on the other end (duh!).
A word on termination: DMX is a resilient communication protocol,
however errors still occasionally occur. Termination reduces signal
errors, and therefore best practises include the use of terminator
in all circumstances. If you are experiencing problems with erratic
device behavior, especially over long cable runs, a terminator may
help improve performance.
CAUTION: Do not allow contact between the common and the
device’s chassis ground. Grounding the common may cause
a ground loop, and your device may perform erratically. Test cables
with an ohm meter to verify correct polarity and to make sure
the pins are not grounded or shorted to the shield or each other.
To build your own DMX Terminator:
Obtain a 120-ohm, 1/4-watt resistor and
wire it between pins 2 & 3 of the last
xture. They are also readily available from
specialty retailers. A DMX terminator
To link devices together you’ll
need data cables. You should use
data grade cables that can carry
a high quality signal and are
less prone to electromagnetic
interference. For instance,
Belden© 9841 meets the
specications for EIA RS-485 applications. Standard microphone
cables will probably be OK, but note that they cannot transmit
DMX data as reliably over long distances. In any event, the cable
should have the following characteristics:

S-LIGHTING S-Prole www.slservice.pl8
First device
in chain
Signal IN
To the
next
device
Next device
in chain
Step 1: Connect the male
connector of the DMX cable
to the female connector (output)
on the controller.
Step 2: Connect the female
connector of the DMX cable
to the rst device’s male
connector (input).
Note: It doesn’t matter which device address
is the rst one connected. We recommend
connectingthe devicein termsof theirproximi-
ty to the controller, rather than connecting
the lowest device number rst, and so on.
Setting up DMX control
Step 3: Connect other devices in the chain from output to input
as above. Place a DMX terminator on the output of the nal device
to ensure the best communication.
Fixture linking (Master/Slave Mode)
1. Connect the (male) 3-pin connector side of the DMX cable to the
output (female) 3-pin connector of the rst device.
2. Connect the end of the cable coming from the rst device, which
will have a (female) 3-pin connector to the input connector of the
next device consisting of a (male) 3-pin connector. Then, proceed
to connect from the output as stated above, to the input
of the following device (and so on).
3-Pin / 5-Pin
If you use a controller with a 5 pin DMX output connector, you will
need to use a 5 pin to 3 pin adapter. They are widely available over
the Internet and from specialty retailers, but if you’d like to build
your own, the table below details a proper cable conversion:
Conductor 3-Pin female (Output) 5-Pin male (Input)
Ground/Shield Pin 1 Pin 1
DMX Data (-) Pin 2 Pin 2
DMX Data (+) Pin 3 Pin 3
Not used. no connector Pin 4
Not used. no connector Pin 5

9 www.slservice.pl S-LIGHTING S-Prole
Stat
Address Set DMX Address
Run Mode
Personality
Setting
Preset Color
DMX
HSIC
Upload
RED 0-255
SEND
AMBER 0-255
OFF
DIM3
DIM1
YES
Slave
SIMPLE
Reset
COLOR 8BIT
Dimmer
GREEN 0-255
RESET
LIME 0-255
RGBtoW
DIM2
OFF
NO
SDO
Color
COLOR 16BIT
Send
BLUE 0-255
UC
DIM4
STRB 0-25
L106
L019
L213
L328
R05
R08
R377
R3314
L194
R89
R80
L101
R54
R86
L202
L768
4. dISPlay menu

S-LIGHTING S-Prole www.slservice.pl10
Calib.C WH.01
R. (0-255)
UID
2700K
B. (0-255)
WH.02
G. (0-255)
Label
3000K
WH.13 10000K
White
RGBtoW
Key
Info
ON
Version
OFF
RDM
Setting
BLACK
STUDIO
1200Hz
4200K
6000Hz
NORMAL
Performance
PWM_Rate
Full Power CCT
POWER
2000Hz
5600K
25000HZ
DMX Error SAVE
LIVE
600Hz
3200K
4000Hz
10000K
4. dISPlay menu cont.

11 www.slservice.pl S-LIGHTING S-Prole
HSIC
1 0-255 Intensity
2 0-255 Hue
3 0-255 Hue Fine
4 0-255 Saturation
5
CCT
0-010 No Function
11-030 2700K
31-050 3000K
51-070 3200K
71-090 3500K
91-110 4000K
111-130 4200K
131-150 4500K
151-170 5600K
171-190 6000K
191-210 6500K
211-230 7200K
231-255 8000K
6
STROBE
0-009 No Function
10-099 Strobe (slow <--> fast, 0-25Hz)
100-109 No Function
110-179 Lightning Strobe
180-189 No Function
190-255 Random Strobe
7
DIMMER SPEED
0-009 Preset Dimmer Speed (from display menu)
10-029 OFF
30-069 DIM1
70-129 DIM2
130-189 DIM3
190-255 DIM4
8
DIMMER SPEED
0-009 No Function
10-080 LIVE
81-160 STUDIO
160-240 POWER
241-255 No Function
5. dMX functIonS and valueS

S-LIGHTING S-Prole www.slservice.pl12
SIMPLE
1 0-255 Master Dimmer
2 0-255 Red
3 0-255 Green
4 0-255 Blue
5 0-255 Lime
0-255 Amber
STROBE
0-009 No Function
10-099 Strobe (slow <--> fast, 0-25Hz)
100-109 No Function
110-179 Lightning Strobe
180-189 No Function
190-255 Random Strobe
DIMMER SPEED
0-009 No Function
10-080 LIVE
81-160 STUDIO
161-240 POWER
241-255 No Function
SDO
1 0-255 Master Dimmer
2
PRESET COLOR
0-010 No Function
11-020 L106
21-030 R05
31-040 L194
41-050 R54
51-060 L019
61-070 R08
71-080 R89
81-090 R86
91-100 L213
101-110 R377
111-120 R80
121-130 L202
131-140 L328
141-150 R3314
151-160 L101
161-170 L768
171-255 No Function

13 www.slservice.pl S-LIGHTING S-Prole
SDO
3
CCT
0-010 No Function
11-030 2700K
31-050 3000K
51-070 3200K
71-090 3500K
91-110 4000K
111-130 4200K
131-150 4500K
151-170 5600K
171-190 6000K
191-210 6500K
211-230 7200K
231-255 8000K
4
STROBE
0-009 No Function
10-099 Strobe (slow <--> fast, 0-25Hz)
100-109 No Function
110-179 Lightning Strobe
180-189 No Function
190-255 Random Strobe
5
DIMMER SPEED
0-009 Preset Dimmer Speed (from display menu)
10-029 OFF
30-069 DIM1
70-129 DIM2
130-189 DIM3
190-255 DIM4
6
DIMMER SPEED
0-009 No Function
10-080 LIVE
81-160 STUDIO
160-240 POWER
241-255 No Function

S-LIGHTING S-Prole www.slservice.pl14
COLOR8BIT
1 0-255 Master Dimmer
2 0-255 Red
3 0-255 Green
4 0-255 Blue
5 0-255 Lime
6 0-255 Amber
7
PRESET COLOR
0-010 No Function
11-020 L106
21-030 R05
31-040 L194
41-050 R54
51-060 L019
61-070 R08
71-080 R89
81-090 R86
91-100 L213
101-110 R377
111-120 R80
121-130 L202
131-140 L328
141-150 R3314
151-160 L101
161-170 L768
171-255 No Function
8
CCT
0-010 No Function
11-030 2700K
31-050 3000K
51-070 3200K
71-090 3500K
91-110 4000K
111-130 4200K
131-150 4500K
151-170 5600K
171-190 6000K
191-210 6500K
211-230 7200K
231-255 8000K

15 www.slservice.pl S-LIGHTING S-Prole
COLOR8BIT
9
STROBE
0-009 No Function
10-099 Strobe (slow <--> fast, 0-25Hz)
100-109 No Function
110-179 Lightning Strobe
180-189 No Function
190-255 Random Strobe
10
DIMMER SPEED
0-009 Preset Dimmer Speed (from display menu)
10-029 OFF
30-069 DIM1
70-129 DIM2
130-189 DIM3
190-255 DIM4
11
DIMMER SPEED
0-009 No Function
10-080 LIVE
81-160 STUDIO
160-240 POWER
241-255 No Function

S-LIGHTING S-Prole www.slservice.pl16
COLOR16BIT
1 0-255 Master Dimmer
2 0-255 Master Dimmer Fine
3 0-255 Red
4 0-255 Red Fine
5 0-255 Green
6 0-255 Green Fine
7 0-255 Blue
8 0-255 Blue Fine
9 0-255 Lime
10 0-255 Lime Fine
11 0-255 Amber
12 0-255 Amber Fine
13
PRESET COLOR
0-010 No Function
11-020 L106
21-030 R05
31-040 L194
41-050 R54
51-060 L019
61-070 R08
71-080 R89
81-090 R86
91-100 L213
101-110 R377
111-120 R80
121-130 L202
131-140 L328
141-150 R3314
151-160 L101
161-170 L768
171-255 No Function

17 www.slservice.pl S-LIGHTING S-Prole
14
CCT
0-010 No Function
11-030 2700K
31-050 3000K
51-070 3200K
71-090 3500K
91-110 4000K
111-130 4200K
131-150 4500K
151-170 5600K
171-190 6000K
191-210 6500K
211-230 7200K
231-255 8000K
15
STROBE
0-009 No Function
10-099 Strobe (slow <--> fast, 0-25Hz)
100-109 No Function
110-179 Lightning Strobe
180-189 No Function
190-255 Random Strobe
16
DIMMER SPEED
0-009 Preset Dimmer Speed (from display menu)
10-029 OFF
30-069 DIM1
70-129 DIM2
130-189 DIM3
190-255 DIM4
17
DIMMER SPEED
0-009 No Function
10-080 LIVE
81-160 STUDIO
160-240 POWER
241-255 No Function
COLOR16BIT
