Salto KPB19 Series User manual

All contents current at time of publication.
SALTO Systems S.L. reserves the right to change availability of any
item in this catalog, its design, construction, and/or materials. P-210130 - -ED.08/06/2010

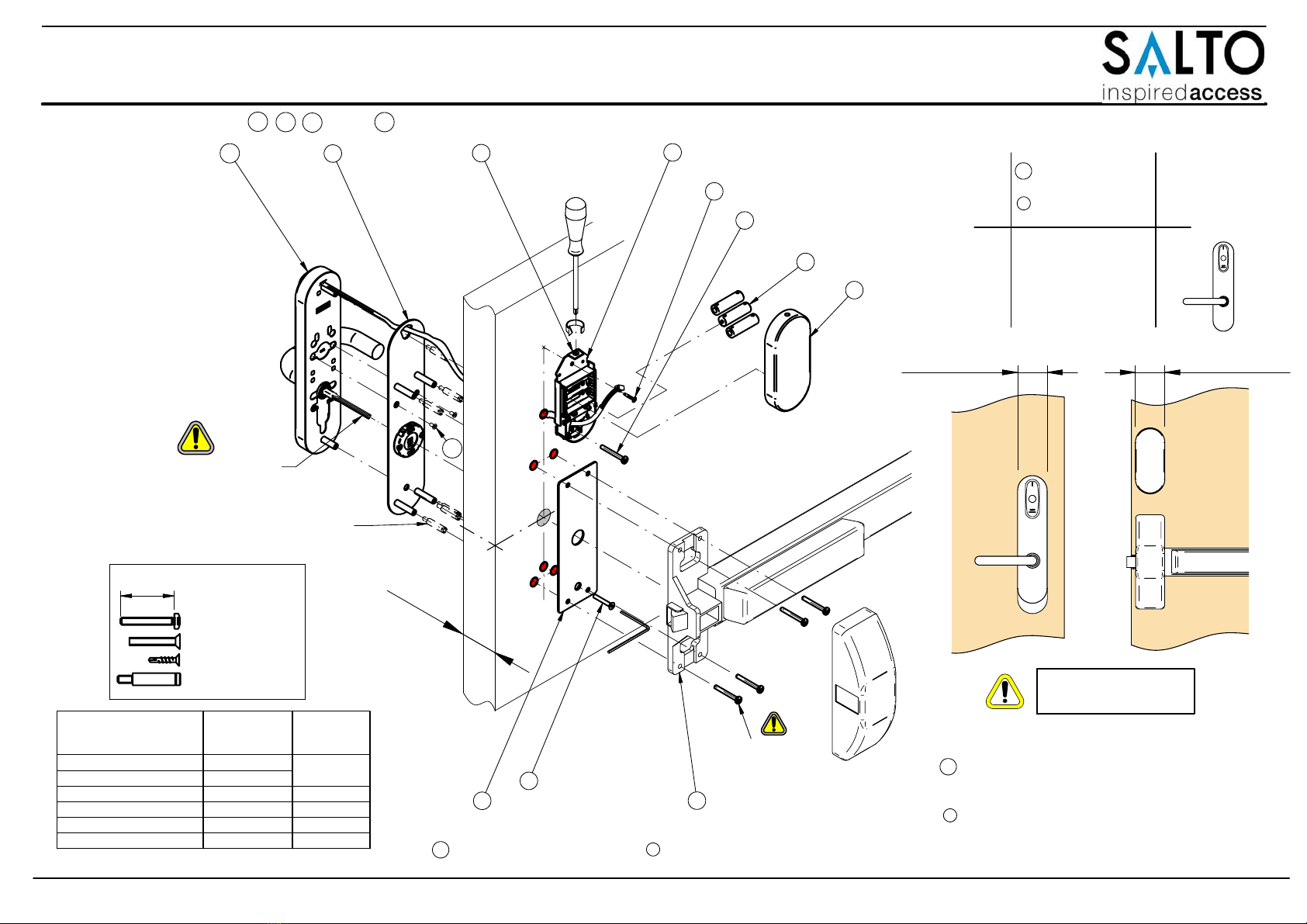

Adapter Kit For
CUT THE SPINDLE
SEE INSTRUCTIONS
P
12 Exterior Plate
5 Interior Plate
Ai6xx...
OUTSIDE INSIDE
9 LR06
7
L
C
1/2
Single Point
KPB19xx.. Panic Bar
DORMA 9300
201445.06 3 Battery Holder
10 BatteryCover
11 To Fix, Counter Clockwise
4 M5 DIN 7985 PZ
8 Selfdrilling Screw DIN 7504 PH
6 M5 DIN 7991 HEX
01408-01-ff
01015
Ai650m00ffH8
Ai660m00ffH8
01436-40/55
01464-01
SP01077-10
*
210129
BOLT EXTENSION
ONLYFOR P> 2- 5/8" (67mm)
follow user manual
AT THIS POINT DO NOT
CLOSE THE DOOR
TEST THE LOCK FIRST
* SEE DORMA 9300 PANIC BAR
INSTALLATION INSTRUCTIONS
Eng E* MONTAJE BARRA ANTIPANICO DORMA 9300
SEGUN INSTRUCCIONES DEL FABRICANTE
01405
2 5/8" (67mm) 2 5/8" (67mm)
COMPATIBLE
MODELS
MODELOS COMPATIBLES
E
Eng
EXTERNAL
ELECTRONIC
ESCUTCHEONS
Installation Secuence .......
12311
®®
SP00095-4020
SP00095-5520
(x30)
(x20)
(x20)
MAX. TORQUE:
1,4 N.m/13 lb.in
2a
®
SP01126-20 (x20)
FOR ELECTRONIC ESCUTCHEON
Length
(5)M5 x LengthDIN7985
(1)M5x Length DIN7991
(1) Ø3,9x19DIN7504
(?) BOLT EXTENSION
P
Door Inch / Puerta (mm)
Length
Inch (mm)
BOLT
EXTENSION
SUPLEMENTO
1-3/8"<2" (35<51mm) 1-9/16" (40mm)
2-1/16"<2-5/8" (52<67mm) 2-3/16" (55mm)
2-5/8"<3-1/4" (67<82mm) 1-9/16" (40mm) 1
3-1/4"<3-7/8" (83<98mm) 2-3/16" (55mm) 1
3-7/8"<4-7/16"(99<113mm) 1-9/16" (40mm) 2
4-1/2"<4-3/4" (114<120mm) 2-3/16" (55mm) 2
_
Only Wireless Models:
-Exit detection depending of the panic bar model.
-Panic bars with no exit detection, will cause an intrusion alarm
each time the door is opened from inside.
Sólo Modelos Wireless:
-La detección de salida depende del modelo de barra antipanico.
-Barras antipanico sin detector de salida, pueden causar una
alarma de intrusion cuando la puerta sea abierta desde el interior.
Eng
E

All contents current at time of publication.
SALTO Systems S.L. reserves the right to change availability of any
item in this catalog, its design, construction, and/or materials. P-210130 - -ED.08/06/2010
Adapter Kit For
O9/16" (14mm)
P
6-3/4 " (171mm)
3-1/8" (80mm)
L
C
O2 1/8" (54mm)
O1" (25mm)
3/4" (20mm)
2/2
Outside Inside
L= P+13mm
L
L= P+1/2"
Spindle Length L
L
C
Outside
Cutting the Spindle
P= Door Thickness
E
Eng
E
Eng
L
C
Corte del Cuadradillo
P= Espesor de Puerta
E
Eng
DOOR PREPARATION: 2 STEPS
-FOLLOW DORMA 9300 DOOR
PREPARATION INSTRUCTIONS
-FOLLOW PRESENT SALTO DOOR PREPARATION
SHEET INSTRUCTIONS FOR SALTO/DORMA 9300
ADAPTER KIT
1
2
MECANIZADO DE PUERTA: 2 PASOS
-SIGA LAS INSTRUCCIONES DE PREPARACION DE PUERTA
DORMA 9300
-SIGA LAS PRESENTES INSTRUCCIONES DE PREPARACION
DE PUERTA PARA EL KIT DE ADAPTACION SALTO/
DORMA 9300
®
1
2
®
®
®
1-1/2" (38mm)
3-3/4" (95.25mm)
3-3/4" (95.25mm)
KPB19xx.. Panic Bar
DORMA 9300
®
* SEE DORMA 9300 PANIC BAR
INSTALLATION INSTRUCTIONS
Eng E* MONTAJE BARRA ANTIPANICO DORMA 9300
SEGUN INSTRUCCIONES DEL FABRICANTE
®®
