Salton SHC11 Installation guide

INSTRUCTIONS AND WARRANTY
MODEL NO. SHC11
SALTON HAIR CLIPPER

2
Congratulations on purchasing our Salton Hair Clipper. Each unit is manufactured to
ensure safety and reliability. Before using this appliance for the first time, please read
the instruction manual carefully and keep it for future reference.
FEATURES OF THE SALTON HAIR CLIPPER
Corded hair clipper
Complete set for the entire family
Powerful AC motor with adjustable blade-cutting level
Precision cutting blades
Hanging loop
Ergonomically body design for comfortable use
For all lengths & hair styles
10-12W
IMPORTANT SAFEGUARDS
When using any electrical appliance, basic safety precautions should always be followed
including the following:
1. Please read the instructions carefully before using any appliance.
2. Always ensure that the voltage on the rating label corresponds to the mains
voltage in your home.
3. Incorrect operation and improper use can damage the appliance and cause injury
to the user.
4. The appliance is intended for household use only. Commercial use invalids the
warranty and the supplier can not be held responsible for injury or damage
caused when using the appliance for any other purpose than that intended.
5. Avoid any contact with moving parts.
6. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
7. Children should be supervised to ensure that they do not play with the appliance.

3
8. Check the power cord and plug regularly for any damage. If the cord or the plug
is damaged, it must be replaced by the manufacturer or a qualified person in
order to avoid an electrical hazard.
9. Do not use the appliance if it has been dropped or damaged in any way. In case
of damage, take the unit in for examination and/or repair by an authorised service
agent
10. To reduce the risk of electric shock, do not immerse or expose the motor
assembly, plug or the power cord to water or any other liquid.
11. Never immerse the unit in water or any other liquid for cleaning purposes.
12. Remove the plug from the socket by gripping the plug. Do not pull on the cord to
disconnect the appliance from the mains. Always unplug the unit when not in
use, before cleaning or when adding or removing parts.
13. The use of accessory attachments that are not recommended or supplied by the
manufacturer may result in injuries, fire or electric shock.
14. A short cord is provided to reduce the hazards resulting from becoming
entangled in or tripping over a longer cord.
15. Do not let the cord hang over the edge of a table or counter. Ensure that the cord
is not in a position where it can be pulled on inadvertently.
16. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas
or electric burner or in a heated oven.
17. Do not use the appliance on a gas or electric cooking top or over or near an open
flame.
18. Use of an extension cord with this appliance is not recommended. However, if it
is necessary to use an extension lead, ensure that the lead is suited to the power
consumption of the appliance to avoid overheating of the extension cord,
appliance or plug point. Do not place the extension cord in a position where it can
be pulled on by children or animals or tripped over.
19. This appliance is not suitable for outdoor use. Do not use this appliance for
anything other than its intended use.
20. DO NOT carry the appliance by the power cord.
21. Do not leave this appliance unattended during use. Always unplug the unit when
not in use or before cleaning.
22. Always operate the appliance on a smooth, even, stable surface. Do not place
the unit on a hot surface.

4
23. Ensure that the switch is in the “Off” position after each use.
24. The manufacturer does not accept responsibility for any damage or injury caused
by improper or incorrect use, or for repairs carried out by unauthorised
personnel.
25. In case of technical problems, switch off the machine and do not attempt to repair
it yourself. Return the appliance to an authorised service facility for examination,
adjustment or repair. Always insist on the use of original spare parts. Failure to
comply with the above mentioned pre-cautions and instructions, could affect the
safe operation of this machine.
ADDITIONAL SAFEGUARDS
Ensure the blades are aligned correctly.
Do not use the clipper with a damaged or broken comb nor with teeth missing
from the blades as this may cause an injury.
Do not use attachments not recommended for this hair clipper.
Keep the cord away from heated surfaces.
Do not pull, twist or wrap the cord around the clipper.
Do not place the appliance on any surface while it is operating,

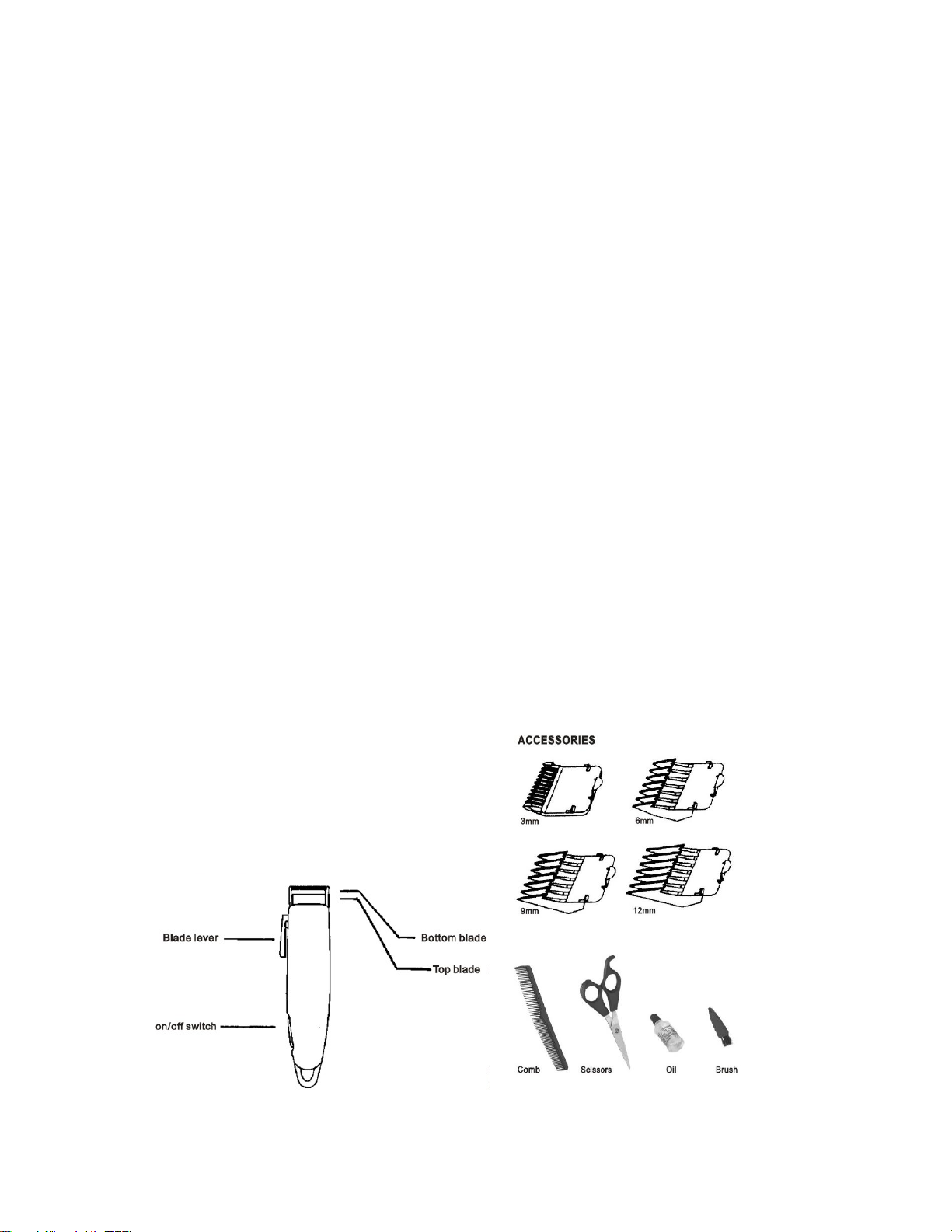

PARTS DIAGRAM

5
Your clippers are carefully examined to ensure that the blades are oiled and
aligned at all times.
Blades must be realigned if they have been removed for cleaning or
replacement.

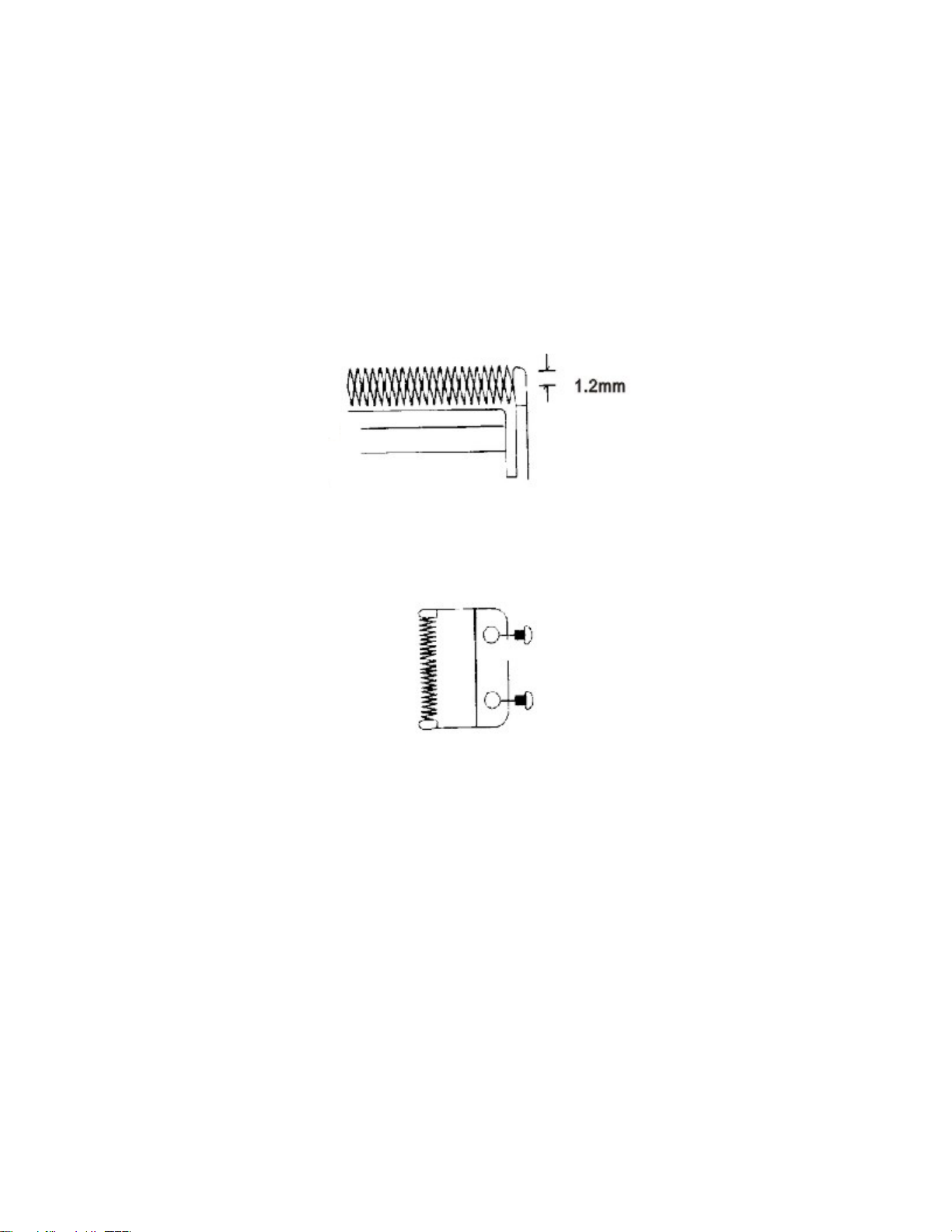

To realign the blades, simply match the upper and bottom blade teeth up, point
for point (The end of top blade teeth should be approximately 1.2mm away from
the bottom blade). See below

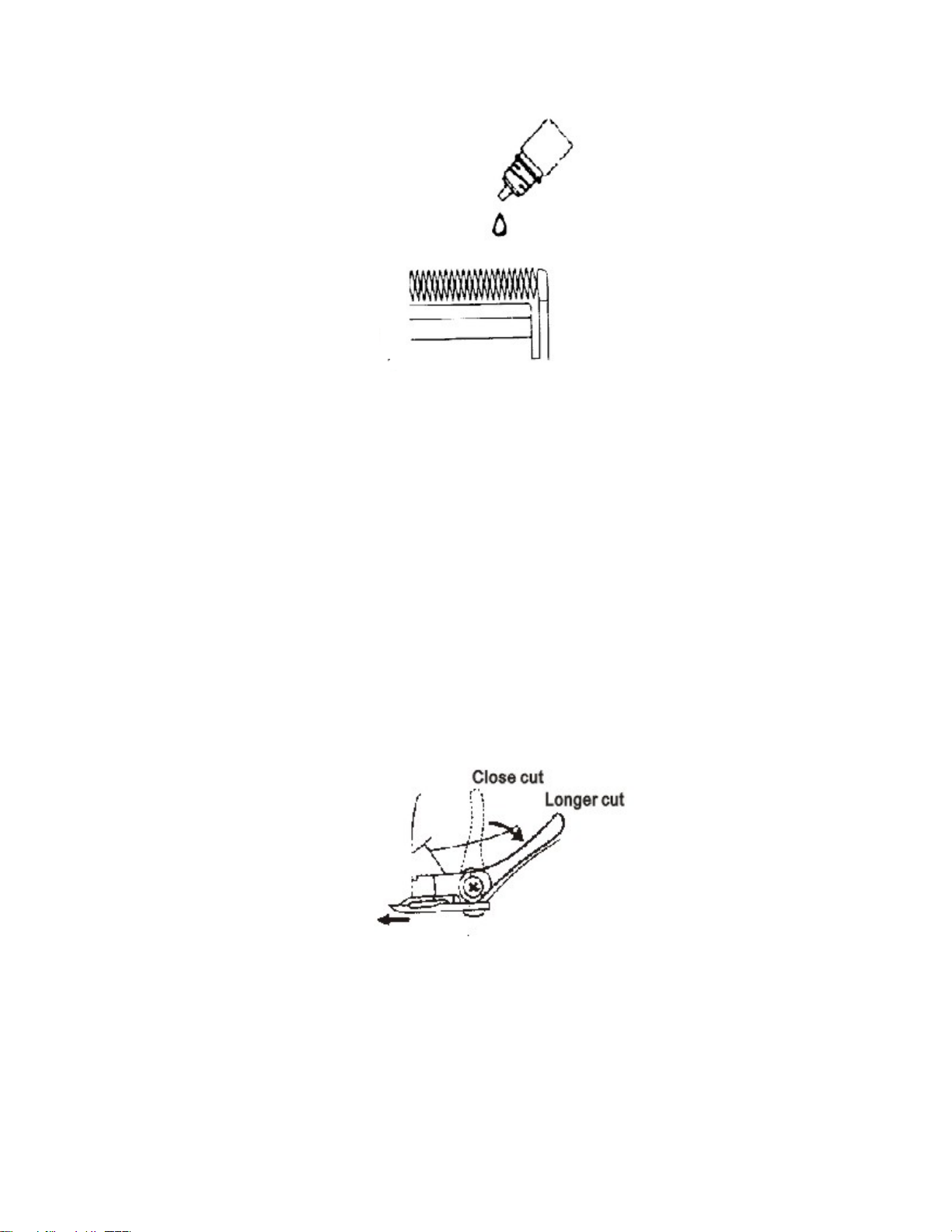

If the blade alignment is incorrect, add a few drops of oil to the blades, turn the
clipper on for a few moments and then, unplug and turn it off. Loosen the screws
again and adjust it. Ensure that the screws are tightened after the alignment.
OIL
To maintain your clipper in peak condition, the blades should be oiled every few
haircuts.
Do not use hair oil, grease, and oil mixed with kerosense or any other solvent.
These solvents will evaporate and leave the thick oil which may slow down the
blades motion.

6
BLADE LEVER
The lever is conveniently located near your thumb (if you’re right-handed) so it
can easily be adjusted while the clipper is in your hand.
The lever adds versatility to your clipper by allowing you to gradually change the
closeness of your cut without an attachment comb.
When the lever is in the uppermost position, the blades will give you the closest
cut and leave the hair very short. Pushing the lever downward gradually
increases the cutting length.
In its lowest position, the lever will leave the hair approximately the same length
as comb #1.
The lever will also extend the use of your blades since a different cutting edge is
used in each setting.
In addition, if extremely heavy hair cutting has jammed the blades, it will help if
you remove the hair, once it has become wedged between the two blades
without removing the blades.
While the clipper is running, rapidly move the lever form “close cut” to “longer cut”
a couple of times. It is recommended to do this every time after you have finished
using your clipper, this will help to keep the blades clear of cut hair.

7
If your clipper stops cutting and the above recommendation does not work, your
cutting blades are dulled. Replace them with new blades.
OPERATING INSTRUCTIONS
Before you begin to cut hair:
1. Inspect the clipper, make sure that it is free of oil between the blade teeth and
turn the unit on to distribute the oil and to make sure it is running smoothly. Wipe
off any excess oil. This should be done after each use. While using the unit,
untwist the cord from time to time to avoid tangling.
2. Seat the person so their head is approximately at your eye level. This allows
ease of visibility while cutting and a relaxed control of the unit.
3. Before cutting, always comb the hair so it is tangle free and as is naturally worn.
4. Place a towel around the neck and shoulders of the person having the haircut.
Remember:
Cut the hair in a relaxed and slow manner. Use short strokes only to work
gradually over the entire head.
Always take of a little hair at a time; you can always trim off additional hair later.
As you work, comb the hair frequently back into the style to which you are cutting.
When cutting with this hair clipper, ensure that the hair is dried before cutting.
Beginning the haircut:
Cutting hair requires practice so it is always better to leave the hair longer for the
first few haircuts until you become used to the lengths to which comb attachment
cuts the hair.
Attachment Combs:
Attachment Comb #1 leaves 3mm hair length
Attachment Comb #2 leaves 6mm hair length
Attachment Comb #3 leaves 9mm hair length
Attachment Comb #4 leaves 12mm hair length

8
See each combs size on the outside middle surface.
To attach a comb, hold it with its teeth upward and slide it onto and along the
clipper blade until the front of the comb seats against the clipper blade.
To remove the comb, simply pull the comb upward and away from the clipper
blade.
For even cutting, allow the comb attachment/cutter to cut its way through the hair.
Do not force it through quickly. Also, remember to comb the hair frequently to
remove trimmed hair and to check for uneven strands.

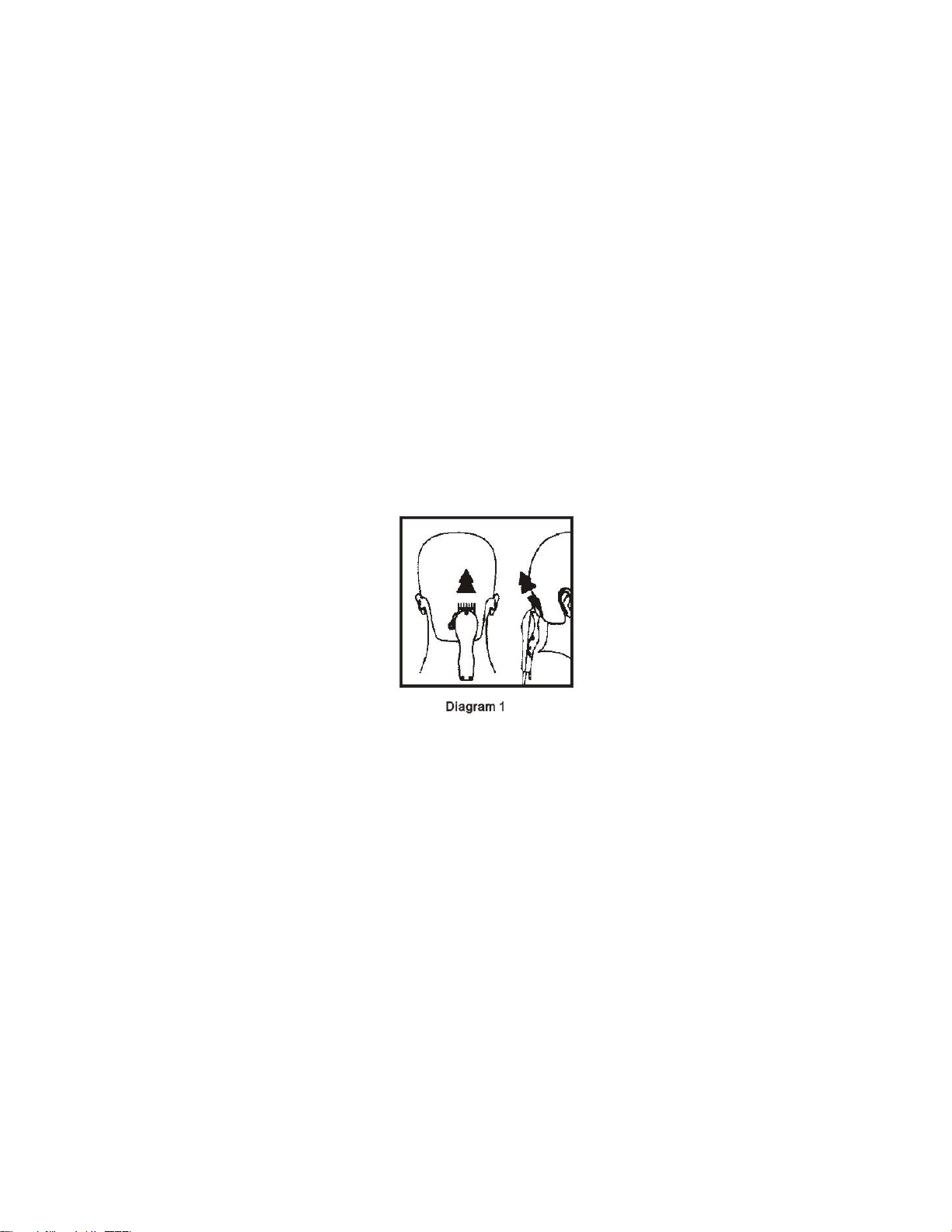

STEP 1- NAPE OF THE NECK
1. Attach comb attachments 3mm or 6mm (#1 or #2).
2. Hold the clipper with the cutting edge pointed up and begin the haircut, starting at
the centre of the head from the base of the neck (see diagram 1).
3. Hold the clipper comfortably in your hand and hold lightly against the head with
the comb teeth pointing upward. Gradually lift the clipper, working upwards and
outwards through the hair, trimming just a little at a time.
4. As you cut, gradually lift the hair clipper head towards you. Continue to cut the
back area from the bottom of the neck upwards to the top of the ears.
STEP 2- BACK OF THE HEAD
Change to the next longest comb attachment, 9mm or 12mm (#3 or #4) and cut the back
of the head (see diagram 2).

9
STEP 3- SIDE OF THE HEAD
Change to one of the shorter combs 3mm or 6mm, trim sideburns, i.e. the hair directly in
front of the ears. Then change to one of the longer combs, 9mm or 12mm and continue
to cut to the top of the head (see diagram 3).
STEP 4- TOP OF THE HEAD

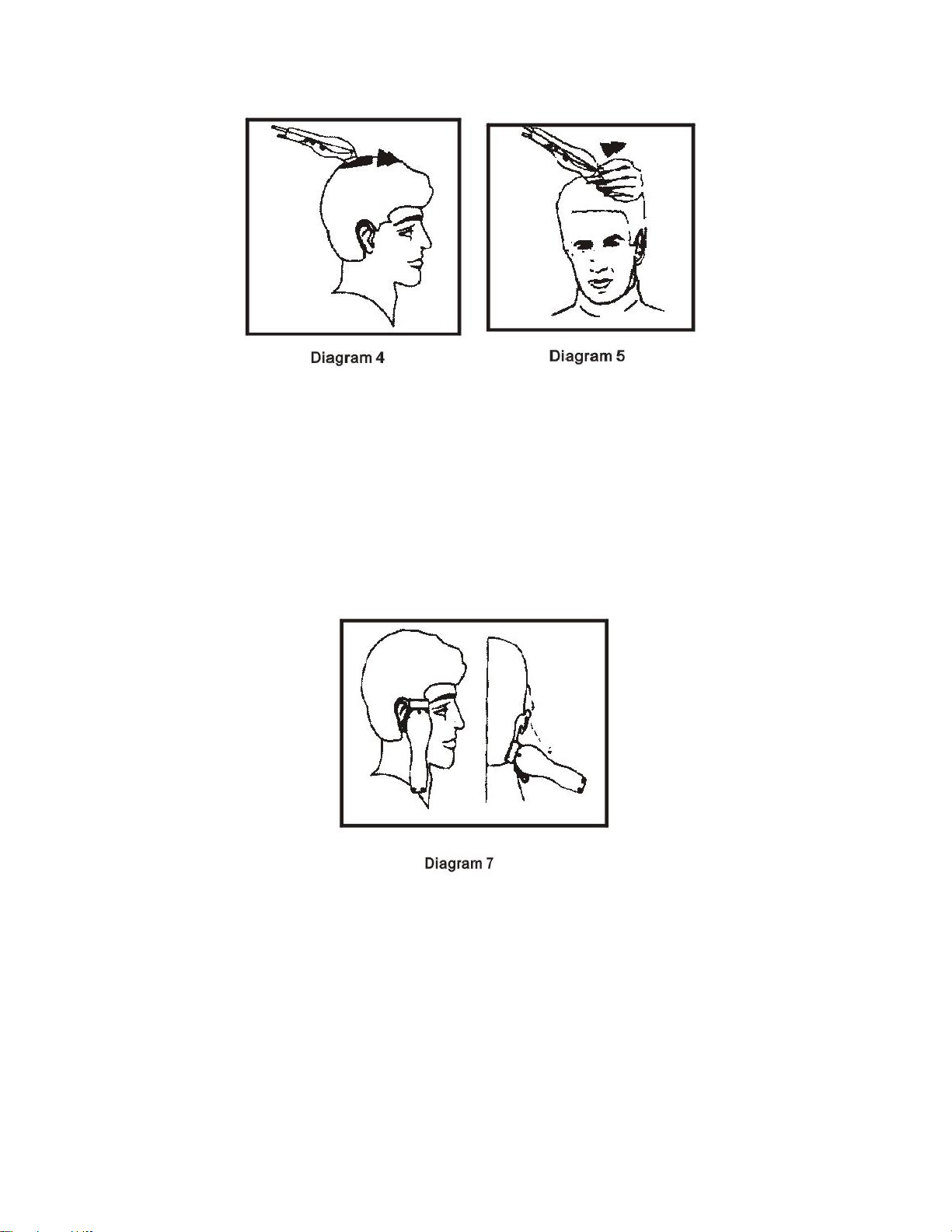

1. Using comb attachment 9mm or 12mm cut the top of the head from back to front
against the direction in which the hair normally grows (see diagram 4). In some
cases, this may require the reverse, or cutting from front to back.
2. Comb attachments 3mm or 6mm are used to achieve a short cut.
3. For longer hair on top, use the comb provided and lift the hair on the top of the
head. Select your desired length and cut over the comb, with the hair lifted or
hold the hair between your fingers to lift it (see diagram 5 & 6). You can cut the
hair shorter gradually by reducing the space between the comb/fingers and the
head. Comb out the trimmed hair and check for uneven strands.

10
STEP 5- THE FINISHING TOUCH
1. Finally, use the tape lever without an attachment comp for close trimming around
the base of the neck, the sides of the neck and the ears.
2. To produce a clean straight line at the sideburns, reverse the hair clipper by
turning the reverse side uppermost (see diagram 7).
3. Press the clipper at right angles to the head, tips of the blades lightly touching the
skin and work downwards. This way you will obtain a clean cut shave.
SHORT TAPERED STYLES-‘FLAT TOPS’ AND SHORT CUTS

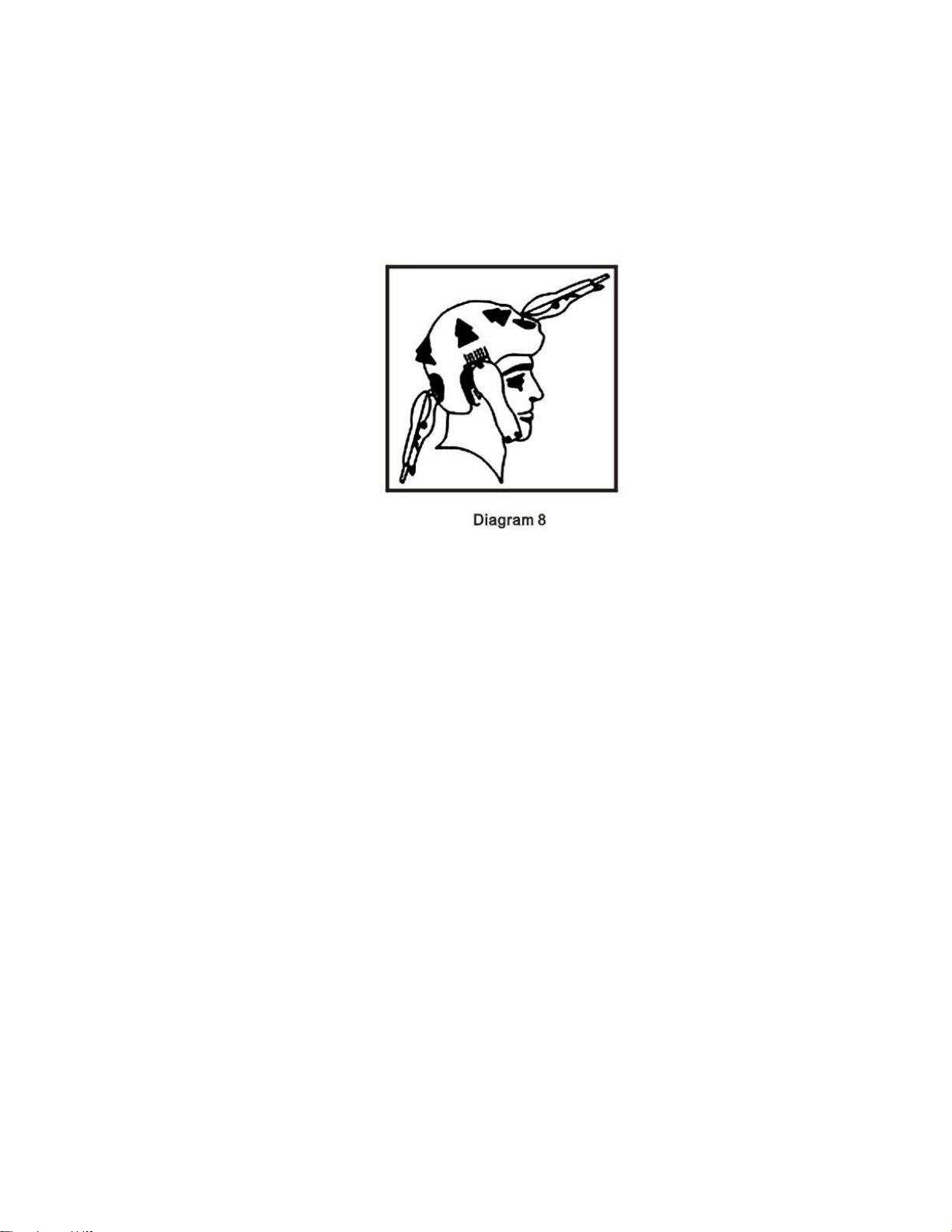

1. Starting with the longest attachment comb (12mm), cut from the back of the neck
to the crown. Hold the attachment comb flat against the head and slowly move
the clipper through the hair, as shown in diagram 8.
2. Use the same procedure from the lower side to the upper side of the head, as
illustrated. Then cut the hair against the direction in which it grows from in front to
the crown and then level the cut with the sides.

11
3. To give a ‘flat top’ look, the hair on the top of the head must be cut over the top of
a flat comb rather than by using the attachment comb.
4. Use the closer cutting attachment combs to taper the hair down to the decline as
desired. Comb hair and check for uneven areas and outlining sideboards and
necklines as described previously.
CLEANING AND MAINTENANCE
This appliance is for household use only and is not user-serviceable.
Do not open or change any parts by yourself. Please refer to a qualified electrical
service department or return to the supplier if servicing is necessary.
Always remember to unplug the unit from the electrical outlet when not in use
and before cleaning. Ensure that the speed control is set to “0”.
It is much easier to clean the accessories directly after they have been used.
Wash them in warm, soapy water, rinse and dry well.
The body of the appliance and the stand should be cleaned with a damp cloth.
Do not let water enter the appliance or the stand.
Do not use bleach or other abrasive substance or solvents to clean your
appliance as it can be damaging to the finish.
Do not immerse the appliance in water or any other liquid, or hold it under a
running tap to clean.
To remove stubborn spots/marks, wipe the surfaces with a cloth slightly
dampened in soapy water or mild non-abrasive cleaner. Rinse and dry a clean,
dry, soft cloth.

12
STORING THE APPLIANCE
Unplug the unit from the wall outlet and clean all the parts as instructed above.
Ensure that all parts are dry before storing.
Store the appliance in its box or in a clean, dry place.
Never store the appliance while it is still wet or dirty.
Never wrap the power cord around the appliance.
SERVICING THE APPLIANCE
There are no user serviceable parts in this appliance. If the unit is not operating
correctly, please check the following:
You have followed the instructions correctly
That the unit has been wired correctly and that the wall socket is switched on.
That the mains power supply is ON.
That the plug is firmly in the mains socket.
If the appliance still does not work after checking the above:
- Consult the retailer for possible repair or replacement. If the retailer fails to resolve the
problem and you need to return the appliance, make sure that:
The unit is packed carefully back into its original packaging.
Proof of purchase is attached.
A reason is provided for why it is being returned.
If the supply cord is damaged, it must be replaced by the manufacturer or an authorised
service agent, in order to avoid any hazard. If service becomes necessary within the
warranty period, the appliance should be returned to an approved Home of Living
Brands (Pty) Ltd service centre. Servicing outside the warranty period is still available,
but will, however, be chargeable.

13

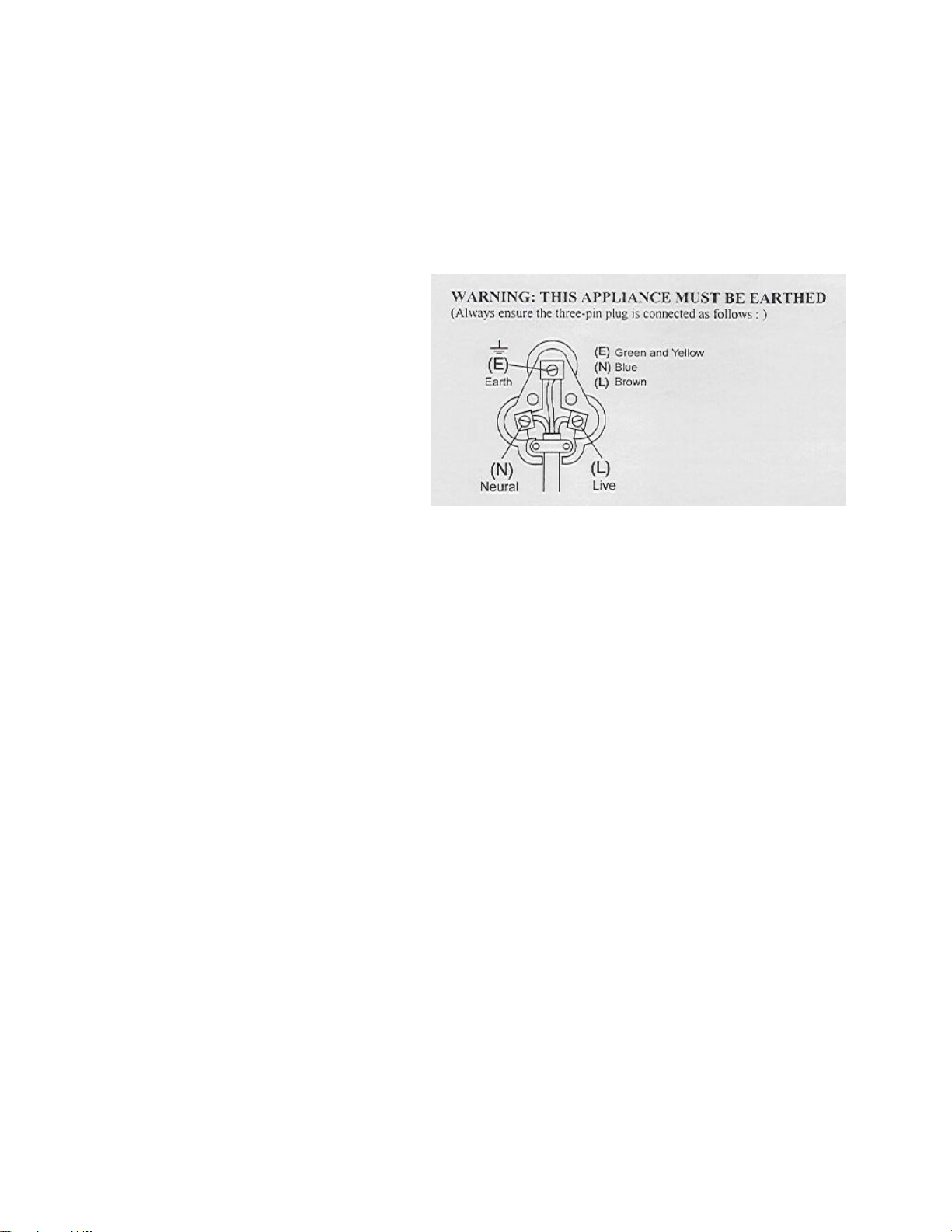

CHANGING THE PLUG
Should the need arise to change the fitted plug, follow the instructions below.
This unit is designed to operate on the stated current only. Connecting to other
power sources may damage the appliance. Connect a three-pin plug as follows:
The wires in this mains lead are coloured in accordance with the following code:
Green/Yellow = Earth
Blue = Neutral
Brown = Live

14
PLEASE AFFIX YOUR PROOF OF PURCHASE/RECEIPT HERE
IN THE EVENT OF A CLAIM UNDER WARRANTY THIS RECEIPT MUST BE PRODUCED.
W A R R A N T Y
1. Home of Living Brands (Pty) Ltd warrants to the original purchaser of this product (“the customer”)
that this product will be free of defects in quality and workmanship which under normal personal,
family or household use and purpose may manifest within a period of 1 (one) year from the date
of purchase (“warranty period”).
2. Where the customer has purchased a product and it breaks, is defective or does not work
properly for the intended purpose, the customer must notify the supplier from whom the customer
bought the product (“the supplier”) thereof within the warranty period. Any claim in terms of this
warranty must be supported by a proof of purchase. If proof of purchase is not available, then
repair, and/or service charges may be payable by the customer to the supplier.
3. The faulty product must be taken to the supplier's service centre to exercise the warranty.
4. The supplier will refund, repair or exchange the product in terms of this warranty subject to
legislative requirements. This warranty shall be valid only where the customer has not broken the
product himself, or used the product for something that it is not supposed to be used for. The
warranty does not include and will not be construed to cover products damaged as a result of
disaster, misuse, tamper, abuse or any unauthorised modification or repair of the product.
5. This warranty will extend only to the product provided at the date of the purchase and not to any
expendables attached or installed by the customer.
6. If the customer requests that the supplier repairs the product and the product breaks or fails to
work properly within 3 (three) months of the repair and not as a result of misuse, tampering or
modification by or on behalf of the customer, then the supplier may replace the product or pay a
refund to the customer.
7. The customer may be responsible for certain costs where products returned are not in the original
packaging, or if the packaging is damaged. This will be deducted from any refund paid to the
customer.
HOME OF LIVING BRANDS (PTY) LTD (JOHANNESBURG)
JOHANNESBURG TEL NO. [phone]
CAPE TOWN TEL NO. [phone]
DURBAN TEL NO. [phone]
www.salton.co.za
