INSTRUCTIONS AND WARRANTY
MODEL NO. SSBM07
SALTON STAND AND BOWL MIXER

2
Congratulations on purchasing our Salton Stand and Bowl Mixer. Each unit is manufactured to
ensure safety and reliability. Before using this appliance for the first time, please read the
instruction manual carefully and keep it for future reference.
IMPORTANT SAFEGUARDS
When using any electrical appliance, basic safety precautions should always be followed
including the following:
1. Please read the instructions carefully before using any appliance.
2. Always ensure that the voltage on the rating label corresponds to the mains voltage in
your home.
3. Incorrect operation and improper use can damage the appliance and cause injury to the
user.
4. The appliance in intended for household use only. Commercial use invalids the warranty
and the supplier can not be held responsible for injury or damage caused when using the
appliance for any other purpose than that intended.
5. Avoid contact with moving parts.
6. Close supervision is required when any appliance is used near or by children or invalids.
7. Check the power cord and plug regularly for any damage. If the cord or the plug is
damaged, it must be replaced by the manufacturer or a qualified person in order to avoid
an electrical hazard.
8. Do not use the appliance if it has been dropped or damaged in any way. In case of
damage, take the unit in for examination and/or repair by an authorised service agent
9. To reduce the risk of electric shock, do not immerse or expose the motor assembly, plug
or the power cord to water or any other liquid.
10. Never immerse the unit in water or any other liquid for cleaning purposes.
11. Remove the plug from the socket by gripping the plug. Do not pull on the cord to
disconnect the appliance from the mains. Always unplug the unit when not in use, before
cleaning or when adding or removing parts.
12. The use of accessory attachments that are not recommended or supplied by the
manufacturer may result in injuries, fire or electric shock.
13. A short cord is provided to reduce the hazards resulting from becoming entangled in or
tripping over a longer cord.
14. Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in
a position where it can be pulled on inadvertently.

3
15. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or
electric burner or in a heated oven.
16. Do not use the appliance on a gas or electric cooking top or over or near an open flame.
17. Use of an extension cord with this appliance is not recommended. However, if it is
necessary to use an extension lead, ensure that the lead is suited to the power
consumption of the appliance to avoid overheating of the extension cord, appliance or
plug point. Do not place the extension cord in a position where it can be pulled on by
children or animals or tripped over.
18. This appliance is not suitable for outdoor use. Do not use this appliance for anything
other than its intended use.
19. Never carry the appliance by the power cord.
20. Do not leave this appliance unattended during use. Always unplug when the mixer is not
in use or before cleaning.
21. Always operate the appliance on a smooth, even, stable surface.
22. Turn the mixer on only after the beaters or dough hooks have been inserted. Always wait
until the beaters/dough hooks have stopped completely before removing them from the
mixer.
23. Keep hands and other utensils out of the bowl while mixing to reduce the risk of severe
injury to persons or damage to the machine.
24. Do not mix/blend hot liquids.
25. Ensure that the switch is in the “Off” position after each use.
26. Use this mixer only with the stand provided.
27. To avoid overheating of the motor, do not use speeds 1 or 2 when using the dough hook
attachments.
28. Do not use the dough hooks in stand mixer mode.
29. To avoid the danger of fire and/or explosion, do not use this mixer to stir paints or
solvents.
30. The manufacturer does not accept responsibility for any damage or injury caused by
improper or incorrect use, or for repairs carried out by unauthorised personnel.
31. In case of technical problems, switch off the machine and do not attempt to repair it
yourself. Return the appliance to an authorised service facility for examination,
adjustment or repair. Always insist on the use of original spare parts. Failure to comply
with the above mentioned pre-cautions and instructions, could affect the safe operation of
this machine.

4

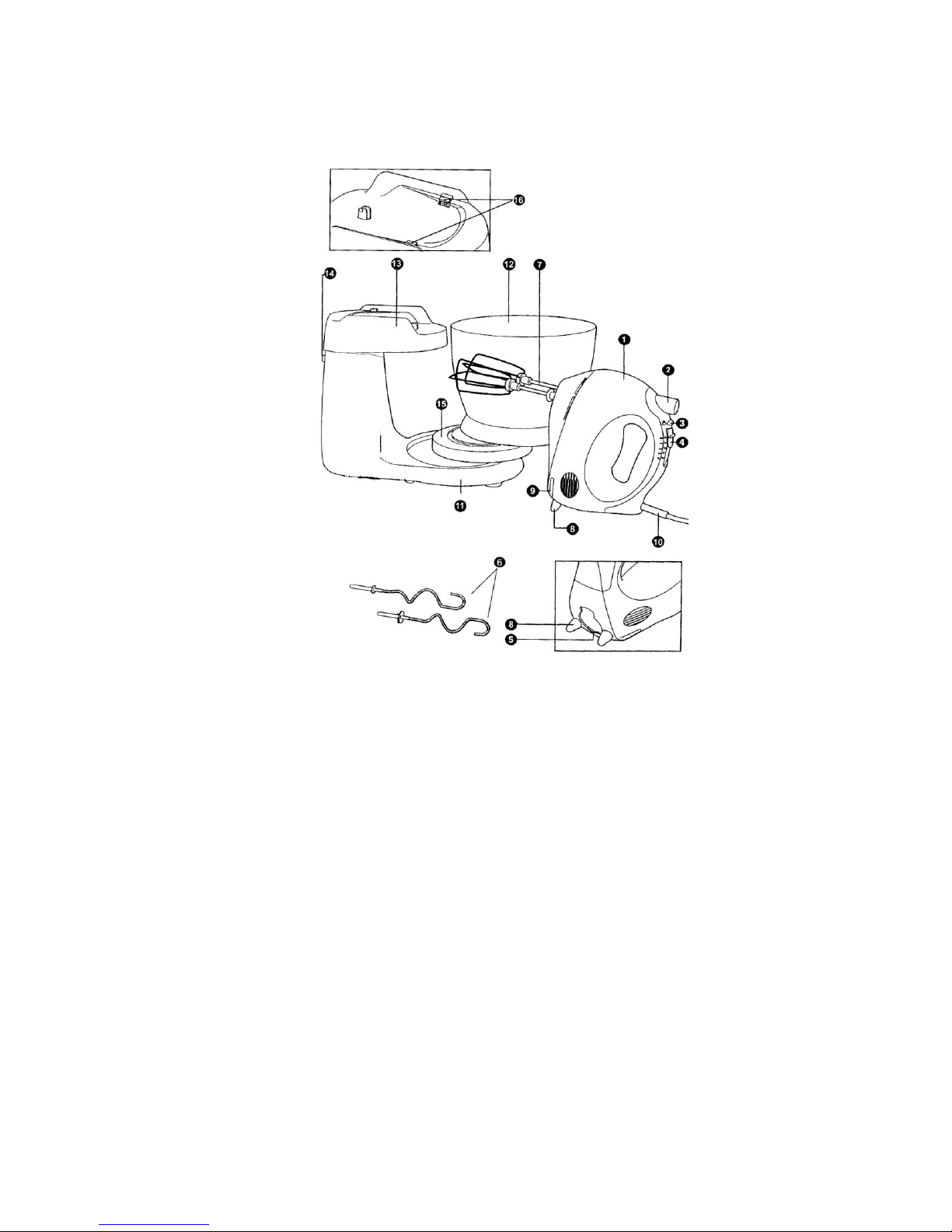

PARTS DIAGRAMS
1. Housing of the unit 2. Eject button
3. Turbo button 4. Speed control panel
5. Protective cover 6. Dough hooks
7. Beaters 8. Rubber Feet
9. Slots 10. Power Cord
11. Stand 12. Plastic bowl
13. Support arm 14. Detachment button
15. Rotating base 16. Catch

5
ASSEMBLY AND USE OF ACCESSORIES
Assembly and Use of Beaters and Dough Hooks
Ensure the appliance is unplugged and the speed control panel is set to “0”
To insert the beaters or dough hooks, hold the handle of the mixer with one hand, and insert
the first accessory rod into the slot with the other, turning it slightly until it is firmly locked
into position.

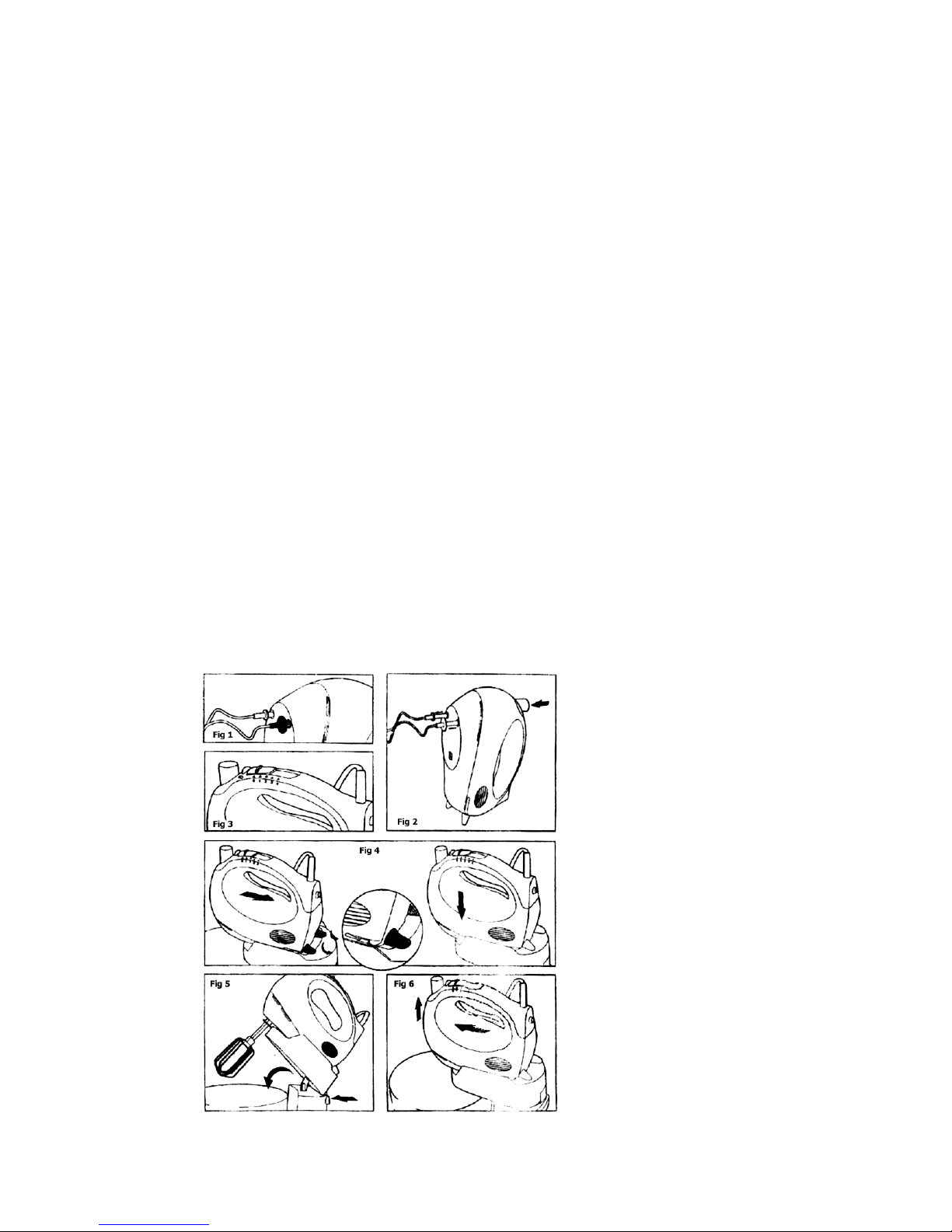

Repeat the same process with the other rod (Refer Fig. 1)
Caution: When inserting the dough hooks, remember that the rod with the large
washer should be inserted into the right-hand slot, and the one with the smaller washers
into the left-hand slot. This is to avoid the risk of ingredients spilling over the rim of the
mixing bowl.
Plug the appliance into the mains and insert the accessories into the centre of the mixture.
Turn the speed control to “1” and then select a speed suitable for the required process
(Refer Fig. 3)
When you have completed the mixing, turn the speed control back to “0”, unplug the
appliance and remove the accessories by pressing the eject button (Refer Fig. 2)
CAUTION
Do not use for more than 5
minutes at a time with the
dough hooks or beater
accessories. If you require a
longer period of use, leave
to cool for 10 minutes.

6
Suggestions for Use
Move the accessories around the mixture to ensure uniform results. If you want to clean
the sides and the base of the mixing bowl with a hand-held utensil, first switch the mixer
off by turning the speed control to “0”.
To avoid unnecessary splashing, immerse the beaters or dough hooks into the mixture
before switching the appliance on. The speed can be adjusted at any time. For thicker
mixtures, a high speed is recommended.
Set the mixture speed to “1” for the first 30 seconds and then adjust to a higher speed if
desired.
The dough hooks are recommended for thick mixtures (e.g. bread dough, donuts etc) and
softer mixtures (e.g. potato croquettes and tarts).
The beaters are generally recommended for beating egg whites until stiff, whipping
cream, yoghurts, mayonnaise and puree. They are also suitable for sauces and puddings.
When whipping cream, it is advisable to place both the cream and the mixing bowl in the
fridge to cool for a while before beginning.
SELECTING THE CORRECT MIXING SPEED
To select a speed, turn the knob on the speed control panel to the required mark.
Always begin with the speed control set to “1”, adjusting the speed later if required. This
avoids unnecessary splashing of liquids or lifting of powdered ingredients.
SPEED
USE
0
Off
1
To combine liquids, fold in dry ingredients, egg whites and whipped cream.
2
To prepare sauces, puddings, muffin dough, light pastry, whisking fresh cream,
quick breads and runny mixtures or soups.
3
For various batters, soft dough and runny mixtures.
4 & 5
For combining butter and sugar, making biscuit and cake mixes, whipping
fluffy mixtures, glazes and mashed potatoes.

7
Turbo Button
If at any time you require a momentary speed increase, press the turbo button. This
function is also suitable for ingredients requiring short mixing periods.
The turbo button can be used intermittently for momentary boosts of power by holding
the button pressed down for a few seconds. Do not use this function for more than a
minute at a time.
Note: The turbo boost can be applied at any time, regardless of speed setting.
STAND WITH PLASTIC MIXING BOWL
The stand with the bowl is used in combination with the beater and dough hook accessories. Care
should be taken to heed all safety and usage instructions concerning this appliance.
Caution
The stand should NEVER be submerged in water or held under a running tap. To clean,
simply wipe the unit with a damp cloth.
To fix the mixer into the supporting arm follow the instructions below:
Ensure that the appliance is unplugged and that the speed control is set to the “0”/off
position.
Place the mixer supports above the rear end of the support arm, press down gently and at
the same time, slide the mixer, inserting the support’s catches into the mixer’s side slots.
Once inserted, press down to fix the mixer firmly in place. (Refer Fig. 4).
Lift the support arm, with the mixer attached, to the highest position and then insert the
dough hooks or beaters as described above.
Place the bowl, with the ingredients inside, onto the base of the stand.
To lower the support arm, press the detachment button (Refer Fig. 5)
To disassemble, follow the instructions below:
Turn the speed control to “0” and unplug the appliance.
Raise the support arm and press the eject button to remove the accessories.

8
Lower the support arm by pressing the detachment button, hold the mixer stand in one
hand and pull the mixer body up with the other, sliding it forward at the same time.
(Refer Fig. 6)
CLEANING AND MAINTENANCE
This appliance is for household use only and is not user-serviceable.
Do not open or change any parts by yourself. Please refer to a qualified electrical service
department or return to the supplier if servicing is necessary.
Always remember to unplug the unit from the electrical outlet when not in use and before
cleaning. Ensure that the speed control is set to “0”.
It is much easier to clean the accessories directly after they have been used. Wash them in
warm, soapy water, rinse and dry well.
The body of the appliance and the stand should be cleaned with a damp cloth. Do not let
water enter the appliance or the stand.
Do not use bleach or other abrasive substance or solvents to clean your appliance as it can
be damaging to the finish.
The beaters and dough hooks and bowl can be cleaned in the dishwasher.
Do not immerse the mixer in water or any other liquid, or hold it under a running tap to
clean.
To remove stubborn spots/marks, wipe the surfaces with a cloth slightly dampened in
soapy water or mild non-abrasive cleaner. Rinse and dry a clean, dry, soft cloth.
STORING THE APPLIANCE
Unplug the unit from the wall outlet and clean all the parts as instructed above. Ensure
that all parts are dry before storing.
Store the appliance in its box or in a clean, dry place.
Never store the appliance while it is still wet or dirty.
Never wrap the power cord around the appliance.

9
SERVICING THE APPLIANCE
There are no user serviceable parts in this appliance. If the unit is not operating correctly, please
check the following:
You have followed the instructions correctly
That the unit has been wired correctly and that the wall socket is switched on.
That the mains power supply is ON.
That the plug is firmly in the mains socket.
If the appliance still does not work after checking the above:
- Consult the retailer for possible repair or replacement. If the retailer fails to resolve the problem
and you need to return the appliance, make sure that:
The unit is packed carefully back into its original packaging.
Proof of purchase is attached.
A reason is provided for why it is being returned.
If the supply cord is damaged, it must be replaced by the manufacturer or an authorised service
agent, in order to avoid any hazard. If service becomes necessary within the warranty period, the
appliance should be returned to an approved Amalgamated Appliance (Pty) Ltd service centre.
Servicing outside the warranty period is still available, but will, however, be chargeable.

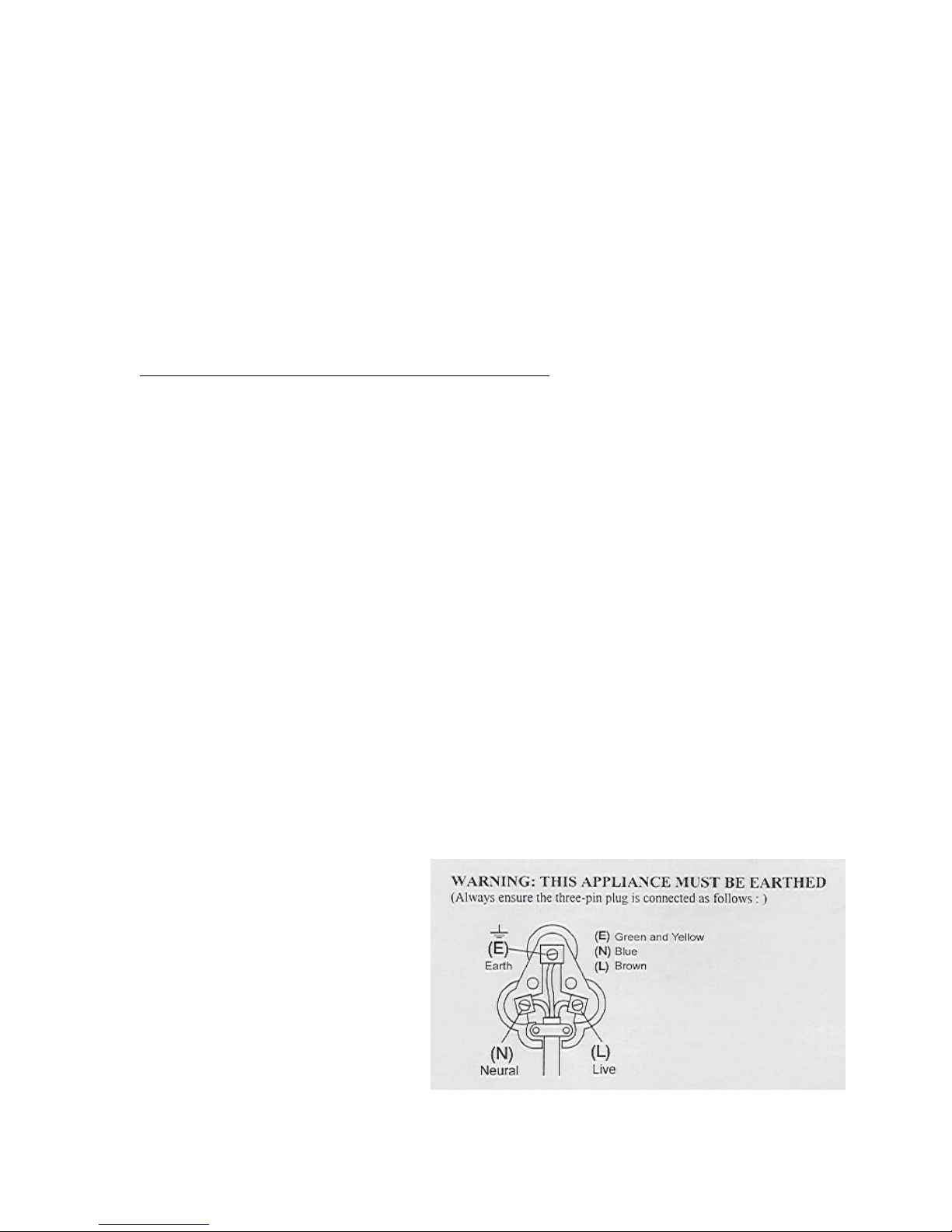

CHANGING THE PLUG
Should the need arise to change the fitted plug, follow the instructions below.
This unit is designed to operate on 230V-240V current only. Connecting to other power
sources may damage the appliance. Connect a three-pin plug as follows:
The wires in this mains lead are coloured in accordance with the following code:
Green/Yellow = Earth
Blue = Neutral
Brown = Live

10
PLEASE AFFIX YOUR PROOF OF PURCHASE/RECEIPT HERE
IN THE EVENT OF A CLAIM UNDER WARRANTY THIS RECEIPT MUST BE
PRODUCED.
W A R R A N T Y
Amalgamated Appliances (Pty) Limited (“the Supplier”) warrants to the original purchaser of this
product (“the Customer”) that this product will be free of defects in material and workmanship
which under normal, personal, family or household purpose manifest themselves within a period
of 365 days from the date of purchase or in respect of commercial or professional purposes,
manifest themselves within a period of 90 days from the date of purchase. Any claim in terms of
the warranty must be supported by a proof of purchase. If such proof is not available, then
notwithstanding anything to the contrary herein, the Supplier’s normal charge for service and/or
spares will be payable by the Customer upon collection of the repaired product. If a claim is
made in terms of the aforesaid warranty within the first 7 days from the date of purchase, the
faulty product will be exchanged (provided that the product is in its original packaging with all
accessories). Failing return of the product within 7 days, the Supplier’s liability shall be limited
on return to the Supplier of the product or parts thereof, to the replacement or repair (in the sole
discretion of the Supplier, or its duly authorised service dealer) of the product to eliminate any
defect in workmanship or materials found to be due exclusively to any acts or omissions on the
parts of the Suppliers, of which defects the Supplier shall have been notified in writing by the
Customer within the aforesaid warranty period. The warranty provided herein and the obligations
of the Supplier as aforesaid are in lieu of, and the Customer waives, all other warranties,
guarantees, conditions or liabilities, express or implied, arising by law or otherwise, including
without limitation, any obligation of the Supplier in respect of any injury, loss or damage (direct,
indirect or consequential) arising out of the use of, or inability to use, this product and whether or
not occasioned by the Supplier’s negligence (gross or otherwise) or any act or omission on its
part. The warranty does not include and will not be construed to cover products damaged as a
result of disaster, misuse, abuse or any non-authorised modification of the product. The warranty
does not include replacement of light bulbs, heater bars, paper bags or any glass, plastic bowl or
jug or other expendables. During the warranty period the product should be taken to a service
centre of the Supplier or one of its duly authorised service agents. The Supplier neither assumes
nor authorises any other person to assume for it, any additional liability in connection with the
sale or servicing of its products.
AMALGAMATED APPLIANCES (PTY) LTD
29, HERONMERE ROAD TEL NO. [phone]
P O BOX 39186
BOOYSENS, JOHANNESBURG, 2016
CAPE TOWN TEL NO. [phone]
DURBAN TEL NO. [phone]
REGISTER YOUR WARRANTY ONLINE –www.salton.co.za
