The document applies to the signal generator of the following models:
S1132A Signal Generator (9kHz - 6GHz).
S1132B Signal Generator (9kHz - 6GHz, built-in IQ modulator).
Standard Package of the signal generator:
1x Main Machine
1x Power Cord Assembly
1x Product Certificate
1x Coaxial Adapter
Options of S1132 series signal generator in addition to standard accessories :
Option No.
Description
S1132-02
RF Upper Conversion Device
S1132-03
Analog External Audio Modulation
S1132-05
High Stability Time Base Option
S1132-06
Power Meter Control Kit
S1132-07
Omnidirectional Antenna (300MHz - 6GHz)
S1132-08
Directional Antenna (600MHz - 8GHz)

Tel: [phone] Email: [email protected]
www.salukitec.com
3
Preface
Thank you for choosing Saluki Technology Products.
We devote ourselves to meeting your demands, providing you high-quality measuring instrument and the best
after-sales service. We persist with “superior quality and considerate service”, and are committed to offering
satisfactory products and service for our clients.
Document No.
S1132-03-01
Version
Rev01 2021.08
Document Authorization
The information contained in this document is subject to change without notice. The power to interpret the contents
of and terms used in this document rests with Saluki.
Saluki Tech owns the copyright of this document which should not be modified or tampered by any organization or
individual or reproduced or transmitted for the purpose of making profit without its prior permission, otherwise
Saluki will reserve the right to investigate and affix legal liability of infringement.
Product Quality Assurance
The warranty period of the product is 36 months from the date of delivery. The instrument manufacturer will repair
or replace damaged parts according to the actual situation within the warranty period.
Product Quality Certificate
The product meets the indicator requirements of the document at the time of delivery. Calibration and measurement
are completed by the measuring organization with qualifications specified by the state, and relevant data are
provided for reference.
Quality/Settings Management
Research, development, manufacturing and testing of the product comply with the requirements of the quality and
environmental management system.
Contacts
Service Tel:
+886. 909 602 109
Website:
www.salukitec.com
Email:
[email protected]
Address:
No. 367 Fuxing N Road, Taipei 105, Taiwan (R.O.C.)

Tel: [phone] Email: [email protected]
www.salukitec.com
4
Content
1 Overview.................................................................................................................................................................... 5
1.1 Product Overview................................................................................................................................................. 5
1.2 Electrical Safety....................................................................................................................................................5
1.3 Operation Precautions...........................................................................................................................................6
2 Interfaces & Buttons...................................................................................................................................................8
2.1 Front Panel............................................................................................................................................................8
2.2 Rear Panel.............................................................................................................................................................8
3 Operation Guide........................................................................................................................................................10
3.1 Continuous Wave Signal.................................................................................................................................... 10
3.2 Sweep Signal.......................................................................................................................................................11
3.3 Analog Modulation Signal..................................................................................................................................15
3.4 Digital Modulation Signal.................................................................................................................................. 20
3.5 Pulse Modulation Signal.....................................................................................................................................25
3.6 LF Output............................................................................................................................................................27
3.7 Up-conversion Function..................................................................................................................................... 32
3.8 DRG....................................................................................................................................................................34
3.8 Power Measurement........................................................................................................................................... 36
4 Remote Control.........................................................................................................................................................37
4.1 Via USB Port...................................................................................................................................................... 37
4.2 Via LAN Port......................................................................................................................................................38
5 Faults and Repair...................................................................................................................................................... 39
5.1 Common Faults and Troubleshooting Methods..................................................................................................39
5.2 Obtain After-sales Services................................................................................................................................ 39
6 Technical Specifications...........................................................................................................................................41

Tel: [phone] Email: [email protected]
www.salukitec.com
5
1 Overview
1.1 Product Overview
S1435 S1132 series RF signal generator provides a wide range of product choices for different functional
requirements and application scenarios. Each type of product has outstanding features in its function to characterize
the focus of its testing field. S1132 series signal generator features a variety of key analog modulation functions
(AM/FM/ФM/pulse modulation), standard digital modulation functions (ASK/PSK/FSK) and customizable
dedicated modulation methods (SSB/DSB/CW modulation, etc.).
In addition, S1132 integrates frequency/amplitude scanning, amplitude-frequency scanning, linear frequency
modulation, low-frequency output and up-conversion functions, making the signal generator a flexible and versatile
instrument suitable for teaching, research, product development, production and maintenance. Rich logic hardware
interface and widescreen LCD display make it easy to control various operations. The complete standard SCPI
command set and universal USB, LAN interfaces bring great convenience to your remote control and secondary
development.
Key Features
Frequency range: 9kHz - 6GHz
Typical output power: -120dBm to +10dBm
Standard IF input port
Multiple digital modulation formats, built-in IQ modulator (B type)
AM/FM/ФM analog modulation functions, modulation rate up to 1MHz
Support pulse modulation, minimum pulse width 200ns
Support linear frequency modulation, can simulate radar signals
Customizable dedicated communication modulation (SSB/DSB/CW)
As frequency upper conversion, support external input IF signals
Internal modulation source: sine/ square/ triangle/ sawtooth waves
USB/ LAN remote control interface, SCPI supported
1.2 Electrical Safety
Precautions for electrical safety of the instrument:
1) Before the instrument is powered on, the actual supply voltage should match the supply voltage marked on the
instrument.

Tel: [phone] Email: [email protected]
www.salukitec.com
6
2) According to the power requirements of the real panel of the instrument, a three-core power cord should be
adopted while ensuring reliable grounding of the ground wire during operation. Either floating ground or poor
grounding may cause damage to the instrument and even cause injury to operators.
3) Do not damage the power cord, otherwise electric leakage will be caused, resulting in damage to the
instrument and even injury of the operators. If an external power cord or extension socket is used, it should be
checked before use to ensure electrical safety.
4) If the power supply socket does not provide an on/off switch,to cut the power of the instrument, you can just
directly unplug the instrument, and therefore, it should be ensured that the power plug can be inserted or
drawn conveniently.
5) Do not use damaged power cords. Before connecting the instrument to the power cord, check the integrity and
safety of the power cord, and properly place the power cord to avoid the impact due to human factors, such as,
too long power cord that may trip the operator.
6) Keep the socket clean and tidy, and ensure the plug and the socket in good contact and reliable engagement.
7) Neither the socket nor the power cord can be overloaded, otherwise fire or electric shock will be caused.
8) Unless otherwise allowed, do not open the housing of the instrument, which may expose internal circuits and
devices of the instrument and cause unnecessary damage.
9) If the instrument needs to be fixed at the test site, a qualified electrician is required to install the protective
earth wire between the test site and the instrument first.
10) Take appropriate overload protections to prevent overload voltage (caused by lightning, for instance) from
damaging the instrument or causing personal injury.
11) When opening the housing of the instrument, do not place objects not belonging to the interior of the
instrument, otherwise, short circuit, damage to the instrument and even personal injury may be caused.
12) Unless otherwise stated, the instrument has not received any waterproof treatment, so keep the instrument
from contacting with liquid to prevent damage to the instrument or even personal injury.
13) Do not place the instrument in an environment where fog is easily formed, for example, moving the instrument
in a environment where cold and heat are in alternation, where water droplets formed on the instrument may
cause electric shock and other hazards.
1.3 Operation Precautions
1.3.1 Power Check
The S1132 multi-standard signal generator can be powered by 110V-220V alternating current; before turning it on,
you must confirm that the ground wire of the AC power source is reliably grounded before inserting the plug of the
power cord into a standard three-pin socket. Never use a power cord without a protective ground. Floating ground

Tel: [phone] Email: [email protected]
www.salukitec.com
7
or poor grounding may damage the signal generator and even cause personal injury. In order to prevent or reduce
the mutual interference caused by multiple devices through the power supply, especially the spike interference
generated by high-power devices may cause damage to the instrument hardware, it is best to use a 220V/110V AC
stabilized power supply to power the adapter.
Power Parameter
Range
Voltage
100V - 240V
Frequency
50Hz - 60Hz
Max. consumption
20W
1.3.2 Initial Power-up of the Signal Generator
1) Turn on the strong power switch at the back of the instrument, and the fan starts to run;
2) Turn on the front power control switch, and it takes about 30 seconds to start the instrument;
3) After the instrument is started up, it needs to be warmed up for 20 minutes before testing.

Tel: [phone] Email: [email protected]
www.salukitec.com
8
2 Interfaces & Buttons
This chapter introduces the front panel, rear panel and button of the S1132 signal generator.
2.1 Front Panel
Figure 2-1 Front panel of S1132 signal generator
No.
Description
No.
Description
1
USB interface
5
Function button zone
2
Soft menu
6
Power switch
3
Numeric button zone
7
Knob
4
Selection button zone
8
LF Output, RF2 Out, RF1 Out
2.2 Rear Panel
Figure 2-2 Rear panel of S1132 signal generator

Tel: [phone] Email: [email protected]
www.salukitec.com
9
No.
Description
No.
Description
1
Power input
8
TRIG IN
2
10MHz IN/OUT
9
TRIG OUT
3
AF IN
10
Fan port
4
SWEEP OUT
11
USB interface
5
Ext IF Input
12
LAN interface
6
PULSE IN
13
RS232 interface
7
PULSE OUT

Tel: [phone] Email: [email protected]
www.salukitec.com
10
3 Operation Guide
This chapter introduces the function and usage of the S1132 signal generator through examples. The contents of
this chapter are as follows:
Continuous Wave Signal
Sweep Signal
Analog Modulation Signal
Digital Modulation Signal
Pulse Modulation
LF Signal
Up-conversion Function
Power Measurement
3.1 Continuous Wave Signal
The most common output signal of a signal generator is the continuous wave limit signal. In the following example,
we use Agilent N9020A spectrum analyzer to measure the CW output signal information of S1132 signal generator
(with frequency of 1GHz, amplitude of -10dBm).
Operation steps:
1. Instrument connection
Use a coaxial cable to connect the signal output end of the signal generator to the RF input port of the N9020A
spectrum analyzer.

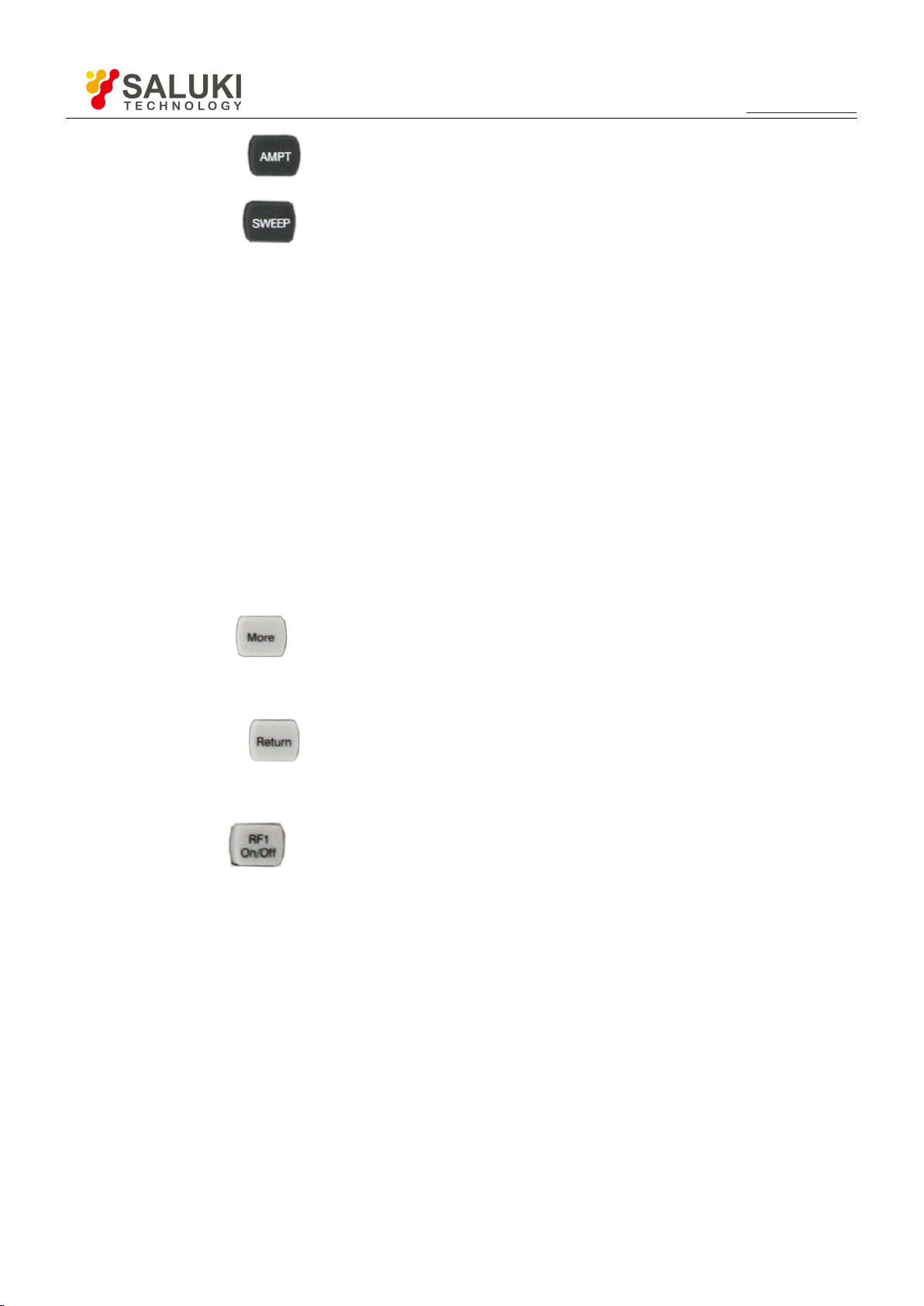

2. Parameter setting
(1) Reset the signal generator
—Press【Preset】button
(2) Parameter setting
—Press【FREQ】button, input 1 GHz
—Press【AMPT】button, input -10 dBm

Tel: [phone] Email: [email protected]
www.salukitec.com
11
—Press【RF1】button, make the【RF1】button backlight bright
3. Test result
After setting the relevant parameters of the spectrum analyzer, a continuous wave signal can be observed on the
screen, with a frequency of 1 GHz and an amplitude of -10.46 dBm, as shown in Figure 3-1.
Figure 3-1 Test result of the CW signal
3.2 Sweep Signal
The S1132 signal generator can output signals in three modes: frequency sweep, amplitude sweep, and frequency +
amplitude sweep. The following describes the signals output in two modes: frequency sweep, frequency +
amplitude sweep.
3.2.1 Frequency sweep signal
Frequency sweep signal refers to the signal continuously output from the start frequency to the stop frequency
under the same amplitude.
For example: to output a frequency sweep signal, with frequency from 1GHz to 2GHz, amplitude of -10dBm,
number of step points of 50, dwell time of 20ms.
Operation steps:

Tel: [phone] Email: [email protected]
www.salukitec.com
12
1. Instrument connection
Use a coaxial cable to connect the signal output end of the signal generator to the RF input port of the N9020A
spectrum analyzer.
2. Parameter setting
(1) Reset the signal generator
—Press【Preset】button
(2) Parameter setting
—Press【AMPT】button, input -10 dBm
—Press【Sweep】button
—Select [SWP Mode]
—Select [Freq]
—Select [CFG Step]
—Select [Freq Start], input 1 GHz
—Select [Freq Stop], input 2 GHz
—Select [Points], input 50
—Select [Enter]
—Press【More】button
—Select [Dwell], input 20 ms
—Press【Return】button
—Select [Swp Repe] -- “Cont”
—Press【RF1】button, make the【RF1】button backlight bright
3. Test result
After setting the relevant parameters of the spectrum analyzer, the result is shown in Figure 3-2.

Tel: [phone] Email: [email protected]
www.salukitec.com
13
Figure 3-2 Test result of the frequency sweep signal
3.2.2 Frequency + Amplitude sweep signal
Frequency sweep signal refers to the frequency and amplitude sweep from the start value to the end value at the
same time.
For example: to output a sweep signal, with frequency from 1GHz to 2GHz, amplitude from -50dBm to -10dBm,
number of step points of 50, dwell time of 20ms.
Operation steps:
1. Instrument connection
Use a coaxial cable to connect the signal output end of the signal generator to the RF input port of the N9020A
spectrum analyzer.
2. Parameter setting
(1) Reset the signal generator
—Press【Preset】button
(2) Parameter setting

Tel: [phone] Email: [email protected]
www.salukitec.com
14
—Press【AMPT】button, input -10 dBm
—Press【Sweep】button
—Select [SWP Mode]
—Select [Freq & Ampl]
—Select [CFG Step]
—Select [Freq Start], input 1 GHz
—Select [Freq Stop], input 2 GHz
—Select [Ampl Start], input -50 dBm
—Select [Ampl Stop], input -10 dBm
—Select [Points], input 50
—Select [Enter]
—Press【More】button
—Select [Dwell], input 20 ms
—Press【Return】button
—Select [Swp Repe] -- “Cont”
—Press【RF1】button, make the【RF1】button backlight bright
3. Test result
After setting the relevant parameters of the spectrum analyzer, the result is shown in Figure 3-3.

Tel: [phone] Email: [email protected]
www.salukitec.com
15
Figure 3-3 Test result of the frequency + amplitude sweep signal
3.3 Analog Modulation Signal
The S1132 signal generator can output AM/FM/PM analog modulation signals. The following introduces various
modulation signals with carrier frequency of 1GHz and amplitude of -10dBm.
3.3.1 AM
For example: modulation depth 50%, modulation rate 50kHz
Operation steps:
1. Instrument connection
Use a coaxial cable to connect the signal output end of the signal generator to the RF input port of the N9020A
spectrum analyzer.
2. Parameter setting
(1) Reset the signal generator
—Press【Preset】button
(2) Parameter setting

Tel: [phone] Email: [email protected]
www.salukitec.com
16
—Press【FREQ】button, input 1 GHz
—Press【AMPT】button, input -10 dBm
—Press【RF1】button, make the【RF1】button backlight bright
—Select [Depth], input 50%
—Select [Int Fctn] -- “Frequency”, input 50 kHz
—Press【Return】button
—Select [State] -- “On”
—Press【MOD】button, make the【MOD】button backlight bright
3. Test result
After setting the relevant parameters of the spectrum analyzer, the result is shown in Figure 3-4.
Figure 3-4 Test result of the AM modulation signal

Tel: [phone] Email: [email protected]
www.salukitec.com
17
3.3.2 FM
For example: frequency offset 500kHz, modulation rate 50kHz
Operation steps:
1. Instrument connection
Use a coaxial cable to connect the signal output end of the signal generator to the RF input port of the N9020A
spectrum analyzer.
2. Parameter setting
(1) Reset the signal generator
—Press【Preset】button
(2) Parameter setting
—Press【FREQ】button, input 1 GHz
—Press【AMPT】button, input -10 dBm
—Press【RF1】button, make the【RF1】button backlight bright
—Press【FM/ФM】button
—Select [Mode] -- “FM”
—Select [Freq Offset], input 500 kHz
—Select [Int Fctn]
—Select [Freq], input 50 kHz
—Press【Return】button
—Select [FM State] -- “On”
—Press【MOD】button, make the【MOD】button backlight bright
3. Test result
After setting the relevant parameters of the spectrum analyzer, the result is shown in Figure 3-5.

Tel: [phone] Email: [email protected]
www.salukitec.com
18
Figure 3-5 Test result of the FM modulation signal
3.3.3 ФM
For example: phase offset 180°, modulation rate 100kHz
Operation steps:
1. Instrument connection
Use a coaxial cable to connect the signal output end of the signal generator to the RF input port of the N9020A
spectrum analyzer.
2. Parameter setting
(1) Reset the signal generator
—Press【Preset】button
(2) Parameter setting
—Press【FREQ】button, input 1 GHz
—Press【AMPT】button, input -10 dBm

Tel: [phone] Email: [email protected]
www.salukitec.com
19
—Press【RF1】button, make the【RF1】button backlight bright
—Press【FM/ФM】button
—Select [Mode] -- “

M”
—Select [Phase Offset], input 180°
—Select [Int Fctn]
—Select [Freq], input 100 kHz
—Press【Return】button
—Select [

M State] -- “On”
—Press【MOD】button, make the【MOD】button backlight bright
3. Test result
After setting the relevant parameters of the spectrum analyzer, the result is shown in Figure 3-6.
Figure 3-5 Test result of the PM modulation signal

Tel: [phone] Email: [email protected]
www.salukitec.com
20
3.4 Digital Modulation Signal
The S1132 signal generator can output ASK/FSK/PSK digital modulation signals. The following introduces
various modulation signals with carrier frequency of 1GHz and amplitude of -10dBm.
3.4.1 ASK Modulation
For example: 2ASK mode, modulation depth 50%, rate 100kHz
Operation steps:
1. Instrument connection
Use a coaxial cable to connect the signal output end of the signal generator to the RF input port of the N9020A
spectrum analyzer.
2. Parameter setting
(1) Reset the signal generator
—Press【Preset】button
(2) Parameter setting
—Press【FREQ】button, input 1 GHz
—Press【AMPT】button, input -10 dBm
—Press【RF1】button, make the【RF1】button backlight bright
—Press【AuxFctn】button
—Select [Digital Mod]
—Select [State] -- “On”
—Select [Mode]
—Select [ASK]
—Select [Parameter]
—Select [Depth], input 50%
—Select [Rate], input 100 kHz
