Sami WS-2323 User manual

WEARABLE
User Manual
WS-2323
Thank you for purchasing the Sami wearable WS-2323. Read the instructions carefully to obtain optimum results and
preserve it for future reference.
DESCRIPTION OF THE WEARABLE.
CONTENTS.
Wearable, USB magnetic cable, instruction manual.
CHARGING.
Connect the device to a computer or laptop with the USB Magnetic cable for charging. Put in contact the magnetic end
of the usb cable with the charging points positioned in the back of your device. Kindly use only the USB cable included with
the wearable. If you use a power adapter for charging, the output of the power adapter should be 5V, 1A. Charging time:
2 hours. Please charge the device fully before using it.
HOW TO POWER ON / POWER OFF?
1) To turn ON the smart band, long press the touch button for a few seconds. The touch button is situated on the
bottom of the screen. The side button can achieve the same functions.
2) To turn OFF the smart band, tap the touch button until you get in the Power-off interface, then long press the touch
button and then select YES, and long press the touch button to make it Power off. The side button can achieve the
same functions.
HOW TO CONTROL?
1) On the display screen , short press the touch button control to change between the different menus. Long press to
achieve the different functions. The side button can achieve the same functions.

GETTING STARTED:
- For Android
1) How to obtain the BT Connection APK (WEARHEALTH)
Search for the WEARHEALTH APP in the Google Play Store; download it and install it in your Android smartphone, or go to our
website www.sami.es and download the application.
2) Installation of the WEARHEALTH APK.
When installing the WEARHEALTH application on your Android, you must allow all the Application Permissions, allow this
WEARHEALTH app auto run.
The first time you run this WEARHEALTH, it will ask you to Enable Notifications, please tap OK and tap the WEARHEALTH and
confirm OK. You must tap OK/Allow for any pop-up request. On your Android permission management, allow all application
permissions.
3) How to make the wearable pair with your Android smart phone?
*Firstly, turn on the Bluetooth of your Phone.
*Secondly, run the WEARHEALTH app on your Phone, on the home page of WEARHEALTH, select “Mine”, select ‘’Connect
a device’’, the APP will search for new Bluetooth device(s), when the available Bluetooth device displays, please select
BAND or WS-2323 (the BT name of this device) to make it pair. The pairing will be finished in few seconds. When you pair for
the first time, the app WEARHEALTH will ask you to fill some personal information such as gender/age/height/weight. When
you finish select OK/Confirm/Allow for any pop-up request.
Important: To enable all notifications of Call remind, SMS remind, and more reminders of different soft wares such as
WhatsAPP, Facebook, Skype, Twitter, you will need to turn on the notifications on the APP manually. On the home page of
WEARHEALTH, select the icon ‘’Mine’’ (situated on the right bottom of the screen), and select ‘’Device management’’,
‘’more reminders’’, and turn on all the APP notifications you want to active.
- For iPhone
1) How to obtain the BT Connection APP? WEARHEALTH
On iPhone, please go to APP Store and search WEARHEALTH and install the app.
2) How to make the wearable pair with your iPhone?
*Firstly, turn on the Bluetooth of iPhone
*Secondly, run the WEARHEALTH app on your Phone, on the home page of WEARHEALTH, select “Mine”, select ‘’Connect a device’’, the
APP will search for new Bluetooth device(s), when the available Bluetooth device displays, please select BAND or WS-2323 (the BT name of
this device) to make it pair. The pairing will be finished in few seconds. When you pair for the first time, the app WEARHEALTH will ask you to
fill some personal information such as gender/age/height/weight. When you finish select OK/Confirm/Allow for any pop-up request.
*Now you can start using your desired functions of the smart band.
Important: To enable all notifications of Call remind, SMS remind, and more reminders of different softwares such as
WhatsAPP, Facebook, Skype, Twitter, you will need to turn on the notifications on the APP manually. On the home page of
WEARHEALTH, select the icon ‘’Mine’’ (situated on the right bottom of the screen), and select ‘’Device management’’,
‘’more reminders’’, and turn on all the APP notifications you want to active.
PRODUCT FEATURES
BLUETOOTH (V 4.0)
TOUCH BUTTON
TOUCH SCREEN. Capacitive touch screen 1.3"
BUILT IN VIBRATING MOTOR
BUILD IN HEART RATE SENSOR
BUILD IN GRAVITY SENSOR
GESTURE CONTROL TO LIGHT UP THE DISPLAY SCREEN

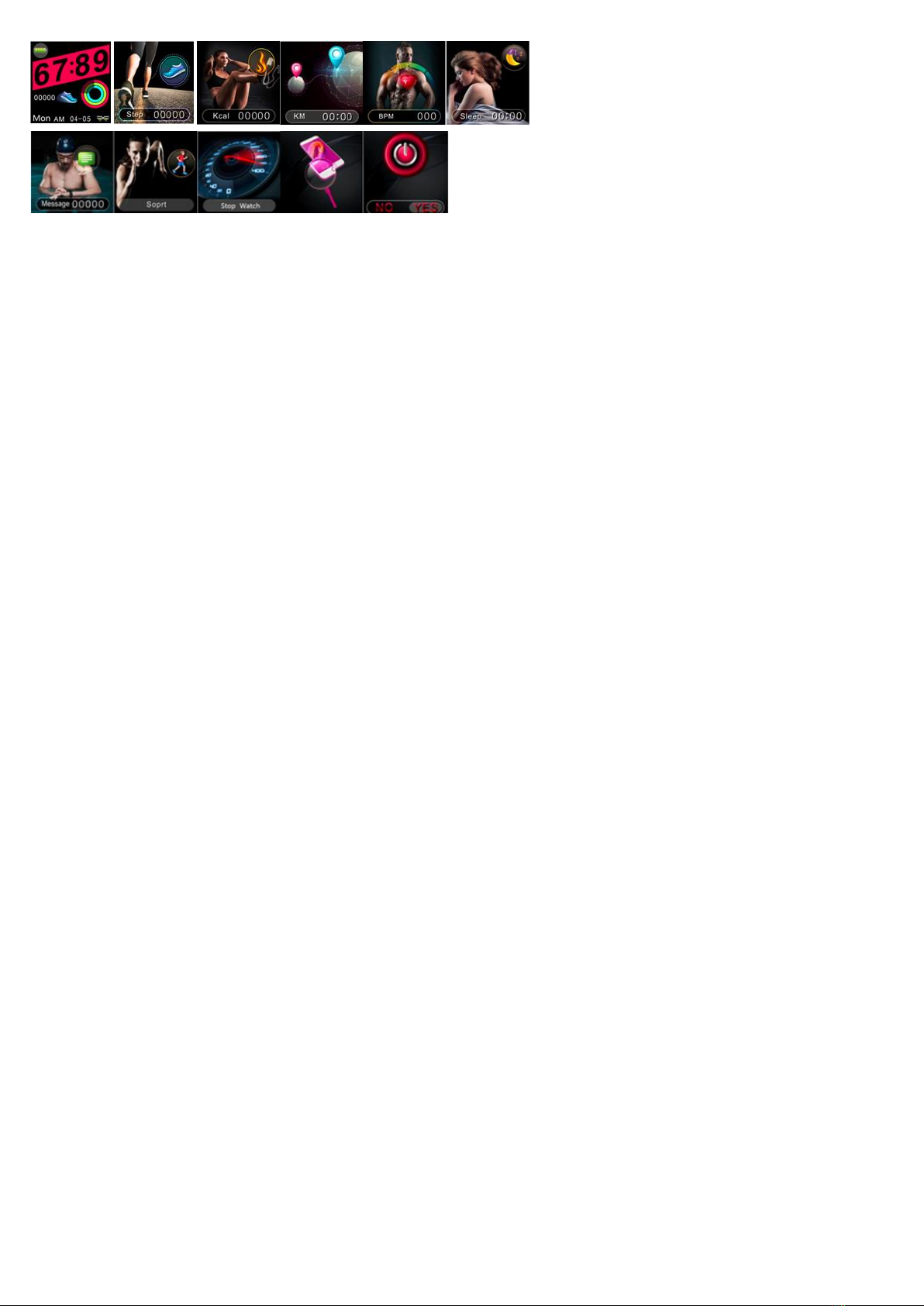

DISPLAY SCREEN INTERFACE

1) Time/Date/Battery
2) Steps (Pedometer)
3) Calories (Pedometer)
4) Distance (Pedometer)
5) Heart rate monitor
6) Sleep monitor
7) Messages
8) Sport Mode –sport modes including Running /Walking /Climbing /Riding
9) Stopwatch
10)Find my phone
11)Power off
Data can be sync from the wearable to the smart phone on the WEARHEALTH APK/APP.
Your smart phone will be synchronized when the Bluetooth is paired with this device.
FUNCTIONS
PHONE CALL NOTIFICATION - vibrating reminder for incoming phone calls. This function need to be turned on manually at
the WEARHEALTH APK/APP.
MESSAGE NOTIFICATION - vibrating reminder for incoming messages, including SMS, WhatsApp, Facebook, Twitter, Skype
messages, etc. This function need to be turned on manually at the WEARHEALTH APK/APP.
CLOCK SCREENS (Different home digital clocks) - In the home screen of the smart band, long press the fixed-point for a few
seconds to change the style of the digital clock.
SLEEP MONITOR - builded-in
ALARM CLOCK - supported on the WEARHEALTH APK/APP
FIND THE DEVICE - find my smart band
PHOTOGRAPH - (remote control your smartphone’s camera)
STOPWATCH
SEDENTARY REMIDER(REMIND TO MOVE) - supported on the WEARHEALTH APK/APP
METTING REMIDER - supported on the WEARHEALTH APK/APP
DRINK REMIDER - supported on the WEARHEALTH APK/AP
GESTURE CONTROL (Raise your hand to light up the screen)
GPS MAP TRACE (view it on the BT APP/APK WEARHEALTH) On the home page of the WEARHEALTH, tap in the Sport icon to
view the GPS map. On the home page of the WEARHEALTH, tap in the Sport icon, then select the icon situated in the right
top to view the GPS map trace history record.
MULTIPLE LANGUAGES
TECHNICAL SPECIFICATIONS:
Display screen: Fixed-point capacitive touch screen 1.3".
Screen resolution: 240x240 pixels.
Internal Memory: RAM 64KB, ROM 512KB+64Mbit
System: Nucleus
CPU: NRF52832
Charge I/O port : USB magnetic charging cable
Battery: Built in Li-Polymer 320 mAh
Stand by time: 15~20 DAYS
Working time: 5 DAYS
Bluetooth: 4.0.
Water-resist Rating: IP67 (this device resists raindrops, it’s not water proof)
Weight: 40 g
Exterior Dimensions: 43*37*13mm (straps not included). And the length of straps 123mm+88mm

Declaration of Conformity
Hereby we,
Name of manufacturer:
SANTOSHI SL
Address:
CALLE FELIPE ASENJO N.56
Zip code & City:
28947 - FUENLABRADA ( MADRID )
Country:
SPAIN
declare that this DoC is issued under our sole responsibility and that this product:
Product description:
Smart Band
Type designation(s):
WS-2323
Trademark:
SAMI WEARABLE
is in conformity with the relevant Union harmonization legislation:
DIRECTIVE EMC 2014/30/EU
DIRECTIVE LVD 2014/35/EU
Standard CE (RED): DIRECTIVE 2014/53/EU
Standard RoHS: 2011/65/EU: (RoHS) Restriction of Hazardous Substance.
with reference to the following standards applied:
EN 60950-1: 2006+A11:2009+A1:2010+A12:2011+A2:2013
EN 62479:2010
EN 301 489-1 V2.1.1 (2017-02)
EN 301 489-17 V3.1.1 (2017-02)
EN 300 328 V2.1.1 (2016-11)
Signature
Full name: VISHAL MIRPURI
Position: ADMINISTRATOR
Date: 15 / 04 / 2019
