Samson UMBROSA NANO UX User manual

NANO UX©©
UMBROSA NANO UX
PARASOL
The Nano UX collection consists of two compact design fan
parasols for smaller terraces. The canopy cannot be adjusted in
height, but can be tilted sideways to create optimal shading.

MODELS
DIMENSIONS
RAL9005
Black
Black
ARCHITECTUREFULL BLACK
Marble
RAL 9018
Papyrus
white
J
cm/ft
265/8’ 8.3”2.5m/8’ 2”
A
cm/ft
250/8’ 2”
B
cm/ft
210/7’ 2.6”
C
cm/ft
190/6’ 2.8”
D
cm/ft
39/1’ 3.4”
E
cm/ft
250/8’ 2.4”
F
cm/ft
355/11’ 7.8”
G
cm/ft
210/6’ 10.7”
H
cm/ft
30/ 11.8”
I
cm/ft
190/6’ 2.8”
NANO UX
CB
A
360°
+/- 2%
D
E
J
30°
30°
H
G I
90°
F
POLE / ARM
66.3 mm / 2.6”
85 mm / 3.3”
NANO UX©
01933 448 844
Samson Awnings
www.samsonawnings.co.uk
www.samsonawnings.co.uk
Samson Awnings
01933 448 844

NANO UX©
The content of this document, in particular the mentioned models, is protected by copyrights and/or design rights. The present document and its content is communicated to you for information
purposes only. Any partial or total reproduction or any other use without our prior written permission is strictly prohibited. This technical sheet remains subject to possible changes. Of course we do
our best to eliminate all mistakes, but Umbrosa is not responsible for the errors in the documentation of products. All measurements are approximate and are provided for informational purposes only.

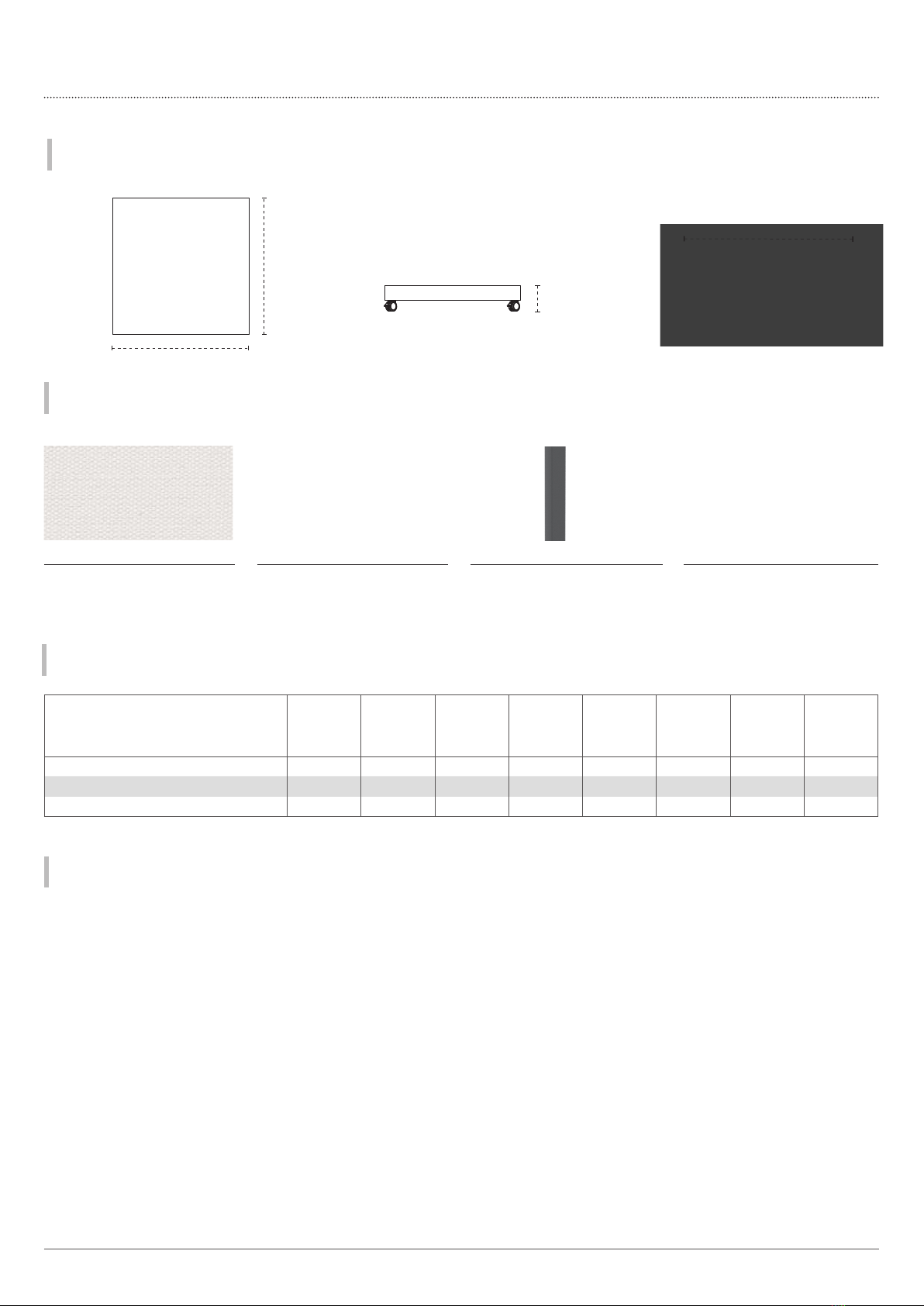

MATERIALS
FABRIC
Colorum – 100% Acryl 260 gr/m
More details – see spec sheet Fabrics
RIBS
Aluminum ribs
POLE, ARM AND HANDLES
Aluminum powder coated RAL 9005
Black or RAL 9018 Papyrus White
BASE
Base: hot dip galvanised steel
Cover: Aluminum Powder coated
RAL 9005 or RAL 9018
PACKAGING & TRANSPORT
NANO UX L (cm) W (cm) H (cm) Weight (kg) L (ft) W (inch) H (inch) Weight (lbs)
Umbrella box 205 31 17 25 6’ 8.7” 1’ 0.2” 6.7” 55
Medium base 88.6 88.6 10 17 kg 2’10.9” 2’10.9” 3.9” 37.4
Medium base package 90 90 11 18 kg 2’11.4” 2’11.4” 4.3” 39.6
NICE TO KNOW
• Spare parts available
• Designed and manufactured in Belgium
• Warranty between 10 and 2 years, please consult our warranty policy
at www.umbrosa.com
• Download owner’s manual (QR-code included), also available at
www.umbrosa.com
• Storage bag included (Colorum Flanelle)
• Wind speeds up to 5 beaufort, 30 km/h, 18 mph when base is
permanently fixed
• Tested at TU Delft
885/2’10.8”
885/2’10.8”
100/3.9”
BASE
DIMENSIONS BASE AND BASEBLATE MM/FT
SAFETY STATEMENTS & WARNINGS
•Product is suitable for light wind and/or light rain only.
•Position product in direction of wind as recommended in user manual.
•Do not use product in inclement weather, such as strong wind, thunderstorms,
heavy rain or snow, and make sure that the umbrella is closed and stored in
advance.
•Never allow the umbrella to flap in the wind. This could cause personal injury,
damage to personal property, damage to umbrella and/or umbrella canopy.
•Close product and secure strap when not in use.
•Do not use product without its base or unless attached to building structure,
and keep umbrella secured to umbrella base or mount at all times.
•Do not use product over or near harsh chemicals or open flames.
•Place product on stable and level surface.
•Do not allow children to assemble or operate product.
•Do not leave product unattended.
•Store product indoors during winter and extreme weather conditions.
•When adjusting or assembling the umbrella or umbrella base, make sure fingers,
toes or any other parts of the body are clear from moving parts. Failing to do so may
result in serious injury.
•Only use Umbrosa replacement parts.
•Read owner’s manual.
•Any modifications to the product or failure to follow recommended care will void the
warranty.
•Wind damage is not covered under our limited warranty.
215/8,5”
Baseplate for installation on a
hard surface and combined with
an anchorage on a soft surface.
