Samsung MXD-K100XN User manual

AirHandling Unit Application Kit
Installation manual
MXD-K100XN
• Thank you for purchasing this Samsung air conditioner.
• Before operating this unit, please read this user manual carefully and retain it forfuture
reference.

2
English
Contents
Preparation 3
Safety Information 3
External Appearance 6
Accessories 7
Before Installation 8
AHU-KIT Structure Diagram
Installation 9
Control-KIT Installation • Control-KIT Function • Control-KIT Circuit Diagram •
External Controller Diagram (MIM-B14) • Simple BMS • Connecting the Power Terminal •
Control-KIT Connections • Brazing the Pipe • Sensor Installation
Function Setting 21
Setting an indoor unit address and installation option
After Installation 30
AHU-KIT Installation Check • Test Operation
Appendix 31
Troubleshooting 31
Initial Check-up • EEPROM Error • Sensor Error • Fan Error • In-tracking Error

3
English
Preparation
Safety Information
The following safety precautions must be taken when installing the unit.
Be aware that AHU-KIT has to be combined with
“AC026MXADKH/EU, AC035MXADKH/EU, AC052MXADKH/EU, AC071MXADKH/EU, AC100MXADKH/EU,
AC100MXADNH/EU, AC120MXADKH/EU, AC120MXADNH/EU, AC140MXADKH/EU, AC140MXADNH/EU,
AC180JXAPNH/EU, AC200KXAPNH /EU, AC250KXAPNH/EU” outdoor unit only.
Risk of death or serious personal injury. Potential risk of personal injury or material damage.
Use R410A refrigerant.
● When using R410A, moisture or foreign substances may affect the capacity and reliability of the product. Safety
precautions must be taken when installing the refrigerant pipe.
● R410A is a quasi-azeotrope of two refrigerants. Make sure to charge liquid one when adding refrigerant.
(If you charge gaseous refrigerant, it may affect the capacity and reliability of the product as a result of change
in formation of the refrigerant.)
Turn off the power before installation, service, and
cleaning.
The installation must be done by the manufacturer
or its service agent or a similar qualified person in
order to avoid a hazard.
● Installation by an unqualified person may cause a
water leakage, electric shock or fire .
Use only rated parts and tools.
● If you don’t use the rated parts and tools, it can
cause trouble with the product and bring about
injury.
When adding the refrigerant, use the R410A
refrigerant only.
● If any gas or impurities except R410A refrigerant
come into the refrigerant pipe, serious problem
may occur and it may cause injury.
Install the outdoor unit correctly according to the
installation manual.
● An incorrect installation may cause a water
leakage, electric shock or fire and so on.
Manufacturer is not responsible for accidents due to
incorrect installation by unqualified person.
Use the pipe or flare part for R410A refrigerant only. When there were leakage during installation, you
must ventilate the area.
● Toxic gas may generate when refrigerant gas
contacts with fire.
If the power cable or cord is damaged, the
manufacturer, a qualified service technician must
replace it to avoid a potential risk.
The electric work must be done by service agent or
similarly qualified persons according to national
wiring regulations and use only rated cable.
● If the capacity of the power cable is insufficient or
electric work is not properly completed, electric
shock or fire may occur.
CAUTION
CAUTIONWARNING

4
English
Preparation
Arrange the cables between the AHU-KIT and
outdoor unit after connecting.
Attach the cover securely so that the electrical
component box cover does not get loosen.
● If the cover is attached incompletely, it can cause
trouble with a heat generation, electric shock or
fire of the terminal board.
Install designated ELB for AHU when installing the
power cable.
● If you do not install designated ELB for AHU,
electric shock or fire may occur.
Use the copper wire for the power cable
and use only rated cables and parts.
Make sure electrical circuit is correctly connected.
● Overheating may cause fire.
Install the cables with supplied cables firmly. Fix
them securely so that external force is not exerted
to the terminal board.
● If the connection or fixing is incomplete, it can
cause trouble with a heat generation, electric
shock or fire.
Make sure that the power for AHU-KIT is under
maximum, and over minimum voltage allowed.
● It may cause electrical component malfunction
which can damage the product.
Make sure there is no leakage after installation.
● Toxic gas may generate when refrigerant gas contacts with fire.
Make sure of a earthing.
● Do not connect the earth wire to the gas pipe,
water pipe, lighting rod or telephone wire.
● If earthing is incomplete, electric shock or fire
may occur.
Follow the instructions in this manual to make
sure that the condensed water dripping from
the drain hose runs out properly and insulate
the drain pipe so that dew condensate does not
generate.
● Household goods may get wet if the drain pipe is
not properly installed.
Install the power cable and communication cable of the AHU-KIT at least 1m away from electric
appliances.
● Noise may heard depending on the electric wave though the cables are installed away from electric
appliances.
● Keep the space in front of AHU-KIT for maintenance.
Safety Information
CAUTION
WARNING

5
English
Preparation
Do not install the AHU-KIT in following places.
● T he place where there is mineral oil or arsenic acid.
- There is a chance that parts may get damaged due to burned resin.
● The place where corrosive gas such as sulfurous acid gas generates from the vent pipe or air outlet.
- The copper pipe or connection pipe may corrode and refrigerant may leak.
● The place where there is a machine that generates electromagnetic waves.
- The air conditioner may not operate normally due to control system.
● The place where there is a danger of existing combustible gas, thinner or gasoline is handled.
- The place where carbon fiber or flammable dust is.
● The place where like spa and shore.
● The place with direct contact of sunlight, rain, outdoor humidity, dust and temperature.
 The manufacturer is not responsible for the damage occurred by not keeping standard of the installation.
ߢ࣎øͱʀɇϑцϑϩʪʒʪϑ˝ɇʒ²Ƹʒʪϑ˝θʪϑΧͱϑɵϩц
Samsung does not accept any responsibility or liability for the performance and regulatory compliance of the local system
ʒʪϑ˝ɇʒ²Ƹʒʪϑ˝ࢋ
ߣ࣎ŵʪ˝ЇɇϩͱθцʀͱΧɇʀʪ
HVAC solution provider must ensure that the local system design and AHU design comply with all applicable regulations.
The Declaration of Conformity for Samsung’s outdoor units and interface is available from the relevant factories.
ƊɇϑЇ˝иͱϩʀʪɇɵʪͱиʪ˝ɇʒϑʀɇʪθࢋUͱцͱЇɇ˝θʪʪϩ˵ϑࢌ
WARNING

6
English
Preparation
External Appearance
Control-KIT
No. Parts and components
1Controllerboard
2Case
3Cover
External Appearance

7
English
Preparation
Accessories
ITEM
Room/EVA IN
sensor
(10 m)
EVA OUT sensor
(10 m)
EVA IN sensor holder
(OD Ø 6.8 mm)
EVA OUT sensor
holder
(OD Ø 7.8 mm)
Sensor clip
QUANTITY 11 1 1 2
ITEM Aluminum tape Rubber tape Insulator
QUANTITY 42 2
110㎜
85㎜
110㎜
85㎜
170㎜
100㎜
ITEM Cable-tie
Cable-nut
Bracket Base Installation
Manual
Screw plug Wired Remote
Controller
(optional)
PG16 PG16
QUANTITY
86 4 1 2
1
Accessories

8
English
Preparation
Before Installation

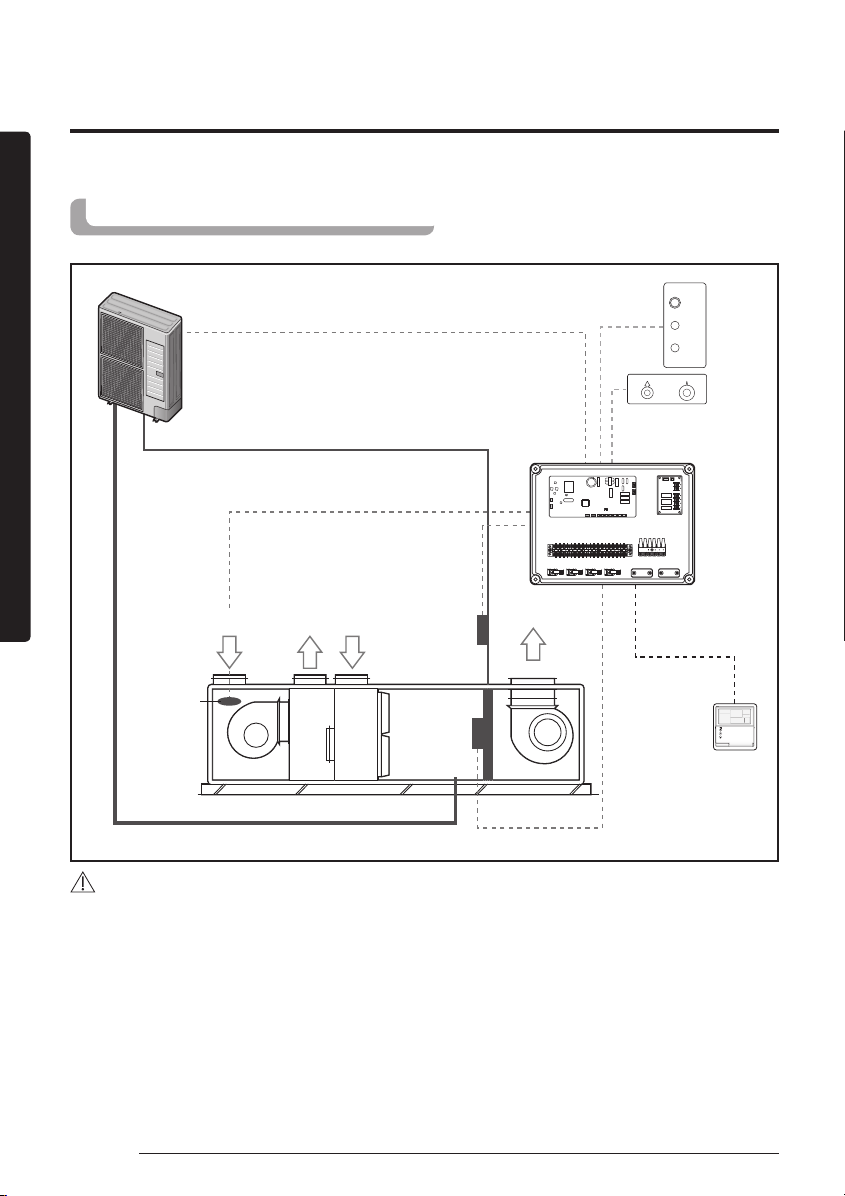

AHU-KIT Structure Diagram
AĮĮøÃĘ ²kƟÃĘ
ťĮǮkŵفĮ
ՌՓ۸
ՌՔ۸
ՍՋ۸
ՍՌ۸
ՍՍ۸
ՍՎ۸
ՍՏ۸
ՍՐ۸
ՍՑ۸
ՍՒ۸
ՍՓ۸
Վ
ՓĘA
ŵǽՒՐ ŵǽՒՑ ŵǽՒՒ
Ռ
ՓĘA
Ռطøظ ՌطĘظ
• When the controllers (External Controller, simple BMS, Remote Controller) are installed simultaneously, AHU-
KIT doesn’t have the priority of control and operates according to the final signal. (SIMPLE BMS may indicate the
different condition of AHU, if AHU was controlled by other controller finally.)
CAUTION
Outdoor Unit
Simple BMS
(field supply)
External Controller
(field supply)
Communication F1, F2
Liquid pipe
Return Air
Room Sensor
Gas pipe
EVA IN
Sensor
Supply Air
EVA OUT
Sensor
Exhaust Air Fresh Air
Remote Controller
(optional)
ON/OFF SWITCH
OPERATION LAMP
ERROR LAMP

9
English
Installation
Installation
Control-KIT Installation
1) Drill 4 holes on the correct position of the wall and fix the Control-KIT securely.
(refer to the dimension of figure below.)
2) Open the box and connect the cables according to the diagram.
(Wires should be pulled through the Cable-nut, before connecting to the terminal.
Refer to the figure below.)
3) Fix the cable firmlywith Cable-tie after connecting.
4) Close the box.
External
Controller
(MIM-B14)
Main PBA
Terminal Block
Cable-tie
Cable-nut
• Supplied sensor in the Accessory box is 10m.
• Close the box with the cover and cable-nut securely so that Control-KIT is fireproofed.
• Avoid installing the unit in a location exposed to direct sunlight or rain.
286
280
300
380
ø4.5
(Unit : mm)
CAUTION
1(L)
RY75
CN83 CN81
RY76 RY77
1(N)

10
English
Installation
Installation
Control-KIT Function
• Control-KIT controls the system through outdoor unit and wired remote controller.
• Control-KIT outputs the contact signal for AHU fan operation.
Ɵʪθɇɵͱʀߢࡡߣ࣍ŵʪ˙ʪθϩͱΧɇ˝ʪߢߢ࣎ͱЇϩΧЇϩϑϩ˵ʪ²Ƹ˙ɇĮĘʀͱϩɇʀϩϑ˝ɇߣߣߡࣗߣߥߡǤ࣍ߣߡߩࣗߣߤߡǤ˙ͱθƸƊ࣎˙ͱθ
AHU when operating in Cool/Heat/Fan mode. This contact signal output can not be used as power supply for the
motor.
• Terminal block 3, 4 (Refer to page 11) is for AHU-KIT control to receive the fan operation status. This input signal
should be simple OPEN/SHORT signal without any extra voltage.
- Normal fan operation : Terminal block 3, 4 is in SHORT.
- Fan is not in operation : Terminal block 3, 4 is in OPEN.
- To use fan feedback to protect your system, set the 05 series installation option SEG21(Refer to page 28) to “1”.
• Connect 220 - 240 V, 50 / 60 Hz (208 - 230 V, 60 Hz for US) to terminal block 1(L)/2(N).
• You should connect outdoor unit communication cable to communication line (F1, F2)(Refer to page 11).
• F3, F4(Refer to page 11) is communication line for wired remote controller(12 V).

11
English
Installation
Control-KIT Circuit Diagram
OPTION
RESISTANCE VALUE OF TEMPERATURE SENSORࡠ
ߢߡçͱ˵ɇϩߣߦঐ࣍ߨߨঔ࣎
Only DVM Model

12
English
Installation
Installation
• Simple BMS control is not influenced by DMS’s restrictions on operation mode, set temperature or remote controller
usage.
• If you want to set Room temperature by using Simple BMS, setting Buzzer control option as “Disuse buzzer” is
recommended.

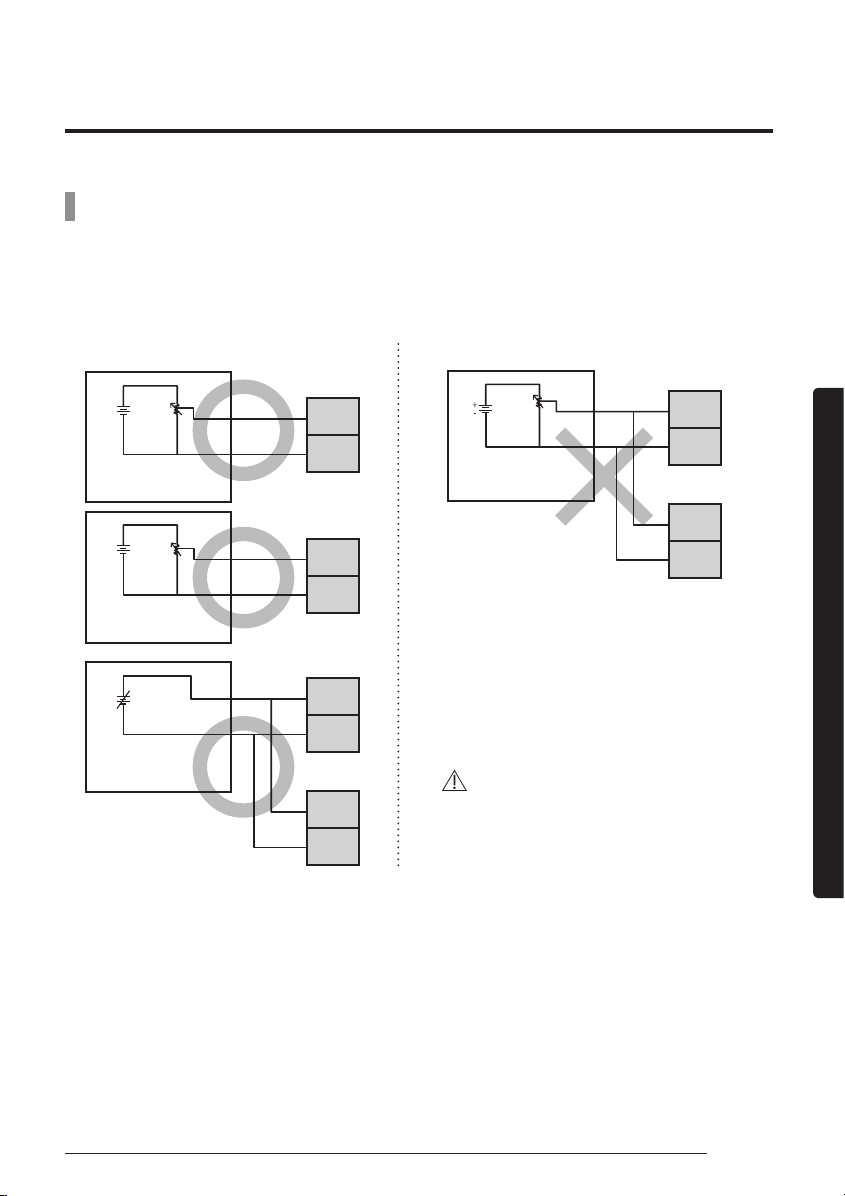

External ControllerDiagram (MIM-B14)
AθʀЇϩʒɇ˝θɇͱ˙ʪуϩʪθɇʀͱϩθͱʪθ࣭ϑ
output
GND
ĮΧʪθɇϩͱϑΧʪʀѣʀɇϩͱɇʀʀͱθʒ˝ϩͱ
AHU-KIT PBA Install option set up
WIRE
NO. Signal Install option
1, 2 Error check output -
3, 4 Operation check output SEG 15
5, 6 ON/OFF input SEG 14
• In order for AHU-KIT to be controlled by External
control, change a digit of indoor unit installation
option, set the SEG14 as “1”. (ON / OFF control)
Simple BMS
Simple BMS setting
CAUTION
S/W
RY75 RY76 RY77
AC LAMP
CN81CN83

13
English
Installation
AθʀЇϩʒɇ˝θɇͱ˙ƊΧʪ9đƊ
• Hysteresis is applied to the end of voltage range in order to stabilize the analog input. The amount of Hysteresis
ঽRoom temperature setting: 0.15 V
CAUTION
COM
HP
CO
AV
OV
Shielding
kу࣎ϑʪϩϩ˝ЇΧߣߣঐ࣍ƊΧʪ9đƊࡠŵͱͱϩʪΧʪθɇϩЇθʪϑʪϩϩ˝࣎
[Voltage]
Ɵ˵ʪɇθʪɇϑͱ˙ߣߤঐ
Ɵ˵ʪɇθʪɇϑͱ˙ߣߣঐ
Ɵ˵ʪɇθʪɇϑͱ˙ߣߢঐ
decreasing
temperature
increasing temperature
4.8V
4.65V
4.25V
4.95V
4.55V
4.6V
4.4V

14
English
Installation
Installation
Operational Voltage range against Setting temperature
Simple BMS Voltage Range
Set Temperature
Heating Cooling
10.0 V ~ 9.6 V ߤߡઑA ߤߡઑA
9.6 V ~ 9.2 V ߤߡઑA ߤߡઑA
9.2 V ~ 8.8 V ߤߡઑA ߤߡઑA
8.8 V ~ 8.4 V ߤߡઑA ߤߡઑA
8.4 V ~ 8.0 V ߤߡઑA ߤߡઑA
8.0 V ~ 7.6 V ߤߡઑA ߤߡઑA
7. 6 V ~ 7. 2 V ߣߪઑA ߣߪઑA
7. 2 V ~ 6 . 8 V ߣߩઑA ߣߩઑA
6.8 V ~ 6.4 V ߣߨઑA ߣߨઑA
6.4 V ~ 6.0 V ߣߧઑA ߣߧઑA
6.0 V ~ 5.6 V ߣߦઑA ߣߦઑA
5.6 V ~ 5.2 V ߣߥઑA ߣߥઑA
5.2 V ~ 4.8 V ߣߤઑA ߣߤઑA
4.8 V ~ 4.4 V ߣߣઑA ߣߣઑA
4.4 V ~ 4.0 V ߣߢઑA ߣߢઑA
4.0 V ~ 3.6 V ߣߡઑA ߣߡઑA
3.6 V ~ 3.2 V ߢߪઑA ߢߪઑA
3.2 V ~ 2.8 V ߢߩઑA ߢߩઑA
2.8 V ~ 2.4 V ߢߩઑA ߢߩઑA
2.4 V ~ 2.0 V ߢߩઑA ߢߩઑA
2.0 V ~ 1.6 V ߢߩઑA ߢߩઑA
1.6 V ~ 1.2 V ߢߩઑA ߢߩઑA
1.2 V ~ 0.8 V ߢߩઑA ߢߩઑA
0.8 V ~ 0.4 V ߢߩઑA ߢߩઑA
0.4 V ~ 0.0 V ߢߩઑA ߢߩઑA
Room temperature setting

15
English
Installation
Setting the temperature
• Keep the power supply of Simple BMS in 10 V ± 0.2 V.
• If the Simple BMS uses variable resistor(VR), make the electric resistance of VR under 1㏀.
• Simple BMS which uses variable resistor(VR) need to be connected to the AHU-KIT with 1:1 link.
• Use the Simple BMS which outputs voltage so that one Simple BMS controls several AHU-KIT at the same time.
ۆ
ف
ۆ
ف
ۆ
ف
Available Not Available
• Make sure that Simple BMS is connected to DC
power supply before installing.
Never connect Simple BMS to AC power supply .
CAUTION
DC10V DC10V
DC10V
DC0V
~DC10V
BMS_Temp.Set BMS_Temp.Set
BMS_Temp.Set
BMS_Temp.Set
R1 R1
V1 V1
V1
V2 R2
AV AV
AV
AV
AV
AV
OV OV
OV
OV
OV
OV
1K 1K
1K

16
English
Installation
Installation
Connecting the Power Terminal
Connecting Power/Communication cable
• Turn off the power before connecting the power terminal.
• Maximum cable length and the amount of voltage drop for AHU power/communication cables should be under
ߢߡࢋ
• Consider power usage of the AHU when installing the ELB.
• Connect F3, F4 on AHU-KIT to the communication line (F3, F4) on wired remote controller. (Refer to page 17)
• Use the appropriate tools for wiring and make sure to connect them tightly within the tightening torque to
withstand the external pressure. Arrange the wires so that cover
or other parts does not get loose. They may cause overheating, electric shock or fire.
• Connect the power cable to the ELB.
Description Type of cable Maximum length(m) Specifications
Vd / Vd DEFROST Signal 2 x 1.5 mm2 - 1 phase 220 - 240 V, 50 / 60 Hz
(208 - 230V, 60 Hz for US)
TR/TR Thermistor Room 2 x 0.75 mm2 accessory, 10 m -
TEI/TEI
Thermistor EVA IN
(Liquid pipe) 2 x 0.75 mm2 accessory, 10 m -
TEO/TEO
Thermistor EVA OUT
(Gas pipe) 2 x 0.75 mm2 accessory, 10 m -
F3/F4
Communication to Remote
Controller 2 x 0.75 mm2 - -
COM/HP/CO Simple BMS - - -
AV/OV
Simple BMS
(Setting Temperature) 2 x 0.75 mm2 - Simple BMS Power
F1/F2
Communication to
Outdoor unit 2 x 0.75 mm2 - -
L/N Power supply 3 x over 1.5 mm2 - 1 phase 220 - 240 V, 50 / 60 Hz
(208 - 230V, 60 Hz for US)
1/2 Fan on 2 x 0.75 mm2 - 1 phase 220 - 240 V, 50 / 60 Hz
(208 - 230V, 60 Hz for US)
3/4 Fan check 2 x 0.75 mm2 - Non-voltage contact signal
• Power supply for AHU-KIT should be separate from outdoor unit.
• Do not connect the terminal block power line from one indoor unit to more than one AHU-KIT.
• When peeling the power cable, use the appropriate tools to prevent damaging the wire.
• Communication cable should be installed separately from power cable or other cables.
Tightening torque (kgf·cm)
M4 12.0 ~ 18.0
CAUTION

17
English
Installation
Control-KIT Connections
Brazing the Pipe
• Make sure that there is no moisture inside the pipe.
• Make sure that there are no foreign materials and impurities in the pipe.
• Make sure that there is no leak.
• Be sure to follow the instruction when brazing the pipe.
1) Use Nitrogen gas when brazing the pipes as shown
in the picture.
2) If you do not use Nitrogen gas when brazing the
pipes, oxide may form inside the pipe. It can cause
the damage of the compressor, valves.
3) Adjust the flow rate of the Nitrogen gas with a
pressure regulatorto maintain 0.05m3/h or less.
Brazing part
Nitrogen gas
1/4" copper pipe
Stop valve
Taping
Pressure regulator
Flowmeter
The use of Nitrogen gas
Defrost signal
220 - 240 V
(208 - 230 V forUS)
POWER[AC]
Room
Sensor
Simple BMS
F1
F2
F3
Wired remote controller
Outdoor unit
F4
EVA IN
Sensor
EVA OUT
Sensor

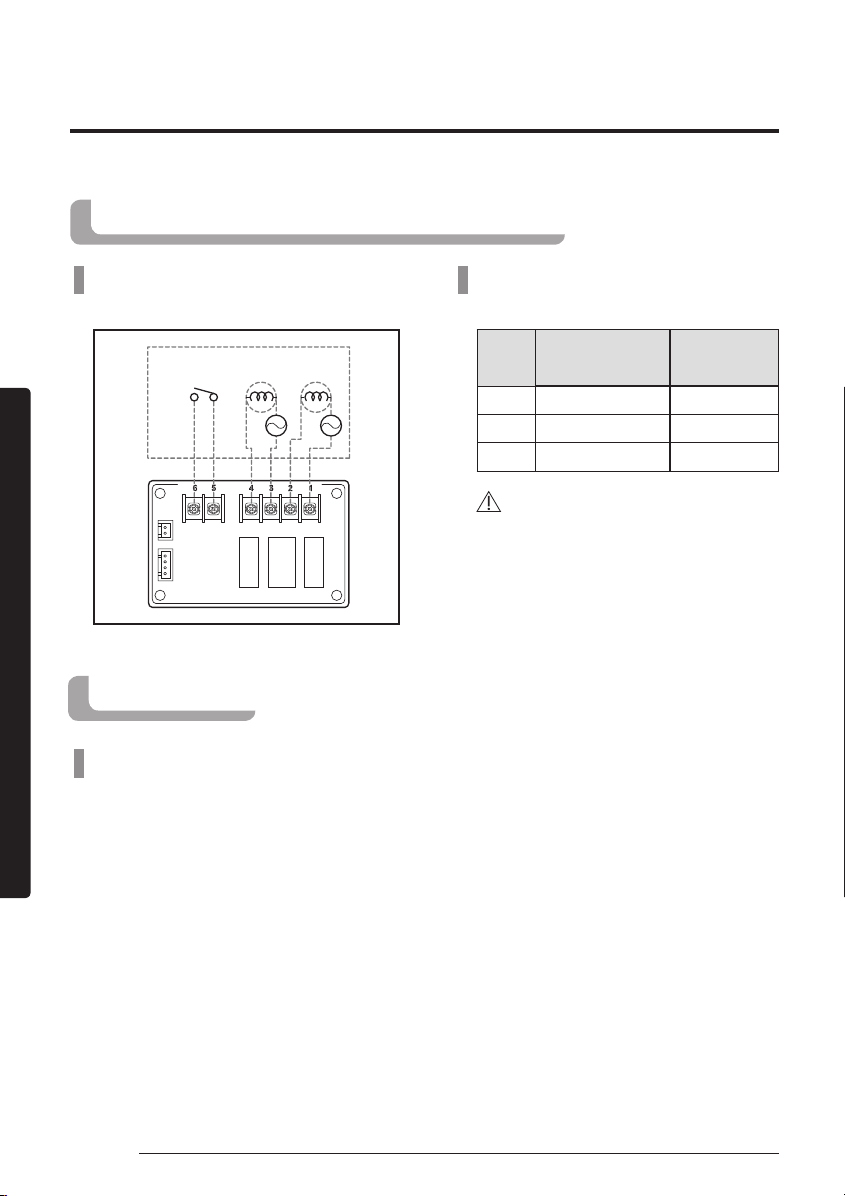

FAN ON[AC] FAN CHECK[DC]
Fan status feedback
(Non-voltage contact signal)
220 - 240 V(208 - 230 V forUS),
AHU fan ON contact signal
220 - 240 V(208 - 230 V forUS),
Power supply
Vd Vd TR TR TEI TEI TEO TEO V1 V2 F3 HP CO AV OV F1 F2F4 COM
OV
1(L) 1(N)
- F1: Outdoor unit communication cable
- F2: Outdoor unit communication cable
- F3: Wired remote controllercommunication cable
- F4: Wired remote controllercommunication cable
1(L)
RY75
CN83 CN81
RY76 RY77
1(N)

18
English
Installation
Installation
Sensor Installation
1) EVA IN sensor should be attached after the distributor, on the coldest part of the heat exchanger pipe.
2) EVA Out sensor should be attached on the middle of inlet and outlet ports.
3) EVA IN/OUT sensor should be insulated for optimized system performance.
4) Room temperature sensor should be basically installed where room air enters(A), It could be also installed at the supplay air
side(B), especiallywith outdoorfresh air conditioning application.
In that case, installation option 05 series SEG15 and SEG16 function setting should be considered. (Refer to page 28)
• Please check sensor usage in label.
Example of room temperature sensor installation
Select EVA IN/OUT sensor location
2 (EVA OUT sensor)
1 (EVA IN sensor)
Header
Distributor
Cooling Mode
Heating Mode
Refrigerant flow
Return
Air Exhaust
Air
Outdoor Air Supply Air
A orB : Room temperature sensorlocation
A
B
• Braze the sensor holder at location suggested above and fix the sensor with sensor clip.
• EVA IN/OUT sensor should be installed where temperature of heat exchanger can be measured accurately.
CAUTION
NOTE

19
English
Installation
Sensor installation example 1
1) Check the sensor and the sensor holder.
3) Insert sensor and the sensor clip in the sensor holder.
4) Bend end of the sensor clip to fix the sensor.
2) Braze the sensorholder on the selected location of the pipe.
Sensor attachment method.
• Choose the location where temperature can be measured
correctly. (Refer to page 18)
• Try to attach closely to the contact surface before brazing.
• Distinguish EVA IN/OUT sensor and attach it. (EVA IN/OUT sensor
size is different.)
5) Attach the insulator around the sensor.
Insulator
Type Sensor OD(mm) Sensor holder ID (mm)
EVA IN sensor Ø 6 Ø 6.8
EVA OUT sensor Ø 7 Ø 7.8
Sensor holder
Pipe
Sensor clip Sensor holder
SensorInsulator
Sensor
Sensor clip
NOTE
NOTE

20
English
Installation
Installation
1) Check the sensor and the sensor holder.
2) Put the sensor on the pipe.
Sensor attachment method.
• Choose the location where temperature can be measured
correctly. (Refer to page 18)
• Try to attach closely to the contact surface.
• Do not use the sensor holder.
Sensor installation example 2
3) Hold the sensor and put aluminum tape around to fix the sensor.
5) Use cable-tie to tighten the sensor around the pipe.
Cable-tie
6) Attach the insulator around the sensor.
Insulator
4) Put rubber tape around the sensor.
Type Sensor OD (mm) Sensor holder ID
(mm)
EVA IN sensor Ø 6 Ø 6.8
EVA OUT sensor Ø 7 Ø 7.8
Rubber
tape
Sensor
Sensor
Pipe
Aluminum tape
Sensor
Aluminum tape
Sensor
Insulator Cable-tie
Rubber tape
NOTE
NOTE
