Samsung SCX-4833FD User manual

SCX-483x Series
SCX-563x Series
SCX-573x Series
User’s Guide
Basic
imagine the possibilities
This guide provides information concerning installation, basic operation and
troubleshooting on windows

2
Contents

1. Introduction
5Key benefits
7Features by models
8Useful to know
9About this user’s guide
10 Safety information
16 Machine overview
21 Control panel overview
28 Turning on the machine
29 Installing the driver locally
30 Reinstalling the driver

2. Menu overview and basic setup
32 Menu overview
48 Changing the display language
49 Media and tray
64 Basic printing
71 Basic copying
75 Basic scanning
77 Basic faxing
82 Using USB memory device
3. Maintenance
90 Ordering supplies and accessories
91 Available supplies
92 Available accessories
94 Available maintenance parts
95 Redistributing toner
97 Replacing the toner cartridge
99 Upgrading a memory module
101 Monitoring the supplies life
102 Setting the toner low alert
103 Cleaning the machine

4. Troubleshooting
108 Tips for avoiding paper jams
109 Clearing original document jams
116 Clearing paper jams
123 Understanding the status LED
125 Understanding display messages

5. Appendix
133 Specifications

Contents 3
143 Regulatory information
157 Copyright

1. Introduction
This chapter provides information you need to know before using the
machine.
•Keybenefits 5
•Featuresbymodels 7
•Usefultoknow 8
• About this user’s guide 9
• Safety information 10
• Machine overview 16
• Control panel overview 21
• Turning on the machine 28
• Installing the driver locally 29
• Reinstalling the driver 30



Key benefits
Environmentally friendly
• To save toner and paper, this machine supports Eco feature.
• To save paper, you can print multiple pages on one single sheet of
paper (see Advanced Guide).
• To save paper, you can print on both sides of the paper (double-
sided printing) (see Advanced Guide).
• To save electricity, this machine automatically conserves electricity
by substantially reducing power consumption when not in use.
Fast high resolution printing
• You can print with a resolution of up to 1,200 x 1,200 dpi effective
output.
• Fast, on-demand printing.
SCX-483x Series:
- For single-side printing, 31 ppm (A4) or 33 ppm (Letter).
- For duplex printing, 15 ppm (A4) or 16 ppm (Letter).
SCX-563x Series or SCX-573x Series:
- For single-side printing, 35 ppm (A4) or 37 ppm (Letter).
- For duplex printing, 17 ppm (A4) or 18 ppm (Letter).
Convenience
• Printing Status (or Smart Panel) is a program that monitors and
informs you of the machine’s status and allows you to customize the
machine’s settings (see Advanced Guide).
• AnyWeb Print helps you screen-capture, preview, scrap, and print
the screen of Windows Internet Explorer more easily, than when you
use the ordinary program (see Advanced Guide).



Key benefits
Wide range of functionality and application support
• Supports various paper sizes (see "Print media specifications" on page 135).
• Print watermark: You can customize your documents with words, such as “Confidential” (see Advanced Guide).
• Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of paper and can then
be taped together to form a poster (see Advanced Guide).
• You can print in various operating systems (see "System requirements" on page 138).
• Your machine is equipped with a USB interface and/or a network interface.
Expand your machine’s capacity
• This machine has an extra memory slot for adding more memory (see "Available accessories" on page 92).
• Zoran IPS Emulation compatible with PostScript 3 (PS) enables PS printing.
• Zoran IPS Emulation compatible with PostScript 3
• ©1995-2005, Zoran Corporation. All rights reserved. Zoran, the Zoran logo, IPS/PS3, and OneImage are trademarks of Zoran
Corporation.
• 136 PS3 fonts
•ContainsUFSTand Micro from Mono Imaging Inc.



Features by models
Some features and optional goods may not be available depending on model or country.
( ●: Included, ○: Optional, Blank: Not available)
Features
SCX-4833FD
SCX-4835FD
SCX-4833HD
SCX-4833FR
SCX-4835FR
SCX-5637FR
SCX-5639FR
SCX-5637HR
SCX-5737FW
SCX-5739FW
Print, Copy, Scan, Fax ● ● ● ●
Hi-Speed USB 2.0 ● ● ● ●
IEEE 1284 Parallel ○ ○ ○ ○
Network Interface Ethernet 10/100 Base TX wired LAN ●
Network Interface Ethernet 10/100/1000 Base TX wired LAN ● ● ●
Network Interface 802.11b/g/n wireless LAN ●
Eco printing ● ● ● ●
Duplex (2-sided) printing ● ● ● ●
Samsung Easy Printer Manager ● ● ● ●
Memory ○ ○ ○ ○
Tray 2 (520 sheets) ○ ○ ○ ○
SyncThru™ Web Service ● ● ● ●
Automatic Document Feeder (ADF) ●
Dual Automatic Document Feeder (DADF) ● ● ●

Useful to know
Where can I download the machine’s driver?
• Visit www.samsung.com/printer to download the latest
machine’s driver, and install it on your system.
Where can I purchase accessories or supplies?
• Inquire at a Samsung distributor or your retailer.
• Visit www.samsung.com/supplies. Select your country/
region to view product service information.
The status LED flashes or remains constantly on.
• Turn the product off and on again.
• Check the meanings of LED indications in this manual
and troubleshoot accordingly (see "Understanding the
status LED" on page 123).
A paper jam has occurred.
• Open and close the front door.
• Check the instructions on removing jammed paper in this
manual and troubleshoot accordingly (see "Clearing
paper jams" on page 116).
Printouts are blurry.
• The toner level might be low or uneven. Shake the toner
cartridge.
• Try a different print resolution setting.
• Replace the toner cartridge.
The machine does not print.
• Open the print queue list and remove the document from
the list (see "Canceling a print job" on page 65).
• Remove the driver and install it again (see "Installing the
driver locally" on page 29).
• Select your machine as your default machine in your
Windows.

9
1. Introduction
About this user’s guide
This user's guide provides information for your basic understanding
of the machine as well as detailed steps to explain machine usage.
• Read the safety information before using the machine.
• If you have a problem using the machine, refer to the
troubleshooting chapter.
• Terms used in this user’s guide are explained in the glossary
chapter.
• All illustrations in this user’s guide may differ from your machine
depending on its options or model you purchased.
• The procedures in this user’s guide are mainly based on Windows
7.
• SCX-4833FD, SCX-4833HD and SCX-4835FD are the same series
machine. This User’s Guide is written on the basis of SCX-4833FD.
• SCX-4833FR and SCX-4835FR are the same series machine. This
User’s Guide is written on the basis of SCX-4833FR.
• SCX-5637FR, SCX-5637HR and SCX-5639FR are the same series
machine. This User’s Guide is written on the basis of SCX-5637FR.
• SCX-5737FW and SCX-5739FW are the same series machine. This
User’s Guide is written on the basis of SCX-5737FW.

1
Conventions
Some terms in this guide are used interchangeably, as below:
• Document is synonymous with original.
• Paper is synonymous with media, or print media.
• Machine refers to printer or MFP.

2
General icons
Icon Text Description
Caution
Gives users information to protect the
machine from possible mechanical damage
or malfunction.
Note
Provides additional information or detailed
specification of the machine function and
feature.

10
1. Introduction
Safety information
These warnings and precautions are included to prevent injury to
you and others, and to prevent any potential damage to your
machine. Be sure to read and understand all of these instructions
before using the machine. After reading this section, keep it in a safe
place for future reference.

3
Important safety symbols
Explanation of all icons and signs used in this chapter

4
Operating environment
Warning
Warning Hazards or unsafe practices that may result in
severe personal injury or death.
Caution Hazards or unsafe practices that may result in
minor personal injury or property damage.
Do not attempt.
Do not use if the power cord is damaged or if the
electrical outlet is not grounded.
This could result in electric shock or fire.
Do not place anything on top of the machine (water,
small metal or heavy objects, candles, lit cigarettes, etc.).
This could result in electric shock or fire.
• If the machine gets overheated, it releases smoke,
makes strange noises, or generates an odd odor,
immediately turn off the power switch and unplug the
machine.
• The user should be able to access the power outlet in
case of emergencies that might require the user to pull
the plug out.
This could result in electric shock or fire.
Do not bend, or place heavy objects on the power cord.
Stepping on or allowing the power cord to be crushed by
a heavy object could result in electric shock or fire.

Safety information 11
1. Introduction
Caution

5
Operating method
Caution
Do not remove the plug by pulling on the cord; do not
handle the plug with wet hands.
This could result in electric shock or fire.
During an electrical storm or for a period of non-
operation, remove the power plug from the electrical
outlet.
This could result in electric shock or fire.
Be careful, the paper output area is hot.
Burns could occur.
If the machine has been dropped, or if the cabinet
appears damaged, unplug the machine from all
interface connections and request assistance from
qualified service personnel.
Otherwise, this could result in electric shock or fire.
If the plug does not easily enter the electrical outlet, do
not attempt to force it in.
Call an electrician to change the electrical outlet, or this
could result in electric shock.
Do not allow pets to chew on the AC power, telephone
or PC interface cords.
This could result in electric shock or fire and/or injury to
your pet.
If the machine does not operate properly after these
instructions have been followed, unplug the machine
from all interface connections and request assistance
from qualified service personnel.
Otherwise, this could result in electric shock or fire.
Do not forcefully pull the paper out during printing.
It can cause damage to the machine.
Be careful not to put your hand between the machine
and paper tray.
You may get injured.

Safety information 12
1. Introduction

6
Installation / Moving
Warning
Caution
Do not block or push objects into the ventilation
opening.
This could result in elevated component temperatures
which can cause damage or fire.
Be care when replacing paper or removing jammed
paper.
New paper has sharp edges and can cause painful cuts.
When printing large quantities, the bottom part of the
paper output area may get hot. Do not allow children to
touch.
Burns can occur.
When removing jammed paper, do not use tweezers or
sharp metal objects.
It can damage the machine.
Do not allow too many papers to stack up in the paper
output tray.
It can damage the machine.
This machine's power rception device is the power cord.
To switch off the power supply, remove the power cord
from the electrical outlet.
Do not place the machine in an area with dust, humidity,
or water leaks.
This could result in electric shock or fire.
Before moving the machine, turn the power off and
disconnect all cords.
Then lift the machine:
• If the machine weighs under 20 kg (44.09 lbs), lift with
1 person.
• If the machine weighs 20 kg (44.09 lbs) - 40kg (88.18
lbs), lift with 2 people.
• If the machine weighs more than 40 kg (88.18 lbs), lift
with 4 or more people.
The machine could fall, causing injury or machine
damage.

Safety information 13
1. Introduction

7
Maintenance / Checking
Caution
Do not place the machine on an unstable surface.
The machine could fall, causing injury or machine
damage.
The machine should be connected to
the power level which is specified on the label.
If you are unsure and want to check the power level you
are using, contact the electrical utility company.
Use only No.26 AWGaor larger, telephone line cord, if
necessary.
Otherwise, it can cause damage to the machine.
Do not put a cover over the machine or place it in an
airtight location, such as a closet.
If the machine is not well-ventilated, this could result in
fire.
Make sure you plug the power cord into a grounded
electrical outlet.
Otherwise, this could result in electric shock or fire.
Do not overload wall outlets and extension cords.
This can diminish performance, and could result in
electric shock or fire.
Use the power cord supplied with your machine for safe
operation. If you are using a cord which is longer than 2
meters (6 feet) with a 110V machine, then the gauge
should be 16 AWG or larger.
Otherwise, it can cause damage to the machine, and
could result in electric shock or fire.
a. AWG: American Wire Gauge
Unplug this product from the wall outlet before
cleaning the inside of the machine. Do not clean the
machine with benzene, paint thinner or alcohol; do not
spray water directly into the machine.
This could result in electric shock or fire.
When you are working inside the machine replacing
supplies or cleaning the inside, do not operate the
machine.
You could get injured.

Safety information 14
1. Introduction

8
Supply usage
Caution
Keep the power cable and the contact surface of the
plug clean from dust or water.
Otherwise, this could result in electric shock or fire.
Do not remove any covers or guards that are fastened
with screws.
The machine should only be repaired by a Samsung
service technician.
Keep cleaning supplies away from children.
Children could get hurt.
Do not disassemble, repair or rebuild the machine by
yourself.
It can damage the machine. Call a certified technician
when the machine needs repairing.
To clean and operate the machine, strictly follow the
user's guide provided with the machine.
Otherwise, you could damage the machine.
Do not disassemble the toner cartridge.
Toner dust can be dangerous if inhaled or ingested.
Do not burn any of the supplies such as toner cartridge
or fuser unit.
This could cause an explosion or uncontrollable fire.
When changing the toner cartridge or removing
jammed paper, be careful not to let toner dust touch
your body or clothes.
Toner dust can be dangerous if inhaled or ingested.
When storing supplies such as toner cartridges, keep
them away from children.
Toner dust can be dangerous if inhaled or ingested.
Using recycled supplies, such as toner, can cause
damage to the machine.
In case of damage due to the use of recycled supplies, a
service fee will be charged.

Safety information 15
1. Introduction
When toner gets on your clothing, do not use hot water
to wash it.
Hot water sets toner into fabric. Use cold water.

Machine overview 16
1. Introduction
Machine overview

9

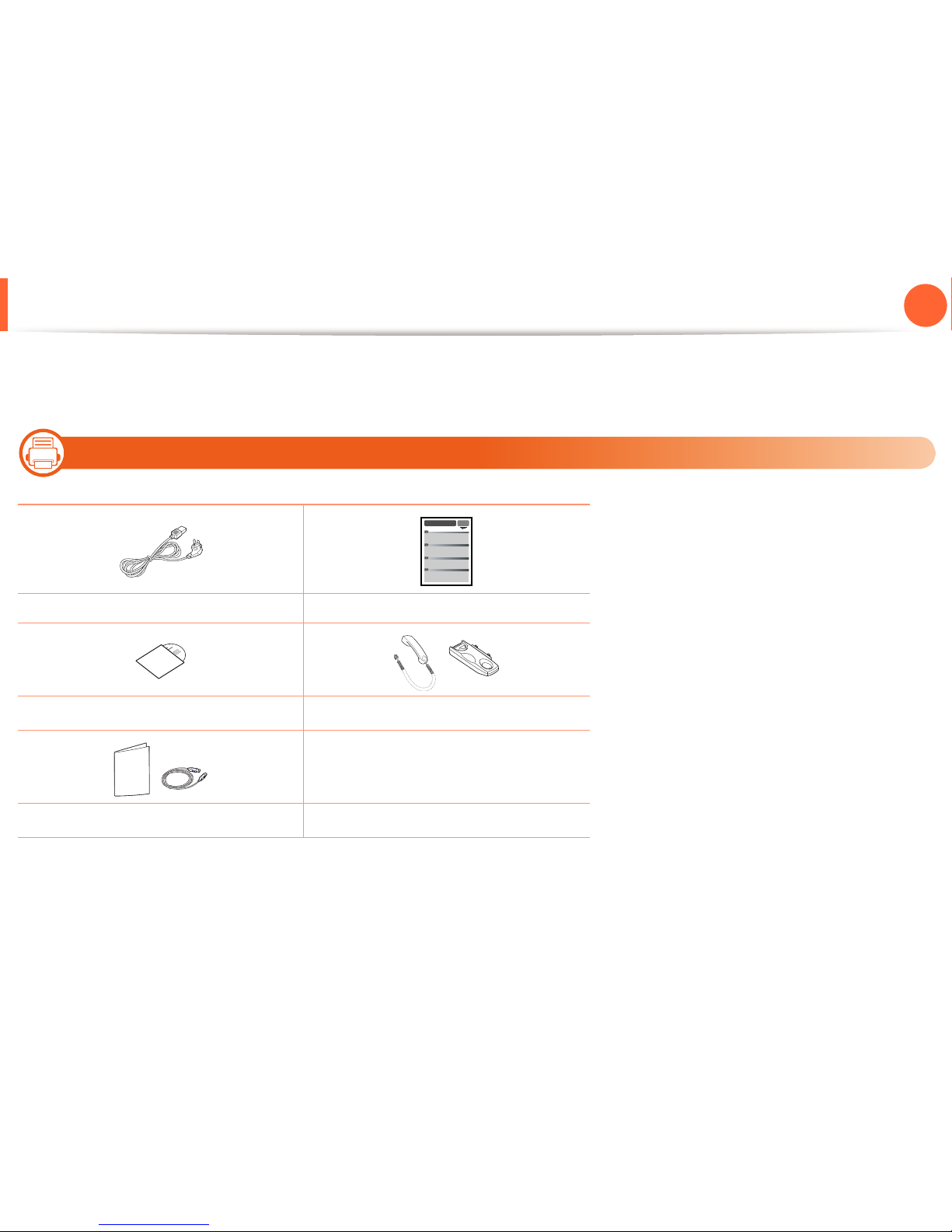

Accessories
Power cord Quick installation guide
Software CDa
a. The software CD contains the printer driver and applications.
Handsetb
b. SCX-4833HD and SCX-5637HR only.
Misc. accessoriesc
c. Miscellaneous accessories included with your machine may vary by country of purchase and specific
model.

Machine overview 17
1. Introduction

Machine overview 18
1. Introduction

10
Front view
• This illustration may differ from your machine depending on its model.
• Some features and optional goods may not be available depending on model or country.
1Document feeder cover 6 Control board cover 11 Multi-purpose tray 16 Output support
2Document feeder width guide 7 Handle 12 Output tray 17 Scanner lid
3Document feeder input tray 8 Paper level indicator 13 Control panel 18 Scanner glass
4Document feeder output tray 9 Tray 2 (optional) 14 Multi-purpose tray paper extension 19 USB port
1 2
3
4
6
7
8
9
10
11
12
13
14
15
16
5
17
18
19
20

Machine overview 19
1. Introduction
5Front cover 10 Tray 1 15 Paper width guides on a multi-purpose tray 20 Handset

Machine overview 20
1. Introduction

11
Rear view
• This illustration may differ from your machine depending on its model.
• Some features and optional goods may not be available depending on model or country.
1EDI port 4 IEEE 1284 parallel connector (optional) 7 Duplex unit 10 Telephone line socket
2Network port 5 Power-switch 8 Rear cover 11 Extension telephone socket (EXT)
3USB port 6 Power receptacle 9 Tray back cover
1
2
3
4
5
6
11
7 8
9
10
