Samsung Digimax 420 User manual

Thank you for buying a Samsung Camera.
This manual will guide you through using the Digimax 420, including capturing images, downloading images and using the
MGI PhotoSuite III SE software. Please read this manual carefully before using your new camera.
ENGLISH

2
Use this camera in the following order
Instructions
Set up the camera
driver
Before connecting the camera to a PC, via the USB cable,
you will need to set up the camera driver. Install the
camera driver that is contained in the Application S/W
CD-ROM.(p.94)
Take a picture (p.25)
Insert the supplied USB cable into the PC USB port and
the camera USB connection terminal.(p.82)
Check the camera power. If the power is turned off, slide
the camera switch to power it on.(p.28)
Take a picture
Insert the USB
cable
Check the camera
power
Check
[Removable Disk]
Open Window’s EXPLORER and search for [Removable
Disk].(p.83)

READY
3
Contents
Getting to know your camera 5
About the icons 5
Danger 6
Warning 7
Caution 8
Special features 9
This digital camera can be used for 10
Manufacturer's contents 12
Identification of features 13
Front & Top 13
Back & Bottom 13
Side 14
5-function button 14
Camera status lamp 15
Mode dial 16
Connecting to Power Source 17
Attaching the strap 19
Instructions on how to use the
memory card 20
Inserting the memory card 22
Removing the memory card 22
LCD monitor indicator 23
Starting recording mode 25
Using the camera button to adjust the
camera 28
POWER switch 28
SHUTTER button 28
LCD button 29
MENU button 30
MACRO button 31
WIDE / TELE button 32
Voice memo / UP button 34
Metering / Down button 35
Flash / left button 36
Self-timer / Right button 38
OK button 38
Using the LCD monitor to adjust the
camera 39
Size 40
Quality 41
Effect 42
Shooting 43
Exposure 44
ISO 46
White balance 47
Scene 48
Starting the play mode 49
LCD monitor indicator 51
READY
RECORDING PLAY

4
Contents
LCD button 52
Menu button 52
Delete button 53
Thumbnail / Enlargement button 54
Left / Right / OK button 55
Voice memo / Up button 56
Play & Pause / Down button 57
Setting up the play back function
using the LCD monitor 58
Slide show 59
Protect 60
Delete all 61
Copy to card 62
DPOF : Standard 63
DPOF : Index 65
Setup menu 66
Format 67
File name 69
Power off 70
Language 71
Date setup 72
Imprint 73
Date type 74
User set 74
List of camera function 75
Sound 78
LCD brightness 78
Video out 79
Connecting to an external monitor 80
Quick view 81
Starting PC mode 82
Important notes 85
Warning indicator 86
Before contacting a service center 87
Specifications 90
Software Notes 92
About the software 92
Setting up the application software 94
Removing the USB Driver for
Windows 98SE 100
Removable Disk 102
Removing the removable disk 103
Setting up the USB Driver for MAC 105
Using the USB Driver for MAC 105
Digimax Viewer 106
MGI PhotoSuite III SE 107
FAQ 122
SOFTWARE
SETUP

5
READY
Thank you for buying a Samsung Digital Camera.
Prior to using this camera, please read the user manual thoroughly.
When you require After Sales service, please bring the camera and the cause of the camera
malfunction (such as Batteries, Memory card etc.) to the A/S center.
Keep the manual in a safe place.
Getting to know your camera
About the icons
This manual contains instructions on using this camera that will help you to use this camera safely and
correctly. This will help prevent danger and injury to others.
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation, which, if not avoided, may result in
a minor or moderate injury.
NOTICE
NOTICE indicates a factor, which, if not avoided, may result in camera malfunction or
poor image quality.
INFORMATION
INFORMATION indicates a factor, which should assist further in the operation of the
camera.

6
Danger
Do not attempt to modify this camera in any
way. This may result in fire, injury, electric
shock or severe damage to you or your
camera. Internal inspection, maintenance and
repairs should be carried out by your dealer or
Samsung Camera Service Center.
Please do not use this product in close
proximity to flammable or explosive gases, as
this could increase the risk of explosion.
Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the camera,
and then disconnect the power source (batteries or AC Power Adapter). You must contact your
dealer or Samsung Camera Service Center. Do not continue to use the camera as this may cause a
fire or electric shock.
Do not insert or drop metallic or inflammable
foreign objects into the camera through access
points e.g. CARD slot and battery chamber.
This may cause a fire or electric shock.
Do not operate this camera with wet hands.
This could pose a risk of electric shock.

7
READY
For safety reasons keep this product and
accessories out of reach of children or animals
to prevent accidents e.g.:
Swallowing batteries or small camera
accessories. In case of accidents, please
consult a doctor immediately.
There is a possibility of injury from the
camera’s moving parts.
Batteries and camera may become hot during
prolonged use and it may result in camera
malfunction. Should this be the case, allow the
camera to sit idle for a few minutes to allow it
time to cool.
Do not recharge the non rechargeable
batteries. It may cause an explosion.
Warning
Do not use the flash in close proximity to
people or animals. Positioning the flash too
close to your subject’s eyes, may cause
eyesight damage.
When taking photographs, never point the lens
of the camera directly into very strong light.
This may result in permanent damage to the
camera or your eyesight.
Do not leave this camera in places subject to
extremely high temperatures, such as a
sealed vehicle, direct sunlight or other places
of extreme variances in temperature.
Exposure to extreme temperatures may
adversely affect the camera’s internal
components and could cause a fire.
When in use, do not cover the camera or AC
Power Adapter. This may cause heat to build
up and distort the camera body or cause a fire.
Always use the camera and its accessories in
a well-ventilated area.

8
Caution
Leaking, overheating, or burst batteries could result in fire or injury.
Use batteries with the correct specification for the camera.
Do not short circuit, heat or dispose of batteries in fire.
Do not use old batteries with new ones, or mix brands of batteries.
Ensure the batteries are positioned correctly with regard to polarity (+ / -).
When the camera is not in use for long periods, always unplug the camera from its power source.
Do not fire the flash while it is in contact with hands or objects. Do not touch the flash after using it
continuously. It may cause burns.
Do not move the camera while it is switched on, if you
are using the AC Power Adapter. After use, always
switch off the camera before unplugging the adapter
from the AC Power wall socket. Then make sure that
any connector cords or cables to other devices are
disconnected before moving the camera. Failure to do
so may damage the cords or cables and cause a fire or
electric shock.

READY
9
Special features
This digital camera has the following features.
A high resolution of 4.0 mega pixels
A 3X optical and 4 X digital zoom lens
Movie clip & Voice recording function
An easy and fast PC interface with USB Storage Driver & Digimax viewer
Compact size & ergonomic design
A Super macro(6cm) function
16MB internal flash memory
An FCC warning
This device has been tested in accordance with the limits of a class B digital device under item 15
of the FCC rules. These limits are designed to provide protection against harmful interference in
commercial installation. This equipment generates, absorbs and can emit radio frequency energy.
If it is not installed and used in accordance with the instructions, it may cause harmful interference
to radio communication. There is however, no guarantee that interference will not occur in some
situations. Should any interference occur when this device is in operation, please try one or more of
the following measures.
Change the location and direction of any aerial.
Increase distance between camera and affected device.
Use a different socket away from the affected device.
Please contact a Samsung agent or a radio/TV engineer.
This device complies with part 15 of the FCC Rules.

10
This digital camera can be used for
Printing images using a dedicated
printer, DPOF-compatible printer or
DPOF-equipped photo lab.
(refer to page 63)
Down loading image files from
camera to computer.
(refer to page 83)
Editing images on a PC.
(refer to page 107)
Viewing images on TV.
(refer to page 79)
Taking a picture.
(refer to page 25)

11
READY
This digital camera can be used for
Inserting images directly
into any electronic
document.
Taking a self-portrait
and using the image
to personalize name
cards.
You can even create your own unique gift wrap
paper by using your digital images.
Creation of a digital photo album.
Recording your voice.
(refer to page 34/56)
Recording a movie clip
(refer to page 25)

12
Manufacturer's contents
marked contents are optional.
Please check that you have the correct contents before using this product.
Digital Camera 2 AA Alkaline
Batteries AV cablePouch
USB cable
Software CD
Product warranty
Camera strap User manual
SD memory CARD AC adapter
(3.3V)
Battery pack
(SBP-3603)
Battery charger Rechargeable battery AC adapter(5V)
Digimax Battery I-Pack : SBP-1103 KIT

READY
13
Front & Top
Identification of features
Front & Top
Back & Bottom
Mode dial Lamp
Microphone
Flash fading
control sensor
Viewfinder
Lens
Viewfinder
Autofocus indicator
lamp(Green)
Flash indicator
lamp(Red)
Power switch WIDE/THUMBNAIL
button (p.33/p.54)
TELE/Digital zoom
button (p.32/p.54)
Speaker
5-function button
LCD monitor Tripod socket
LCD button (p.29/p.52)
MENU button
(p.30/p.52)
MACRO/ DELETE
button (p.31/p.53)
Flash
Mode dial (p.16)
Shutter button (p.28)
Self-timer lamp

14

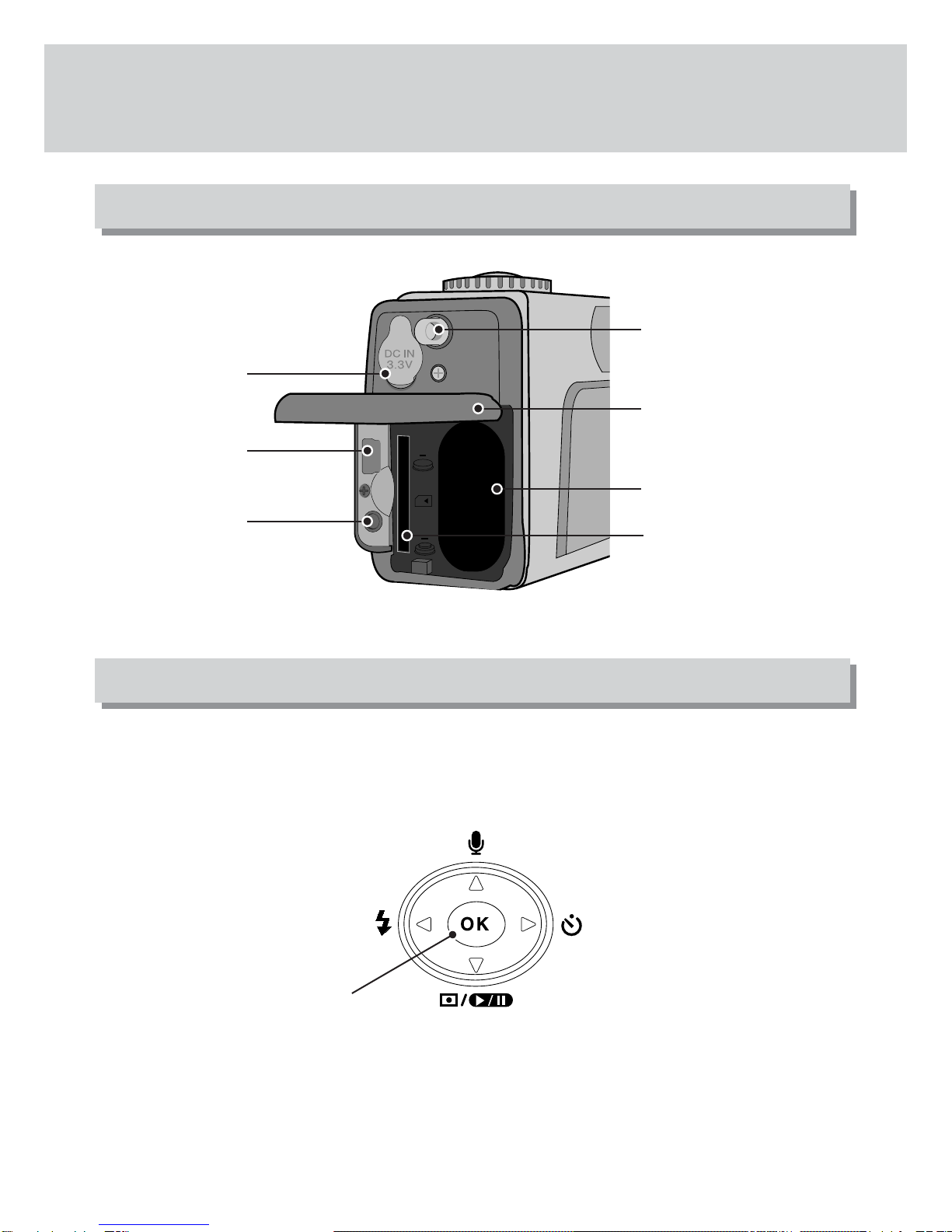

Identification of features
Side
5-function button
FLASH/ LEFT button
(p.36/ p.55)
OK button(p.38/p.55)
METERING/ DOWN button
(p.35/p.57)
SELF-TIMER/ RIGHT button
(p.38/ p.55)
Voice memo/ UP button(p.34/56)
Memory Card cover/
Battery chamber cover
Strap eyelet
Battery chamber
DC input
connection point
USB connection
terminal
Video
connection
terminal
Memory Card slot

READY
15
Camera status lamp
Lamp Status Camera condition
System ready
Power on processing
The camera focuses on the subject.
(Pressing the shutter button half way down)
Image processing(compression/ decompression)
USB busy (PC mode)
The camera cannot focus on the subject.
Flash charge processing
Flash ready
For the first seven seconds, the LED blinks at 1 second intervals.
For the final three seconds, the LED blinks rapidly at 0.5-second
intervals.
Whenever the LCD monitor is off
When the USB cable is connected.
When the A/V cable is connected.
Autofocus
indicator lamp
(Green)
ON
OFF
Blinking
Blinking
ON
Blinking
ON
Mode dial
lamp
(Green)
Self-timer
lamp(Red)
Flash indicator
lamp(Red)

16
Mode dial
MOVIE CLIP
Movie clip mode
A movie clip can be recorded for as long as the available recording time
of the memory capacity allows. Image size and type are listed below.
- Image size : 288X208 - File type : *.AVI
STILL IMAGE
Still image mode
This mode is used for still image shots.
Macro shot – W : 6cm ~ 80cm T: 40cm ~ 80cm
Normal shot – 80cm ~ infinity.
PLAY
Play mode
In this mode, the stored images on the memory can be viewed on the
LCD monitor on the back of the camera or on an external monitor using a
Video connection terminal. A recorded audio file can also be played back
in this mode.
SETUP
Setup mode
In this mode, you can set up basic settings such as Format, File name,
Auto power off, Date setup, Date imprint, Date type, User set, Sound,
LCD brightness, Video out, Quick view.
You can select the desired working mode by using the mode dial located on the top
of the camera.
This digital camera has 4 working modes. These are listed below.

17
READY
Connecting to a Power Source
There are two ways in which to provide the camera with power. You can use
batteries or alternatively, you can use an AC(100 ~ 250V) Adapter (DC 3.3V 2.0A).
We recommend using batteries for a digital camera.(Within a year from the date of
manufacture) The batteries are listed below.
Non rechargeable batteries : AA type – Alkaline, Ni-Mn, Ni-Zn, Lithium
CR-V3 type – Lithium
Rechargeable batteries : AA type – Ni-MH, Ni-Cd (over 1000mA)
CR-V3 type – Digimax Battery I-Pack(SBP-1103)
Battery pack – Digimax Battery Pack(SBP-3603)
[ AA type battery ] [ CR-V3 type battery ] [ Battery pack ]
NOTICE Important information about battery usage
- It is easy to buy alkaline batteries. However, the duration for using batteries varies in
accordance with the battery manufacturer or the photographic conditions.
When the camera is not used, turn off the camera power.
- Do not recharge the non rechargeable batteries. It may cause an explosion.
- Please remove the batteries if the camera will not be used for long periods.
Batteries can lose power over time and are prone to leaking if kept inside the camera.
- We recommend high capacity ALKALINE batteries as manganese batteries cannot deliver
sufficient power.
- Low temperatures (below O ) can affect the performance of the batteries and you may
experience reduced battery life.
- Batteries will usually recover at normal temperatures.
- Do not use old and new batteries at the same time.
- During extended use of the camera, the camera body may become warm. This is perfectly normal.
- If you are planning to use this camera for long periods of time, it is advisable to use an AC
adapter(3.3V 2.0A).

18
Connecting to a Power Source
3. To close the battery chamber cover, push it until it clicks.
2. Insert the batteries taking note of the polarity (+ / -).
1. Open the battery chamber cover by pushing in the direction of the arrow.
Using the batteries
Inserting the AA type battery Inserting the CR-V3 type battery
The Digimax Battery Pack is a rechargeable external Li-ion
battery for use with most digital cameras. These optional
battery packs provide long lasting power and their operating
performances are much improved over Ni-MH and Alkaline
batteries. This is due to the mass storage lithium ion cell.
Using the Digimax battery pack ( Optional : SBP-3603, 3.3V)
Battery status
Battery indicator
The batteries are fully
charged. Prepare new batteries. There is no battery
capacity. Replace with
new batteries.
There are 3 indicators for battery condition that are displayed on the LCD monitor.

19
READY
Connecting to a Power Source
If you have access to a mains supply, using an AC Adapter (3.3V 2.0A) allows the
camera to be used for long periods of time.
Plug the adapter into the connection point (DC IN 3.3V) on the camera.
Remove the batteries when using the AC adapter.
DANGER
Always turn off the power before taking the AC adapter out of the mains supply.
As with all mains powered devices, safety is important. Ensure that neither the camera nor
adapter comes into contact with water or metallic materials.
Please ensure that you use an AC adapter (3.3V 2.0A) with the correct specification for the
camera. Failure to do so may affect your warranty.
Attaching the strap
To prevent accidental damage to the camera, always use the strap.
Refer to the illustrations below.
Using the AC power adapter (3.3V 2.0A)
12

20
Instructions on how to use the memory card
The camera comes with 16MB of internal flash memory, allowing you to store
images and movie clips in the camera. However, you can expand the memory
capacity by using an optional memory card so that you can store more images and
movie clips.
- Turn off the camera power whenever the memory card is being inserted or removed.
- Repeated use of the memory card will eventually reduce the memory card’s performance.
Should this be the case, you will need to purchase a new memory card.
- Wear and tear on the memory card is not covered by the Samsung warranty.
- The memory card is an electronic precision device.
Do not bend, drop or subject the memory card to any heavy impact.
- Do not store the memory card in an environment with strong electronic or magnetic fields, e.g. near loud
speakers or TV receivers.
- Please do not use or store in an environment where there are extremes in temperature.
- Do not allow the memory card to become dirty or to come into contact with any liquid.
Should this happen, clean the memory card with a soft cloth.
- Please keep the memory card in its case when not in use.
- During and after periods of extended use, you may notice that the memory card is warm.
This is perfectly normal.
- Do not use a memory card that is used in another digital camera or memory card reader.
- Do not use a memory card formatted by another digital camera or memory card reader.
Maintenance of the memory card
- If the memory card is subjected to any of the following, the recorded data may become corrupted :
When the memory card is used incorrectly.
If the power is switched off or the memory card is removed while recording, deleting (formatting) or
reading.
- Samsung cannot be held responsible for lost data.
- It is advisable to copy important data onto other media as back-up e.g. floppy disks, hard disks, CD etc.
- If there is insufficient memory available :If you press the shutter button for the shot, a [CARD FULL !]
message will appear and the camera will not operate. To optimize the amount of memory in the
camera, replace the memory card or delete unnecessary images stored on the memory.
Preserving the memory card data
