Samsung DIGIMAX 4500 User manual

Thank you for buying a Samsung Camera.
This manual will guide you through using the Digimax V4/ Digimax 4500 Super, including taking images, downloading
images and using the MGI PhotoSuite III SE software. Please read this manual before using your new camera.
6806-1432
SAMSUNG TECHWIN CO., LTD.
OPTICS & DIGITAL IMAGING DIVISION
145-3, SANGDAEWON 1-DONG, JUNGWON-
GU,SUNGNAM-CITY, KYUNGKI-DO, KOREA 462-121
TEL : [phone],8088, 8090, 8092, 8099
FAX : [phone], 8111
SAMSUNG OPTO-ELECTRONICS AMERICA, INC.
HEADQUARTERS
40 SEAVIEW DRIVE, SECAUCUS, NJ07094, U.S.A.
TEL : [phone]
FAX : [phone]
WESTERN REGIONAL OFFICE
18600 BROADWICK ST.,
RANCHO DOMINGUEZ, CA 90220, U.S.A.
TEL : [phone]
FAX : [phone]
SAMSUNG OPTO-ELECTRONICS UK LTD.
SAMSUNG HOUSE, 3 RIVERBANK WAY,
GREAT WEST ROAD, BRENTFORD,
MIDDLESEX,TW8 9RE, U.K.
TEL : [phone]
FAX : [phone]
SAMSUNG OPTO-ELECTRONICS GMBH
AM KRONBERGER HANG 6
D-65824 SCHWALBACH/TS., GERMANY
TEL : [phone]
FAX : [phone]
SAMSUNG FRANCE S.A.S.
BP 51 TOUR MAINE MONTPARNASSE
33, AV .DU MAINE
75755, PARIS CEDEX 15, FRANCE
HOTLINE PHOTO NUMÉRIQUE :
00 800 22 26 37 27(Numéro Vert-Appel Gratuit)
TEL : [phone]
FAX : [phone]
SAMSUNG TECHWIN MOSCOW OFFICE
KORP. 14 37-A LENNINGRADSKY PRO-KT
MOSCOW, 125167, RUSSIA
TEL : [phone], 9298, 9299
FAX : [phone]
TIANJIN SAMSUNG OPTO-ELECTRONICS CO.,LTD.
7 PINGCHANG ROAD NANKAI DIST., TIANJIN
P.R CHINA
POST CODE:300190
TEL : [phone]
FAX : [phone]
"DIGIMAX 4500SUPER MODEL IS DESIGNED WITH SHD (SUPER HIGH DEFINITION) OPTICS,
HOWEVER, ALL PHOTOS USED IN THE INSTRUCTION MANUAL SHOW THE DIGIMAX V4 WITH
SCHNEIDER LENS FOR ILLUSTRATION PURPOSES ONLY"
Internet address - http : //www.samsungcamera.com/
The CE Mark is a Directive conformity
mark of the European Community (EC)
ENGLISH

2

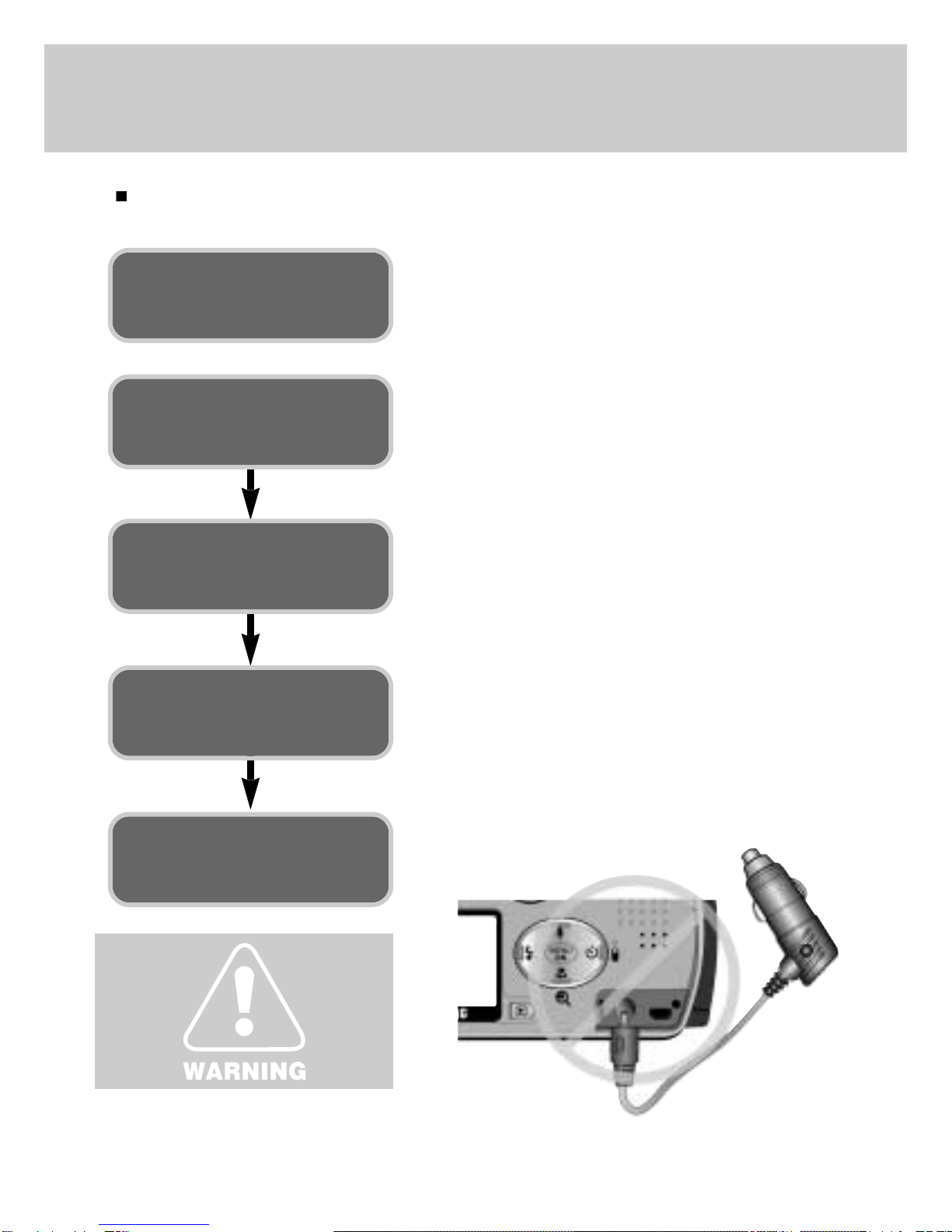

Use this camera in the following order
Instructions
Set up the camera
driver
Before connecting the USB cable to the PC and this
camera, you have to set up the camera driver. Install the
camera driver that is contained in the Application S/W CD-
ROM. (p.110)
Take a picture (p.26)
Insert the supplied USB cable into the PC USB port and
the camera USB connection terminal.(p.99)
Check the camera power. If the power is turned off, slide
the camera switch to power it on.
Take a picture
Insert the USB
cable
Check the camera
power
Check
[Removable Disk]
Do not insert the cigar jack plug to
the DC input connection point as this
results in electric shock or severe
damage to your camera.
Open Window’s EXPLORER and search for [Removable Disk].

READY
3
Contents
Getting to know your camera 5
About the symbols 6
Caution 6
Warning 7
Danger 8
Special features 9
This digital camera can be used for 10
Manufacturer's contents 12
Identification of features 13
Front & Top 13
Back & Bottom 13
Side 14
5-function button 14
Mode dial 15
Connecting to Power 17
Inserting the memory card 20
Instructions on how to use the
memory card 21
Selecting the date and time 23
Language 25
LCD monitor indicator 27
Starting recording mode 29
Using the camera button to adjust the
camera 32
LCD button 32
SHUTTER button 32
WIDE / TELE button 33
UP/ Voice memo button 35
MACRO / SUPER MACRO button 36
FLASH button 37
SELF-TIMER / REMOTE button 40
MENU/ OK button 42
MF button 43
+/- button 44
Using the LCD monitor to adjust the
camera 46
How to use the menu 48
Size 49
Quality 50
A/S/M 51
Metering 53
Shooting 54
White Balance 56
Effect 57
Sharpness 58
My SET mode menu 59
Mode 59
Change 60
Starting the play mode 62
LCD monitor indicator 64
Information button 65
READY
RECORDING PLAY

4
Contents
Thumbnail & Wide /
Tele & Trimming button 65
Thumbnail / Enlargement /
Trimming button 66
UP / Voice memo button 67
DOWN / LEFT / RIGHT button 68
MENU / OK button 68
DELETE button 69
PLAY & PAUSE button 70
Setting up the play back function
using the LCD monitor 71
Slide show 72
Protect 73
Resize 74
Delete all 75
DPOF : Standard 76
DPOF : Index 77
DPOF : Cancel 78
Setup menu 79
File 80
Power off 81
Language 82
Format 83
Date set 85
Time set 86
Date type 87
Imprint 88
Sound 89
LCD brightness 90
Video 91
Connecting to an external monitor 92
Quick view 93
MyCAM menu 94
Start up image 94
Start up sound 95
Shutter sound 95
List of camera function 96
Starting PC mode 99
Important notes 101
Warning indicator 102
Before contacting a service center 103
Specifications 106
Software Notes 108
About the software 108
Setting up the application software 110
Removing the USB Driver for
Windows 98SE 116
Removable Disk 118
Removing the removable disk 119
Setting up the USB Driver for MAC 121
Using the USB Driver for MAC 121
Digimax Viewer 122
MGI PhotoSuite III SE 123
FAQ 138
SOFTWARE

READY
5
Thank you for buying a Samsung Digital Camera.
Prior to using this camera, please read the user manual thoroughly.
Keep the manual in a safe place.
Getting to know your camera
About the symbols
This manual contains instructions on using this camera that will help you to use this camera safely and
correctly. This will help prevent danger and injury to others.
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation, which, if not avoided, may result in
a minor or moderate injury.
NOTICE
NOTICE indicates a factor, which, if not avoided, may result in camera malfunction or
poor image quality.
INFORMATION
INFORMATION indicates a factor, which should assist further in the operation of the
camera.

6
About the symbols
The camera mode icons will be marked on the right side of the title bar. The title is available only in the
marked camera mode. Refer to below.
Caution
Leaking, overheating, or burst batteries could result in fire or injury.
Use batteries with the correct specification for the camera.
Do not short circuit, heat or dispose of batteries in fire.
Do not use old batteries with new ones, or mix brands of batteries.
Ensure the batteries are positioned correctly with regard to polarity (+ / -).
When the camera is not in use for long periods, always unplug the camera from its power source.
Do not fire the flash while it is in contact with hands or objects. Do not touch the flash after using it
continuously. It may cause burns.
Do not move the camera while it is switched on, if you are using the AC Power Adapter. After use,
always switch off the camera before unplugging the adapter from the AC Power wall socket. Then
make sure that any connector cords or cables to other
devices are disconnected before moving the camera.
Failure to do so may damage the cords or cables and
cause a fire or electric shock.

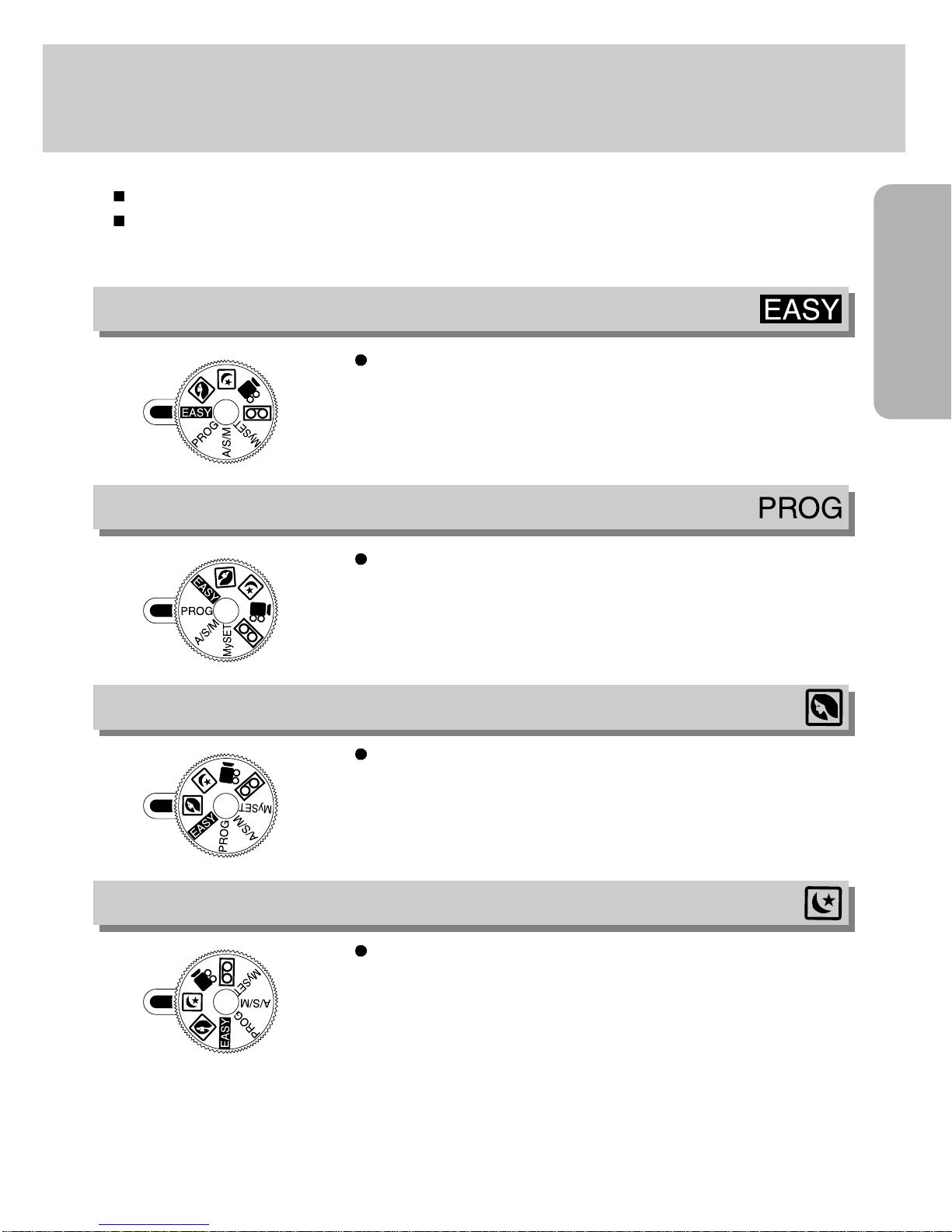

Icon Mode dial Camera working mode Icon Mode dial Camera working mode
Easy mode Program mode
Portrait mode Night mode
Aperture priority mode Shutter priority mode
Manual mode Movie clip mode
User set mode Voice recording mode
Play mode

READY
7
Do not use the flash in close proximity to
people or animals. Positioning the flash too
close to your subject’s eyes, may cause
eyesight damage.
When taking photographs, never point the lens
of the camera directly into very strong light.
This may result in permanent damage to the
camera or your eyesight.
Do not leave this camera in places subject to
extremely high temperatures, such as a
sealed vehicle, direct sunlight or other places
of extreme variances in temperature.
Exposure to extreme temperatures may
adversely affect the camera’s internal
components and could cause a fire.
When in use, do not cover the camera or AC
Power Adapter. This may cause heat to build
up and distort the camera body or cause a fire.
Always use the camera and its accessories in
a well-ventilated area.
For safety reasons keep this product and accessories out of reach of children or animals to prevent
accidents e.g.:
Swallowing batteries or small camera accessories. In case of accidents, please consult a doctor immediately.
There is a risk of permanent eye damage if the flash is operated at a distance of less than one
meter from a person’s eyes.
There is a possibility of injury from the camera’s moving parts.
Batteries and camera may become hot during prolonged use and it may result in camera
malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it time to
cool.
Warning

8
Danger
Do not attempt to modify this camera in any
way. This may result in fire, injury, electric
shock or severe damage to you or your
camera. Internal inspection, maintenance and
repairs should be carried out by your dealer or
Samsung Camera Service Center.
Please do not use this product in close
proximity to flammable or explosive gases, as
this could increase the risk of explosion.
Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the camera,
and then disconnect the power source (batteries or AC Power Adapter). You must contact your
dealer or Samsung Camera Service Center. Do not continue to use the camera as this may cause a
fire or electric shock.
Do not insert or drop metallic or inflammable
foreign objects into the camera through access
points e.g. CARD slot and battery chamber.
This may cause a fire or electric shock.
Do not operate this camera with wet hands.
This could pose a risk of electric shock.

READY
9
Special features
This digital camera has the following features.
A fine resolution of 4.0 mega pixels
A 3X optical and 4X digital zoom lens
A superior Schneider lens
9 power source options (a world first!)
A Super macro(6cm) function
3 different “My SET”modes
An FCC warning
This device has been tested in accordance with the limits of a class B digital device under item 15
of the FCC rules. These limits are designed to provide protection against harmful interference in
commercial installation. This equipment generates, absorbs and can emit radio frequency energy.
If it is not installed and used in accordance with the instructions, it may cause harmful interference
to radio communication. There is however, no guarantee that interference will not occur in a some
situations. Should any interference occur when this device is in operation, please try one or more of
the following measures.
Change the location and direction of any aerial.
Increase distance between camera and affected device.
Use a different socket away from the affected device.
Please contact a Samsung agent or a radio/TV engineer.
This device complies with part 15 of the FCC Rules.

10

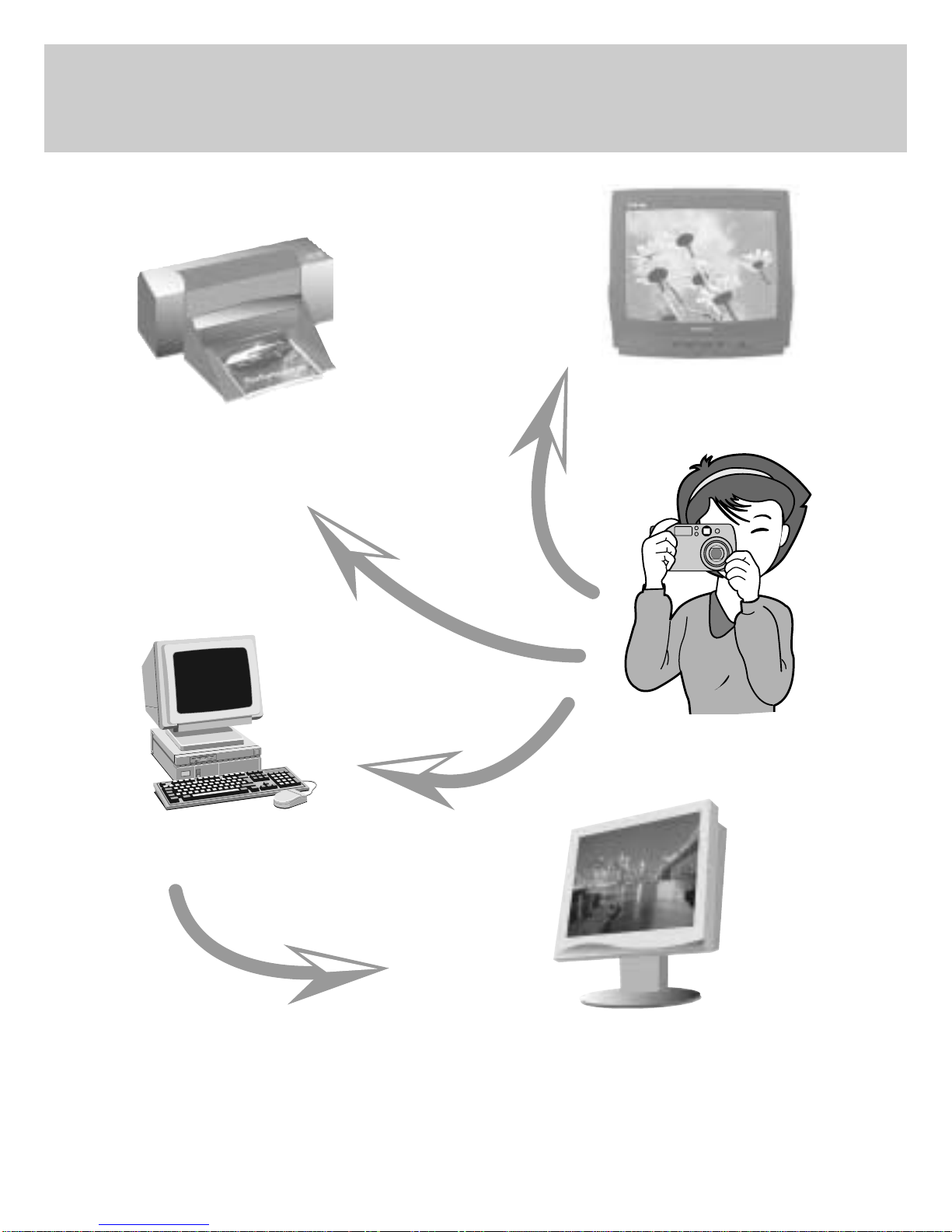

This digital camera can be used for
Printing images using a
dedicated printer, DPOF-
compatible printer or DPOF-
equipped photo lab.(p.76)
Down loading image files
from camera to
computer.(p.100)
Editing images on a PC.(p.123)
Taking a picture.
(refer to page 26)
Viewing images on a TV
screen or external monitor
(refer to page 92)

READY
11
This digital camera can be used for
Inserting images directly into any
electronic document
Taking a self-portrait and using the
image to personalize name cards
You can even create your own unique gift-
wrap paper by using your digital images
Creation of a digital photo album
Recording your voice
(refer to page 35)
Recording a movie clip
(refer to page 30)

12
Please check that you have the correct contents before using this product.
Manufacturer's contents
Battery pack
marked contents are optional.
Digital Camera Pouch USB cableAV cable
Camera strap Product warrantySoftware CD User manual
SD memory card
Digimax Premium Power Pack : SLB-1437 KIT
Battery charger Cigar jack for car
AC adapter Rechargeable battery
Remote controlCR-V3 battery

READY
13
Identification of features
Front & Top
Back & Bottom
Shutter button (p.32)
Flash fading control sensor
Remote control sensor
Power switch
Microphone
Self-timer lamp
Viewfinder
Lens
Viewfinder
Autofocus indicator
lamp(Green)
Flash indicator
lamp(Red) Mode dial (p.15)
Mode dial Lamp
WIDE/THUMBNAIL
button (p.33/65)
5-function button
TELE/Digital zoom
button (p.33/66)
Speaker
LCD monitor Tripod socket PLAY mode button DC input
connection point
USB/ AV connection
terminal
+&-/PLAY & PAUSE
button (p.44/70)
MF / DELETE
button (p.43/69)
LCD/INFROMATION
button (p.32/65)
Flash
Strap eyelet

14
Identification of features
Side
5-function button
FLASH / LEFT button
(p.37/68)
MACRO / SUPER MACRO / DOWN button
(p.36/68)
SELF-TIMER/REMOTE/ RIGHT
button (p.40/68)
Voice memo / UP button
(p.35/67)
Battery chamber
Memory card slot
Memory card cover/
Battery chamber cover
MENU/ OK button
(p.42/68)

READY
15
Mode dial
EASY
You can select the desired working mode by using the mode dial located on the back of the camera.
This digital camera has 8 working modes. These are listed below.
Easy mode
To make camera operation easier, a bare minimum of camera
settings are required in this mode, such as image size. ( for
printing, memo and email)
PROGRAM
Program mode
In program mode, you can take a properly exposed photograph.
Moreover you can select all camera settings except aperture and
shutter speed.
PORTRAIT
Portrait mode
This is used for just portrait or both portrait and landscape shots.
NIGHT SCENE
Night scene mode
This mode is used at night or against a dark background.

16
Mode dial
A/S/M
Aperture priority / Shutter priority / Manual mode
The Aperture and Shutter can be set manually in the A/ S/ M mode.
MOVIE CLIP
Movie clip mode
A movie clip can be recorded as long as the available recording
time allows.
Image size and type are listed below.
- Image size : 288 X 208
- File type : *.AVI
MySET
User set mode
You can set your preferences and save them in this mode.
There are 3 kinds of user setting modes.
VOICE RECORDING
Voice recording mode
You can do voice recording and other audio in this mode.

READY
17
Connecting to Power
There are two ways in which to provide the camera with power. You can use batteries (AA Alkaline,
CR-V3, Ni-MH, Li-ion), or alternatively, you can use an AC(100 ~ 250V) Adapter (DC 5V 2.0A).
3. To close the battery chamber cover, push it until it clicks.

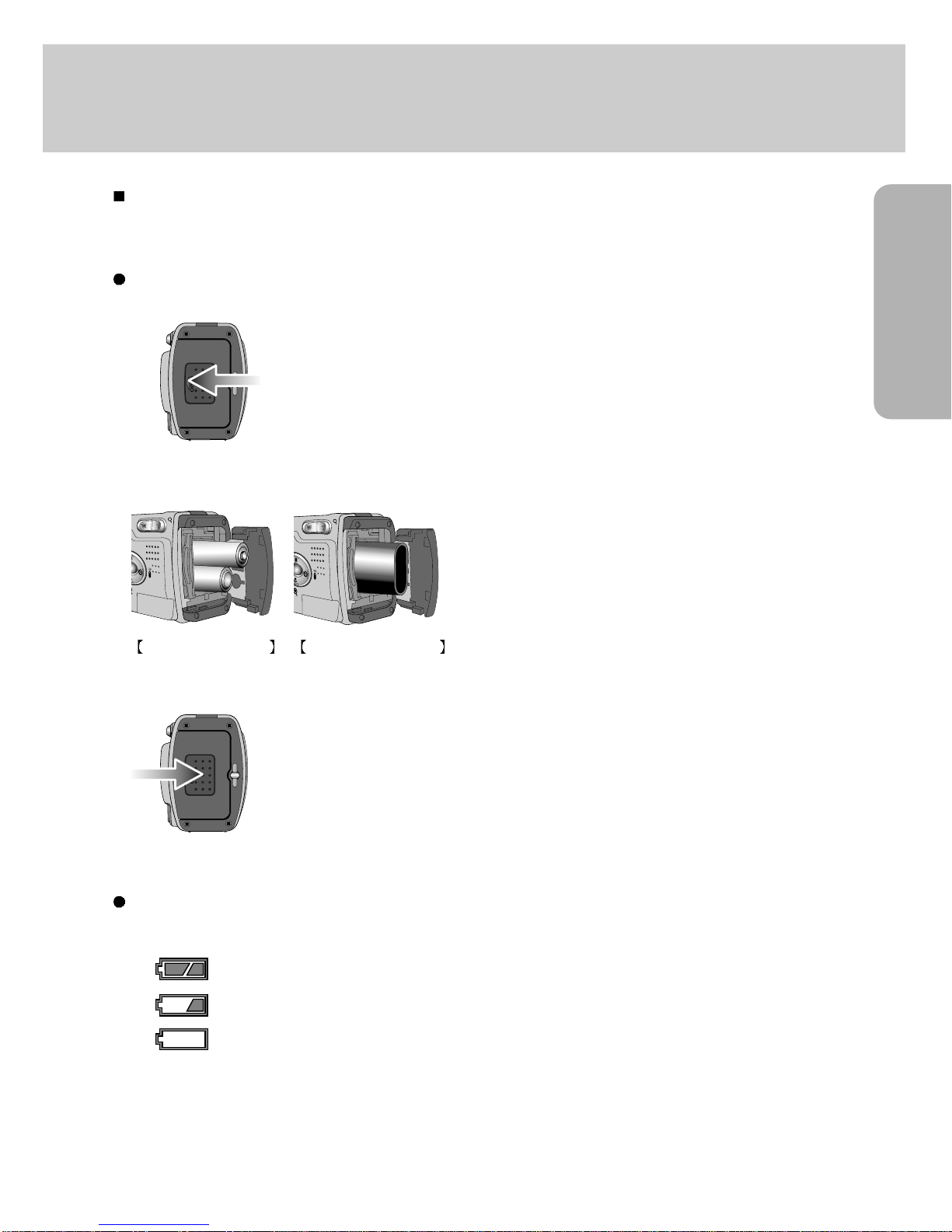

2. Insert the batteries taking note of the polarity (+ / -).
1. Open the battery chamber cover by pushing in the direction of the arrow.
Using the batteries
Battery condition indicator
There are 3 indicators for battery condition that are displayed on the LCD monitor.
: The batteries are fully charged.
: Prepare new batteries.
: There is no battery capacity. Replace with new batteries.
Inserting the AA type battery Inserting the CR-V3 type battery

18
Connecting to Power
NOTICE
Important information about battery usage
- It is easy to buy the alkaline batteries, but the duration for using batteries varies in
accordance with the battery manufacturers or photography conditions.
- Please remove the batteries if the camera will not be used for long periods.
Batteries can lose power over time and are prone to leaking if kept inside the camera.
- We recommend high capacity ALKALINE batteries as manganese batteries cannot deliver
sufficient power.
- Low temperatures (below O˚C) can affect the performance of the batteries and you may
experience reduced battery life.
- Batteries will usually recover at normal temperatures.
- Do not use old and new batteries at the same time.
- During extended use of the camera, the camera body may become warm. This is perfectly normal.
- If you are planning to use this camera for long periods of time, it is advisable to use an AC adapter.
INFORMATION
This camera will automatically switch off when not in use for a period of time.
Refer to [POWER OFF] function (p.81).
We recommend batteries for digital camera (Within a year from the date of manufacture).
The batteries are listed below.
Non rechargeable batteries : AA type - Alkaline, Ni-Mn, Ni-Zn, Lithium
CR-V3 type - Lithium
Rechargeable batteries : AA type - Ni-MH, Ni-Cd (over 1000mA)
Exclusive type - SLB-1437 (Digimax V4 only)
SBP-1103 (CR-V3 type)

READY
19
Connecting to Power
If you have access to a mains supply, using an AC Adapter
allows the camera to be used for long periods of time.
Plug the adapter into the connection point (DC IN 5V) on the
camera. Remove the batteries when using the AC adapter.
Using the Digimax Premium Power Pack ( Optional : SLB-1437 KIT )
The Digimax Premium Power Pack contains a rechargeable
internal Li-ion battery, a battery charger, a cigar jack for car and
an AC adapter for use with Digimax V4.
Using the Digimax battery pack ( Optional : SBP-3605, 5V)
The Digimax Battery Pack is a rechargeable external Li-ion
battery for use with most digital cameras.
These optional battery packs provide long lasting power and their operating performances are much
improved over Ni-MH and Alkaline batteries. This is due to the mass storage lithium ion cell.
Contact your local dealer or the nearest authorized Samsung camera service center to buy the optional
battery packs.
Using the AC power adapter
DANGER
Always turn off the power before taking the AC adapter out of the mains supply.
As with all mains powered devices, safety is important. Ensure that neither the camera nor
adapter comes into contact with water or metallic materials.
Please ensure that you use an AC adapter with the correct specification for the camera.
Failure to do so may affect your warranty.

20
Inserting the memory card
1. Turn the power off using the power switch. Open the memory
card cover and press the memory card as shown in the image
and release.
2. Remove the memory card and close the memory card cover.
3. To close, push the card cover against the arrow until you
hear a click.
If the card cover does not close, check that the memory card
is inserted correctly. Do not force the memory card.
2. Insert the memory card all the way into the memory card slot.
The Label stuck to the memory card and the front side of the
camera should face in the same direction. The memory card
pins and the LCD monitor should face in the same direction.
1. Turn off the camera power and pull the memory card cover in
the direction of the arrow to open.
Removing the memory card
