Samsung L201 Instruction manual

English
1
Getting to know your camera
Identication of features / Contents of camera
Battery life & Number of shots (Recording time)
LCD monitor indicator
Mode dial
Taking a picture
Playing back / Deleting images
Downloading images
Specications
1
4
5
6
7
8
9
10
11
Contents
Getting to know your camera
 Microsoft, Windows and Windows logo are registered trade-
marks of Microsoft Corporation incorporated in the United States
and/or other countries
 All brand and product names appearing in this manual are
registered trademarks of their respective companies.

The contents and illustrations of this manual are subject to
change without prior notice for upgrading the camera functions.
 Refer to the user manual included on the Software CD for
more information.

PDF documents of user manual are included in the Software
CD-ROM supplied with this camera. Search the PDF les with
Windows explorer. Before opening the PDF les, you must
install the Adobe Reader included in the Software CD-ROM.

2
Getting to know your camera

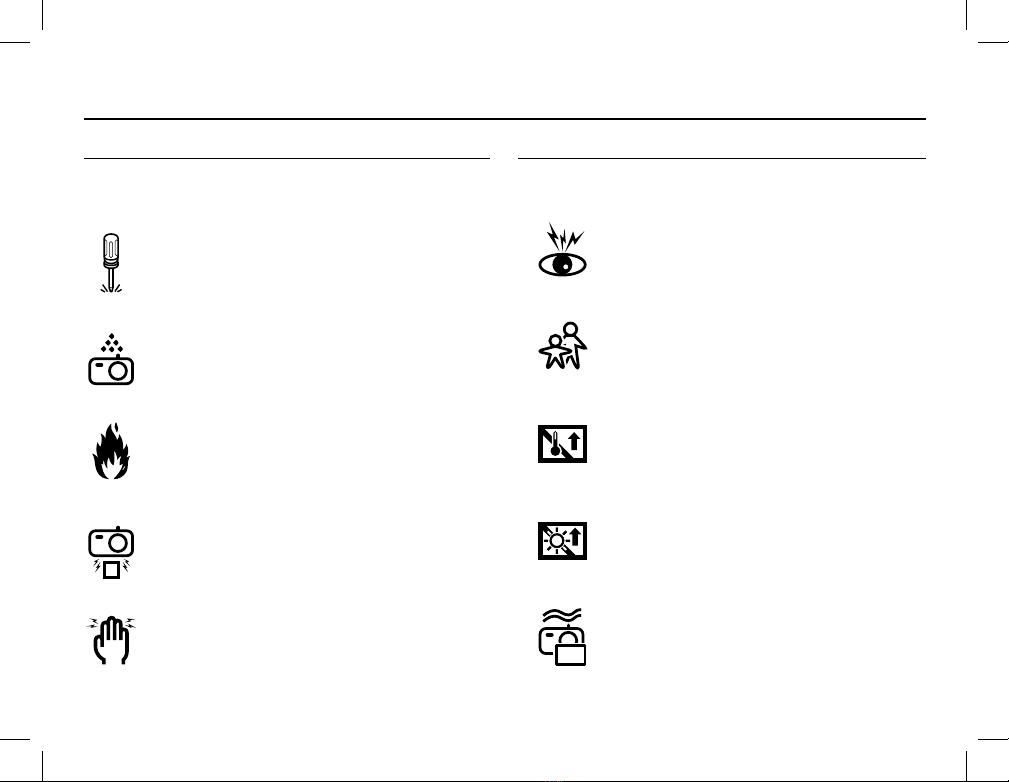

DANGER
Do not attempt to modify this camera in any way. To do so
may result in re, injury, electric shock or severe damage
to you or your camera. Internal inspection, maintenance
and repairs should only be carried out by your dealer or
Samsung Camera Service centre.
Should any form of liquid or a foreign object enter the
camera, do not use it. Switch off the camera, and then
disconnect the power source. You must contact your dealer
or Samsung Camera Service centre. Do not continue to
use the camera as this may cause a re or electric shock.
Please do not use this product in close proximity to ammable
or explosive gases, as this could increase the risk of explosion.
Do not insert or drop metallic or inammable foreign
objects into the camera through access points e.g. the
memory card slot and battery chamber. This may cause a
re or electric shock.
Do not operate this camera with wet hands. This could
pose a risk of electric shock.
DANGER indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING
Do not use the ash in close proximity to people or
animals. Positioning the ash too close to your subject’s
eyes may cause eyesight damage.
For safety reasons keep this product and accessories out
of reach of children or animals to prevent accidents e.g.:
-
Swallowing battery or small camera accessories. If an accident
should occur, please consult a doctor immediately.
-
There is the possibility of injury from the camera’s moving parts.
Battery and camera may become hot during prolonged
use and it may result in camera malfunction. Should this
be the case, allow the camera to sit idle for a few minutes
to allow it time to cool.
Do not leave this camera in places subject to extremely
high temperatures, such as a sealed vehicle, direct sunlight
or other places of extreme variances in temperature.
Exposure to extreme temperatures may adversely affect
the camera’s internal components and could cause a re.
When in use, do not cover the camera or Charger. This
may cause heat to build up and distort the camera body or
cause a re. Always use the camera and its accessories in
a well-ventilated area.
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.

English
3
Getting to know your camera
Take care not to touch the lens or lens cover to avoid
taking an unclear image and possibly causing camera
malfunction.
Do not re the ash while it is in contact with hands or
objects. Do not touch the ash after using it continuously.
It may cause burns.
Leaking, overheating, or damaged battery could result in
re or injury.
- Use battery with the correct specication for the camera.
- Do not short circuit, heat or dispose of battery in re.
- Do not insert the battery with the polarities reversed.
Remove the battery when not planning to use the camera
for a long period of time.
Otherwise the battery may leak corrosive electrolyte and
permanently damage the camera’s components.

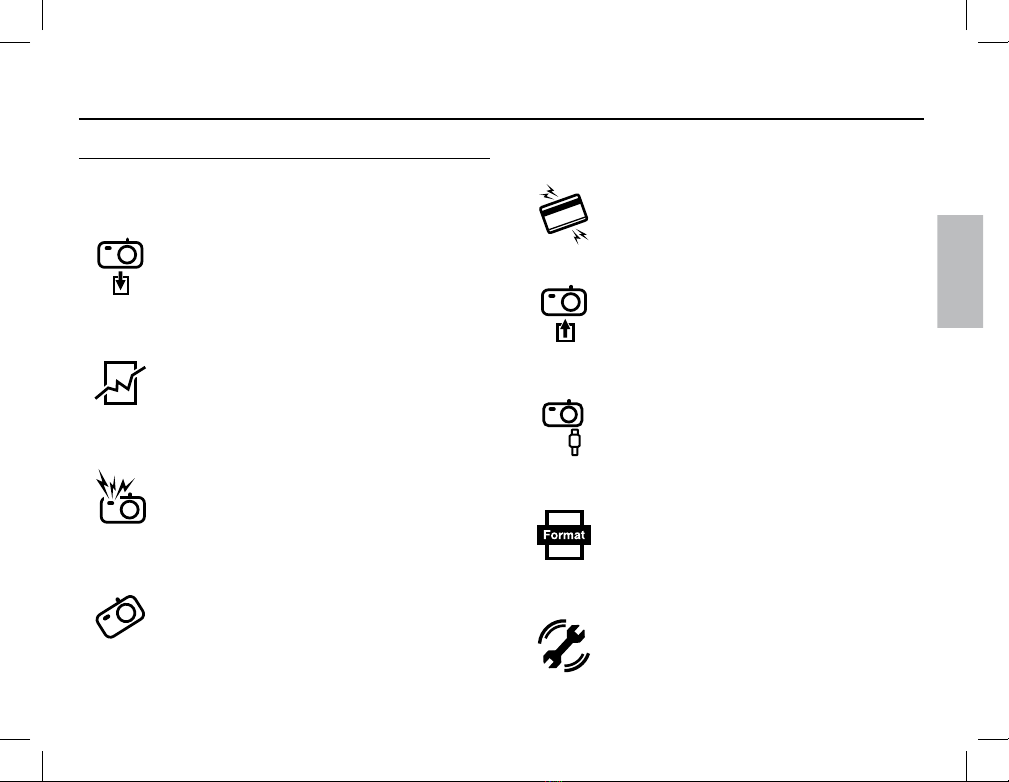

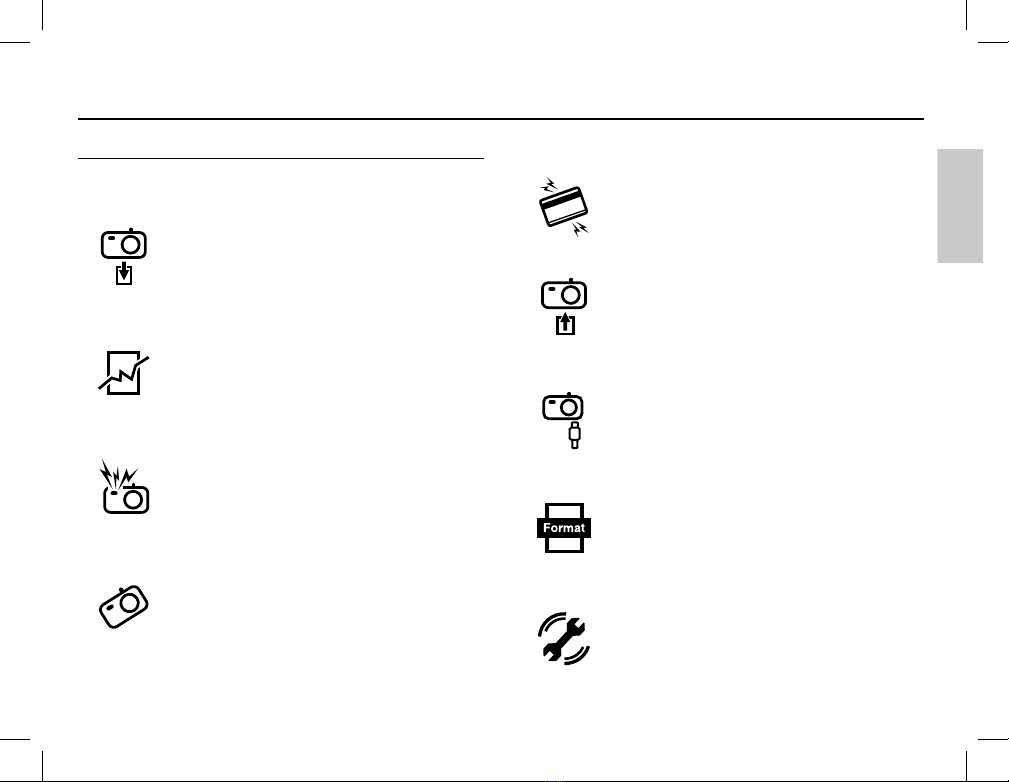

CAUTION
CAUTION indicates a potentially hazardous situation which, if not
avoided, may result in a minor or moderate injury.
Before an important event or going on a trip, you should
check the camera condition. Samsung cannot be held
responsible for camera malfunctions.
Be sure to format the memory card if you are using a
newly purchased memory for the rst time, if it contains
data that the camera cannot recognise, or if it contains
images captured with a different camera.
Do not insert the memory card the wrong way round.
Credit cards may be demagnetized if left near a camera
case. Avoid leaving magnetic strip cards near the case.
Never the connect the 20 pin connector to a USB port
of a PC. Doing so is highly likely to cause a computer
malfunction.

4
Ä Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy
the optional equipment, contact your nearest Samsung dealer or Samsung service centre.

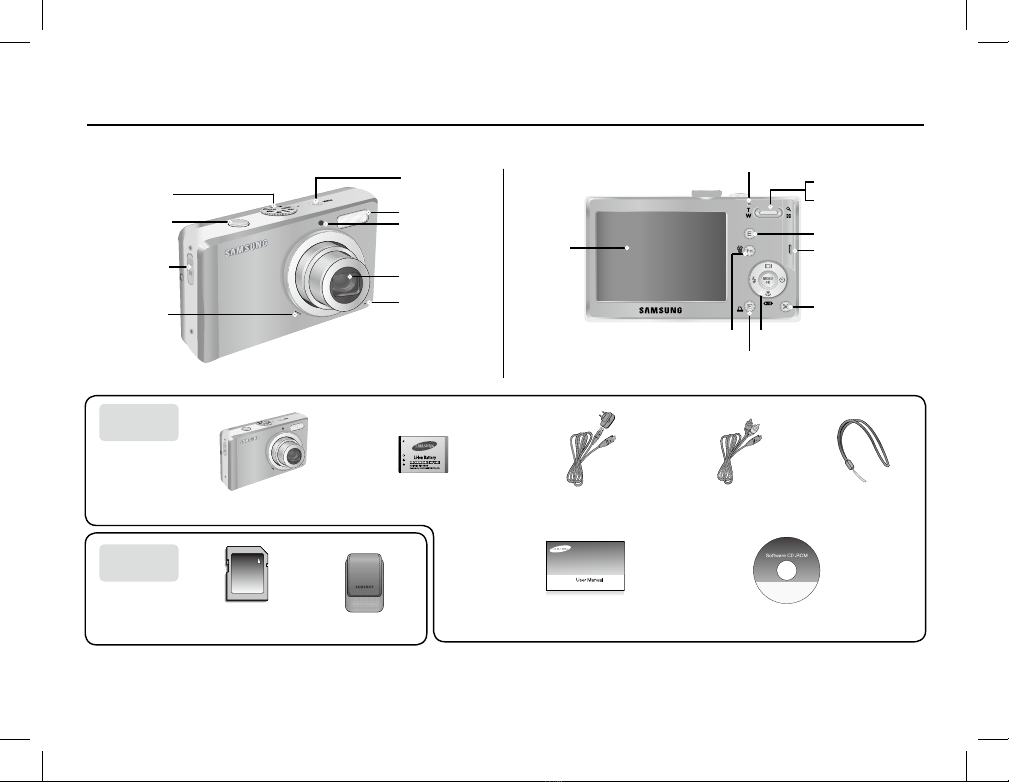

Identication of features / Contents of camera
Included
items
Optional
items
Camera case
Camera strap
User manual,
Product warranty
AC adapter (SAC-47) /
USB cable (SUC-C3) AV Cable
Software CD
SD / SDHC memory card /
MMC
Rechargeable battery
(SLB-0837(B))
Power button
Microphone
Flash
AF sensor/
Self-timer lamp
USB / AV connection
terminal
Mode dial
Shutter button
Lens / Lens cover
Speaker
LCD monitor
Camera status lamp
E (Effects) button
Fn / Delete button
Play mode / Printer button
5 function button
Strap eyelet
Zoom T button (Digital zoom)
Zoom W button (Thumbnail)
Face Detection(FD) button
Camera

English
5
Battery life & Number of shots (Recording time)
 When using a 1GB SD memory, the specied shooting capacity will be
as follows. These gures are approximate as image capacities can be
affected by variables such as subject matter and memory card type.
Ä The zoom button doesn't use during the movie recording.
The recording times can be changed by the zoom operation.
You can record videos of up to 4GB or 2hours each.
 Number of images and battery life: Using the SLB-0837(B)
Battery life /
Number of images Conditions
Still image Approx. 120 MIN /
Approx. 240 shots
Using the fully charged battery, Auto
mode, 10M image size, Fine image
quality, Shot to shot interval: 30Sec.
Changing the zoom position between
the Wide and the Tele after every shot.
Using the ash on every second shot.
Using the camera for 5 minutes and
then powering it off for 1 minute.
Movie Approx. 120 MIN Using the fully charged battery 640x480 image size
30fps frame rate
Ä
These gures are measured under Samsung’s standard conditions
and shooting conditions and may vary depending on the user’s
methods.
Recorded image
size
Super
Fine Fine Normal 30 FPS 15 FPS
Still
,
About 219 About 304 About 507 - -
;
About 241 About 341 About 550 - -
.
About 282 About 395 About 619 - -
+
About 290 About 412 About 660 - -

About 366 About 507 About 825 - -
About 1089 About 1458 About 2204 - -

About 1907 About 2204 About 2419 - -
*Movie
clip
ì---
About 14'15" About 28'02"
---
About 51'32" About 01:41'47"

6

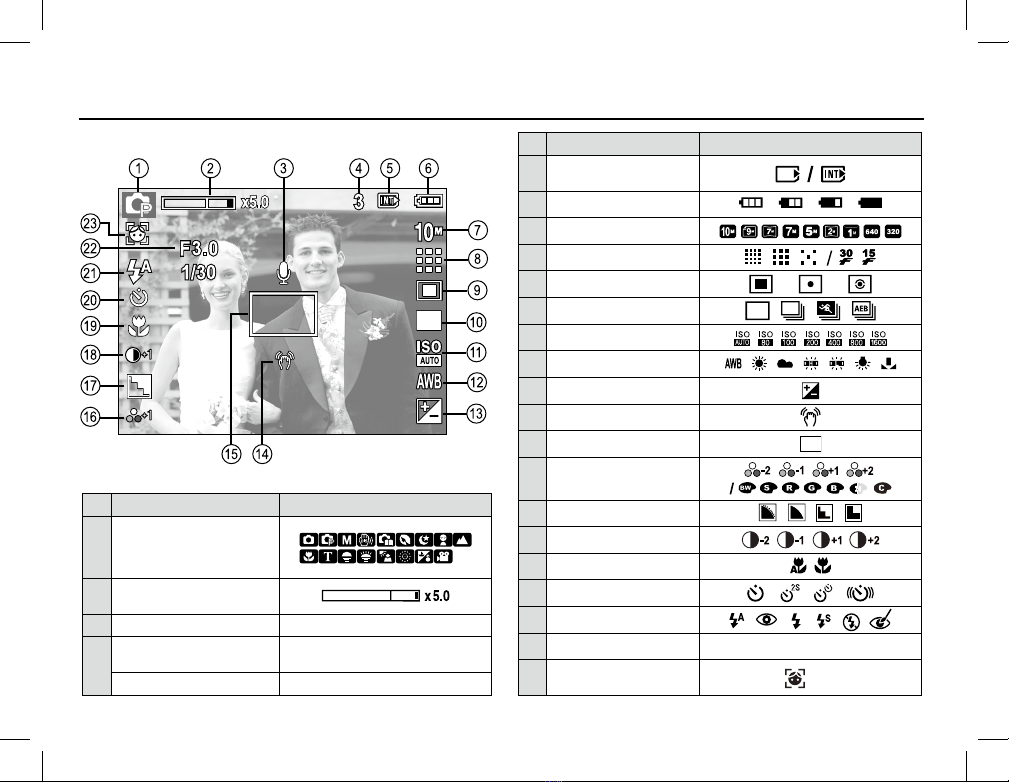

LCD monitor indicator
 The LCD monitor displays information about the shooting
functions and selections.
No. Description Icons
1Recording mode
2
Optical / Digital Zoom bar /
Digital Zoom rate
3 Voice Memo / Without Sound Ï / Ç
4
Number of available shots
remaining 3
Remaining time 00:00:00
[Image & Full Status]
No. Description Icons
5
Memory card icon / Internal
memory icon
6 Battery
7Image Size
8 Image Quality / Frame Rate
9 Metering
10 Drive mode
11 ISO
12 White Balance
13 Exposure compensation
14 Camera shake Warning
15 Auto Focus Frame
16 Saturation / Color
17 Sharpness
18 Contrast
19 Macro
20 Self-timer
21 Flash
22 Aperture Value / Shutter Speed F3.0, 1/30
23 Face Detection /
Self Portrait /


English
7

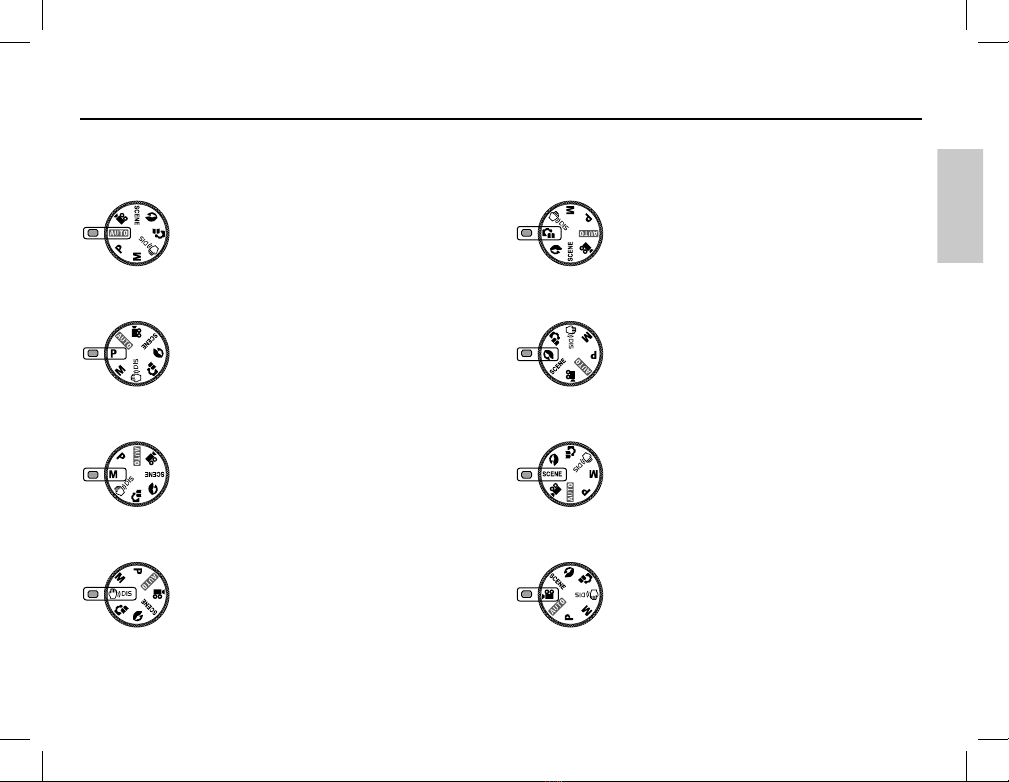

Mode dial
 You can select a desired camera mode by using the Mode dial on the top of the camera.
AUTO
Selects this mode for quick and easy picture taking
with minimal user interaction.
PROGRAM
Selecting the program mode will congure the
camera with optimal settings. You can still manu-
ally congure all functions except the aperture
value and shutter speed.
DIS
This mode will reduce the effect of camera shake
and help you get a well-exposed image in dim
conditions.
MANUAL
You can manually congure all functions with the
aperture value and shutter speed.
SCENE
Use the menu to easily congure optimal settings
for a varisty of shooting situations.
PORTRAIT
Use this menu to take a picture of a person.
MOVIE CLIP
A movie clip can be recorded for as long as the
available recording time.
PHOTO HELP GUIDE
Helps the user to learn the correct picture
taking method. This includes solutions for potential
problems that may occur, and enables the user to
practice shooting.

8
Taking a picture
 How to take a picture
 How to record a movie
Rotate the Mode dial and select ( ´ ).
1. Turn on the camera and select
a camera mode by rotating the
mode dial.
2. Hold the camera as shown
3. Conrm the composition
4. Take a picture.
Pressing halfway down
Focus and Flash status
are checked.
Pressing fully
Image is taken
1. Conrm the composition
2. Start the recording
Press the Shutter button and the
recording starts and press the
Shutter button again to stop the
recording.

English
9

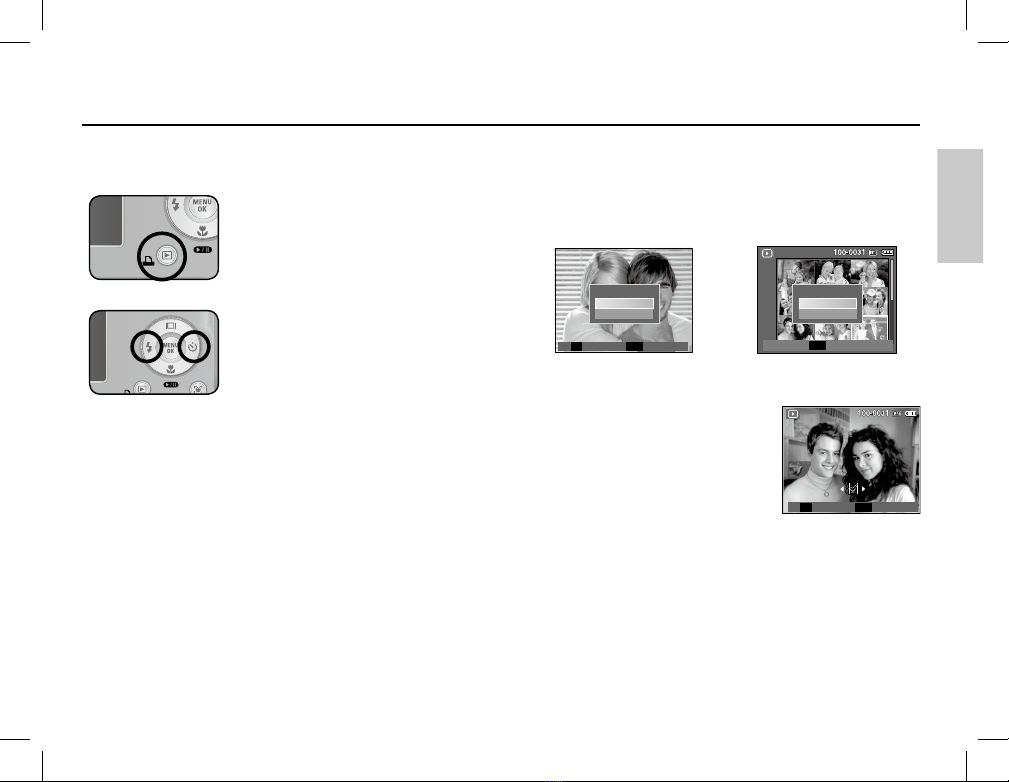

 Deleting images
- This deletes images stored on the memory card.
1. Select an image that you want to delete by pressing the Left /
Right button and press the DELETE ( Õ ) button.
Playing back / Deleting images
2. To add images to delete, press the T
button.
- Left / Right button : Selects images
- T button : Checks for deletion
- OK button : deletes the selected
images.
3. Select the submenu values by pressing the Up / Down button
and then press the OK button.
- If [No] is selected : cancels "Delete Image".
- If [Yes] is selected : deletes the selected images.
 Playingback the images
-The last image stored on the memory is displayed.
Press the play button ( Î ).
Select an image that you want to play
back by pressing the Left/ Right button
Ä Manner mode : Pressing the play mode button for more than
3 seconds changes the buzzer and start-up
sound setting to OFF, even though you may
have set these to ON.
[Single Image] [Thumbnail Image]
Delete?
No
Yes
Comrm
OK
Delete?
No
Yes
Select Conrm
TOK
Prev Next
Select Delete
TOK

10

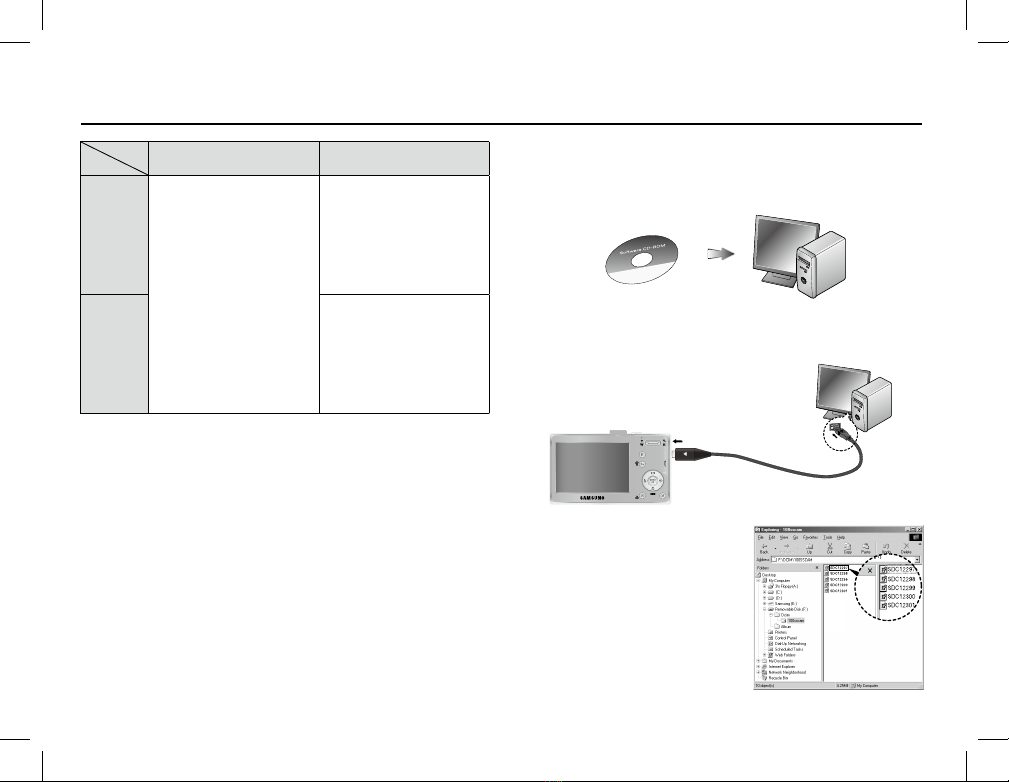

 PC connection mode
2. Download the images
1. Install the supplied Software.
- Connect the camera and Computer
with supplied USB cable and
download the image on your
computer to save them.
Downloading images
For Windows For Macintosh
USB
Connection
Specications
PC with processor better
than Pentium III 500MHz
(Pentium 800MHz recommended)
Windows 2000 / XP / Vista
Minimum 256MB RAM
(Over 512MB recommended)
200MB of available hard disk
space (Over 1GB recommend)
1024x768 pixels, 16bit color
display compatible monitor
(24bit color display recommended)
Microsoft DirectX 9.0C
Power Mac G3 or later
Mac OS 10.3 or later
Minimum 256MB RAM
(Over 512MB recommended)
Software
Support
Specications
-

English
11
Specications
Image Sensor - Type : 1/2.33" CCD
- Effective Pixel : Approx. 10.2 Mega-pixel
- Total Pixel : Approx. 10.3 Mega-pixel
Lens - Focal Length : SAMSUNG Lens f = 6.3 ~ 18.9mm
(35mm film equivalent : 35 ~ 105mm)
- F No. : F3.0(W) ~ F5.6(T)
- Digital Zoom : ·Still Image mode :1.0X ~ 5.0X
·Play mode : 1.0X ~ 11.4X
(depends on image size)
LCD Monitor - 2.7" color TFT LCD (230,000 dots)
Focusing
- Type : TTL auto focus (Multi AF, Center AF, Face Detection AF)
- Range
Normal Macro Auto Macro
Wide 80cm ~ Infinity 10cm ~ 80cm 10cm ~ Infinity
Tele 50cm ~ 80cm 50cm ~ Infinity
Shutter - Speed 1 ~ 1/1,500 sec.
( Manual : 8 ~ 1/1,500 sec.)
Exposure - Control : Program AE, Manual Exposure,
Face Detection AE
- Metering : Multi, Spot, Center-Weighted
- Compensation : ±2EV (1/3EV steps)
- ISO : Auto, 80, 100, 200, 400, 800, 1600
Flash - Modes : Auto, Auto & Red-eye reduction, Fill-in
flash, Slow sync, Flash off, Red-eye Fix
- Range : Wide : 0.4m ~ 3.0m,
Tele : 0.5m ~ 2.5m
- Recharging Time : Approx. 4 sec
Sharpness - Soft+, Soft, Normal, Vivid, Vivid+
Color Effect -
Normal, B&W, Sepia, Red, Green, Blue, Negative,
Custom Color
White Balance - Auto, Daylight, Cloudy, Fluorescent_H,
Fluorescent_L, Tungsten, Custom
Voice Recording - Voice Recording (max. 10 hours)
- Voice Memo in Still Image (max. 10 sec.)
Date Imprinting - Date, Date & Time, Off (user selectable)
Shooting - Still Image
·Mode : Auto, Program, Manual, DIS,
Photo Help Guide , Portrait, Scene
·Scene : Nightscene, Children, Landscape,
Close-up, Text, Sunset, Dawn, Backlight,
Firework, Beach & Snow
·Shooting : Single, Continuous, AEB, Motion Capture
·Self-timer : 10 sec., 2 sec., Double,
Motion Timer

12
Specications
- Movie Clip
· With Audio or without Audio
(user selectable, recording time : max 2 hours)
·Size : 640x480, 320x240
· Frame rate : 30 fps, 15 fps
· 3X Optical Zoom and Mute in Zooming
· Movie Editing (Embedded): Pause during
recording, Still Image Capture
Storage - Media
·Internal memory : About 16MB flash memory
· External Memory (Optional) :
MMC card (Up to 1GB guaranteed)
SD card (Up to 2GB guaranteed)
SDHC card (Up to 8GB guaranteed)
- File Format
·Still Image : JPEG (DCF), EXIF 2.2, DPOF 1.1,
PictBridge 1.0
·Movie Clip : AVI (MJPEG)
·Audio : WAV
- Image Size
, ; . +  
3648X
2736 3648X 2432 3648X 2056 3072X 2304 2592X 1944 1920X 1080 1024X 768
- Capacity (1GB Size)
, ; . +  
Super Fine About 219 About 241 About 282 About 290 About 366 About 1089 About 1907
Fine About 304 About 341 About 395 About 412 About 507 About 1458 About 2204
Normal About 507 About 550 About 619 About 660 About 825 About 2204 About 2419
Ä These figures are measured under Samsung standard conditions and
may vary depending on shooting conditions and camera settings.
“E” Button - Effect : Color, Image Adjust
(Sharpness, Contrast, Saturation)
- Editing : Resize, Rotate, Color, ACB, Red Eye Fix,
Image Adjust (Brightness, Contrast,
Saturation)
Image Play - Type : Single image, Thumbnails, Multi slide show,
Movie Clip
Interface - Digital output connector : USB 2.0
- Audio : Mono
- Video output : NTSC, PAL (user selectable)
- DC power input connector : 20 pin
Power Source - Rechargeable battery : SLB-0837(B),3.7V (800mAh)
- Charger: SAC-47
Ä Included battery may vary depending on sales region.

English
13
Specications
Dimensions (WxHxD) - 90.2 X 58 X 19.3mm
(excluding protrusions)
Weight - Approx. 110g (without batteries and card)
Operating Temperature - 0 ~ 40°C
Operating Humidity - 5 ~ 85%
Software - Samsung Master, Adobe Reader
Specifications are subject to change without prior notice.
All trademarks are the property of their respective owners.

14
Correct disposal of batteries in this product
Samsung Techwin cares for the environment at all
product manufacturing stages to preserve the
environment, and is taking a number of steps to provide
customers with more environment-friendly products. The
Eco mark represents Samsung Techwin's will to create
environment-friendly products, and indicates that the
product satises the EU RoHS Directive.
Correct disposal of batteries in this product
(Applicable in the European Union and other European
countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that
the batteries in this product should not be disposed of with other
household waste at the end of their working life. Where marked, the
chemical symbols Hg, Cd or Pb indicate that the battery contains
mercury, cadmium or lead above the reference levels in EC Directive
2006/66. If batteries are not properly disposed of, these substances
can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please
separate batteries from other types of waste and recycle them
through your local, free battery return system.
The rechargeable battery incorporated in this product is not user replaceable.
For information on its replacement, please contact your service provider.
Correct Disposal of This Product
Correct Disposal of This Product (Waste Electrical &
Electronic Equipment) (Applicable in the European Union
and other European countries with separate collection
systems)
This marking shown on the product or its literature, indicates that it
should not be disposed with other household waste at the end of its
working life. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, please separate this from
other types of waste and recycle it responsibly to promote the
sustainable re-use of material resources. Household users should
contact either the retailer where they purchased this product, or their
local government office, for details of where and how they can take
this item for environmentally safe recycling. Business users should
contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other
commercial waste for disposal.

English
15
MEMO

16
MEMO

Deutsch
DE-1
Die Kamera kennen lernen
Identikation der Funktionen / Lieferumfang der Kamera
Batteriebetriebsdauer und Anzahl der Aufnahmen
(Aufnahmezeit)
LCD-Monitoranzeige
Moduswahl
Fotograeren
Wiedergabe / Löschen von Bildern
Herunterladen von Bildern
Technische Daten
1
4
5
6
7
8
9
10
11
Inhalt
Die Kamera kennen lernen
 Microsoft Windows und das Windows-Logo sind eingetragene
Warenzeichen der Microsoft Corporation Incorporated in den
Vereinigten Staaten und/oder anderen Ländern.
 Alle in dieser Bedienungsanleitung genannten Marken- und
Produktnamen sind eingetragene Warenzeichen der jeweiligen
Firmen.

Inhalt und Illustrationen in diesem Handbuch können bei Aktualisierung
der Kamerafunktionen ohne vorherige Ankündigung verändert werden.
 Weitere Informationen nden Sie in der Bedienungsanleitung auf
der Software-CD.

PDF-Dokumente der Bedienungsanleitung benden sich auf der
Software-CD-ROM im Lieferumfang dieser Kamera. Durchsuchen
Sie die PDF-Dateien mit dem Windows-Explorer. Vor dem Öffnen
der PDF-Dateien müssen Sie den auf der Software-CD-ROM
bereitgestellten Adobe Reader installieren.

DE-2
Die Kamera kennen lernen
GEFAHR
Bedienen Sie die Kamera nicht mit nassen Händen.
Es besteht die Gefahr eines Stromschlags.
Versuchen Sie nicht, die Kamera in irgendeiner Weise zu
verändern. Dies kann Feuer, Verletzungen, einen Stromschlag oder
schwerwiegende Schäden an Ihrer Person oder Ihrer
Kamera verursachen. Die Inspektion des Kamerainneren,
Wartung und Reparaturen dürfen nur von Ihrem Händler oder einem
Samsung Camera Kundendienstzentrum durchgeführt werden.
Benutzen Sie die Kamera nicht, wenn Flüssigkeiten oder
Fremdkörper in das Innere der Kamera gelangt sind.
Schalten Sie die Kamera aus und unterbrechen Sie dann
die Stromversorgung. Wenden Sie sich unbedingt an Ihren
Händler oder ein Samsung-Kamera-Kundendienstzentrum.
Benutzen Sie die Kamera auf keinen Fall weiter, da dies
einen Brand oder Stromschlag verursachen kann.
Benutzen Sie bitte dieses Gerät nicht in nächster Nähe
zu feuergefährlichen oder explosiven Gasen, da damit
die Explosionsgefahr vergrößert werden kann.
Stecken Sie keine metallenen oder entzündlichen
Fremdkörper in die Öffnungen der Kamera, wie z. B. den
Speicherkartensteckplatz und die Batteriekammer.
Das kann zu einem Brand oder Stromschlag führen.
Mit GEFAHR gekennzeichnete Informationen weisen auf eine
drohende Gefahr hin, die zum Tode oder zu schweren Verletzungen
führen kann.
WARNUNG
Benutzen Sie den Blitz nicht in nächster Nähe von Menschen
oder Tieren. Wird der Blitz zu nah an den Augen des Motivs
gezündet, kann es zu Augenschäden kommen.
Bewahren Sie aus Sicherheitsgründen dieses Gerät und
die Zubehörteile außer Reichweite von Kindern und Tieren
auf, um Unfälle zu verhindern wie z. B.:
- Verschlucken von Batterien oder Kamerakleinteilen. Bei
einem Unfall suchen Sie bitte sofort einen Arzt auf.
- Es besteht Verletzungsgefahr durch die beweglichen
Teile der Kamera.
Werden Batterien und Kamera über einen längeren
Zeitraum verwendet, kann es zu Fehlfunktionen der
Kamera kommen. Bei längerer Benutzung sollten Sie die
Kamera zwischendurch für einige Minuten abschalten,
damit sich das Gerät abkühlen kann.
Setzen Sie diese Kamera keinen hohen Temperaturen aus, wie
z. B. in einem geschlossenen Fahrzeug, direktem Sonnenlicht
oder anderen Orten mit starken Temperaturunterschieden.
Zu hohe Temperaturen können die Funktion der Kamera
beeinträchtigen, die Bauteile der Kamera zerstören und Feuer
verursachen.
Decken Sie die Kamera oder das Ladegerät bei Benutzung
nicht ab. Das kann zur verstärkten Erwärmung führen und das
Kameragehäuse beschädigen oder ein Feuer verursachen.
Benutzen Sie die Kamera und ihr Zubehör immer an einem
gut belüfteten Ort.
Mit WARNUNG gekennzeichnete Informationen weisen auf eine
mögliche Gefahr hin, die zum Tode oder zu schweren Verletzungen
führen kann.

Deutsch
DE-3
Die Kamera kennen lernen
ACHTUNG
Vermeiden Sie Kontakt mit dem Objektiv, da es andernfalls
zu unscharfen Aufnahmen und zur Fehlfunktion der Kamera
kommen könnte.
Der Blitz darf beim Zünden nicht mit der Hand oder
irgendwelchen Gegenständen berührt werden. Berühren
Sie den Blitz nicht, wenn er über längere Zeit verwendet
wurde. Dies könnte Verbrennungen verursachen.
Durch Auslaufen, Überhitzen oder Explodieren der Bat-
terien können Feuer oder Verletzungen verursacht werden.
- Benutzen Sie nur solche Batterien, die die richtigen
Spezikationen für die Kamera aufweisen.
- Die Batterien dürfen niemals kurzgeschlossen, erhitzt
oder in Feuer geworfen werden.
- Legen Sie die Batterien stets polrichtig ein.
Entfernen Sie die Batterien, wenn die Kamera längere Zeit
nicht benutzt wird.
Aus den Batterien kann korrosiver Elektrolyt austreten und
die Bauteile der Kamera irreparabel beschädigen.
Mit ACHTUNG gekennzeichnete Informationen weisen auf eine
mögliche Gefahr hin, die zu leichten oder mittelschweren Verletzungen
führen kann.
Vor einem wichtigen Ereignis oder dem Antritt einer
Reise sollten Sie den Zustand der Kamera überprüfen.
Samsung kann nicht für Funktionsstörungen der Kamera
verantwortlich gemacht werden.
Sie müssen eine neu gekaufte Speicherkarte vor dem
ersten Gebrauch formatieren, ebenso Speicherkarten, die
Daten enthalten, die die Kamera nicht lesen kann oder
Bilder, die mit einer anderen Kamera gemacht wurden.
Setzen Sie die Speicherkarte nicht falsch herum ein.
In der Nähe der Tasche belassene Kreditkarten können
entmagnetisiert werden. Karten mit Magnetstreifen
niemals in der Nähe der Tasche liegen lassen.
Es wird höchstwahrscheinlich zu Fehlfunktionen des
Computers kommen, wenn der 20-Pin-Anschluss mit dem
USB-Anschluss des PCs verbunden wird. Verbinden Sie den
20-Pin-Anschluss nie mit dem USB-Anschluss des PCs.
