Samsung NV20 - Digital Camera - Compact User manual

Thank you for buying a Samsung camera.
This manual will guide you through using the camera, including
capturing images, downloading images and using the application software.
Please read this manual carefully before using your new camera.
User Manual
ENGLISH

Instructions Getting to know your camera
ŝ1Ş
Thank you for buying a Samsung Digital Camera.
ƃPrior to using this camera, please read the user manual thoroughly.
ƃWhen you require After Sales service, please bring the camera and the cause of
the camera malfunction (such as battery, Memory card etc.) to the A/S centre.
ƃPlease check that the camera is operating properly before you intend to use it
(e.g. for a trip or an important event) to avoid disappointment. Samsung takes no
responsibility for any loss or damages that may result from camera malfunction.
ƃKeep this manual in a safe place.
ƃIf you use a card reader to copy the images on the memory card to your PC, the
images could be damaged. When transferring the images taken with the camera
to your PC, be sure to use the supplied USB cable to connect the camera to
your PC. Please note that the manufacturer accepts no responsibility for loss or
damage of images on the memory card due to the use of a card reader.
ƃThe contents and illustrations of this manual are subject to change without prior
notice for upgrading the camera functions.
ҬMicrosoft, Windows and Windows logo are registered trademarks of Microsoft
Corporation incorporated in the United States and/or other countries.
ҬAll brand and product names appearing in this manual are registered
trademarks of their respective companies.

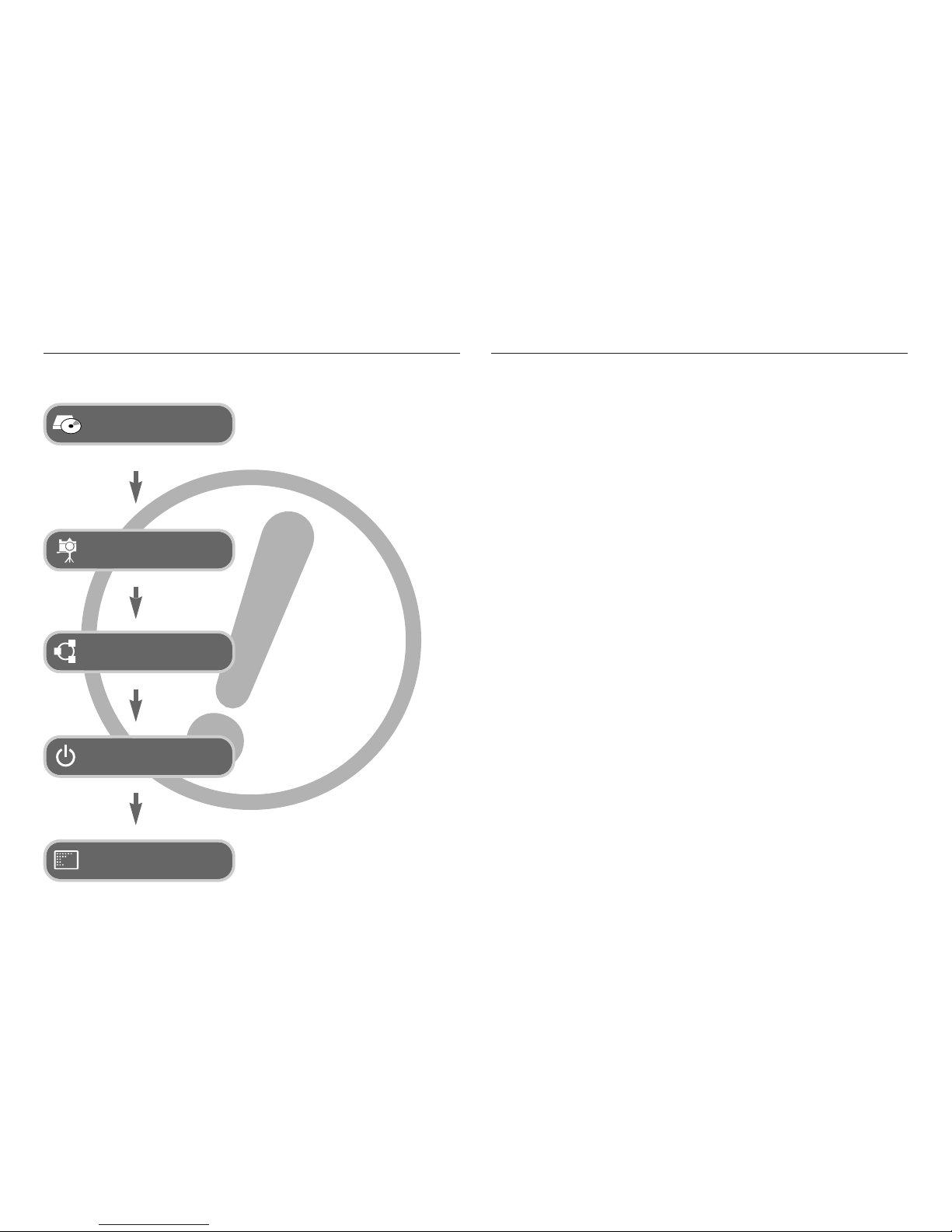

Use this camera in the following order.
Before connecting the camera to a PC, via
the USB cable, you will need to set up the
camera driver. Install the camera driver
that is contained in Application software
CD-ROM. (p.86)
Take a picture. (p.22)
Insert the supplied USB cable into the
PC’s USB port and the camera’s USB
connection terminal. (p.88)
Check the camera’s power. If the power is
turned off, press the camera button to turn
it on.
Open Windows EXPLORER and search
for [Removable Disk]. (p.89)
Check the camera’s power
Insert the USB cable
Take a picture
Check [Removable Disk]
Set up the camera driver

Danger Warning
ŝ2Ş
WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
ƃDo not use the flash in close proximity to people or animals. Positioning the flash
too close to your subject’s eyes may cause eyesight damage.
ƃFor safety reasons keep this product and accessories out of reach of children or
animals to prevent accidents e.g.:
- Swallowing battery or small camera accessories. If an accident should occur,
please consult a doctor immediately.
- There is the possibility of injury from the camera’s moving parts.
ƃBattery and camera may become hot during prolonged use and it may result in
camera malfunction. Should this be the case, let the camera sit idle for a few
minutes to allow it time to cool.
ƃDo not leave this camera in places subject to extremely high temperatures, such
as a sealed vehicle, direct sunlight or other places of extreme variances in
temperature. Exposure to extreme temperatures may adversely affect the
camera’s internal components and could cause a fire.
ƃWhen in use, do not cover the camera or Charger. This may cause heat to build
up and distort the camera body or cause a fire. Always use the camera and its
accessories in a well-ventilated area.
DANGER indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
ƃDo not attempt to modify this camera in any way. To do so may result in fire,
injury, electric shock or severe damage to you or your camera. Internal
inspection, maintenance and repairs should only be carried out by your dealer or
Samsung Camera Service centre.
ƃPlease do not use this product in close proximity to flammable or explosive
gases, as this could increase the risk of explosion.
ƃShould any form of liquid or a foreign object enter the camera, do not use it.
Switch off the camera, and then disconnect the power source. You must contact
your dealer or Samsung Camera Service centre. Do not continue to use the
camera as this may cause a fire or electric shock.
ƃDo not insert or drop metallic or inflammable foreign objects into the camera
through access points e.g. the memory card slot and battery chamber. This may
cause a fire or electric shock.
ƃDo not operate this camera with wet hands. This could pose a risk of electric
shock.

ŝ3Ş
Caution Contents
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in a minor or moderate injury.
ƃLeaking, overheating, or damaged battery could result in fire or injury.
- Use battery with the correct specification for the camera.
- Do not short circuit, heat or dispose of battery in fire.
- Do not insert the battery with the polarities reversed.
ƃRemove the battery when not planning to use the camera for a long period of
time. Otherwise the battery may leak corrosive electrolyte and permanently
damage the camera’s components.
ƃDo not fire the flash while it is in contact with hands or objects. Do not touch the
flash after using it continuously. It may cause burns.
ƃDo not move the camera while it is switched on when you are using the AC
Charger. After use, always switch off the camera before unplugging the cable
from the wall socket. Then make sure that any connector cords or cables to other
devices are disconnected before moving the camera. Failure to do so may
damage the cords or cables and cause a fire or electric shock.
ƃTake care not to touch the lens or lens cover to avoid taking an unclear image
and possibly causing camera malfunction.
ƃAvoid obstructing the lens or the flash when you capture an image.
ƃBefore inserting any cables or AC adapter, check the directions and do not insert
by force. It may cause breakage of cable or camera.
ƃCredit cards may be demagnetized if left near a camera case. Avoid leaving
magnetic strip cards near the case.
007 System chart
008 Identification of features
008 Front & Top
009 Back
010 Bottom

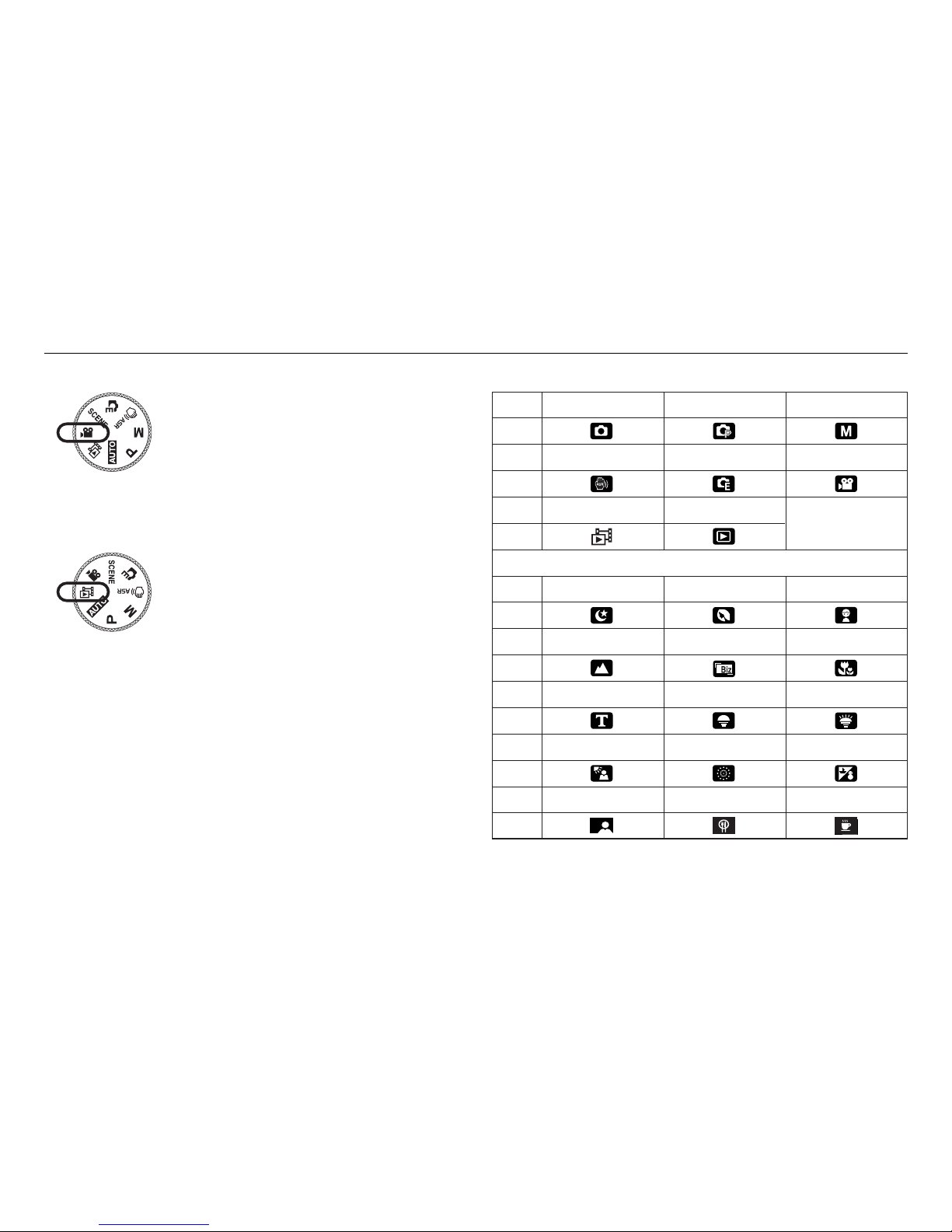

011 Mode dial
013 Connecting to a Power Source

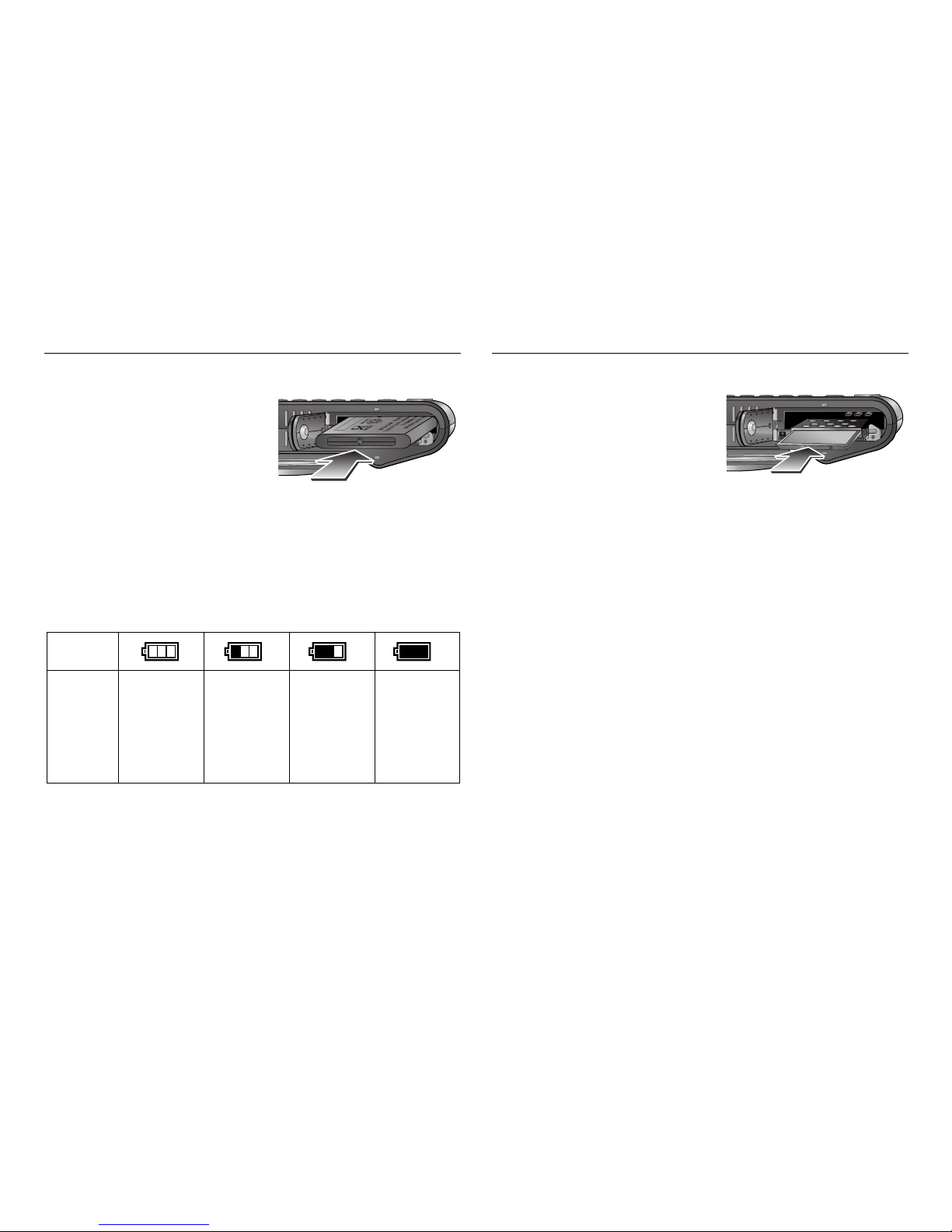

016 Inserting the Battery

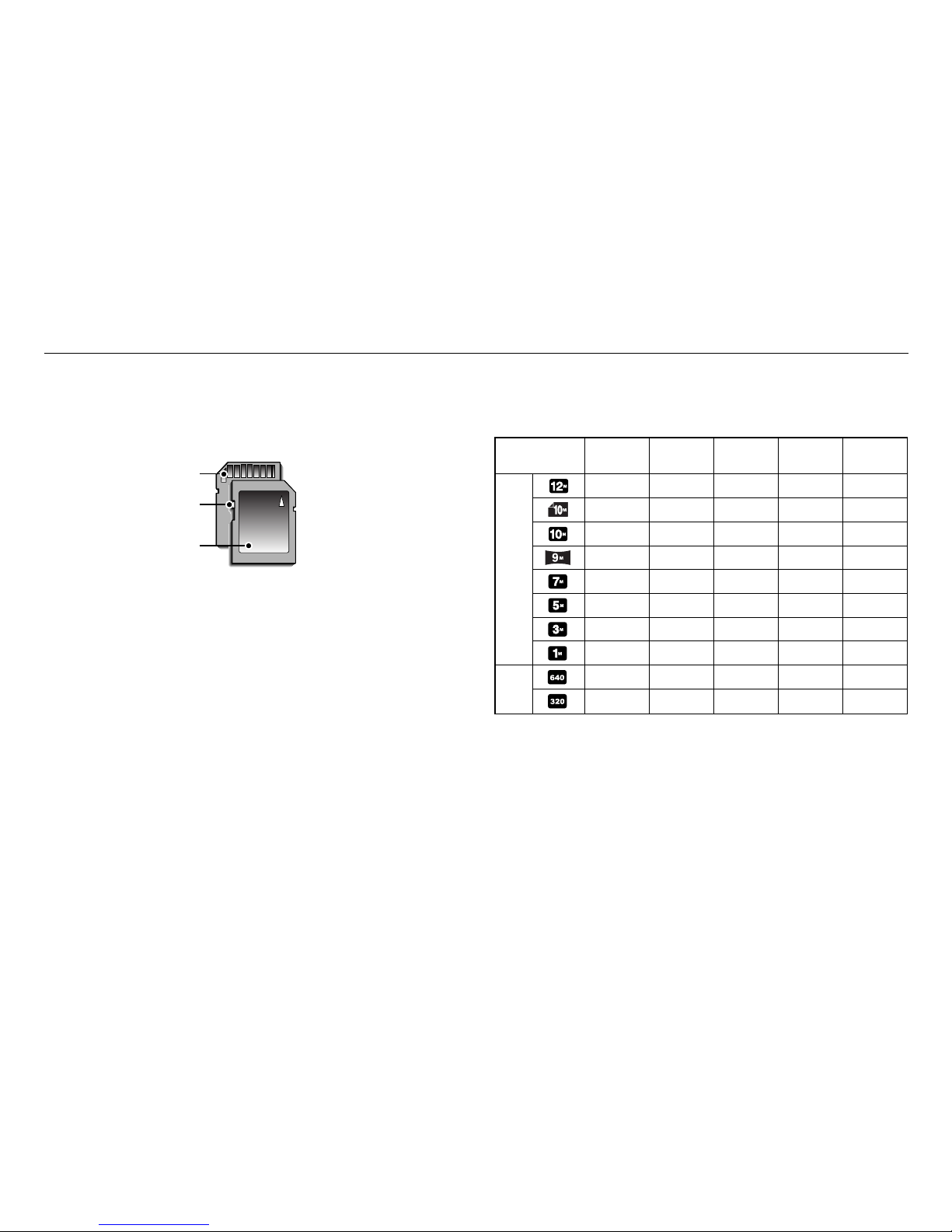

016 Inserting the memory card
017 Instructions on using the memory card
019 When Using the Camera for the First Time :
Smart button
020 When Using the Camera for the First Time :
Setting up the Date / Time and Language
021 LCD monitor indicator
022 Starting the recording mode
022 How to use the AUTO mode
022 How to use the PROGRAM mode
023 How to use the MANUAL mode
023 How to use the ASR (Advanced Shake
Reduction) mode
024 How to use the EFFECT mode
READY
RECORDING

Contents
ŝ4Ş
024 How to use the SCENE mode
025 How to use the MOVIE mode
025 Recording the movie clip without sound
025 Pausing while recording a movie clip
(Successive Recording)
026 Things to Watch Out for When Taking
Pictures
027 Using the camera buttons to set the camera
027 POWER button
027 SHUTTER button
028 ZOOM W / T button
029 Face recognition (FR) button

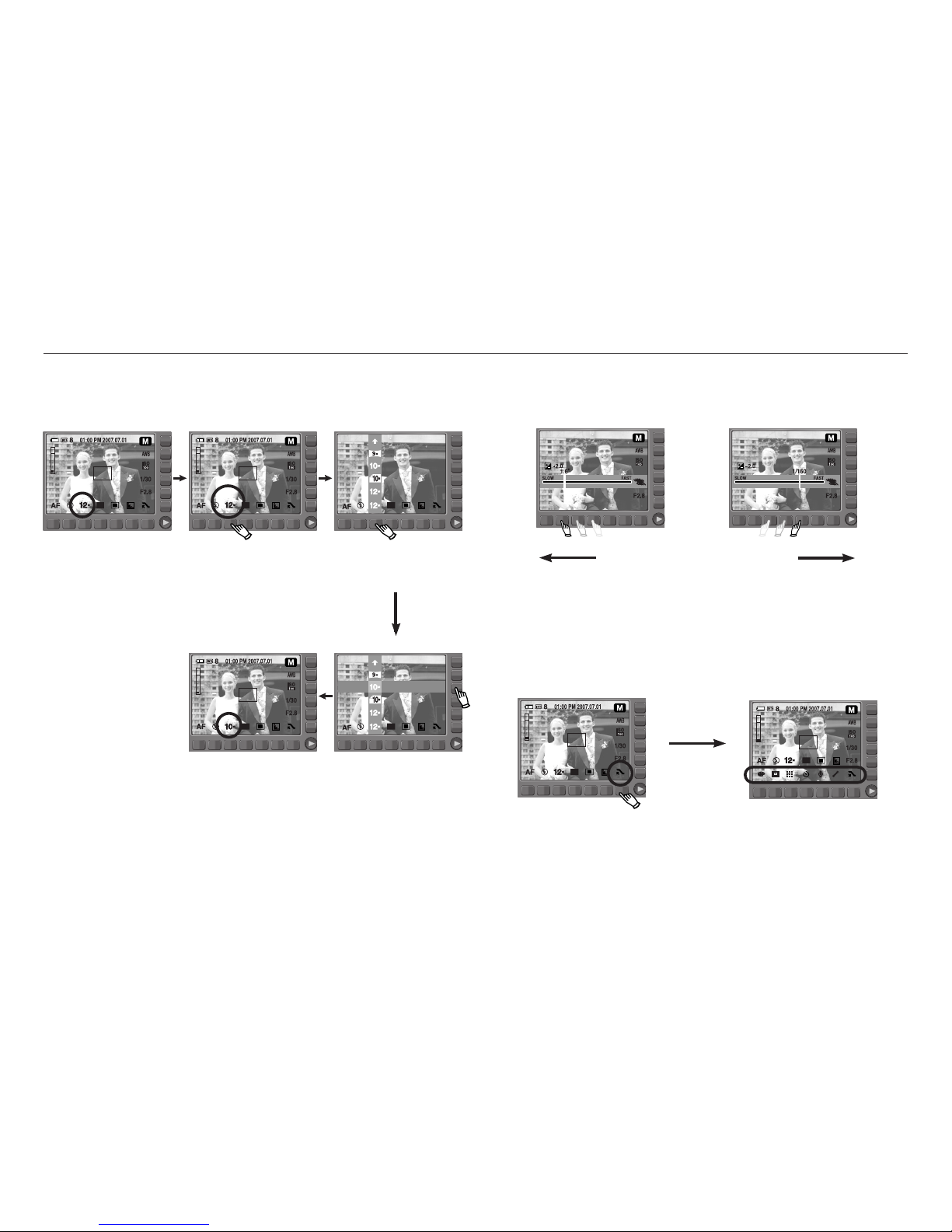

030 Using the LCD monitor to set the camera
032 Colour tone
033 Brightness
033 Selecting focus type
034 Flash
036 Size
036 Continuous shot
037 Metering
037 Sharpness
038 Effect
038 Focus Area
039 Quality / Frame rate
039 Self-timer / Remote control
040 Voice recording / Voice memo
041 Movie Clip frame stabiliser
042 Exposure compensation
042 ISO
043 White balance
044 Scene menu
044 Effect : Photo Frame
045 Effect : Motion GIF
046 Effect : Composite shooting
047 Shutter Speed
048 Aperture Value
048 Photo Gallery mode
049 Album mode
050 Date mode
051 Select images mode

Contents
ŝ5Ş
052 Starting play mode
052 Playing back a still image
052 Playing back a movie clip
053 Movie clip capture function
053 On camera movie trimming
053 Playing back a recorded voice
054 Playing back a recorded voice memo
054 LCD monitor indicator
055 Using the camera buttons to adjust the
camera
055 Play mode button
055 BACK button
055 Using the remote control in play mode
056 Thumbnail / Enlargement button
057 Starting the slide show
058 Protecting images
058 Deleting images
059 DPOF
059 DPOF : Standard
060 DPOF : Print size
060 DPOF : Index
061 Rotating an image
061 Resize
062 Trimming
PLAY 063 Effect
063 Motion GIF
064 Red eye fix
065 PictBridge
067 Setup menu
069 Setup menu 1
069 OSD set
070 File name
070 Language
070 Setting up the Date / Time / Date type
071 Setup menu 2
071 Imprinting the recording date
072 LCD brightness
072 Auto Focus lamp
072 Auto power off
073 Quick view
073 Setup menu 3
073 Start up image
074 Sound Volume
074 Operation Sound
074 Start up sound
074 Shutter sound
SETUP

Contents
ŝ6Ş
075 Setup menu 4
075 Formatting a memory
075 Delete All
076 Copy To Card
076 Selecting Video out type
077 Initialisation
078 Important notes
079 Warning indicator
080 Before contacting a service centre
082 Specifications
084 Software Notes
085 System Requirements
085 About the software
086 Setting up the application software
088 Starting PC mode
091 Removing the removable disk
092 Setting up the USB Driver for MAC
092 Using the USB Driver for MAC
092 Removing the USB Driver for Windows
98SE
093 Samsung Master
095 Samsung Biz Reader
098 FAQ
SOFTWARE

System chart
ŝ7Ş
Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your
nearest Samsung dealer or Samsung service centre.
SD/SDHC/MMC memory card
(see p.16)
DPOF compatible printer
(see p.59)
AC adapter (SAC-46) /
USB cable (SUC-C2)
External monitor
(see p.76)
Rechargeable battery
(SLB-0837B)
Software CD
(see p.86)
Camera strap
User manual,
Product warranty
Camera case
AV cableRemote control
< Included items >
Computer
(see p.88)
PictBridge compatible printer
(see p.65)

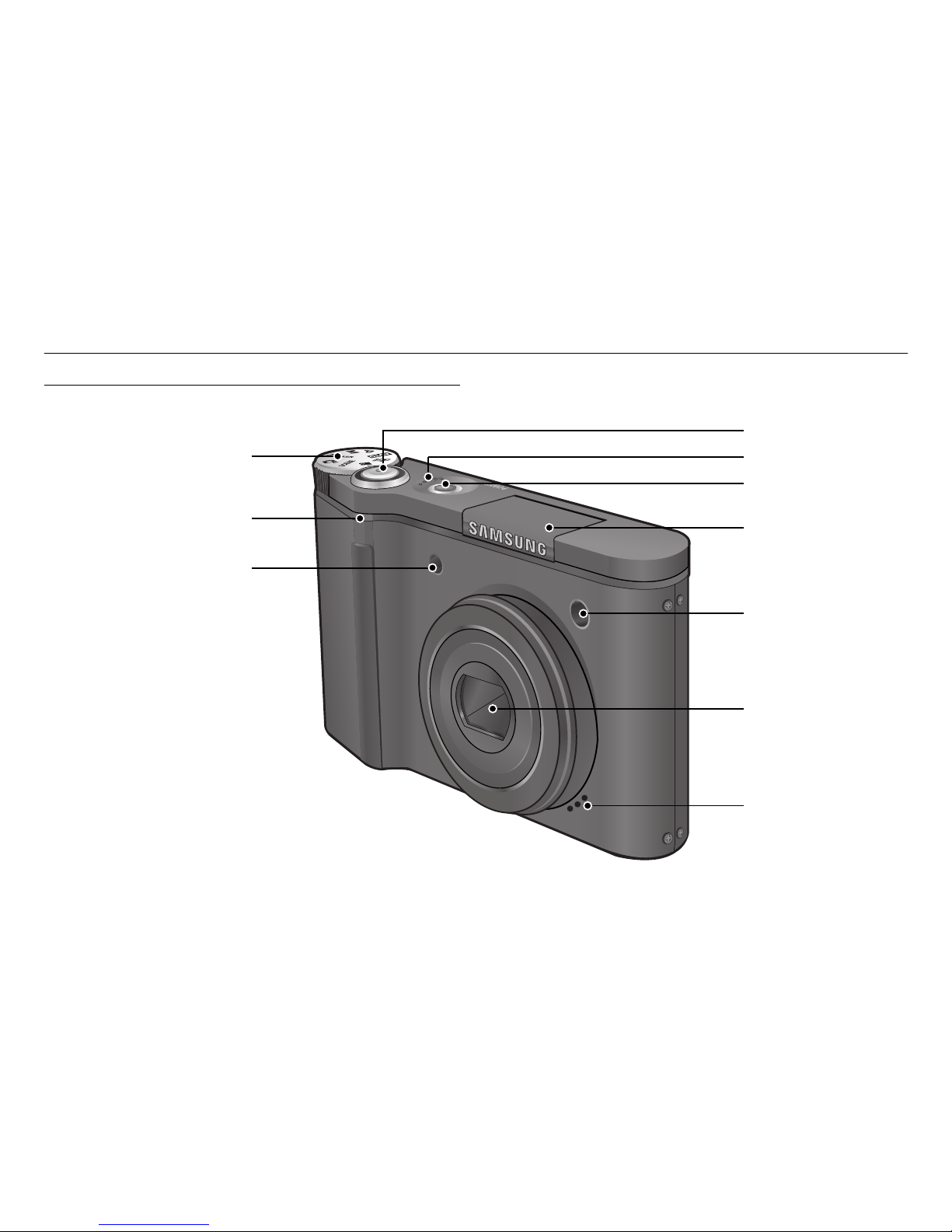

Identification of features
Front & Top
Mode dial
Self-timer lamp
Remote control sensor
Auto focus lamp
Shutter button
Built-in flash
Lens/ Lens cover
Microphone
Power button
Speaker
ŝ8Ş
ſInstructions for the Built-in flash
- The flash opens automatically when you press the
shutter button down half way.
- Do not open the flash by force.
It may break the camera.
- Close the flash when you are not using it to prevent
breakage.

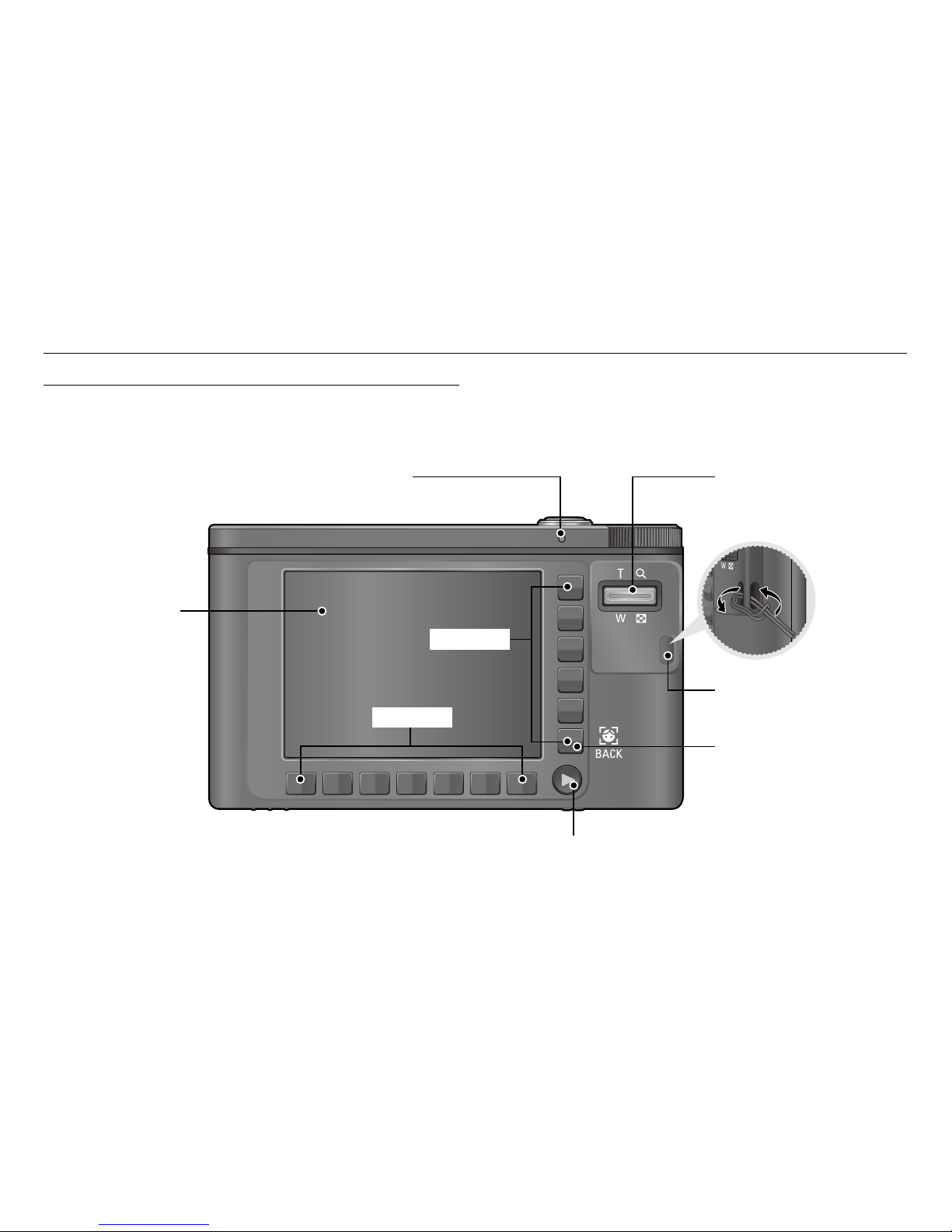

Back
Identification of features
ŝ9Ş
LCD monitor
Camera status lamp
Eyelet for camera strap
Zoom W button (Thumbnail)
Zoom T button (Digital zoom)
BACK button / FR button
Play mode button
Smart button
Smart button

Identification of features
ŝ10Ş
ƈSelf-timer lamp
Icon Status Description
Blinking
- For the first 7 seconds, the lamp blinks at 1 second intervals.
- For the final 3 seconds, the lamp blinks quickly at 0.25-
second intervals.
For 2 seconds, the lamp blinks quickly at 0.25-second
intervals before taking a picture.
A picture will be taken after about 10 seconds and 2 seconds
later a second picture will be taken.
Pressing the remote control shutter button will allow an
interval of 2 seconds before the image is taken.
Blinking
Blinking
Blinking
ſTo open the battery chamber cover, slide it in the direction shown above.
ƈCamera Status Lamp

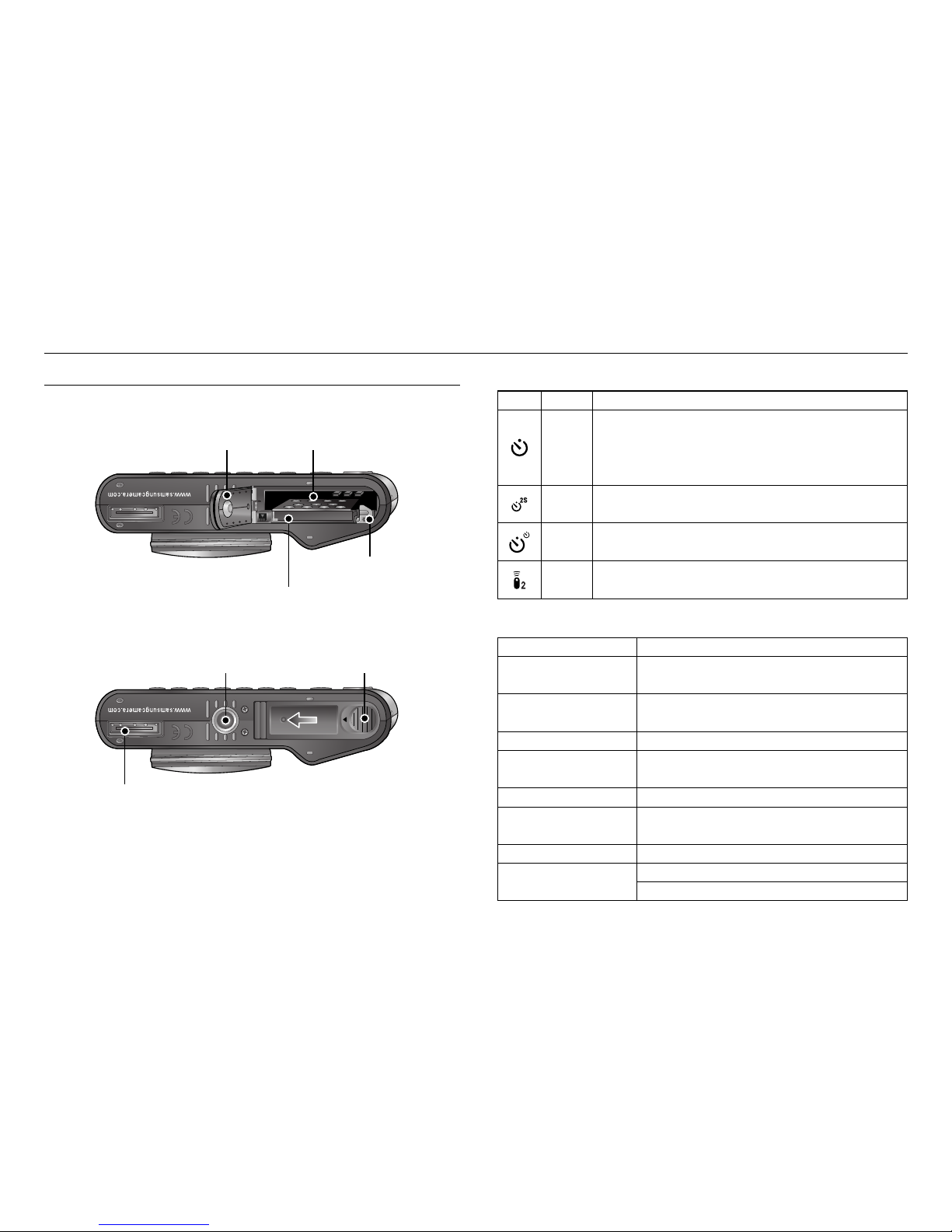

Bottom
Status Description
After taking a picture
Power on
The lamp blinks while saving the image and then
turns off when ready to take another picture.
The lamp turns on and off when the camera is
ready to take a picture.
The lamp blinks.
The lamp lights up
(LCD monitor turns off after initializing the device)
The lamp turns on (LCD monitor turns off)
The lamp lights (The subject is in focus)
The lamp blinks.
The lamp is off.
The lamp blinks (The subject is not in focus)
While voice memo recording
When the USB cable is
inserted to a PC
Transmitting Data with a PC
When the AF activates
When the USB cable is
connected to a printer
When the printer is printing
Battery holder
Battery chamberBattery chamber cover
Memory card slot
Battery cover leverTripod socket
USB / AV connection terminal

Identification of features
ŝ11Ş
Mode dial
You can select the desired working mode by using the mode dial located on the top of the camera.
ƈAUTO mode
Selects this mode for quick and easy picture taking with
minimal user interaction.
In this mode, you can select the basic menus. To select
an advanced menu, select the other camera mode.
ƈPROGRAM mode
Selecting the program mode will configure the camera
with optimal settings. You can still manually configure all
functions except the aperture value and shutter speed.
ƈMANUAL mode
You can manually configure all functions including the
aperture value and shutter speed.
ƈASR mode
Advanced Shake Reduction (ASR) mode. This mode will
reduce camera shake and help you get a clearer image.
ƈEFFECT mode
It is possible to add special effects to your images by
using this mode.
ƈSCENE mode
Use the menu to easily configure optimal settings for a
variety of shooting situations.

ŝ12Ş
Identification of features
ƈMode icon
-
MODE AUTO PROGRAM MANUAL
Icon
MODE ASR EFFECT MOVIE
Icon
MODE PHOTO GALLERY PLAY
Icon
SCENE
MODE NIGHT PORTRAIT CHILDREN
Icon
MODE LANDSCAPE BIZ CLOSE UP
Icon
MODE TEXT SUNSET DAWN
Icon
MODE BACKLIGHT FIREWORKS BEACH&SNOW
Icon
MODE SELF SHOT FOOD CAFÉ
Icon
ƈMOVIE mode
A movie clip can be recorded for as long as the available
recording time of the memory capacity allows.
ƈPHOTO GALLERY mode
The saved images can be reviewed with music or various
effects in this mode.

Connecting to a Power Source
ŝ13Ş
Using the fully charged battery,
Auto mode, 12M image size,
Fine image quality, Shot to shot interval :
30Sec.
Changing the zoom position between the
Wide and the Tele after every shot.
Using the flash on every second shot.
Using the camera for 5 minutes and then
Powering it off for 1 minute.
Approx. 100 MIN /
Approx. 200
Still image
Based on the following shooting conditions
Battery life /
Number of images
ƈNumber of images and battery life : Using the SLB-0837(B)
ſThese figures are measured under Samsung’s standard conditions and shooting
conditions and may vary depending on the user's methods.
ƈSLB-0837(B) rechargeable battery specification
You should use the rechargeable battery (SLB-0837(B)) supplied with the
camera. Be sure to charge the battery before using the camera.
Important information about battery usage.
ƃWhen the camera is not used, turn off the camera power.
ƃPlease remove the battery if the camera will not be used for long
periods. Batteries can lose power over time and are prone to leaking if
kept inside the camera.
ƃLow temperatures (below 0°C) can affect the performance of the
battery and you may experience reduced battery life.
ƃBattery will usually recover at normal temperatures.
ƃDuring extended use of the camera, the camera body may become
warm. This is perfectly normal.
Using the fully charged battery
640X480 image size
30fps frame rate
Approx. 95 MIN
Movie
Based on the following shooting conditions
Recording time
Model SLB-0837(B)
Type Lithium Ion
Capacity 800mAh
Voltage 3.7V
Charging time
(When the camera is turned off) About 150 Min.

Connecting to a Power Source
ŝ14Ş
You can charge the rechargeable battery (SLB-0837(B)) by using an SAC-46
KIT. The SAC-46 KIT consists of the AC adapter (SAC-46) and the USB
cable (SUC-C2). When the AC adapter and the USB cable are assembled, it
can be used as an AC cable.
ƃUsing the SAC-46 as an AC charger
: Insert the AC adapter into the USB connector.
When the AC adapter is inserted, it can be
used as an AC charger.
ƃUsing the SAC-46 as an USB cable
: Remove the AC adapter from the USB
connector. You can transmit data with a PC
(p.88) or charge the battery.
In the following cases, the battery may not be charged.
ƃWhen using the USB cable that was not supplied with this camera. Use
the supplied USB cable.
ƃWhen using a USB hub. Connect the camera to the PC directly.
ƃWhen other USB devices are connected to the PC. Disconnect the
other USB devices.
ƃWhen the USB is connected to the USB port located on the front of the
computer. Use the USB located on the back of the computer.
ƃIf the USB port of the PC doesn't meet the Power output standard (5V,
500mA), the camera may not be charged.

Connecting to a Power Source
ŝ15Ş
ƈCharging LED of the AC Adapter
ƈHow to charge the rechargeable battery (SLB-0837(B))
Charging LED
ƃBefore inserting any cables or AC adapter, check the directions and do
not insert by force. It may cause damage to the cable or camera.
ƃIf the charging LED of the AC Charger does not turn on or blink after
inserting the rechargeable battery, please check whether the battery is
inserted correctly.
ƃIf you charge the battery with the camera power on, the battery can't
charge fully. Turn the camera off while charging the battery.
ƃIf you insert the fully discharged battery to charge it, do not turn on the
camera at the same time. The camera may not be turned on because
of the low battery capacity. Charge the battery for more than 10 minutes
before using the camera.
ƃDo not use the flash frequently or take a movie clip with a fully
discharged battery that has only been charged for a short time.
Charging LED
Being Charged Red LED is on
Charging is complete Green LED is on
Charging error Red LED is off or blinking
Being discharged
(Using the AC adapter) Orange coloured LED is on

Inserting the Battery Inserting the memory card
ŝ16Ş
Insert the battery as shown
- If the camera does not turn on after you
have inserted battery, please check
whether the battery is inserted with the
correct polarity (+ / -).
- Do not use force to open the battery
chamber. This may damage the battery
chamber cover.
Battery
status
Battery
indicator
The battery is
fully charged
Low battery
capacity
(Prepare to
recharge or use
spare battery)
Low battery
capacity
(Prepare to
recharge or use
spare battery)
Battery empty.
( Recharge or
use spare
battery)
ƈThere are 4 indicators for battery condition that are displayed on the
LCD monitor.
Turn off the camera's power before inserting the memory card.
- Insert the memory card as shown.
- Have the front of the memory card
facing toward the back of the camera
(LCD monitor) and the card pins
toward the front of the camera (Lens).
- Do not insert the memory card the
wrong way round. Doing so may
damage the memory card slot.

Instructions on using the memory card
ŝ17Ş
ƃIf the memory card is subjected to any of the following, the recorded data may
become corrupted :
- When the memory card is used incorrectly.
- If the power is switched off or the memory card is removed while recording,
deleting (formatting) or reading.
ƃSamsung cannot be held responsible for lost data.
ƃIt is advisable to copy important data onto other media as back-up e.g. floppy
disks, hard disks, CD etc.
ƃIf there is insufficient memory available
: A [Memory Full!] message will appear and the camera will not operate.
To optimise the amount of memory in the camera, replace the memory card or
delete unnecessary images stored on the memory card.
ƃBe sure to format the memory card (see p.75) if you are using a newly
purchased memory card for the first time, if it contains data that the camera
cannot recognise, or if it contains images captured with a different camera.
ƃTurn off the camera power whenever the memory card is being inserted or
removed.
ƃRepeated use of the memory card will eventually reduce its performance.
Should this be the case, you will need to purchase a new memory card.
Wear and tear on the memory card is not covered by the Samsung warranty.
ƃThe memory card is an electronic precision device.
Do not bend, drop or subject it to any heavy impact.
ƃDo not store the memory card in an environment with strong electronic or
magnetic fields, e.g. near loudspeakers or TV receivers.
ƃPlease do not use or store in an environment where there are extremes in
temperature.
ƃDo not allow the memory card to become dirty or to come into contact with any
liquid. Should this happen, clean the memory card with a soft cloth.
ƃPlease keep the memory card in its case when not in use.
ƃDuring and after periods of extended use, you may notice that the memory card
is warm. This is perfectly normal.
ƃDo not use a memory card that is used in another digital camera.
To use the memory card in this camera, format the memory card using this
camera.
ƃDo not use a memory card formatted by another digital camera or memory card
reader.
ƃDon't remove the memory card when the camera status lamp is blinking
as this may cause damage to data in the memory card.

Instructions on using the memory card
ŝ18Ş
[SD (Secure Digital) memory card]
Write protect switch
Label
Card pins
The camera can use SD/SDHC Memory Cards and MMC (Multi Media
Cards).
The SD/SDHC memory card has a write protect switch that prevents image files
from being deleted or formatted. By sliding the switch towards the bottom of the
SD/SDHC memory card, the data will be protected. By sliding the switch towards
the top of the SD/SDHC memory card, the data protection will be cancelled. Slide
the switch to the top of the SD/SDHC memory card before taking a picture.
When using a 256MB MMC memory, the specified shooting capacity will be
as follows. These figures are approximate as image capacities can be
affected by variables such as subject matter and memory card type.
* The recording times can be affected by the zoom operation.
The zoom button doesn't operate while recording movies.
41 79 115
46 88 128
49 94 136
54 103 149
68 128 183
93 173 241
143 254 344
418 616 731
About 12'42" About 20'51"
About 30'34" About 57'49"
Movie
Still

SUPER FINE FINE NORMAL 30FPS 15FPS
Recorded image
size

When Using the Camera for the First Time : Smart button
ŝ19Ş
Extending the menus : Press the extension menu button and more available
menus will be displayed.
ſThe LCD monitor will be dark when some menus are selected. After selecting
the menu, the LCD monitor returns to the brightness set as before.
Pressing the
extension menu
button
This button is used for shifting the menu cursor to select or for confirming the
selected menu.
To select a sub menu, in some menus, touch the button and slide your finger
to the left / right.
[Selecting the main menu :
Touching the button]
SIZE
[Confirming the main menu :
Pressing the button]
[Confirming the sub menu :
Pressing the button]
[Selecting the sub menu :
Touching the button]
[e.g. : Selecting the shutter speed]
Slow Fast
4000X2248
3648X2736
4000X2664
4000X3000
4000X2248
3648X2736
4000X2664
4000X3000
