User’s Manual
Thank you for buying a Samsung Camera.
This manual will guide you through using the camera, including capturing images,
downloading images and using the application software.
Please read this manual carefully before using your new camera.

ŝ2Ş
ƈUse this camera in the following order
Insert the
USB cable
Set up the
camera driver
Before connecting the camera to a PC, via the
USB cable, you will need to set up the camera
driver. Install the camera driver that is contained in
Application software CD-ROM. (p.138)
ſTo play back the movie clip on a PC, DirectX 9.0
or later must be installed. (p.138)
Take a picture. (p.29)
Insert the supplied USB cable into the PC’s USB
port and the camera’s USB connection terminal.
(p.144)
Check the camera’s power. If the power is turned
off, press the camera button to turn it on.
Take a picture
Check the
camera’s power
Check
[Removable Disk]
Open Window’s EXPLORER and search for
[Removable Disk]. (p.145)
ƃIf you use a card reader to copy the images on the memory card to your PC, the images
could be damaged. When transferring the images taken with the camera to your PC, be sure
to use the supplied USB cable to connect the camera to your PC. Please note that the
manufacturer holds no responsibility for loss or damage of images on the memory card due
to the use of a card reader.
Instructions

ŝ3Ş
ƃGetting to know your camera 5
ƃDanger 6
ƃWarning 6
ƃCaution 7
ƃSystem chart 8
ƃIdentification of features 10
ƈFront 10
ƈSide (Left/ Right) 10

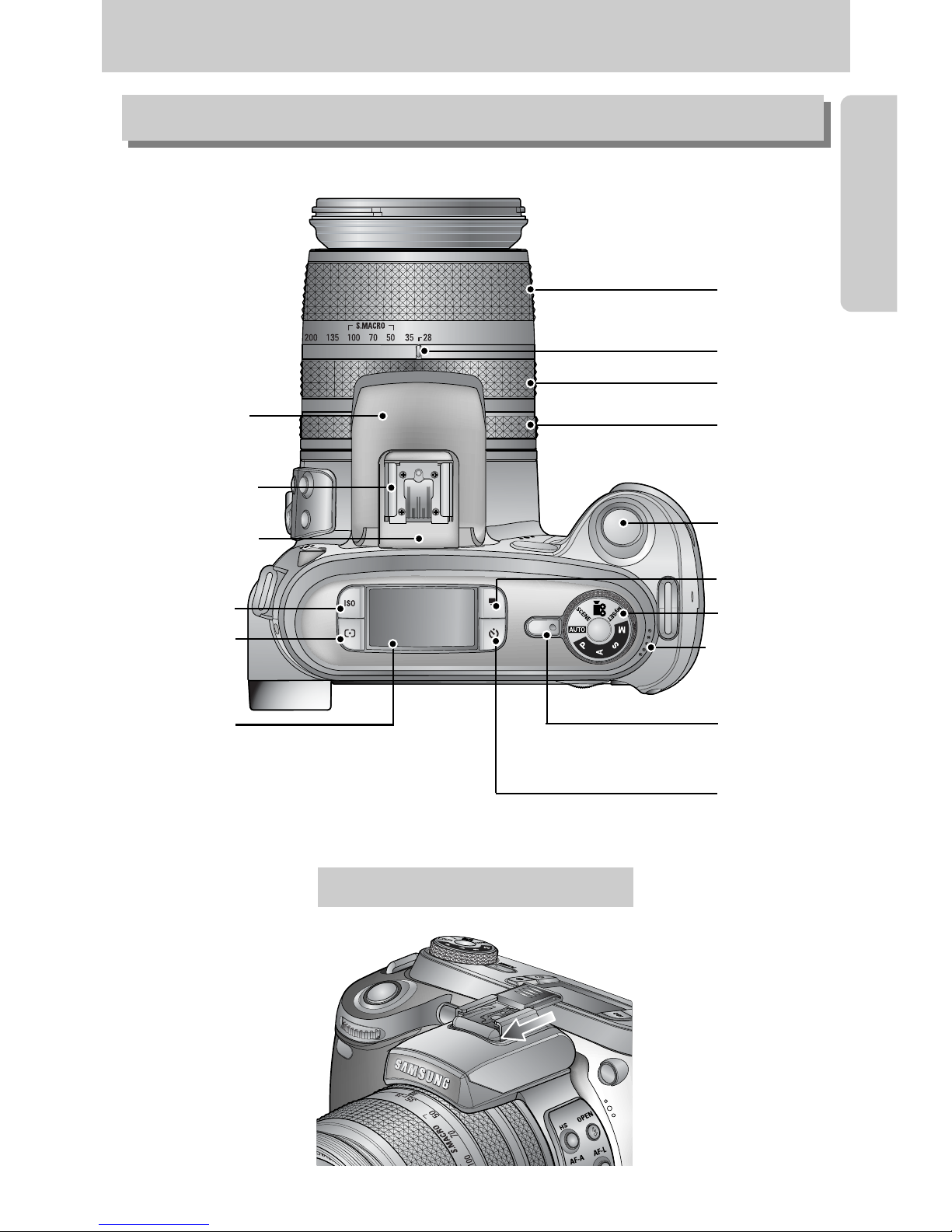

ƈTop 11
ƈBack 12

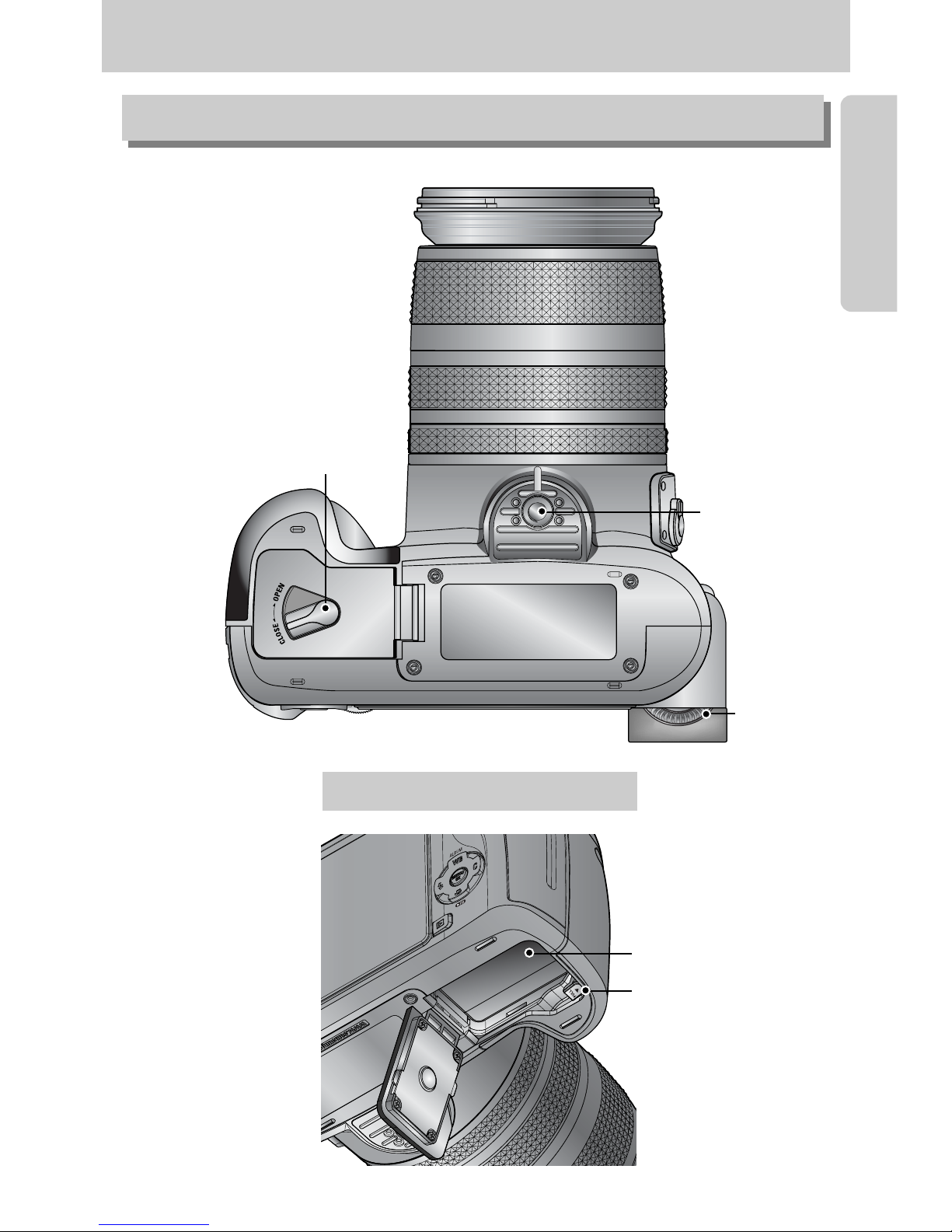

ƈBottom 13
ƈSelf-timer lamp 14
ƈCamera Status Lamp 14
ƈMode icon 14
ƃBefore using the camera 15
ƈConnecting to a Power Source 15

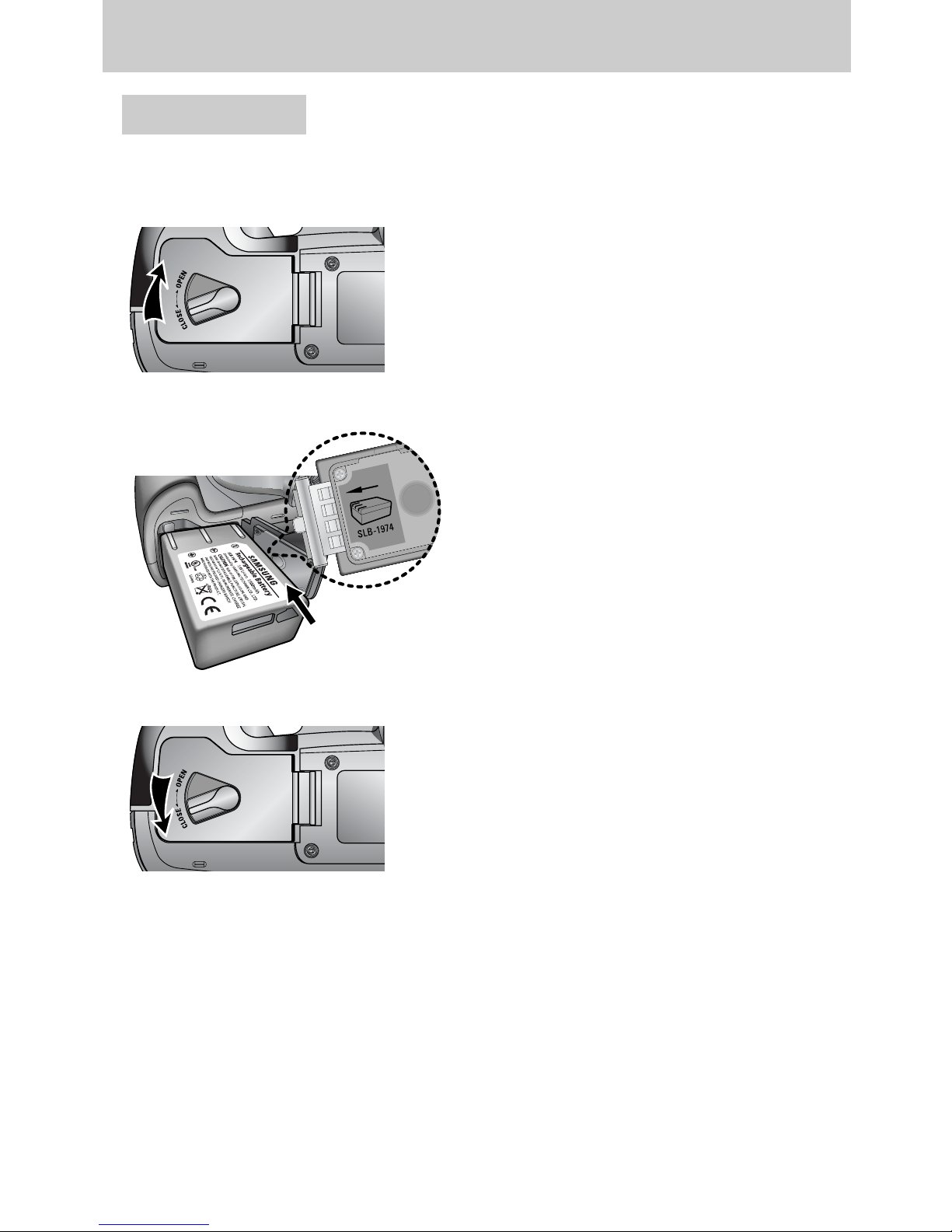

ƈUsing the battery 16
ƈRemoving the battery 17
ƈHow to charge the rechargeable battery 18
ƈAC adapter (SAC-81, DC 8.4V) 19
ƈ Instructions on how to use the memory card 20
ƈInserting the memory card 22
ƈRemoving the memory card 22
ƈAttaching the strap 23
ƈAttaching the lens hood 24
ƈAttaching the lens cap 25
ƃLCD indicator 26
ƈRear LCD/ Finder LCD 26
ƈTop LCD 28
ƃRecording mode 29
ƈHow to use the AUTO mode 29
ƈHow to use the PROGRAM mode 30
ƈ How to use the APERTURE PRIORITY mode 30
ƈ How to use the SHUTTER PRIORITY mode 31
ƈHow to use the MANUAL mode 31
ƈHow to use the MySET mode 32
ƈHow to use the MOVIE CLIP mode 32
ƈHow to use the SCENE mode 33
ƃThings to Watch Out for When Taking
Pictures 34
ƃUsing the camera buttons to adjust the
camera 35
ƈPOWER button 35
ƈSHUTTER button 35
ƈJog dial (Front, Rear) 35
ƃDrive button 36
ƃSelf-timer/ Remote button 40
ƃISO button 42
ƃMetering button 43
ƃZoom operation 44
ƃFocusing 46
ƃHigh speed shutter mode 49
ƃExposure control 50
ƃ5-function button 52
ƃWhite balance 53
ƃMacro 55
ƃFlash 57
ƃExternal flash (optional) 61
ƃCustom settings 62
ƃLCD button 63
ƃDisplay/ Information button 64
ƃSCENE button 65
ƃDiopter 66
ƃUsing the LCD monitor to adjust the camera
settings 67
ƃSize 70
ƃQuality 71
ƃEffect 72
ƃContrast 73
ƃSaturation 74
ƃSharpness 75
ƃVoice memo 76
ƃColour space 77
Contents
RECORDING
READY

ŝ4Ş
ƃSave/ Load a specific camera configuration
(MySET) 78
ƃSpot AE point 79
ƃStarting play mode 80
ƃLCD monitor indicator 82
ƈRear LCD/ Finder LCD 82
ƈTop LCD 83
ƃ Thumbnail button/ Enlargement button 84
ƃDisplay/ Information button 86
ƃAlbum mode 87
ƃ5-function button 90
ƃRemote control 91
ƃDelete button 92
ƃSetting up the play back function using
the LCD monitor 93
ƃStarting the slide show 96
ƃProtecting images 98
ƃDeleting images 99
ƃVoice memo 100
ƃResize 101
ƃRotating an image 102
ƃDPOF 103
ƃDPOF : STANDARD 103
ƃDPOF : INDEX 104
ƃDPOF : PRINT SIZE 104
ƃPictBridge 105
ƃPictBridge : Picture Selection 106
ƃPictBridge : Print Setting 107
ƃPictBridge : Printing 108
ƃPictBridge : RESET 109
ƃSetup menu 110
ƃFile name 112
ƃAuto power off 113
ƃAuto turning off the LCD 114
ƃLanguage 115
ƃFormatting a memory card 116
ƃSetting up the Date & Time 117
ƃSetting up the date type 117
ƃWorld time 118
ƃImprinting the recording date 119
ƃSound 120
ƃLCD brightness 120
ƃSelecting Video out type 121
ƃQuick view 122
ƃAuto rotating sensor 123
ƃConnecting an External Device (USB) 124
ƃInitialisation 124
ƃSetting up the MYCAM menu 125
ƃStart up image 126
ƃStart up sound 126
ƃShutter sound 127
ƃSound type 127
ƃImportant notes 128
ƃWarning indicator 130
ƃBefore contacting a service centre 131
ƃSpecifications 134
ƃSoftware Notes 136
ƃSystem Requirements 136
ƃAbout the software 137
ƃSetting up the application software 138
ƃStarting PC mode 144
ƃ Removing the USB Driver for Windows 98SE 147
ƃRemovable Disk 149
ƃRemoving the removable disk 150
ƃSetting up the USB Driver for MAC 151
ƃUsing the USB Driver for MAC 151
ƃDigimax Master 152
ƃDigimax Reader 158
ƃFAQ 160
Contents
SETUP
SOFTWARE
PLAY

ŝ5Ş
Thank you for buying a Samsung Digital Camera.
ƃPrior to using this camera, please read the user manual thoroughly.
ƃWhen you require After Sales service, please bring the camera and the cause of the camera
malfunction (such as battery, Memory card etc.) to the A/S centre.
ƃPlease check that the camera is operating properly prior to when you intend to use it
(e.g. for a trip or an important event) to avoid disappointment. Samsung camera takes no
responsibility for any loss or damages that may result from camera malfunction.
ƃKeep the manual in a safe place.
ҬMicrosoft, Windows and Windows logo are registered trademarks of Microsoft Corporation
incorporated in the United States and/or other countries.
ҬCompactFlash logo is registered trademarks of SanDisk Corporation.
ҬAll brand and product names appearing in this manual are registered trademarks of their
respective companies.
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation, which, if not avoided,
may result in a minor or moderate injury.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate
collection systems) This marking shown on the product or its literature, indicates that
it should not be disposed with other household wastes at the end of its working life.
To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it responsibly to
promote the sustainable reuse of material resources. Household users should contact either the
retailer where they purchased this product, or their local government office, for details of where
and how they can take this item for environmentally safe recycling. Business users should
contact their supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
This manual contains instructions on using this camera that will help you to use this
camera safely and correctly. This will help prevent danger and injury to others.
Getting to know your camera

ŝ6Ş
ƈDo not attempt to modify this camera in any way. This may result in fire, injury, electric shock
or severe damage to you or your camera. Internal inspection, maintenance and repairs
should be carried out by your dealer or Samsung Camera Service centre.
ƈPlease do not use this product in close proximity to flammable or explosive gases, as this
could increase the risk of explosion.
ƈShould any form of liquid or a foreign object enter the camera, do not use it. Switch off the
camera, and then disconnect the power source (batteries or AC Power Adapter).
You must contact your dealer or Samsung Camera Service centre. Do not continue to use
the camera as this may cause a fire or electric shock.
ƈDo not insert or drop metallic or inflammable foreign objects into the camera through access
points e.g. the memory card slot and battery chamber. This may cause a fire or electric
shock.
ƈDo not operate this camera with wet hands. This could pose a risk of electric shock.
Warning
Danger
ƈDo not use the flash in close proximity to people or animals. Positioning the flash too close to
your subject’s eyes, may cause eyesight damage.
ƈWhen taking photographs, never point the lens of the camera directly into very strong light.
This may result in permanent damage to your eyesight.
ƈFor safety reasons keep this product and accessories out of reach of children or animals to
prevent accidents e.g.:
ҮSwallowing batteries or small camera accessories. If an accident should occur, please
consult a doctor immediately.
ҮThere is the possibility of injury from the camera’s moving parts.
ƈBatteries and camera may become hot during prolonged use and it may result in camera
malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it
time to cool.
ƈDo not recharge non rechargeable batteries. This may cause an explosion.
ƈDo not leave this camera in places subject to extremely high temperatures, such as a sealed
vehicle, direct sunlight or other places of extreme variances in temperature.
Exposure to extreme temperatures may adversely affect the cameraŖs internal components
and could cause a fire.
ƈWhen in use, do not cover the camera or AC Power Adapter. This may cause heat to build up
and distort the camera body or cause a fire. Always use the camera and its accessories in a
well-ventilated area.

ŝ7Ş
Caution
ƈLeaking, overheating, or burst batteries could result in fire or injury.
ҮUse batteries with the correct specification for the camera.
ҮDo not short circuit, heat or dispose of battery in fire.
ҮDo not insert the batteries with the reverse polarities.
ƈRemove the batteries when not planning to use the camera for a long period of time.
Batteries may leak corrosive electrolyte and permanently damage the camera's components.
ƈDo not fire the flash while it is in contact with hands or objects. Do not touch the flash after
using it continuously. It may cause burns.
ƈIf you are using the AC power adaptor be careful when moving the camera.
After use, always switch off the camera before unplugging the adapter from the wall socket.
Then make sure that any connector cords or cables to other devices are disconnected before
moving the camera. Failure to do so may damage the cords or cables and cause a fire or
electric shock.
ƈThe Lens is attached to the camera body. Do not drop or press the lens by force.
It may cause a camera malfunction.
ƈDo not pull the lens by hand or do not rotate the zoom ring quickly. It may cause a camera
malfunction. Please be careful when using the lens.
ƈDo not extract the external flash from the camera by force. It may cause damage to the top of
the camera.

ŝ8Ş
Please check that you have the correct contents before using this product. To buy the optional
equipment, contact your nearest Samsung dealer or Samsung service centre.
CF (CompactFlash) card
(p.20)
DPOF compatible
printer (see p.103)
Exclusive
bounce flash
Flash plate
Camera case User manual,
Warranty card
Camera strapRemote control Software (p.137)
AC cordAC adapter Battery charger
Rechargeable battery
(SLB-1974)
Lens adapter Lens hood Lens cap
< Included items >

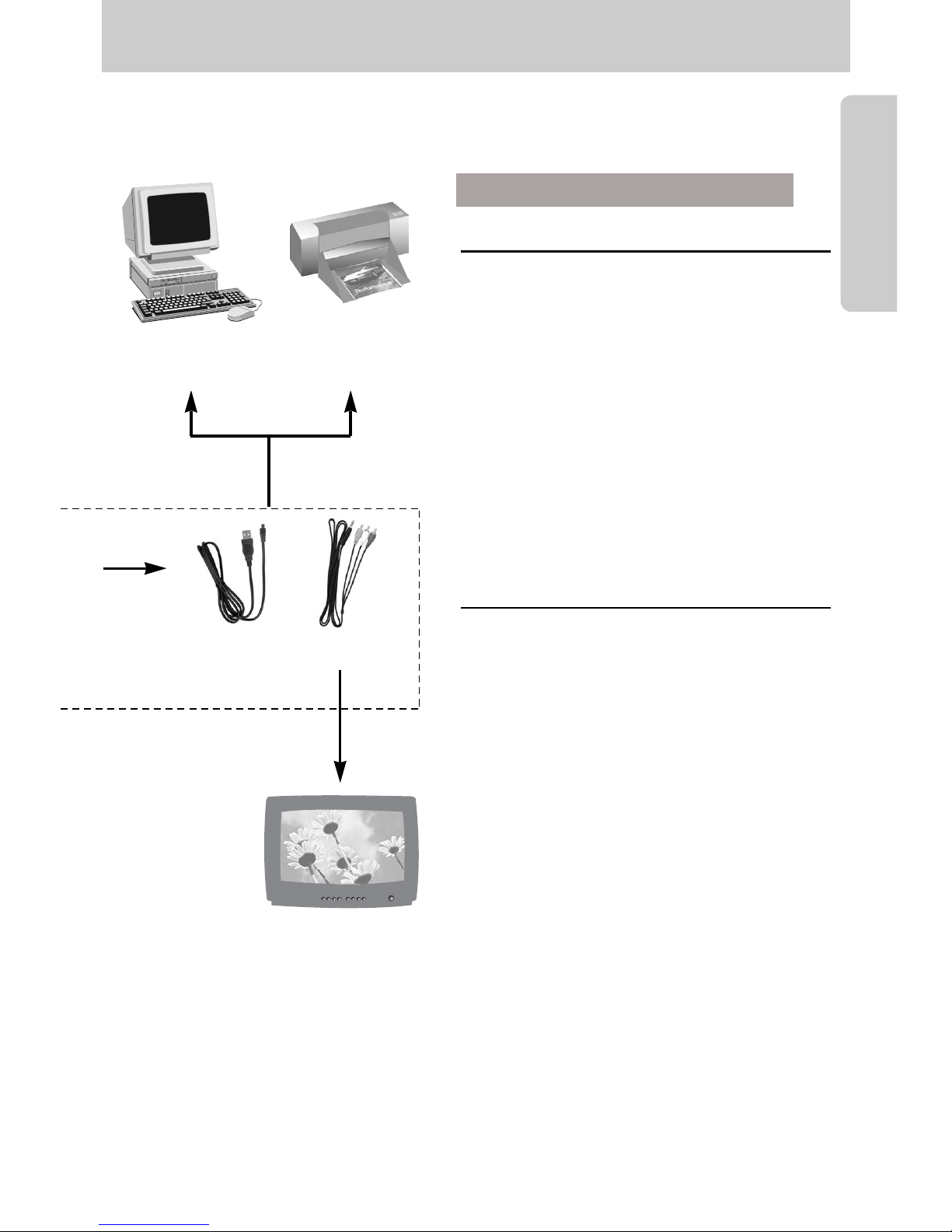

System chart

ŝ9Ş
PictBridge compatible
printer (see p.105)
Computer (p.144)
External monitor
Yellow cable - Video,
White/ Red colour - Stereo
voice (see p.121)
USB cable AV cable
For Windows
Ү PC with processor better than Pentium II 450MHz
(Pentium 700MHz or better is recommended)
ҮWindows 98/ 98SE/ 2000/ ME/ XP
ҮMinimum 64MB RAM (XP : 128MB)
Ү200MB of available hard-disk space
(Over 1GB is recommended)
ҮUSB port
ҮCD-ROM drive
Ү1024x768 pixels, 16-bit colour display
compatible monitor (24-bit colour display
recommended)
ҮDirectX 9.0 or later
For Macintosh
ҮPower Mac G3 or later
ҮMac OS 10.0 or later
ҮMinimum 64MB RAM
Ү110MB of available hard-disk space
ҮUSB port
ҮCD-ROM drive
System Requirements
System chart

ŝ10Ş
Front
Side (Left/ Right)
Side (Left) Side (Right)
AF passive sensor
High Speed shutter (HS) button
Remote control sensor
Flash
Focus area selection (AF-A) button
Focus mode selection button
Speaker
Connector cover
Memory card slot cover
Pop-up flash (OPEN) button/
Flash compensation button
AF lock(AF-L) button
Remote control
sensor
Microphone
Shutter button
Front Jog dial
(JOG 1)
Self-timer lamp &
Auto Focus lamp
Microphone
Lens
Identification of features

ŝ11Ş
Top
Drive button
Self-timer
button
Power button/
Power lamp
Top LCD
ISO button
Metering button
Hot shoe
Flash status lamp
Mode dial
Speaker
Shutter button
EVC (Exposure Value
Compensation) ring
Focus ring
Zoom ring
Zoom scale indicator
Flash
Hot shoe cap
Identification of features

ŝ12Ş
Back
Connectors Memory card slot
Strap eyelet
AV port
USB connector port
DC-in port
Finder LCD
Diopter adjustment ring
Card in use lamp
LCD button
,Q[XTIa1VNWZUI\QWVJ]\\WV
Connector cover
SCENE/
Delete button
Back LCD
Memory card slot cover
Memory card
eject lever
Memory card slot
5-function button
Play mode button
Digital zoom/
Enlargement button
Strap eyelet
AE Lock (AE-L) button/
Thumbnail button
Rear Jog dial (JOG 2)
Identification of features

ŝ13Ş
Bottom
Battery chamber
Battery chamber
cover & lock
Tripod socket
Battery holder
Battery chamber
Diopter
adjustment
ring
Identification of features

ŝ14Ş
ƈSelf-timer lamp
ƈCamera Status Lamp
Icon Status Description
- For the first 7 seconds, the lamp blinks at 1 second intervals.
- For the final 3 seconds, the lamp blinks quickly at 0.25-second
intervals.
A picture will be taken after about 10 seconds and 2 seconds later
a second picture will be taken.
Blinking
Blinking
Blinking
Lamp Colour Status Description
On Power on
Blinking When the LCD is turned off
Charging is complete
(Pressing the shutter button half way down)
The flash is being charged
When the memory card is being used
Red Blinking PC mode - When the data is transmitting
- When the USB cable is connected
Card in use lamp
ƈMode icon
Mode AUTO PROGRAM A priority S priority MANUAL MySET MOVIE CLIP
Icon
Icon
NIGHT PORTRAIT CHILDREN LANDSCAPE CLOSE-UP TEXT
SUNSET
DAWN BACKLIGHT
BEACH &
SNOW
FIREWORKS
Mode
For 2 seconds, the lamp blinks quickly at 0.25-second intervals.
Flash status lamp
Power lamp Green
Red On
Blinking
Identification of features

ŝ15Ş
ƈThere are two ways in which to provide the camera with power. You can use battery or
alternatively, you can use the AC adaptor.
ƈSpecification of SLB-1974 rechargeable battery
ſTo buy the exclusive AC adapter (SAC-81, DC 8.4V 1.5A), contact your nearest Samsung
dealer or Samsung service centre.
Connecting to a Power Source
ƃPlease ensure that you use the exclusive battery with the correct specification for the
camera. Failure to do may affect your warranty.
ƃWhen you disconnect the AC adapter or remove the battery, turn off the camera power
first. The data can be damaged.
CAUTION
Model SLB-1974
Type Lithium Ion
Voltage, Capacity 7.4V, 1900mAh
Charging time Approx. 180MIN (Using the SBC-L4)
ƈNumber of images and battery life
ſThese figures are measured under Samsung’s standard conditions and Shooting conditions
and may vary depending on the way of user’s usage.
Still image Movie
Battery life Number of images Recording time
Approx. 225MIN Approx. 450 Approx. 225MIN
Using the fully charged battery
Auto mode, 8M image size
Fine image quality,
Shot to shot interval : 30Sec.
Changing the zoom position
between the Wide and the Tele
ends every 1 shot.
Using the flash every two times.
Based on
the
following
shooting
conditions
Based on
the
following
shooting
conditions
Using the fully charged battery
640X480 image size
15fps frame rate
Before using the camera

ŝ16Ş
Using the battery : If the camera does not turn on after you have inserted battery,
please check whether the battery is inserted with the correct
polarity (+/-).
1. Turn the battery chamber lock in the direction
of the arrow (OPEN) and open the battery
chamber cover.
2. Insert the battery taking note of the polarity
(+/-).
3. Close the battery chamber cover and turn
the battery chamber lock in the direction of
the arrow (CLOSE).
Before using the camera

ŝ17Ş
Battery status
Battery indicator
The battery is
fully charged
Prepare new
battery
There is low battery capacity
(Warning indicator will display).
There is no battery capacity
(Red colour : Change the battery).
ƈThere are 4 indicators for battery condition that are displayed on the LCD monitor.
Removing the battery
1.
Turn off the camera. Turn the battery chamber lock in the direction
of the OPEN mark and open the battery chamber cover.
2. Move the battery holder aside and the battery
will be released.
3. Take out the battery and close the battery
chamber cover. Turn the battery chamber
lock in the direction of the CLOSE mark.
Important information about battery usage.
ƃWhen the camera is not used, turn off the camera power.
ƃPlease remove the battery if the camera will not be used for long periods.
The battery can lose power over time and are prone to leaking if kept inside the camera.
ƃLow temperatures (below 0°C) can affect the performance of the battery and you may
experience reduced battery life.
ƃThe battery will usually recover at normal temperatures.
ƃDuring extended use of the camera, the camera body may become warm.
This is perfectly normal.
ƃIf the battery has low capacity, the camera power will not be turned on.
In this case, change the battery with a new one.
INFORMATION
Before using the camera

ŝ18Ş

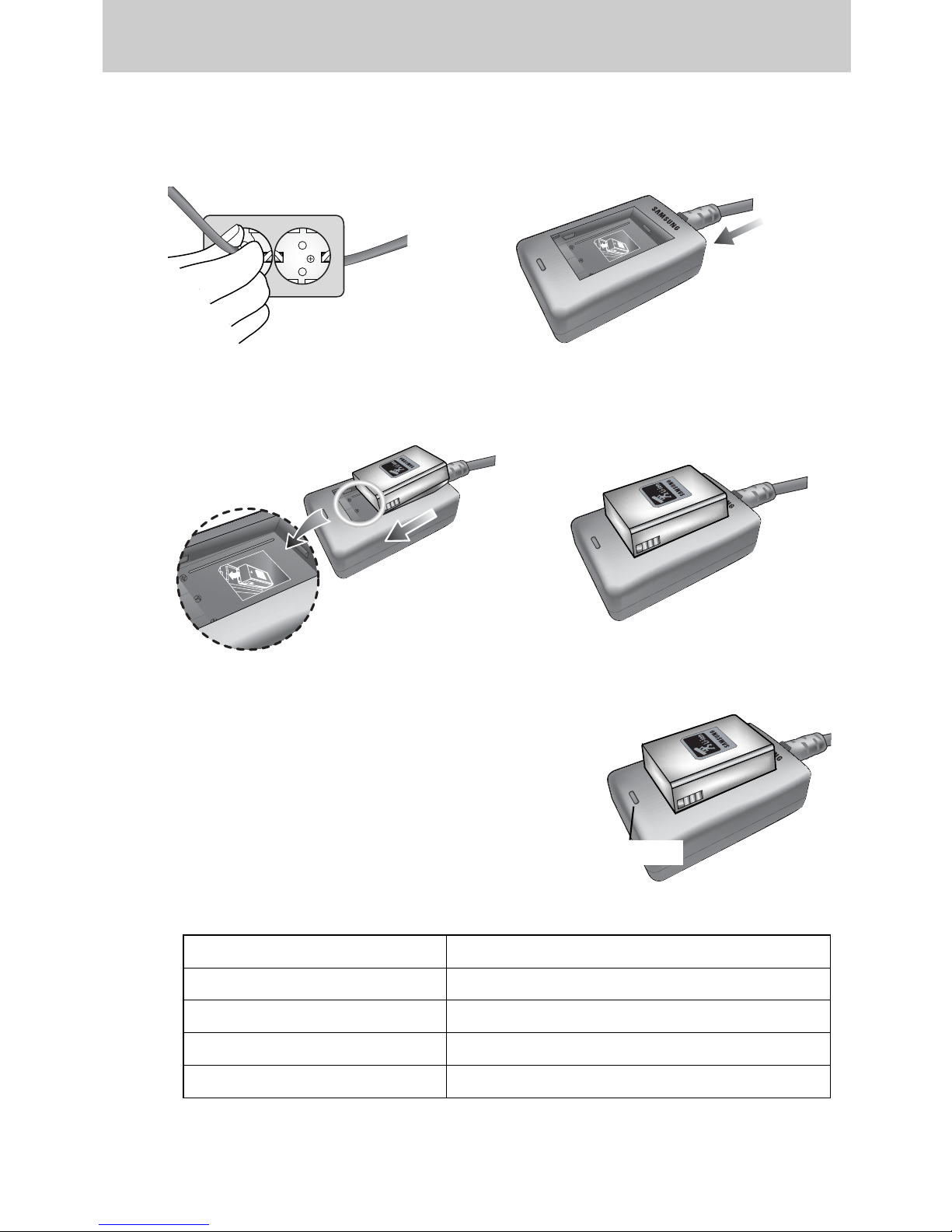

1. Plug the AC cord’s power plug into the wall outlet and insert the AC cord into the charger.
ſIf the charging LED doesn’t blink as red or blinks as
yellow, please check whether the battery is inserted
with the correct polarity (+/-).
ſCheck the battery charging status with the Charging
LED of the charger.
Status LED
Being charged Red LED is on
Charging is complete Green LED is on
Charging is paused Yellow LED is on
Charging error Yellow LED is blinking
Charging LED
ƈHow to charge the rechargeable battery
2. Place the battery in the charger as shown.
Before using the camera

ŝ19Ş
ƃAlways turn off the power before taking the AC adapter out of the mains supply.
ƃAs with all mains powered devices, safety is important. Ensure that neither the camera
nor adapter comes into contact with water or metallic materials.
ƃPlease ensure that you use an AC adapter (SAC-81, DC 8.4V) with the correct
specification for the camera. Failure to do so may affect your warranty.
DANGER

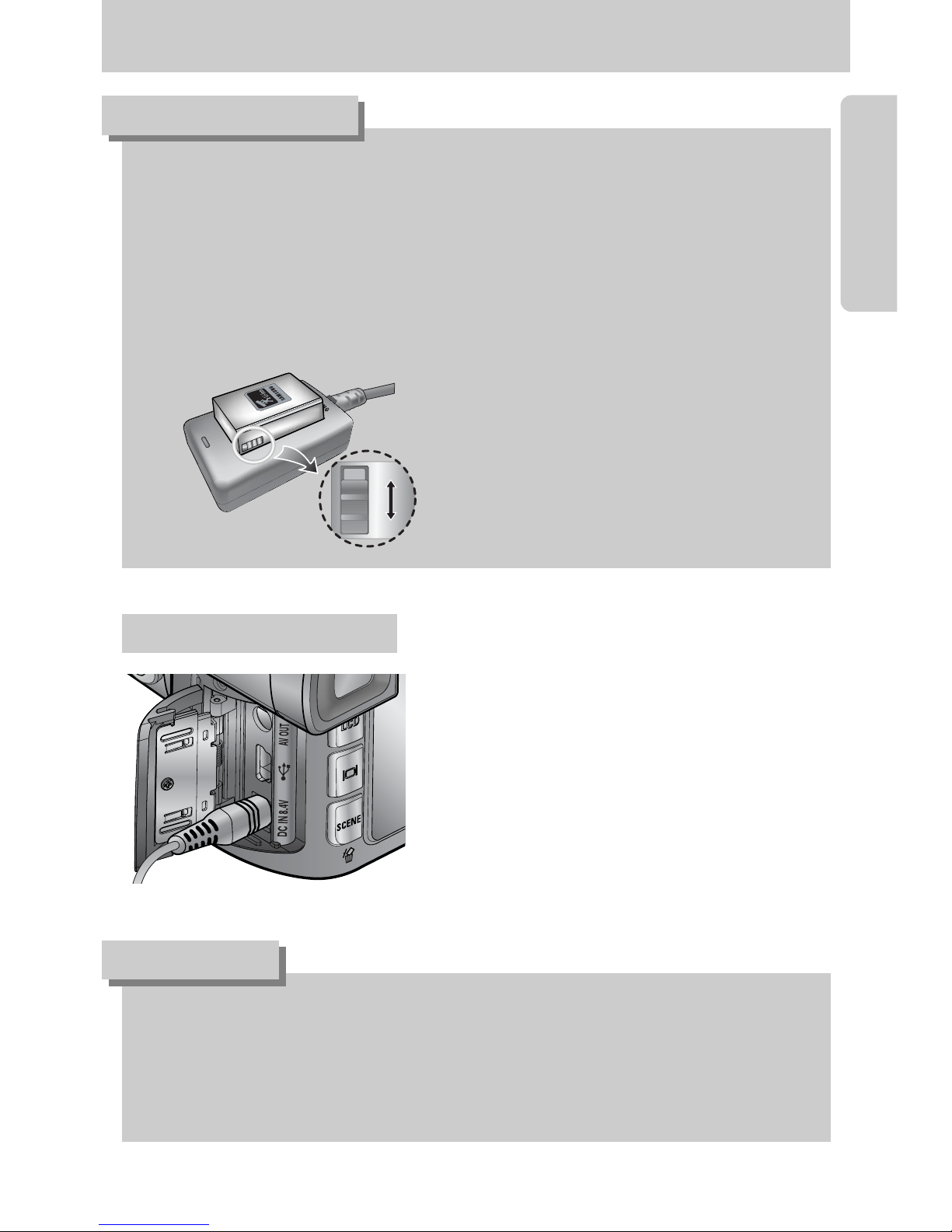

If you have access to a mains supply, using an AC
Adapter (SAC-81, DC 8.4V) allows the camera to
be used for long periods of time.
Remove the battery from the camera when using
an AC adapter. Plug the adapter into the DC-IN
port on the camera before using an AC adaptor.
AC adapter (SAC-81, DC 8.4V)
ƃThe proper operating temperature of the charger is 0°C ~ 40°C. When you charge the
battery under/over the proper operating temperature, the charger may not operate
(Yellow LED is on). Charging will restart at the operating temperature and this is not
camera malfunction.
ƃSamsung warrants the charger for a period of one year and the Lithium Ion battery for a
period of six months from the original date of purchase of the product.
ƃWear and tear on the lithium battery is not covered by the Samsung warranty.
If the battery duration shortens considerably, you should purchase a new battery.
ƃSlide the switch as you please to indicate
something like flash charging status.
This switch has yellow and black mark.
INFORMATION
Before using the camera

ŝ20Ş
ƃBe sure to format the memory card (see p.116) if you are using a newly purchased memory
for the first time, if it contains data that the camera cannot recognise, or if it contains images
captured with a different camera.
ƃTurn off the camera power whenever the memory card is being inserted or removed.
ƃRepeated use of the memory card will eventually reduce the memory card's performance.
Should this be the case, you will need to purchase a new memory card. Wear and tear on the
memory card is not covered by the Samsung warranty.
ƃThe memory card is an electronic precision device.
Do not bend, drop or subject the memory card to any heavy impact.
ƃDo not store the memory card in an environment with strong electronic or magnetic fields,
e.g. near loud speakers or TV receivers.
ƃPlease do not use or store in an environment where there are extremes in temperature.
ƃPlease keep the memory card in its case when not in use.
ƃDuring and after periods of extended use, you may notice that the memory card is warm.
This is perfectly normal.
ƃDo not use a memory card that is used in another digital camera.
To use the memory card in this camera, first format the memory card by using the camera.
ƃDo not use a memory card formatted by another digital camera or memory card reader.
ƃIf the memory card is subjected to any of the following, the recorded data may become
corrupted:
- When the memory card is used incorrectly.
-
If the power is switched off or the memory card is removed while recording, deleting/ formattting
or reading.
ƃSamsung cannot be held responsible for lost data.
ƃIt is advisable to copy important data onto other media as back-up e.g. floppy disks, hard
disks, CD etc.
ƃIf there is insufficient memory available
: A [Card Full!] message will appear and the camera will not operate. To optimise the amount
of memory in the camera, replace the memory card or delete unnecessary images stored
on the memory.
ƃIf you use a low writing speed memory card, the movie clip may be stopped while recording.
We recommend a high writing speed memory card (over 40X writing speed).
Instructions on how to use the memory card
Before using the camera
