CONTENTS
ⅠⅠ. SPECIFICATION
1. CAMERA SPECIFICATION ………………………………………………………………………………………4
2. SYSTEM REQUIREMENTS …………………………………………………………………………………… 7
3. TFT LCD PANEL MARK …………………………………………………………………………………………8
4. CONNECTION DIAGRAM ……………………………………………………………………………………… 11
5. IDENTIFICATION OF FEATURES ………………………………………………………………………………12
ⅡⅡ..
EXPLODED VIEW AND PARTS LIST
1. MAIN ASSEMBLY ……………………………………………………………………………………………… 14
2. BODY ASSEMBLY……………………………………………………………………………………………… 16
3. BARREL ASSEMBLY ………………………………………………………………………………………… 18
4. BARRIER ASSEMBLY ………………………………………………………………………………………… 22
5. STROBO ASSEMBLY…………………………………………………………………………………………… 24
6. FRONT COVER ASSEMBLY…………………………………………………………………………………… 26
7. REAR COVER ASSEMBLY …………………………………………………………………………………… 28
8. PACKING ITEM ………………………………………………………………………………………………… 30
ⅢⅢ. ADJUSTMENT
1. FIRMWARE……………………………………………………………………………………………………… 34
2. ADJUSTMENT ………………………………………………………………………………………………… 48
ⅣⅣ..
PATTERN DIAGRAM
1. PARTS ARRANGEMENT FOR EACH PCB ASS’Y
1) MAIN_TOP …………………………………………………………………………………………………… 116
2) MAIN_BOTTOM ……………………………………………………………………………………………… 117
3) MAIN_CCD …………………………………………………………………………………………………… 118
4) MAIN_MODE ………………………………………………………………………………………………… 119
5) STROBO ……………………………………………………………………………………………………… 120

3
ⅤⅤ..
CCIIRRCCUUIITT DDIIAAGGRRAAMM
1) MAIN ………………………………………………………………………………………………………… 121
2) MAIN_DDR …………………………………………………………………………………………………… 122
3) 3) MAIN_CCD(FEP) …………………………………………………………………………………………… 123
4) MAIN_I/O LCD ………………………………………………………………………………………………… 124
5) MAIN_KEY …………………………………………………………………………………………………… 125
6) MAIN_LENS(MOTOR) ………………………………………………………………………………………… 126
7) MAIN_POWER ………………………………………………………………………………………………… 127
8) MAIN_STROBO ……………………………………………………………………………………………… 128
9) CCD …………………………………………………………………………………………………………… 129
10) MODE ………………………………………………………………………………………………………… 130
11) STROBO ……………………………………………………………………………………………………… 131
ⅥⅥ..
SERVICE INFORMATION
…………………………………………………………………………………132

4
Ⅰ.SPECIFICATION
1. CAMERA SPECIFICATION
Image Sensor - Type : 1/1.8" CCD
- Effective Pixel : Approx.10.1 Mega-pixel
- Total Pixel : Approx. 10.3 Mega-pixel
Lens - Focal Length : SHD Lens f = 7.8~39mm (35mm film equivalent : 38~190mm)
- F No. : Wide : 2.8~7.4
Tele : 4.5~11.7
- Digital Zoom :·Still Image mode : 1.0X ~ 5.0X
·Play mode : 1.0X ~ 14.3X (depends on image size)
LCD Monitor - 3.0" color TFT LCD (230,000 dots)
Focusing - Type : TTL auto focus (Multi AF, Center AF, Face Recognition AF)
- Range
Shutter - Shutter Speed : 1 ~ 1/2,000sec. (Manual : 16 ~ 1/2,000 sec.)
Exposure - Control : Program AE
- Metering : Multi, Spot, Center weighted, Face Recognition
- Compensation : ±2EV (1/3EV steps)
- ISO Equivalent : Auto, 80, 100, 200, 400, 800, 1600
Flash - Modes : Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off
- Range : Wide : 0.2m ~ 3.0m, Tele : 0.4m ~ 2.5m (ISO AUTO)
- Recharging Time : Approx. 5 sec.
Sharpness - Soft+, Soft, Normal, Vivid, Vivid+
Color Effect - Normal, B&W, Sepia, Red, Green, Blue, Negative, User Set
White Balance - Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom
Voice Recording - Voice Recording (max.10 hour)
- Voice Memo in Still Image (max. 10 sec.)
Date Imprinting - Date, Date & Time, Off (user selectable)
Wide Tele
Normal 80cm ~ Infinity 1.5m ~ Infinity
Macro 10cm ~ 80cm 50cm ~ 1.5m
Auto Macro 1cm~10cm (Wide Only)
Super Macro 10cm ~ Infinity 50cm ~ Infinity
Manual Focus 1cm ~ Infinity 50cm ~ Infinity

5
Ⅰ.SPECIFICATION
Shooting - Still Image :
·Modes : Auto, Program, A, S, M, ASR, Scene
·Scene : Night, Portrait, Children, Landscape, Close-up, Text, Sunset, Dawn, Backlight,
Fireworks, Beach & Snow
·Shooting : Single, Continuous, AEB, Wise Shot, Motion capture
·Self-timer : 2 sec.,10 sec., Double (10 sec., 2 sec.)
- Movie Clip :
·With Audio or without Audio (user selectable, recording time : memory capacity dependent)
※The maximum file size of continuous movie clip is 2GB.
·Size : 800X592, 720X480, 640X480, 320X240
※30 FPS cannot be used in 800x592 size.
·Frame rate : 30 fps, 20fps,15 fps
·Optical zoom: Max. 5X
·Movie Stabilizer
·Movie Editing (Embedded): Pause during recording, Still Image Capture, Time Trimming
Storage - Media :
·Internal memory : Approx.48MB flash memory
·External memory : SDHC / MMC / SD card (Up to 4GB Guaranteed)
- File Format :
·Still Image : JPEG (DCF), EXIF 2.2, DPOF 1.1, PictBridge 1.0
·Movie Clip : AVI (MJPEG)
·Audio : WAV
- Image Size
- Capacity (256 MB MMC)
※These figures are measured under Samsung’s standard conditions and may vary depending
on shooting conditions and camera settings.
3072x23043648x2432 2048x1536 1024x7682592x1944
3648x20523648x2736
48 53 67 67 95 142 459
94 104 128 128 183 269 744
109 151 197 197 269 363 868

6
Ⅰ.SPECIFICATION
““E””
Button - Effect : Color, Image Adjust, Fun (Highlight, Composite, Photo Frame)
- Editing : Resize, Rotate, Color, Special Color, Image Adjust (Red eye fix, Brightness, Contrast,
Saturation, Add Noise), Fun (Cartoon, Highlight, Composite, Photo Frame, Sticker)
Image Play - Single image, Thumbnails, Slide show, Movie Clip
Interface - Digital output connector : USB 2.0 High Speed
- Audio : Mono
- Video output : NTSC, PAL (user selectable)
Power Source - Primary Battery : 2 x AA Alkaline
- Rechargeable battery (0ptional) : SNB-2512B KIT
(2 x AA 2500mAh Ni-MH Battery & Charger)
※Included battery may vary depending on sales region.
Dimensions (WxHxD)
- 104.5 x 64.2 x 25.5mm (excluding protrusions)
Weight - Approx. 205g (without batteries and card)
Operating Temperature
- 0 ~ 40°C
Operating Humidity
- 5 ~ 85%
Software - Digimax Master, Adobe Reader

7
Ⅰ.SPECIFICATION
For Windows For Macintosh
2. System Requirements
PC with processor better than Pentium II 450MHz
(Pentium 700MHz recommended)
Minimum 64MB RAM
200MB of available hard disk space
Windows 98SE/2000/ME/XP/Vista
USB port
CD-ROM drive
1024x768 pixels, 16bit color display compatible
monitor (24bit color display recommended)
MicroSoft DirectX 9.0C
Power Mac G3 or later
Mac OS 9.2 ~ 10.3
Minimum 64MB RAM
110MB of available hard-disk space
USB port
CD-ROM drive

3. LCD monitor indicator
8
Ⅰ.SPECIFICATION
■Recording mode
[Image & Full Status]
②
③
④
⑤
⑥
⑦
⑧
⑨ ⑩ ⑪
①   ⑳
⑫
⑬
⑭
⑮
⑯
⑰
⑱
⑲

No. Description Icons
2Aperture Value/ Shutter Speed F2.8, 1/30
3Face Recognition
4Flash
5 Self-timer
6Macro
7 Contrast
8 Sharpness
9 Auto focus frame
10 Camera shake warning
11 Date/ Time 2007/02/01 01:00 PM
12 Exposure compensation
13 White Balance
14 ISO
15 Continuous shot
16 Metering
17 Image quality
19 Battery
20 Optical/ Digital Zoom bar/ Digital Zoom rate
21 Voice memo/ Without Sound
Number of available shots remaining 6
Movie / Voice recording time 00:00:00
23 Card inserted indicator
9
Ⅰ.SPECIFICATION
Recording mode
1
18 Image size
22

No. Description Icon
1 Play mode icon
2 Voice Memo
3 Protect
4 DPOF
5Recording date 2007/02/01
6 Image size 3648X2736 ~ 256X192
7 Flash ON/OFF
8Shutter speed 16 ~ 1/2000
9Aperture value F2.8 ~ 11.7
10 ISO 80 ~ 1600
11 Battery
12 Folder name & File name 100-0031
13 Memory card indicator
10
Ⅰ.SPECIFICATION
■Play mode
ISO
AV
TV
FLASH
SIZE
DATE
80
F2.8
1/250
OFF
3648X2736
2007/02/01
②
①
③
④⑩
⑪
⑫⑬
⑨
⑧
⑥
⑤
⑦

11
Ⅰ.SPECIFICATION
44..
CCOONNNNEECCTTIIOONN DDIIAAGGRRAAMM
TV Monitor
IBM / MAC
Lap top
Card Reader
SD Card
AC Adaptor
USB Cable
AV Cable

12
Ⅰ.SPECIFICATION
5. IDENTIFICATION OF FEATURES
Front & Top
Back & Bottom
Shutter button
Lens/ Lens cover
Modedial
Power button
Self-timer lamp /
Auto focus lamp
Microphone
Flash
Speaker
DC input connection port
USB / AV connection terminal
LCD monitor
Tripod socket
E (Effects) button
Strap eyelet
5 function button
Play mode / Printer button
Zoom T button
(Digital zoom)
Zoom W button
(Thumbnail)
Camera status lamp
FR(Face Recognition)
button
+ / - button, Delete button

13
Ⅰ.SPECIFICATION
Bottom
5-function button
Battery chamber
Battery chamber cover
Memory card slot
Voice memo/ Voice Recording/ Up button
Flash/
Left button
Menu/ OK button
Self-timer/
Right button
Macro/ Down button
Play & Pause button

Ⅱ.EXPLODEDVIEWANDPARTLIST
14
1-1
1-3
1-6
1-2
1-4
1-4
1-5

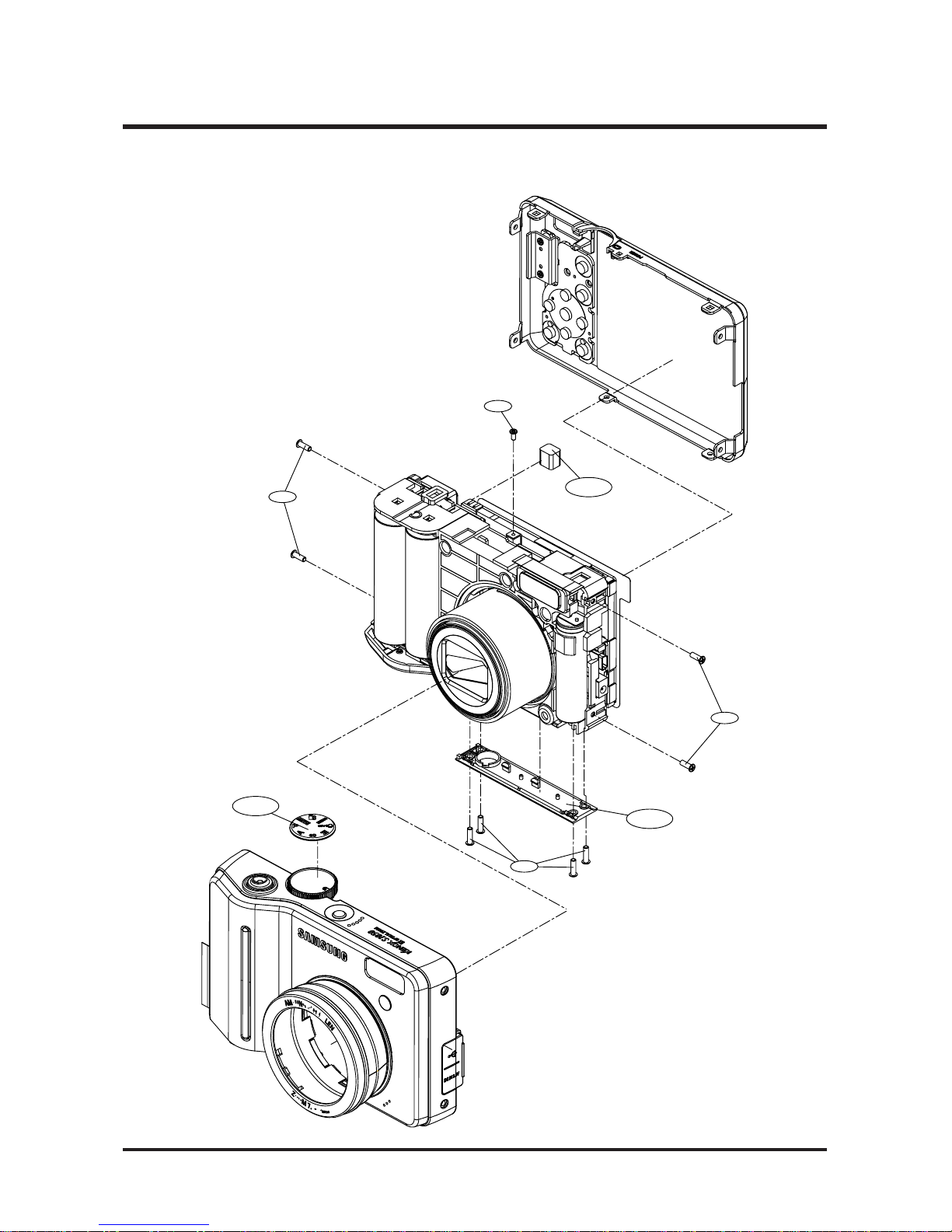

1. MAIN ASSEMBLY

15
Ⅱ.EXPLODEDVIEWANDPARTLIST
1-1 Q7409279801A PCB SHIELD FORM 1 O
1-2 Q6001016501A SCREW 1 X
1-3 Q7217398301A BOTTOM DECO 1 O
1-4 Q6003002402A SCREW 4 X
1-5 Q6003002702A SCREW 4 X
1-6 Q7104002401A MODE DIAL DECO 1 O
▶
PARTS LIST
Fig.No Parts No. Parts Name Q’ty Supply Available Parts Remarks

16
Ⅱ.EXPLODEDVIEWANDPARTLIST
2-1
2-2
2-3
2-5
2-6
2-7
2-9
2-10
2-12
2-18
2-19
2-24
2-28
2-20
2-21
2-23
2-26
2-27
2-30
2-30
2-1
2-25
2-31
2-8
2-8
2-4
2-31
2-11
2-13
2-31
2-13
2-17
2-15
2-14
2-16
2-13
2-31
2. BODY ASSEMBLY

17
Ⅱ.EXPLODEDVIEWANDPARTLIST
2-1 Q7211088602A BATTERY CHAMBER 1 O
2-2 Q7011055603A BATTERY CONTACT(S2_5363) 2 O
2-3 Q7003000402A TRIPOD CONNECTOR 1 O
2-4 Q9761173012 SCREW 1 X
Q9007278601A BATTERY COVER ASSY 1 O BLACK
2-5 Q9007278601B BATTERY COVER ASSY 1 O SILVER
Q9007278601C BATTERY COVER ASSY 1 O PATTEN SILVER
2-6 Q6107074501A BATTERY HINGE SPRING_S3_73 1 O
2-7 Q7004002701A BATTERY HINGE 1 O
2-8 Q6003018501A SCREW 5 X
2-9 Q7011060301A USB PLATE 1 O
2-10 Q7211088502A BACK KEY ACTUATOR 1 O
2-11 Q0961900301A SCREW 2 X
2-12 Q9008115501A MAIN PCB ASSY 1 O
2-13 Q9761174007 SCREW 6 X
2-14 Q7217399101A ZOOM LEVER HOLDER 1 X
2-15 Q7217399001A ZOOM LEVER 1 X
2-16 Q7309051401A ZOOM RUBBER 1 X
2-17 Q9761175007 SCREW 2 X
2-18 Q7004002601A ZOOM LEVER HINGE 1 X
2-19 Q7011060001A LCD FRAME 1 O
2-20 Q0704013701A LCD 1 O
2-21 Q7409267901A LCD WINDOW CUSHION 1 O
2-22 Q7409267601A LCD TAPE 1 X
2-23 Q3003001201A MIC 1 O
2-24 Q9007278701A ZOOM LEVER ASSY 1 O BLACK
Q9007278701B ZOOM LEVER ASSY 1 O SILVER
2-25 Q9002159801A BARREL ASSY 1 O BLACK
Q9002169101A BARREL ASSY 1 O SILVER
2-26 Q2904004101A IR CUT FILTER 1 O
2-27 Q7309051202A OLPF CUSHION 1 O
2-28 Q9008116101A CCD FPCB ASS'Y SMD 1 O
2-29 Q7012094301A CCD PLATE 1 O
2-30 Q0604007101A CCD 1 X
2-31 Q0961900301A SCREW 3 X
▶▶
PARTS LIST
Fig.No Parts No. Parts Name Q’ty Supply Available Parts Remarks

18
Ⅱ.EXPLODEDVIEWANDPARTLIST
3-17
3-16
3-15
3-13
3-12
3-11
3-10
3-9
3-8
3-7 3-14 3-13
3-19
3-20
3-21
3-22 3-23 3-25
3-26
3-29
3-30
3-31 3-32
3-33 3-34
3-35
3-36
3-38
3-33
3-39
3-40
3-4
3-2
3-6
3-1
3-43
3-28
3-42
3-24
3-5
3-44
3-41
3-3
3-27
3. BARREL ASSEMBLY

19
Ⅱ.EXPLODEDVIEWANDPARTLIST
▶
PARTS LIST
3-1 Q9002145901A AF MOTOR ASS'Y 1X
3-2 Q4101039101A MAIN_F-PCB 1 X
3-3 Q0608001301A PHOTO INTERRUPTER SHARP 1 X
3-4 Q9002159601A MAIN_F-PCB_ASSY 1 O
3-5 Q0608001001A PHOTO INTERRUPTER 1 X
3-6 Q9002159801A BARREL_ASSY 1 X
3-7 Q0961900301A SCREW 1 X
3-8 Q7212192602A AF GUIDE HOLDER 1 O
3-9 Q7012080802A AF CLIP HOLDER 1 O
3-10 Q7012080702A AF CLIP 1 O
3-11 Q9002143201A 4TH BARREL ASS'Y 1O
3-12 Q6107066401A 4TH LENS SPRING 1 O
3-13 Q7411121802A AF GUIDE BAR - A 1 O
3-14 Q7411121901A AF GUIDE BAR - B 1 O
3-15 Q9002158801A ZOOM_GEAR_ASSY 1 O
3-16 Q7212201402A LENS_BASE 1 O
3-17 Q0961900301A SCREW 4 X
3-18 Q0961900301A SCREW 1 X
3-19 Q0994913101A SCREW 1 X
3-20 Q0961900301A SCREW 3 X
Fig.No Parts No. Parts Name Q’ty Supply Available Parts Remarks

20
Ⅱ.EXPLODEDVIEWANDPARTLIST
▶
PARTS LIST
3-21 Q7409208602B 1ST SHIELD 1 X
3-22 Q9002142901A 1ST BARREL ASS'Y 1X
3-23 Q7212192101A SLIP RING 1 X
3-24 Q7012094101A CAM_DECO_RING 1 X
3-25 Q7212197502A ZOOM_RING 1 X
3-26 Q7411110404A 1ST MOVE PIN 3 X
3-27 Q7212197401A CAM BARREL 1 X
3-28 Q9002160001A OUTER_GUIDE_BARREL_ASSY 1 O
3-29 Q7212191504B OUTER_CAM_BARREL 1 O
3-30 Q7409208702B 2ND SHIELD 1 X
3-31 Q9002143001A 2ND BARREL ASS'Y 1X
3-32 Q7212192005A 2ND MOVE BARREL 1 X
3-33 Q7411121704A 2ND MOVE PIN 3 X
Fig.No Parts No. Parts Name Q’ty Supply Available Parts Remarks
